Product Overview

Description

CO2 Controller with Temperature and Humidity Display with Relay Function NDIR Sensor Cable, CO2 Controller WiFi for Greenhouse

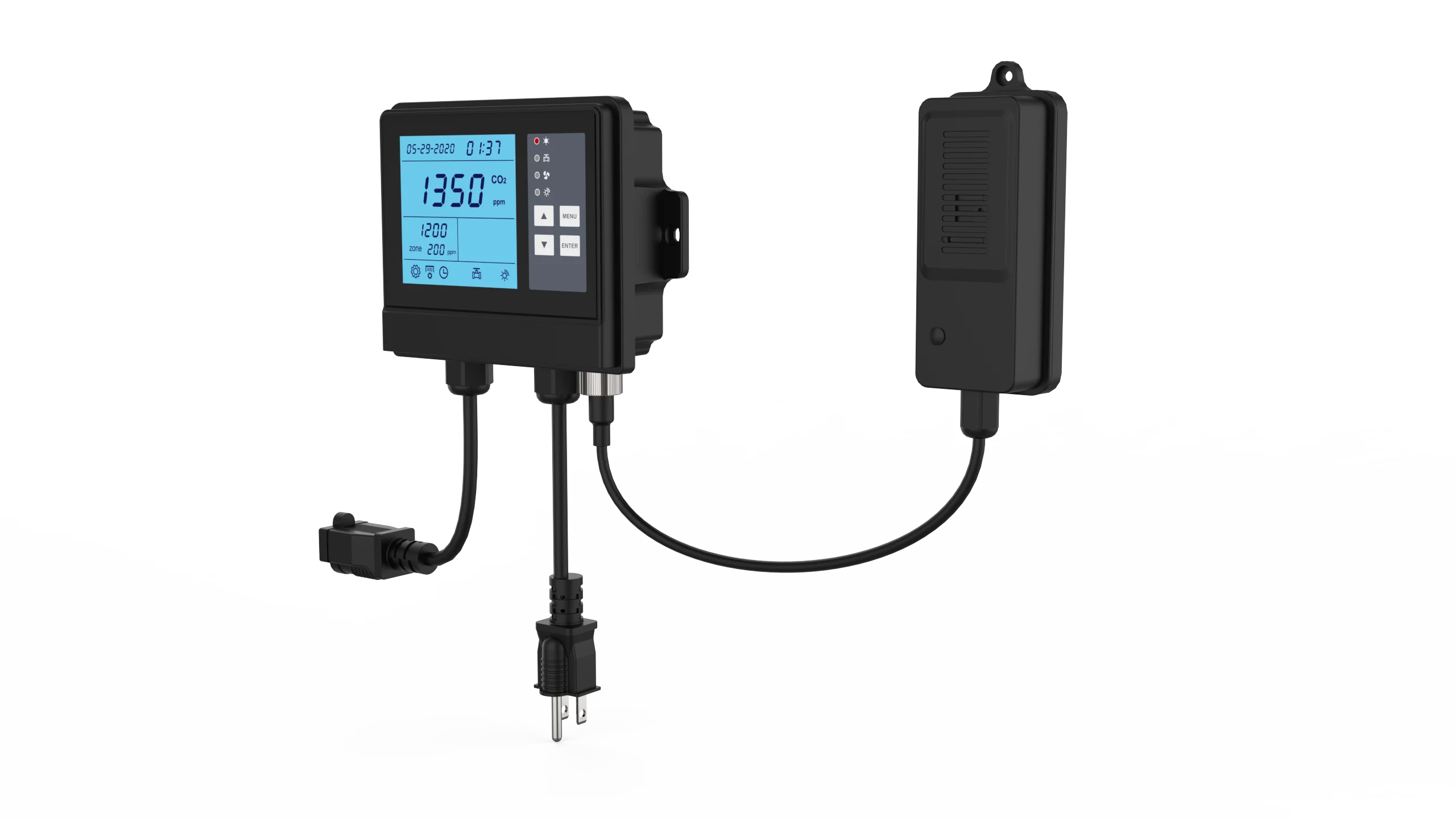

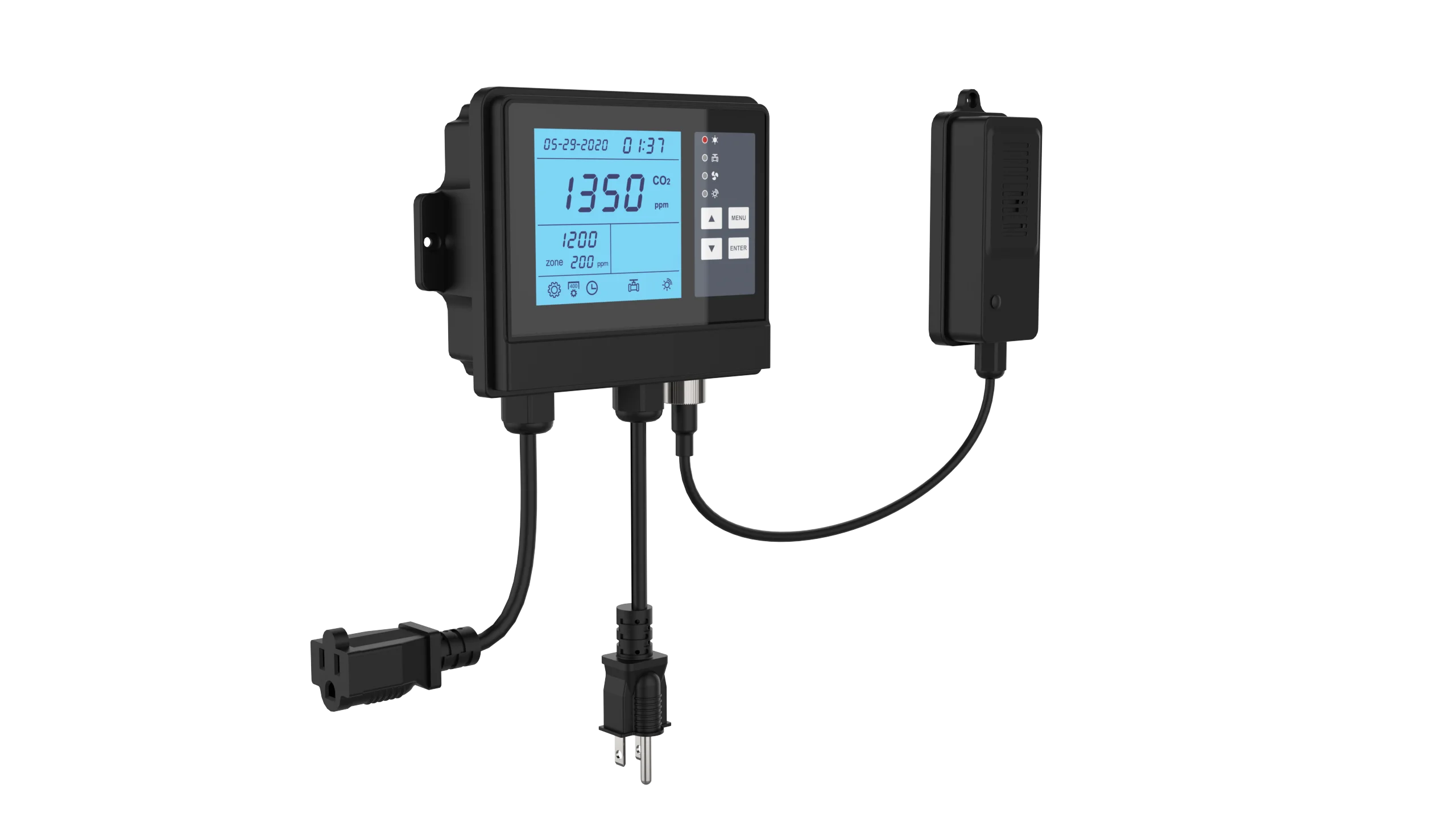

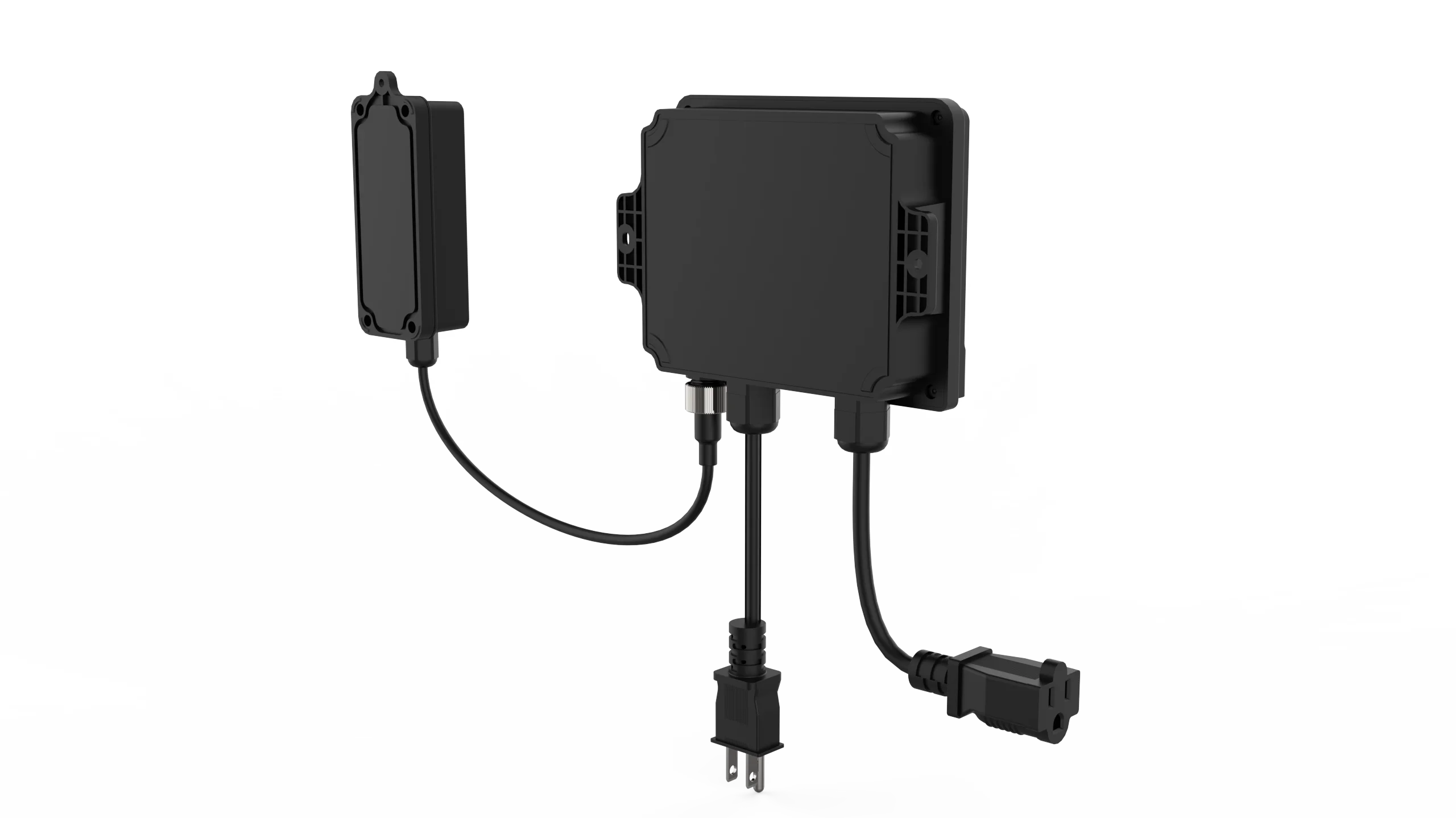

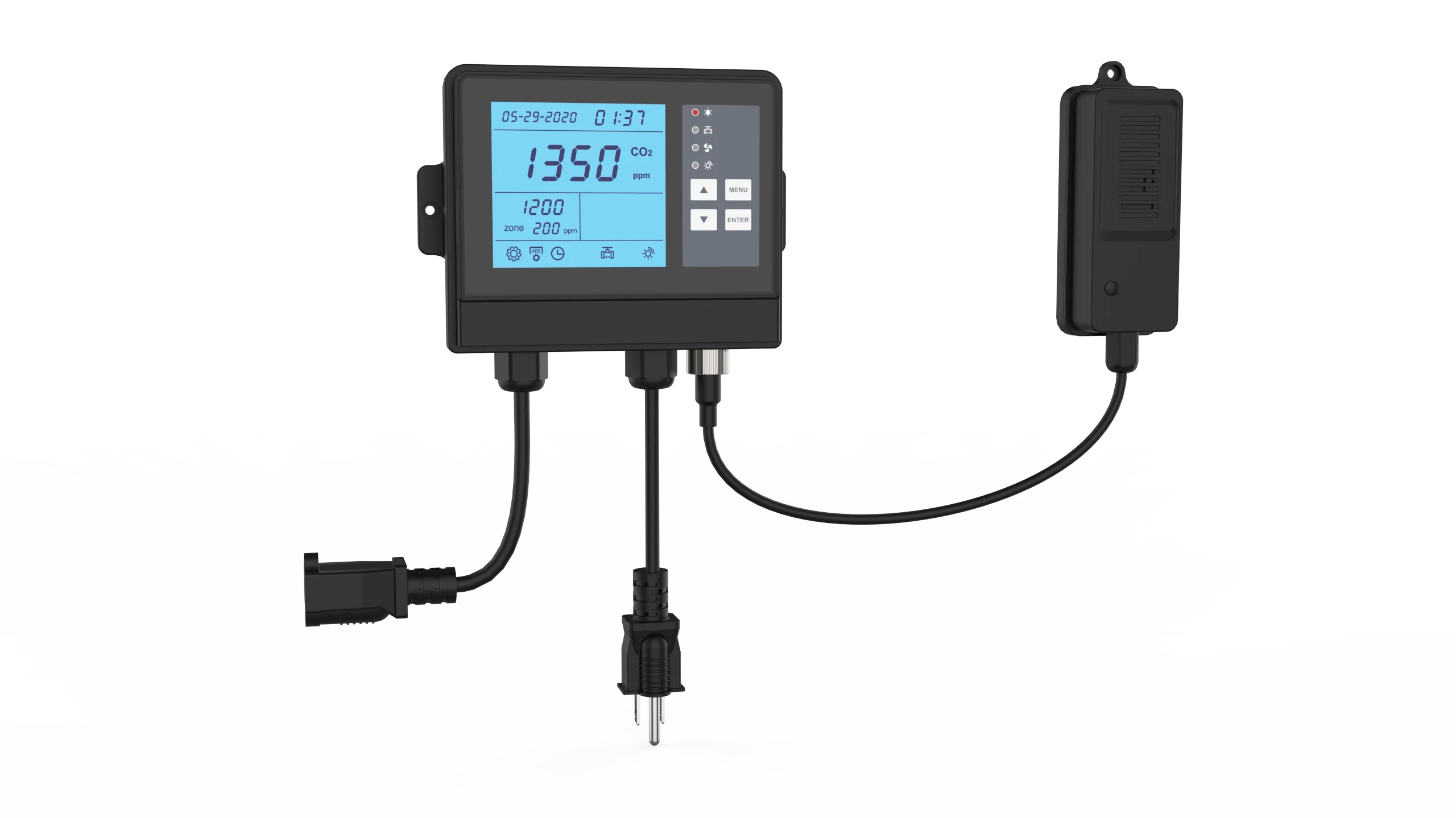

Product introduction

This product SA1600PRO is an ideal CO2 controller for fan or valve.

The CO2 controller lets you set high and low target CO2 levels.

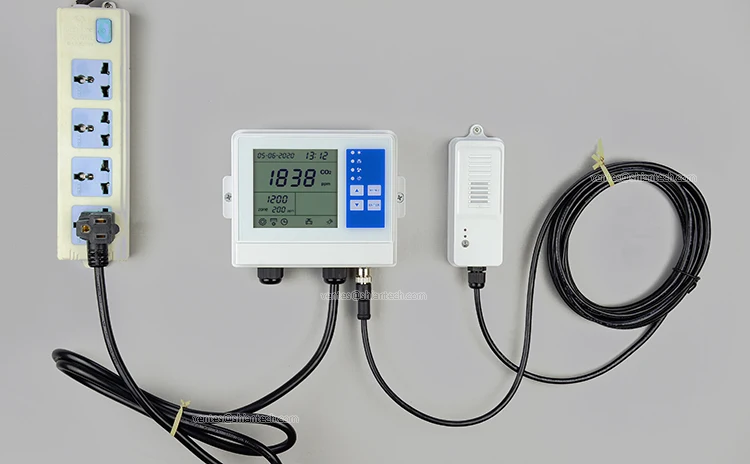

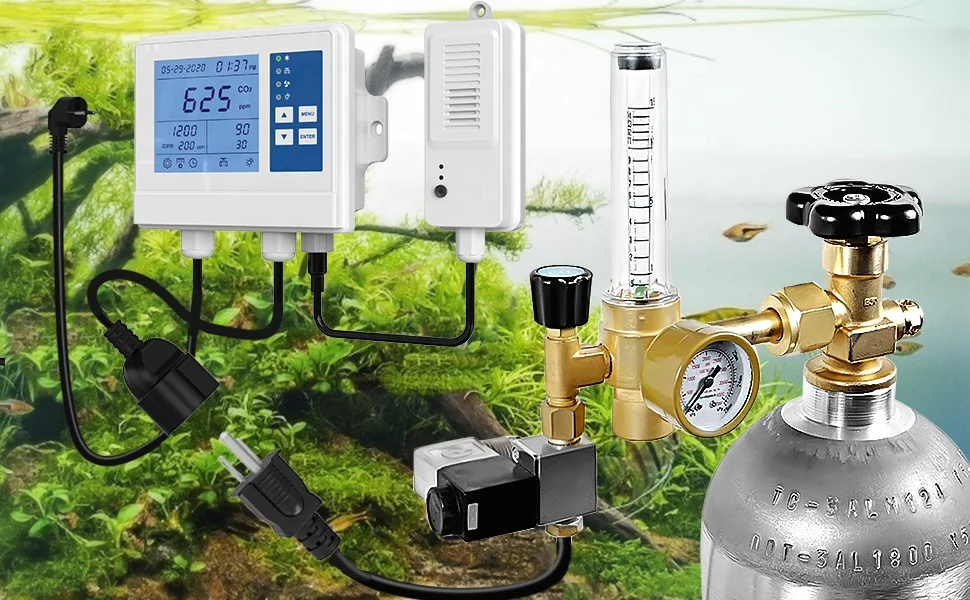

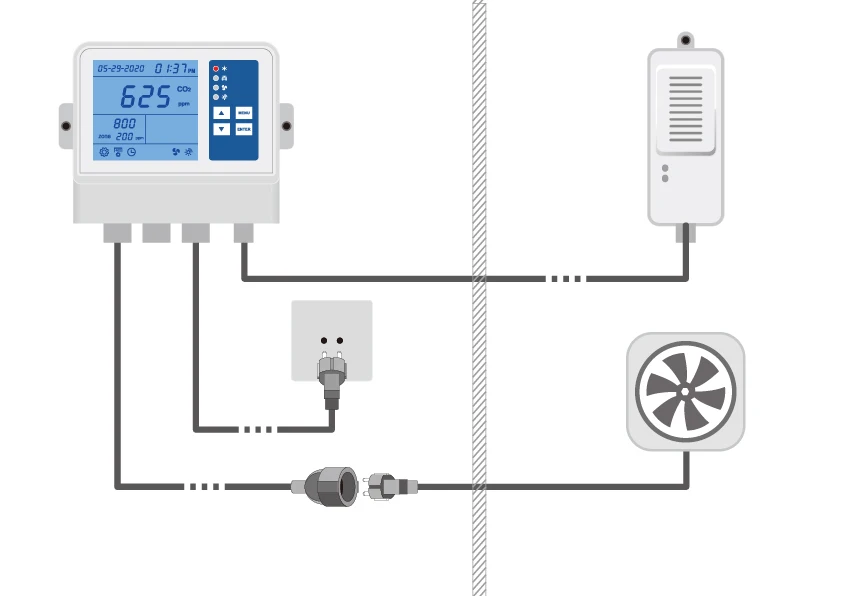

The CO2 Monitor & Controller is easy to install and use. Simply mount the unit inside your grow room, (all cables and hardware included), plug it into a standard wall jack, plug in your CO2 generator or regulator and it is ready to maximize your plant growing yields.

Main Features

• Accurate 2-Channel low drift NDIR CO2 measuring


• Programmable CO2 zone value & CO2 center value to control output power on/off

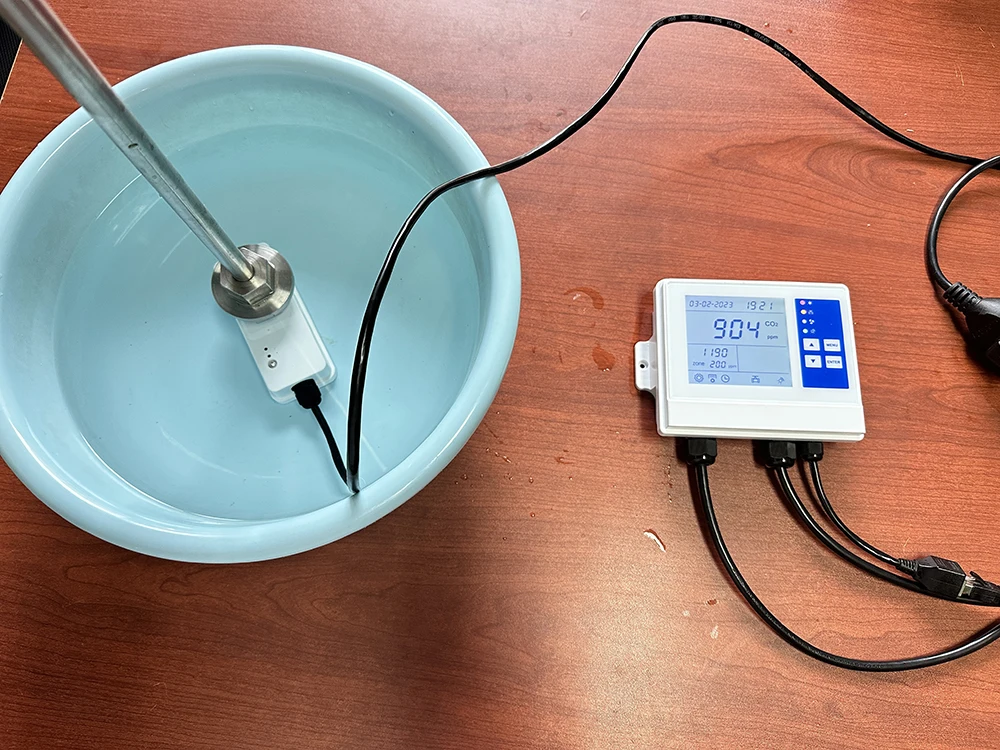

• External CO2 sensor to be used in closed space


• Display real time CO2 value


• Audible alarm warns CO2 concentration


• Target zone indicator


• Built-in Photocell Day/Night auto detection to override CO2 control


• Monitoring & Controlling CO2 value in Green house, residential and commercial building


• CO2 concentration alarms

Applications

The CO2 controller can be used in greenhouses, grow rooms, hydroponics rooms and other places where elevated carbon dioxide levels are used to maximize plant growth.



Specifications

co2 controller/regulator/monitor for mushroom farm, grow room, grow tent 0-5000 ppm

Measurement	Specifications
Operating Temperature	32℉~122℉ (0℃~50℃)
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Operating & storage RH	0-95%(non-condensing)
CO2 Sensor
Measuringe range	(0-10000)ppm
Display resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Accuracy	± 50ppm or ± 3% of reading (take the Maximum)
Repeatability	20ppm at 400ppm
Response time
Warm-up time	<20 seconds
Temperature Measurement
Operating temperature	32°F ~ 195°F (0°C ~90°C)
Display resolution	0.1°F (0.1°C)
Response time	<20 minutes (63%)
RH Measurement
Measuring range	5~95%
Accuracy	±5%
Display resolution	1% Main interface display, 0.1% Max/Min display
Power consumption	230VAC, 220VAC, 24VAC
Dimension	120*90*25mm/ 55mm
Weight	1500g



OEM & ODM

We're looking for distributors all over the world, Price Liberally.
Rebate. (If the total amount is up to 500 sets/year, we will send several extra devices for free.)
OEM. (Can print company name on the back label of device. Print company logo on the front look of device, if the quantity is big.)
Change the color of device.
Change other accessories, if need.
