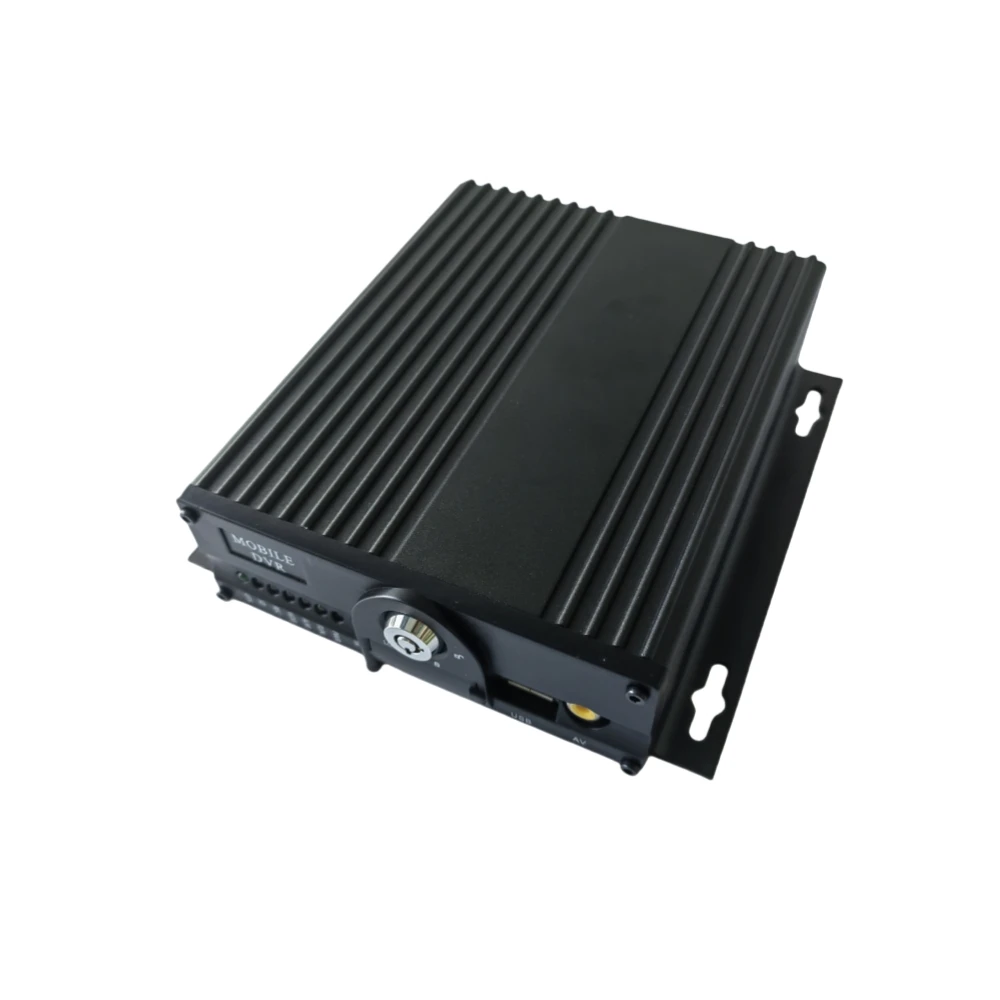

6 Channel SD Card Mobile DVR Vehicle Video Recorder H.265 MDVR with GPS
- Category: >>>
- Supplier: Shenzhen Tianyou Security Technology Co. Ltd.
Share on (1601273211939):
Product Overview
Description
Product Description
1.Product overview
H. 264/H.265 Car Video Recorder is a car specific high-definition dual SD card recorder that supports 6-channel 1080P/960P/720P/D1 mode audio and video recording and playback simultaneously, and comes with network functionality. The product adopts a dual core high-speed processor, built-in Linux embedded operating system, and combines the most advanced H.264/H.265 video encoding and decoding, 3G/4G network, positioning, WiFi and other technologies in the IT field. Integrating power-off protection technology and vehicle wide voltage design, it can be widely used for on-board monitoring of buses, logistics vehicles, school buses, police cars, financial escort vehicles, oil transport vehicles, and other vehicles.
H. 264/H.265 Car Video Recorder is a car specific high-definition dual SD card recorder that supports 6-channel 1080P/960P/720P/D1 mode audio and video recording and playback simultaneously, and comes with network functionality. The product adopts a dual core high-speed processor, built-in Linux embedded operating system, and combines the most advanced H.264/H.265 video encoding and decoding, 3G/4G network, positioning, WiFi and other technologies in the IT field. Integrating power-off protection technology and vehicle wide voltage design, it can be widely used for on-board monitoring of buses, logistics vehicles, school buses, police cars, financial escort vehicles, oil transport vehicles, and other vehicles.
Product characteristics：
1.Supports H.264/H.265 image compression encoding, 6 channels @ 1080P PAL, 1* 20fps@1080P PAL
6 channels @ 1080P NTSC, 1* 25fps@1080P NTSC (1080P single frame per hour 0.3MB super compression space)
2.Supports 6 channels of 1080P/960P/720P/D1 mode audio and video input, with a maximum of 6 channels (1080P/720P/D1) for simultaneous recording of audio and video
3.Support setting mirror image. Flip image, mirror flip image
4.Supports WiFi mapping function (note: optional WiFi host)
5.The reverse screen supports built-in reverse marking lines (channels can be freely selected)
6.Adopting aviation head video interface, high reliability and strong earthquake resistance effect
7.Built in 3G/4G network, GPS, WiFi module (optional 2.4GHz antenna WiFi, suitable for high-definition video download, fast speed)
8.Support JT808/JT809/JT1076/JT1078 protocols
9.Adopting patented power-off protection technology similar to UPS, it can still work for 3-8 seconds even when the external power is cut off, preventing accidental damage to video files (customized)
10.Supports 2 built-in SD cards with a maximum capacity of 512GB.
11.Support timed capture function
12.Good scalability, comes with 1 RS485 interface (optional), default 1 RS232 interface 232 serial port can be connected to third-party devices such as fuel level, temperature and humidity, driver identity recognition, OBD, etc
13.8V-36V wide voltage DC power supply, supporting stable output power supply in the range of 11V-12V
14.Supports hard disk heating technology and can operate at -40 ℃ -+70 ℃
1.Supports H.264/H.265 image compression encoding, 6 channels @ 1080P PAL, 1* 20fps@1080P PAL
6 channels @ 1080P NTSC, 1* 25fps@1080P NTSC (1080P single frame per hour 0.3MB super compression space)
2.Supports 6 channels of 1080P/960P/720P/D1 mode audio and video input, with a maximum of 6 channels (1080P/720P/D1) for simultaneous recording of audio and video
3.Support setting mirror image. Flip image, mirror flip image
4.Supports WiFi mapping function (note: optional WiFi host)
5.The reverse screen supports built-in reverse marking lines (channels can be freely selected)
6.Adopting aviation head video interface, high reliability and strong earthquake resistance effect
7.Built in 3G/4G network, GPS, WiFi module (optional 2.4GHz antenna WiFi, suitable for high-definition video download, fast speed)
8.Support JT808/JT809/JT1076/JT1078 protocols
9.Adopting patented power-off protection technology similar to UPS, it can still work for 3-8 seconds even when the external power is cut off, preventing accidental damage to video files (customized)
10.Supports 2 built-in SD cards with a maximum capacity of 512GB.
11.Support timed capture function
12.Good scalability, comes with 1 RS485 interface (optional), default 1 RS232 interface 232 serial port can be connected to third-party devices such as fuel level, temperature and humidity, driver identity recognition, OBD, etc
13.8V-36V wide voltage DC power supply, supporting stable output power supply in the range of 11V-12V
14.Supports hard disk heating technology and can operate at -40 ℃ -+70 ℃

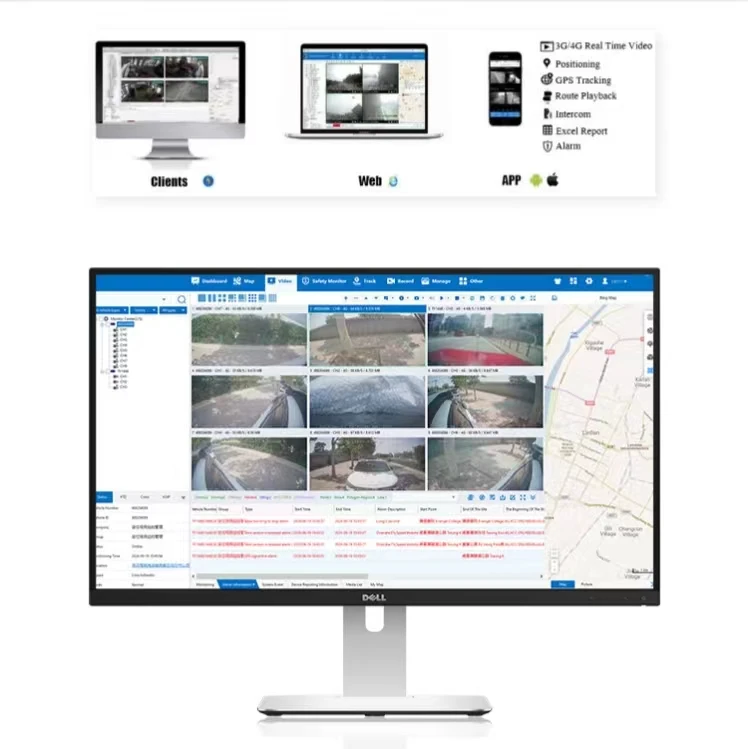

Free CMSV6 software
Special project | Equipment parameters | Performance pointer of hard disk car mounted device | |||
system | Operating language | Chinese/English/Russian (default voice), others can be customized | |||
Operation interface | Graphic menu operation interface (OSD menu) | ||||
Password security | Two level management of user password and administrator password (default password: 111111) | ||||
video | Video input | A:Support 6-channel CIF/HD1/D1/960H/720P/1080P AHD cameras, self identifying input signals | |||
Video output | 3 video outputs (including aviation connector with 20PIN connector, VGA output, HDMI high-definition output) | ||||
video display | Support 1-6 screen display (self selected preview mode) | ||||
Video standards | PAL、NTSC | ||||
Image compression | H.264-H.265 Main profile， PAL：frames 1080P/s、NTSC：160 frames 1080P/s | ||||
audio | Audio input | 6-channel audio input | |||
Audio output | 1 audio output | ||||
Recording method | Synchronized recording of sound and video | ||||
Image processing and storage | Image format | CIF/HD1/D1/960H/720P/1080P Optional | |||
Video streaming standards | ISO14496-10 | ||||
Video bitrate | CIF: 1536Kbps ~ 128Kbps | ||||
HD1/D1: 2048Kbps ~ 400Kbps | |||||
960H: 2048Kbps ~ 400Kbps | |||||
720P: 4096Kbps ~ 400Kbps | |||||
1080P:2048Kbps ~ 8192Kbps | |||||
Level 8 image quality is optional, with Level 1 having the highest image quality and Level 8 having the lowest | |||||
Audio bitrate | 40Kbps | ||||
data storage | Maximum 2 512GB capacity SD cards | ||||
alarm | Operating language | 4 alarm inputs, configurable for low-level alarms below 1V or high-level alarms above 5V | |||
Operation interface | 1 alarm output, output high level 12V | ||||
communication interface | RS485 interface | Supports 1 RS485 interface (optional) | |||
RS232 interface | Supports 1 RS232 interface (default) | ||||
RJ45 interface | Customization: 1, can be connected to an external wired network (aviation head to RJ45) | ||||
USB interface | USB for software upgrade Copy USB video files USB mouse operation | ||||
wireless communication | Support 3G frequency band | Built in 3G communication module (HSUPA/HSDPA/WCDMA/EVDO/TD-CDMA) optional | |||
Support 4G frequency band | Built in 4G communication module (FDD-LTE/TDD-LTE) optional | ||||
WiFi | Built in WiFi module (optional 2.4GHz) | ||||
GPS | Built in GPS/BD/GLONASS module, geographic coordinates, speed, etc. can be written into encoded streams, and can also be wirelessly uploaded | ||||
sensor | Built in acceleration sensor G-Sensor | ||||
software kit | PC playback analysis | Replay video files on PC and analyze vehicle information in the files simultaneously | |||
CMSV6 management software | Realize video preview, GPS upload, alarm upload, central command issuance, parameter configuration and other functions through wireless network | ||||
Software upgrade | This machine supports SD card/USB interface and remote CMSV6 platform upgrade | ||||

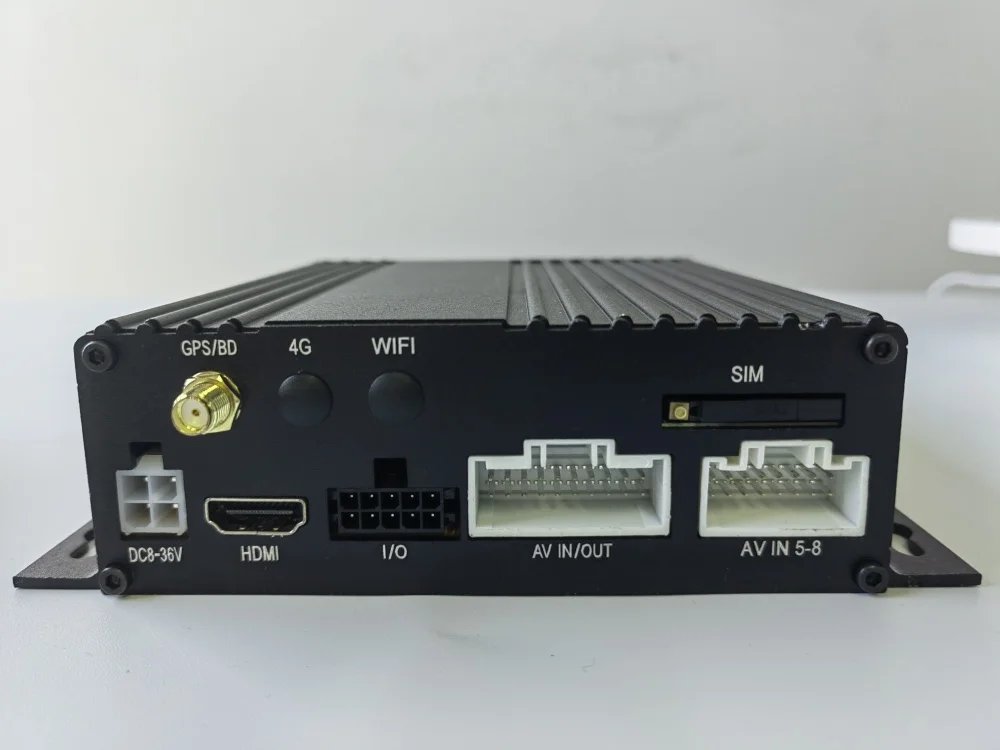

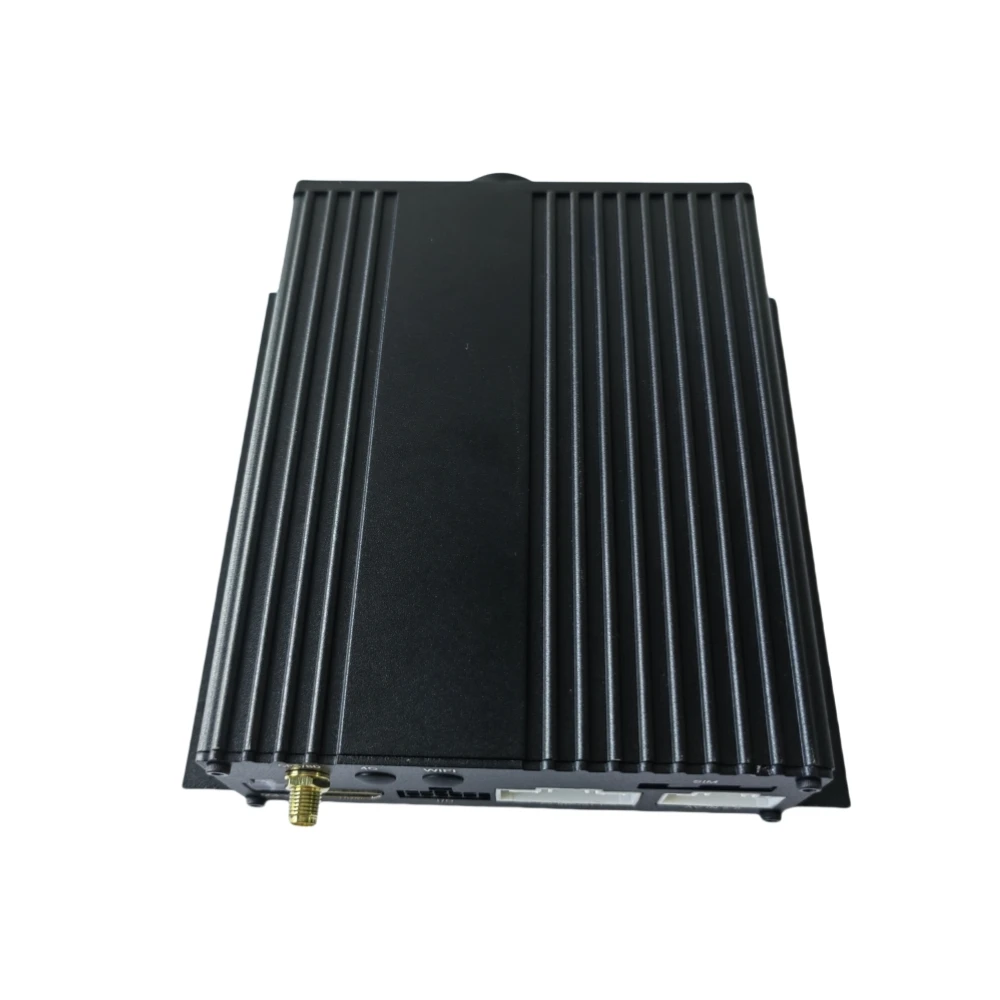

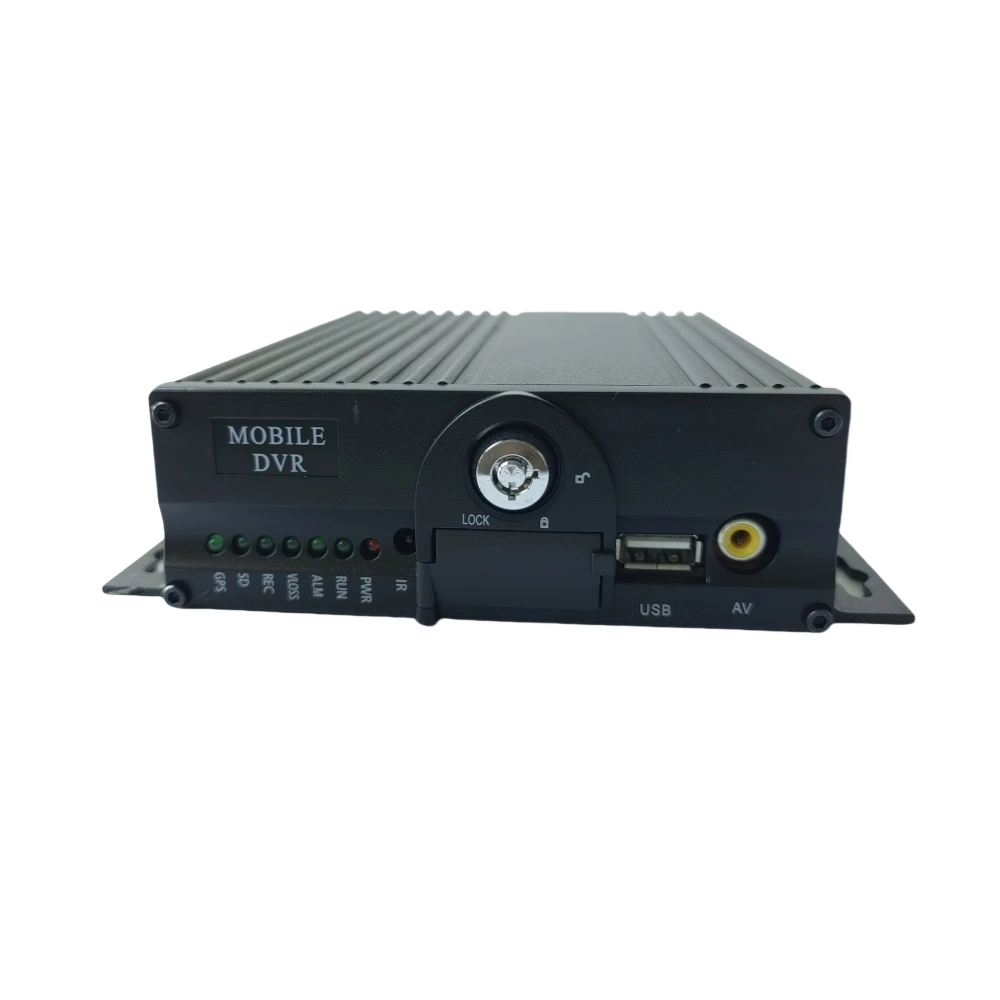

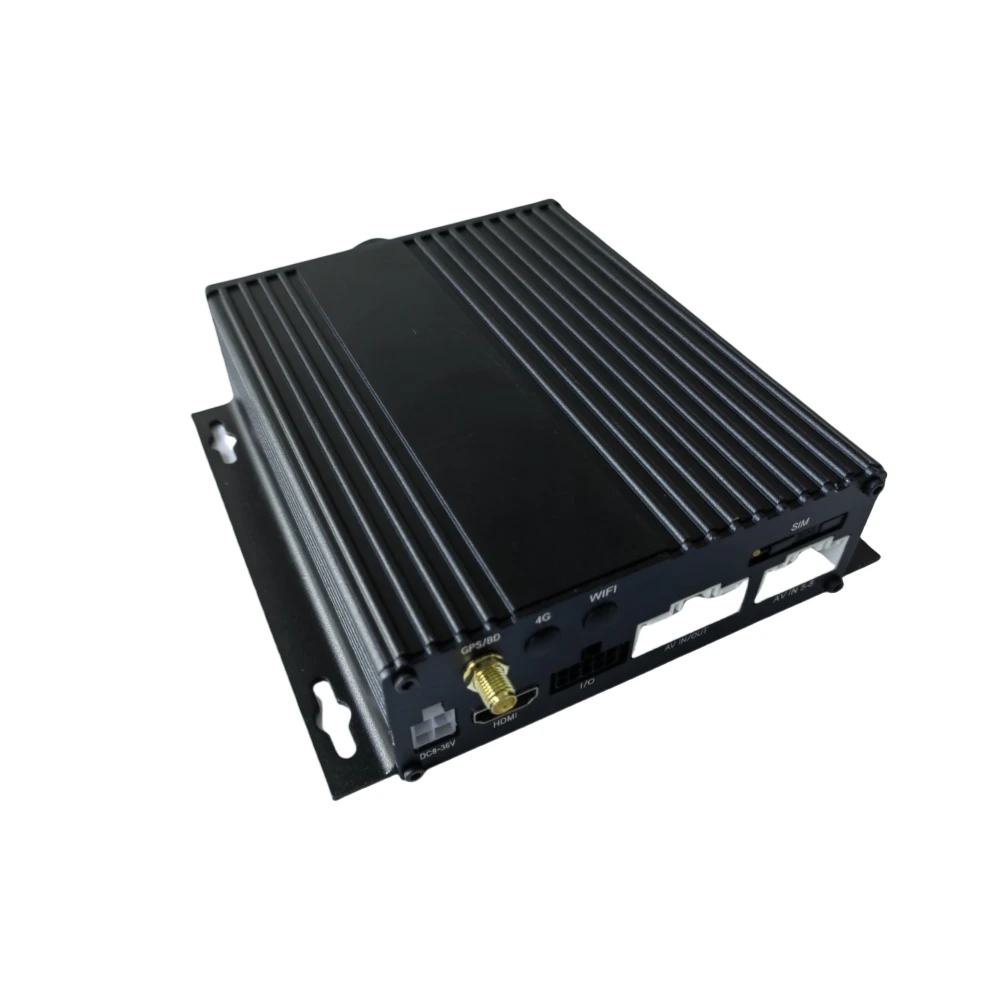

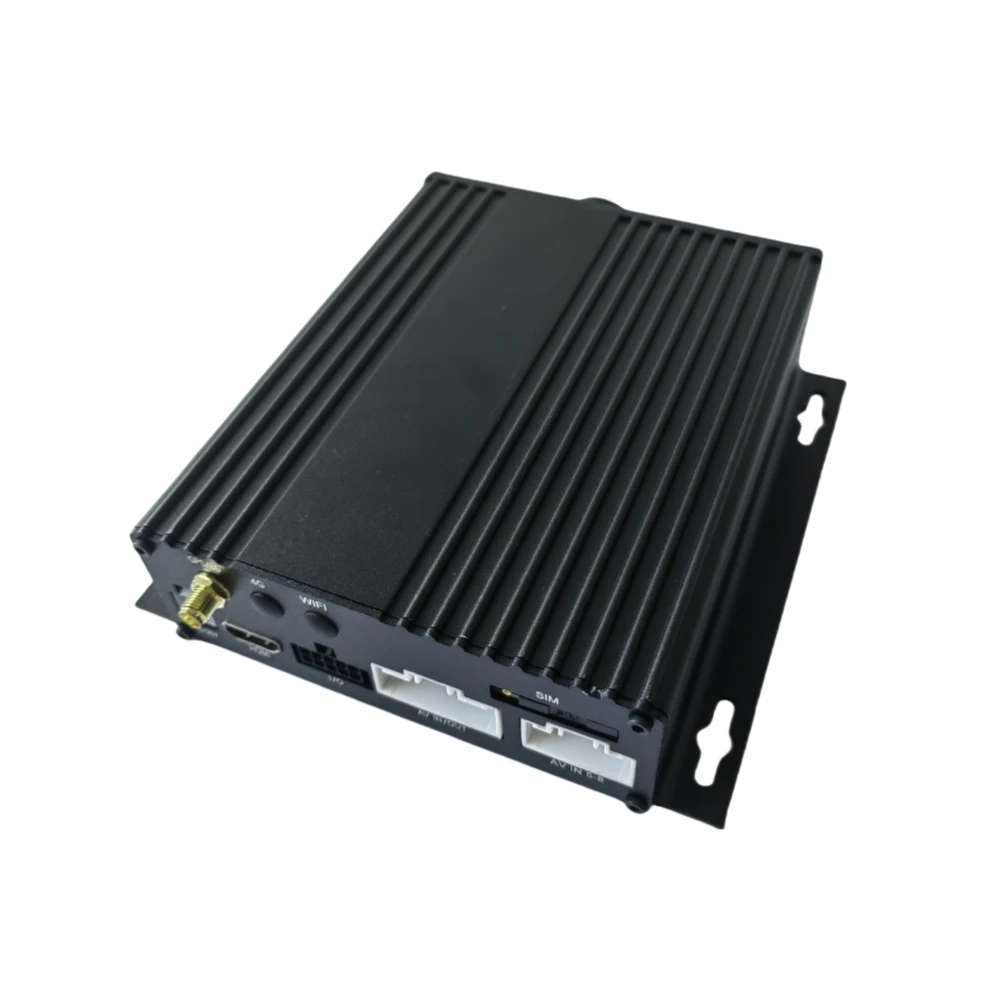

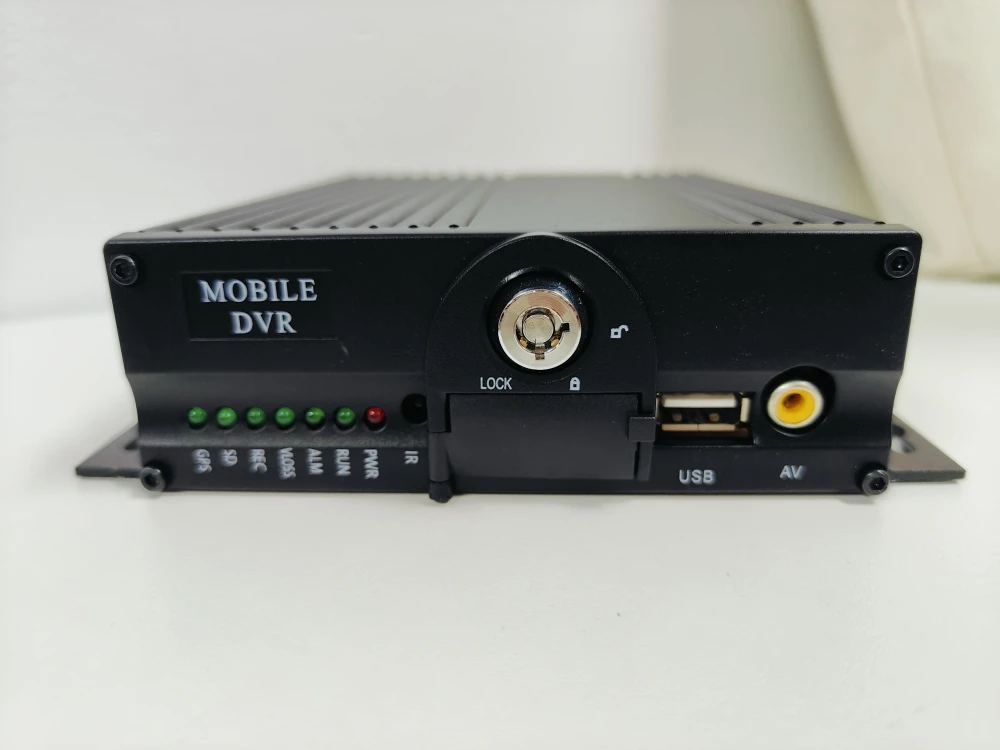

Product Picture

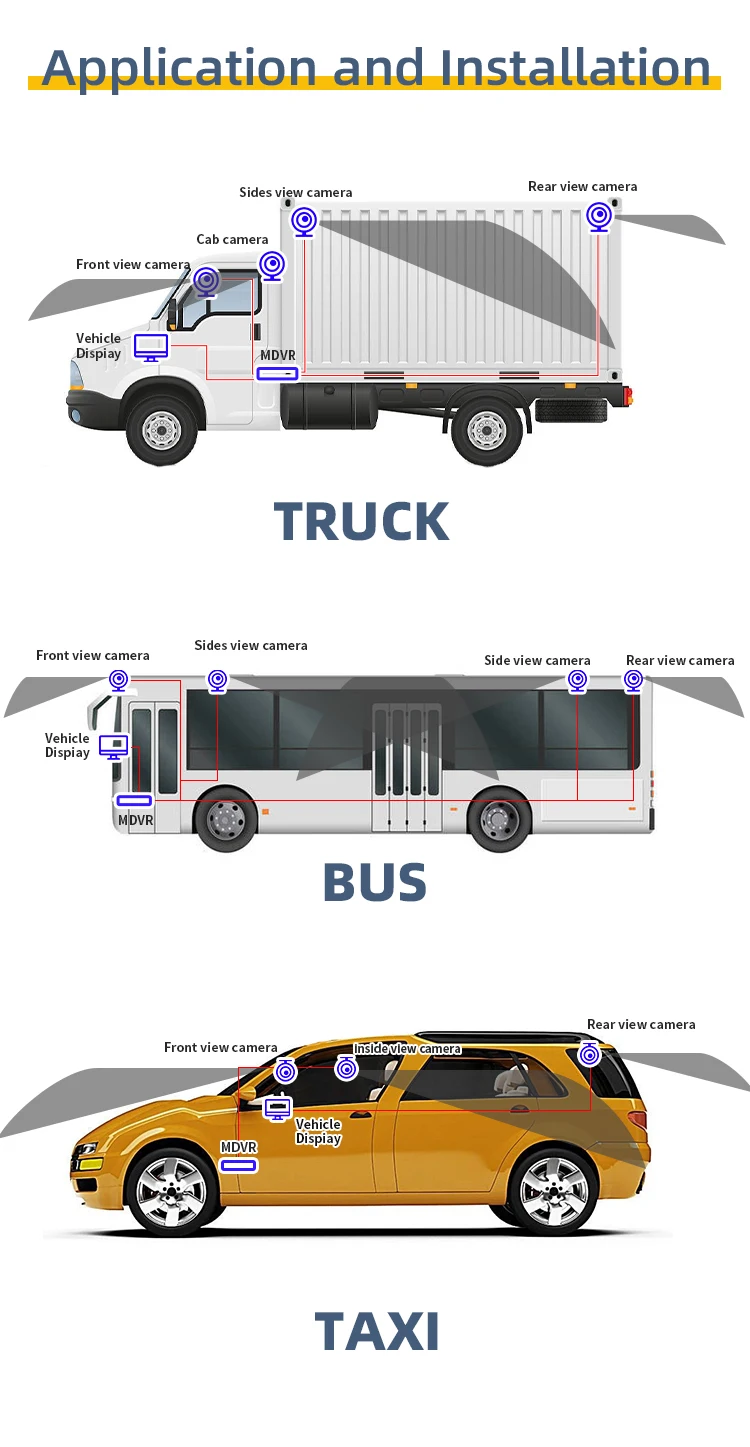

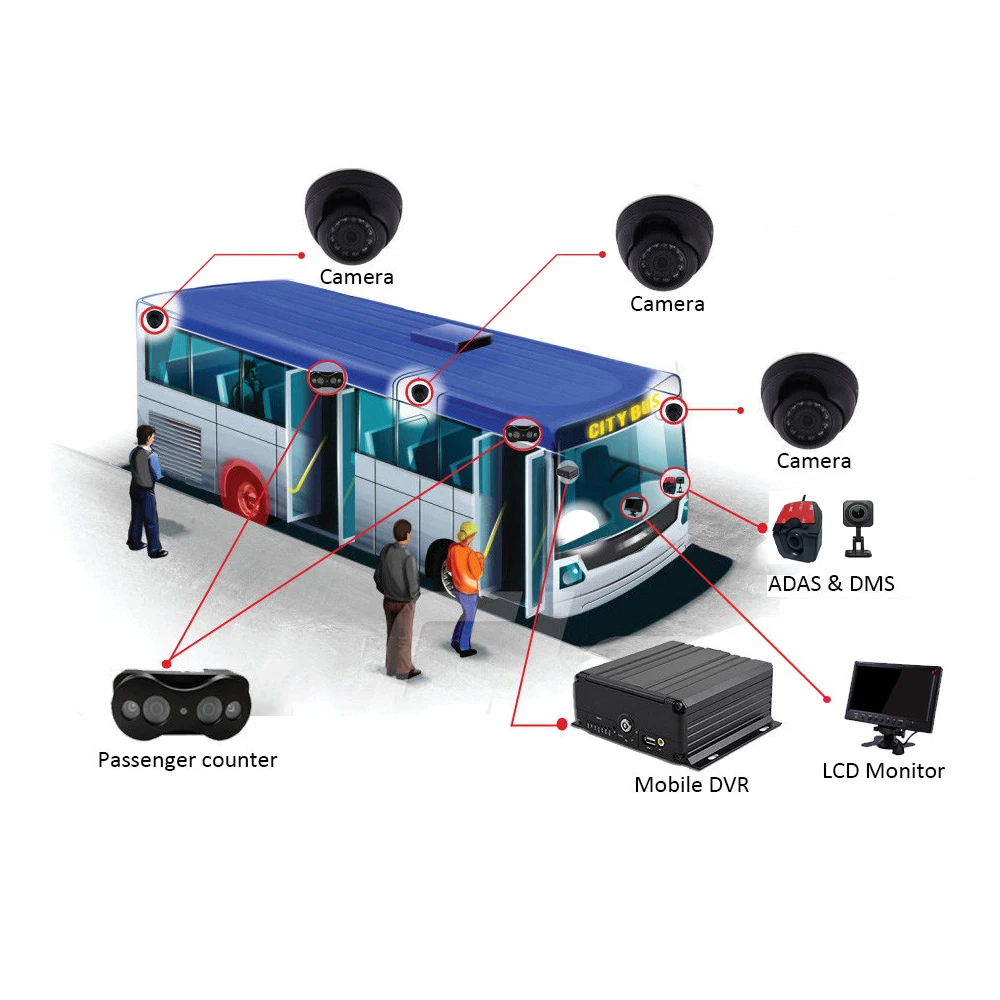

Product Usage

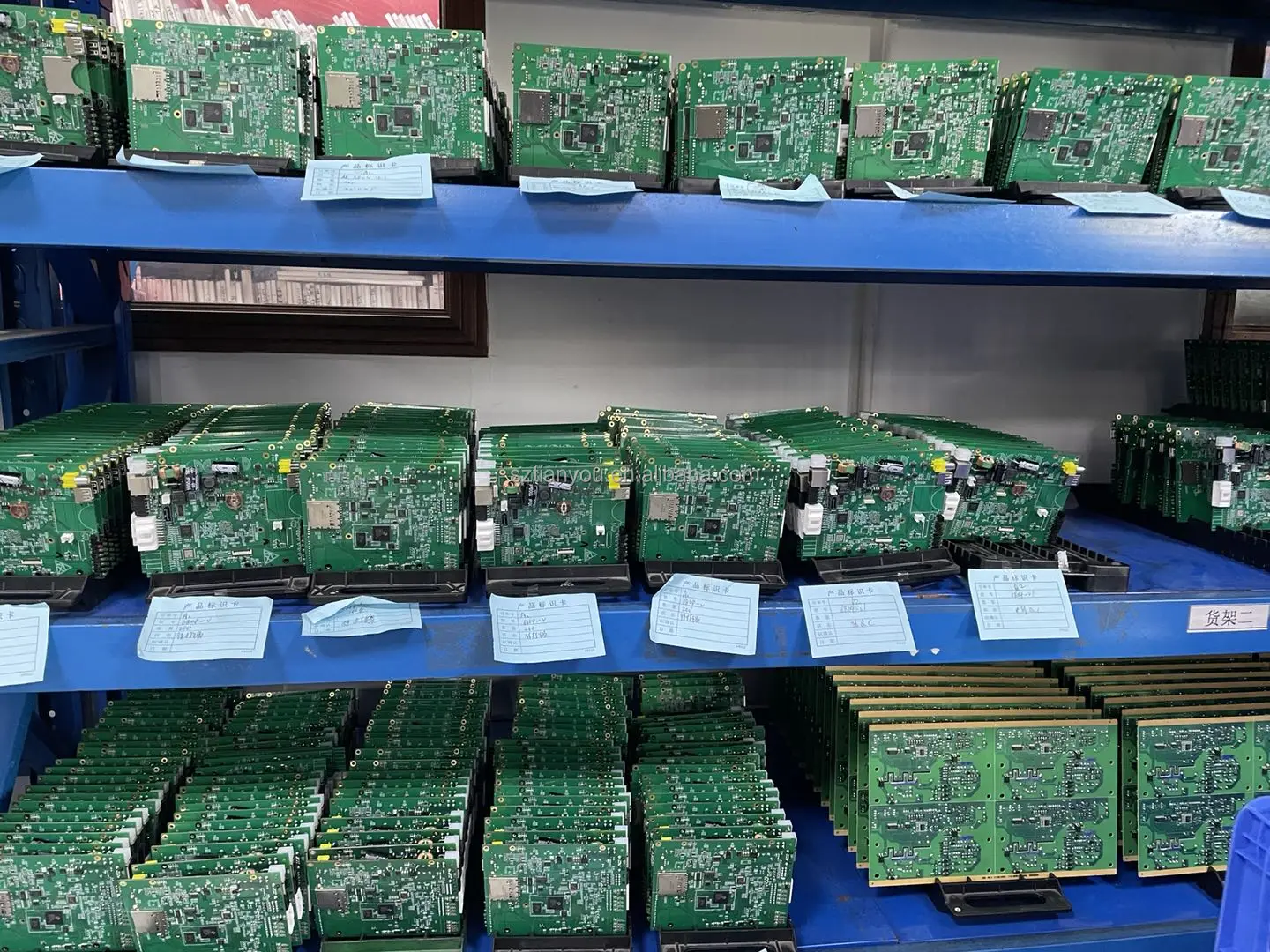

Company Introduction
Shenzhen Tianyou Security Technology Co., Ltd. ，a leading manufacturer of vehicle mobile video surveillance solutions,was established in 2010, mainly engaged in R & D, production of high-definition hybrid vehicle mobile digital video recorder (MDVR),vehicle camera, IPC network camera and various vehicle monitoring peripheral accessories.

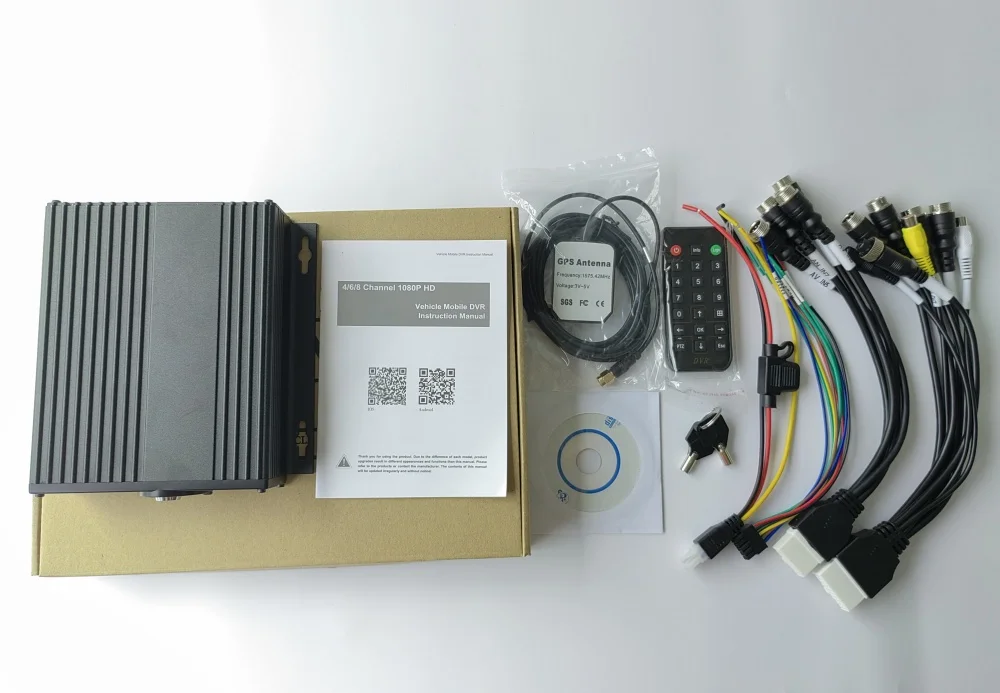

Packing&Shipping
