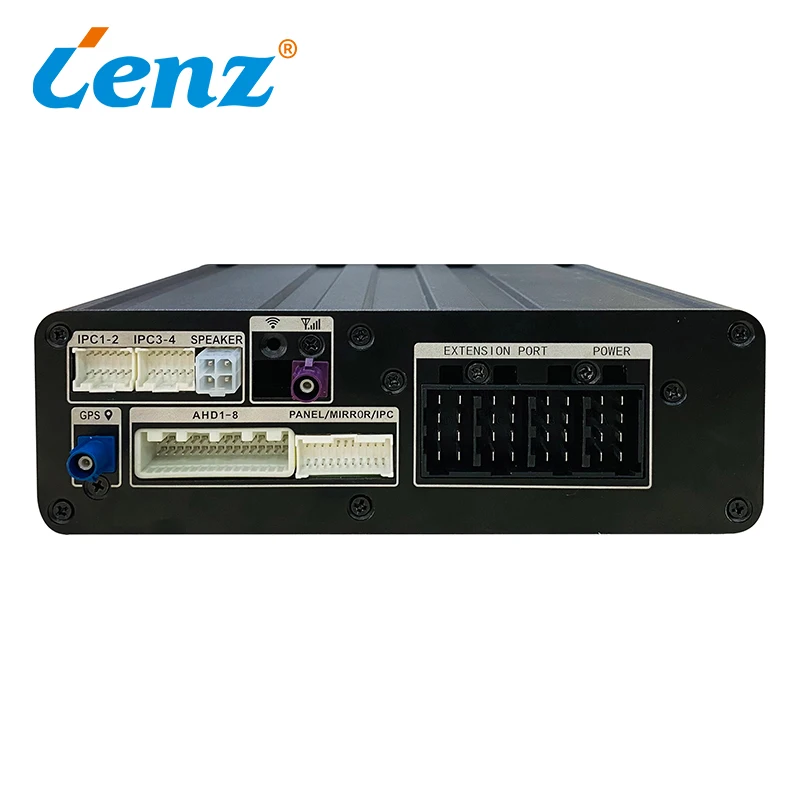

adas dms ai mini mobile dvr gps 4g wifi mdvr kit 8ch dvr 4 channel 1080p school bus 8ch mobile dvr 4g mdvr
- Category: >>>
- Supplier: Xiamen Lenz Communication Co. Ltd.Xiamen Ltd.
Share on (1601356137472):
Product Overview
Description

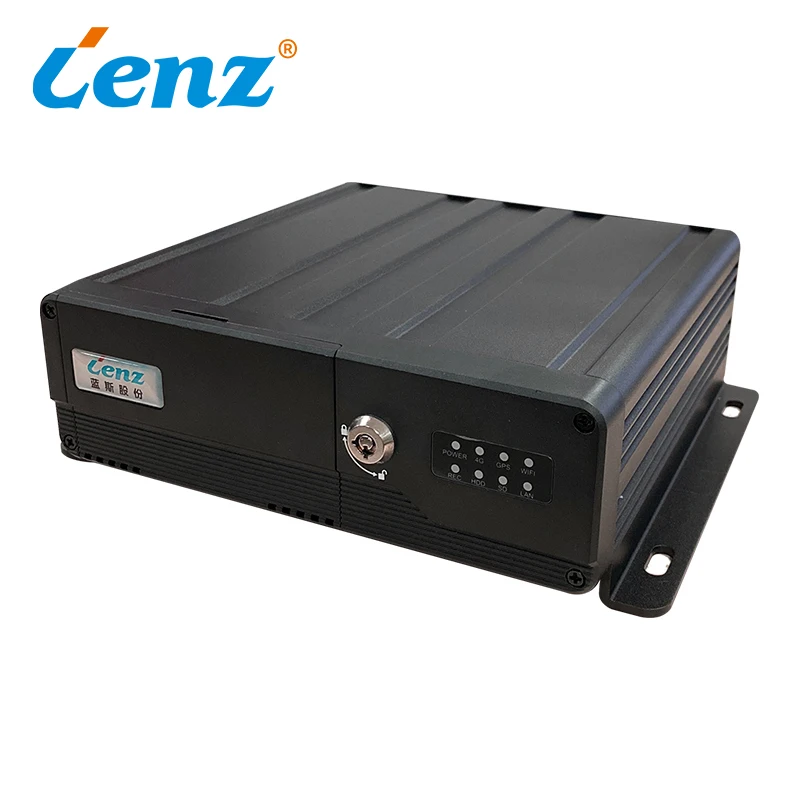

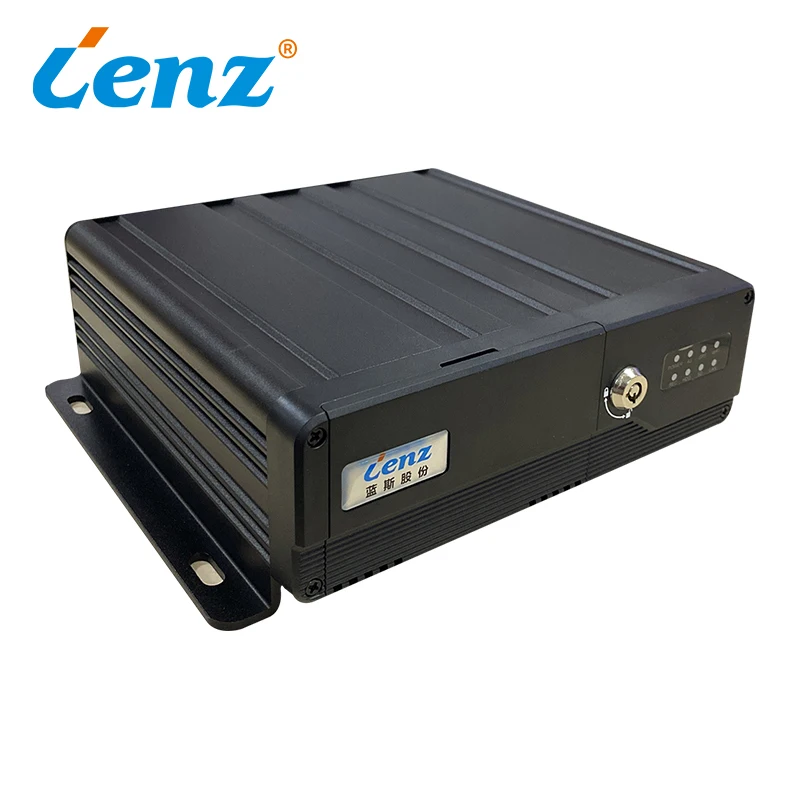

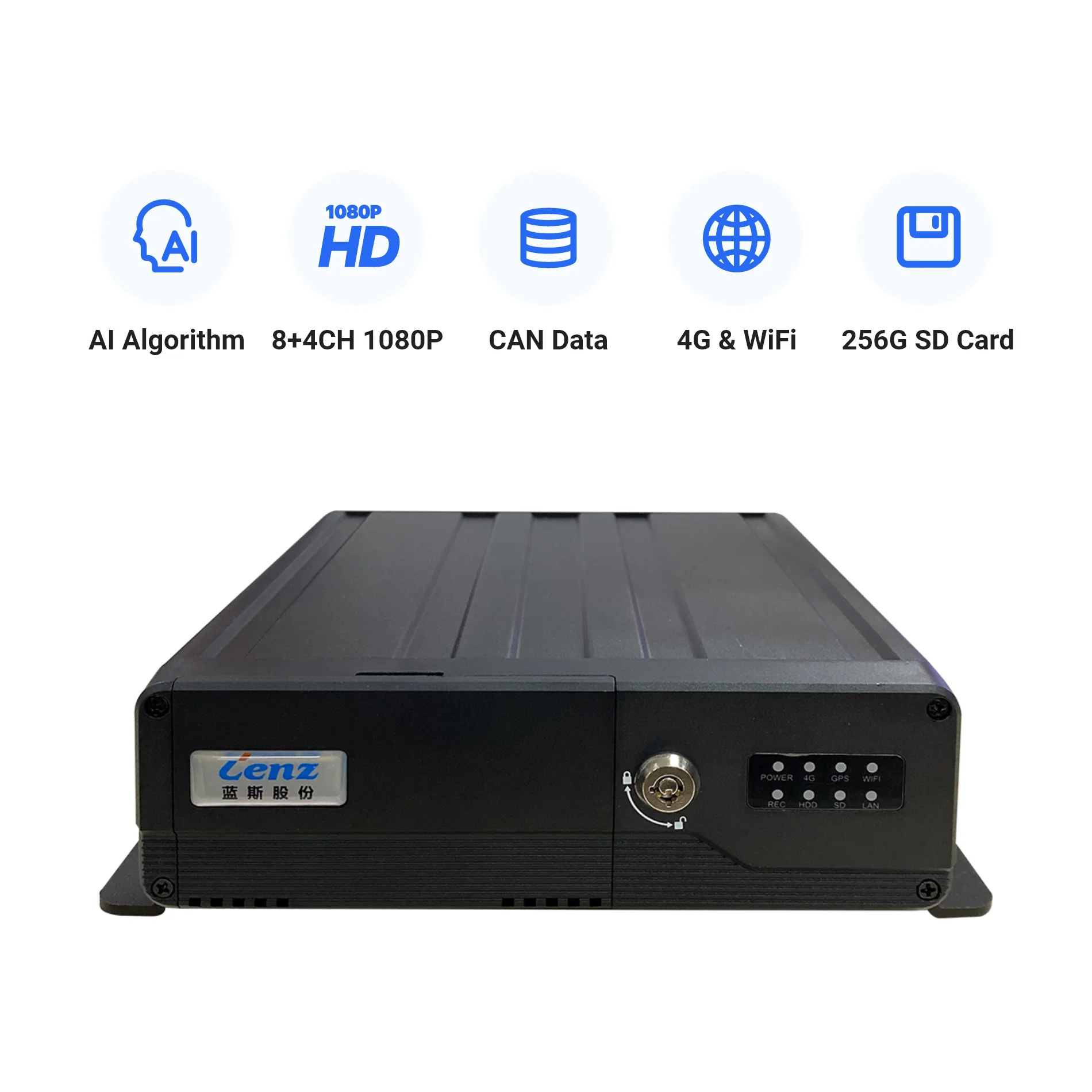

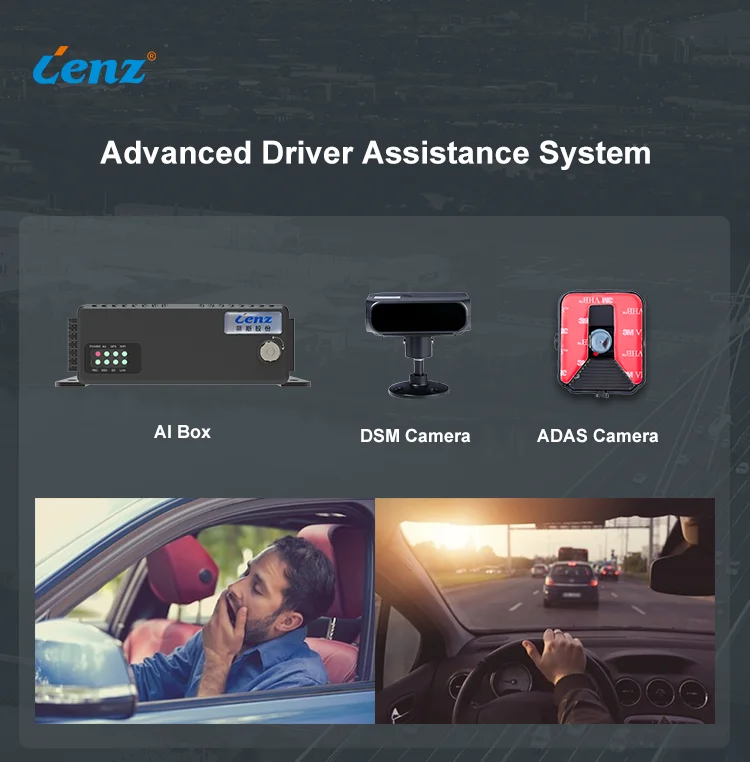

The advanced driver assistance system consist of AI box, DSM camera, ADAS camera ,GPS antena and speaker.
The system is based on image recognition technology, realize monitoring of driver status, artificial intelligence device that effectively interferes with driver's fatigue state and dangerous driving behavior by sound, data, etc . Simultaneously it can cooperate with the monitoring driving platform for data uploading, scheduling intervention and other functions. Lenz driver assistance system based on embedded platform, built-in self-developed image intelligent processing core algorithm, using a dedicated camera to collect the driver's fatigue state image features in real time, and through the AI BOX for rapid analysis, accurate analysis and judgment of the driver's facial fatigue state and unsafe driving behavior, to achieve continuous perception and judgment, and on this basis, early warning tips and reports are issued.Lenz driver assistance system also provides driver identification, if the current driver is not the legal driver of the vehicle, an alarm message is output.
The built-in Advanced Driver Assistance System (ADAS) collects lane offset and anti-collision data in real time while driving, and outputs alarms in both voice and upload formats.
Lenz driver assistance system built-in GPS/Beidou dual-mode positioning module and 4G communication module to support mutual information transmission between stand-alone and monitoring platforms (optional function).
System Features
The driver behaviors as follow will be monitored and triggering corresponding alarm, and the alarm records will be submitted to the back-end platform.The alarm type has included fatigue driving, distract from driving, no driver, make phone call, smoking, driver changed, wear IR blocked glasses,DSM camera blocked, DSM defect, Lane departure,forehead detection, front collision, pedestrian collision.

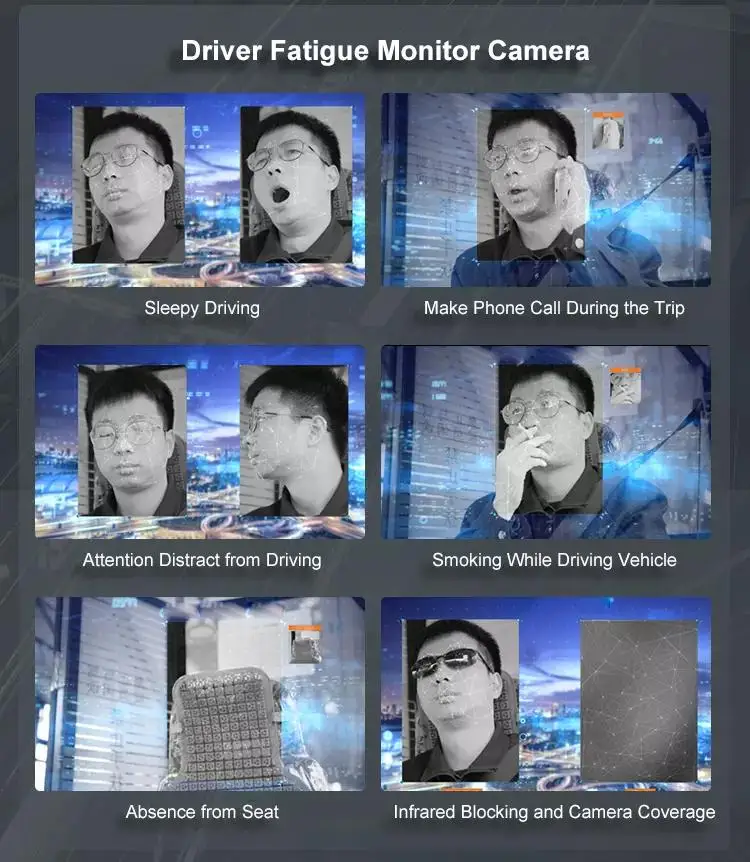

DSM System
1.Driver’s yawning, fatigue driving behaviors
2. Phoning behavior while driving
3. Driving without fastening the seat belt (optional function)
4.Smoking while driving
5.Driving for a long time without looking ahead
6.Wearing infrared blocking glasses while driving
7.Driver changes while driving
8.The camera is blocked
3. Driving without fastening the seat belt (optional function)
4.Smoking while driving
5.Driving for a long time without looking ahead
6.Wearing infrared blocking glasses while driving
7.Driver changes while driving
8.The camera is blocked
ADAS System
1. Lane deviation warning when lane deviation occurs without turning on the turn signal
2. Calculate the collision time based on real-time speed, trigger an alarm when the vehicle ahead is too close
3. Estimated bumper collision warning, when driving at low speed, calculate collision time based on real-time speed, trigger an alarm when the vehicle in front is too close
4. Identify pedestrians within 40 meters, calculate the collision time based on real-time speed, trigger an alarm when the pedestrian is too close to the front of the lane.
Technical Specification
Driver Monitoring System | Item | Description |
Model | LZH200 | |
DSM Camera | 1 | |
ADAS Camera | 1 | |
Communication | Video Format | MP4 |
Alarm Video Format | 1~5 levels(5 level for best performance) | |
Alarm Switch | Configurable | |
Camera | Video Pre-recording | 6~10 seconds(Configurable) |
Voice Announcement | 0~63(Configurable) | |
Audio Announcement | Network | 4G(Full Netcom) |
WIFI | YES | |
Interface | USB | USB2.0 OTG |
RS232 | YES | |
CAN | YES | |
Switching Value | 2-CH In,2-CH Out | |
Storage | Analog Value | 2-CH In |
Working Environment | Positioning(GPS/BD) | YES |
Power Input | DC 12/24V | |
TF Card | 128G(Max) | |
Others | Average Power | 15W |
Power Output | 500mA@5V | |
Dimension | 151mm x 130mm x 52mm | |
Working Temperature | -20°~ +70° | |
Storage Temperature | -40°~ +85° |
Driving Monitoring System | Item | Description |
Dimension | 75×65×95mm | |
Resolution | 1920×1080 | |
Lens | 1/3 inch | |
Recording System | PAL | |
Connector | Female head | |
Power Supply | DC5V | |
Cable Length | 50cm | |
Weight | 500g |
Driving Monitoring System | Item | Description |
ADAS Camera | Dimension | 65×55×37mm |
Resolution | 1280×720 | |
Lens | 1/2.9 inch | |
Connector | Female head | |
Power Supply | DC5V | |
Cable Length | 50cm | |
Weight | 60g |
Case Study
Thailand Smart Bus Project
Project Background
Thai Smile Company Limited is public transport operator, providing the 3000+buses and 150 ferries for pubic transit service in Bangkok.
Scope of Project
Issue 1million cards to passengers
Install E60 bus validator and R20K AVM in each bus
Install AI MDVR and CCTV cameras in each bus
Install passenger counting cameras to each door
Target of Project
1.Integrate with bank for online top up
2.The AI algorithm enables the safety driving of driver
3.The CCTV cameras protects the passengers in bus
4.The advanced transport system provides the schedule planning and route optimization to
TSB
Thai Smile Company Limited is public transport operator, providing the 3000+buses and 150 ferries for pubic transit service in Bangkok.
Scope of Project
Issue 1million cards to passengers
Install E60 bus validator and R20K AVM in each bus
Install AI MDVR and CCTV cameras in each bus
Install passenger counting cameras to each door
Target of Project
1.Integrate with bank for online top up
2.The AI algorithm enables the safety driving of driver
3.The CCTV cameras protects the passengers in bus
4.The advanced transport system provides the schedule planning and route optimization to
TSB
City bus in Ulaanbaatar, Mongolia
Project Background
1.Ulaanbaatar City Bus implement the whole APTMS solution provided by Lenz
2.Installed 1,100 buses from 2023 to now
Target of Project
1.Jointly develop AFC system, support VISA, UB CARD QR code, IC card, Shift from cash payments to mobile payments
2.Ticket Vendor Machine are deployed, and citizens can purchase bus cards anytime and anywhere to enjoy convenient services
1.Ulaanbaatar City Bus implement the whole APTMS solution provided by Lenz
2.Installed 1,100 buses from 2023 to now
Target of Project
1.Jointly develop AFC system, support VISA, UB CARD QR code, IC card, Shift from cash payments to mobile payments
2.Ticket Vendor Machine are deployed, and citizens can purchase bus cards anytime and anywhere to enjoy convenient services
Prasarana Malaysia Berhad Project
Project Background
Prasarana Malaysia Berhad is a system integrator driving the transformation of Malaysia's public transport systems and services. It has built a Mass system and will deploy QR code payments on buses in 2021.
Target of Project
Integrated with the myrapid* Mass system to provide mobile QR code payment services in Malaysia. In the near future, the smart card system will be upgraded to the latest technology so that existing carrier cards can be used within the same system.
Prasarana Malaysia Berhad is a system integrator driving the transformation of Malaysia's public transport systems and services. It has built a Mass system and will deploy QR code payments on buses in 2021.
Target of Project
Integrated with the myrapid* Mass system to provide mobile QR code payment services in Malaysia. In the near future, the smart card system will be upgraded to the latest technology so that existing carrier cards can be used within the same system.
Bhutan Capital Bus Project
Project Background
In 2021, Bhutan's capital Thimphu launched 27 new city buses, smart card system and mobile app Gakyid Ride under the operation of the City Bus Service, citizens and the Thimphu government.
Target of Project
1. Provide contactless payment for passengers
2. Provide card recharging service.
3. There are different discounts for passengers on buses
4. In the near future, mobile QR code payment will be supported
In 2021, Bhutan's capital Thimphu launched 27 new city buses, smart card system and mobile app Gakyid Ride under the operation of the City Bus Service, citizens and the Thimphu government.
Target of Project
1. Provide contactless payment for passengers
2. Provide card recharging service.
3. There are different discounts for passengers on buses
4. In the near future, mobile QR code payment will be supported
Gabon Bus Project
Project Background
The Gabonese government is committed to improving the public transport system in Libreville and surrounding cities. In 2017, the government imported 300 buses from China. By implementing advanced public transport management systems and automated ticketing systems, public transport operators are able to provide safer, more convenient and cost-effective transport.
Target of Project
1.Bus closed circuit television camera system 2.Mobile DVR with passenger counting
3.Card payment bus validator
4.GPS system for fleet tracking
The Gabonese government is committed to improving the public transport system in Libreville and surrounding cities. In 2017, the government imported 300 buses from China. By implementing advanced public transport management systems and automated ticketing systems, public transport operators are able to provide safer, more convenient and cost-effective transport.
Target of Project
1.Bus closed circuit television camera system 2.Mobile DVR with passenger counting
3.Card payment bus validator
4.GPS system for fleet tracking
Company Introduction
About Lenz
Established in 2006
Listed in public stock in 2014
AI powered company, closely cooperation with high schools for technology innovation
4,000㎡state of the art manufacturing centre
4,000㎡ office building in national high technology software park
220 staffs from China and overseas talents
40+ engineers provide off-site and on-site English and Arabic technical supporting
Listed in public stock in 2014
AI powered company, closely cooperation with high schools for technology innovation
4,000㎡state of the art manufacturing centre
4,000㎡ office building in national high technology software park
220 staffs from China and overseas talents
40+ engineers provide off-site and on-site English and Arabic technical supporting
R&D Centre
100+ professionals R&D engineers;
175+Intellectual properties, including industrial design patents and software copyrights;
More than 15% of sales revenues invested in research and development every year;
Millions of USD investment to R&D devices for in-vehicle environment simulation and test;
175+Intellectual properties, including industrial design patents and software copyrights;
More than 15% of sales revenues invested in research and development every year;
Millions of USD investment to R&D devices for in-vehicle environment simulation and test;
Support EMC testing, ISO 7637 testing, temperature testing, vibration and life testing, etc.;
CMMI Level 5 Software Programming
Maturity Products certified with CCC, CE, FCC, EMC, EMV, RoHS, E Mark, SRRC, EMVCo L1, VISA, Mastercard and so on.
CMMI Level 5 Software Programming
Maturity Products certified with CCC, CE, FCC, EMC, EMV, RoHS, E Mark, SRRC, EMVCo L1, VISA, Mastercard and so on.
Technical Innovation
As an ITxPT member, our company is dedicated to providing intelligent transportation products and ensuring compliance with high standards. We offer a range of customised solutions, including the Advanced Public Transportation Management Solution, the Automatic Fare Collection Solution, Smart Telematics and more, to customers worldwide, with a particular focus on the Middle East and Asia.
Production Centre
4,000㎡ production centre
100% fully tested before delivery the goods
Anti-static production environment
IATF16949: 2016 Quality Management System
ISO9001: 2015 Quality Management System
ISO14001: 2015 Environment Management System
ISO45001: 2018 Occupational health system
ISO20000: 2018 IT Service Management System (ITSMS)
ISO27001: 2013 Information Security Management System (ISMS)
100% fully tested before delivery the goods
Anti-static production environment
IATF16949: 2016 Quality Management System
ISO9001: 2015 Quality Management System
ISO14001: 2015 Environment Management System
ISO45001: 2018 Occupational health system
ISO20000: 2018 IT Service Management System (ITSMS)
ISO27001: 2013 Information Security Management System (ISMS)
Our Customer
Market Coverage
Lenz has successfully implemented the projects in more than 40 countries and 400 cities; More than 1,000,000 vehicles have been installed our devices and management system.
