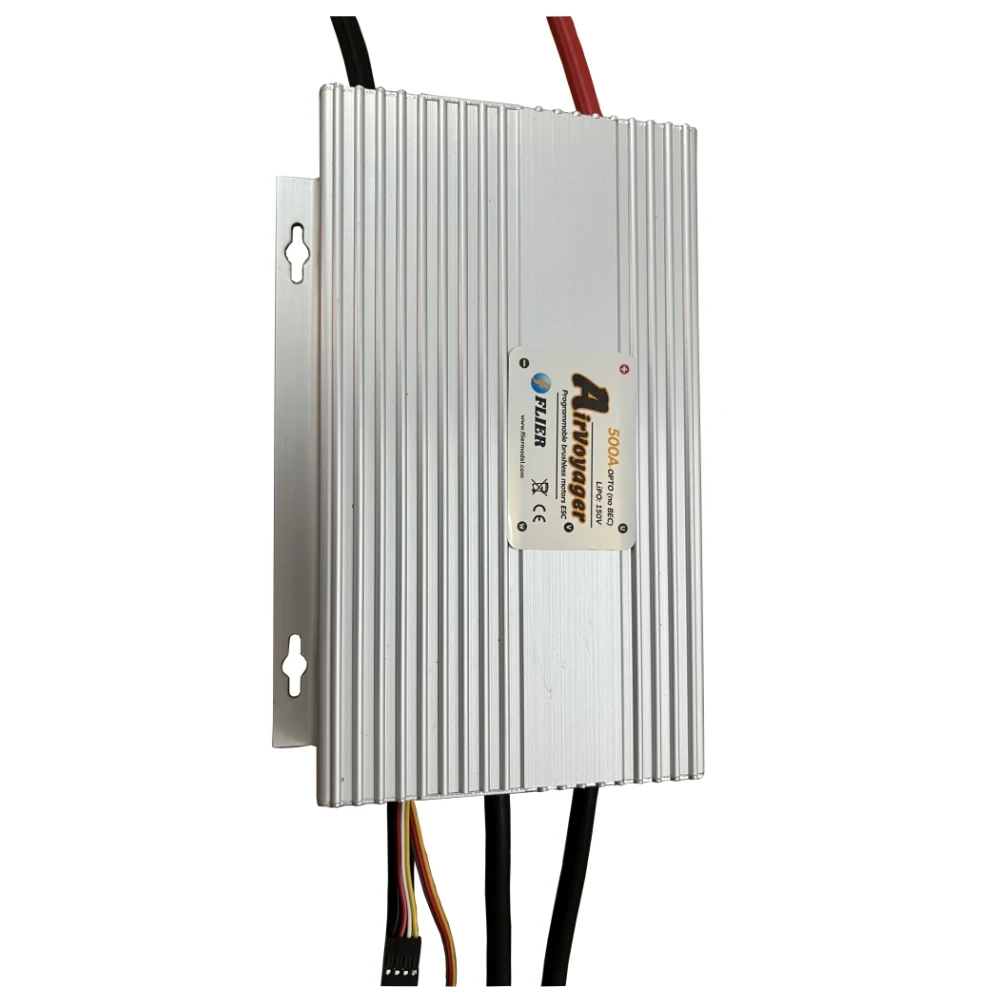

2024 Flier New ESC 150V 500A Brushless Speed Controller Water cooled IP67 Housing for Airplane Paraglider Jet Flight Hobbyist

Product Overview

Description

150V 500A Brushless ESC for Airplane Paraglider

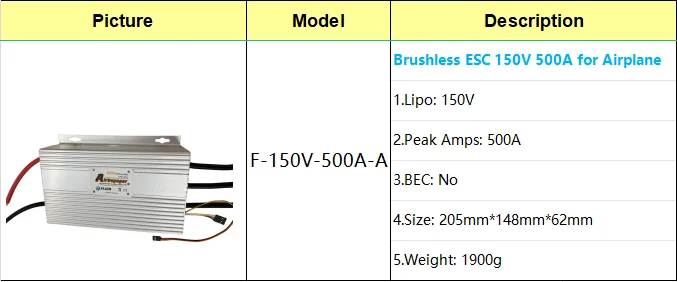

Basic information:



Voltage	Current	Size(mm)	weight(g)	BEC (Volts/Amps)	Box Programming support	Computer Programming support	Firmware update

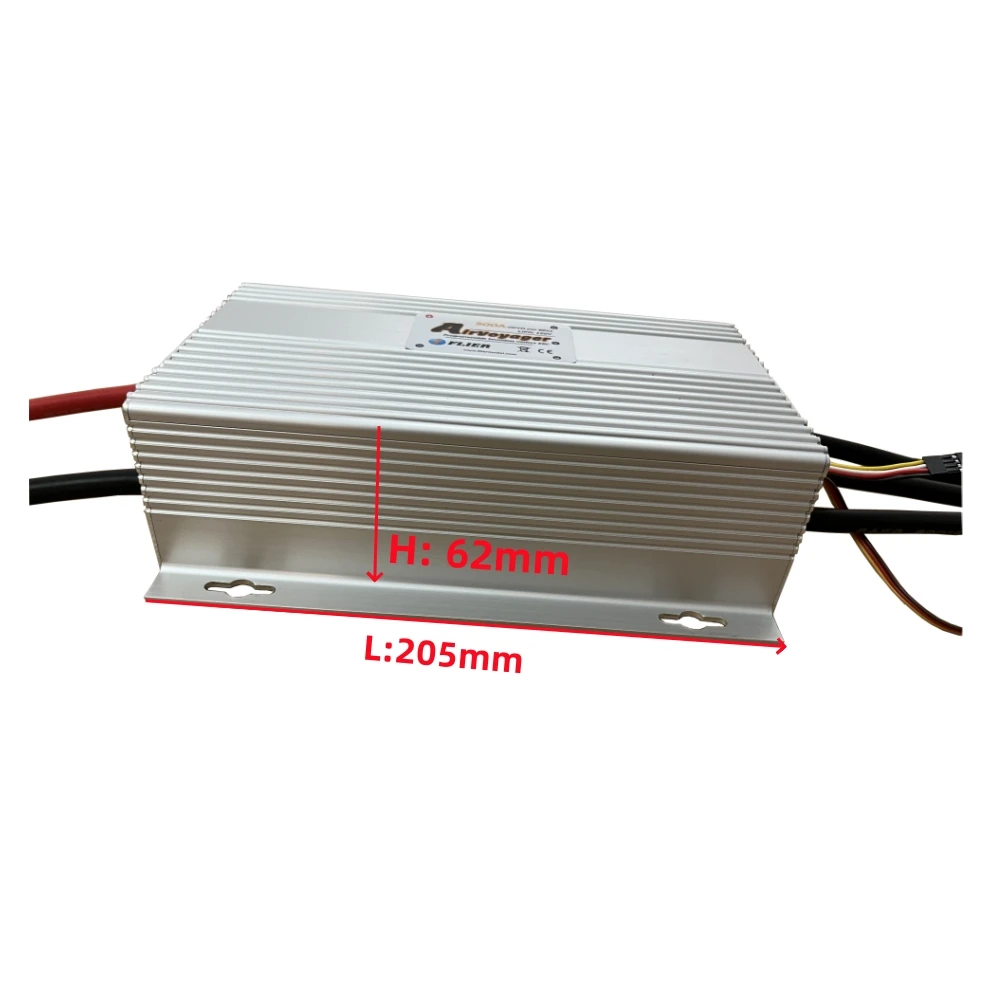

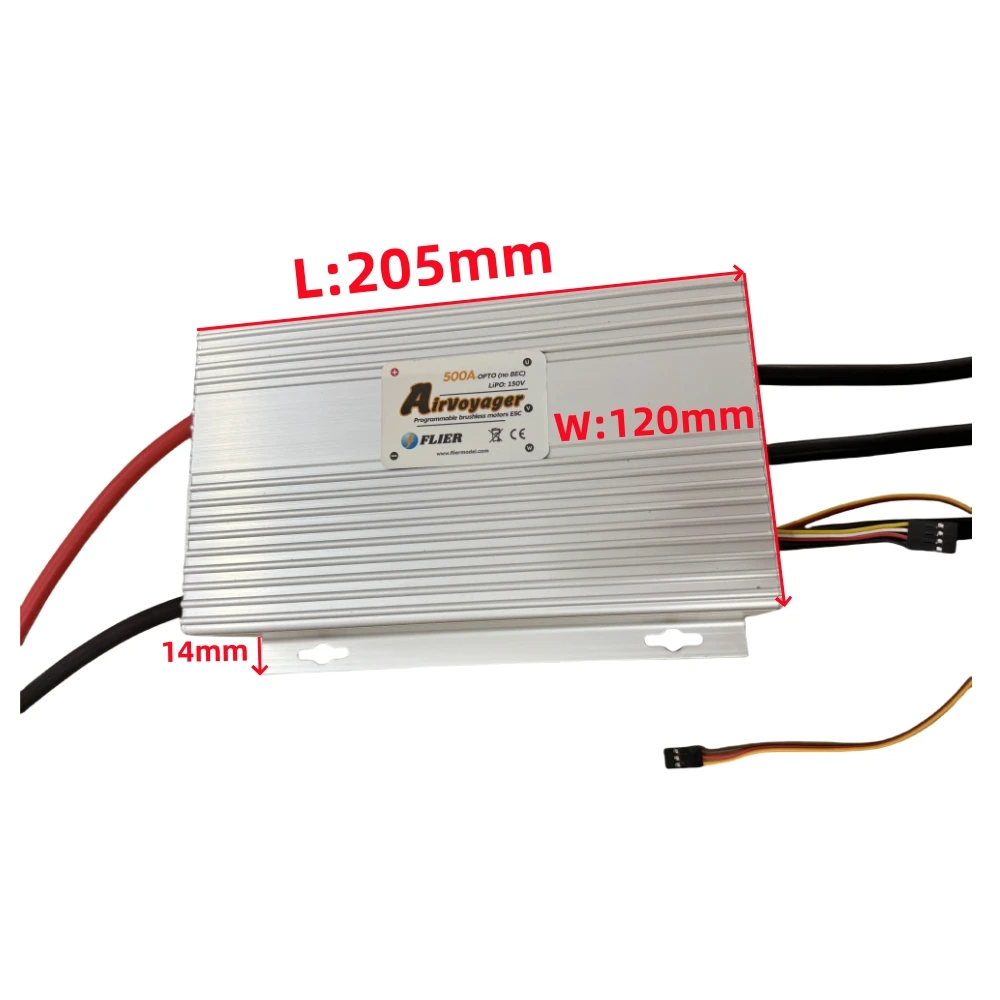

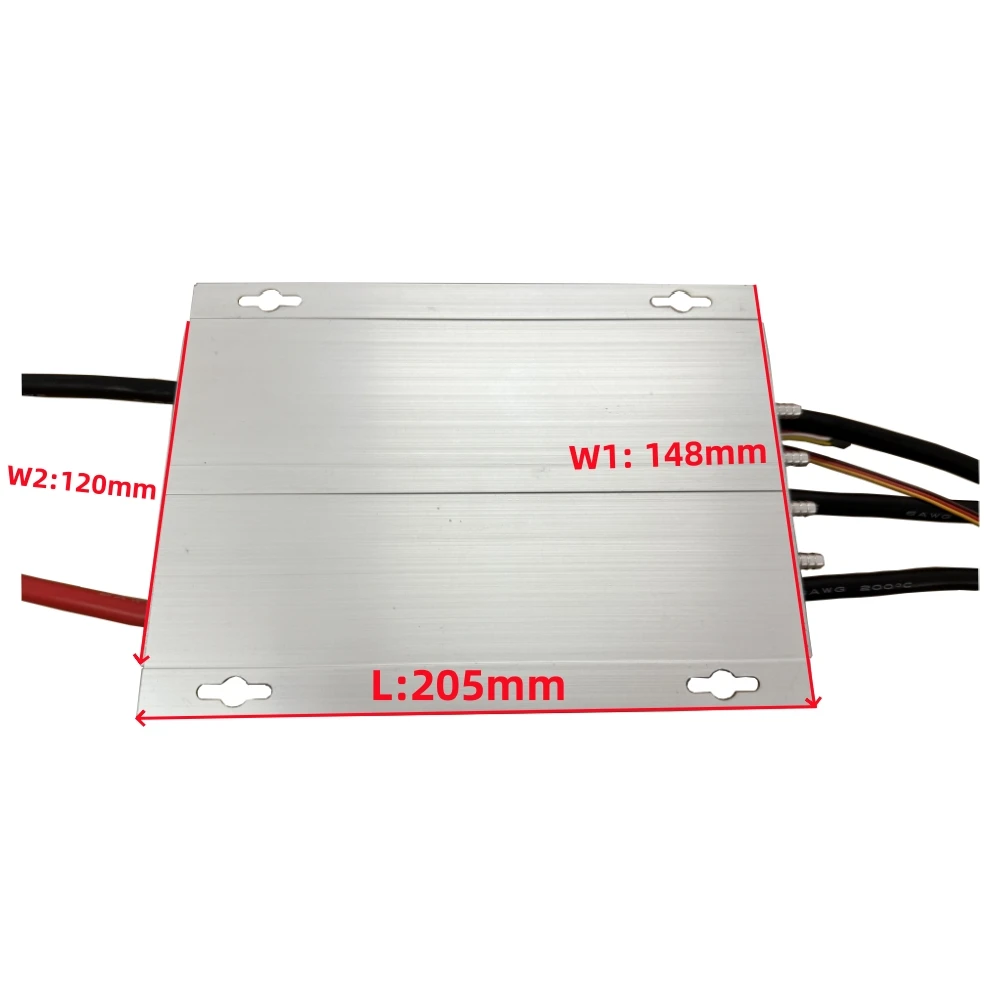

150V	500A	205*148*62	1900g	No	Yes	Yes	Yes







 Feature:



1. Design for boat, more functions

2.Battery voltage 150V.

3.Two way communication while connecting it with computer.

4.Firmware can be upgraded by user.

5. Motor cable can be inspected while Connecting the power battery

6. Simply set function value by Prog-Box or by PC via USB link wire.

7. Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

8. Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V

 9. Reverse function. the delay time of reverse is adjustable

10. The power of the motor forward/ reverse can be set.

11. Automatically detection the throttle route or can be set a fixed number by manual operation.

12. Auto cut off the power within 3 seconds if no radio signs.

13.Timing setting may be adjusted (0°-30°) to suit the motor type.

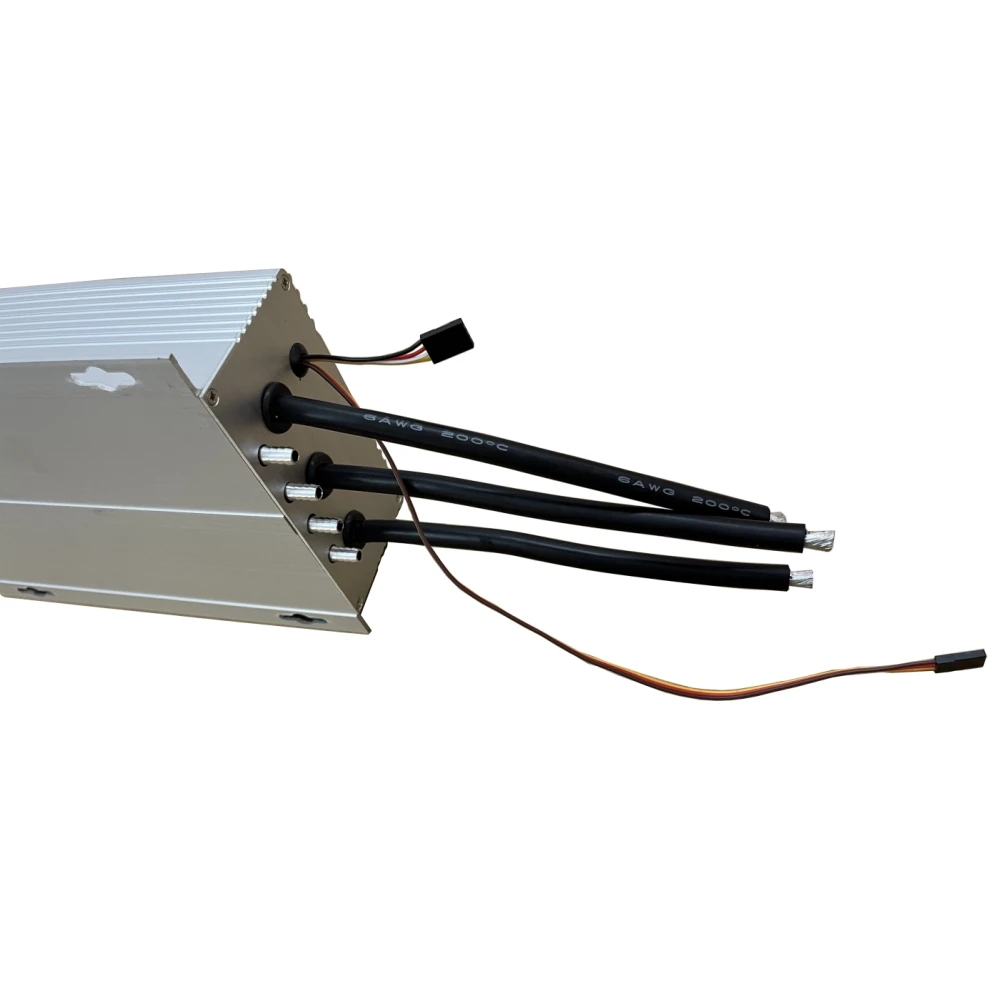

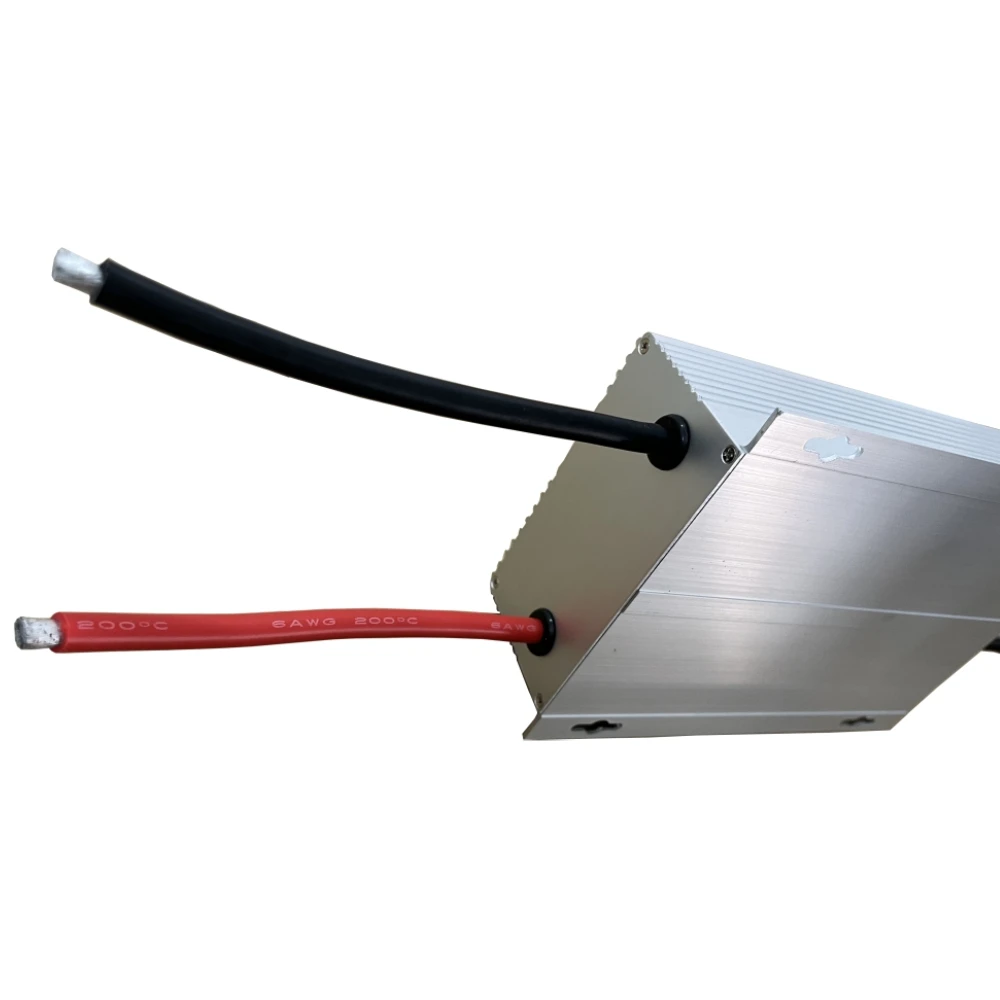

Pictures:

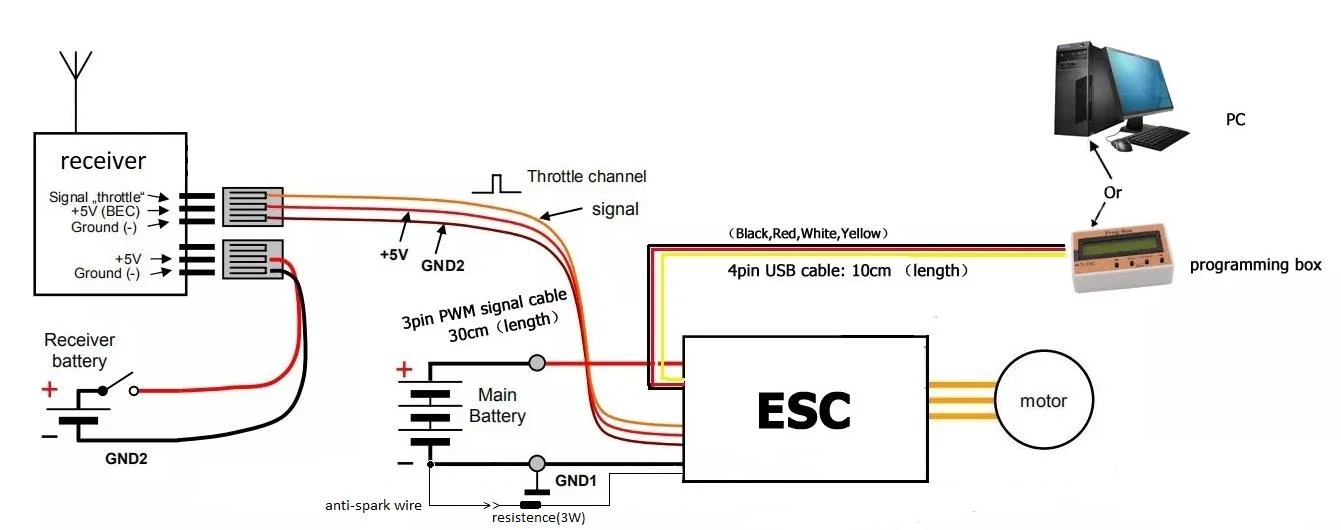

Connections:
