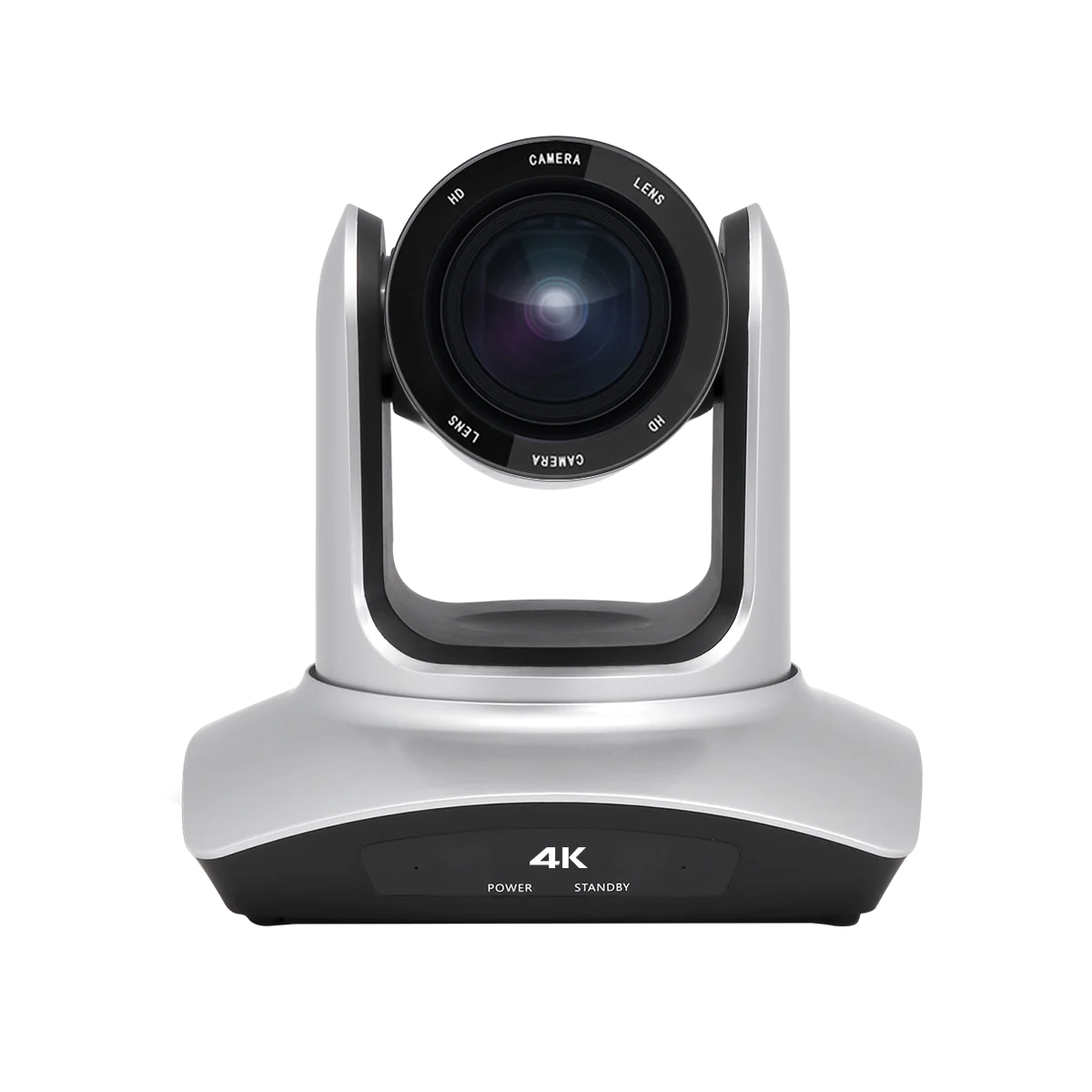

AI Tracking PTZ Camera 10X Optical Zoom USB3.0 with Gesture Recognition Video Conference Broadcast Camera for Church Events
- Category: >>>
- Supplier: Shenzhen KATO Vision Co. Limited
Share on (1601273304530):
Product Overview
Description
Product Parameters

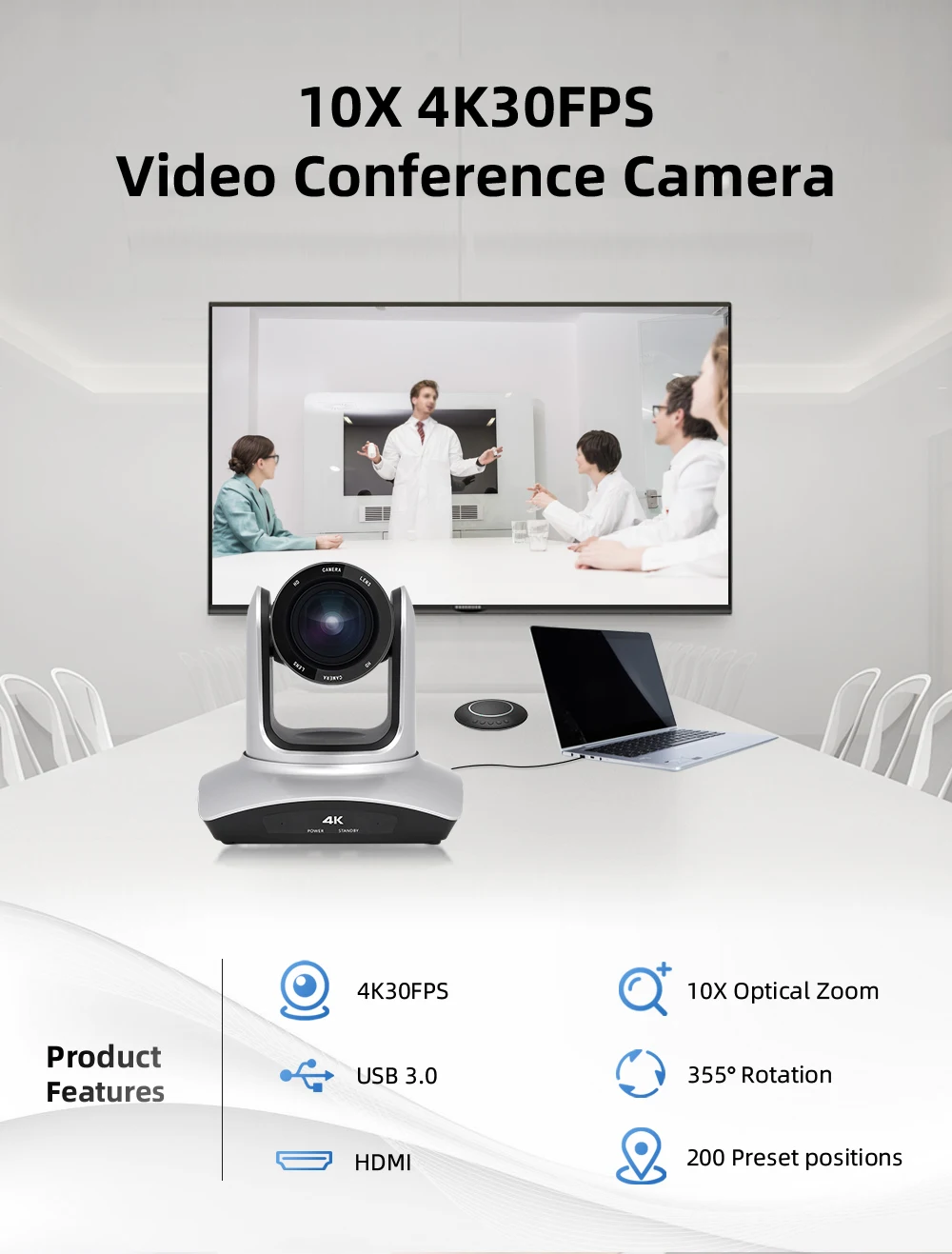

KT-UH40VQ 4K Ultra HD camera Selling Points:
1.4K Ultra HD Resolution
2.10x Optical Zoom
3.Next-generation intelligent algorithm humanoid tracking + Auto Framing intelligent framing
4.USB 3.0 Interface
5.USB2.0 Type B Expansion Port
6.Multiple Control Protocols
7.Multiple Encoding Formats
8.Various Installation Methods
1.4K Ultra HD Resolution
2.10x Optical Zoom
3.Next-generation intelligent algorithm humanoid tracking + Auto Framing intelligent framing
4.USB 3.0 Interface
5.USB2.0 Type B Expansion Port
6.Multiple Control Protocols
7.Multiple Encoding Formats
8.Various Installation Methods
Image Parameters | ||
Resolution | 3840*2160, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 | |
Image Sensor | SONY 1/2.8" CMOS | |
Scan Mode | Line by line | |
Lens | 10X Optical Zoom, f=5.15mm(W)~51.5mm(T), F2.8~F3.2 | |
Digital Zoom | 3X | |
Horizontal View Angle | 61.5°(W)~7.0°(T) | |
Vertical View Angle | 35.0°(W)~3.97°(T) | |
Focus System | Auto, Manual | |
Shutter Speed | 1/25s ~ 1/10000s | |
Minimum Illumination | 1.5 Lux | |
Exposure | Auto, Manual | |
White Balance | Auto, Manual | |
Backlight Compensation | Support | |
Digital Noise Reduction | 2D&3D Digital noise reduction | |
S/N Ratio | ≥50dB | |
Pan/Tilt | ||
Pan Angle | 355° | |
Tilt Angle | -30°~+90° | |
Pan Speed | 1°~90°/s | |
Tilt Speed | 1°~90°/s | |
Preset Positions | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC | |
Preset Accuracy | 0.1°±10% | |
Flip | Support | |
AI | ||

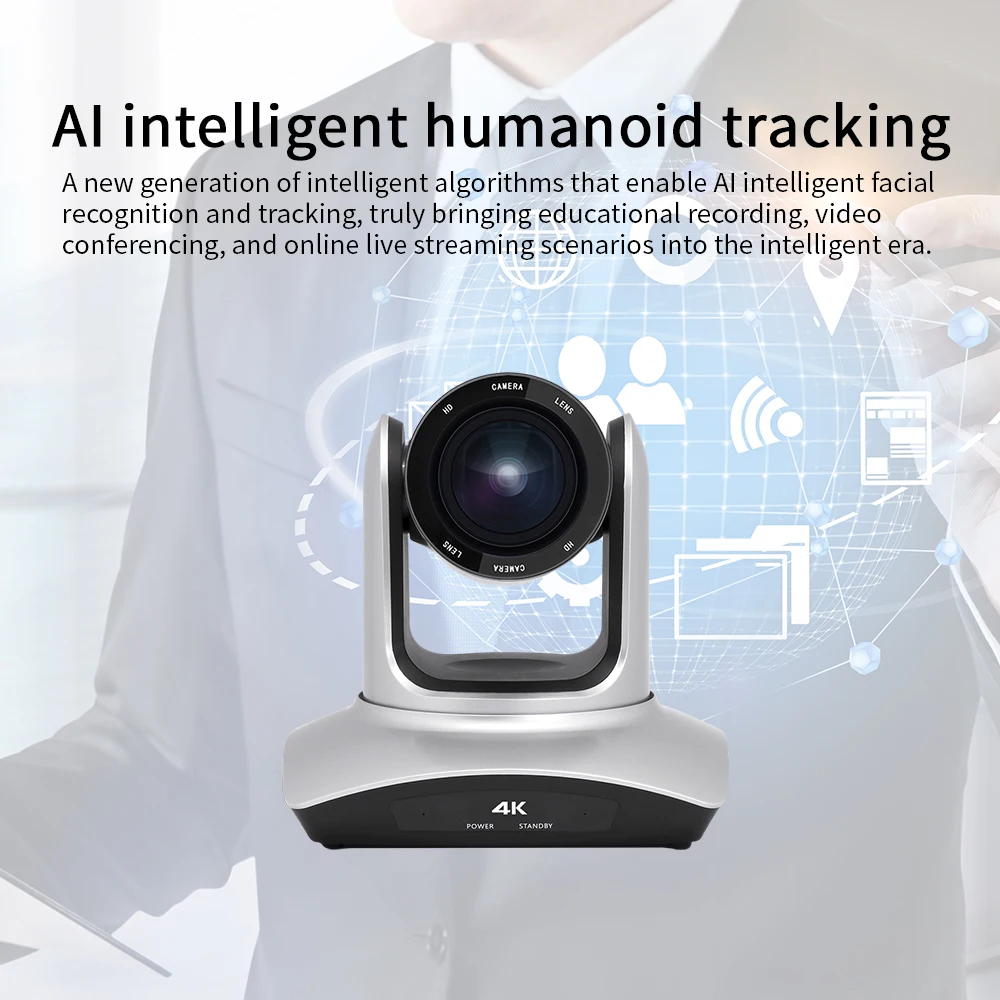

Humanoid Tracking | Support | |
Auto Framing | Support | |
USB | ||
Protocol | UVC 1.1 | |

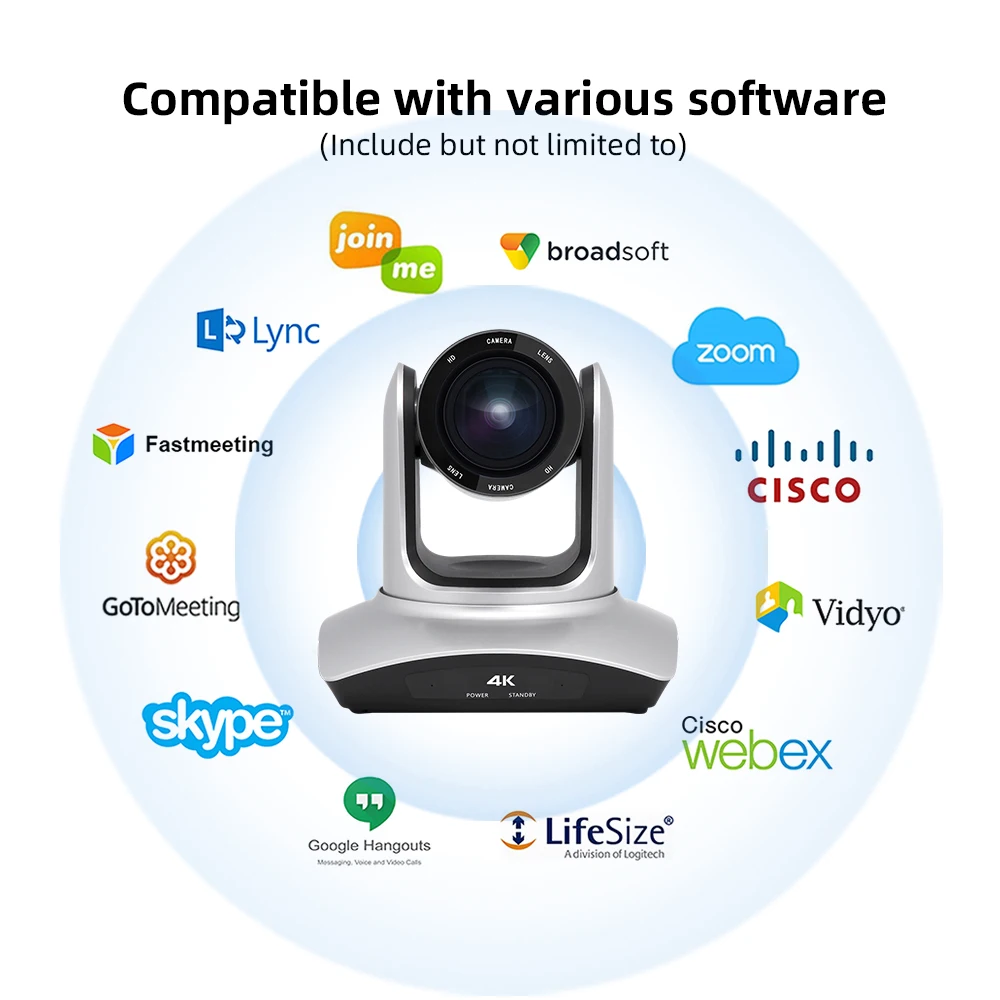

Operating System | Window7 and above, MacOS, Linux, Android | |
Video Compression | YUY2, MJPEG, H.264 | |
Frame Rate | Max.30 | |
UVC Control | Support | |

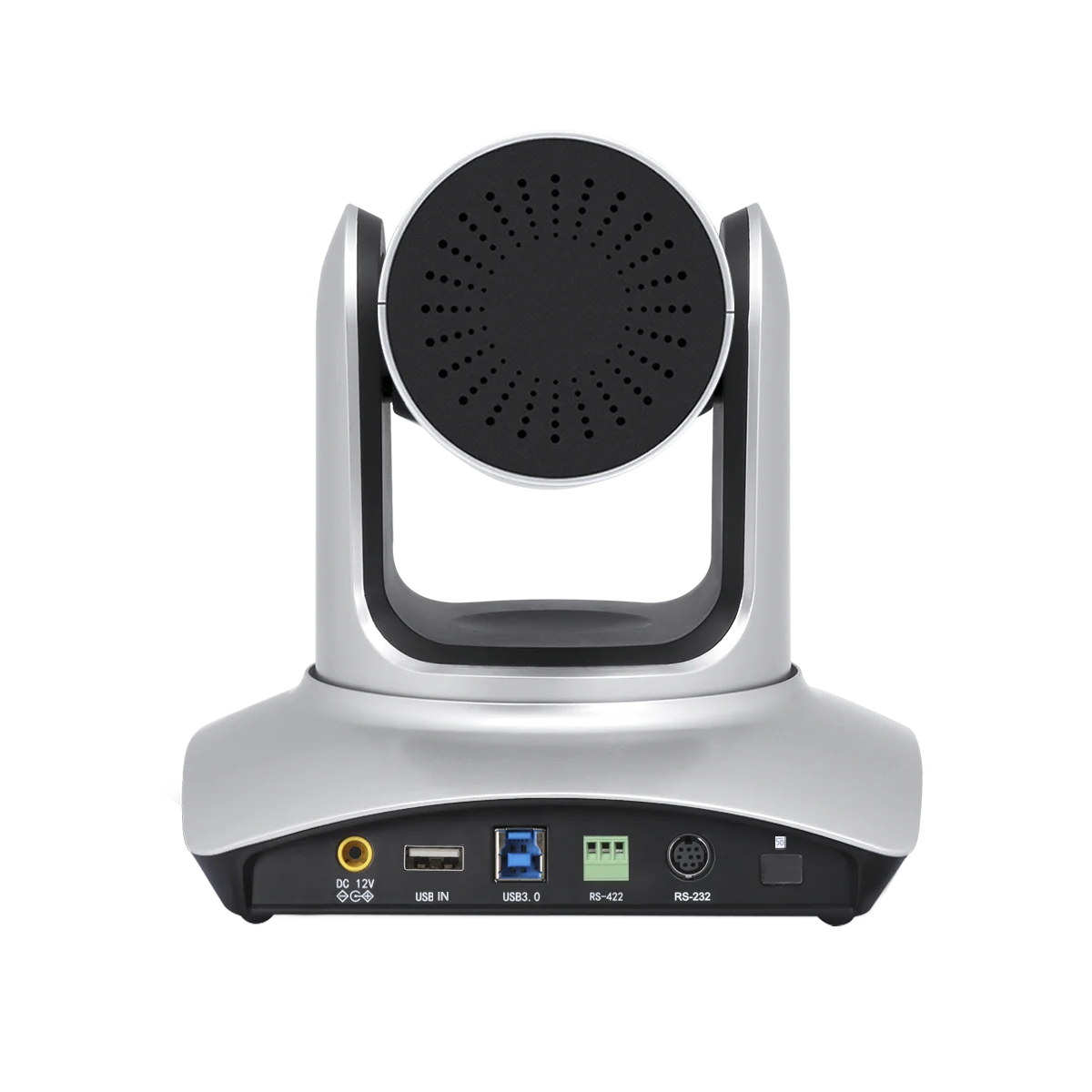

Interface | ||

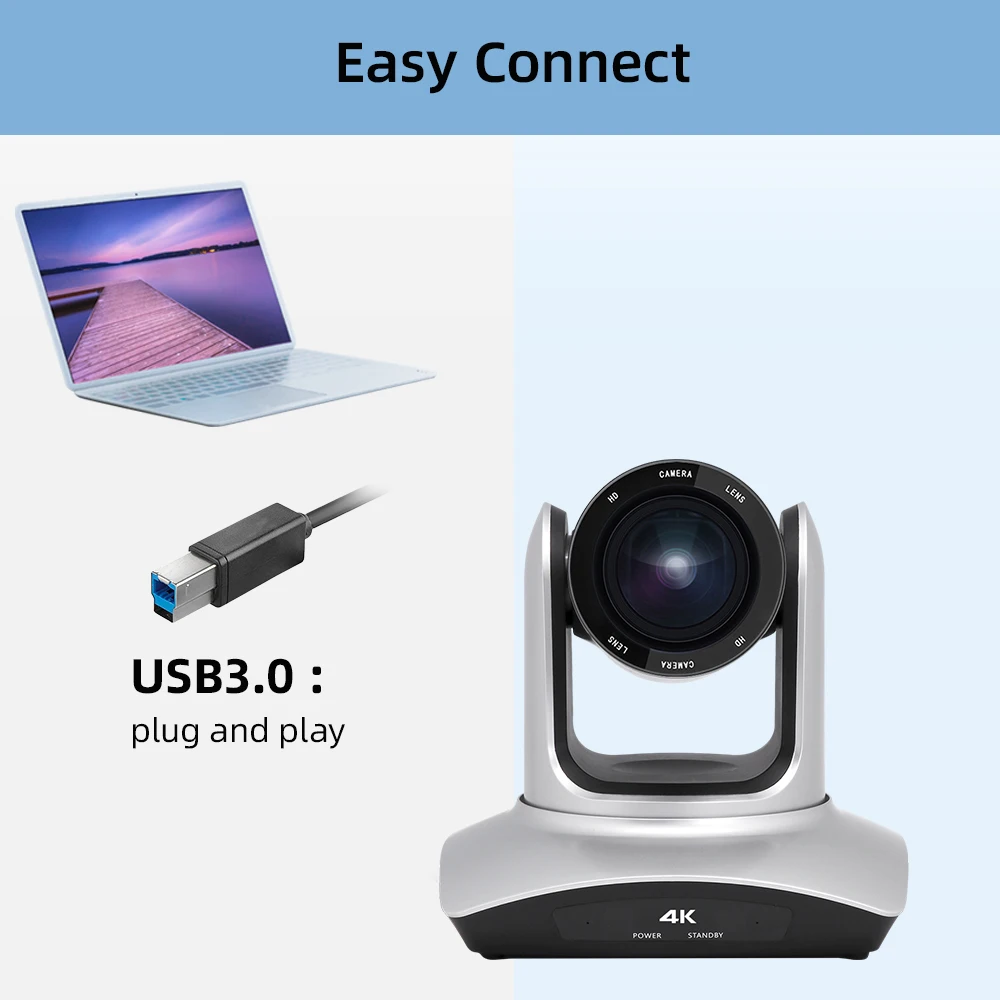

USB Interface | 1 Line, USB3.0, Type-A Socket 1 Line, USB2.0 extensional in, Type-A Socket | |
Serial Interface | 1 Line, RS232 IN: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. 1 Line, RS422/485: 3-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol. | |
Power Interface | JEITA RC-5320A Type 4 | |
General Specifications | ||
Input Voltage | DC 12V | |
Input Current | Max.0.7A | |
Power Consumption | Max.8.4W | |
Operating Temperature | 0~40℃ | |
Storage Temperature | -10~60℃ | |
Color | Silver | |
Dimension | (W)180*(D)180*(H)175mm | |
Weight | 1.2kg | |

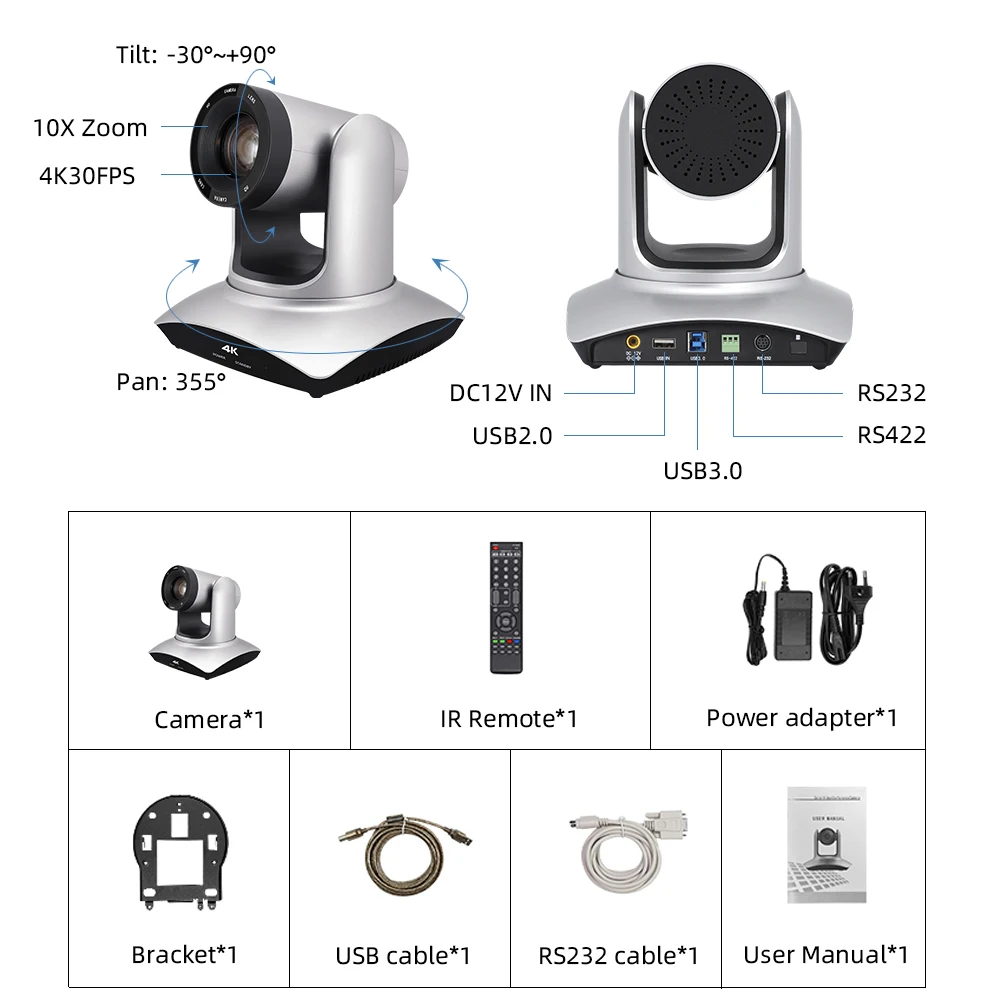

Accessories | DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, Ceiling bracket, Wall bracket(Optional) | |
KATO VISION OEM Service | Description |
Firmware Customization | 1. Booting logo |
2. UI | |
3. Language | |
Logo Customization | 1. Logo silkprint |
Customization | 1. Inner box |
2. User manual | |
3. Accessories |
KATO VISION ODM Service | Description |
Physical design | 1.Customer drawing design 2.Color |
Hardware development | 1.PCB/PCBA development 2.Replace/adding hardware |
Software development | Architecture, Driver, System, Application etc |
Qualification Honor
Exhibition Cases
Buyer Reviews
Company Profile
Our Advantages
FAQ
Q1.What's your payment term?
A:Our payment term is TT in advance before shipment.
Q2.What's your warranty period?
A:The warranty period is 3 years and start from the purchase date.
Q3.Do you offer remote assistance when facing a technical problem?
A:Yes, surely. We have very professional technical team, and it is our responsibility to help our clients when meet with any technical problem.
Q4.Could I put my own logo products?
A:Sure, we have our R&D department, we can do ODM and OEM.
Q5.How do you guarantee the quality?
A:We have our own QC to inspect all our goods before packing. And also, we have CE/FCC/RoHS/ISO.
Q6.I'm buying with yours company at the first time,how can I trust you?
A:We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
