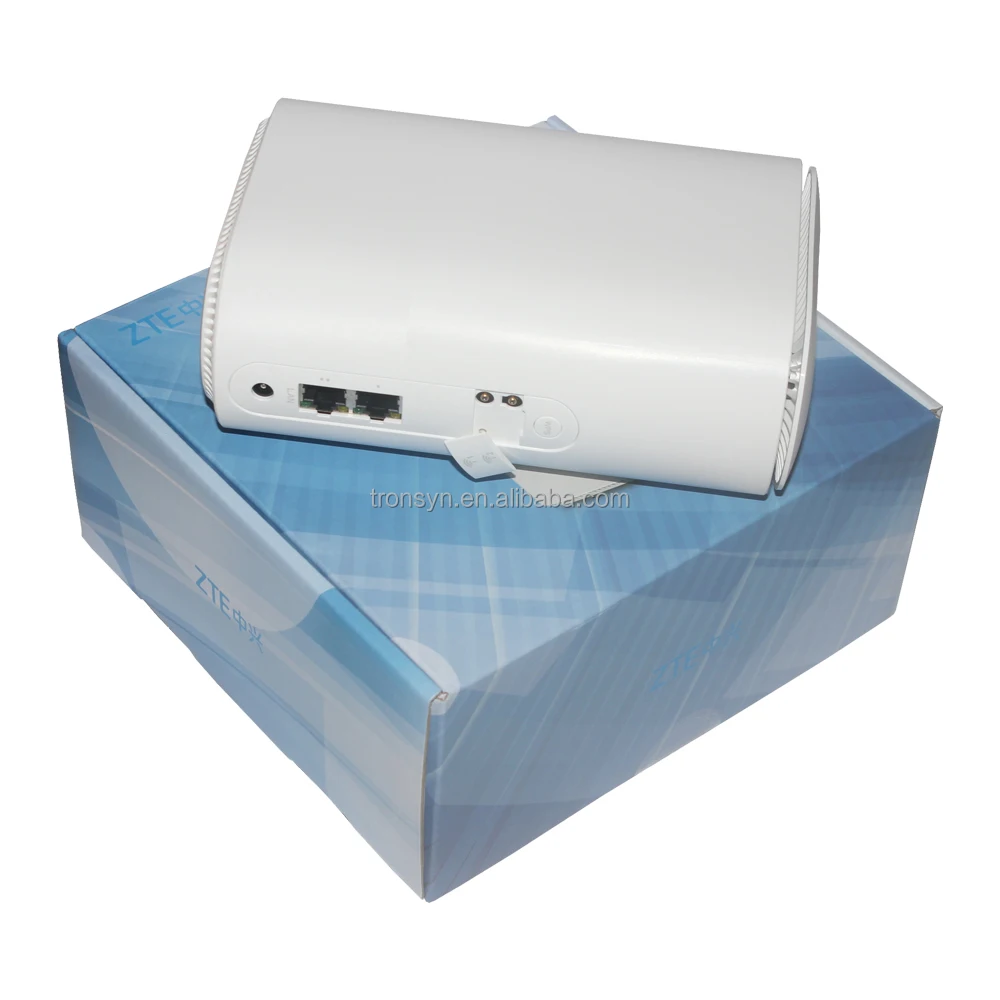

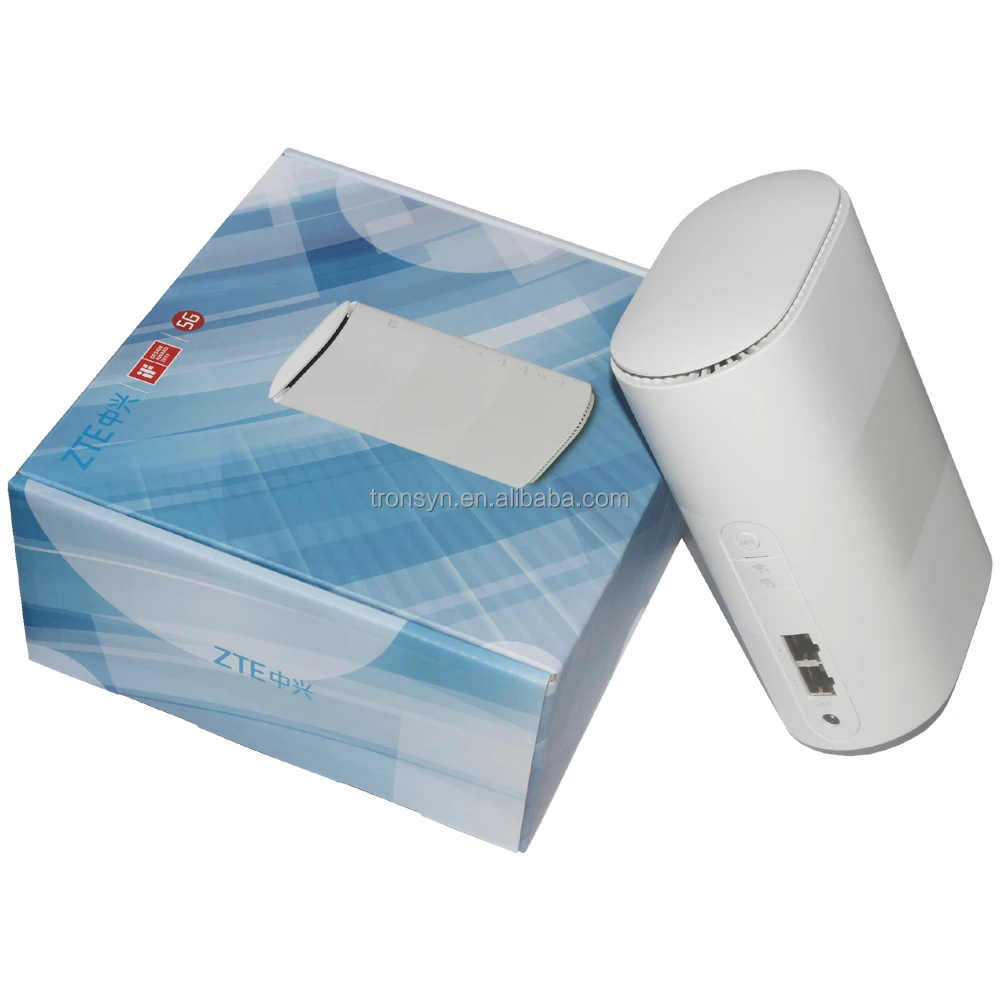

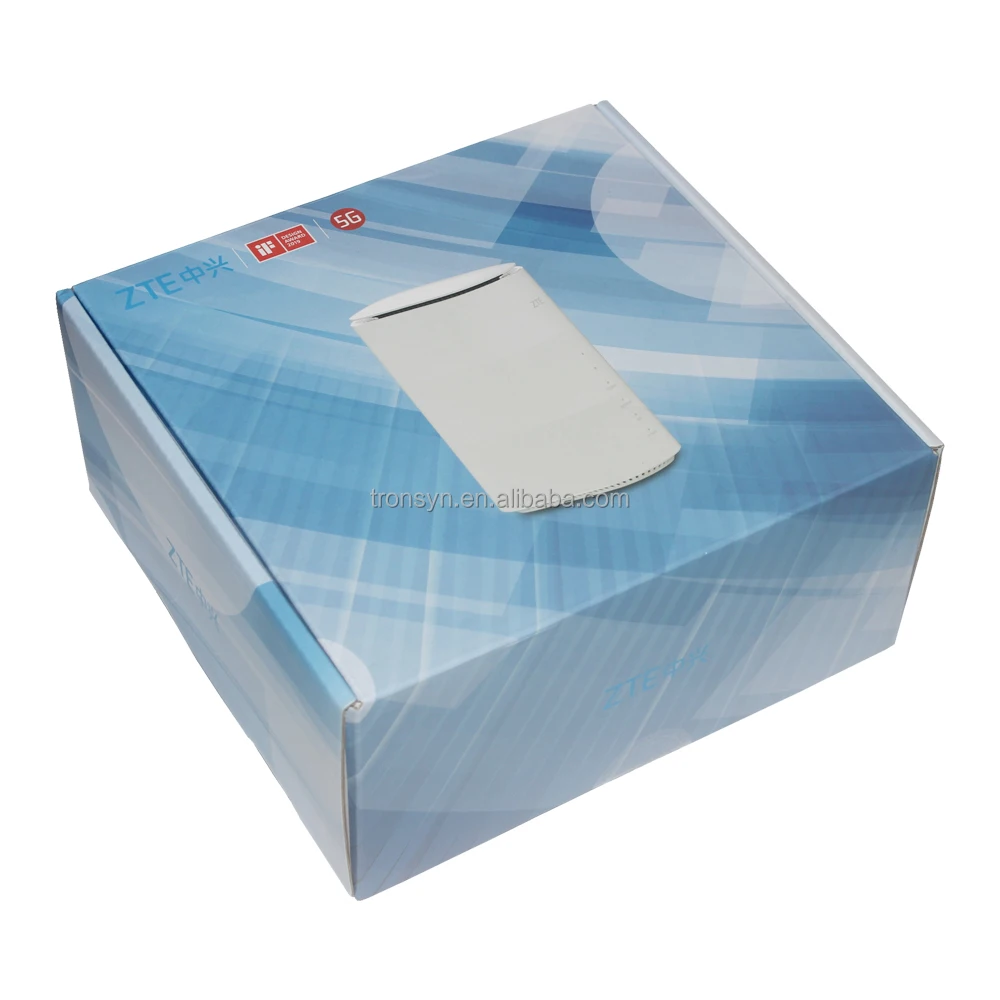

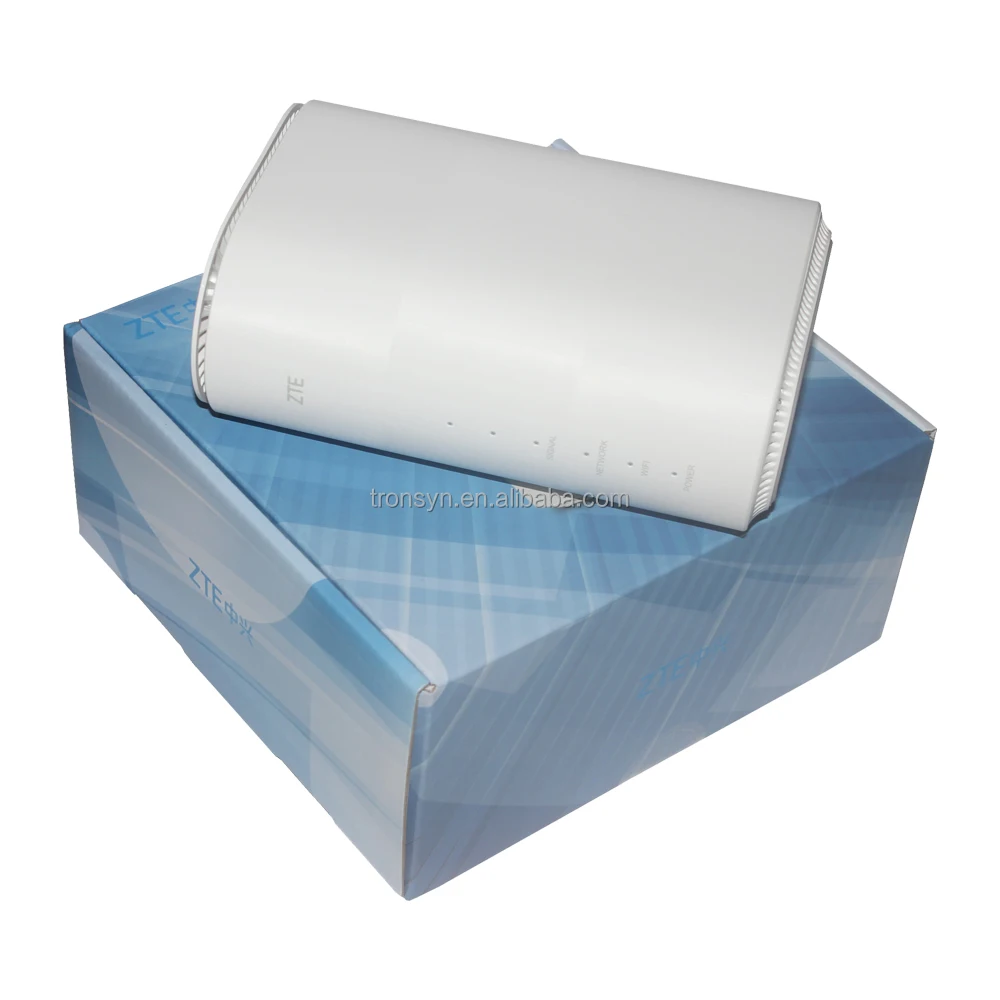

ZTE MC801A 4.0Gbps AX1800 WiFi Outdoor 5G CPE With Sim Card Slot Support 32 WiFi Users
- Category: >>>
- Supplier: Shenzhen Tronsyn Communication Firm
Share on (1601273387520):
Product Overview
Description
Product Description
Specification
Item | 5G Home CPE Wireless Router |
Chipset | SDXX55 |
Dispaly Screen | None |
WiFi Users Access | 30 Users |
Type | Wireless |
Interface Type | Wireless |
Transmission Rate | 5GHz 1200Mbps,2.4GHz 600Mbps |
Brand Name | ZTE |
Model Number | ZTE MC801A |
Place of Origin | China |
Guangdong | |
Speed | 5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s |
4G LTE TDD Frequency | DL: 2.4 Gbit/s and UL: 316 Mbit/s |
5G NR NSA SA Frequency | 5G: N41/N77/N78/N79 |
4G LTE FDD Frequency | 4G LTE Band: B1/B3/B7/B20/B28/B40 |
External Antenna | 2 x Antennas Port |
Function | Data Transmission |
Protocol | 802.11ac/n/g/b/a/ac/ax |
Weight | 2.0KG |
OS | Windows XP/Vista/Win7/MAC |
Application | HOME,SOHO |
Description:
ZTE MC801A is a 5G Indoor WiFi router supporting the latest Wi-Fi 6 access technology, allowing multiple users to access the 5G
network at the same time. ZTE 5G Indoor CPE MC801A supports both NSA & SA 5G Networks, compatible with mainstream 4G and 5G
standards. The device enables consumers to enjoy the advantages of ultra-fast 5G networks and 5G services, including immersive
streaming, gaming and entertainment experience through virtual reality, augmented reality and 3D technologies.
ZTE MC801A 5G WiFi CPE Specifications：
* Category: 5G Router
* Communication Standard: 3GPP Release 15
* Chipset: Qualcomm 5G SDX55M
* CPU: Cortex A7 up to 1.4GHz
* Supported networks:
* Supported networks:
- Network technology: 5G NR, 3GPP Rel 15 5G NR SA & NSA option 3X
- Network frequencies: 5G: 41/77/78/79
- Support 4G LTE Band: 1/3/7/20/28/40 and 3G WCDMA Band: 1/8
* Data rate speeds:
- 5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
- LTE Category 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
- WCDMA: DC (up to 42Mbit/s)
* Modulation: DL 256QAM, UL 64QAM
* Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO
* WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s
* WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s
* WLAN encryption standards: WPA, WPA2, WPS
* Support up to 30 WiFi users simultaneously
* Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)
* Interface:
- SIM card slot(NANO SIM) x 1
- Tel port(RJ11) x 1 (CSFB)
- WAN/LAN GE port * 1
- 1GE port(RJ45) * 1
- DC port x 1
* Administration console: Full access from a web browser 192.168.0.1
* Power supply: 12V / 4A
* Button: Power button, reset button
* Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector(Buy ZTE MC801 5G external antenna)
* SIM Card size type: NANO SIM
* Support OS: Linux
* Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port
Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc.
* Dimension: 225 x 154.5 x 87 mm

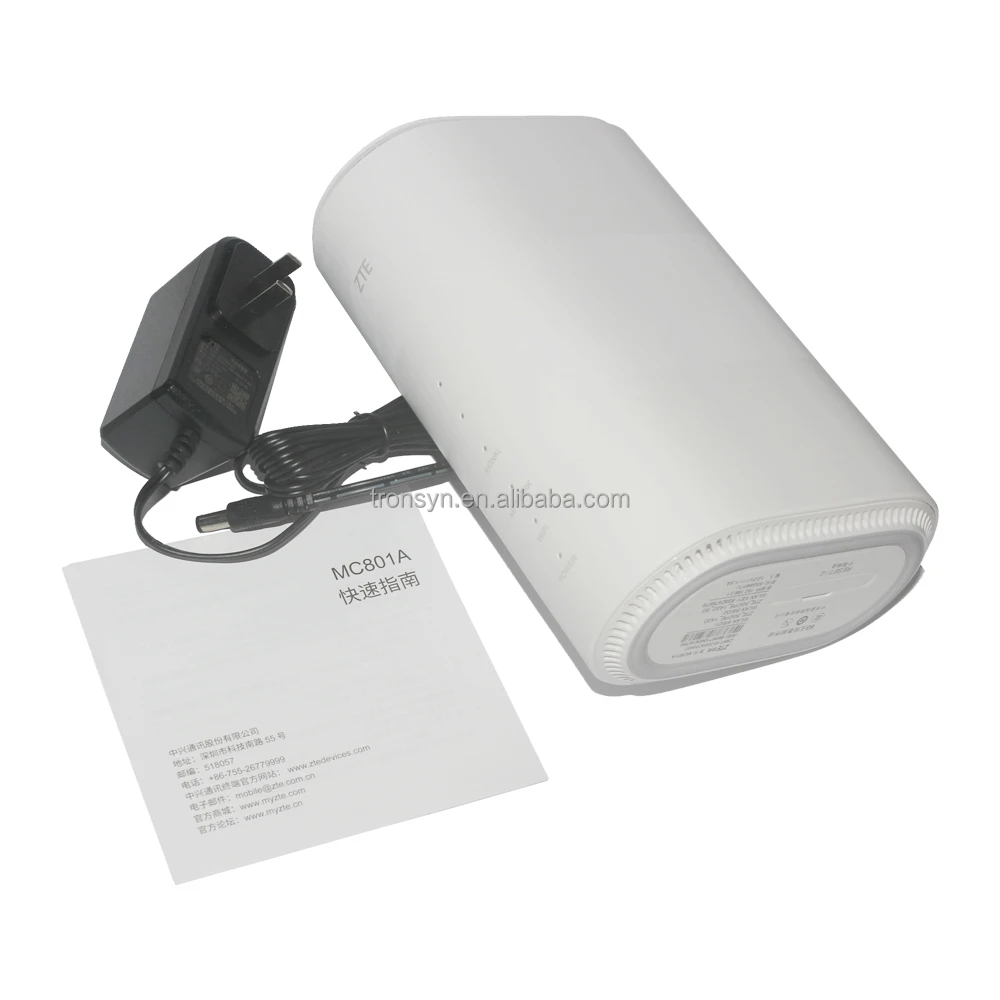

* Package content:
- ZTE 5G Router MC801A x 1
- 12V power adapter x 1
- Device Instruction
- LAN cable
network at the same time. ZTE 5G Indoor CPE MC801A supports both NSA & SA 5G Networks, compatible with mainstream 4G and 5G
standards. The device enables consumers to enjoy the advantages of ultra-fast 5G networks and 5G services, including immersive
streaming, gaming and entertainment experience through virtual reality, augmented reality and 3D technologies.
* Category: 5G Router
* Communication Standard: 3GPP Release 15
* Chipset: Qualcomm 5G SDX55M
* CPU: Cortex A7 up to 1.4GHz
* Supported networks:
* Supported networks:
- Network technology: 5G NR, 3GPP Rel 15 5G NR SA & NSA option 3X
- Network frequencies: 5G: 41/77/78/79
- Support 4G LTE Band: 1/3/7/20/28/40 and 3G WCDMA Band: 1/8
* Data rate speeds:
- 5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
- LTE Category 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
- WCDMA: DC (up to 42Mbit/s)
* Modulation: DL 256QAM, UL 64QAM
* Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO
* WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s
* WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s
* WLAN encryption standards: WPA, WPA2, WPS
* Support up to 30 WiFi users simultaneously
* Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)
* Interface:
- SIM card slot(NANO SIM) x 1
- Tel port(RJ11) x 1 (CSFB)
- WAN/LAN GE port * 1
- 1GE port(RJ45) * 1
- DC port x 1
* Administration console: Full access from a web browser 192.168.0.1
* Power supply: 12V / 4A
* Button: Power button, reset button
* Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector(Buy ZTE MC801 5G external antenna)
* SIM Card size type: NANO SIM
* Support OS: Linux
* Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port
Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc.
* Dimension: 225 x 154.5 x 87 mm
* Package content:
- ZTE 5G Router MC801A x 1
- 12V power adapter x 1
- Device Instruction
- LAN cable
