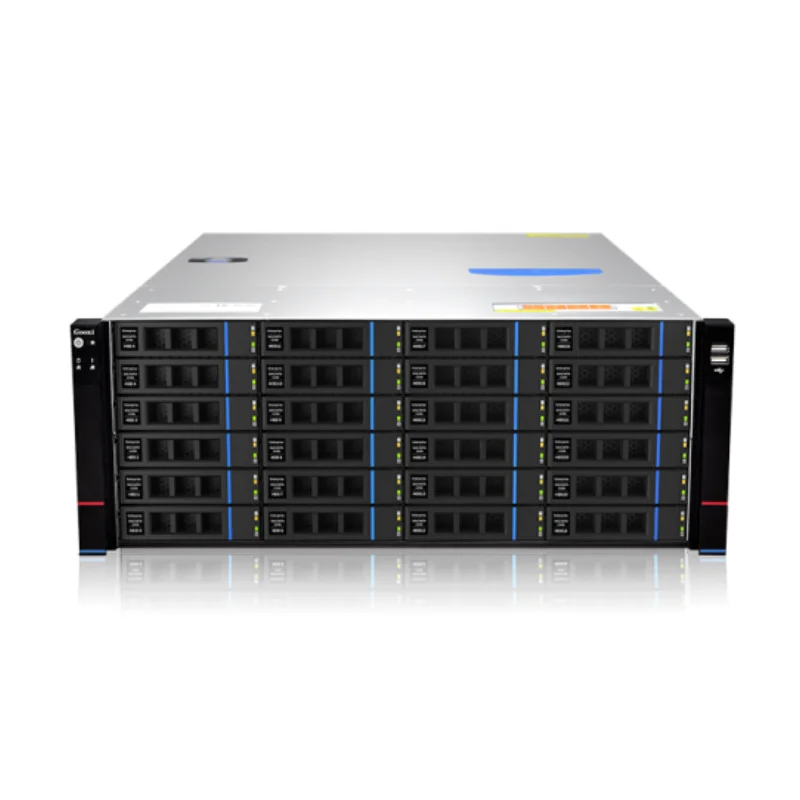

Gooxi AS401 D24RE G3 24x 3.5in sas hdd 4u server support 5318Y

System Model

AS401-D24RE-G3

Processor

Support 1 or 2 Gen3 Intel® Xeon® Scalable ICE Lake processors

Chipset

Intel® C621 A series dedicated processor chipset

Memory

16* DDR4 slots, supports DDR4 2666/2933/3200MHz LRDIMM/ RDIMM memory

Storage Controlle

Internal PCH supports RAID 0\\1\\10&5 (for Windows only)

Storage

Front port: 24* 3.5"/2.5" SAS/SATA hot swap hard drives
Optional rear 2x 2.5" SAS/SATA or U.2 hard drive bays
Internal storage: 1 M.2 (PCle3.0x4) port, 3 MiniSAS HD ports, 2 SATA DOM ports

Network

2* 1GbE (RJ45) onboard

I/O Ports

Front port: 2 USB2.0
Rear: Integrated 2 Gigabit network ports, 1 independent IPMI management network port, 2 USB3.0 ports, 1 VGA port

PCIe Expansion

Supports 7* full-height PCIe x16 slots
Slot1: PCle3.0x8 from CPU1
Slot2: PCle4.0x16 from CPU1
Slot3:PCle3.0x8 or NA from CPU1
Slot4:PCle3.0x8 or x16 from CPU1
Slot5:PCle3.0x8 from CPU1
Slot6:PCle4.0x16 from CPU0
Slot7:PCle4.0x16 from CPU1

Power Supply

800W, 1200W, 1300W, 1600W, 2000W, 2200W hot-swap 1+1 redundant power supply

Fan

Standard 3* 12038 (N+1) hot-swap fans

Management

IPMI2.0

Security

TPM/TCM (optional) ,Locked upper cover of chassis

Operating System

Microsoft Windows Server,Red Hat Enterprise Linux, SUSE Linux Enterprise Server,CentOS,Ubuntu

Server Size

670 x 433 x 176.5mm (D x W x H)

Working Temperature

Operating temperature: 5ºC - 35ºC (indoor)
Storage temperature: -40ºC - 70ºC
