PRODUCT SPECIFICATIONS


Model
Model
GR100
engine
4BY3.9
rated power/speed
kw/rpm
74/2200
performance
spexification
traveling speed forward
km/h
5,8,11,17,24,38
traveling speed reveres
km/h
5,11,24
(f=0.8) traclive force
kn
41.6
Operating
spexification
max.gradeablilty
%
30
Min.tuming radius using articulation
m
5.9
Maximum lift above ground
mm
300
Maximum depth of cutting
mm
350
Maximum balde position angle
.
45
Blade cutting angle
.
28-70
Blade
Circle rebersing rotation
.
120
Moloboard width×height
mm
3048×450
Dimension(L×W×H)
mm
6880×2375×3150
Operating weight(Standard)
kg
7000


FEATURES AT A GLANCE

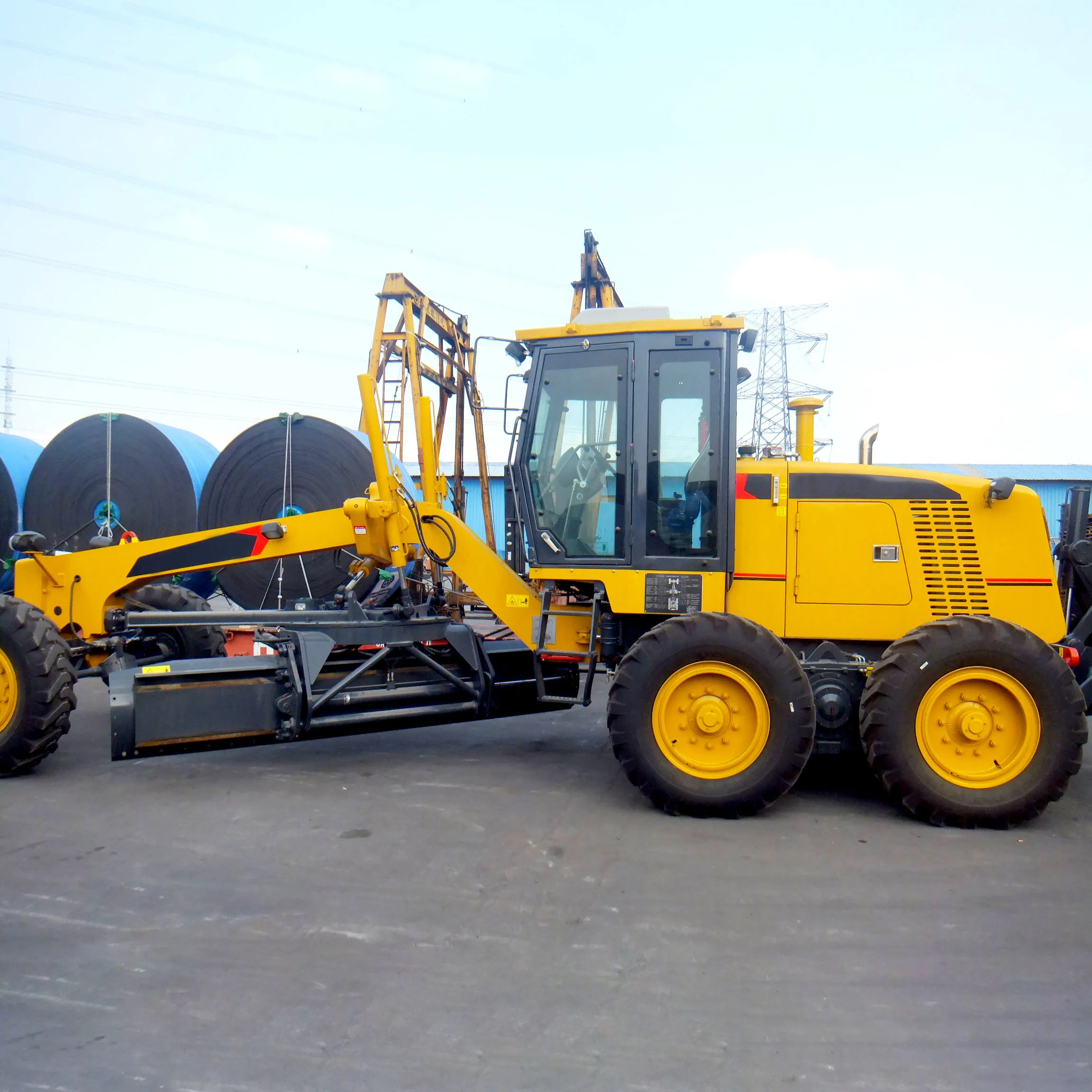

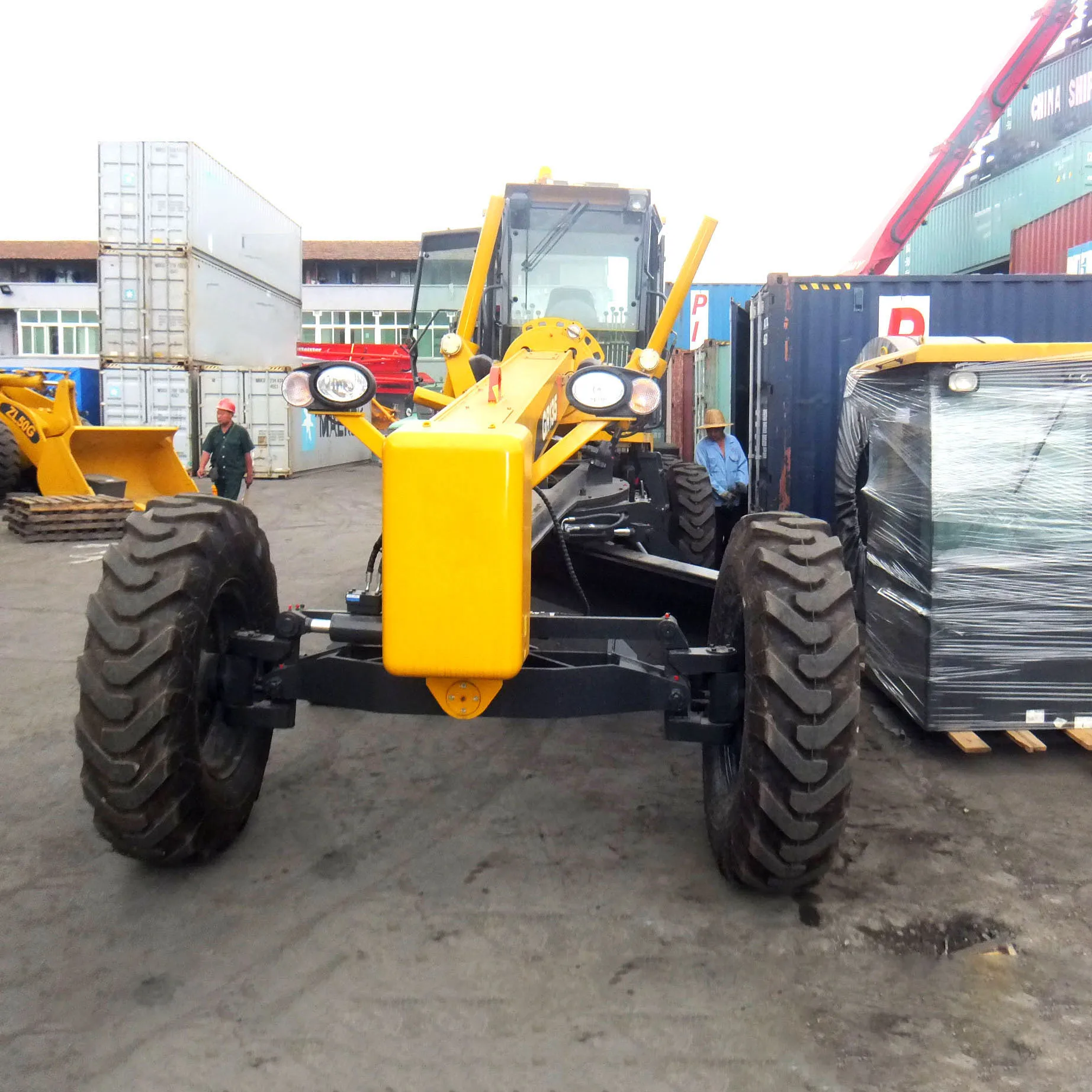

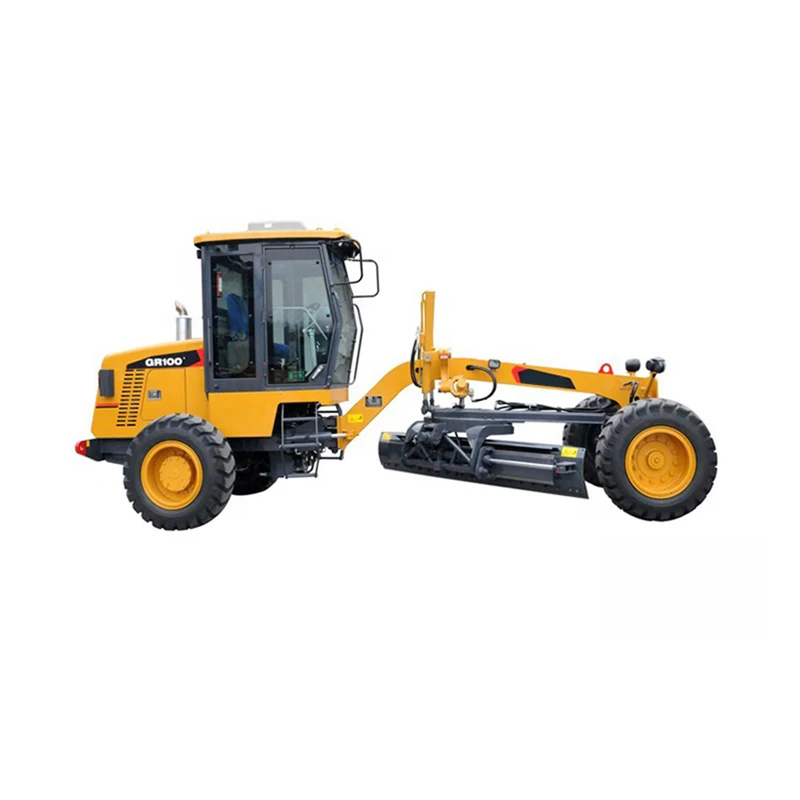

Mini Motor Grader 100HP GR100
Products Description:
GR100 of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.

New appearance
The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
Hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
The adopted international matched hydraulic parts ensure the reliable operation.
The blade movement is hydraulic controlled fully.
The rear axle is three-way drive axle with NO-SPIN self -locking differential.
The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
The luxury and beautiful cab features wide visibility and good sealing.

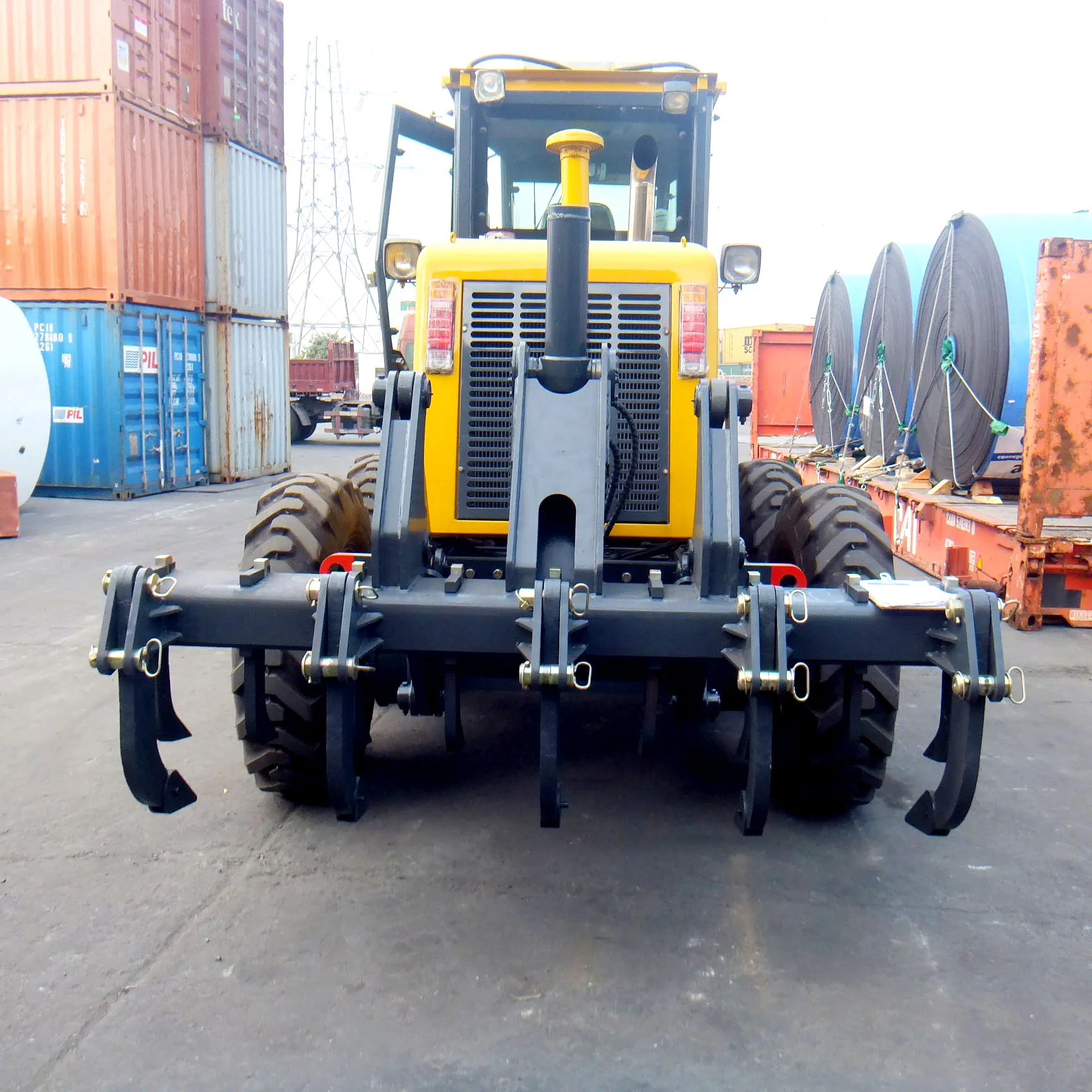

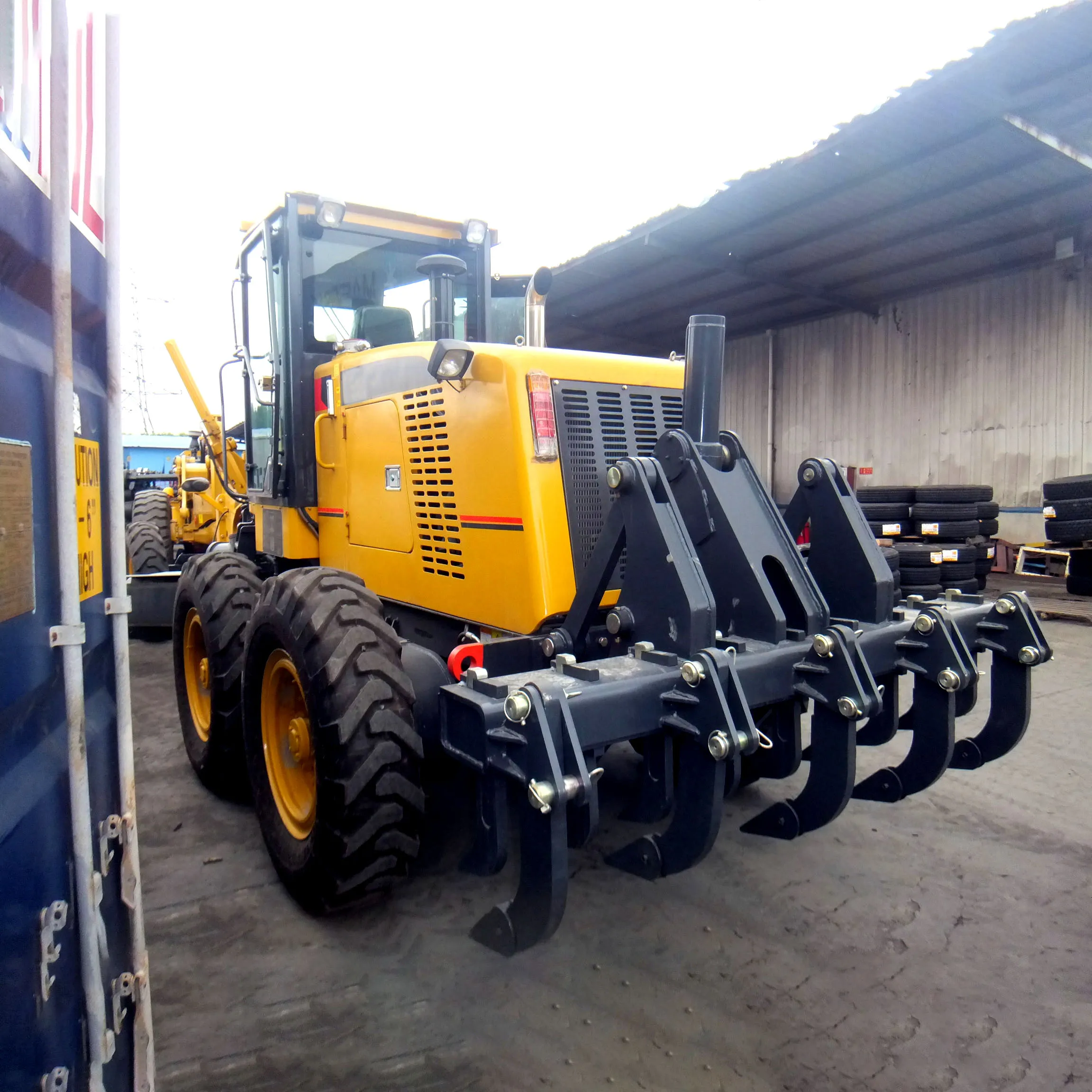

The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.
