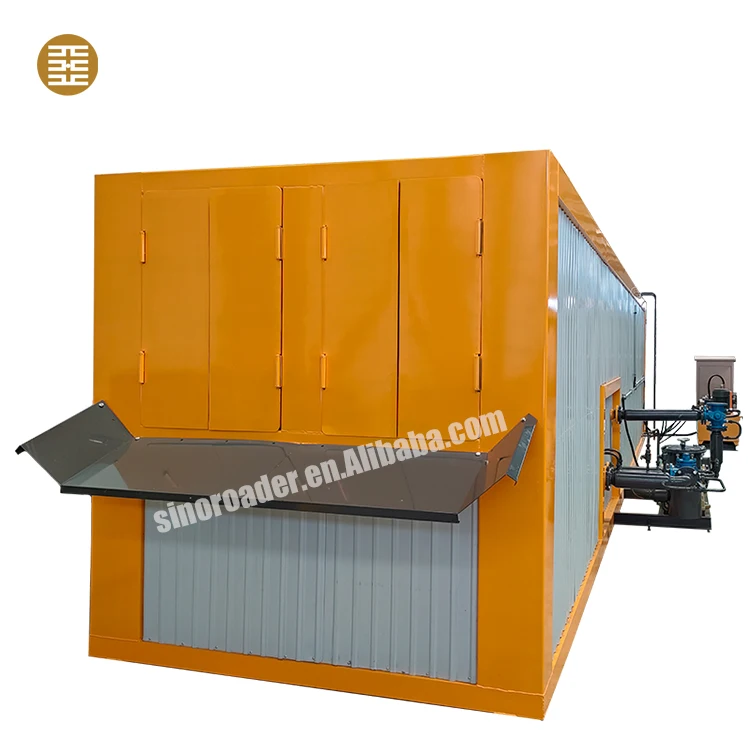

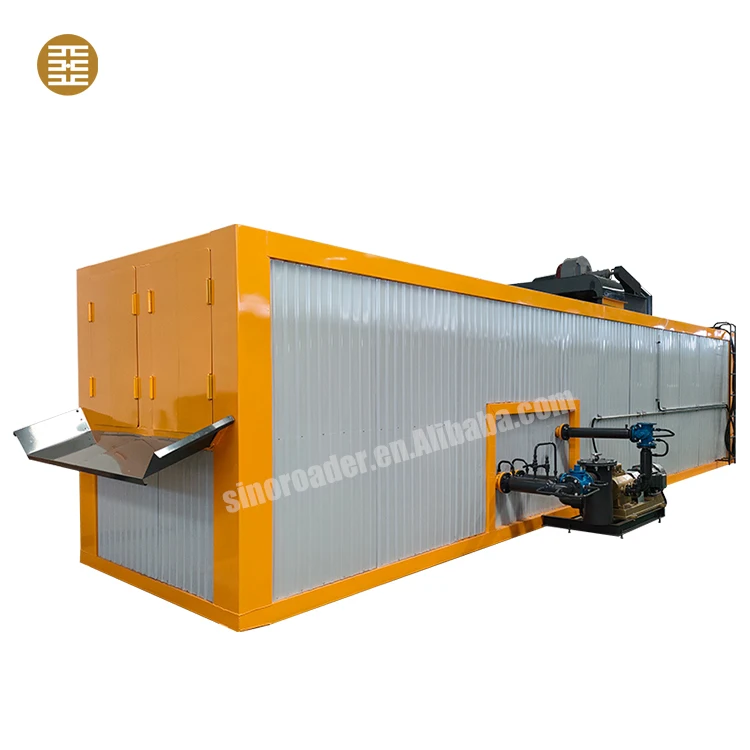

Hydraulic Bitumen melting machine 6t/8tph asphalt Decanter

Hydraulic bitumen decanter is composed of bitumen melting tank, lifting device, tipping device, hydraulic propelling system, heat transfer oil heating system, bitumen pump and pipeline, Automatic temperature control system, liquid level warning system and electric control system, etc.

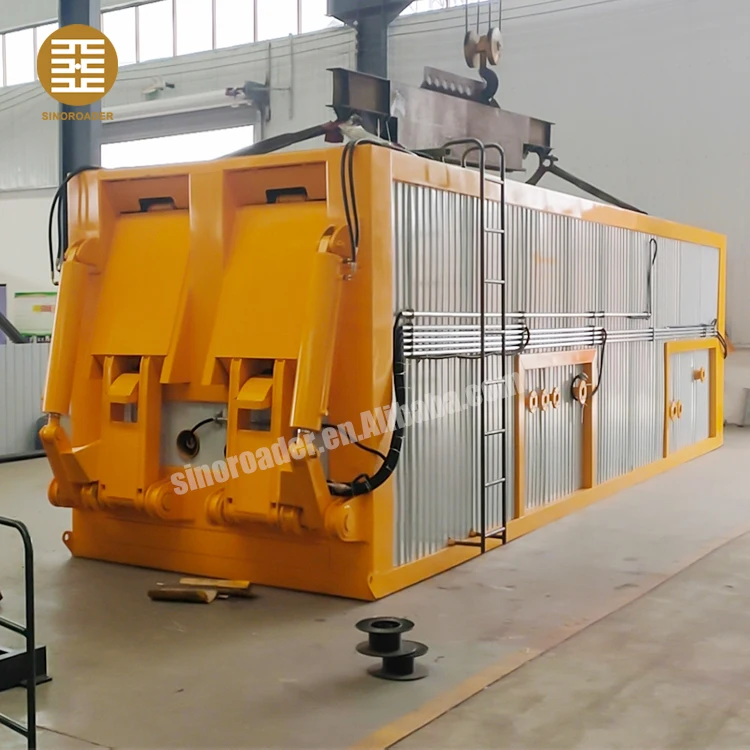

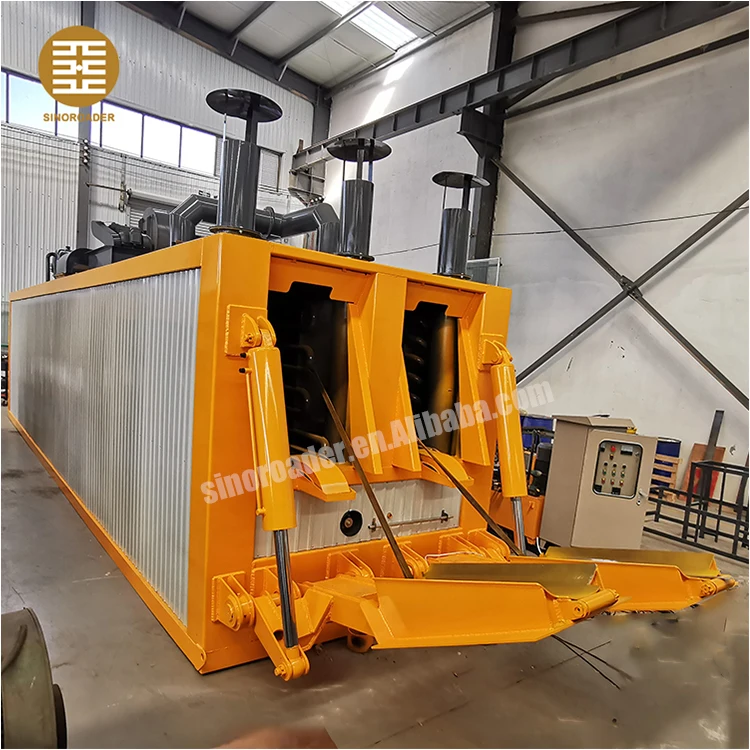

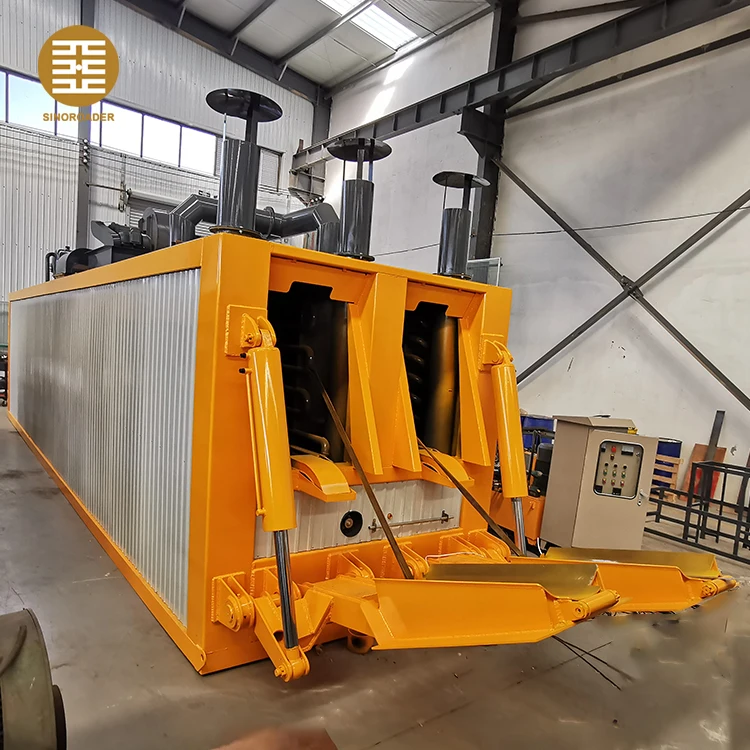

Hydraulic bitumen decanter is  lifting device adopt suspension structure, which lift the bitumen barrel with electric hoist and load it onto the tipping device. The tipping device then turn over the bitumen barrel bottom up on the rails pallet, and the hydraulic propelling system will push it into up tank. All the mentioned actions are operated on the integrated electric controller.

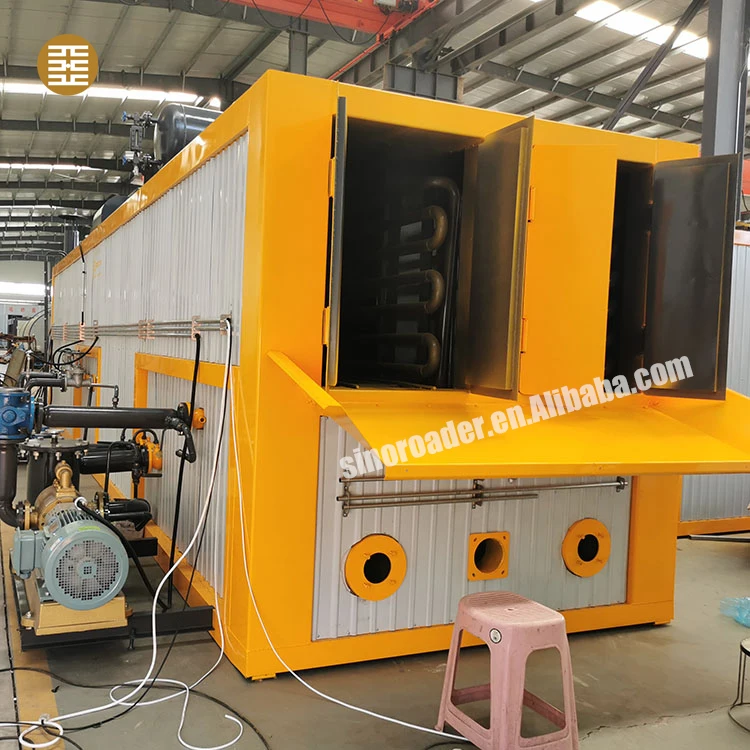

Hydraulic bitumen decanter melting tank looks like a container, its chamber is consist of upper half and bottom half. The upper half is applied to heat up bitumen drums with hot air and heat transfer oil, and make asphalt outflow from the drums. Hydraulic propelling system push the barreled bitumen into tank via two rails, the newly entered barrel pushed empty barrel out from the other end. The bottom half is a storage tank with heat transfer oil coil for heating and storing hot bitumen. when bitumen temperature arrive 110℃, Finally  pump  the  bitumen  into  another  storage  thank  or application machine .
