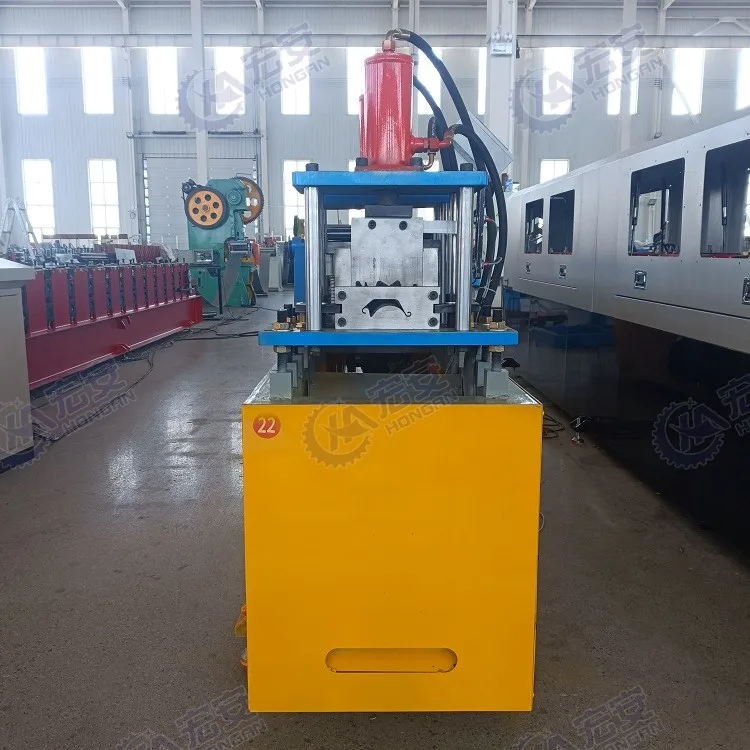

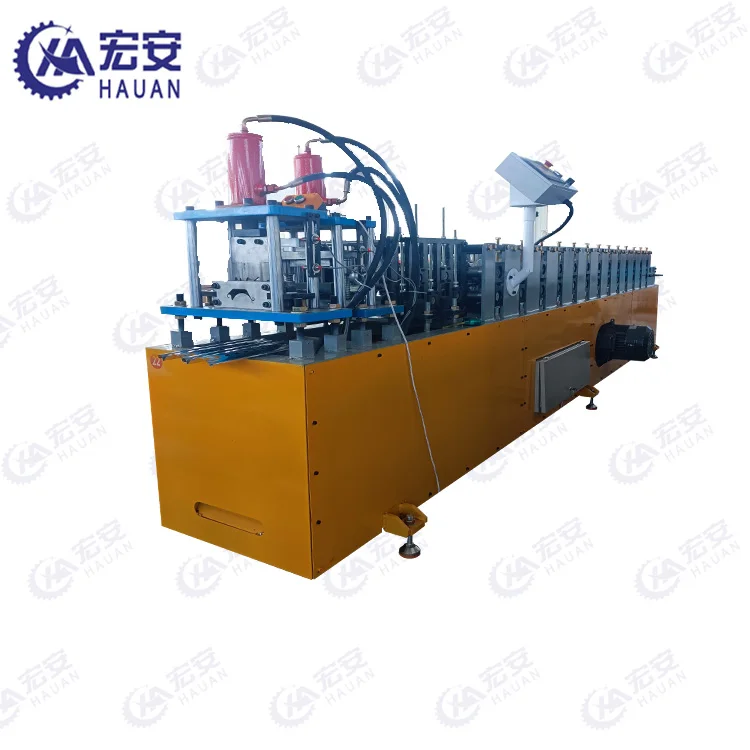

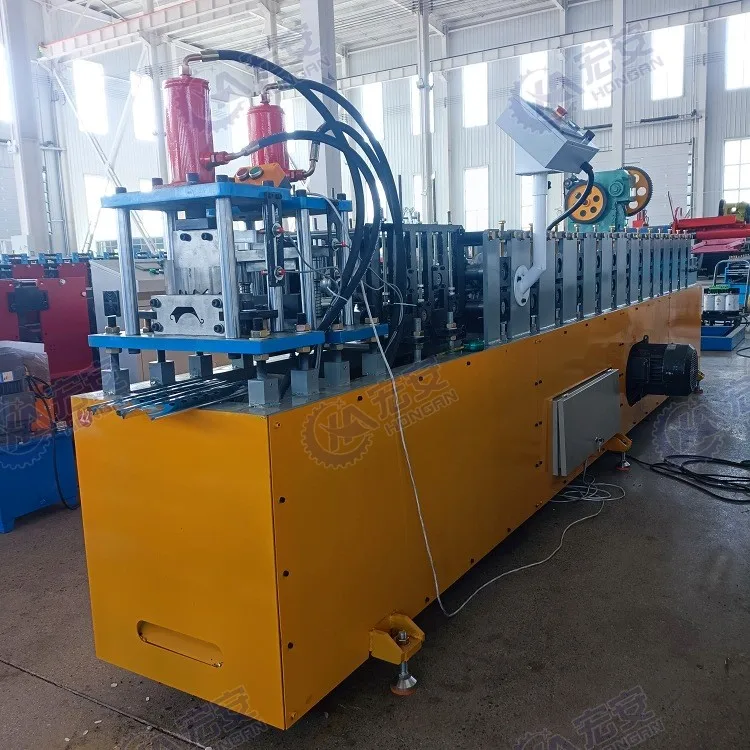

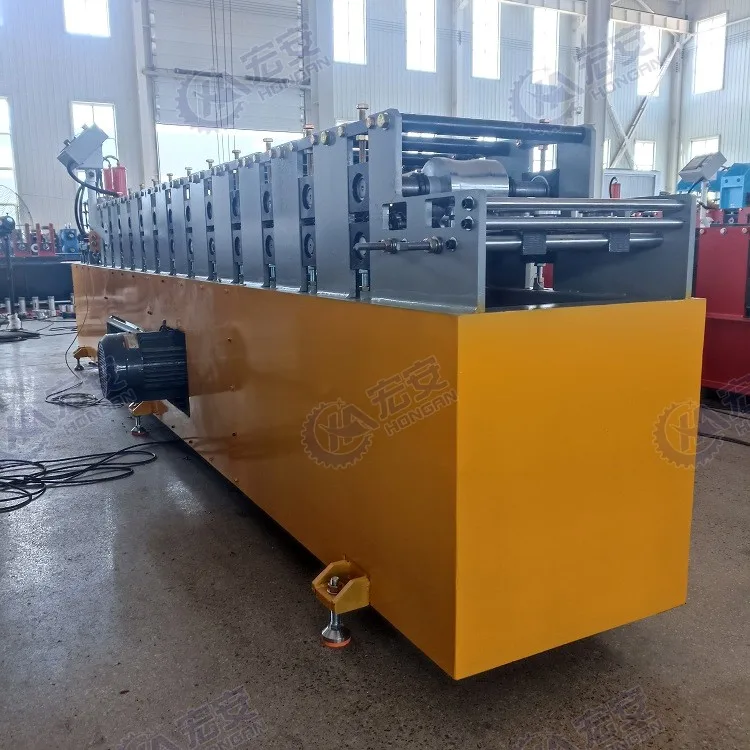

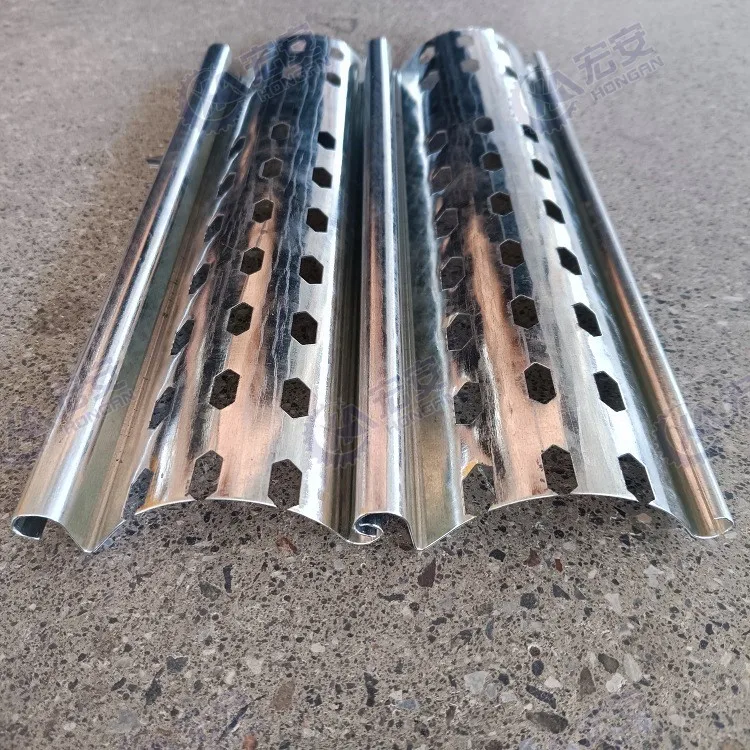

America Perforated Type 125mm Width 0.7 1.2mm Thickness Roller Shutter Door Slat Roll Forming Machine
- Category: >>>
- Supplier: CANGZHOU HAUAN ROLL FORMING MACHINERY CO. LTD.
Share on (1601273830061):
Product Overview
Description
Product Information

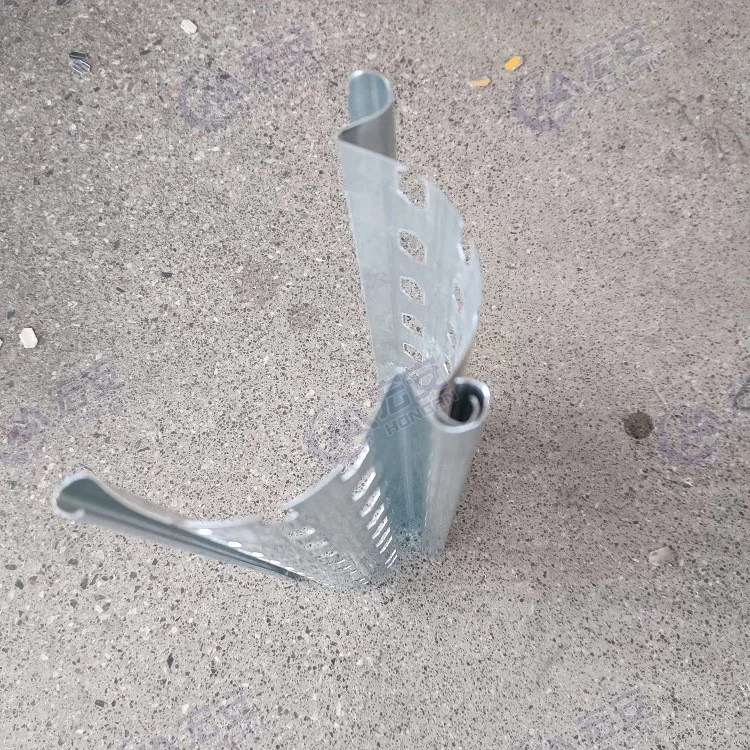

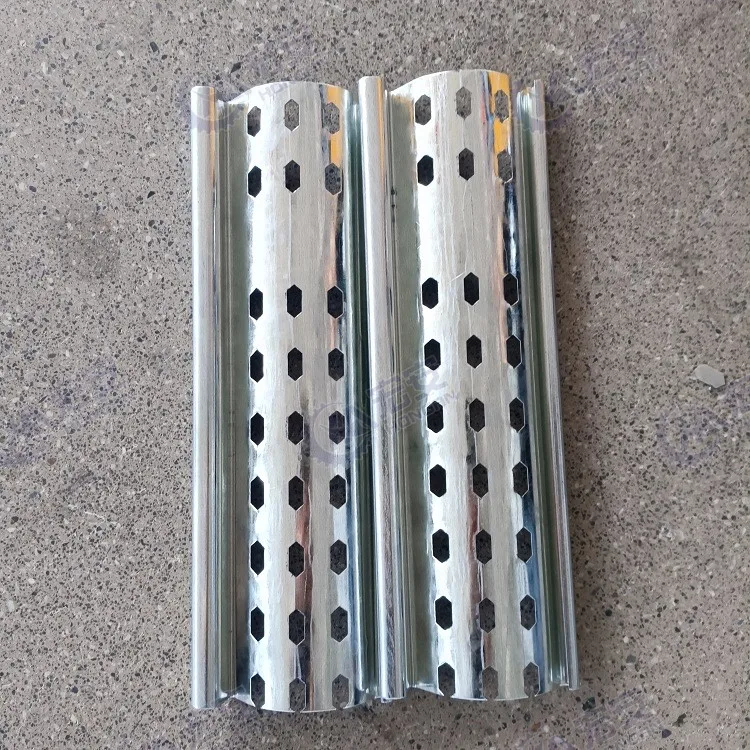

1. Product Profile
Rolling shutter door forming machine is an automatic rolling shutter door forming machine. Rolling shutter door forming machine is a kind of automatic rolling shutter plate forming machine with convenient operation.Shutter doors are made of high-strength panels or aluminum sheet profiles and are used in industrial buildings, stores and many other applications.
Rolling shutter door forming machine is an automatic rolling shutter door forming machine. Rolling shutter door forming machine is a kind of automatic rolling shutter plate forming machine with convenient operation.Shutter doors are made of high-strength panels or aluminum sheet profiles and are used in industrial buildings, stores and many other applications.

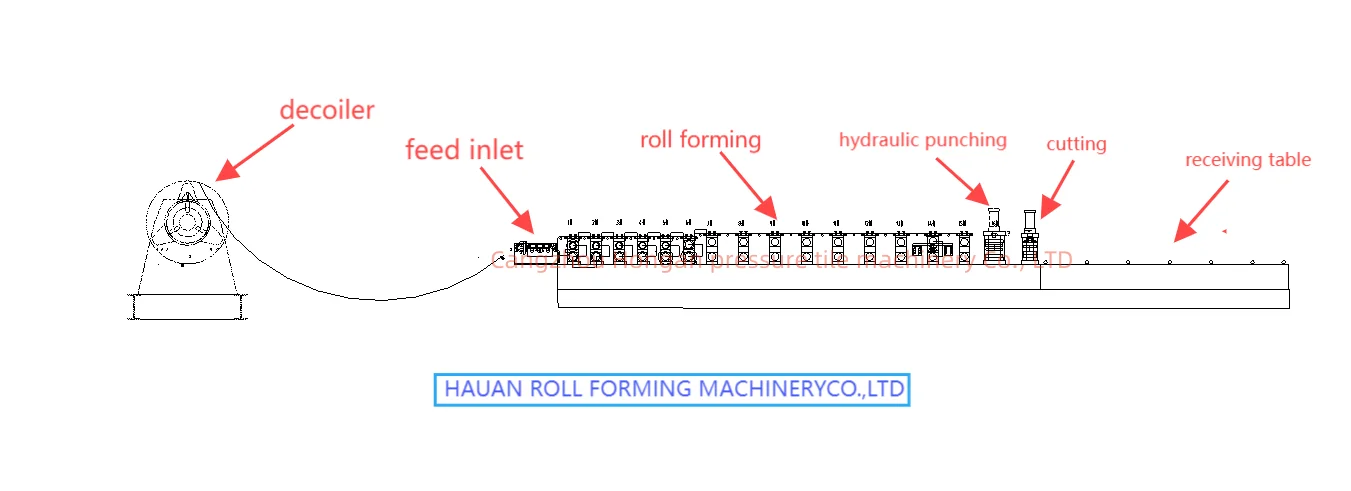

2. Work Flow
5 tons decoiler→ feeding device→ forming machine→hydraulic cutting system → receiving table (two people are recommended for the assembly line)
5 tons decoiler→ feeding device→ forming machine→hydraulic cutting system → receiving table (two people are recommended for the assembly line)
3. Product Specification
Item | Description & Parameter |
Forming raw material | Colored steel plate or galvanized steel |
Rolling thickness(mm) | 0.3-0.6 |
Formiing dimensions (mm) | According to the product drawing |
Feeding width(mm) | According to the product drawing |
Production capacity | 10-15 m/min |
Control system | PLC |
Forming tolerance (mm) | ±0.5mm |
Operation mode | Combined operation method of LCD, PLC Program, driver and wireless control. |
Automation level | Fully automatic |
Fault diagnosis function | Control system diagnosis |
Technical Parameter: | -30 ℃～50℃ |
7Power | 14KW |
Input voltage | 380V/50HZ/3PH electricity or Customization |
Dimension(L*W*H)(mm) | 11800mm * 1400mm * 2000mm |
Weight(Tons) | 3 |
Video outgoing-inspection | Provided |
Machinery test report | Provided |
Warranty information | Three years warranty for the entire machine. |
4. Equipment List
NUM | Equipment Name | Quantity (set) |
1 | Decoiling machine | 1 |
2 | Feeding device | 1 |
3 | Forming System | 1 |
4 | Cutting System | 1 |
5 | Finished Product Receiving Rack | 1 |
6 | PLC control system | 1 |
7 | Supporting Accessories | 1 |

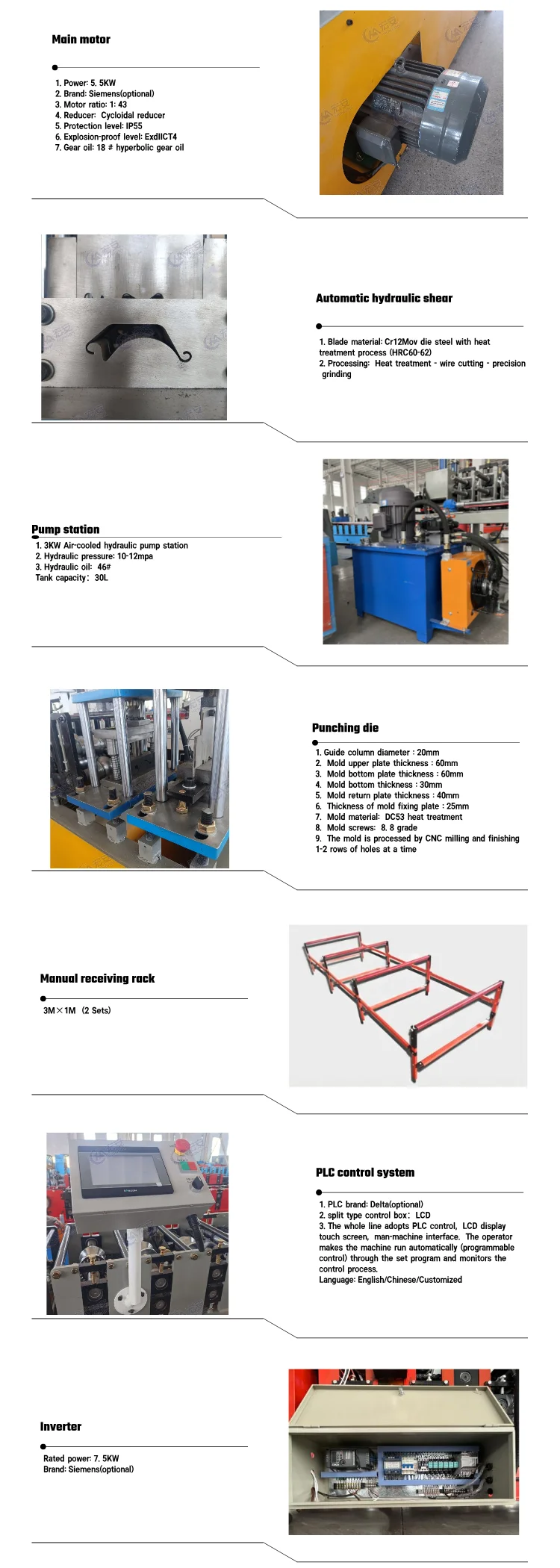

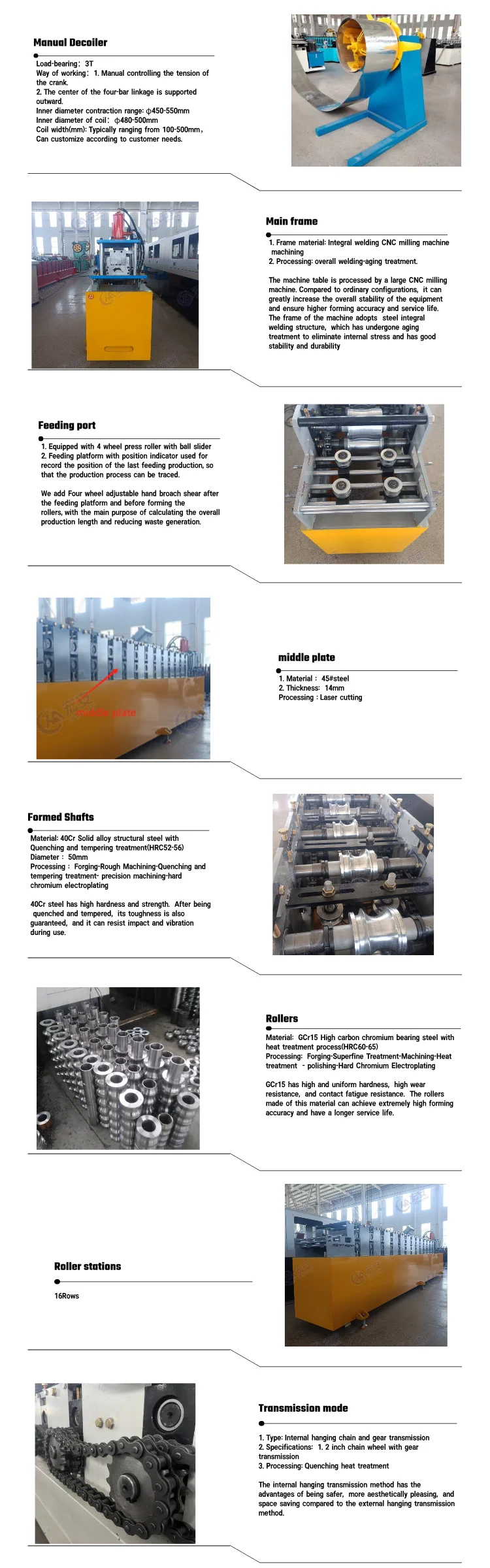

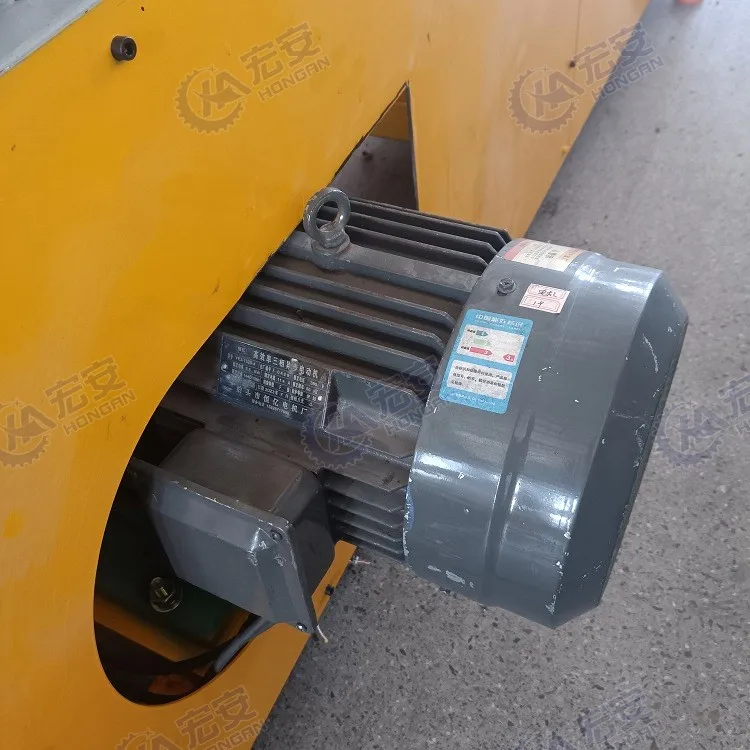

5. Components Details
6. Usage scenario
Packing & Shipping
Packaging Details
1. Select containers of different specifications for transportation based on the actual volume and weight of the packaged goods.
2. Wipe the entire equipment with rust proof oil and use a thin film for dust protection. 3. PLC controller and electric cabinet
are covered with foam film, and vulnerable parts are protected by wooden cases. 4. Spare parts and some small parts are packed in
a plastic toolbox.
2. Wipe the entire equipment with rust proof oil and use a thin film for dust protection. 3. PLC controller and electric cabinet
are covered with foam film, and vulnerable parts are protected by wooden cases. 4. Spare parts and some small parts are packed in
a plastic toolbox.
