Hyper converged storage rack server xfusion 2288x v5 dual CPU 2U 2 way rack server system
- Category: >>>
- Supplier: Beijing Haoyuan Shichuang Technology Co. Ltd.
Share on (1601273875593):
Product Overview
Description
Product display

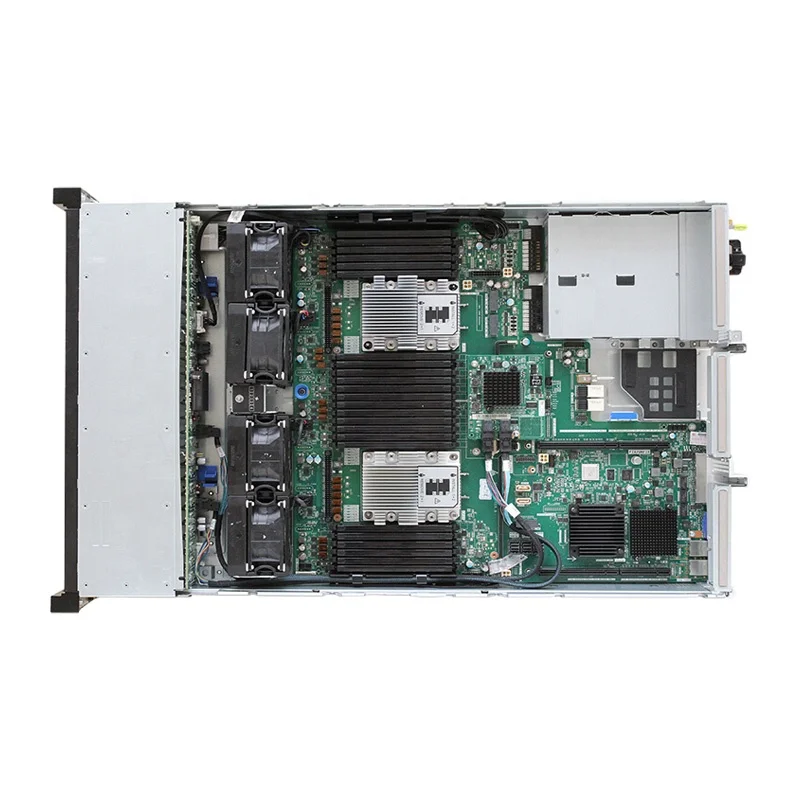

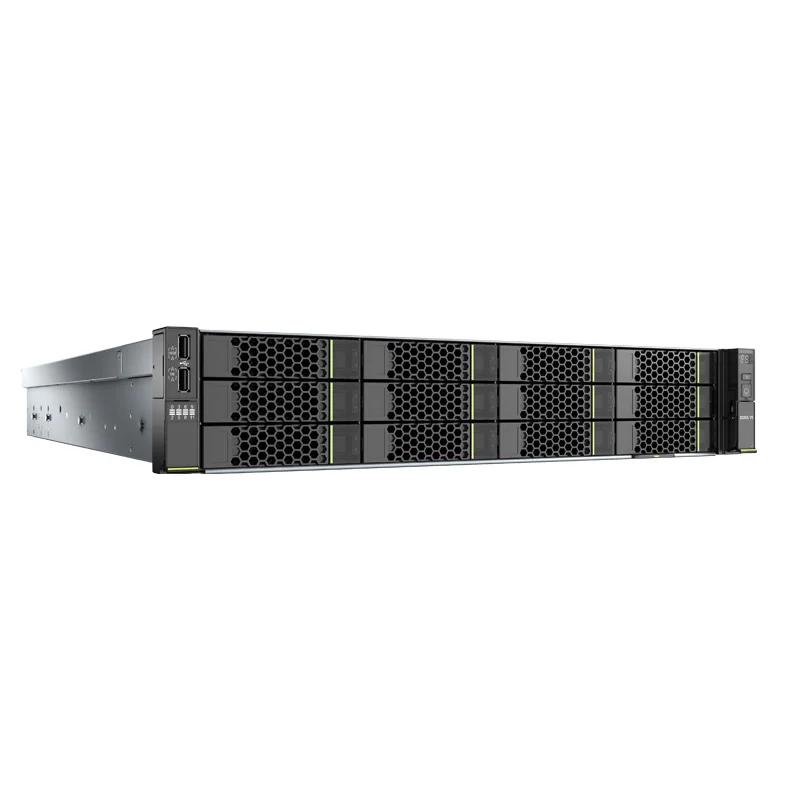

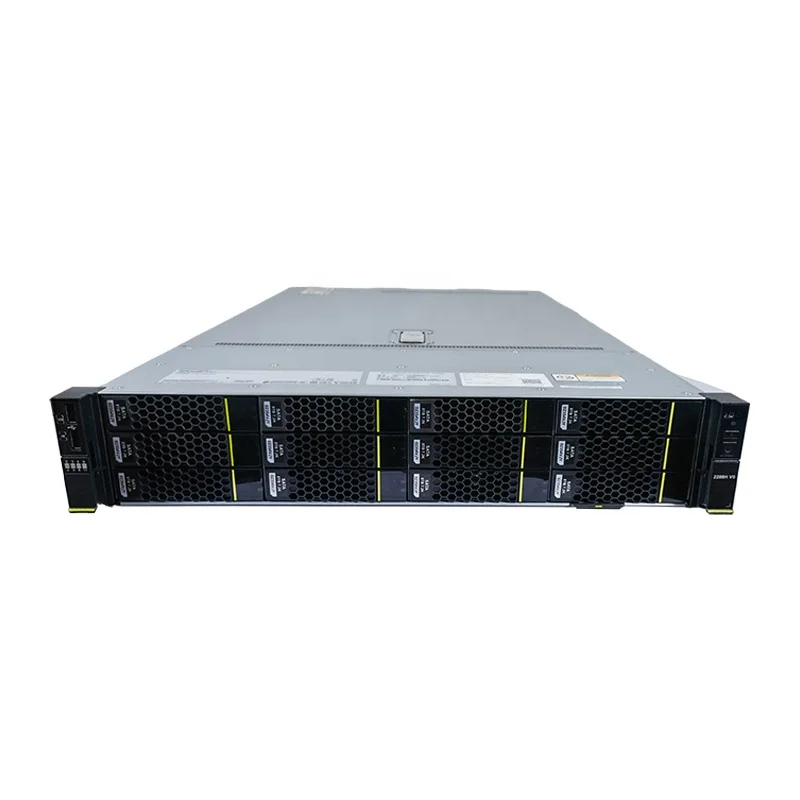

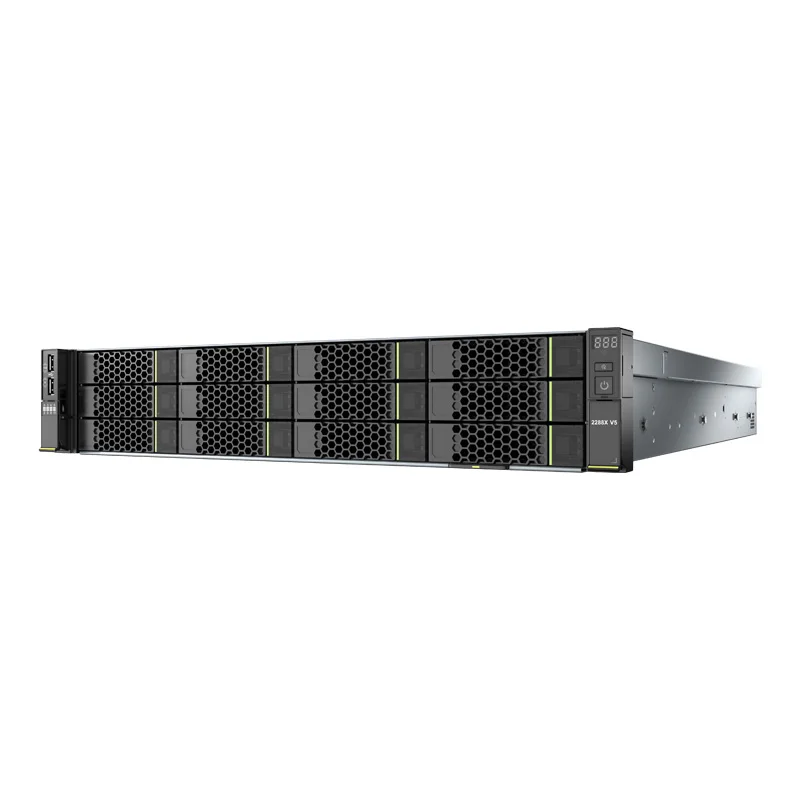

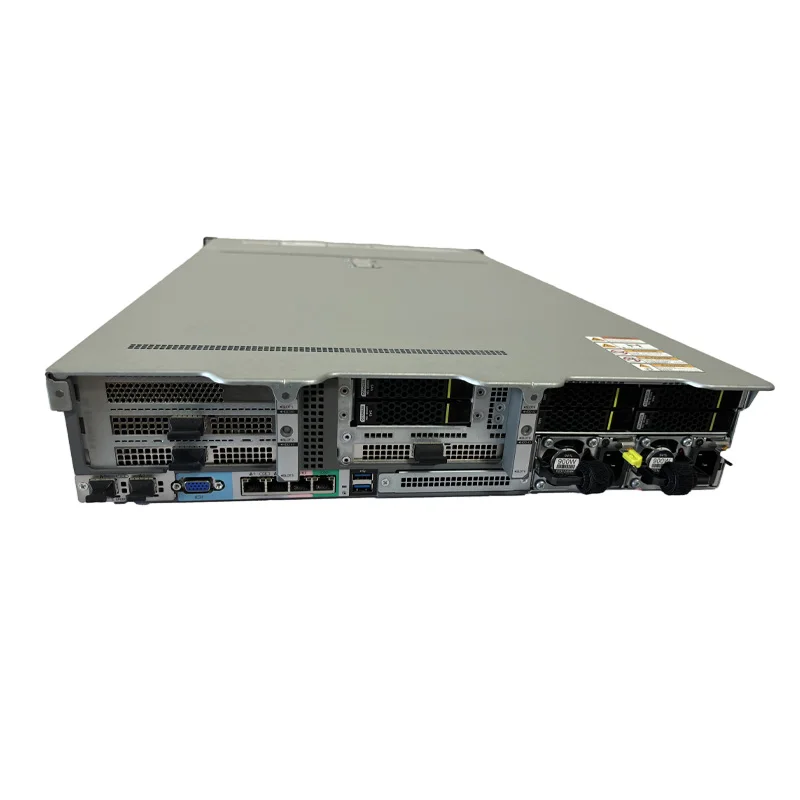

FusionServer 2288X V5 2U rack server
Parameters and pictures
Huawei FusionServer Pro 2288X V5 is a 2U 2-socket rack server with flexible configuration for cloud computing, virtualization, database, big data and other loads. 2288X V5 can be configured with 2-socket Intel® Xeon® Scalable processors, 24 DDR4 memory, 11 PCIe expansion slots, and supports large-capacity local storage resources.
Model | FusionServer 2288XV5 |
Form Factor | 2U, 2-socket rack server |
Processors | 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s |
Internal Storage | 8 x 2.5-inch SAS/SATA HDDs or SSDs，12/16/20 x 3.5-inch SAS/SATA HDDs |
RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60,Configured with a supercapacitor for cache power-off protection (optional),RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration. |
Network Ports | LOM: 2 x 10 GE Flexible NIC:2*25G OCP 2.0 network card |
PCIe Expansion | Supports up to 11 PCIe 3.0 expansion slots, including 8 standard slots, 1 RAID card and 2 OCP 2.0 |
Heterogeneous accelerator card | Support 8 half-height half-length GPU cards or 2 full-width and full-length GPU cards |
Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
Power Supply Units | 2 hot-swappable PSUs with support for 1+1 redundancy |
Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening |
Operating Temperature | 5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant |
Certifications | CE, UL, FCC, CCC, and RoHS |
Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |

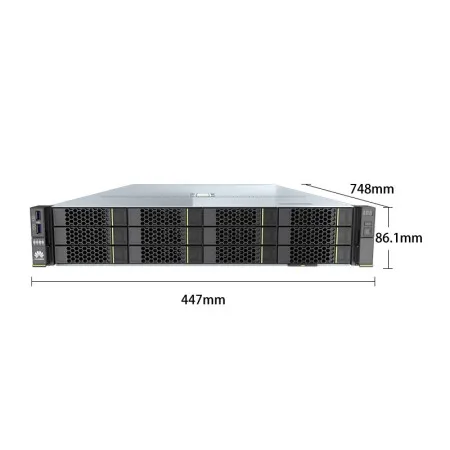

Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
Products Description
packaging and shipping
Company Profile
Certifications
FAQ
Q1. What products does your company mainly sell?
A: Our company mainly sells Dell, Huawei, Lenovo, Inspur, H3C Xfusion servers and storage and server accessories, such as server hard drives, memory cards, etc.
Q2. Are your products formal?
A: We are a formal agent authorized by Huawei and Lenovo manufacturers. We have agent qualifications issued by these manufacturers, and our products are all original and formal products.
Q3. Where is your company located?
A: We have been engaged in the IT industry in Beijing for more than 10 years, and we all have very professional experience
Q4. How is your product after-sales service?
A: We have professional engineers with more than 10 years of experience, who can provide free remote service support, then identify the problem and replace the corresponding parts
Q5. How do you pay?
A: Our company supports payment methods such as Western Union and Alibaba
Q6. How do you transport these products?
A: We have our own freight forwarder, which can deliver the products to anywhere you need
A: Our company mainly sells Dell, Huawei, Lenovo, Inspur, H3C Xfusion servers and storage and server accessories, such as server hard drives, memory cards, etc.
Q2. Are your products formal?
A: We are a formal agent authorized by Huawei and Lenovo manufacturers. We have agent qualifications issued by these manufacturers, and our products are all original and formal products.
Q3. Where is your company located?
A: We have been engaged in the IT industry in Beijing for more than 10 years, and we all have very professional experience
Q4. How is your product after-sales service?
A: We have professional engineers with more than 10 years of experience, who can provide free remote service support, then identify the problem and replace the corresponding parts
Q5. How do you pay?
A: Our company supports payment methods such as Western Union and Alibaba
Q6. How do you transport these products?
A: We have our own freight forwarder, which can deliver the products to anywhere you need
