HOWO Sinotruk 10 Tyres Special Heavy Duty Tipper Dumper Sand Cargo Lorry Mining Truck for sale
- Category: >>>
- Supplier: Jinan Tian Run Machinery International Co. Ltd
Share on (1601274008466):
Product Overview
Description
Product Description
Sinotruk New Design Howo TIPPER DUMP Truck
Our Main Products Heavy Trucks and Construction Machinery. including Head tractor trucks(Prime movers), Dump trucks(Tippers),Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and Excavator, Motor grader,Wheel loader, Roller loader.
Specification
SINOTRUK HOWO 6x4 DUMP TRUCK SPECIFICATIONS | ||||
Truck Model | ZZ3257V3847B1(Left Hand Drive ) | |||
Truck Brand | SINOTRUK-HOWO | |||

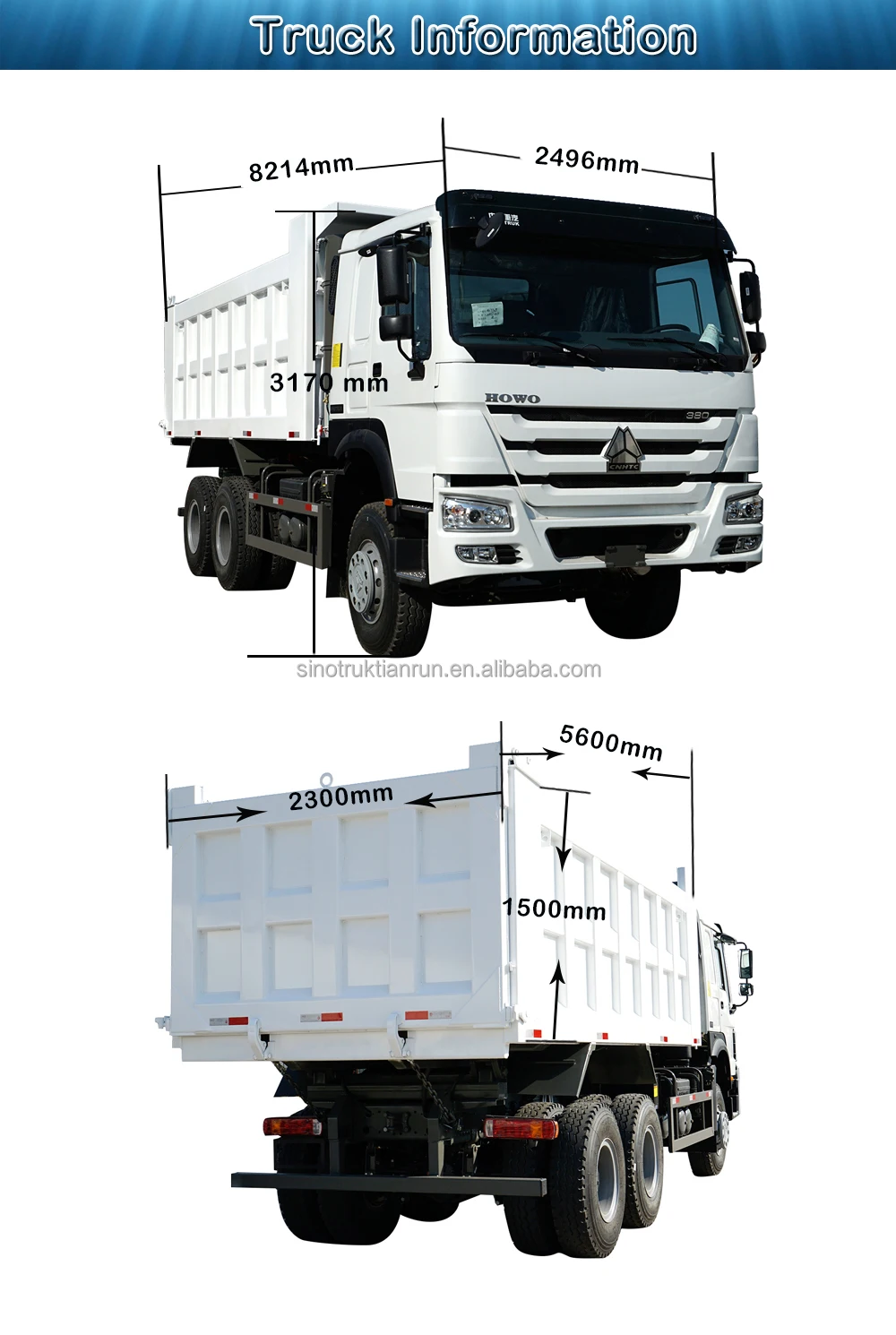

Dimension (LxWxH) (unloaded)mm | 8645×2550×3450 | |||

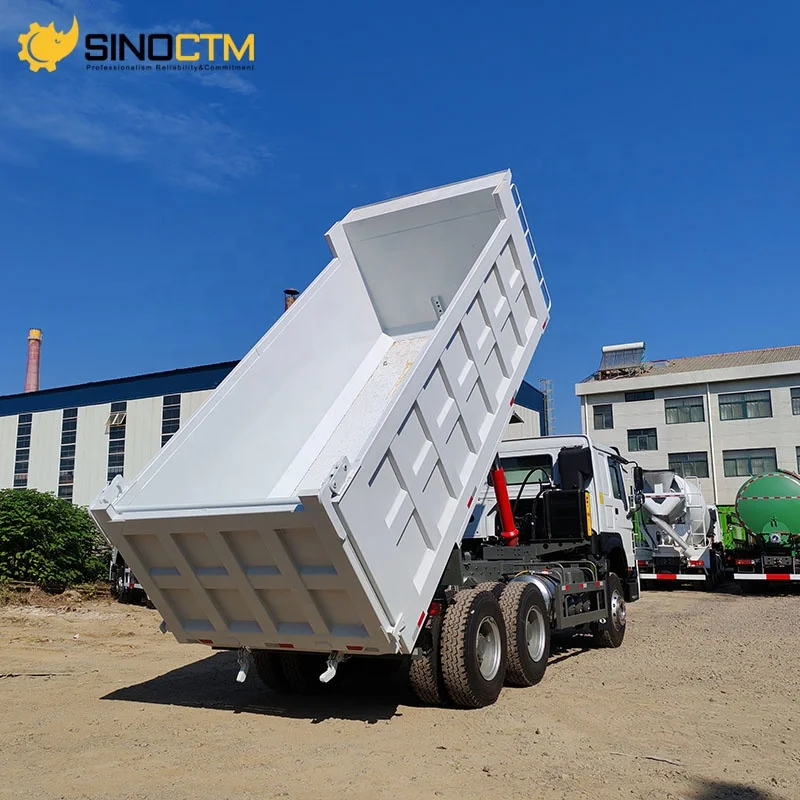

Carriage Internal Dimension:5600x2300x1500 mm Steel thickness of Carriage：Floor:8mm/Side:6mm Hydraulic Lift of Carriage：Middle LiftSteel:Q235 | ||||
Approaching angle/ Departure angel (°) | 19/23 | |||
Overhang (front/rear) (mm) | 1500/1870 | |||
Wheel base (mm) | 3825+1350 | |||
Max. Driving speed (km/h) | 75 | |||
Front axle loading capacity (kg) | 9500 | |||
Rear axle loading capacity(kg) | 2*16000 | |||
Curb weight (kg) | 12750 | |||
Gross vehicle weight | 30000 | |||
Cab Model | SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55° hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner. | |||
Engine Model | Model | WP10.380E22(EURO II),380hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
Rated Power (kw/rpm) | 279/2200 | |||
Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking Brake (emergency brake) | Spring energy, compressed | |||
Steering system | Model | hydraulic steering with power assistance.(Left hand driving) | ||
Front axle | SINOTRUK VGD95 Front Axle,new 9.5-ton front axles of equipped with drum brakes. | |||
Rear axle | SINOTRUK MCP16ZG Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.92;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |||
Wheels &Tire | Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. | |||
Electrical system | Electrics Operating voltage | 24V,negative grounded | ||
Starter | 24V,7.5 Kw | |||
Alternator | 3-phase,28V,1500 W | |||
Batteries | 2x12 V,165 Ah | |||
Horn,headlamps,fog lights,brake lights,indicators and reverse light. | ||||
Oil Tank | 300L fuel tank | |||
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |||
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||||

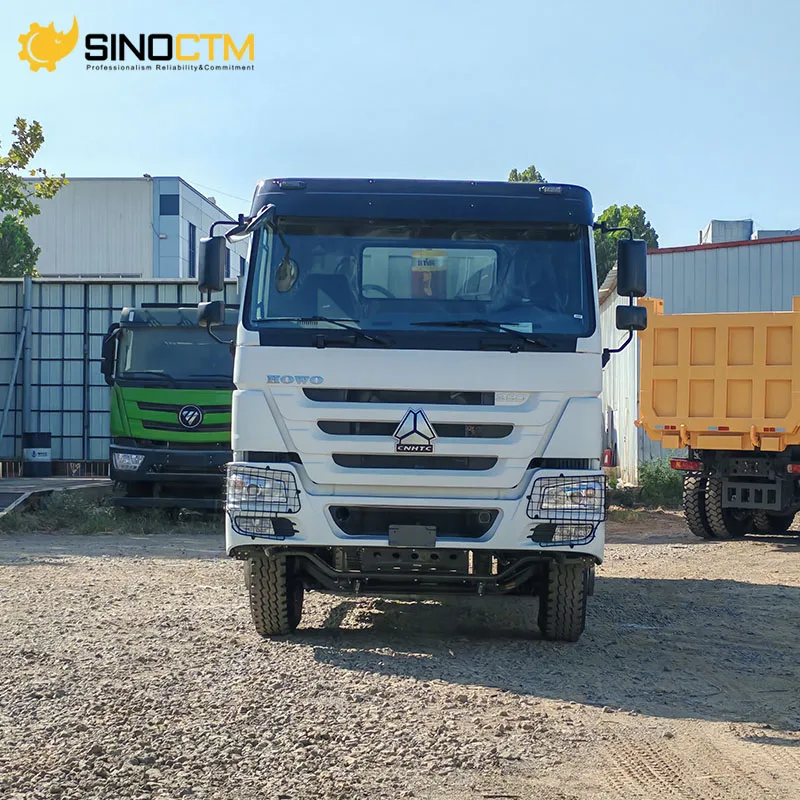

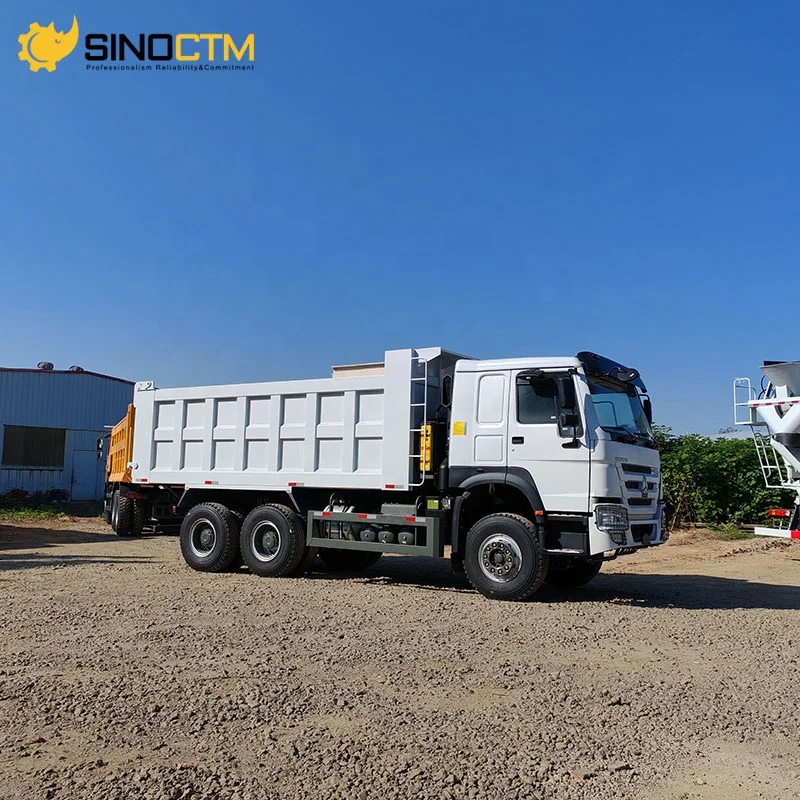

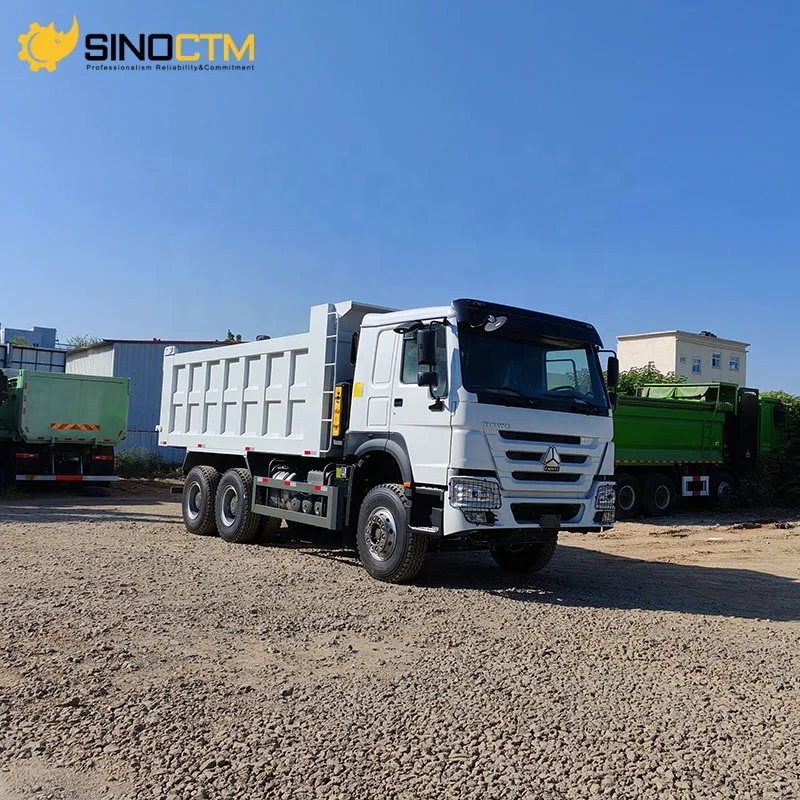

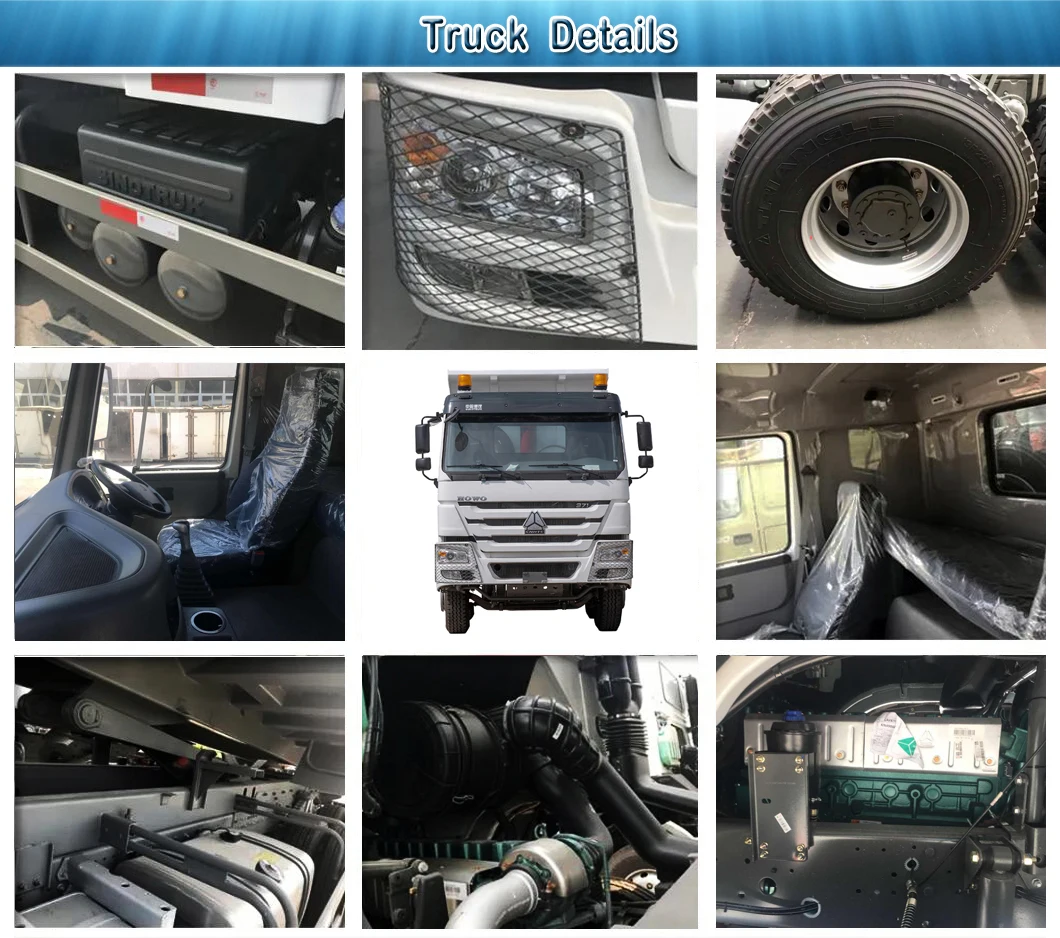

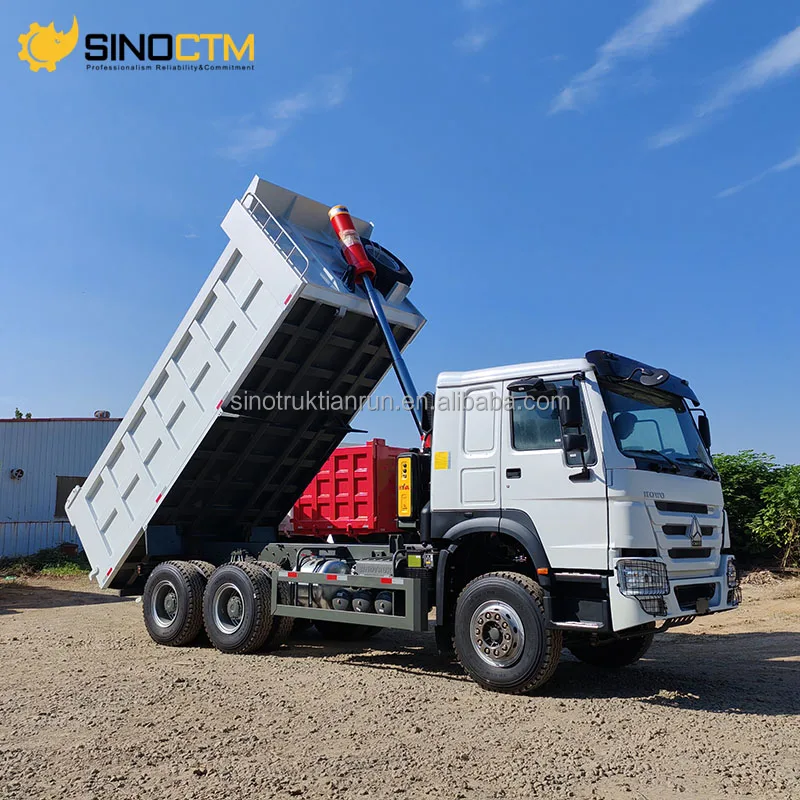

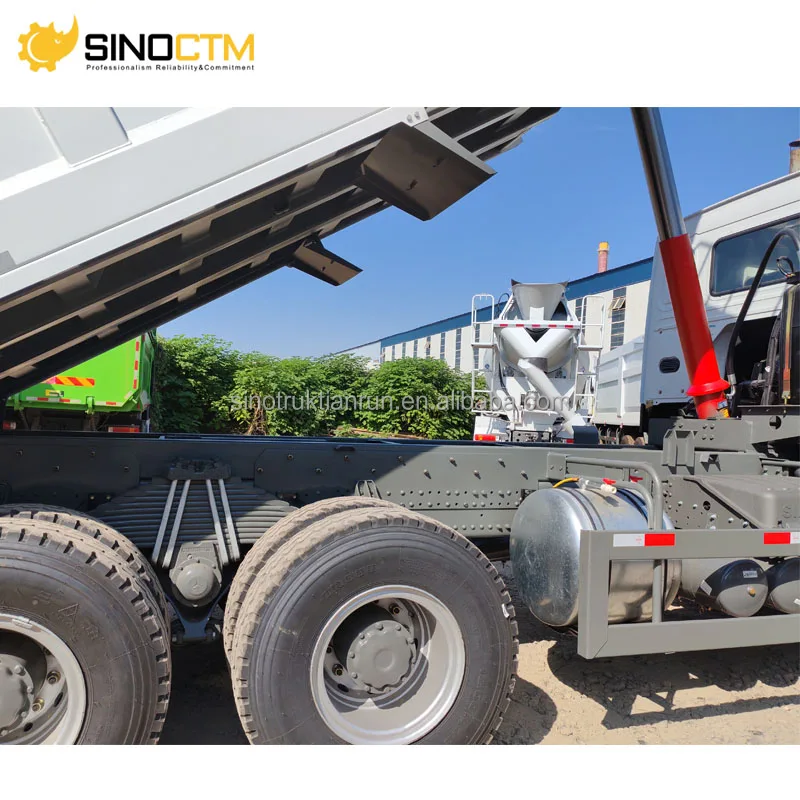

Details Images

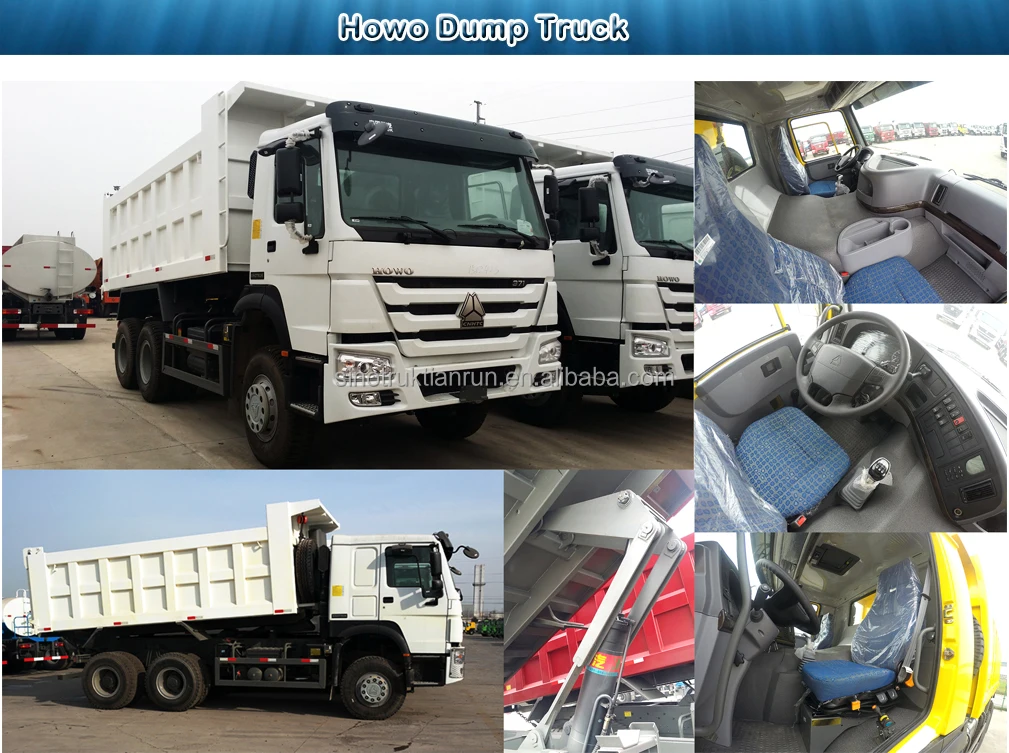

SINOTRUK HOWO Euro 2 20-30 Ton Dump Tipper Trucks
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Excellent After-sale Service and Customization Service
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Excellent After-sale Service and Customization Service
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and
all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Company Profile

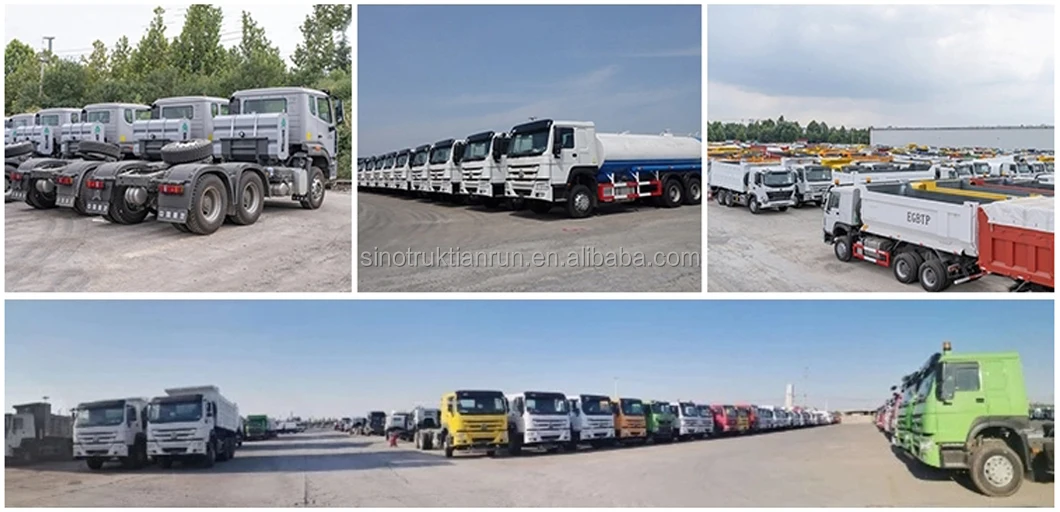

SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation withGerman man
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
