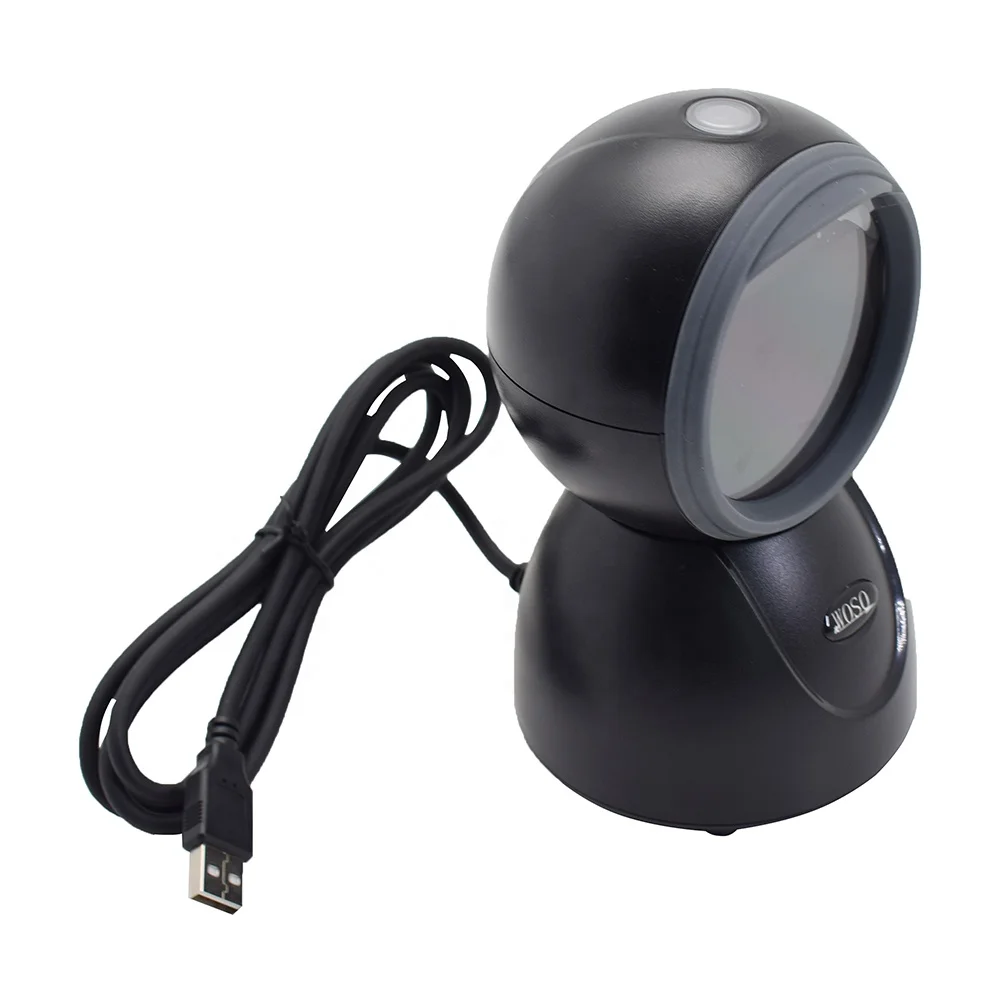

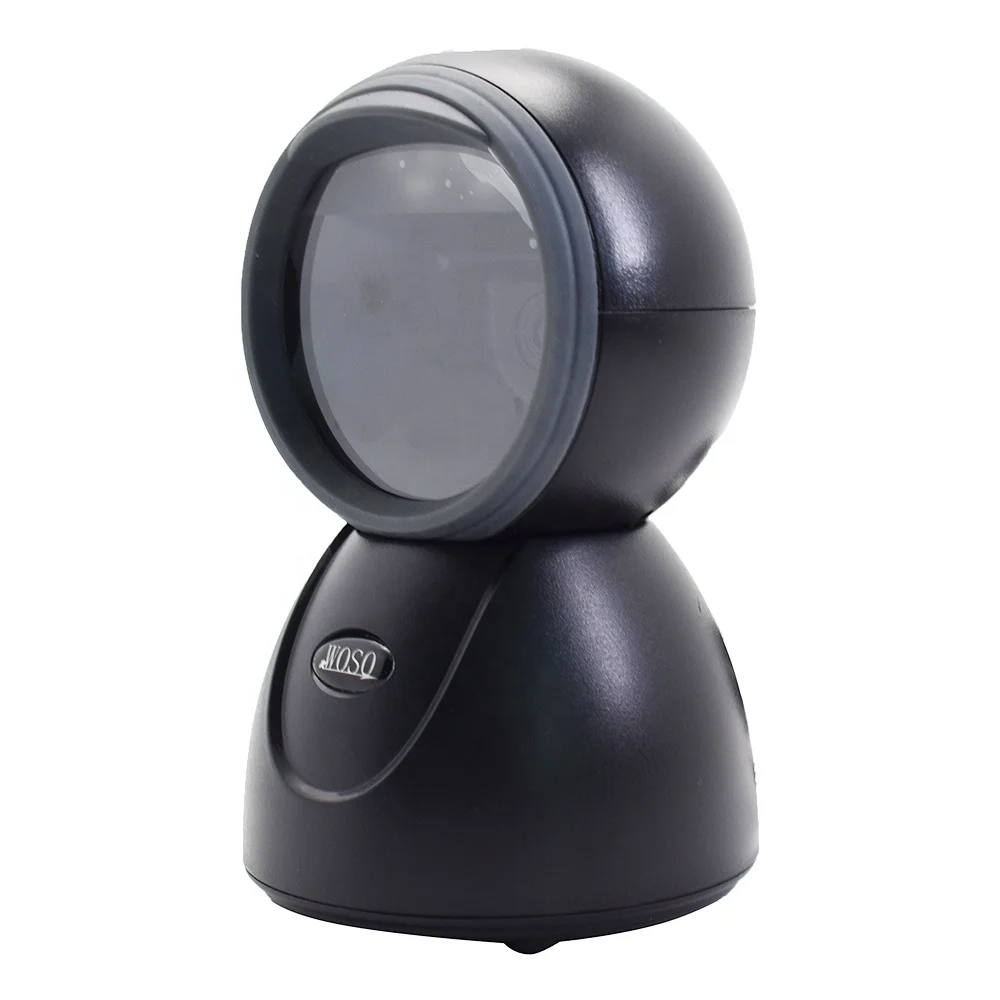

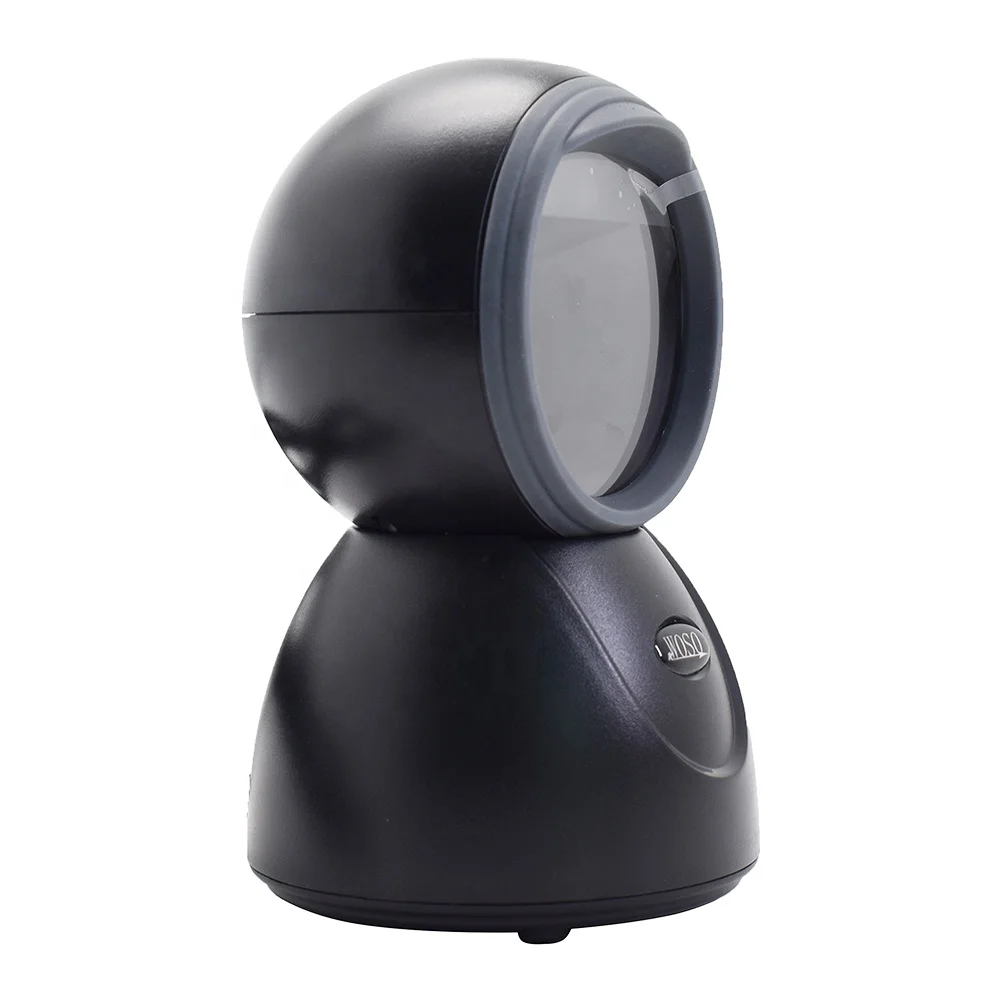

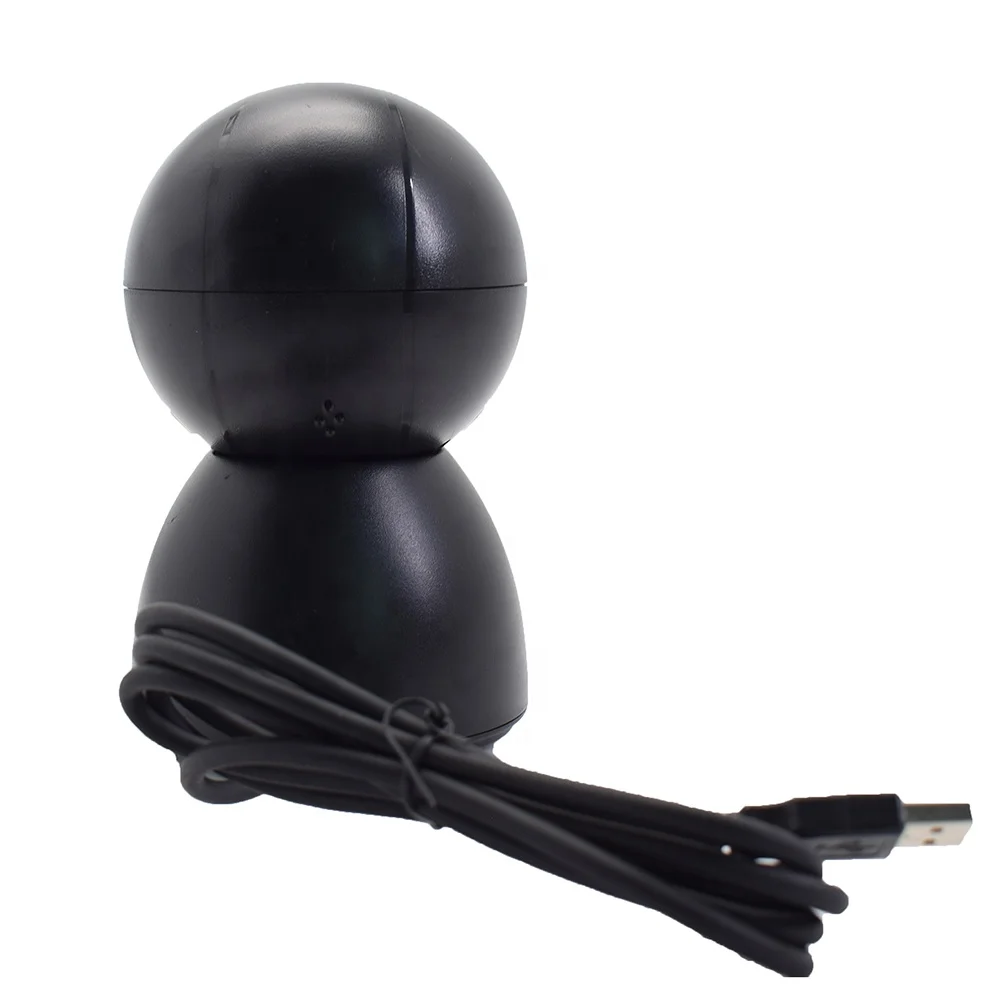

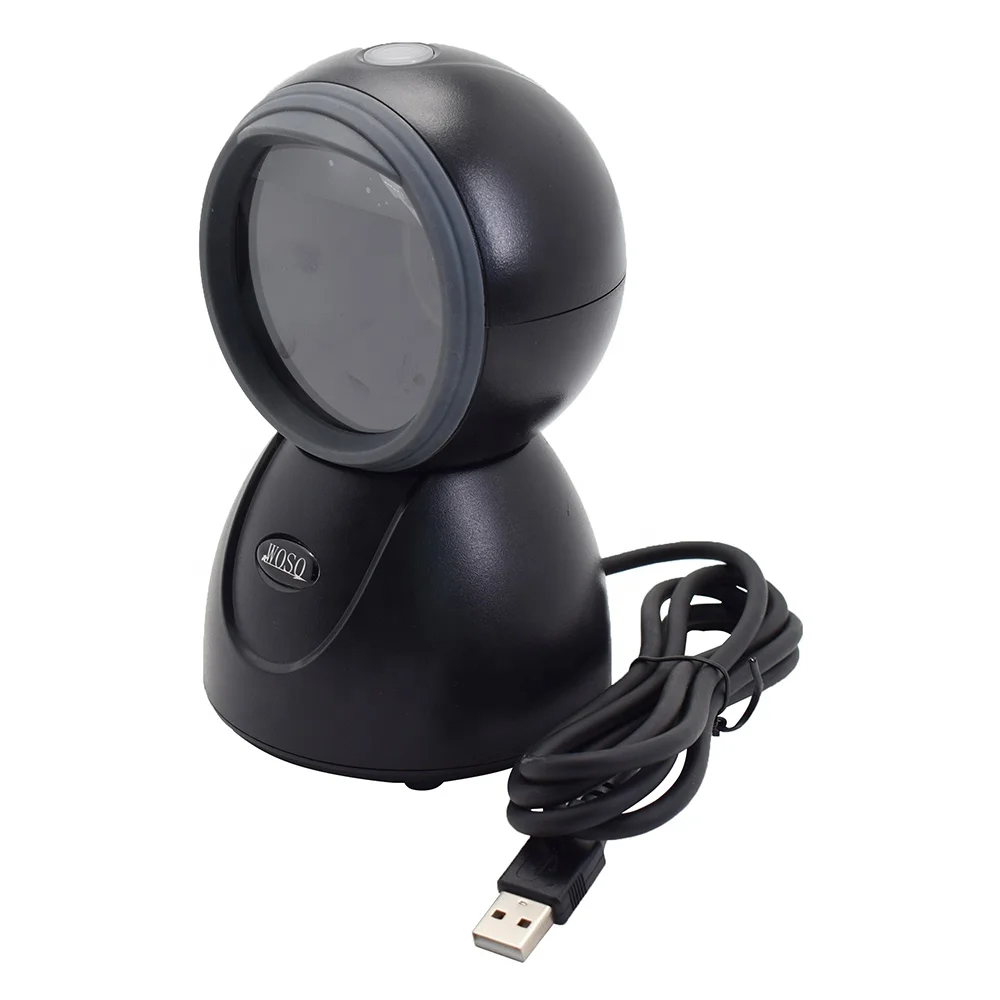

OEM Excellent Quality Cheap Desk Omni Directional 2D Barcode Scanner Platform QR Code Reader
- Category: >>>
- Supplier: Shenzhen Chixian Technology Co. Ltd
Share on (1601274017714):
Product Overview
Description
Products Description
Bar code scanning platform movement is a high-performance movement, possessing the ability, high precision, speed, compatibility and other features, products are widely used in retailing, supermarkets, tobacco, logistics, warehousing, health care, clothing, and other areas which is the most cost effective products on the market for your best choice.
Product Paramenters
on desk Big window omni directional 2D barcode Scanner Platform square | ||
Model | B2D-O620 | |
Barcode Reading Method | Image-based barcode reading | |
Auto-sensing | IR Auto-sensing | |
1D Barcode Scanning | Support | |
2D Barcode Scanning | Support | |
Scan Barcode on the Phone | Support | |
Scan Barcode on the Computer | Support | |
Data Transfer Method | USB data transfer | |
Interface | USB HID key,TTL-232,USB Virtual serial port | |
Sensor Resolution | CMOS sensor (640*480 pixel,90fps) | |
Color | Black | |
Light Source | white LED | |
Scan Method | Trigger, automatic, continuous | |
Field of View | Horizontal: 56°, Vertical: 33° | |
Roll/skew/pitch Tolerance | 360°/±65°/±65° | |
Operating Voltage | 5±5%V/12±5% | |
Operating Current | 390mA(Max.),220mA(Typical) | |
Print Contrast | ≥20% | |
Drop Specification | Withstand multiple drops at 1.2m to concrete | |
Compatible System | Android/ IOS/ Windows system | |
Scan Rate | 200 scan/s | |
Motion Tolerance | 13mil UPC code: 30cm/s | |
Product Dimensions | 156.8mm*111.8mm*108.3mm weight :420G | |
Box size | 175(W)*90(D)*175(H)mm | |
Warranty | one year | |
Decoding Capability | 1D:UPC-A、UPC-E、EAN-13、ISBN10、ISBN13、EAN-8、CODE39、CODE 11、CODE 93、CODE128 INTERLEAVED25、INDUSTRIAL25、MATRIX25 、S25、CODE 32、 TRIOPTIC39、GS1_128、CODABAR、MSI、 China Postal、TELEPEN、RSS、GS1_DATABAR、GS1_DATABAR_LIM、GS1_DATABAR_EXP | |
2D:QR、PDF417、MICROPDF、 Hanxin、DATAMATRIX 、 | ||
Depth of Field | 13mil UPC (25-170mm) 5mil Code128 (20-60mm) 10mil Code128 (25-130mm) 20mil QR (20-170mm） | |
Operating Temperature | -20℃~+50℃ | |
Storage Temperature | -40℃~+70℃ | |
Humidity | 5%~95% (non-condensing) | |
