ZTRFM Full Automatic Roofing Sheet Color Coated Corrugated Steel Plate Making Machine Roll Forming Machine
- Category: >>>
- Supplier: Cangzhou Zhongtuo International Trade Co. Ltd.
Share on (1601274084576):
Product Overview
Description
Products Display

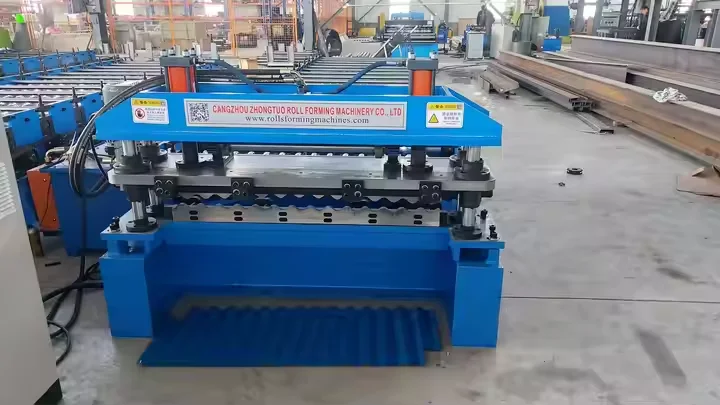

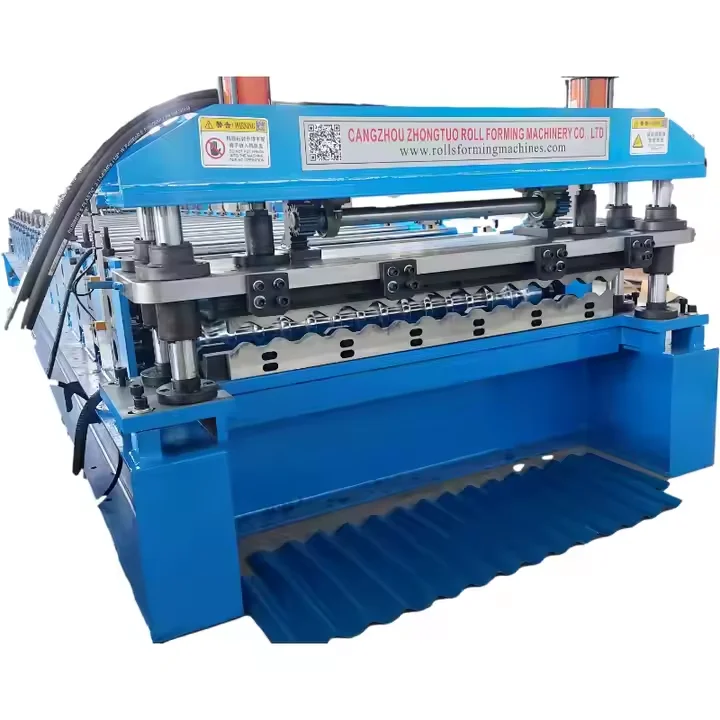

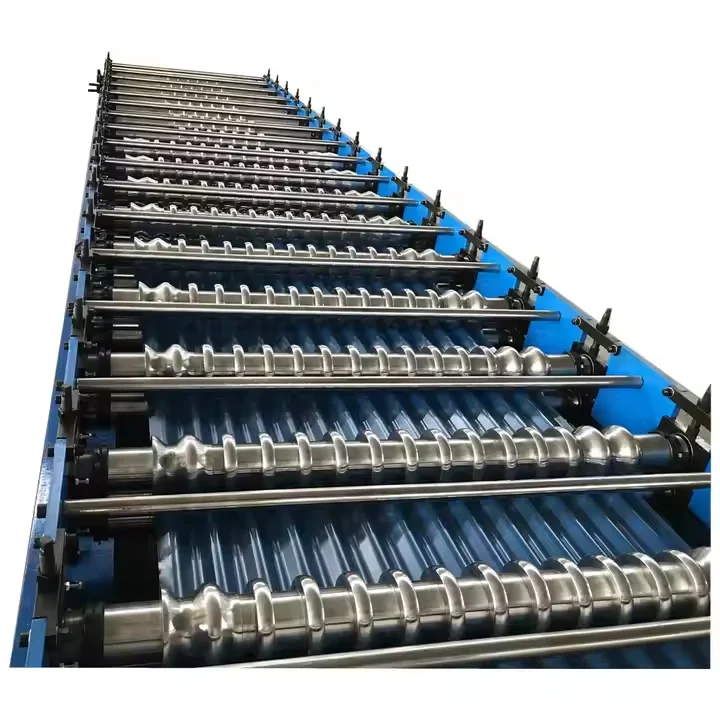

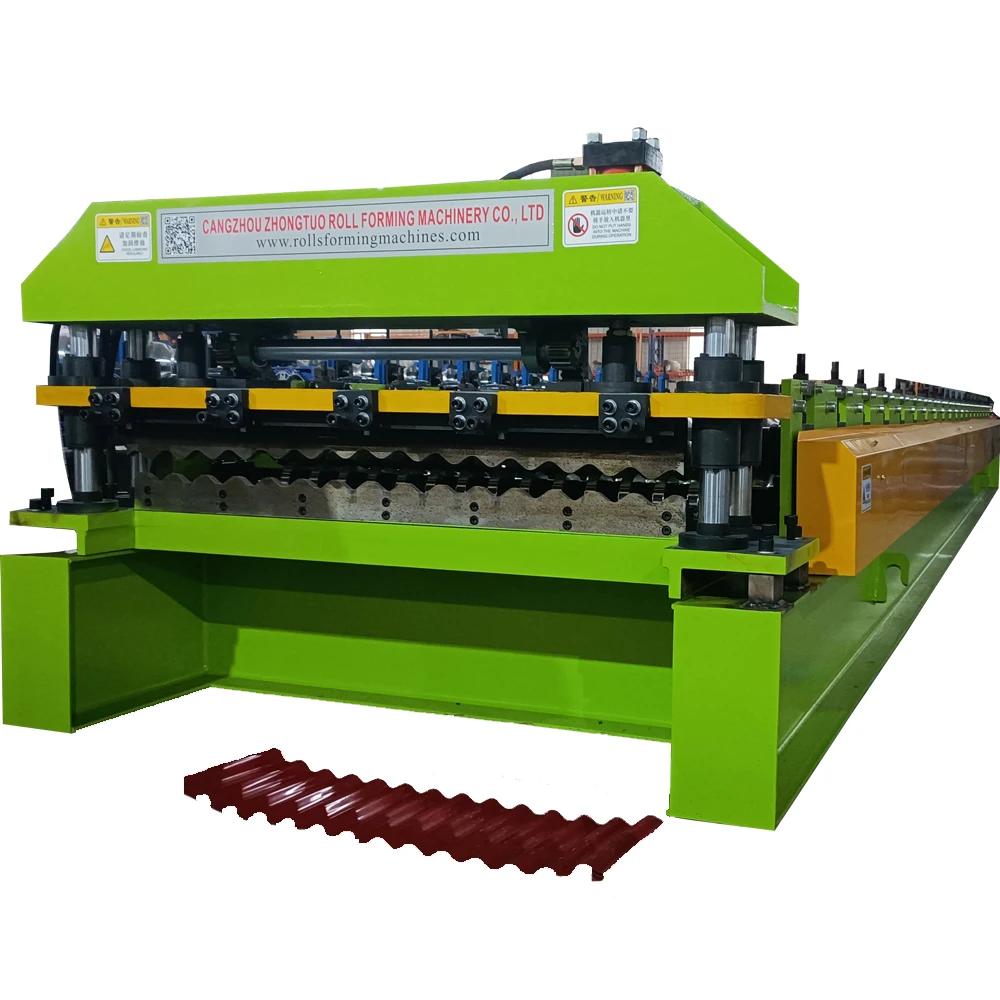

Corruagted Roof sheet Roll Forming Machine
Corrugated steel roofing sheets (sometimes known as wriggly tin) have been around for many years and are still popular today, giving a more traditional look, in fact corrugated steel roofing is the only cladding that should be used in conservation areas.
Theres some profile drawings for you reference
Product Advantages
Corruagted Roof sheet Roll Forming Machine | ||||
Parameter and Performance | Suitable material | PPGI, GI, Nano film coated plate, Aluminium etc | ||
Material thickness | 0.3-0.8mm | |||
Main components | 5T decoiler, Roll forming machine, PLC control system, Hydraulic station, Receiving table | |||
Production speed | 0-20m/min( speed adjustable) | |||
Feature | Main frame:350-500H beam Steel PLC: Delta or Siemens (or as your request) Touch screen langauge: English/Chinese/as your request Roller material: high grade 45# steel with hard chrome coated Shaft material: 45# steel, solid Cutting: Hydraulic cutting system The unique feed inlet design can protect the coil paint surface and prolong the service life of roof tiles. The cooling system on the hydraulic station can avoid overheat of hydraulic oil after long-time operate, ensure provide enough power. | |||
Advantage: 1.More than 15 years' experience, our products has been exported to more than 150 countries all over the world. 2.We supply manufacturing, design, installation, after-sales and other services. 3.Our annual production capacity: only for cold roll forming equipment: 30-200sets / year. | ||||

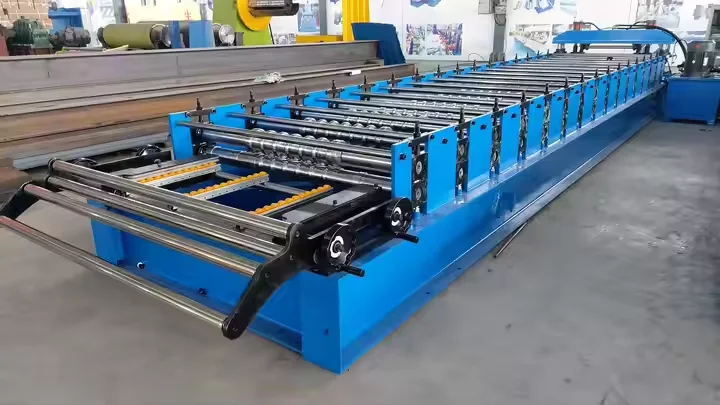

Feeding device
With handwheels for easy adjustable
Hydraulic cutting device
Strong cutting,good finished product shape.
PLC control cabinet
Adopted touch screen for easy operation.
Adopted aviation plugs for easy installation.
Hydraulic station
updated type,low noise and cooling fan for long service time.
Company Profile
Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design, development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.
Packing & Delivery
