Factory Supply High Quality Floor Tiles Making Machine Roof Tile Making Machine
Roll forming machine is a machine to produce building material of metal roof. It has many advantages, such as easy
installation, short building period, beauty, light weight but high strength.

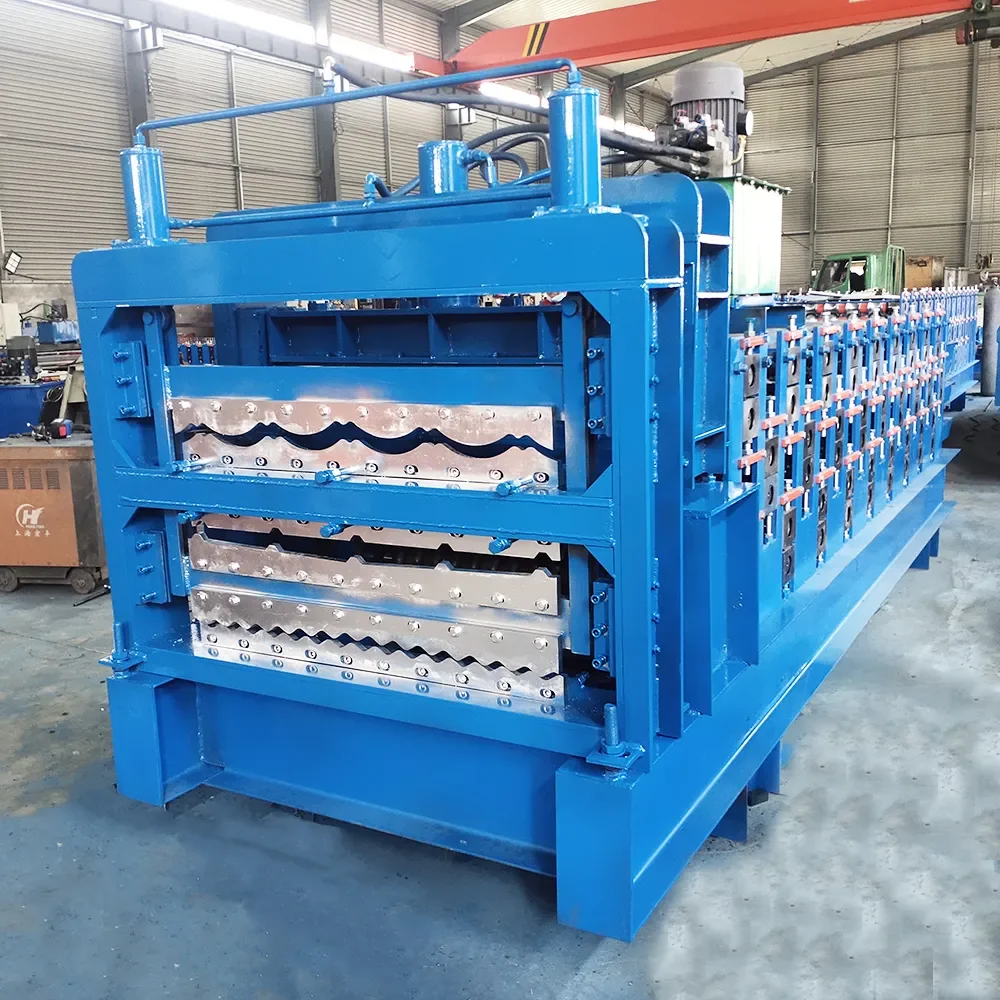

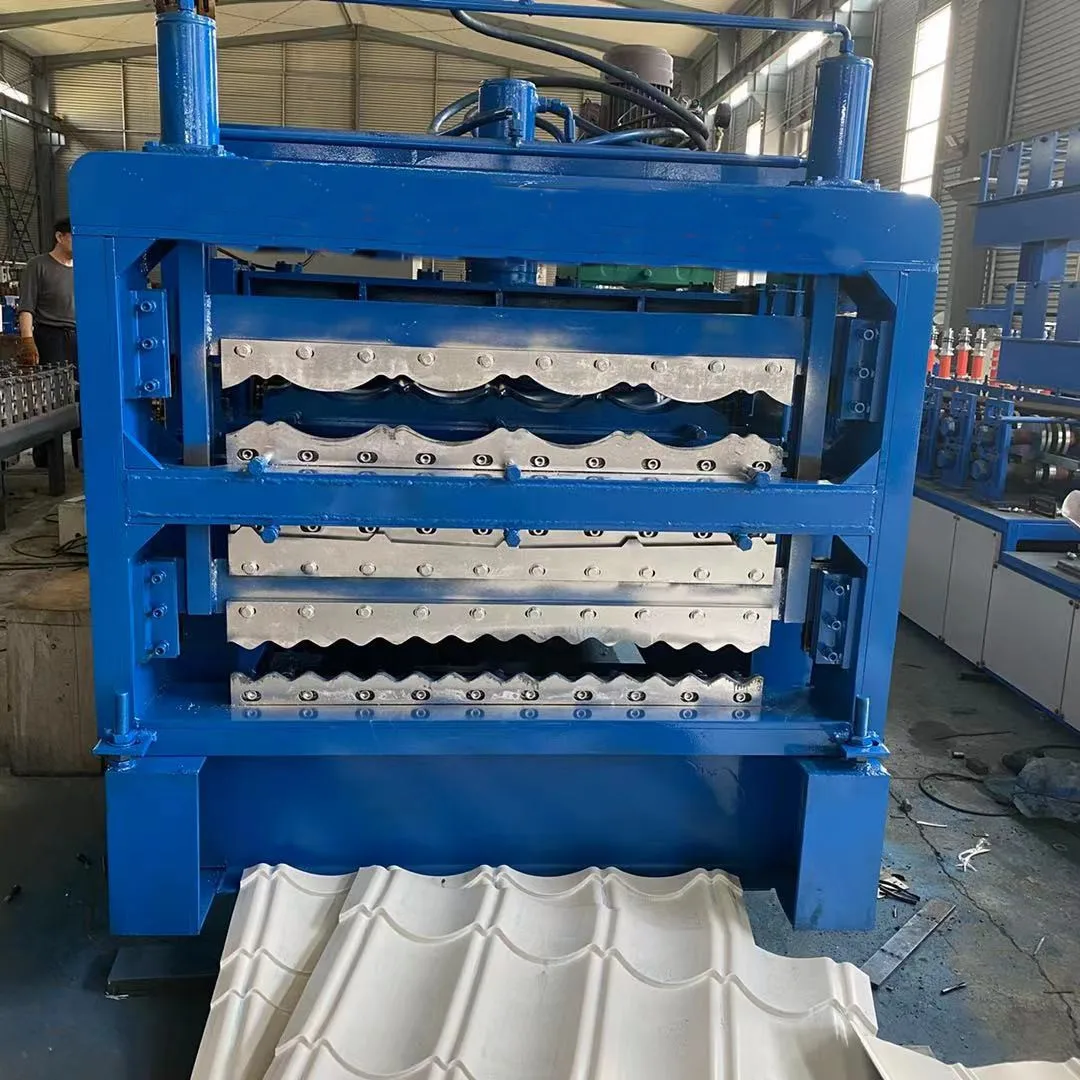

The three-layer tile forming machine is considered to be one of the most cost-effective roll forming equipment. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, etc.
installation, short building period, beauty, light weight but high strength.
The three-layer tile forming machine is considered to be one of the most cost-effective roll forming equipment. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, etc.
Advantages:

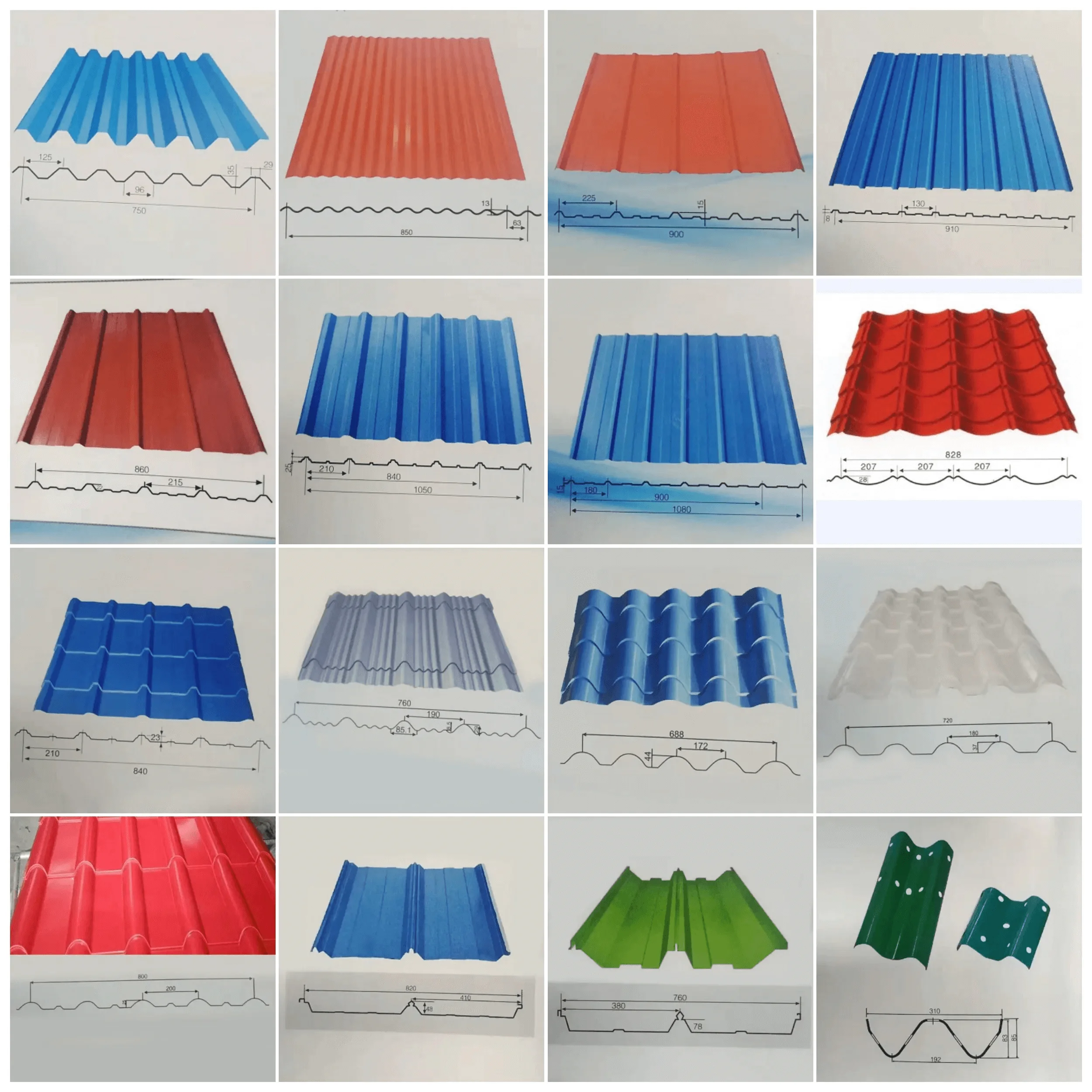

1. The machine can be customized to produce roof panels of different shapes.
2. Our own updated design - easy to install and operate.
3. Fully automatic - saving labor.

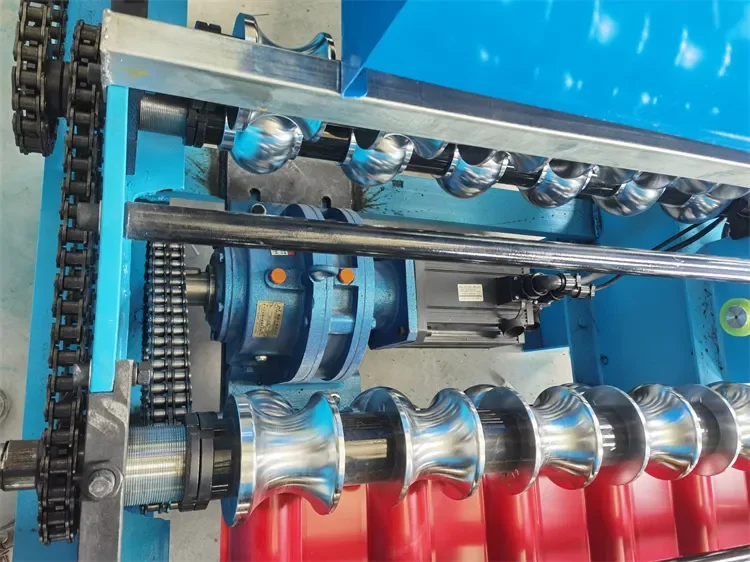

4. The rollers are equipped with bearings, which can eliminate linear speed inconsistencies and make the final product more perfect.
5. Portable PLC control system with customizable language.
Our roll forming machine can also be customized and manufactured according to the customers' drawings.

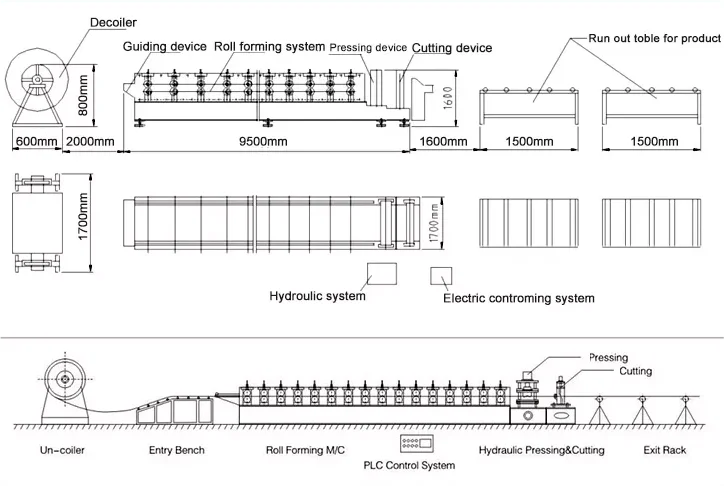

The Working Flow

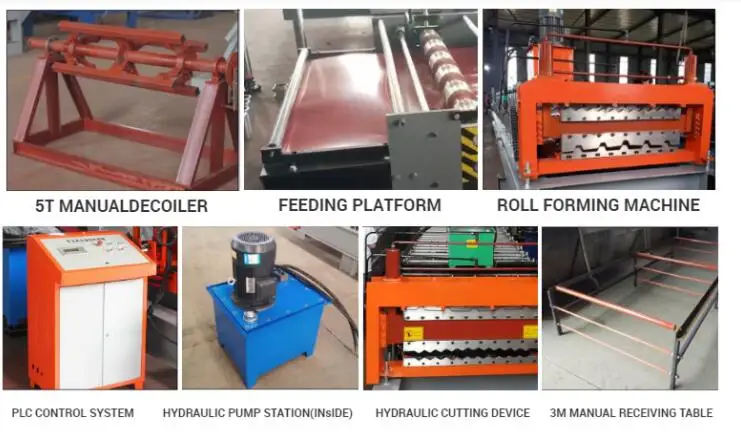

Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism -----Automatic Shearing Mechanism ----- Products Receiving Tables
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism -----Automatic Shearing Mechanism ----- Products Receiving Tables
Product name | Three Layer Roll Forming Machine |
Raw material | PGI PPGL GI GL |
Raw material width | 1000-1200 mm |
Production Capacity | 12 m/min |
Sheet effective width | 750-1000 mm |
Shaft diameter | 70mm |
Main motor power | 3 KW 4 KW 5.5 KW or as actual demands |
Hydraulic motor power | 3kW/4KW.5.5KW or as actual demands |
Voltage | 380V/ 3 phase/ 50 Hz (or as your requirements) |
Control system | Automatic PLC control system |
Feeding thickness | 0.3-0.8mm |
Cutting method | Hydraulic cutting |
Warranty of core components | 1.5 years |
Warranty | 1 Year |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Applicable Industries | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works |
If you are interested in our products, please do not hesitate, you can contact us directly, I believe we will have a good cooperation.

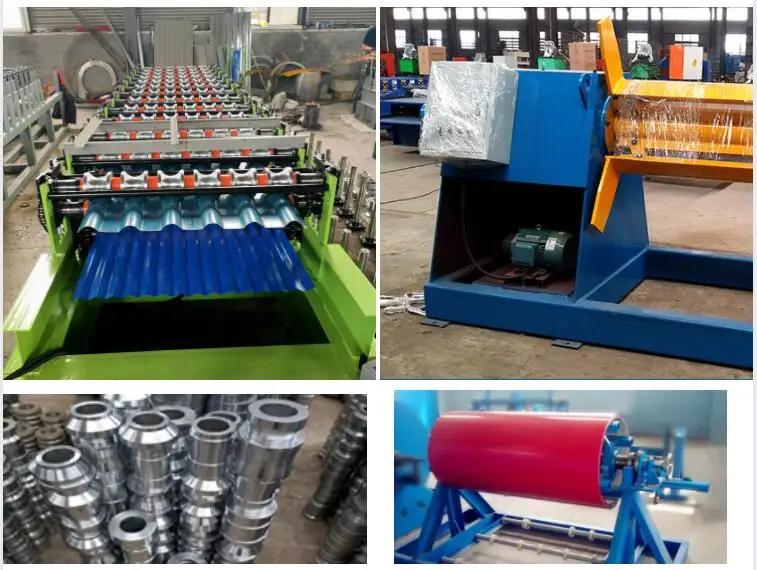

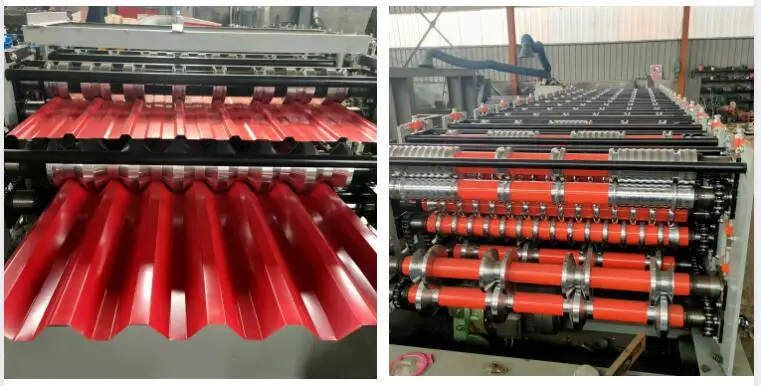

Detail Image
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. High quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machines need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. What about the quality control?
A4: All raw materials we use are quality controlled.Workers will take care of every detail when handling production and packaging.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones for free.
Q6. Is the packaging form?
A6: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q7. How long is your delivery cycle?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. High quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machines need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. What about the quality control?
A4: All raw materials we use are quality controlled.Workers will take care of every detail when handling production and packaging.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones for free.
Q6. Is the packaging form?
A6: Yes, of course! All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.
Q7. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
