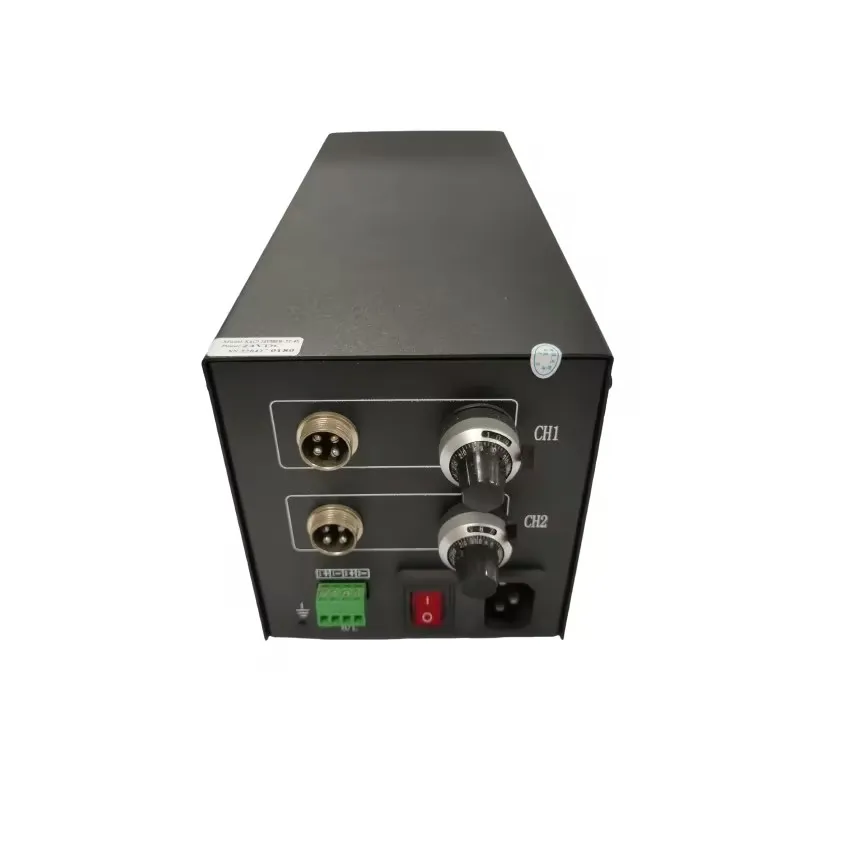

2 Channel 300W/600W High Power Digital LED Dimmer Manual Switch Remote Control 12V RF Connection 6A LED Brightness Controller
- Category: >>>
- Supplier: Guangdong Shunshangxin Photoelectric Technology Co. Ltd.
Share on (1601274570992):
Product Overview
Description
Detailed introduction

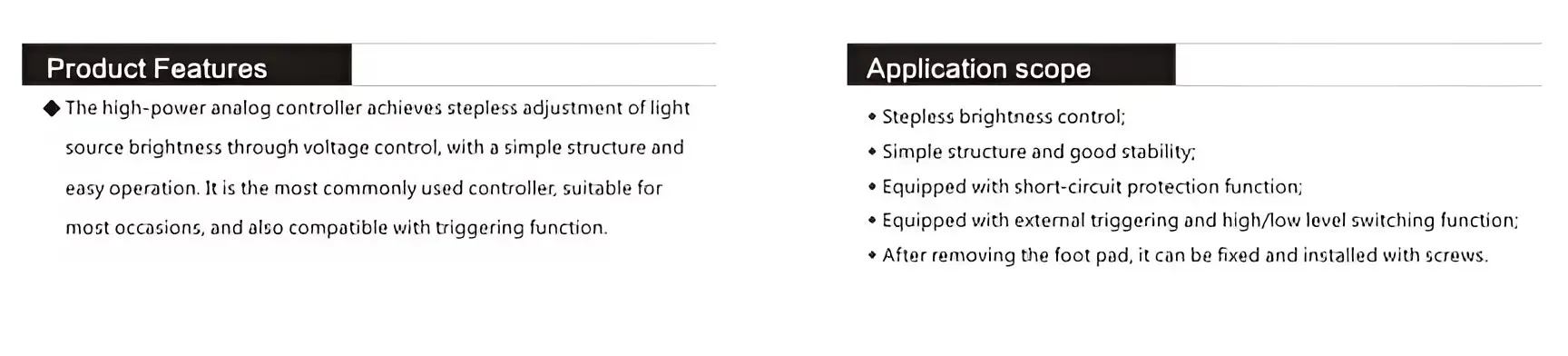

The KAC2 series is our company's analog light source controller, which provides stepless adjustment of lighting intensity for the light source through voltage control. The core components of this series of controllers have passed UL, CE and other certifications. The maximum power of a single channel can reach 150W, 300W, 400W, 600W, etc. The external trigger adopts a high-speed optocoupler isolation design. In addition, the high-power series controller provides a 24V standard voltage output interface, which can provide power supply for other equipment in the machine vision inspection system (such as cameras, PLC). KAC2 series controller has the advantages of high power, multi-function, high response speed and high stability.
The KAC2 series is our company's analog light source controller, which provides stepless adjustment of lighting intensity for the light source through voltage control. The core components of this series of controllers have passed UL, CE and other certifications. The maximum power of a single channel can reach 150W, 300W, 400W, 600W, etc. The external trigger adopts a high-speed optocoupler isolation design. In addition, the high-power series controller provides a 24V standard voltage output interface, which can provide power supply for other equipment in the machine vision inspection system (such as cameras, PLC). KAC2 series controller has the advantages of high power, multi-function, high response speed and high stability.

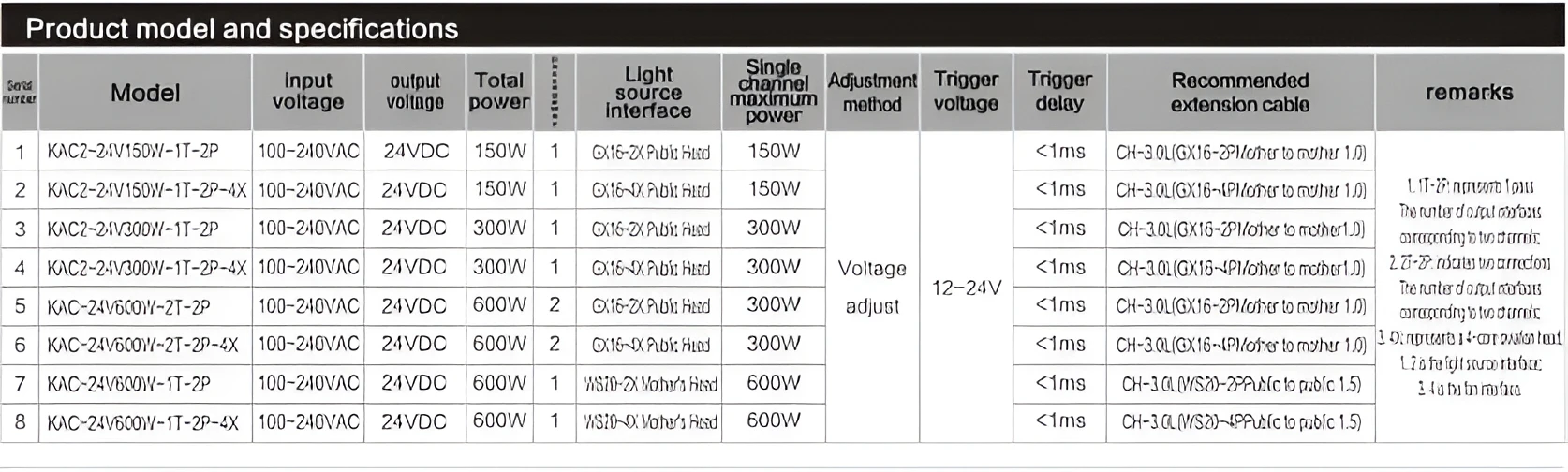

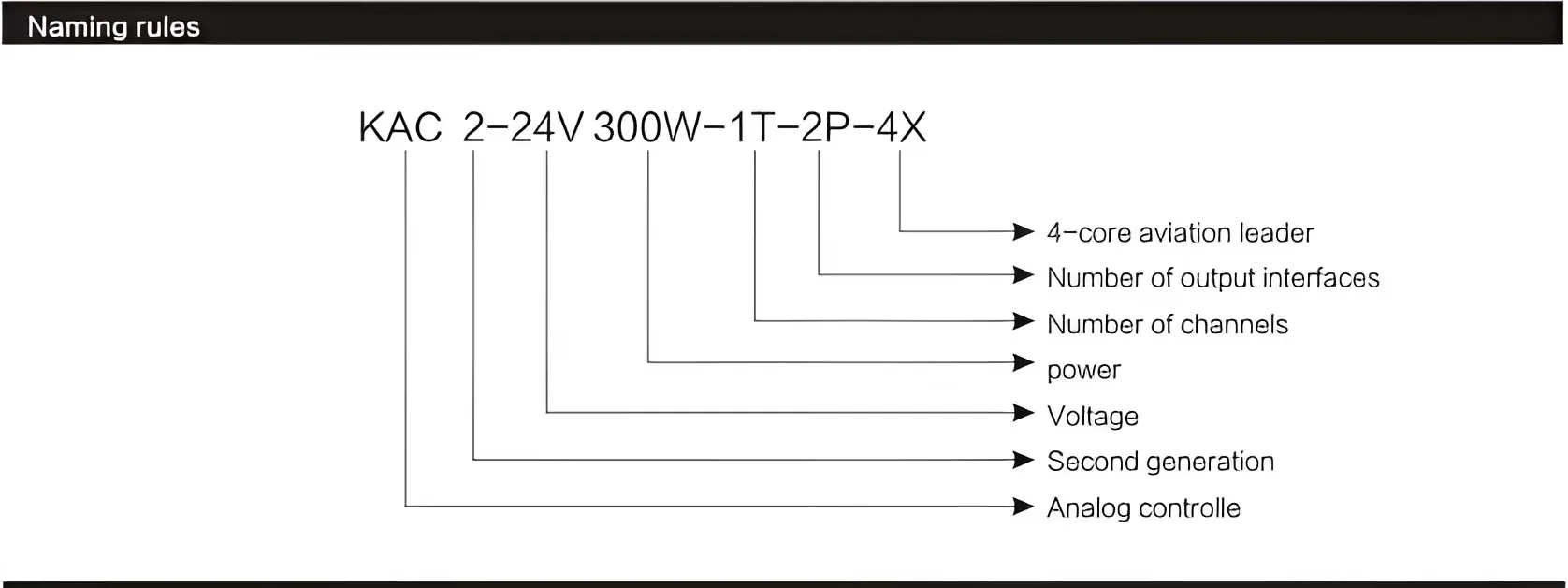

Model | KAC2-24V300W-1T-2P-4X |
Drive mode | constant voltage |
Dimming method | Potentiometer adjustment |
input voltage | AC100-240V |
Number of channels | 1 |
output voltage | DC24V |
Total power | 300w |
Single channel power | 300w |

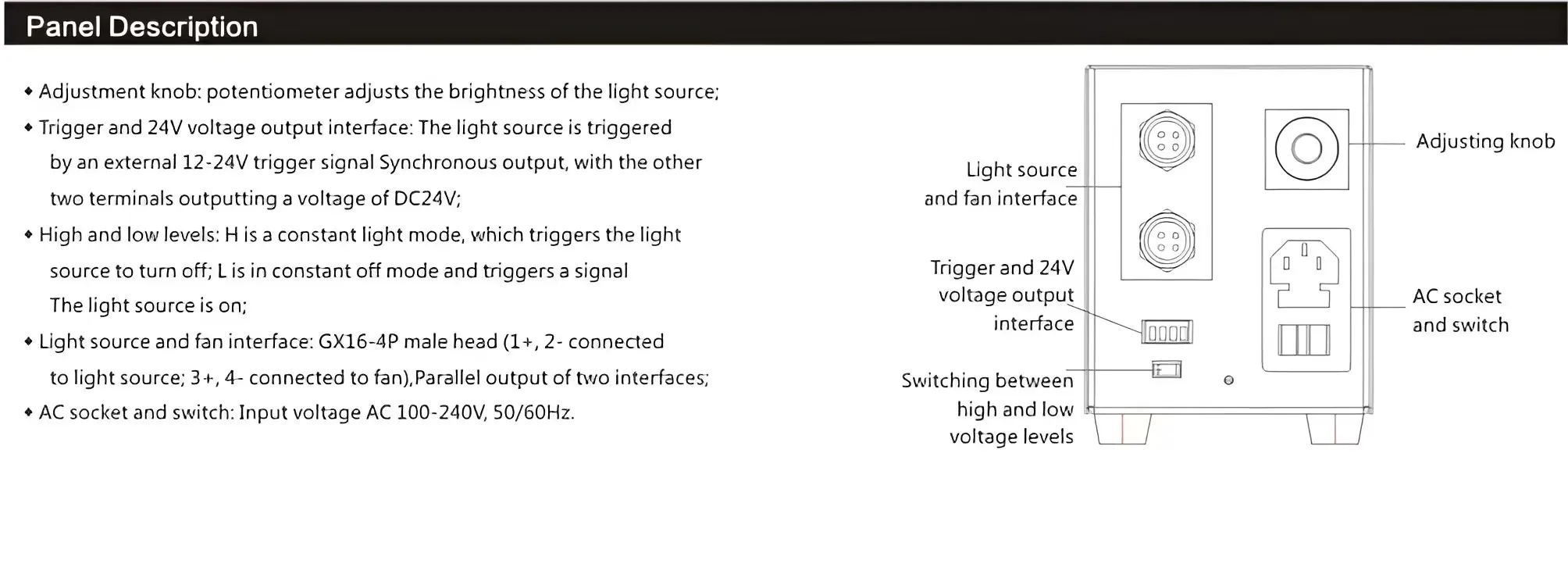

Output port | GX16-4P male head (1+,2- connected to light source; 3+, 4- connected to fan) |

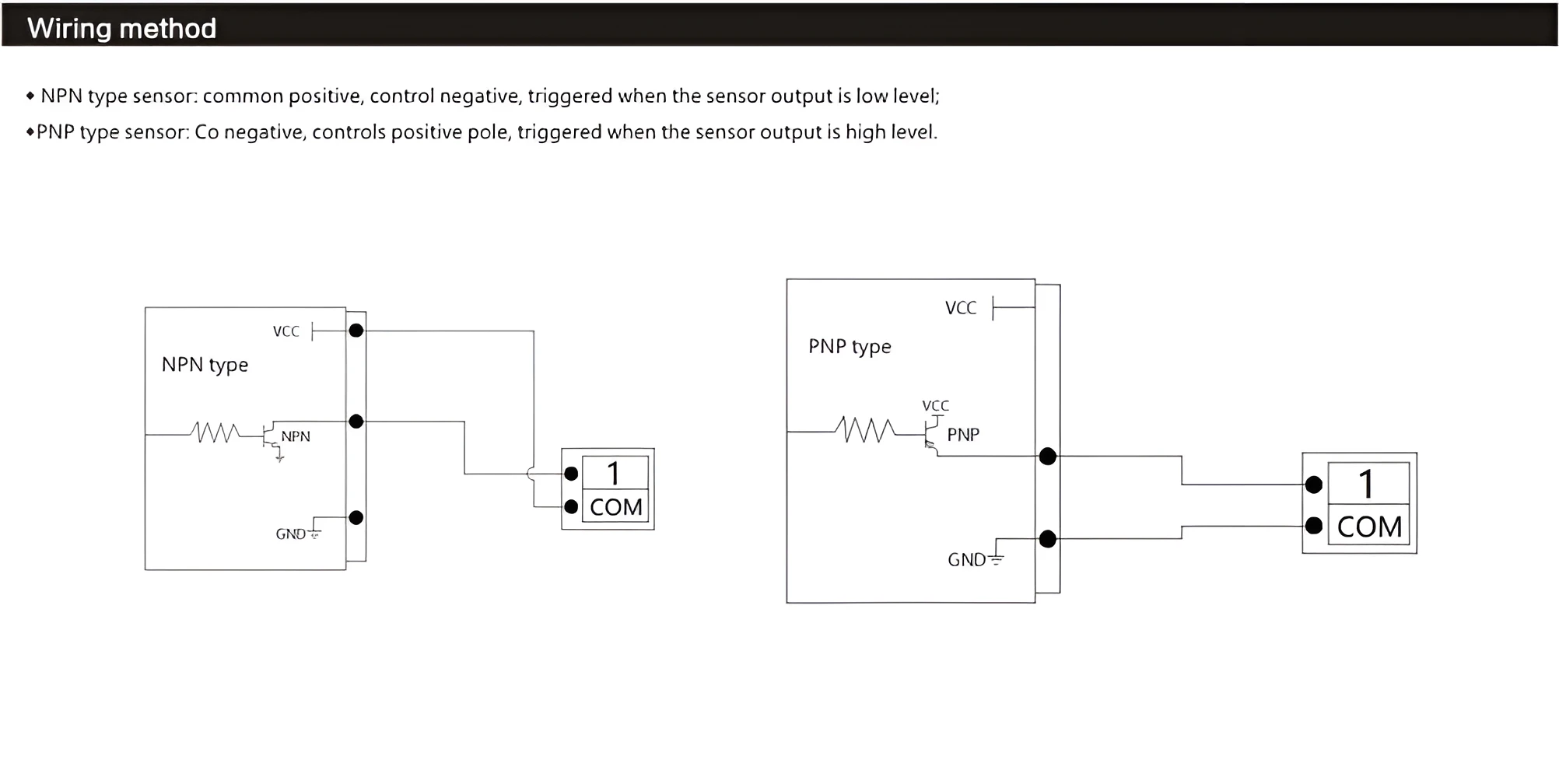

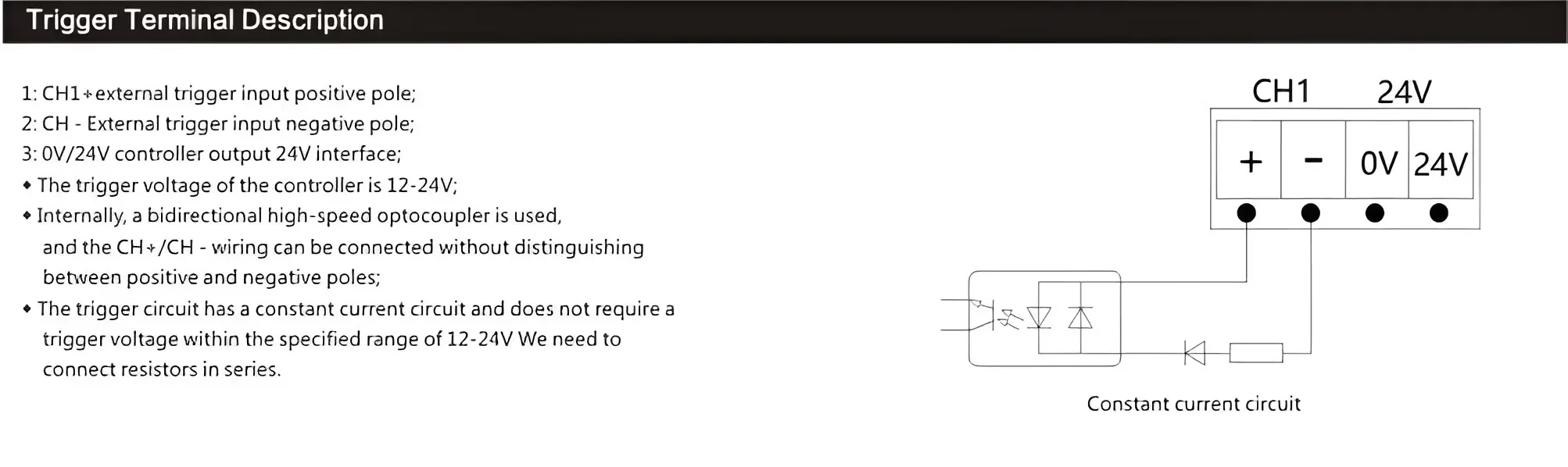

External trigger voltage | 12-24V |

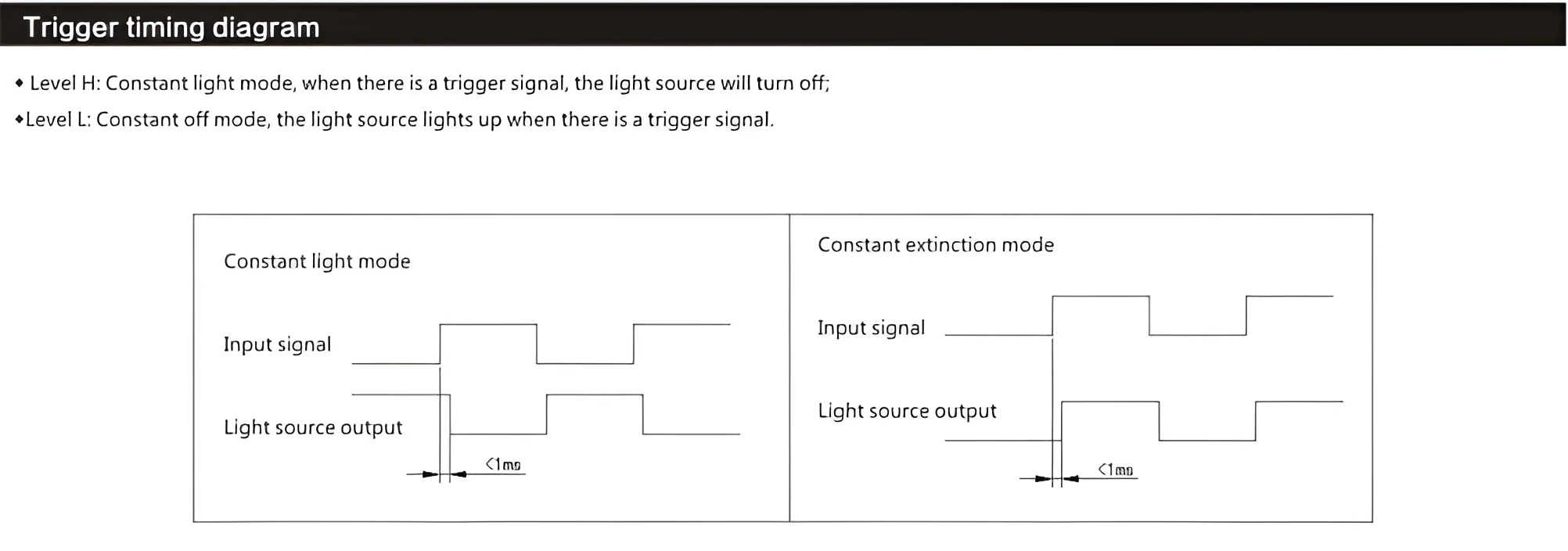

Trigger delay | ＜1ms |
Use temperature and humiditySave | Temperature: 0-40'`C,humidity: 20-85% RH, non condensing) |
temperature and humidityCooling | Temperature: -20-60'C, humidity: 20-85% RH, non condensing) |

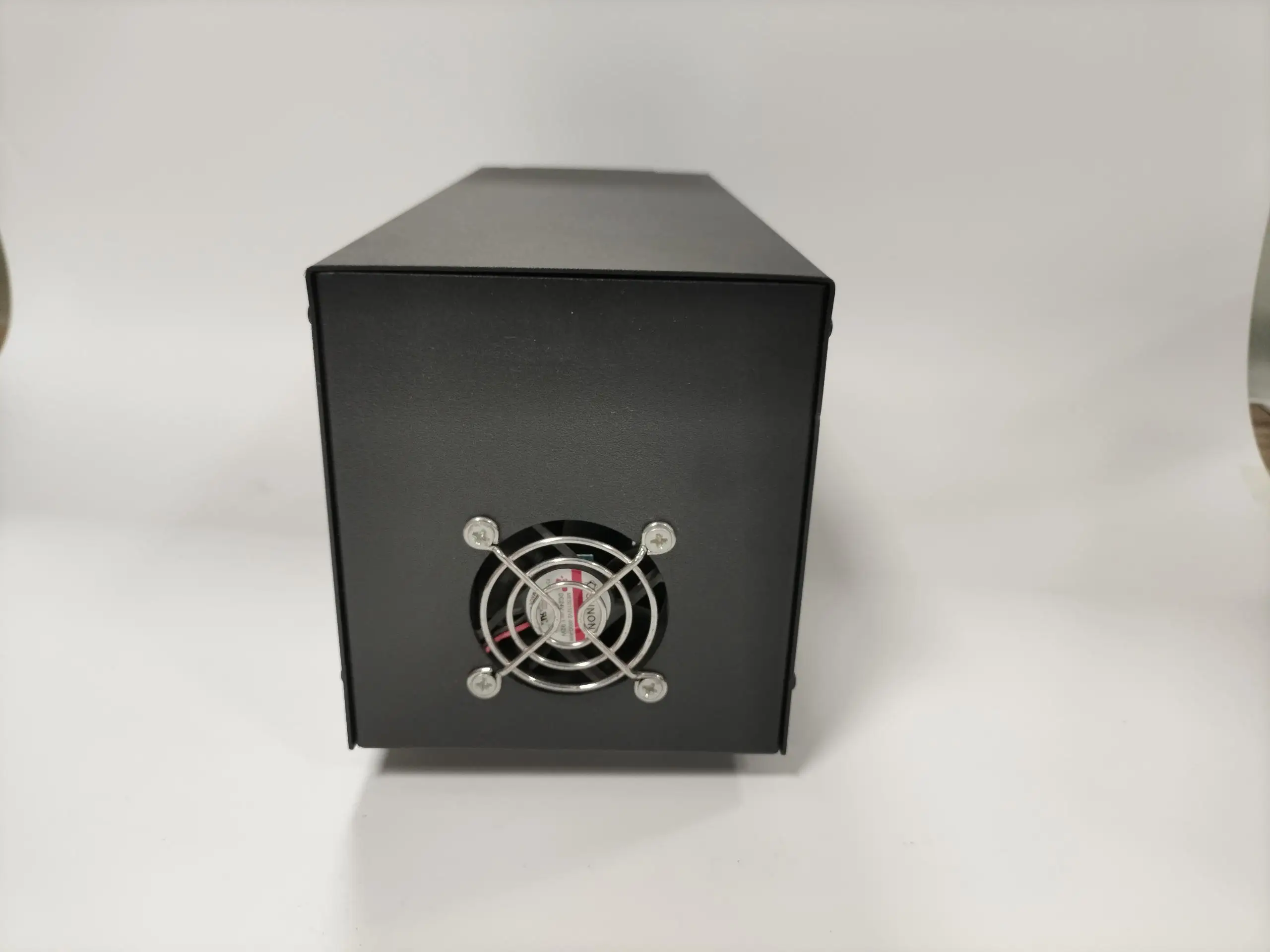

method | Fan |
weight | 1200g |
size | 280*131.5*100mm |
Q: Are you a manufacturer?
A: We are manufacturer focus on machine vision related hard and software.
Q: Is sample available before making bulk order?
A: Can you offer a sample order for it?.
Q: What is the lead time?
A: 80% standard products is available and ship in 24H, Customized product most below 1 week.
Q: Do you have any MOQ requirement?
A: we don't have any MOQ requirement.
Q: How to place an order for machine vision light?
A: S1, Provide your detail requirements or application.
S2, we evaluate and offer the correct product to mach your requirements.
S3, we quote and you confirm and pay either deposit or full amount for your order.
S4, We ship the goods if in stock, or arrange production.
Q: Do you have any testing reports?
A: Yes, we offer the product related testing and report.
A: We are manufacturer focus on machine vision related hard and software.
Q: Is sample available before making bulk order?
A: Can you offer a sample order for it?.
Q: What is the lead time?
A: 80% standard products is available and ship in 24H, Customized product most below 1 week.
Q: Do you have any MOQ requirement?
A: we don't have any MOQ requirement.
Q: How to place an order for machine vision light?
A: S1, Provide your detail requirements or application.
S2, we evaluate and offer the correct product to mach your requirements.
S3, we quote and you confirm and pay either deposit or full amount for your order.
S4, We ship the goods if in stock, or arrange production.
Q: Do you have any testing reports?
A: Yes, we offer the product related testing and report.
