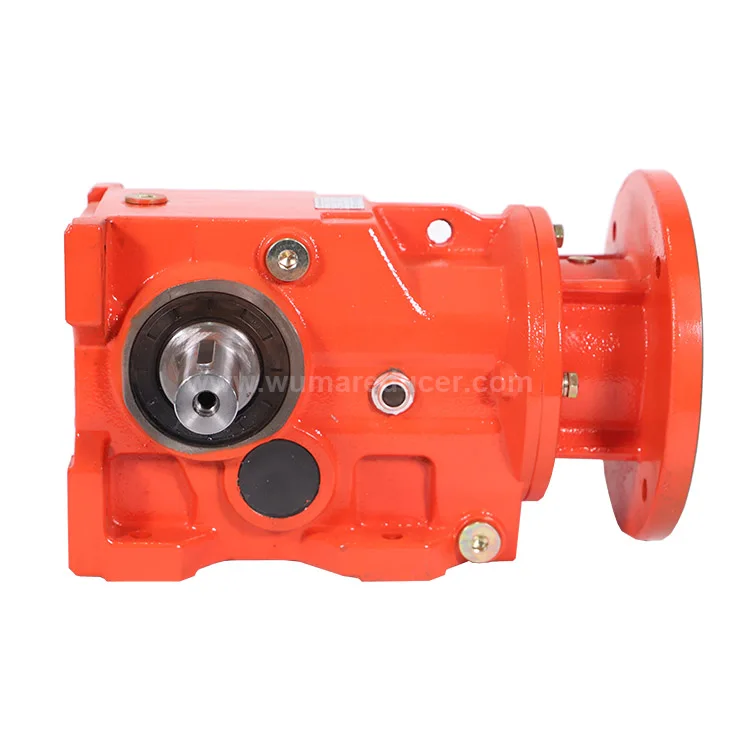

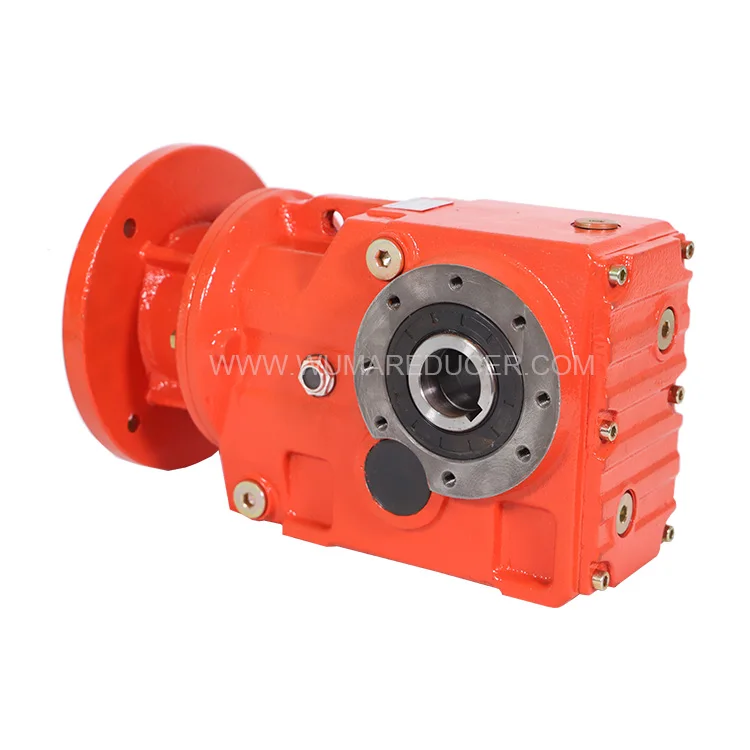

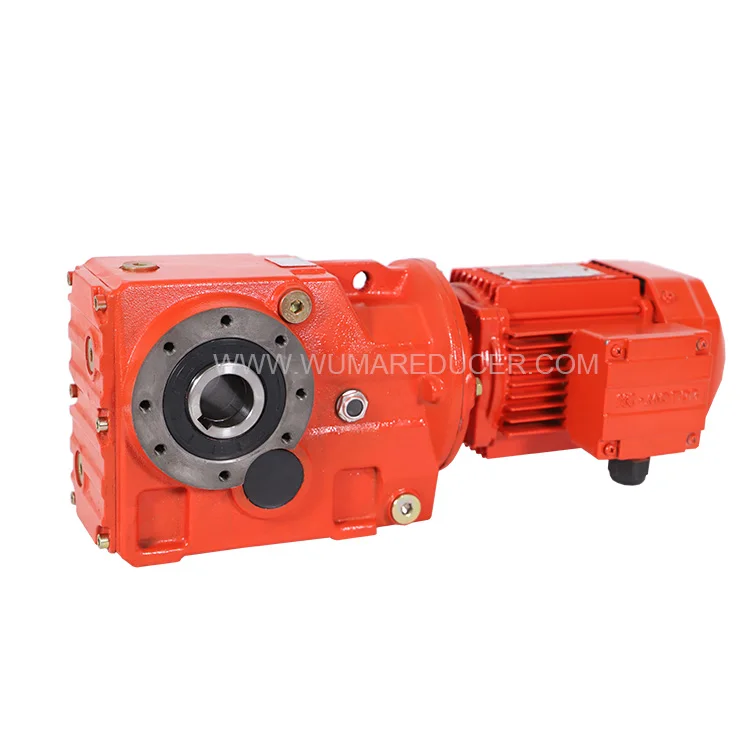

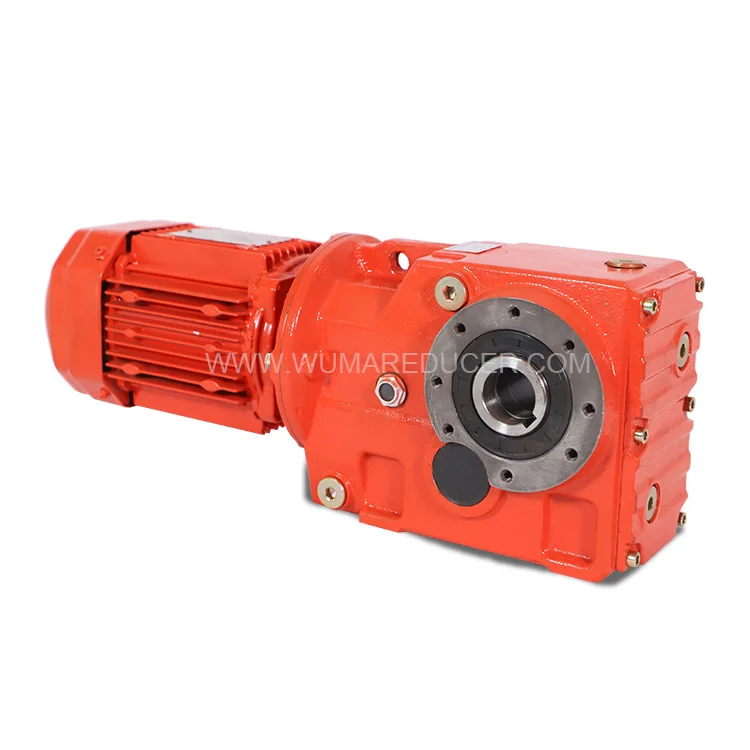

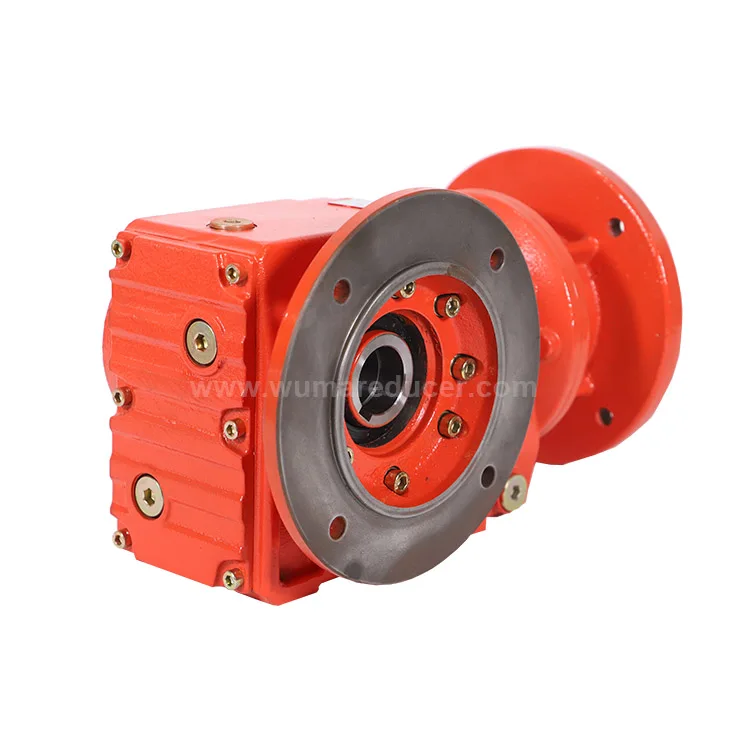

Helical Gear Reducer k Series Vertical Speed Up Reduction Helical Gear Reducer for Lifter
- Category: >>>
- Supplier: Zhejiang Wuma Reducer Co. Ltd.
Share on (1601274800554):
Product Overview
Description

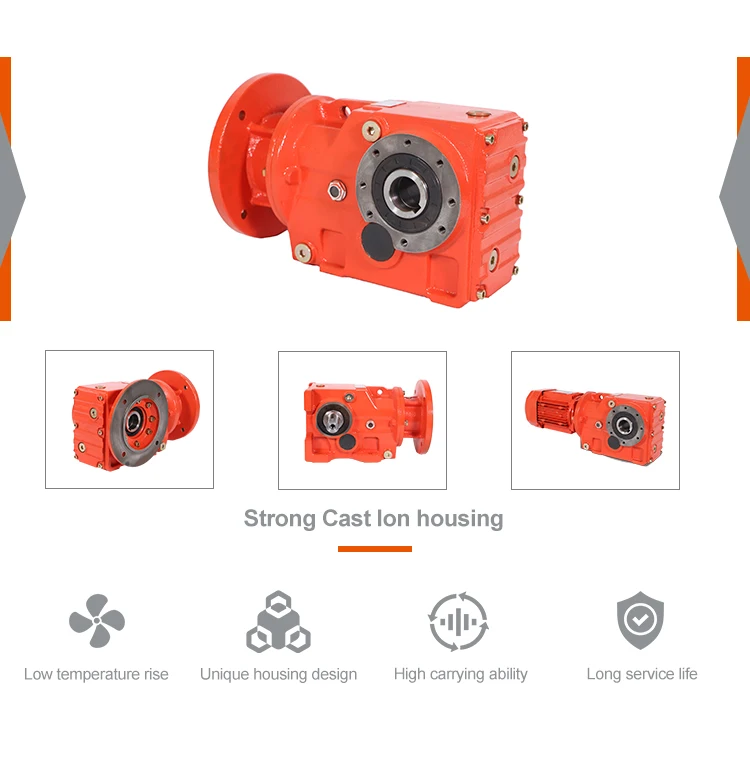

Type | Helical Bevel Gearbox / Reducer | ||||||
Model | WK37~WK187 | ||||||
Mounting Position | Flange, hollow shaft, solid shaft | ||||||
Efficiency | 94%~98%(depends on the transmission stage) | ||||||
Material | Housing: HT250 high strength cast iron | ||||||
Gear: 20CrMnTi | |||||||
Surface hardness of gears | HRC58~62 | ||||||
input/output shaft material | 40Cr | ||||||
Machining precision of gears | Accurate grinding, 6 grade | ||||||
Warranty | 1 Year | ||||||
Input Power | 0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW, 11Kw and so on. | ||||||
Usages | Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing,Dyeing,Wood working, Glass. | ||||||
IEC Flange | lEC standard flange | ||||||
Lubricant oil | Gear oil | ||||||
Q What ls Warranty Period Of Our Gearboxes?
A We offer one year warranty since the vessel departure date left china.
Q What Should You Do When Unusual And Even Noise Occurs During The Gearbox Running?
A It is properly caused by the unevenly mesh betwen gears or the bearing is damaged. The possible solution is to checkthe lubrication and change bearings. Moreover,you can also ask our sales representative for further advise.
Q What Should You Do When The Gearbox ls Breakdown?
A When the gearbox is breakdown,do not disassemble the parts first. Please contact the relative sales representative at our Foreign Trade Department and provide theinformation shown on the nameplate, ike gearbox specification ans serial number;time used; fault type as wellas the quantity of problemed ones. finally take theappropriate action.
Q How To Maintain The Gearboxes?
A After a new gearbox is being ued about 400 hours or 3 months, the lubrication needs to be changed. Afterthat,the oil changing cycle is about every 4000 hours;,please do not mixuse diferent brands of lubrication.it should keep enough amount of lubrication in the gearbox housing and checkit regulary. When itis found thatthe lubrication is deteriorated or the amount is decreased, the lubrication should be changed or filled up in time.
Q What Shall You Do When The Gearbox Leaks Oil?
A Tighten the bolts on the surface of gearbox and observe the unit. ifthe oil is stlleaking, please contact our sales representative at Foreign Trade Department.
Q How To Store The Gearboxes?
A a) Protected against rain,snow, humidity, dust and impact
b) Place wood blocks or other material between the gearbox and ground.
c) The opened but not used gear units should be added with the antirust oil on their surface, and then return back to the container in time.
b) Place wood blocks or other material between the gearbox and ground.
c) The opened but not used gear units should be added with the antirust oil on their surface, and then return back to the container in time.
d) fthe gearbox has been stored for2 years or even longer time, please checkthe cleanliness and mechanical damage and whether the antirust laver is stllthere
during the regular check-up.
during the regular check-up.
Q What Gearbox Information Shall You Give Before Placing A Purchase Order?
A a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information etc.
b) Housing color.
c) Purchase quantity.
d) other special requirements.
c) Purchase quantity.
d) other special requirements.
Q How To Choose A Gearbox Which Meets Your Requirement?
A You can refer to our catalogue to choose the gearbox or we can help to chose when you provide the technical information ofrequired output orque, output speed and motor parameter etc.
