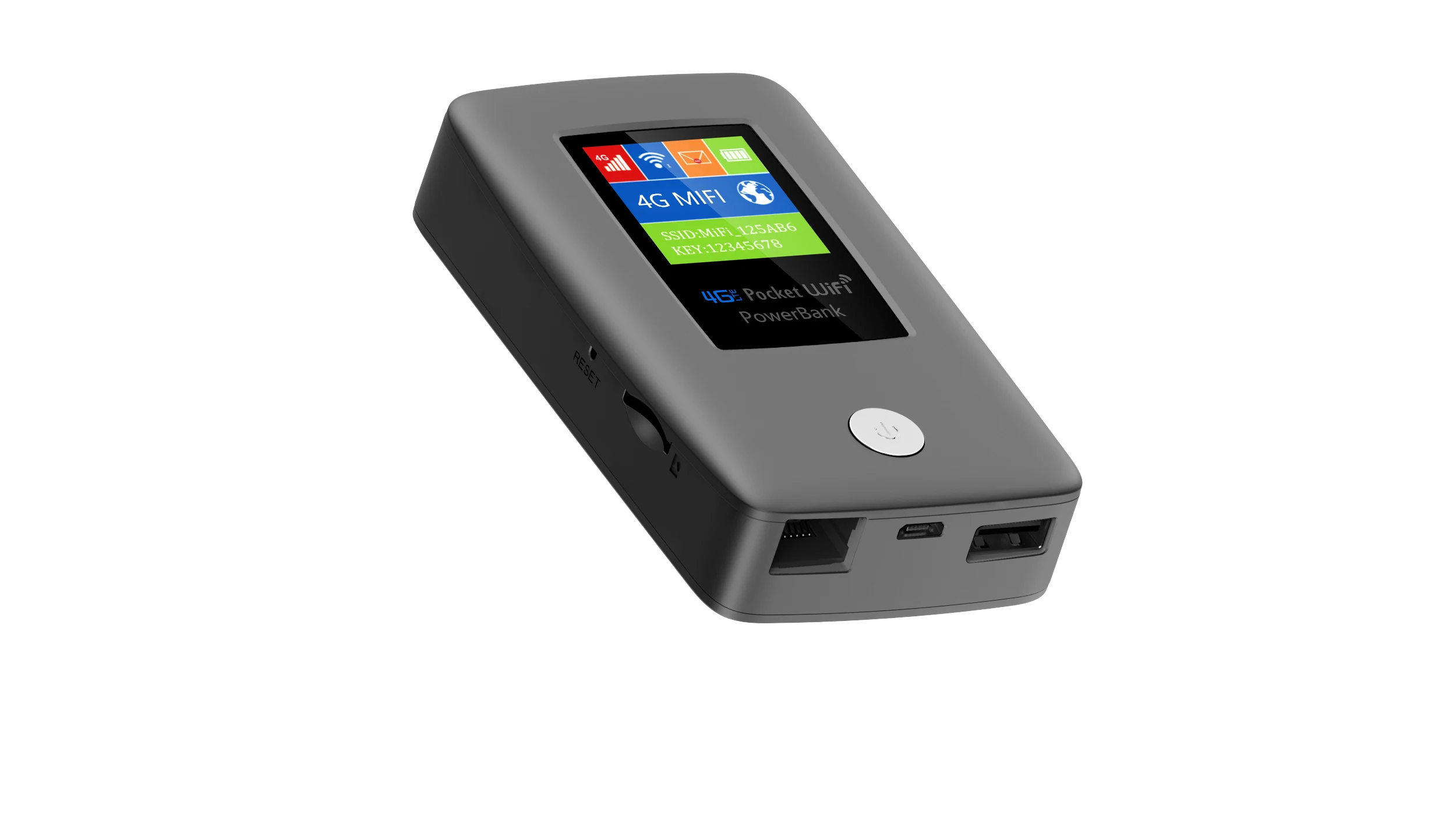

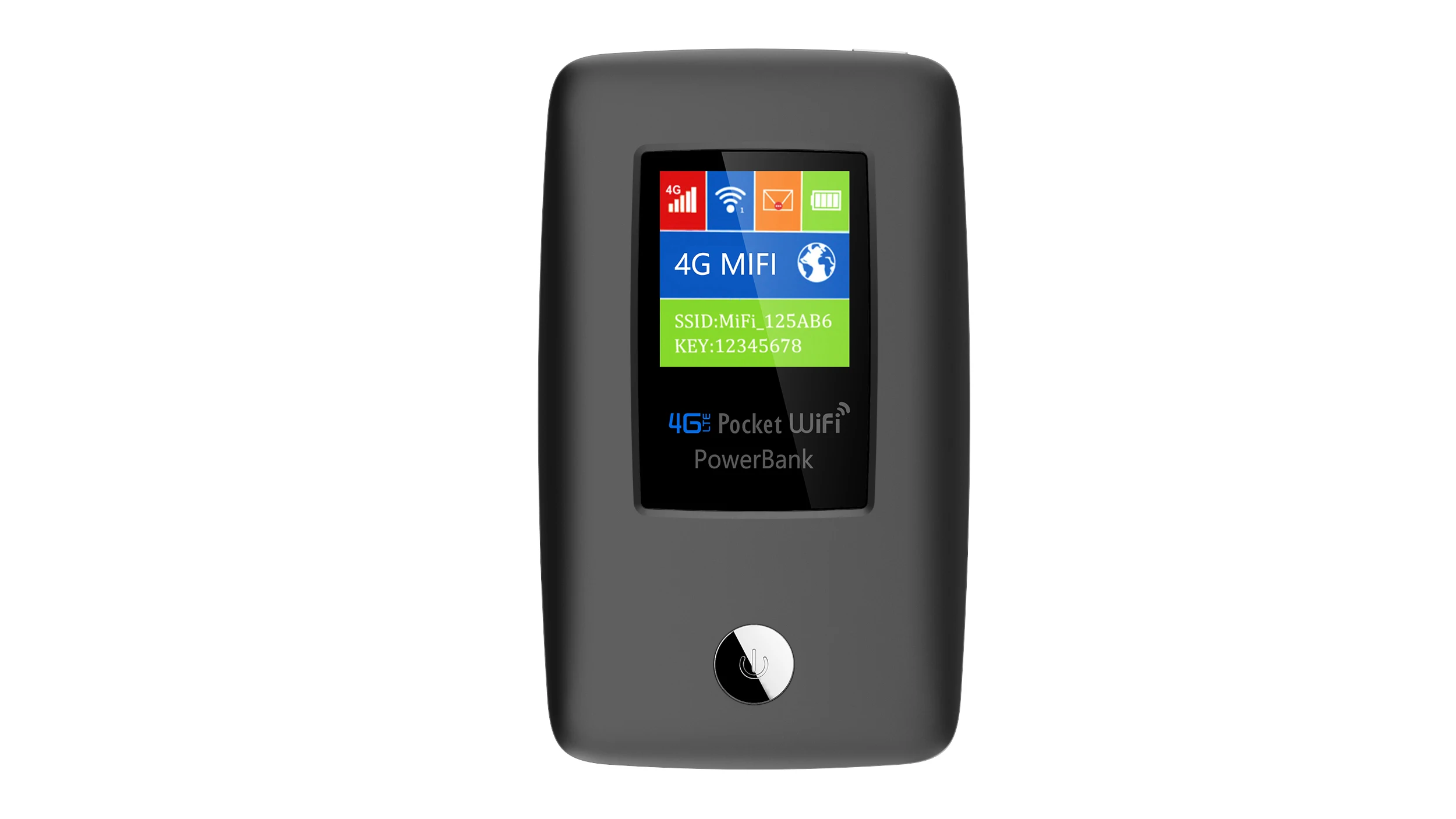

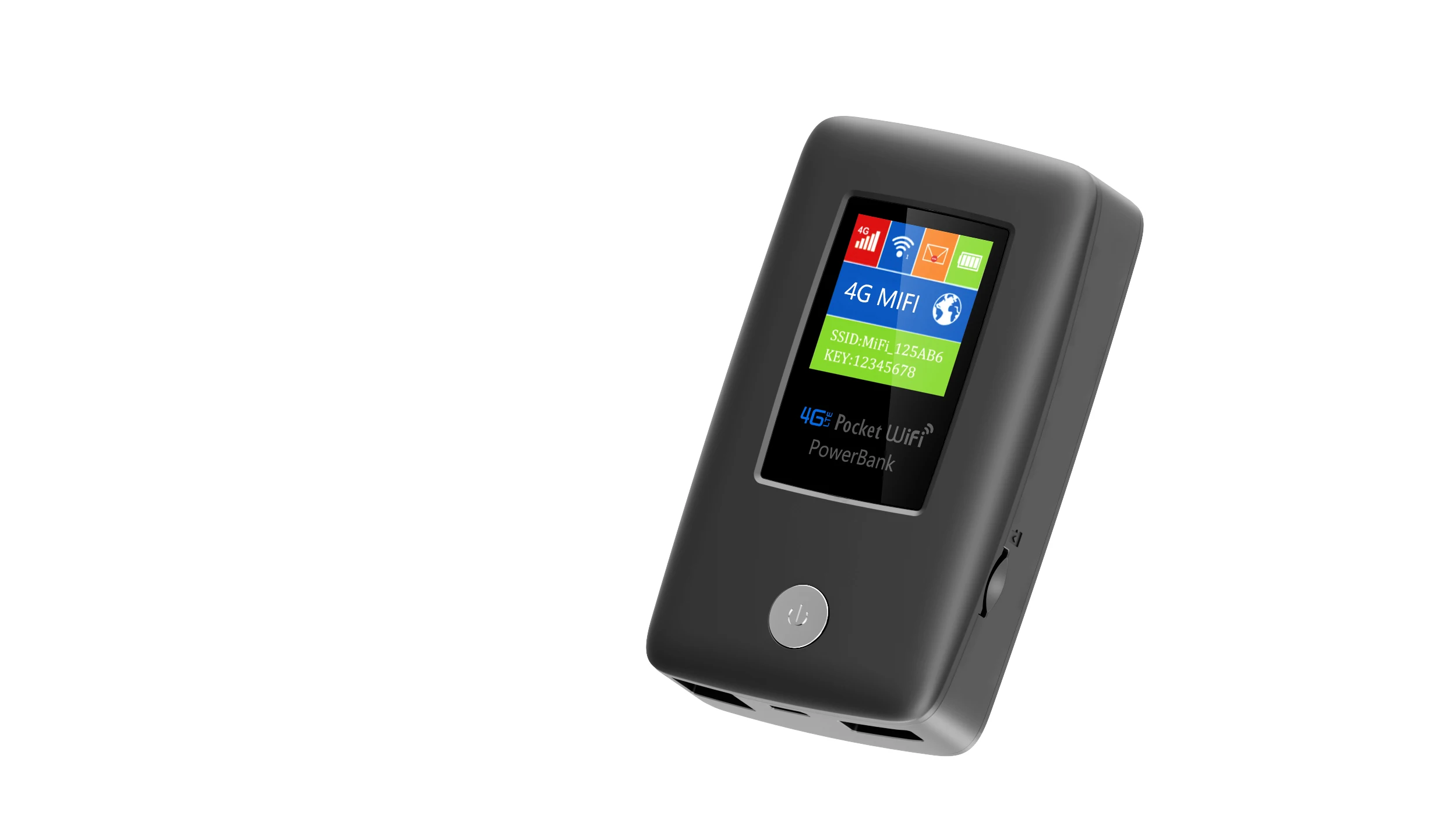

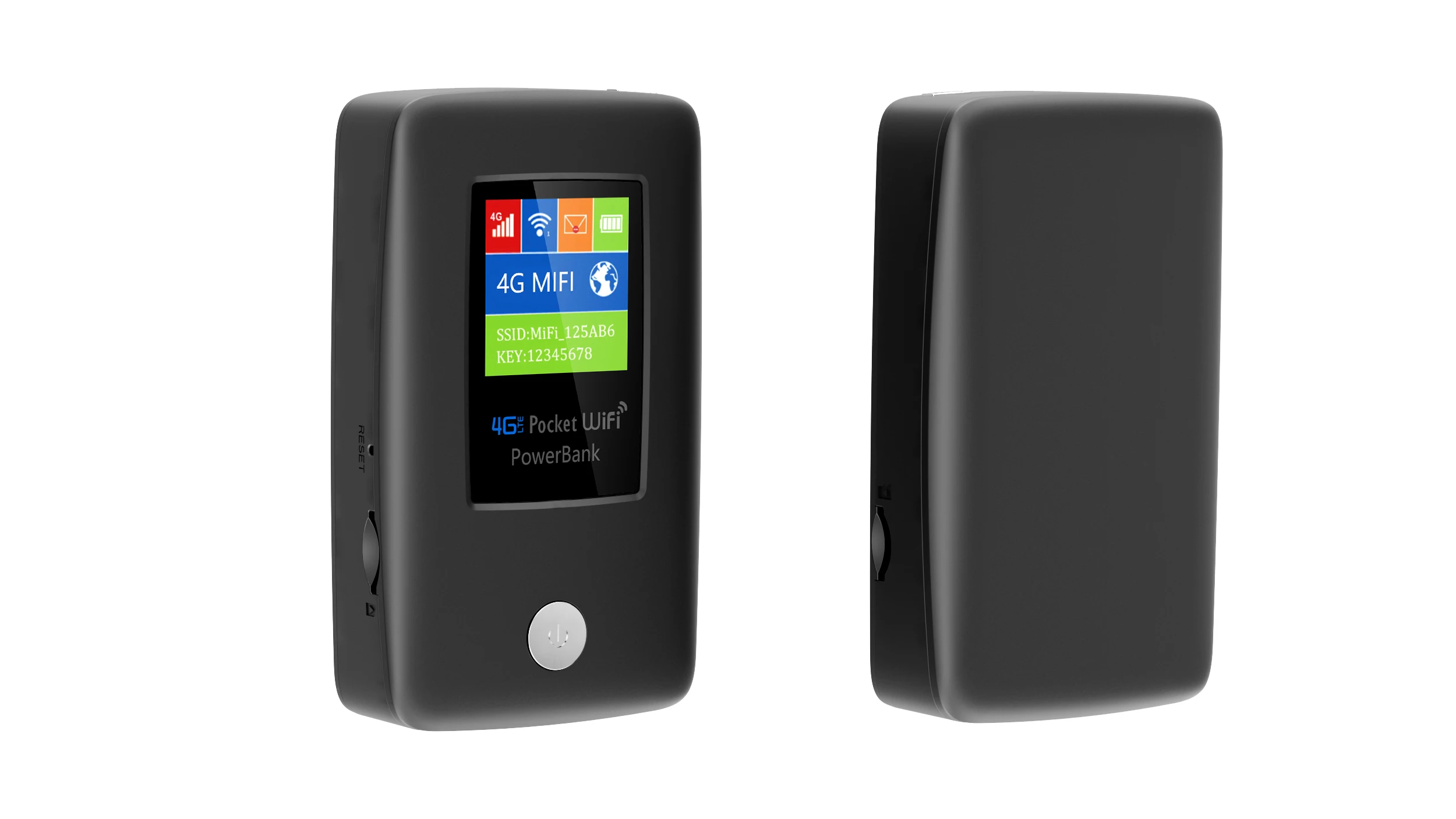

MF67Z wireless router

Product Overview

Description

	Feature	Description
Basical Information	Model Name	MF67

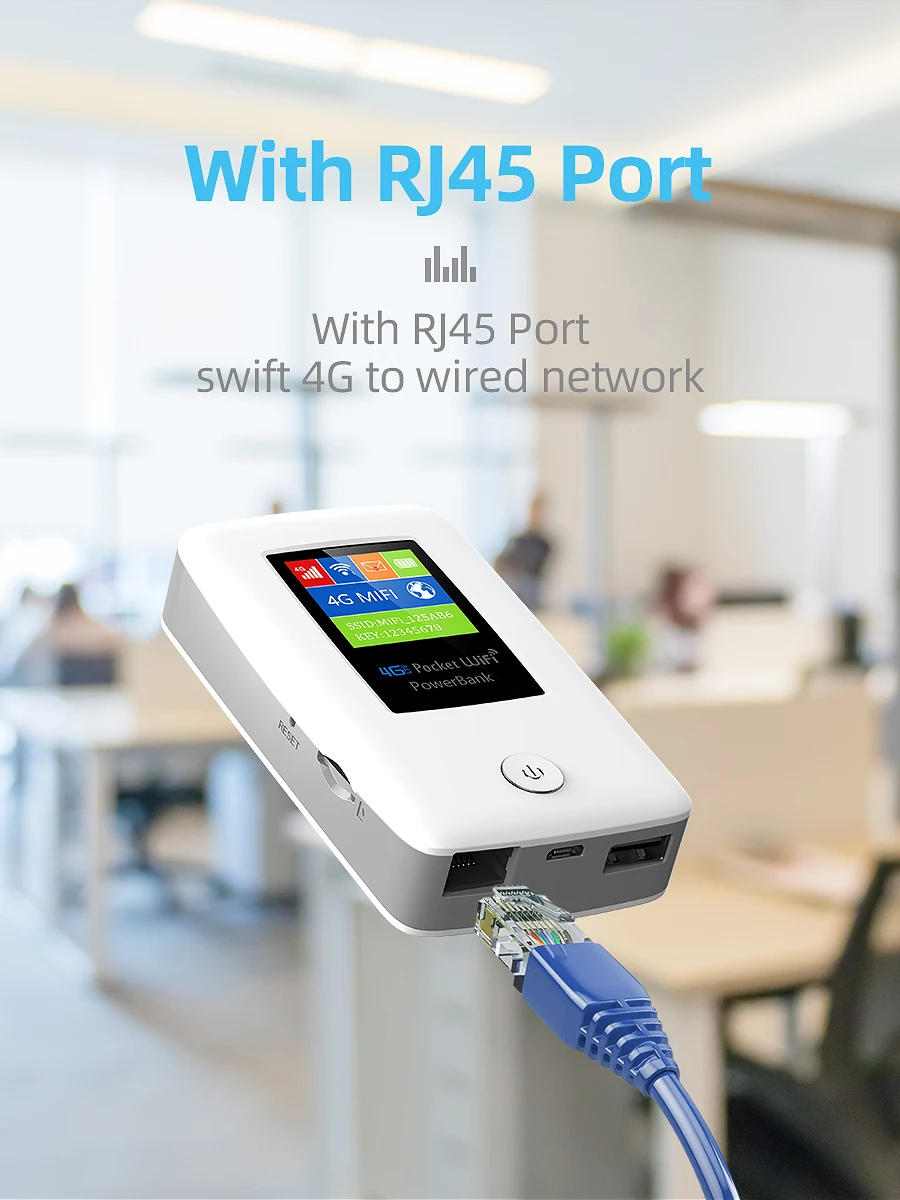

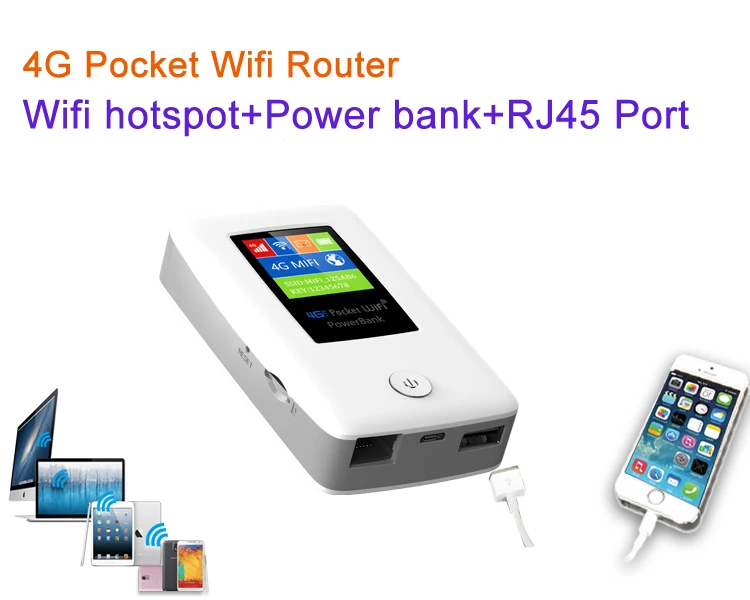

	Form Factor	Mobile WiFi support Power band and RJ45 ethernet
	Dimension	100*60*23MM
	Weight	150g
Solution	Wireless chipset supplier	SaneChip(attached to ZTE)
	Routing and WiFi chipset supplier	Realtek
Hardware	Wireless Chipset	ZX297520V3
	Wireless Processor	Cortex-A53 Dual
	Wireless Processor speed	624MHz/Cortex-A53
	Routing and WiFi chipset model	Realtek8192ES
	USIM/SIM Slot	Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card ,3FFby default(Micro SIM)
	Memory(DDR/NAND)	128MBytes/128MBytes
	Interface	USB, WiFi, Ethernet
	Buttons	POWER,Reset, WPS
	Ethernet	1WAN/LAN, 10BaseT/100Base automatic adaptive port
	Charger	Input 5V1.5A, Output 5V1A
	Battery	5200mAh
	LED indicator	LCD Screen WiFi indicator, Network indicator, Battery Indicator, SMS indicator
RF	Chipset	ZX234220A1
	UMTS Band	Band 1/2/3/4/5/8
	LTE band	1/2/3/5/7/8/28(20)/38/40/41 or  2/4/5/7/28(20)/66/38/40/41
	MIMO for Wireless	2*2 MIMO
	WiFi band	2400MHz-2483.5MHz
	MIMO for WiFi	2.4G 802.11.b/g/n MIMO 2*2

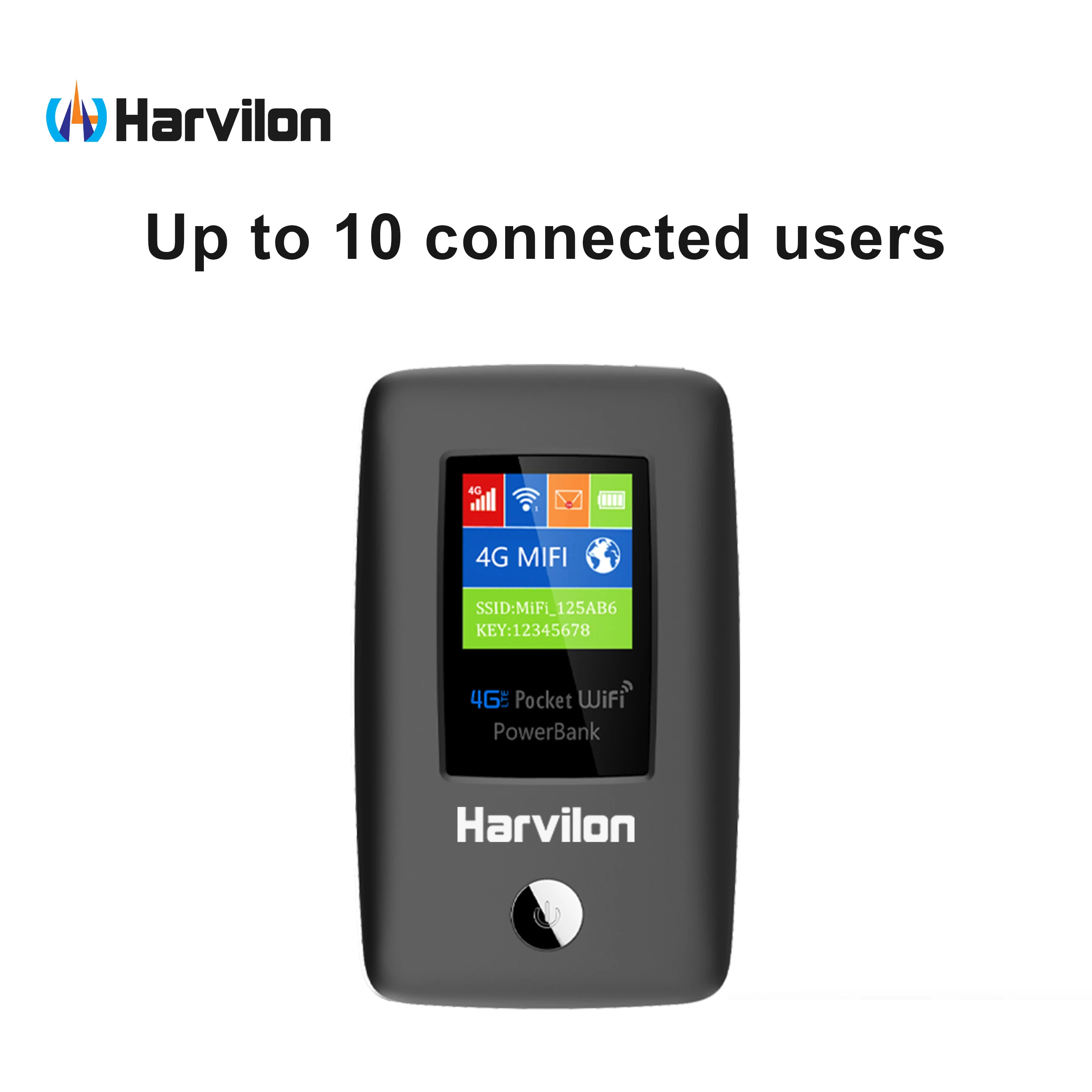

SW	WiFi Max Station Number	10
	Wi-Fi Standard	802.11 b/g/n(2*2 )
	WiFi Security	OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
	3GPP Release	LTE Rel9, WCDMA R99,R5,R6,R7
	OS	Windows XP SP3 later,Windows Vista ,Windows 7,Windows 8/8.1,MAC,Linux
	Browser	IE,Firefox,Safari,Opera,Chrome
	GPRS Class	Class B
	FW upgrade	FOTA
