Flier Factory Multirotor Drone UAV Plane 380A brushless ESC paramotor
US $108.00-$168.00
Jumper R1 R1F R900/mini Receiver 16CH Sbus for Frsky T16 Pro plus D16 Mode Radio Remote T8 T12 T16 Mini Receiver
- Category: >>>
- Supplier: Shenzhen Xinjiaguo Technology Co. Ltd.
Share on (1601274985337):
Product Overview
Description
Product Description
Jumper R1 R1F R900/mini Receiver 16CH Sbus for Frsky T16 Pro plus D16 D8 Mode Radio Remote T8 T12 T16 Series Frsky Drone

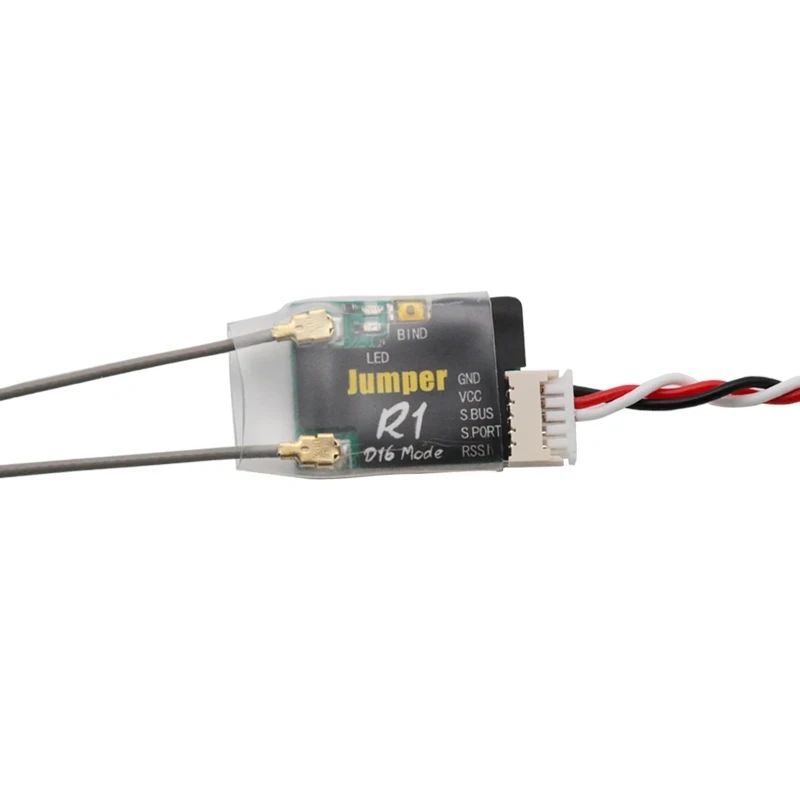

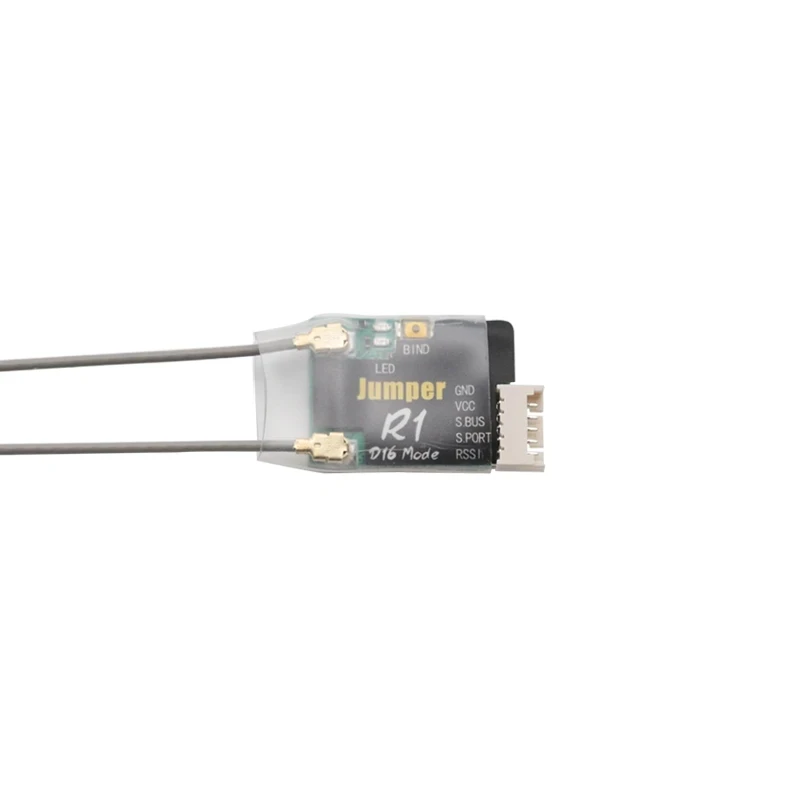

Jumper R1+ Plus Receiver 16CH Sbus RX Compatible Frsky D16 & Jumper T16 Radio
The Jumper R1+ receiver is a full range receiver compatible with devices using the Frsky D16 mode, with dual IPEX connectors on
the antennas giving integrated redundancy and making it very easy to replace them. The Jumper R1 is a great choice micro receiver
for your racing drone.
It uses ACCST protocol D16 to communicate with a transmitter, so it can be used with Jumper & Frsky Taranis transmitters.
The R1 also supports SBUS/S.PORT including telemetry data all over one wire.
Specification
Item Name: R1+ Receiver
Size: 20*15*5mm (without antenna)
Weight: <2g
Number of channels: 16ch
RSSI (Signal Strength Indication) output: 0-3.3v
Data return: SBUS/S.PORT
Operating voltage range: 4.0~6V
Operating current range: 80mA@5V
Effective distance: full distance (>1.5km)
compatibility: FrSky D16 Mode Transmitter
Binding method:
Press and hold the receiver's bind button, turn on the power, the receiver will now enter binding mode.
The red light is always on and the green light is flashing slowly.
Turn on the remote control and begin the bind procedure according to your radio. After the bind is successful the red light is off
and the green
light is always on.
Note:
When the receiver loses the signal, the green light is off and the red light is flashing slowly.

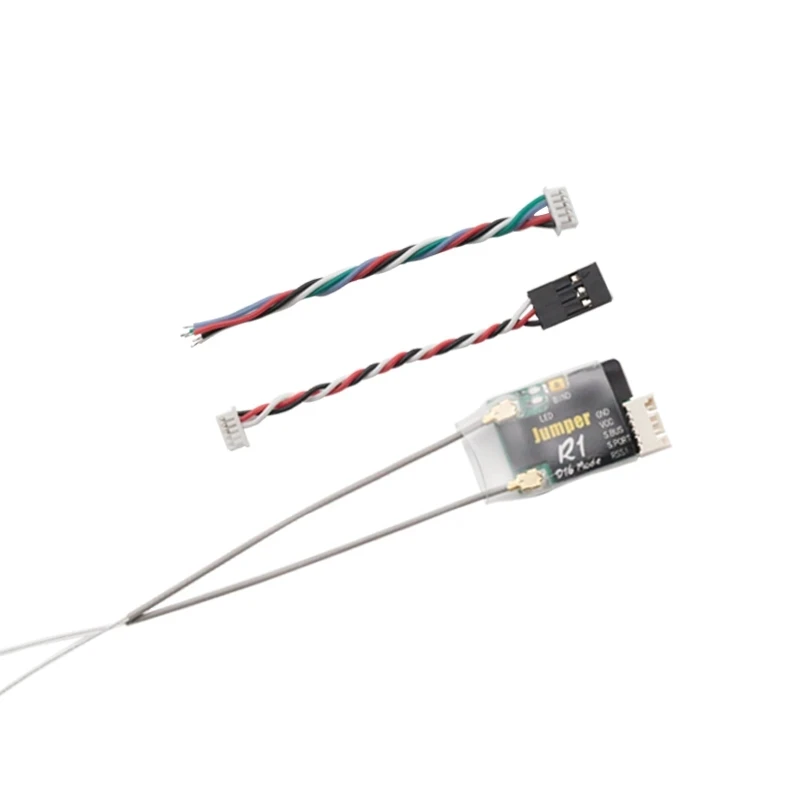

Package Included:
1 x R1 Receiver with Dual Antenna's
1x Wire Set
Jumper R1+ Plus Receiver 16CH Sbus RX Compatible Frsky D16 & Jumper T16 Radio
The Jumper R1+ receiver is a full range receiver compatible with devices using the Frsky D16 mode, with dual IPEX connectors on
the antennas giving integrated redundancy and making it very easy to replace them. The Jumper R1 is a great choice micro receiver
for your racing drone.
It uses ACCST protocol D16 to communicate with a transmitter, so it can be used with Jumper & Frsky Taranis transmitters.
The R1 also supports SBUS/S.PORT including telemetry data all over one wire.
Specification
Item Name: R1+ Receiver
Size: 20*15*5mm (without antenna)
Weight: <2g
Number of channels: 16ch
RSSI (Signal Strength Indication) output: 0-3.3v
Data return: SBUS/S.PORT
Operating voltage range: 4.0~6V
Operating current range: 80mA@5V
Effective distance: full distance (>1.5km)
compatibility: FrSky D16 Mode Transmitter
Binding method:
Press and hold the receiver's bind button, turn on the power, the receiver will now enter binding mode.
The red light is always on and the green light is flashing slowly.
Turn on the remote control and begin the bind procedure according to your radio. After the bind is successful the red light is off
and the green
light is always on.
Note:
When the receiver loses the signal, the green light is off and the red light is flashing slowly.
Package Included:
1 x R1 Receiver with Dual Antenna's
1x Wire Set
Specification
MOQ | 2PCS |
Company Profile
Shenzhen Core Plus Fruit Technology Co., Ltd.
Located in Shenzhen, China, Shenzhen Core Plus Fruit Technology Co., Ltd. has been deeply engaged in R&D and sales of drone accessories for decades. We provide high quality products for drone enthusiasts, such as VTX,FPV,ESC, brushless motor, flight control, receiver, rack, antenna, etc. All the accessories come from brand factories. And we also have a 2000 square meters production workshop, employing experienced technical and management staff, strict quality control procedures to ensure product quality is guaranteed. Welcome to our drone enthusiasts, thank you for watching and have a nice life.
Production Process
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q：How can we guarantee quality?
A：Alwavs a pre-production sample before mass production;
Always final Inspection before shipment.
Q：What can you buy from us?
A：Motor and ESC,Transmitter&Receiver ,Rc Antenna, Flight Control, GPS, Frame, FPV Camera , RC Tool ,Rc Connecter, Drone, Battery Charger, RC Propellers and other RC accs and parts.
Q：Why should you buy from us not from other suppliers?
A：The company has obtained the agency right of many famous brands, the drone accessories products are comprehensive, the products are all oriainal and cenuine, to provide you with professional technical services;in addition, the company also provides a variety of logistics methods,you order will be delivered to your address on time!
Q：What services can we provide?
A：Accepted Delivery Terms: FOB , Express Delivery;
Accepted Payment Currency : USD , RMB;
Accepted Payment Type : L/C，D/A，D/P，T/T，Western Union，MoneyGram;
Language Spoken:English ,Chinese.
A：Alwavs a pre-production sample before mass production;
Always final Inspection before shipment.
Q：What can you buy from us?
A：Motor and ESC,Transmitter&Receiver ,Rc Antenna, Flight Control, GPS, Frame, FPV Camera , RC Tool ,Rc Connecter, Drone, Battery Charger, RC Propellers and other RC accs and parts.
Q：Why should you buy from us not from other suppliers?
A：The company has obtained the agency right of many famous brands, the drone accessories products are comprehensive, the products are all oriainal and cenuine, to provide you with professional technical services;in addition, the company also provides a variety of logistics methods,you order will be delivered to your address on time!
Q：What services can we provide?
A：Accepted Delivery Terms: FOB , Express Delivery;
Accepted Payment Currency : USD , RMB;
Accepted Payment Type : L/C，D/A，D/P，T/T，Western Union，MoneyGram;
Language Spoken:English ,Chinese.
