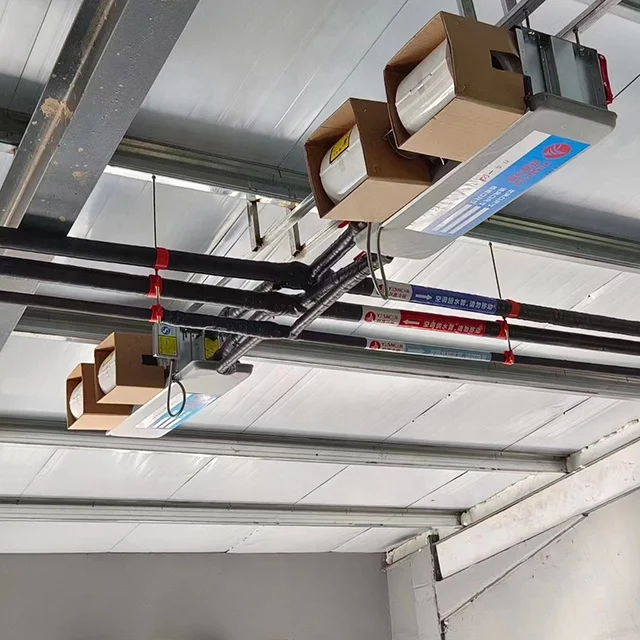

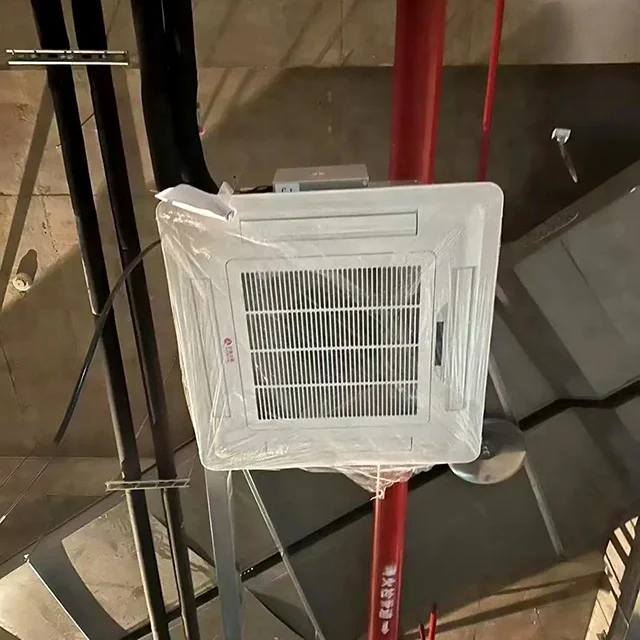

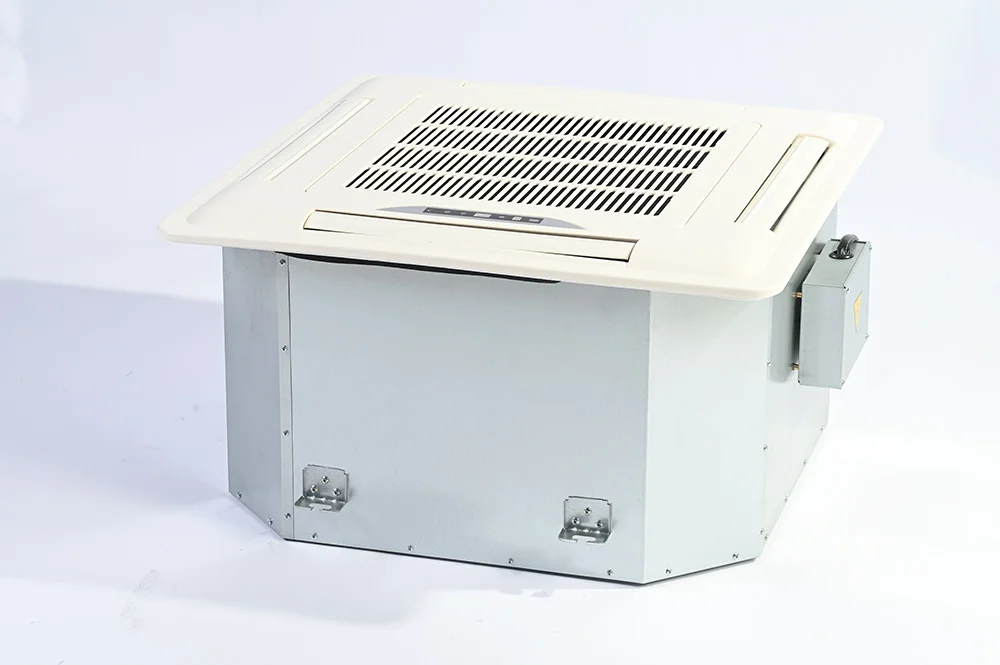

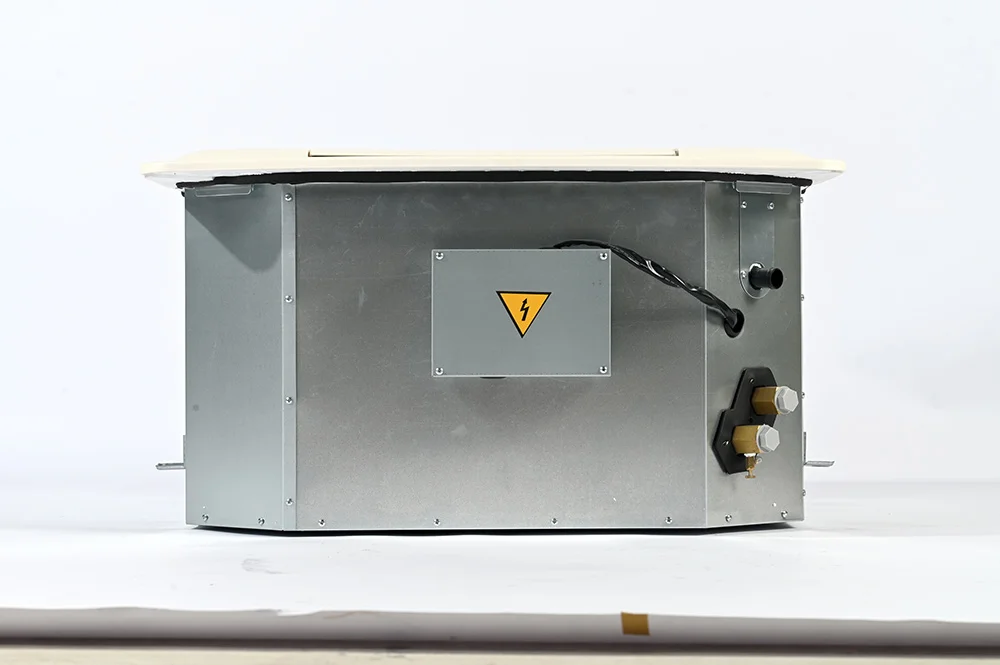

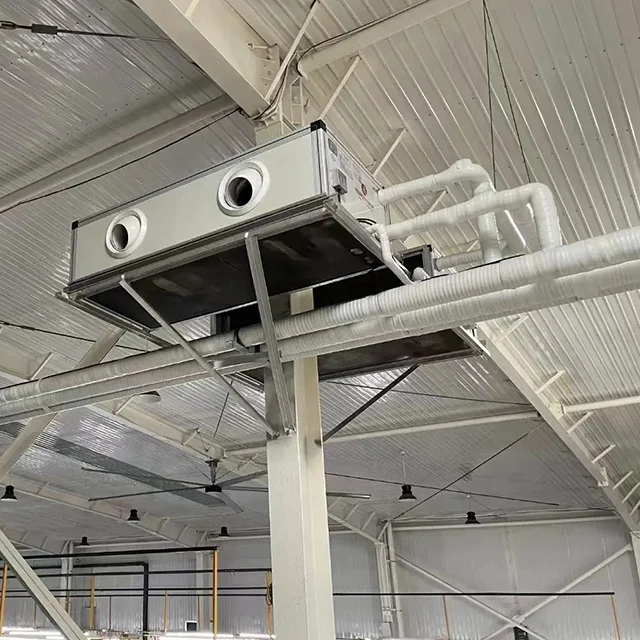

4 Way Cassette Fan Coil Unit FP 34 Commercial Chilled Water Ceiling Cassette Fcu Fan Coil Unit For Project With Chiller
- Category: >>>
- Supplier: Baoding Yuexin Heating And Cooling Equipment Manufacturing Co. Ltd.
Share on (1601275131997):
Product Overview
Description
Product Description

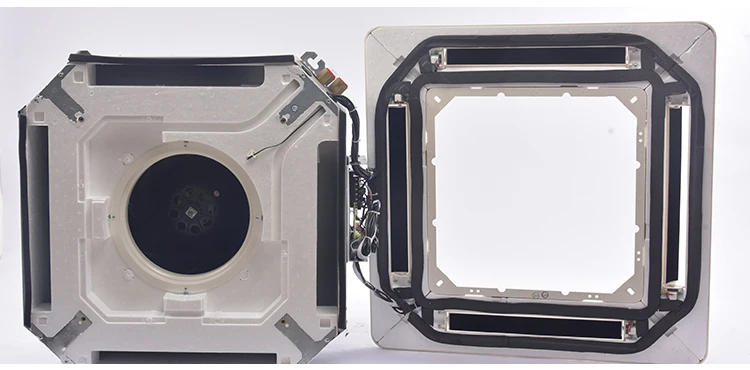

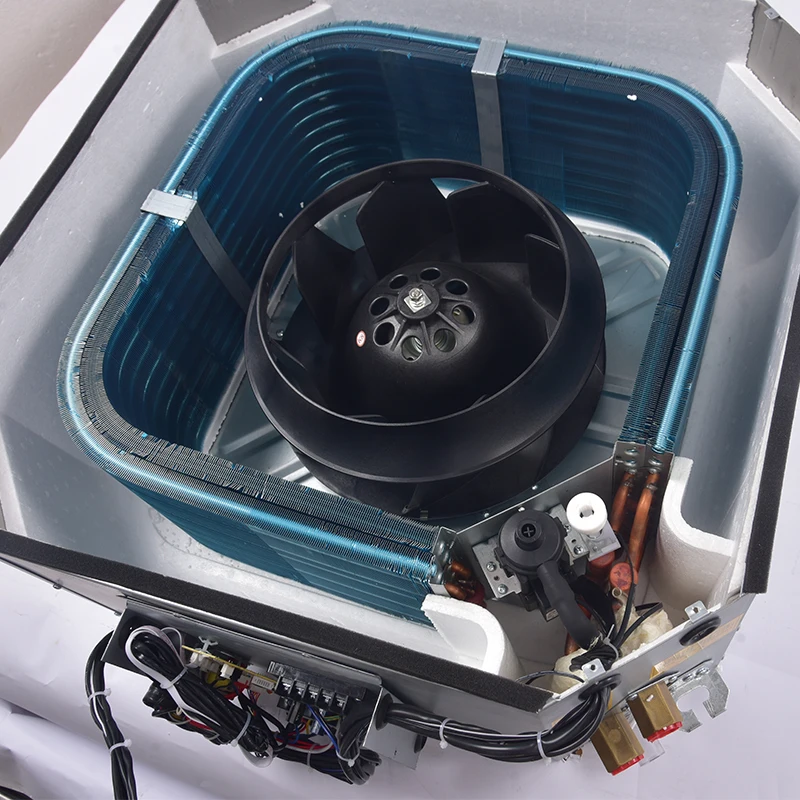

Details Images

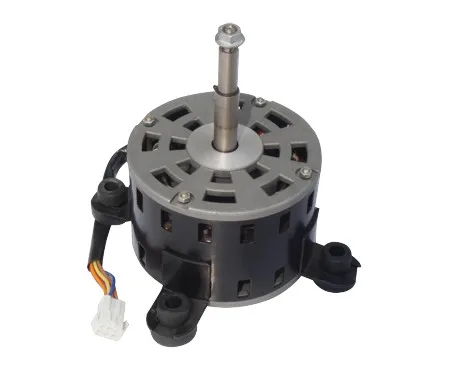

Brand motor
The low-noise three-speed capacitor motor of well-known domestic brands is adopted, with imported precision ultra-low-noise
rolling bearing.
rolling bearing.

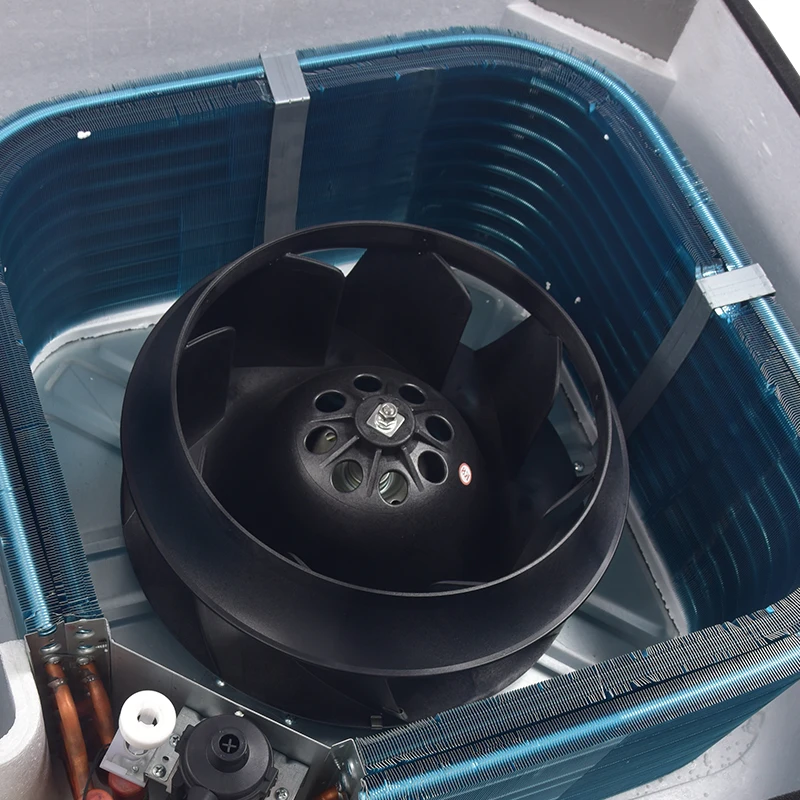

Three-dimensional spiral wind blade
Three-dimensional spiral wind blade ensures wind volume and thinner shape, and irregular wind blade pitch greatly reduces operating noise.

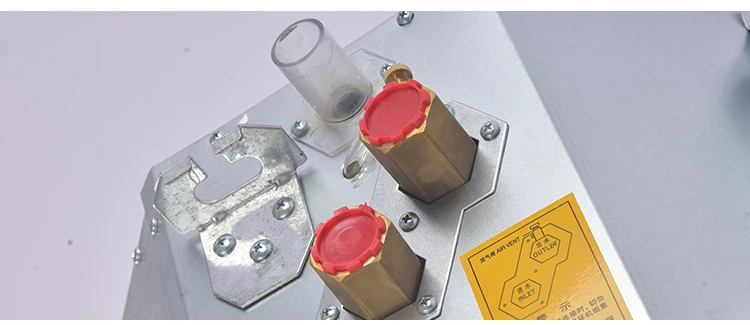

Forged brass water collecting head
The pipe of water collecting head adopts forged brass structure, which is reliable and durable.
Hydrophilic aluminum foil fin
Circular heat exchanger design, wind uniformity, seamless copper tube and new high-efficiency corrugated double curved open window
hydrophilic aluminum foil fin, optimize flow design and effectively improve heat transfer efficiency.
hydrophilic aluminum foil fin, optimize flow design and effectively improve heat transfer efficiency.
Thickening insulation layer
Foam insulation, thickening foam insulation layer inside the fuselage, not easy to produce condensation beads in summer, not easy
to corrode, and extend the service life.
to corrode, and extend the service life.
1 way Cassette water fan coil units
2 way Cassette water fan coil units

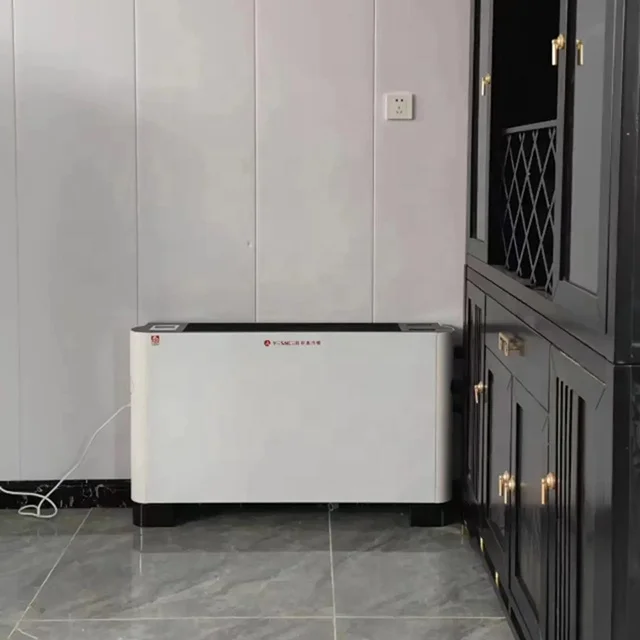

Round type water fan coil units
Specification
Model and performance | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | |||||||||
Rated air flow m3/h | high | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | ||||||||
Medium | 280 | 390 | 520 | 640 | 790 | 1030 | 1290 | 1500 | |||||||||
low | 180 | 260 | 350 | 430 | 520 | 690 | 860 | 1030 | |||||||||
Rated cooling capacity W | high | 1980 | 2980 | 3680 | 4980 | 5580 | 7200 | 9900 | 10800 | ||||||||
Medium | 1631 | 2279 | 2814 | 3750 | 4322 | 5534 | 7512 | 8088 | |||||||||
low | 1048 | 1519 | 1894 | 2519 | 2854 | 5534 | 5008 | 5554 | |||||||||
Rated heat W | high | 2980 | 4800 | 5480 | 7200 | 8180 | 10800 | 14500 | 16200 | ||||||||
Medium | 2454 | 3671 | 4191 | 5421 | 6335 | 8179 | 11005 | 12353 | |||||||||
low | 1578 | 2447 | 2821 | 3600 | 4481 | 5479 | 7335 | 8482 | |||||||||
The input power | W | 34 | 50 | 58 | 72 | 92 | 126 | 128 | 152 | ||||||||
The amount of water m3/h | 0.42 | 0.52 | 0.62 | 0.86 | 0.98 | 1.08 | 1.58 | 1.78 | |||||||||
Water press loss Kpa | 14 | 14 | 16 | 18 | 22 | 25 | 39 | 44 | |||||||||
Motor number | 1 | 2 | 3 | 4 | |||||||||||||
power | 220V~240/50HZ | ||||||||||||||||
Title goes here.
1. The rated air volume refers to the outlet static pressure of 0 Pa.
2. Cooling operation parameters: inlet air dry bulb temperature is 27℃, humidity temperature is 19.5℃, outlet water temperature is 7℃, return water temperature is 12℃.
3. Heating condition parameters: inlet air dry bulb temperature is 20℃, inlet water temperature is 60℃, outlet water temperature is 50℃.
2. Cooling operation parameters: inlet air dry bulb temperature is 27℃, humidity temperature is 19.5℃, outlet water temperature is 7℃, return water temperature is 12℃.
3. Heating condition parameters: inlet air dry bulb temperature is 20℃, inlet water temperature is 60℃, outlet water temperature is 50℃.

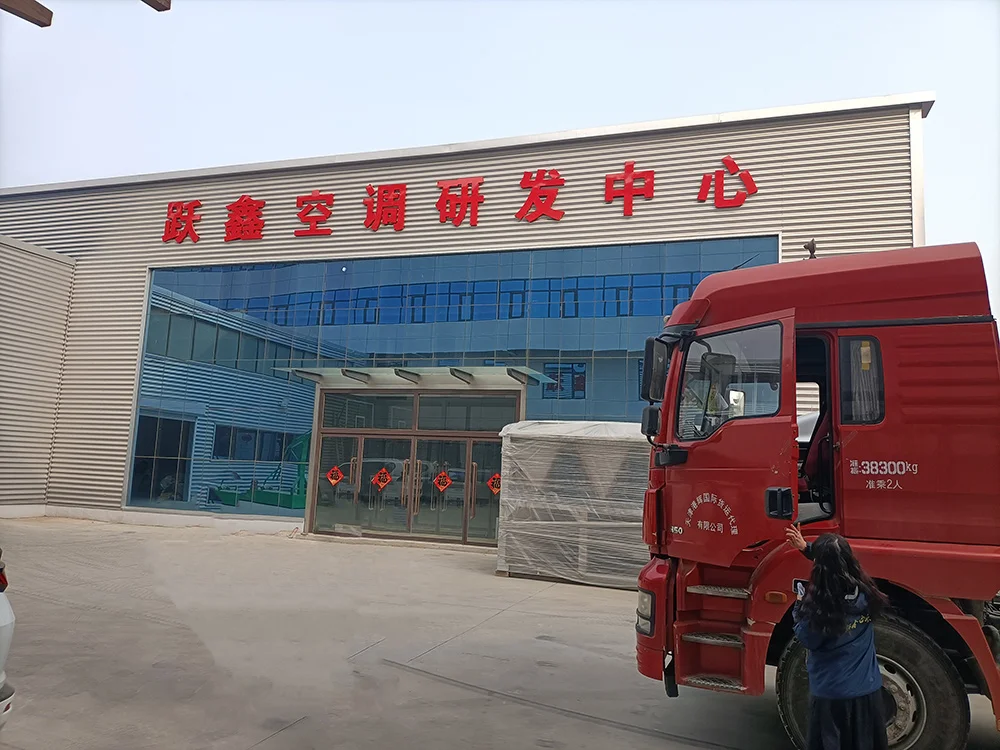

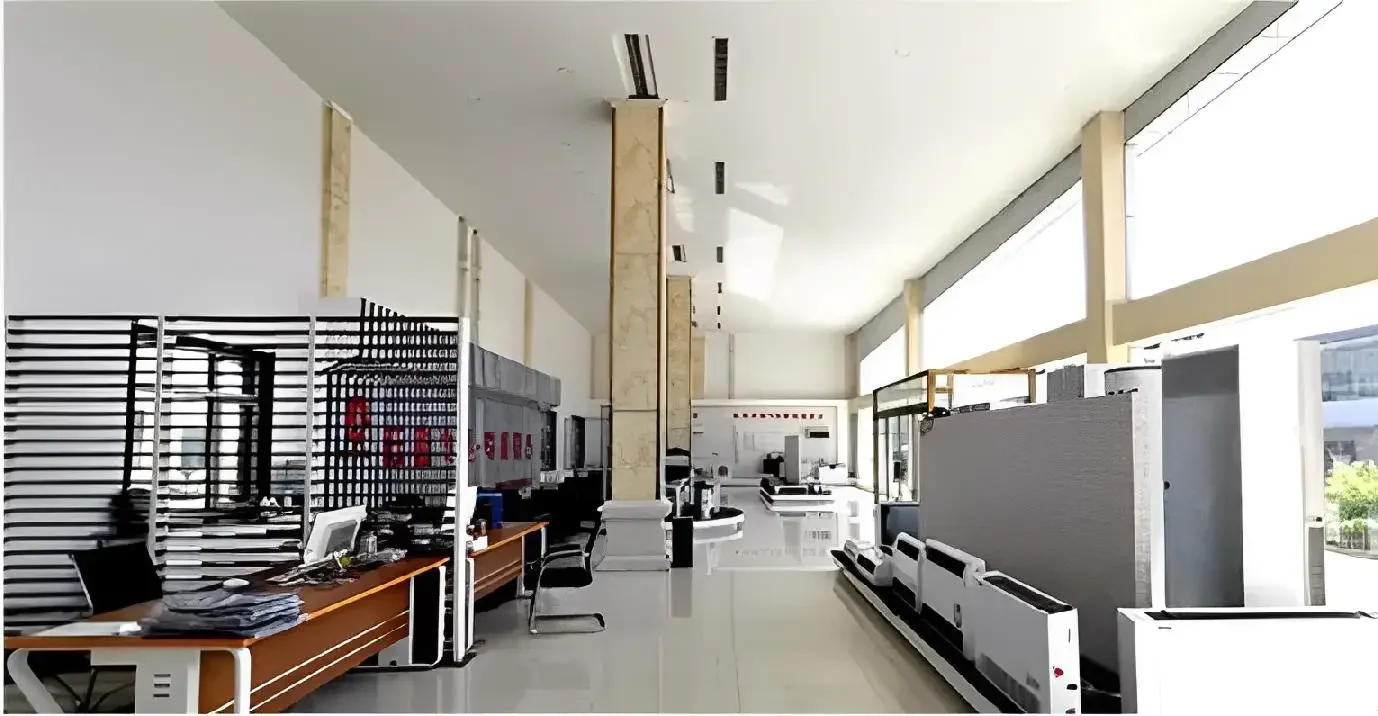

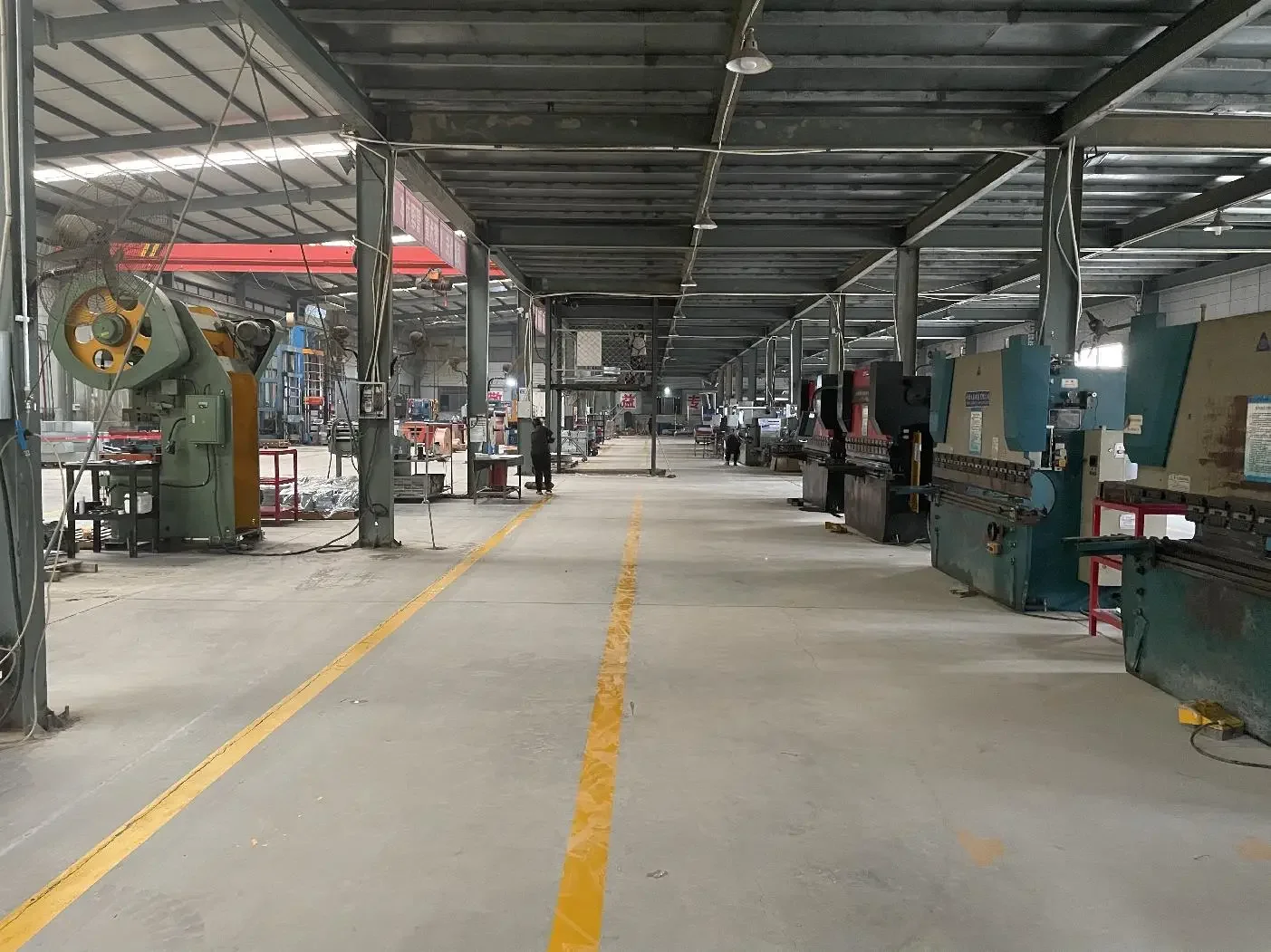

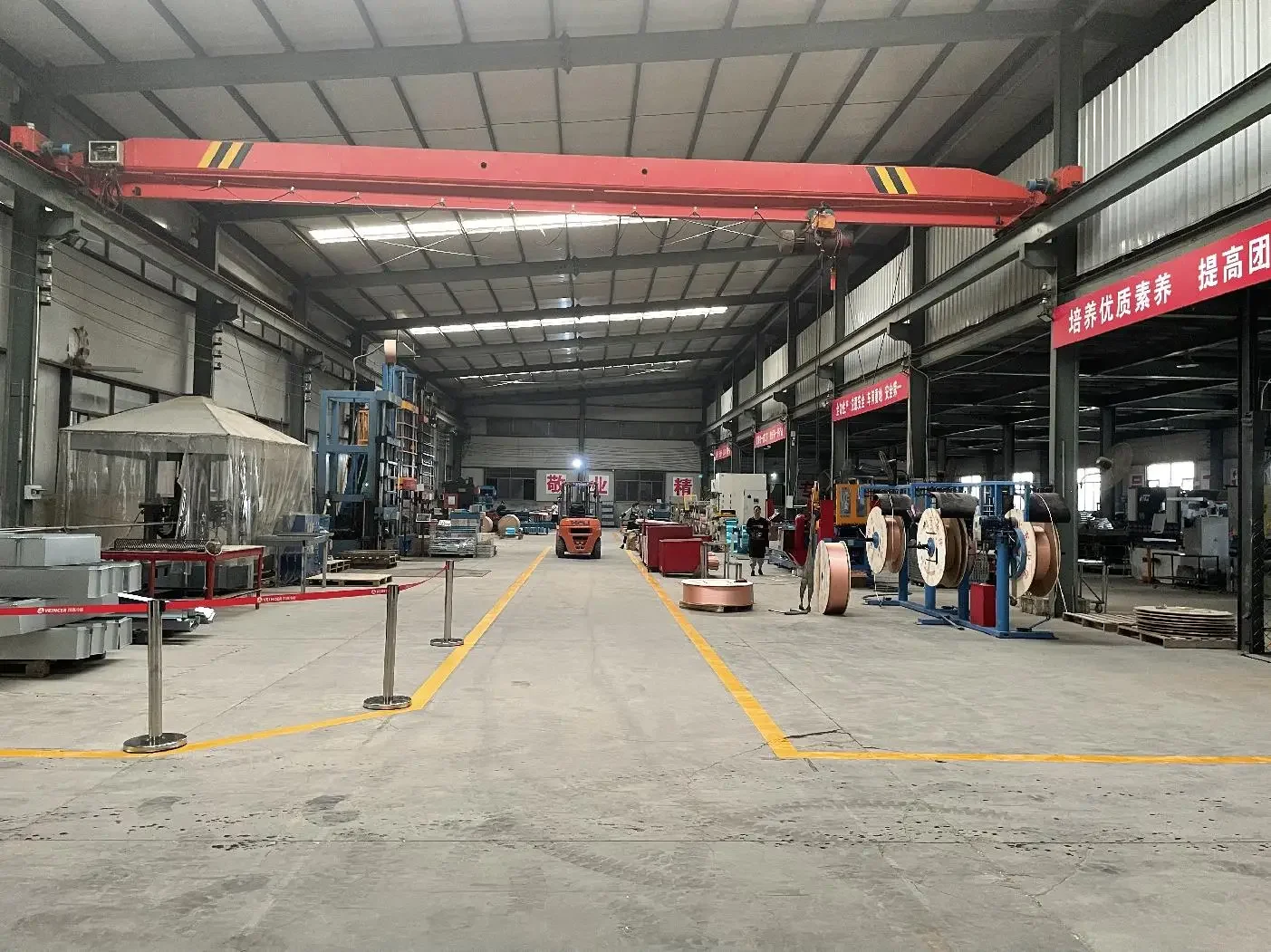

Company Profile
Baoding Yuexin Heating & Cooling is the manufacturer of air source heat pump, air cooled chiller, water cooled chiller, rooftop packaged ac unit, fan coil unit and air handling unit etc.
Our advantages:
1. Strong R&D capability,Provide OEM/ODM.
2. 10+ years of experience.
3. 24-hour online service.
Our products are exported to Europe,the Middle East,North America,Australia,Southeast Asia, and other countries and regions.
Certifications
Exhibition

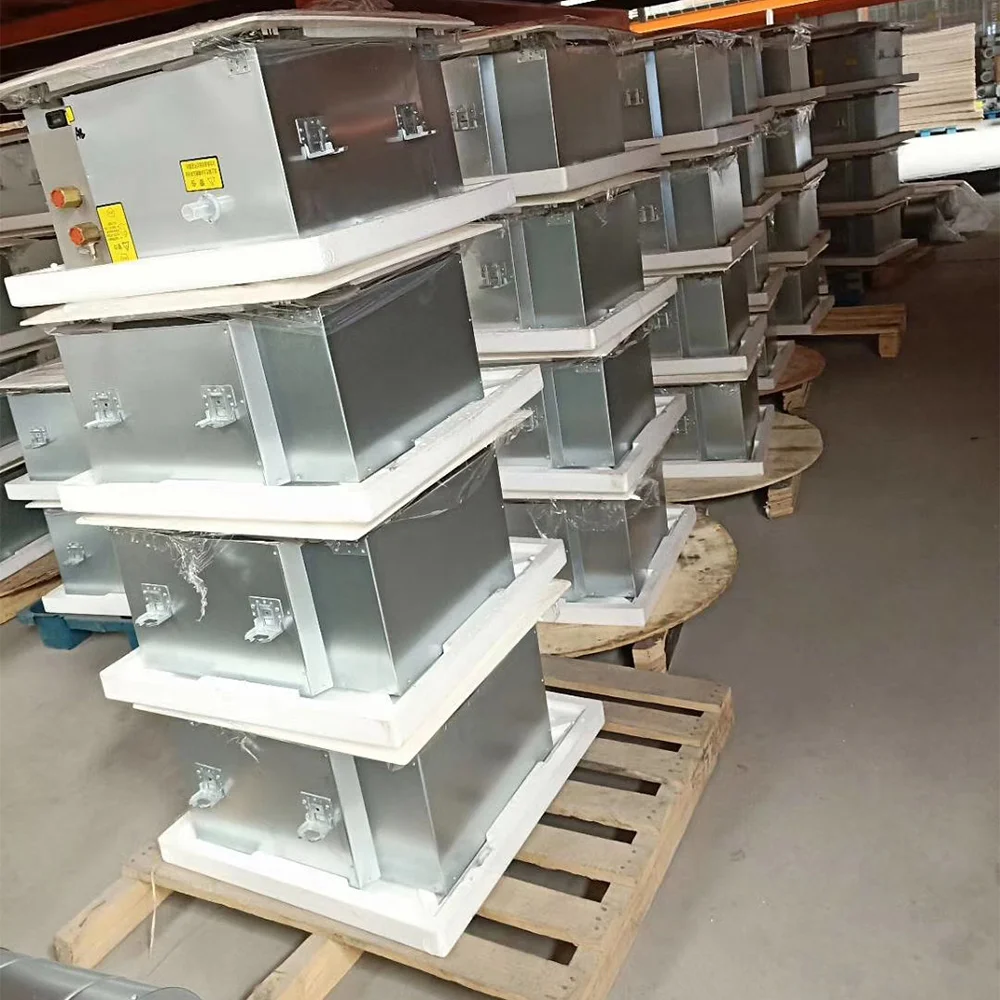

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
A. Delivery: After the goods are dispatched, send the relevant documents or courier number to the customer to remind the customer that the goods have been dispatched. During the period, we will continue to track the logistics information, and notify the customer at any time if there is an update. Before the delivery is about to be dispatched, the customer should be notified to pay attention to the receipt.
B. Receipt: After receiving the goods, contact the customer to see if there is any damage during transportation; if the product is damaged, please send a picture to the customer for verification. If it affects the use, you can negotiate the compensation amount or send a new product replacement directly If some parts are damaged and are easily available locally, we can advise customers to purchase and replace them locally, and we will bear the cost.
C. Installation: Technical guidance, drawings or video guidance can be provided.
D. Use: Free training for customers on, operation and use, daily maintenance and precautions.
E. Warranty: machine warranty for 3-5 years, control warranty for 1 year, damage during the warranty period, free repairs, beyond the warranty period, we can still provide repair services, we need to charge a fee as appropriate.
B. Receipt: After receiving the goods, contact the customer to see if there is any damage during transportation; if the product is damaged, please send a picture to the customer for verification. If it affects the use, you can negotiate the compensation amount or send a new product replacement directly If some parts are damaged and are easily available locally, we can advise customers to purchase and replace them locally, and we will bear the cost.
C. Installation: Technical guidance, drawings or video guidance can be provided.
D. Use: Free training for customers on, operation and use, daily maintenance and precautions.
E. Warranty: machine warranty for 3-5 years, control warranty for 1 year, damage during the warranty period, free repairs, beyond the warranty period, we can still provide repair services, we need to charge a fee as appropriate.
