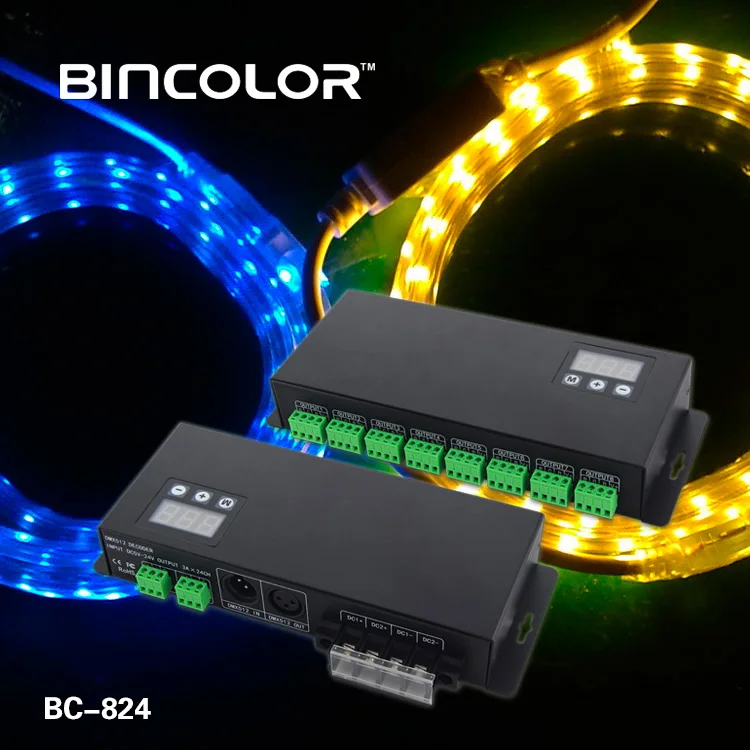

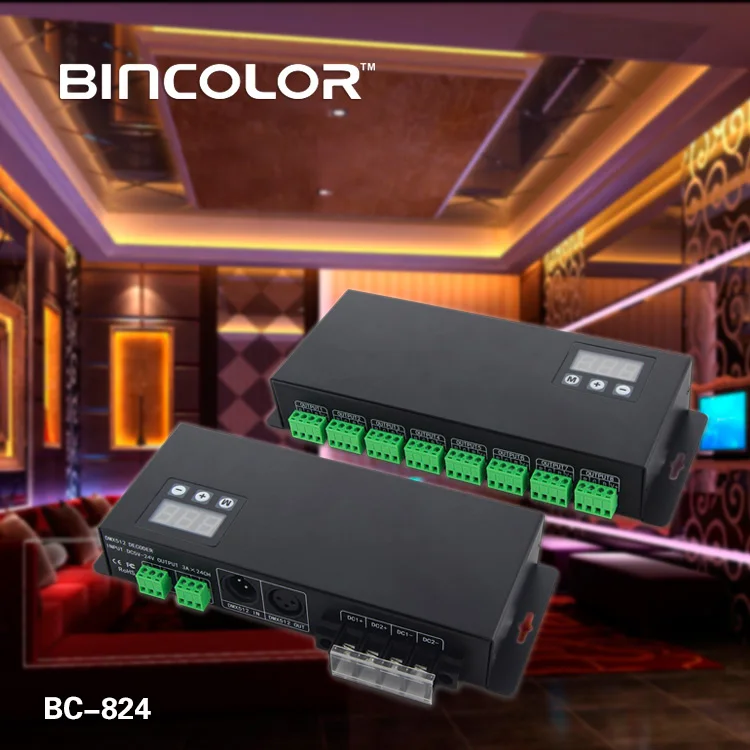

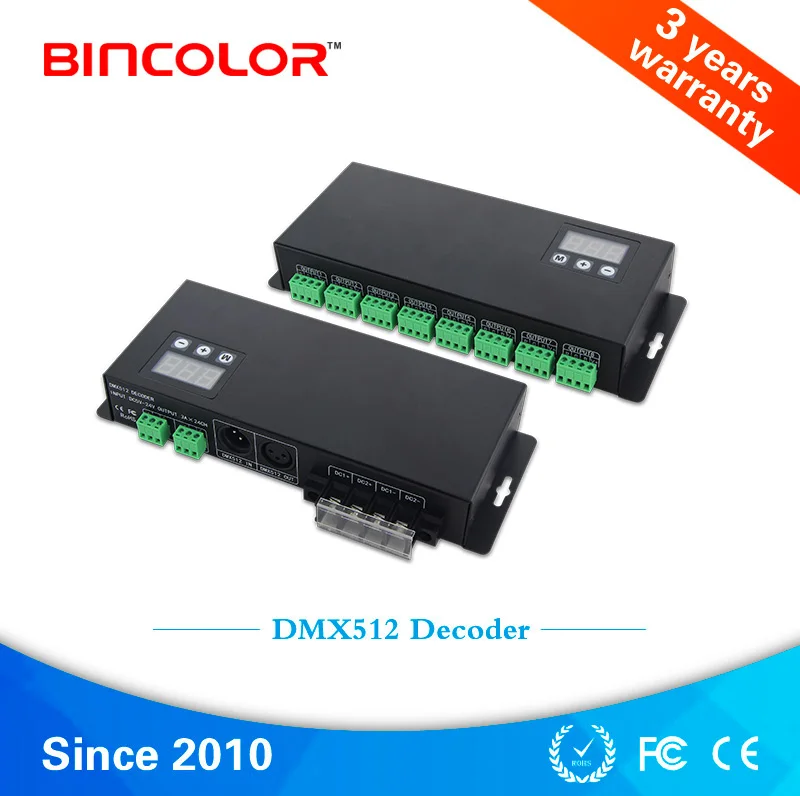

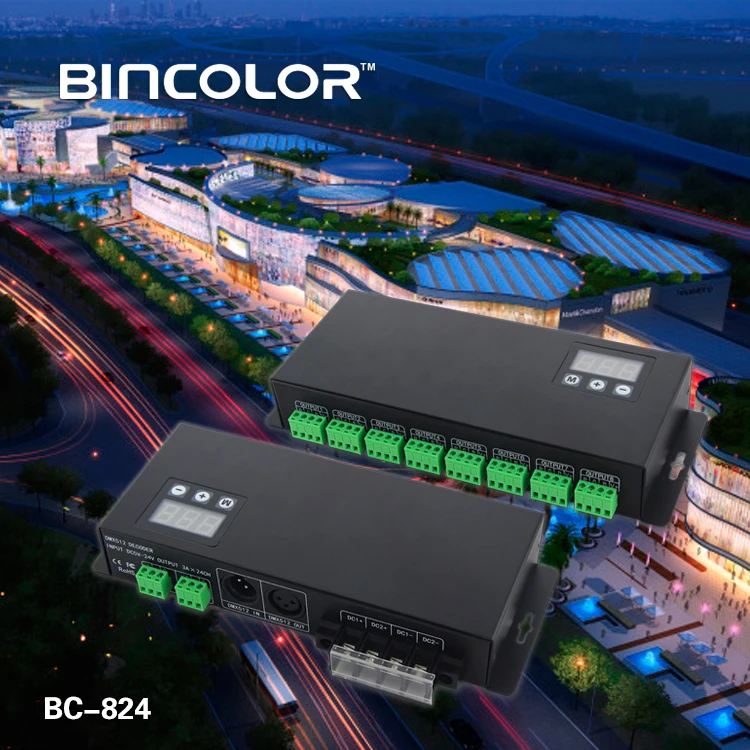

BC 824 24 Channel Led Strip Dmx Decoder RGB DMX Decoder 24ch Dmx 512 Decoder

Product Overview

Description





1.  XLR-3 connector LED strip DMX decoder

2.  24 channels RGB DMX decoder

3.  Master mode and decoder mode DMX driver



24CH RGB DMX decoding driver works to convert universal DMX512/1990 digital signal to PWM signal, which controlled by DMX512 console, with 4096 levels grey scale output per channel. Adopting unique programming technology, Creating exclamatory, perfect color fade & smooth effect, simultaneously let LED color more affluent.



Feature function:

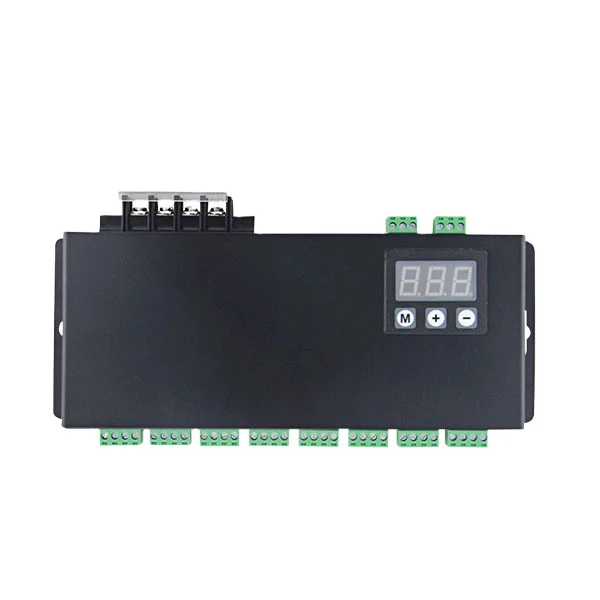

1. Universal standard DMX512 input protocol; 3-digital-display shows DMX address code.

2. Working voltage from DC5V-DC24V.

3. 24 output channels, 4096 grey steps per channel.

4. Multiple self-change modes, 10 speed levels.





Specifications



Model	24CH Decoder
Input voltage	DC5V-24V
Max load current	3A/CH×24
Max output power	360W/860W/1720W(5V/12V/24V )
Output Scale level	4096 levels
Input signal	DMX512/1990
Output DMX Channel	24Ch CV PWM
working temperature	-30℃-65℃
Dimension	L260×W110×H40(mm)
Package Size	L270×W130×H45(mm)
Weight (G.W)	920g
