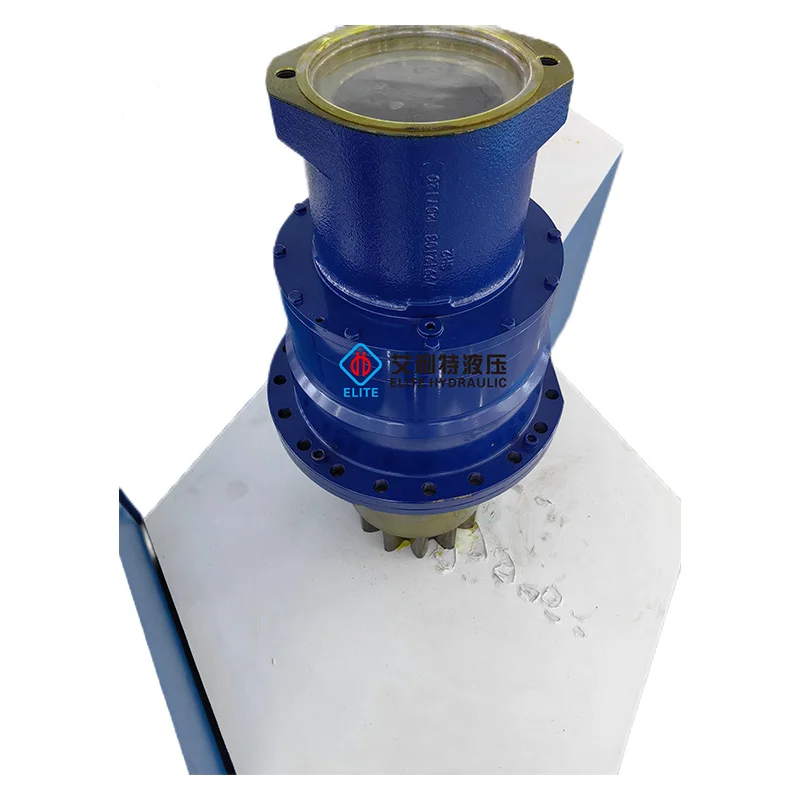

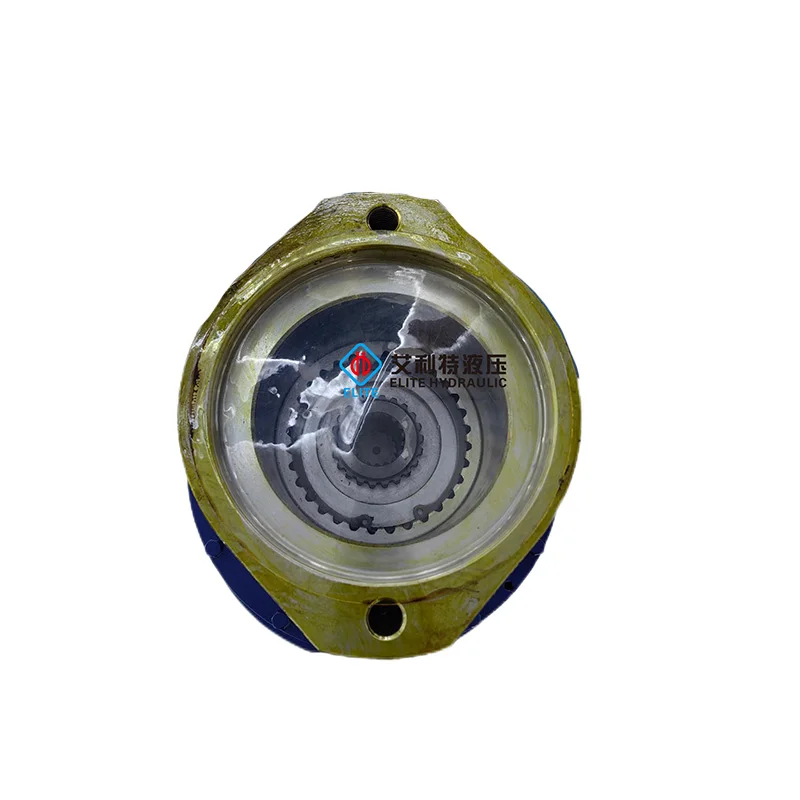

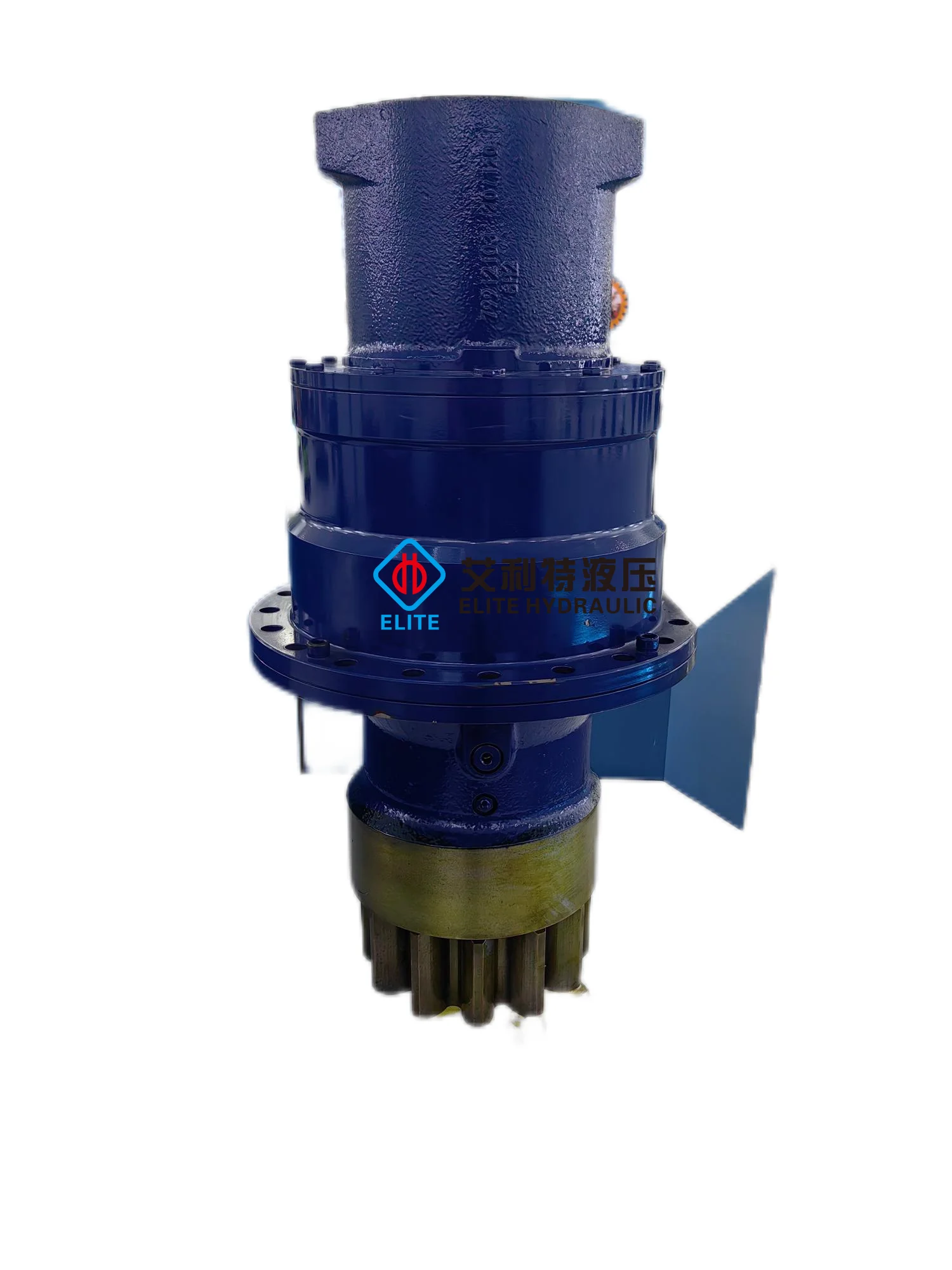

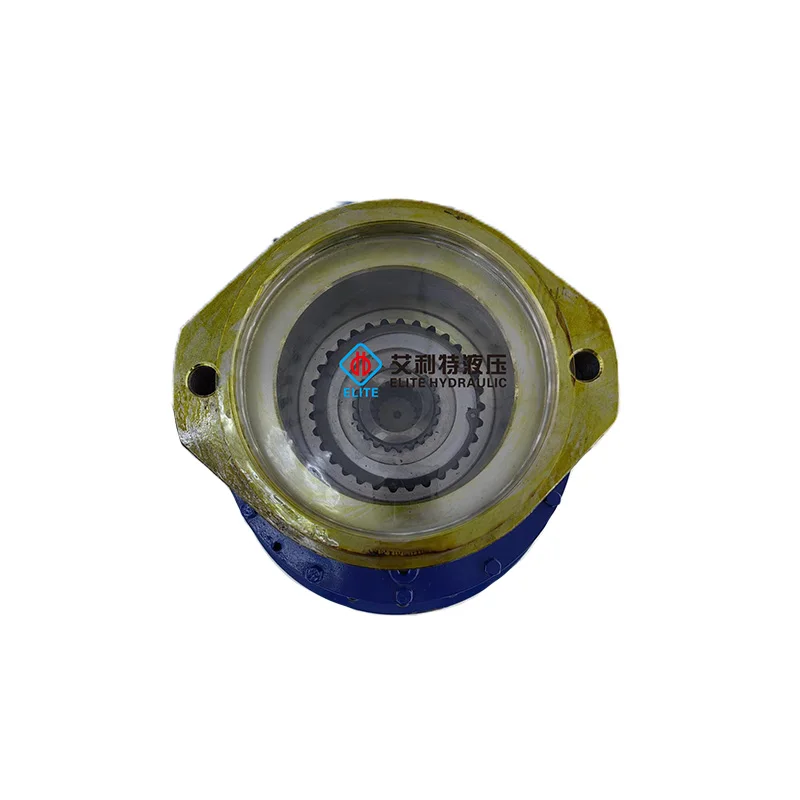

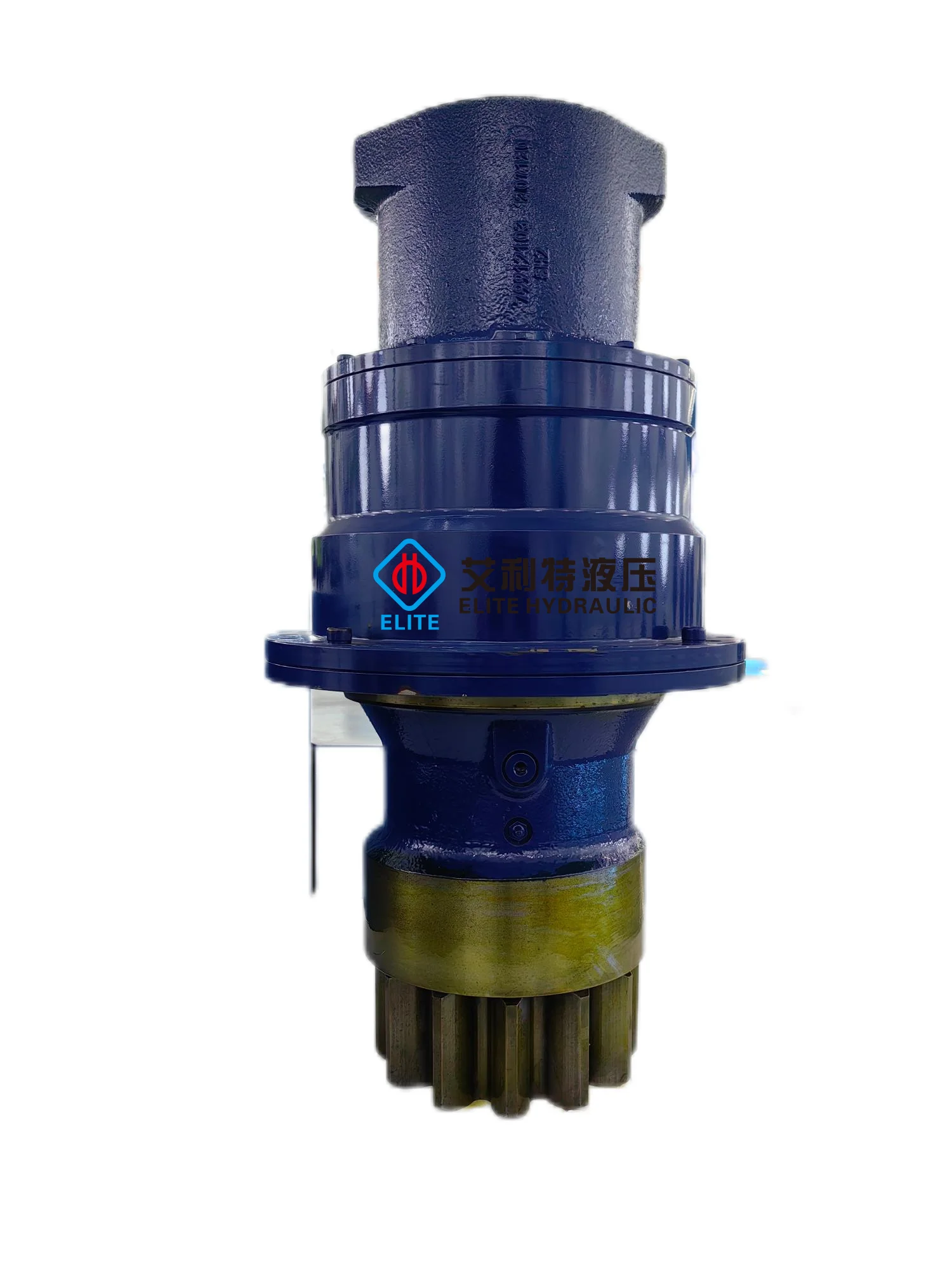

Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer
Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer
Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer
Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer
Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer
Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer
Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer

Low Noise Slewing Drive Hydrolik Planet Reductor Speed Reducer

Share on (1601275585633):


Price:$1,000.00 - $1,200.00

Quantity:


Product Overview

Description





Products Description


Elite HFB series provides the safest and most effective solution for cranes, excavators and forestry machines. Its compact design allows it to perfectly fit cranes, excavators and special equipment where installation space is limited.
Compact structure:
High performance
Notchless ground tooth root
Integrated disc-brake
Suitable for various hydraulic motors
High availability by highest teeth and production quality
Interchangeable solutions
Specifications
Torque range
5.500 ... 130.000 Nm


Product Details

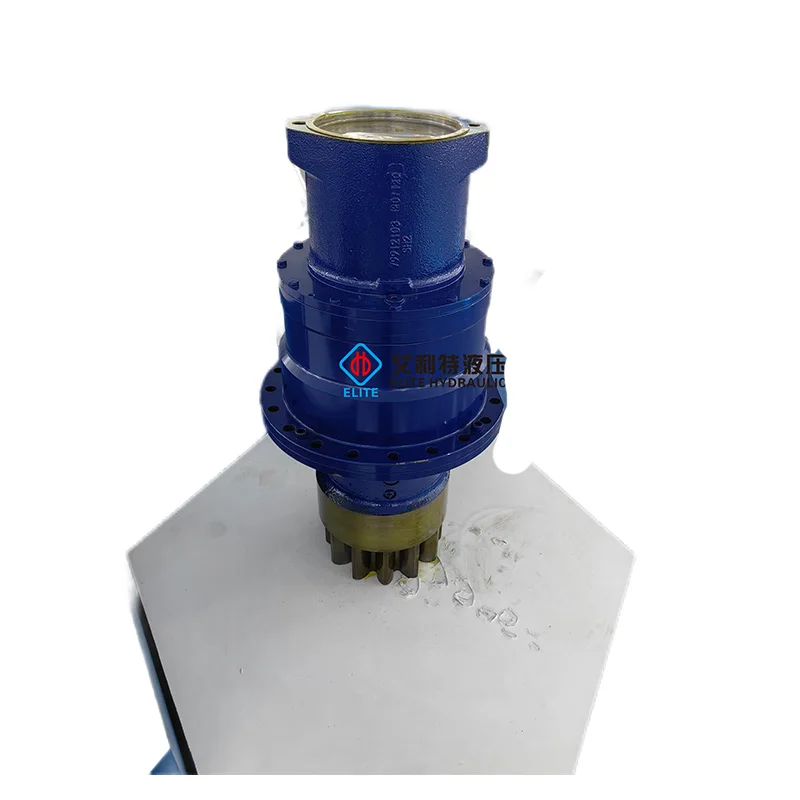

Details Images




Technical Parameters


MODEL
MAX OUTPUT
TORQUE
RANGE OF RATIO
MAX.
INPUT SPEED
ORBITAL HYD.
MOTOR
HYDRAULIC PISTON MOTOR
Nm
1:
rpm
HFT003L
3000
5-21
4000
√
√
HFT005L
5000
5-75
4000
√
√
HFT010L
10000
35-79
4000
√
√
HFT017L
17000
18-171
4000
√
HFT024L
24000
38-222
4000
√
HFT026L
26000
18-63
4000
√
HFT036L
36000
24-270
4000
√
HFT040L
40000
20-66
4000
√
HFT045L
46000
66-205
4000
√
HFT050L
50000
28-1817
4000
√
HFT060L
60000
26-510
3500
√
HFT080L
80000
40-190
3500
√
HFT110L
11000
29-219
3500
√
