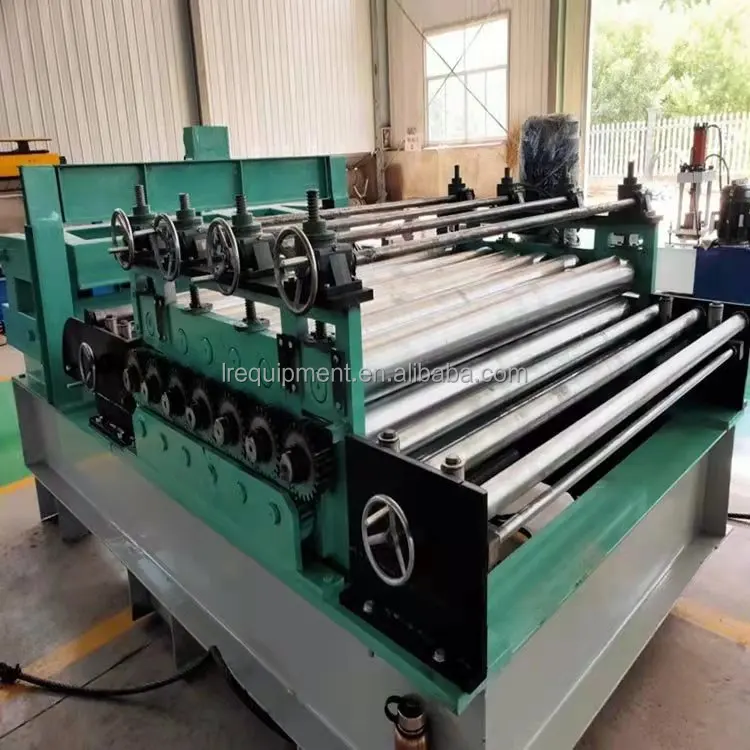

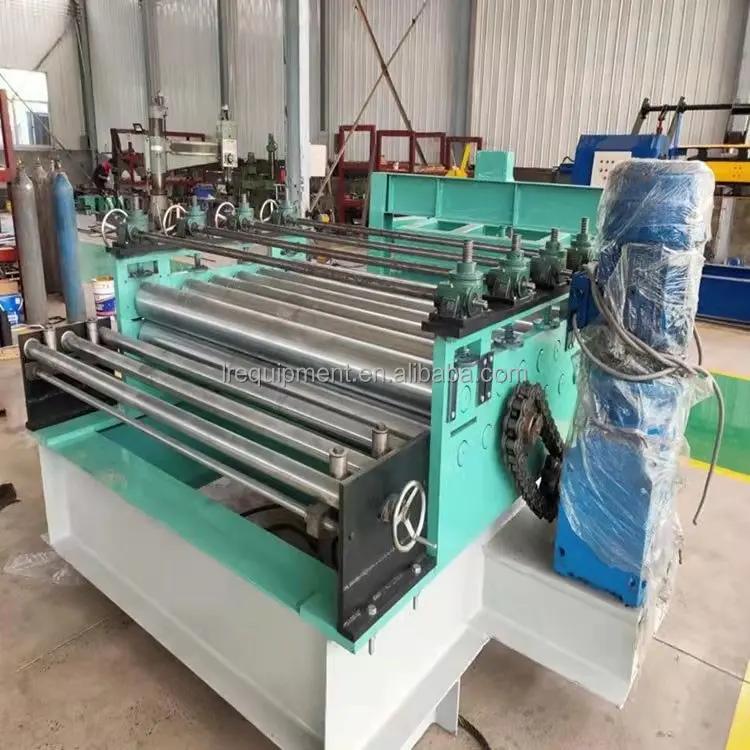

Metal Straightener 4mm Sheet Steel Coil Flattening Leveling Straightening Machine
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (1601275624321):
Product Overview
Description
Products Description
Metal Straightener 4mm Sheet Steel Coil Flattening Leveling Straightening Machine
Levelling line parameters:
1 | Size | 3.5mx1.8mx1.75m | Roll inner Dia. tolerance | 470-530mm±20mm | ||
2 | Feeding width(mm) | 0-1500mm | Load capacity(tons) | 8Tons | ||
3 | Rated power | 5.5kw (Guomao brand) cycloidal reducer | ||||
4 | Frame | The base is made of 350H national standard I-beam, and the box is welded with 18mm thick steel plate | ||||
5 | Main shaft | Made of thick-walled seamless steel pipe, the shaft diameter is 210*45mm | ||||
6 | Main motor | Drive the main motor 3kw Protection class IP55 | Motor explosion-proof grade ExdIICT4 Motor number ratio 1:43 | |||
7 | Rack | The base is made of 350H national standard I-beam, and the box is welded with 18mm thick steel plate | ||||
8 | Hydraulic cylinder | Rolling cylinder bore 125mm, 1 piece (plus rotation) | ||||
9 | Control | Electrical control system: using Taiwan Delta inverter (7.5kw), and domestic Shotai electrical control parts and inverters | ||||
10 | Pressing arm | Host plus hydraulic or pneumatic pressing arm | ||||
11 | Car lifting | double oil cylinder, bore 90mm, stroke 240mm | ||||
Car forward | Model 750, hydraulic motor | |||||
Car unloading | Panel length: 1.25 meters, panel width: 1.1 meters | |||||
Trolley track | width: 1050mm, length: 2.5 meters | |||||
Trolley stroke | Height stroke: 400mm, length stroke: 2.5 meters | |||||
Trolley weight | 1000 KGS | |||||
12 | Levelling system | Shaft Dia. | Rubber roller | #45 bearing steel | ||
13 | Cutting system | Cutter material | Gr12 quenching | |||
14 | Stacking system | Length and width as per customized | ||||
Advantages
1.Automatic colour Steel Coil Decoiling Machinery
2.Steel uncoiler machine for decoiler hot rolled steel slit coils

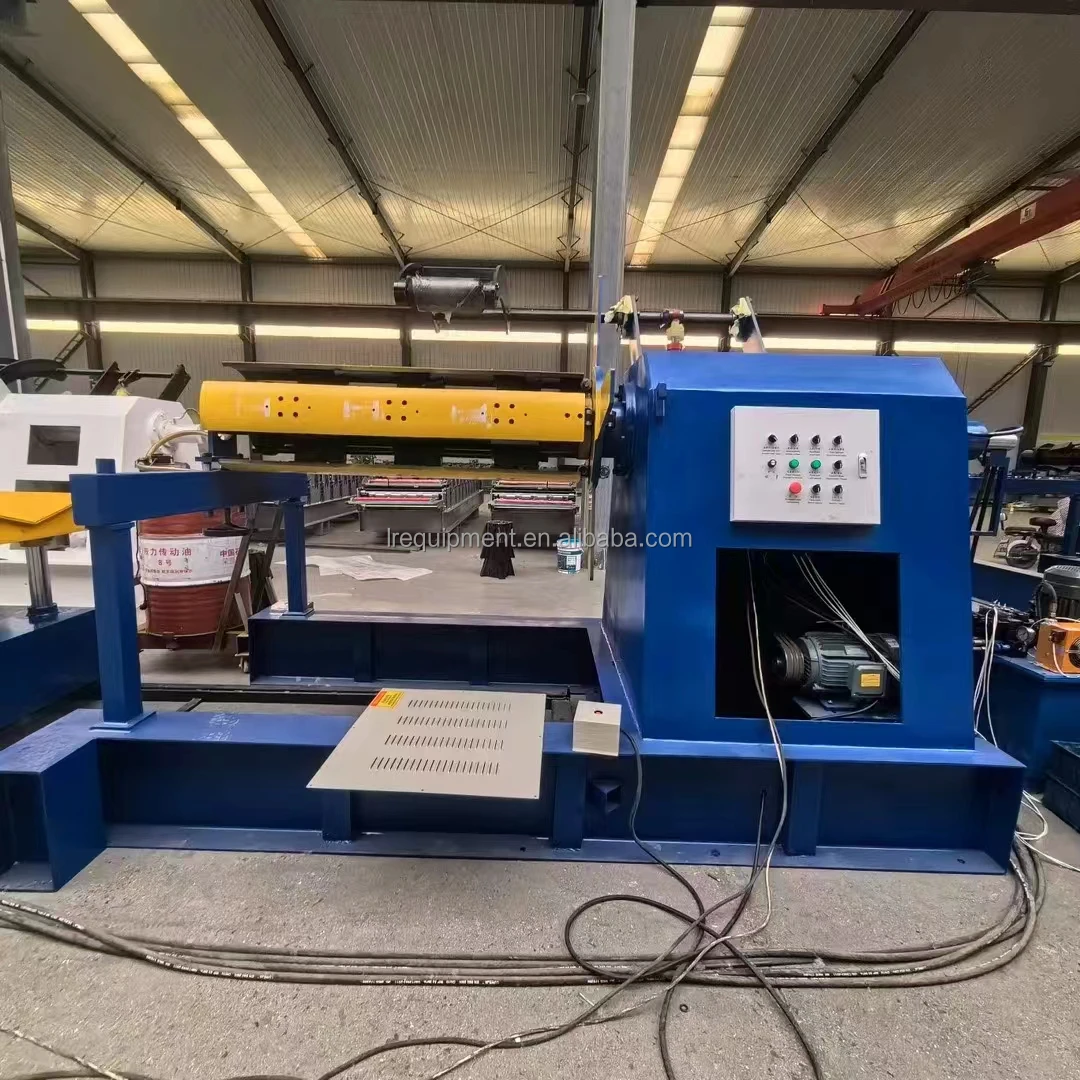

3.Hydraulic automatic decoiler with trolley
4.Supply various decoilers, like manual decoiler, electric decoiler, hydraulic decoiler etc
5.Strong machines with competitive prices
6.Supply technical support for all life
2.Steel uncoiler machine for decoiler hot rolled steel slit coils
3.Hydraulic automatic decoiler with trolley
4.Supply various decoilers, like manual decoiler, electric decoiler, hydraulic decoiler etc
5.Strong machines with competitive prices
6.Supply technical support for all life

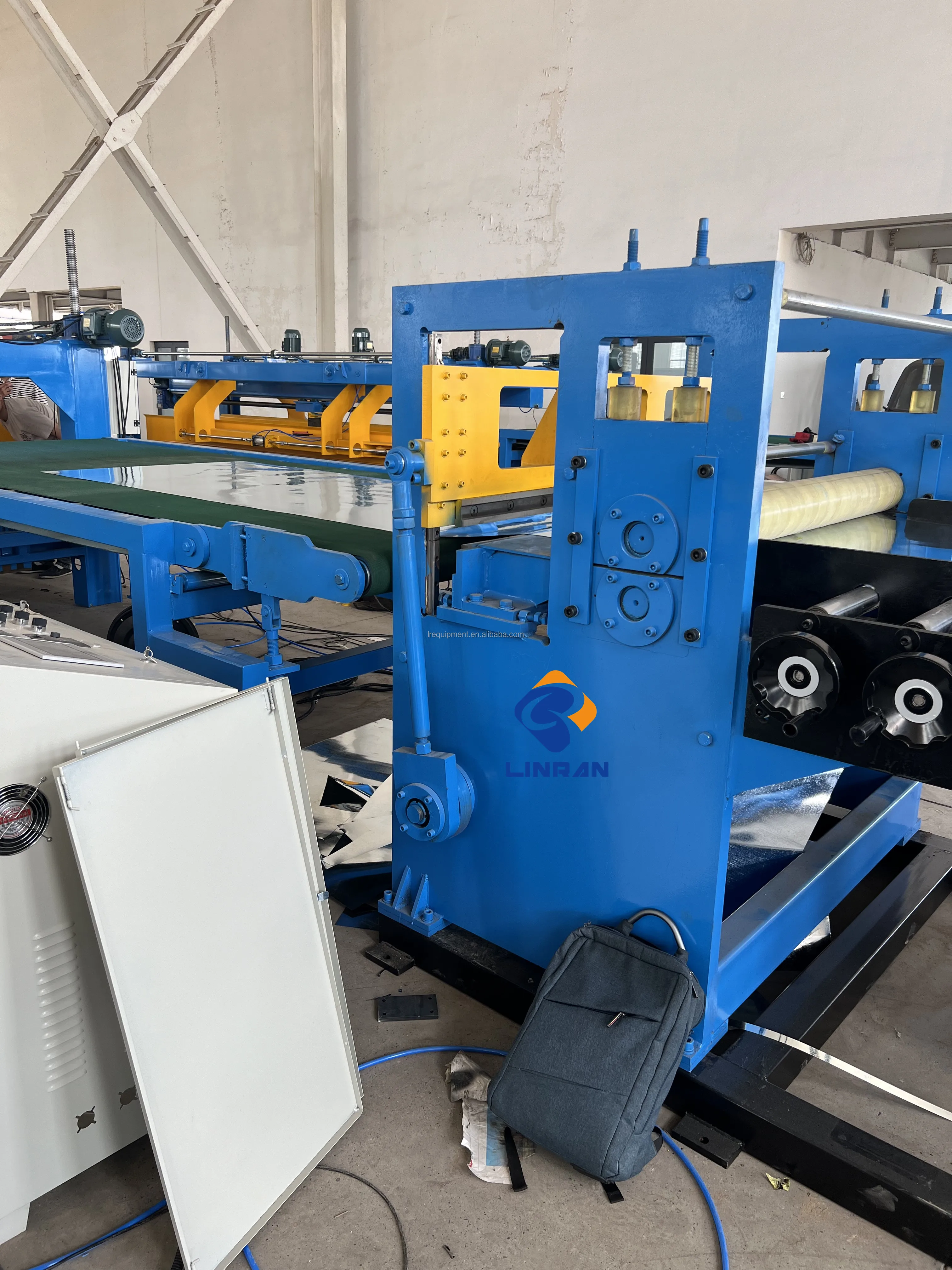

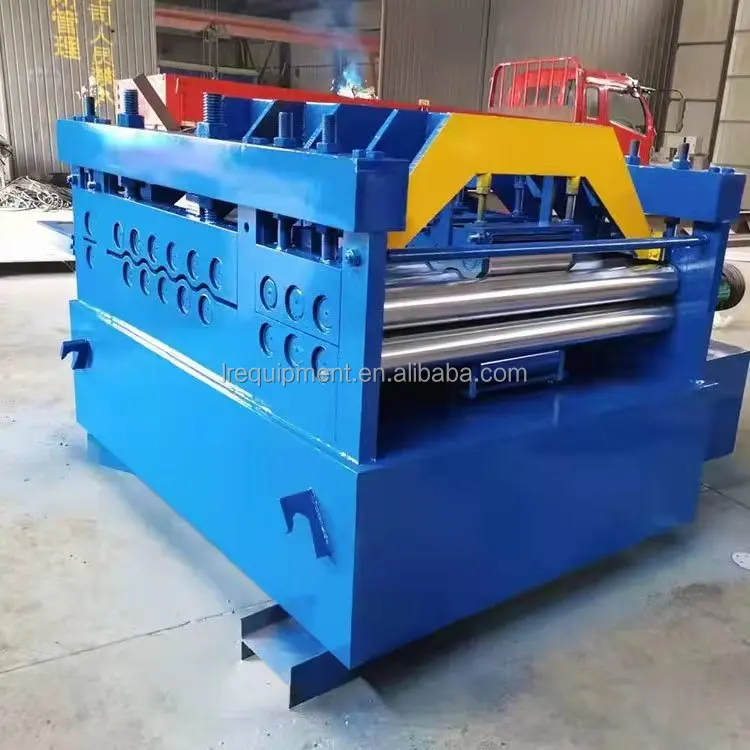

Details Images
Recommend Products
FAQ
FAQ--LINRAN
Q1. What's your payment terms and delivery time?
A1: 30% deposit by T/T, 70% balance by T/T before shipment. Of course, L/C at sight is acceptable. The delivery time is about 30-45days after receipt of the deposit or L/C.
Q2. Can you provide some spare parts?
A2: Yes,the quick-wear parts will send you together with the machine.
Q3. Do you sell only standard machines?
A3: No, most of our machines were produced according to customers' specifications, we accept OEM.
Q4. What will you do if the machine is broken?
A4: Within the warranty(12 months),if the broken parts can't be repaired well, we can send you the new ones freely,but you should pay the express cost. If it is beyond the warranty period, we can discuss how to solve the
problem perfectly, anyhow we offer the technical support for the whole life of the machine.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or your address. we have rich experience in transportation.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, by high speed train From Beijing Nan to Cangzhou Xi railway station(1 hour);
2)or Fly to Shanghai Airport, by high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
...we would meet you at Cangzhou Xi railway station.
