Classic CNC HMC800 Horizontal Milling Machine High Quality Reasonable Price Ls Plc Controller
- Category: >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1601276042545):
Product Overview
Description
Product Description
Product Application
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
This machine is suitable for processing machinery and mold manufacturing field of vertical machining center, from the rough machining and finish machining and processing requirements apply, can finish milling, drilling, tapping, boring, and a variety of processes.
Product main technical Specifications
SPECIFICATIONS | Units | HMC630 | HMC800 |
Table size | mm | 630*630 | 800*800 |
X axis travel | mm | 1050 | 1300 |
Z axis travel | mm | 900 | 1000 |
Y axis travel | mm | 700 | 1000 |
Distance from spindle center to table surface | mm | 120-870 | 150-1150 |
Distance between spindle nose and table center | mm | 130-1030 | 200-1200 |
Table quantity | pcs | 2 | 2 |
T slot(number-width*pitch) | mm | 5-22*125 | 5-22*125 |
Max. worktable load | kg | 800 | 1500 |

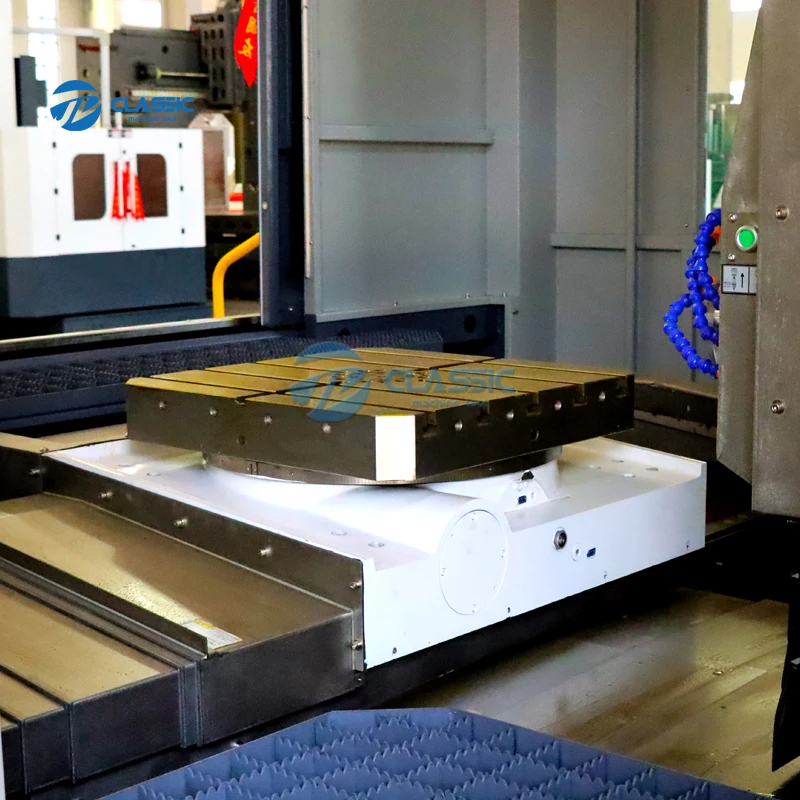

Table indexing | ° | 1°*360 | 1°*360 |
Maximum speed of table | r/min | 10 | 10 |
Main motor power | kw | 15/18.5 | 15/18.5 |
Spindle taper | BT50-190 | BT50-190 | |
Max. spindle speed | rpm | 6000 | 6000 |
Cutting feed speed | mm/min | 1-10000 | 1-10000 |
Rapid traverse speed | m/min | 36 / 20/ 24 | 24 / 20/ 24 |

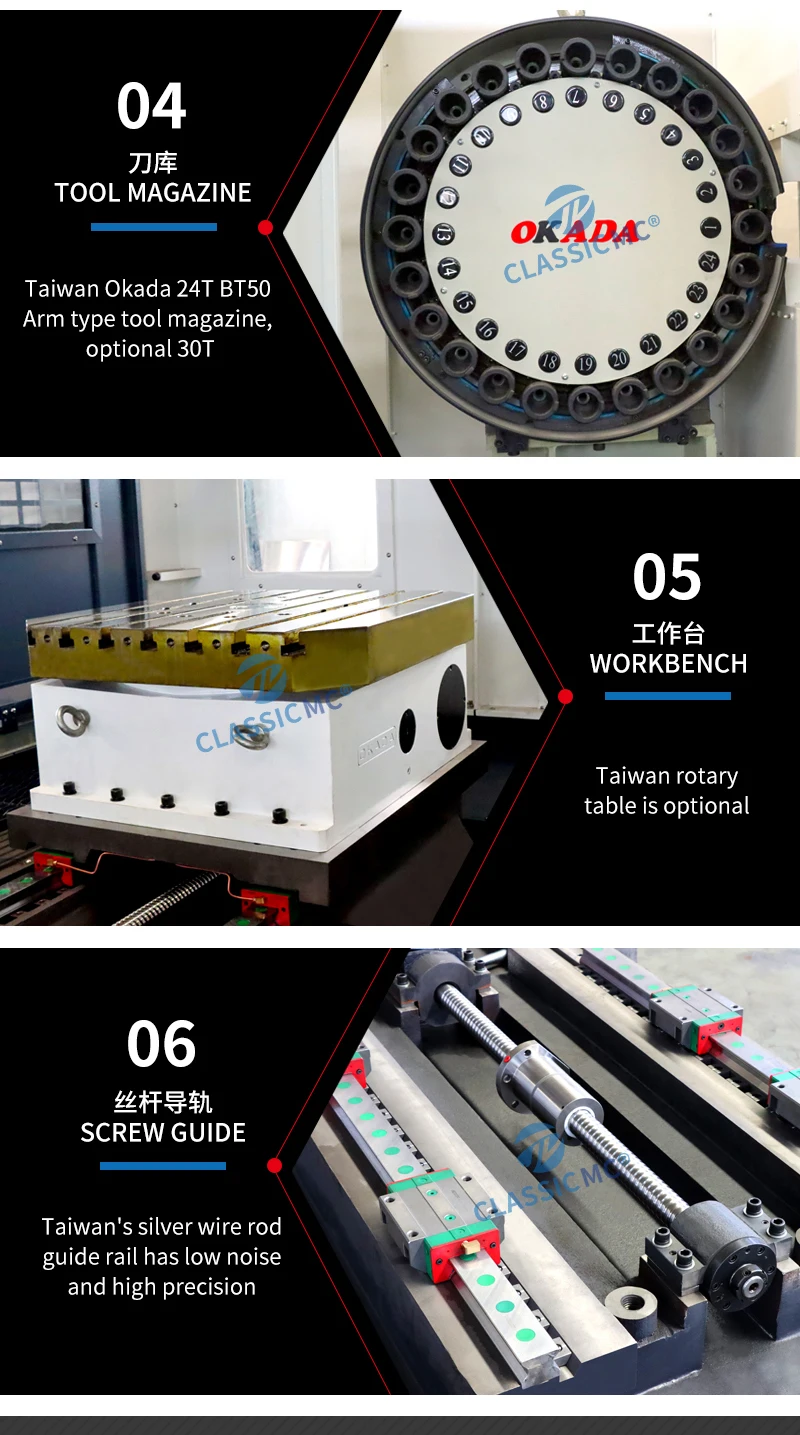

Tool magazine | Arm 24 | Arm 24 | |
Max. tool diameter | mm | 112/200 | 112/200 |
Max. tool length | mm | 400 | 400 |
Max. tool weight | kg | 18 | 18 |
Tool change time (tool to tool) | sec | 3 | 3 |
Machine minimum setting unit | mm | 0.001 | 0.001 |
X,Y,Z axis positioning accuracy | mm | 0.012 | 0.012 |
X,Y,Z axis repeat positioning accuracy | mm | 0.008 | 0.008 |
B axis positioning accuracy | ″ | 10″ | 10″ |
B axis repeat positioning accuracy | ″ | 5″ | 5″ |
Machine weight | kg | 15000 | 20000 |
Overall dimension(L*W*H) | mm | 6200*4100*3200 | 6600*4300*3300 |
Standard Accessories: Optional Accessories:
Arm type tool magazine
Arm type tool magazine

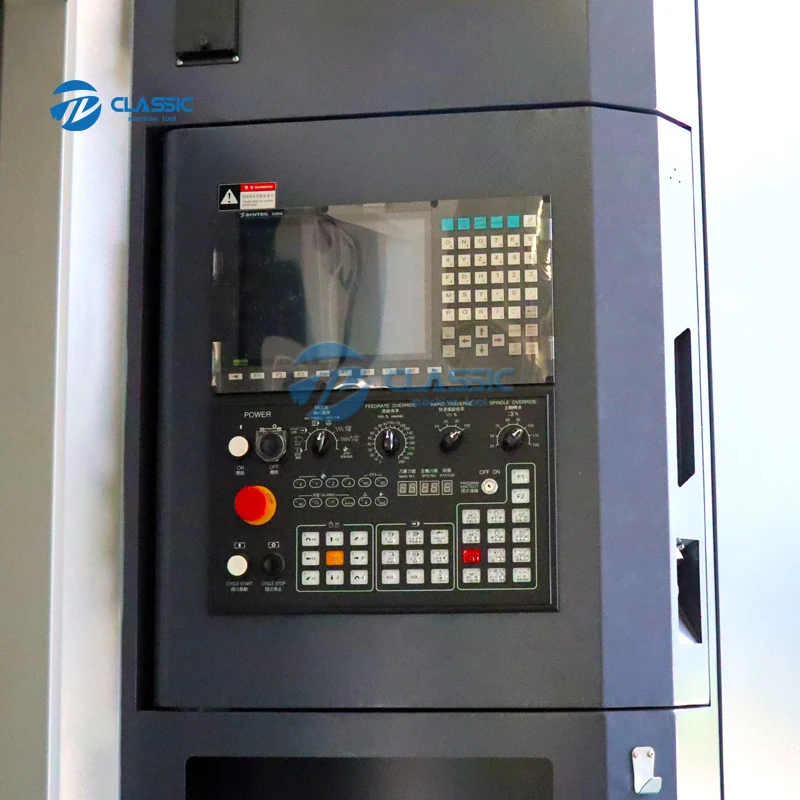

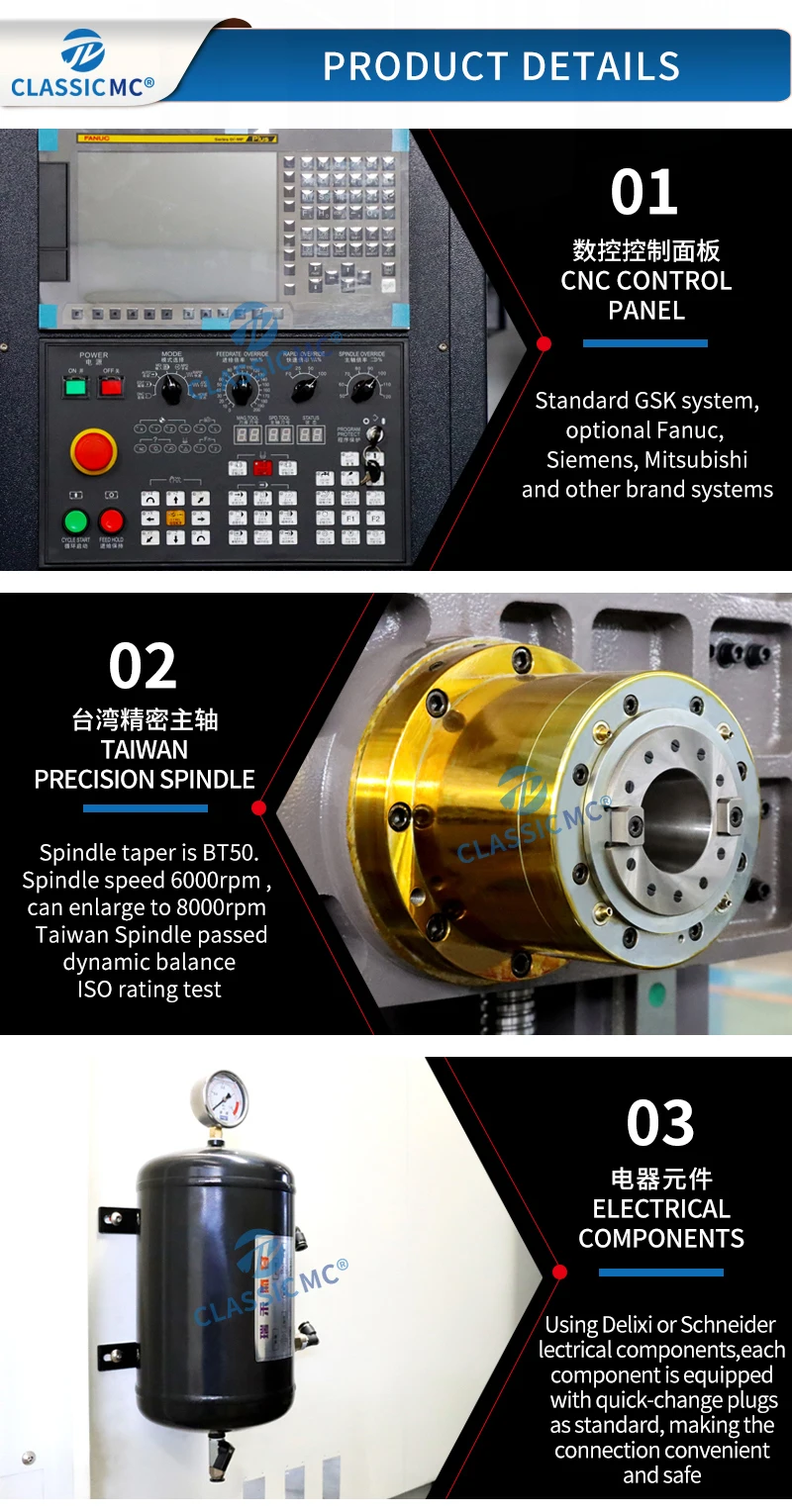

System:FANUC,Siemens,Mitsubishi, GSK, Syntec etc.
Automatic lubrication system
Cooling system
Automatic lubrication system
Cooling system
4axis or 5axis
Heat Exchanger
Heat Exchanger
Automatic chip conveyor
Pneumatic system
Pneumatic system
Spindle center coolant
machine enclosure
Higher speed of Spindle
Air system/ Air gun Air conditioner
Air system/ Air gun Air conditioner
Full Cover
Detailed Images
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will
take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you ,
or you can choose the exact model by yourself. You can also send us the products drawing ,we will
choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
