USD798 Free Ship Broadcast Set HK690 30=1 pcs SDI 4K 30X Optical Zoom PTZ Conference Camera hd mi lan AI track a ip controller
- Category: >>>
- Supplier: Beijing Runpu Shitong Technology Co. Ltd.
Share on (1601276245678):
Product Overview
Description
USD798 Free Ship Broadcast Set HK690-30=1 pcs SDI 4K 30X Optical Zoom PTZ Conference Camera hd mi lan AI track+a ip controller

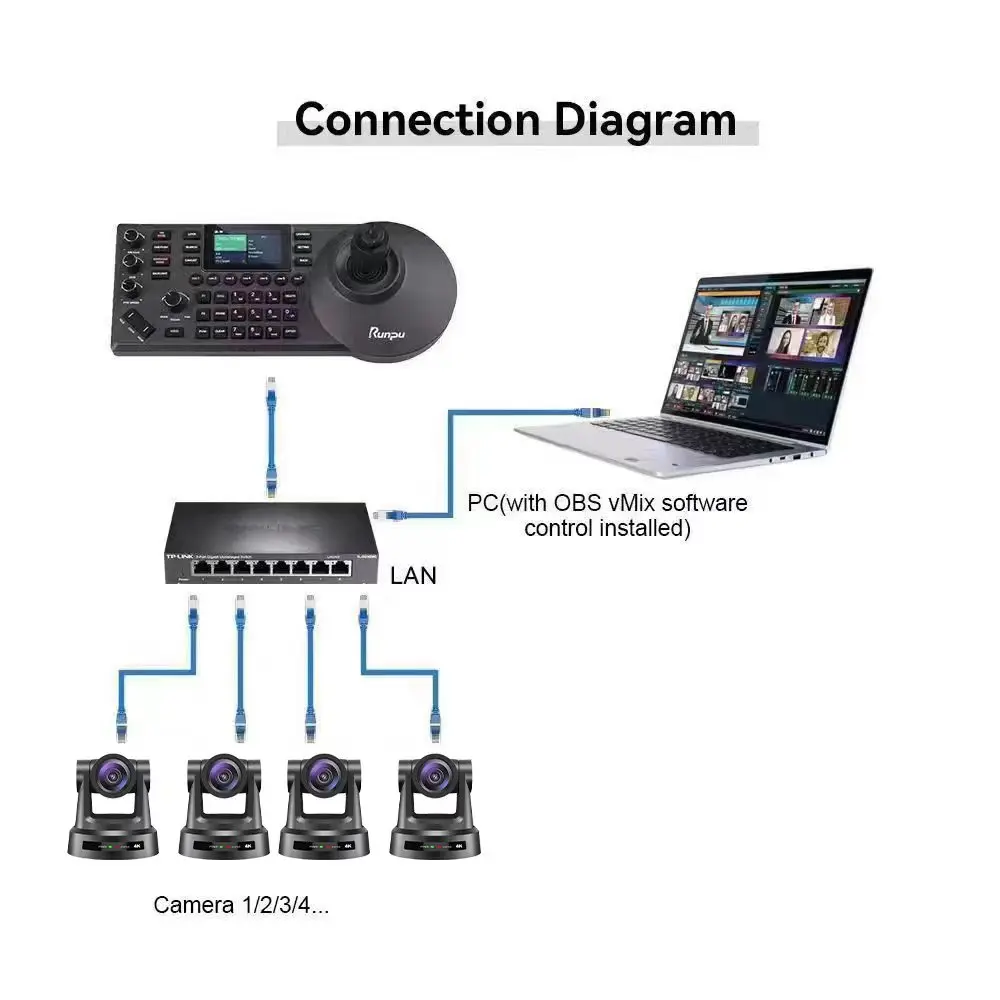

Whole Kit connection diagram
a pcs ip controller tops could control 200 pcs cameras at the same time
all use internet cables to connect
Any aftersales problem call me jessica whatsapp : 0086 15166858175 thanks !
Whole Kit connection diagram
a pcs ip controller tops could control 200 pcs cameras at the same time
all use internet cables to connect
Any aftersales problem call me jessica whatsapp : 0086 15166858175 thanks !
Runpu Enjoy your Live Streaming Our Mission:
Provide your professional Live Streaming Solutions. Help you step by step to successfully setup them
USD798 Free Ship Broadcast Set HK690-30=1 pcs SDI 4K 30X Optical Zoom PTZ Conference Camera hd mi lan AI track+a ip controller
Provide your professional Live Streaming Solutions. Help you step by step to successfully setup them
USD798 Free Ship Broadcast Set HK690-30=1 pcs SDI 4K 30X Optical Zoom PTZ Conference Camera hd mi lan AI track+a ip controller
4K Ultra HD
With a new generation of SONY 1/1.8-inch, maximum 8.42 million pixels high-quality UHD CMOS sensor, 4K (3840x2160) ultra-high resolution images are available. And backward compatible with 1080P, 720P and other resolutions
30x Optical Zoom
Exclusively customized high-quality 8.42 million ultra-high resolution 4K super wide-angle lens, 30x optical zoom, horizontal fifield of view up to 60°.
With a new generation of SONY 1/1.8-inch, maximum 8.42 million pixels high-quality UHD CMOS sensor, 4K (3840x2160) ultra-high resolution images are available. And backward compatible with 1080P, 720P and other resolutions
30x Optical Zoom
Exclusively customized high-quality 8.42 million ultra-high resolution 4K super wide-angle lens, 30x optical zoom, horizontal fifield of view up to 60°.

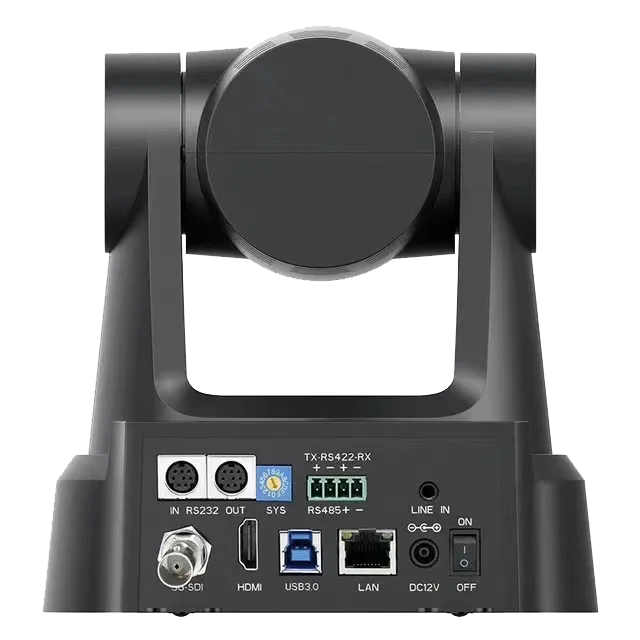

Multiple Interfaces
Support HDMI 1.4b and 3G-SDI interface, effective transmission distance up to 150 meters (1080P30). HDMI, LAN or 3G-SDI, LAN can output 2 high-defifinition digital signals at the same time.
HDMI 1.4b
It supports HDMI 1.4b version and can directly output 4K uncompressed digital video.
Low Illumination
The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low
illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.
Remote Control
Through the RS232 and RS485 serial ports, the camera can be controlled remotely
Laser Ranging
When broadcasting live, the camera is within five meters of the person, and the laser speed measurement can be used to quickly focus.
Tally Indicator
When multiple cameras are working at the same time, quickly check which camera is working with Tally light for faster camera switching
Support HDMI 1.4b and 3G-SDI interface, effective transmission distance up to 150 meters (1080P30). HDMI, LAN or 3G-SDI, LAN can output 2 high-defifinition digital signals at the same time.
HDMI 1.4b
It supports HDMI 1.4b version and can directly output 4K uncompressed digital video.
Low Illumination
The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low
illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.
Remote Control
Through the RS232 and RS485 serial ports, the camera can be controlled remotely
Laser Ranging
When broadcasting live, the camera is within five meters of the person, and the laser speed measurement can be used to quickly focus.
Tally Indicator
When multiple cameras are working at the same time, quickly check which camera is working with Tally light for faster camera switching
●AI Humanoid Tracking & Intelligent Exposure
With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, AI Tracking camera will automatically pan/tilt/ zoom to follow the leading role when they walk around, combined with auto composition technology. The main character is always in the center of screen.which can realize automatic tracking of scenes such as Church Worshipeducation, conferences and live broadcasts.Teaching. Intelligent exposure effectively solve the impact of dim light or dazzling sunlight, make the color of image more accurate and people more beautiful.
With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, AI Tracking camera will automatically pan/tilt/ zoom to follow the leading role when they walk around, combined with auto composition technology. The main character is always in the center of screen.which can realize automatic tracking of scenes such as Church Worshipeducation, conferences and live broadcasts.Teaching. Intelligent exposure effectively solve the impact of dim light or dazzling sunlight, make the color of image more accurate and people more beautiful.

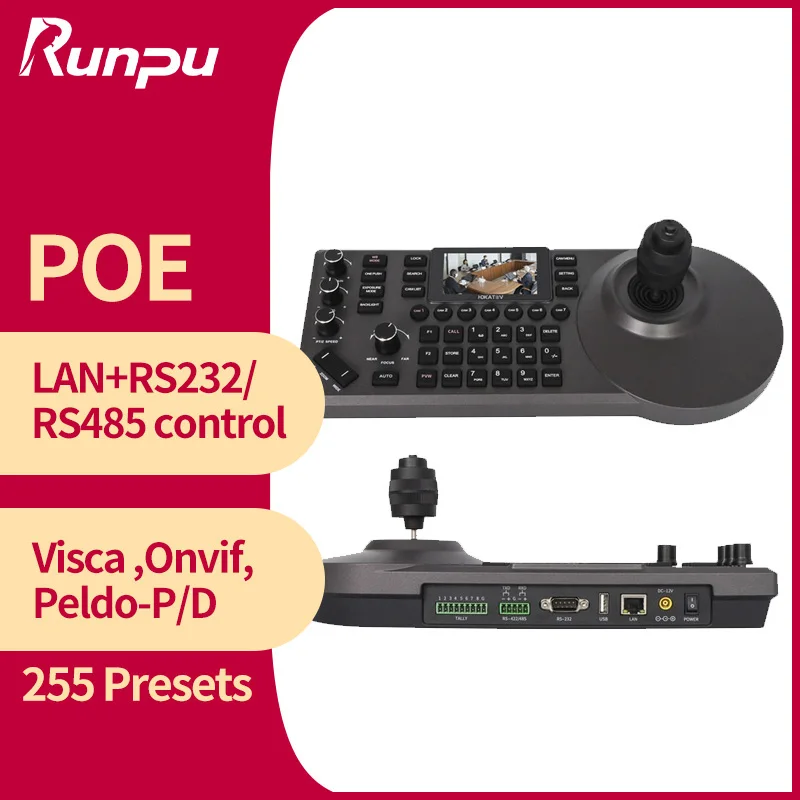

Newest IP PTZ Joystick Controller with preview camera and real-time live stream function - Key Features
★ with RJ45 3-dimensional, 5-inch high-definition screen can display an image* Support Vmix ONVIF2.4,Support for H.265/ H.264 and
hikvision agreement. ,not the back-end PTZ manufacturers restrictions, easy to set
preset points, 2 points scanning, etc. functions;* Plug and play, without any set, the keyboard automatically add and assign
IPaddresses;
★ Supports USB, HDMI output, enabling the main screen console screen arbitrary switchingn
★RS485 control bus, can control up to 255 front-end addresses, and up to 128 devices in parallel at the same time;
★All input and output interfaces adopt lightning protection design, with strong anti-interference ability, and the standard
transmission distance is 1200 meters;
★Up to 15 keyboards can be connected to the cascade port;
★Special standard SONY VISCA protocol 9600bps, 19200bps;
★Keyboard operation password lock function;
★Keyboard stepless speed change;
★7 conference machines with cascade control function.
★ with RJ45 3-dimensional, 5-inch high-definition screen can display an image* Support Vmix ONVIF2.4,Support for H.265/ H.264 and
hikvision agreement. ,not the back-end PTZ manufacturers restrictions, easy to set
preset points, 2 points scanning, etc. functions;* Plug and play, without any set, the keyboard automatically add and assign
IPaddresses;
★ Supports USB, HDMI output, enabling the main screen console screen arbitrary switchingn
★RS485 control bus, can control up to 255 front-end addresses, and up to 128 devices in parallel at the same time;
★All input and output interfaces adopt lightning protection design, with strong anti-interference ability, and the standard
transmission distance is 1200 meters;
★Up to 15 keyboards can be connected to the cascade port;
★Special standard SONY VISCA protocol 9600bps, 19200bps;
★Keyboard operation password lock function;
★Keyboard stepless speed change;
★7 conference machines with cascade control function.
SDI 4K 30X Optical Zoom PTZ Camera hdmi lan usb sdi poe AI auto tracking | ||
Image sensor | 1 / 1.8 inch high quality CMOS sensor | |
Effective pixel | 8.51 million, 16:9 | |
Video Output | SDI+LAN+HDMI+USB POE AI auto tracking | |
Lens optical zoom | 30x optical zoom+16X digital zoom | |
Viewing angle | 60.7° ~ 3.36° | |
The aperture coefficient | F1.8 ~ F2.8 f4.42mm ~ 88.5mm, | |
Minimum illumination | 0.5Lux (f1.8, AGC on) | |
Digital noise reduction | 2D & 3D digital noise reduction | |
Image stream | double stream output | |
Video compression format | h.265, H.264 | |
Audio compression format | AAC, MP3, g.711a | |
Network interface | 100m network port (10 / 100base-tx) 5gwifi (optional) | |
Network protocols | RTSP, RTMP, onvif, Vmix GB / t28181 | |
Support remote upgrade, remote restart and remote reset | RS232 and RS485 interface | |
Control protocol: | visca / PELCO-D / pelco-p; baud rate: 115200 / 9600 / 4800 / 2400 | |
Power interface | hec3800 power socket (DC12V) | |
Power adapter | input ac110v-ac220v, output DC12V / 1.5A | |
Input voltage | DC12V ± 10% | |
Power consumption | 12W (maximum) | |
Horizontal rotation | - 170 degrees to + 170 degrees | |
Pitch rotation | - 30 degrees to + 90 degrees | |
The horizontal control speed | 0.1 ～ 60 ° / s | |
Pitch control speed | 0.1 ~ 30 ° / S | |
