LAUNCH ELT500 High Precision Non Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool
LAUNCH ELT500 High-Precision Non-Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool
LAUNCH ELT500 High-Precision Non-Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool
LAUNCH ELT500 High-Precision Non-Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool
LAUNCH ELT500 High-Precision Non-Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool
LAUNCH ELT500 High-Precision Non-Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool
LAUNCH ELT500 High-Precision Non-Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool

LAUNCH ELT500 High Precision Non Destructive Air Tightness Tester New Energy Battery Pack Detector AC Make Tool

Share on (1601276540153):


Price:$1,249.00 - $1,560.00

Quantity:


Product Overview

Description



Functions


Product Description

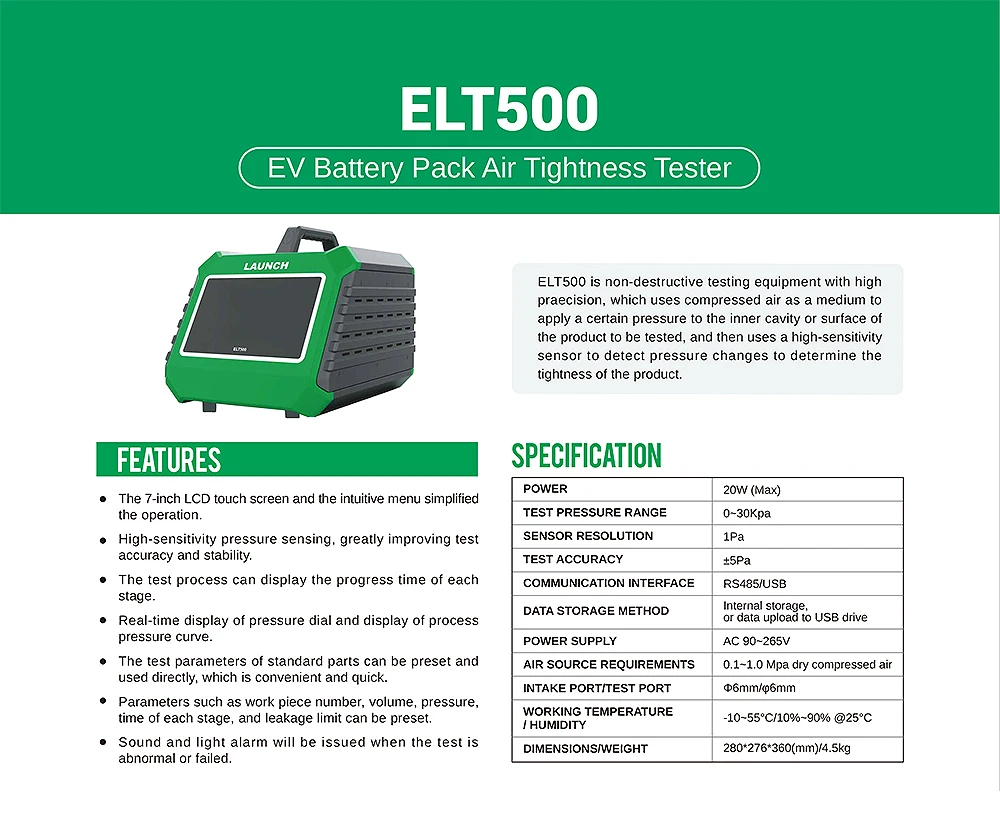

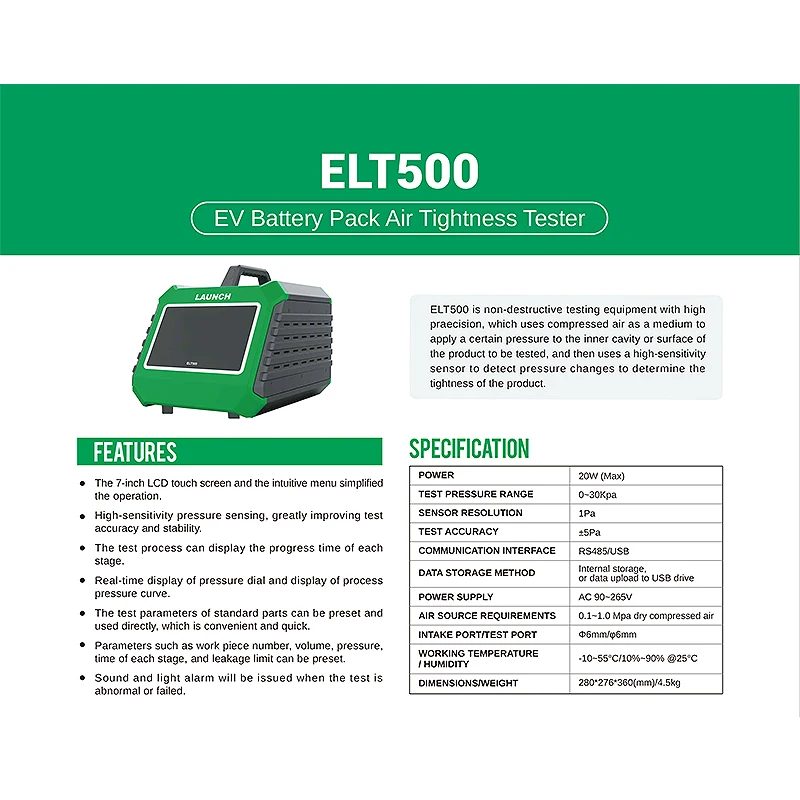

ELT500 is non-destructive testing equipment with high precision, which uses compressed air as a medium to apply a certain pressure to the inner cavity or surface of the product to be tested, and then uses a high-sensitivity sensor to detect the pressure changes to determine the tightness of the product.

Product Features
1. The 7-inch LCD touch screen and the intuitive menu simplified the operation.
2. High-sensitivity pressure sensing, greatly improving test accuracy and stability.
3. The test process can display the progress time of each stage.
4. Real-time display of pressure dial and display of process pressure curve.
5. The test parameters of standard parts can be preset and used directly, which is convenient and quick.
6. Parameters such as work piece number, volume, pressure, time of each stage,and leakage limit can be preset.
7. Sound and light alarm will be issued when the test is abnormal or failed.



                                           Product Parameters
 Power
 20W(Max)
Test Pressure Range
 0~30Kpa
Sensor Resolution
 1Pa
Test Accuracy
 ±5Pa
 Communication Interface
 RS485/USB
 Data Storage Method
 Internal storage, or data upload to USB drive
Power Supply
 AC 90~265V
 Air Source Requirements
0.1~1.0 Mpa dry compressed air
 Intake Port/Test Port
φ6mm/φ6mm
 Working Temperature/Humidity
-10~55℃/10%~90% @25℃
 Dimension/Weight
280*276*360(mm)/4.5kg


















FAQ
1.Why choose Car-mate?
* Top quality, competitive price with high quality revenue producting products.;* Excellent customer service;
* Quickest reply in;*24hours with technical support, email, telephone or video call;
* Fast shipment. * User-friendly English manual for machine using and maintaining.
2. What's the MOQ?
* No MOQ limitation, we're happy to receive any kind of orders, providing wholesale business, drop-ship service.
3. What's your payment term?
* Our payment terms is paypal, bank transfer and credit card.
4. What's the product warranty policy?
* All the goods purchased from our company can enjoy one year free warranty.
5.I am a person who values service. How about your after-sales service?
* We provide great purchase experiences, If there is any problems for the product or usage, we provided skilled technical support and also provide the repair parts if the machine parts broken during the warranty period.
