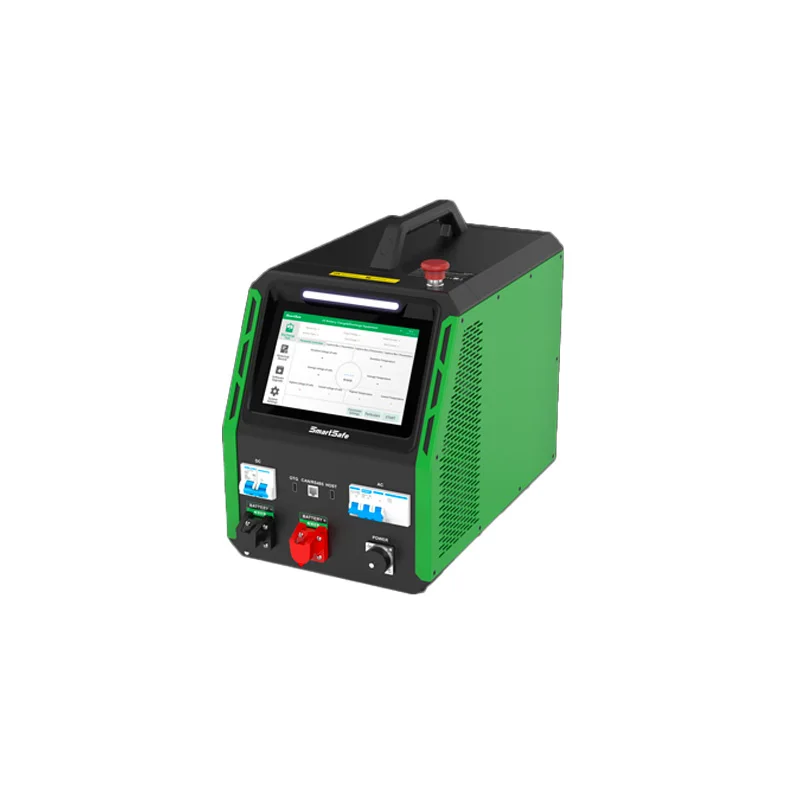

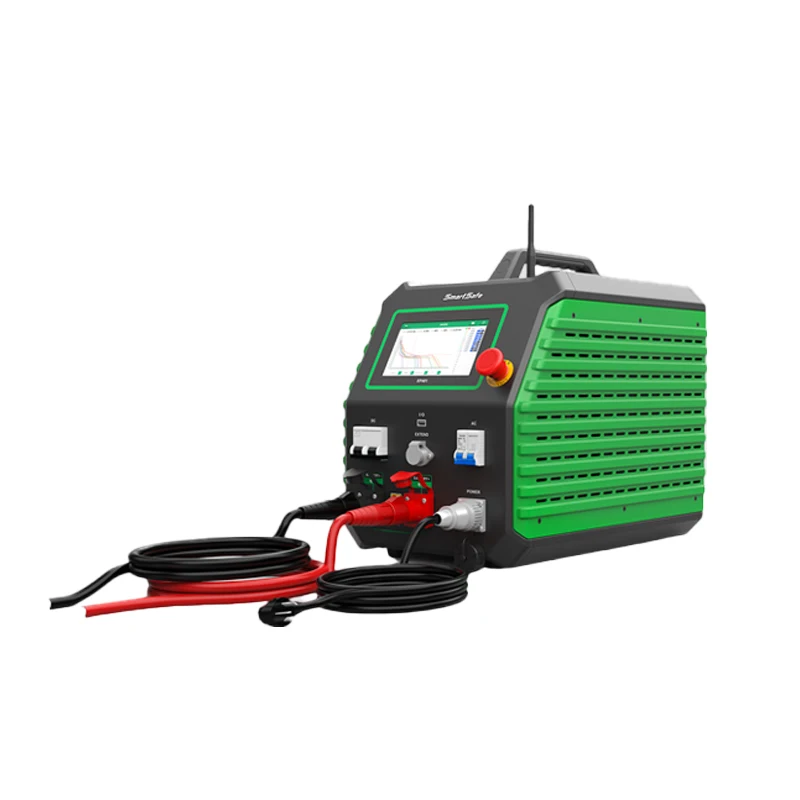

SmartSafe EP401 Integrated 10 Inch LCD Screen Car Diagnostics Tool Battery Tester Charging Discharging Module Battery Tester

Product Overview

Description

Product Description

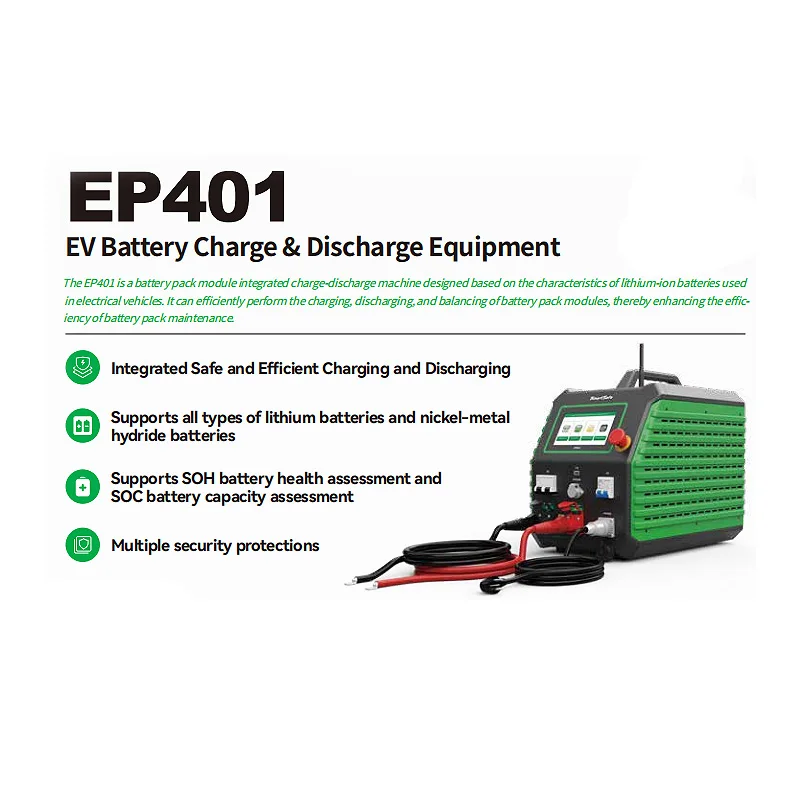

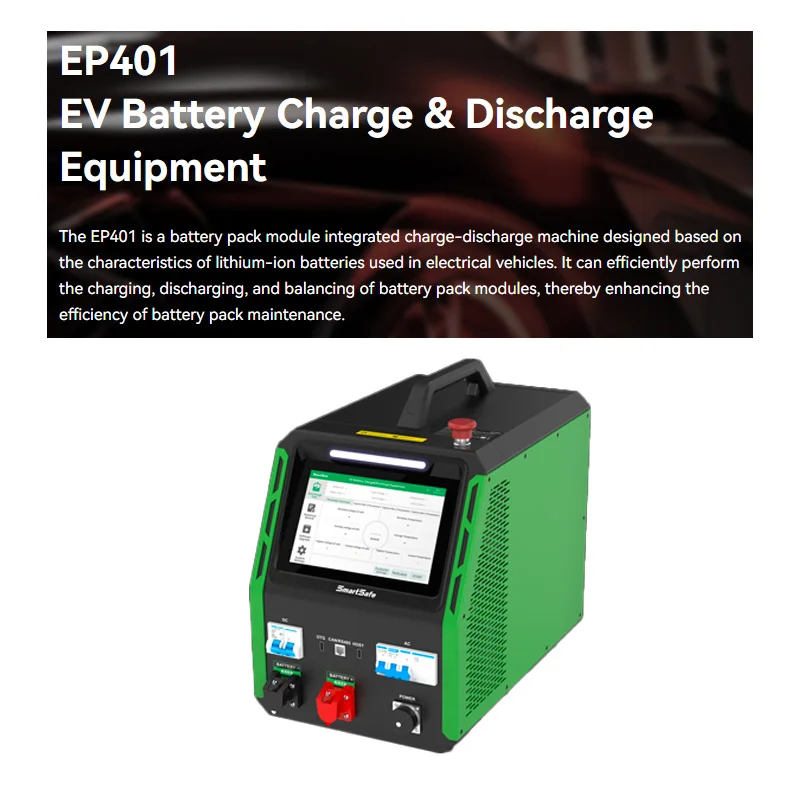

The EP401 is a battery pack module integrated charge-discharge machine designed based on the characteristics of lithium-ion batteries used in electrical vehicles. It can efficiently perform the charging, discharging, and balancing of battery pack modules, thereby enhancing the efficiency of battery pack maintenance.

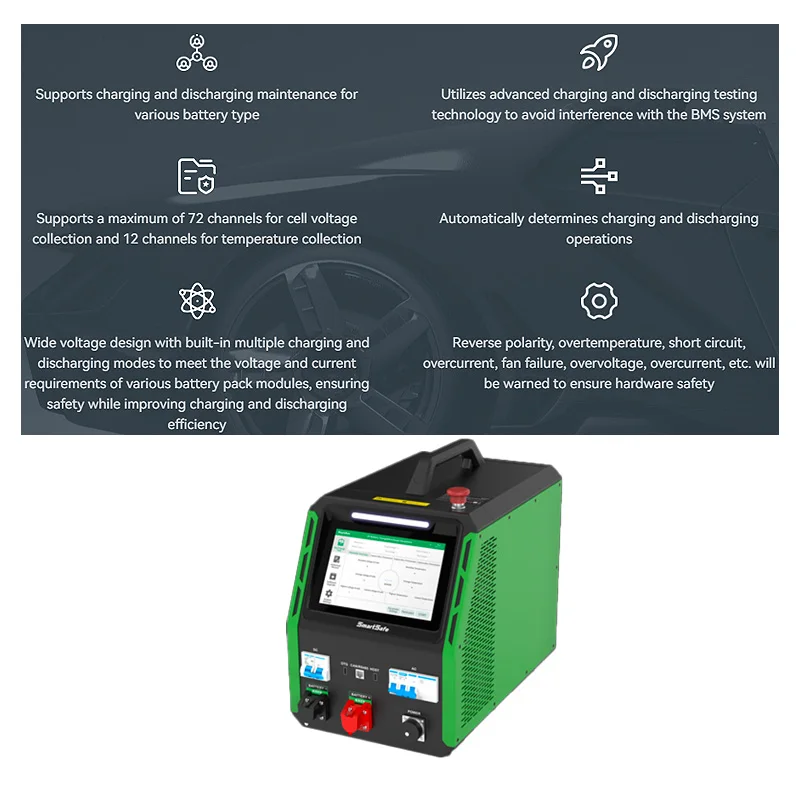

Product Features
1. Support charging and discharging, maintenance ofvarious lithium batteries and nickel-metal hydride batteries.
2.Support SOC/SOH, which can evaluate battery health status.
3. Utilizes cutting-edge charge-discharge testing technology to prevent interference with the BMs system;

4. Designed with a wide voltage range and equipped with various buit-in charge-discharge modes, meeting the voltage and currentrequirements of diverse battery pack modules during charge-disch arge operations, ensuring safety and enhancing efficiency;

5. Allows flexible configuration of charge-discharge rules and activation cycles, effectively enhancing battery capacity;

6. Eauipped with safety features including reverse polarity protection, hieh-temperature alert, over-curent protection, fan failuredetection, over-voltage warning, and excessive current alert, ensuring hardware safety.



Product Functions

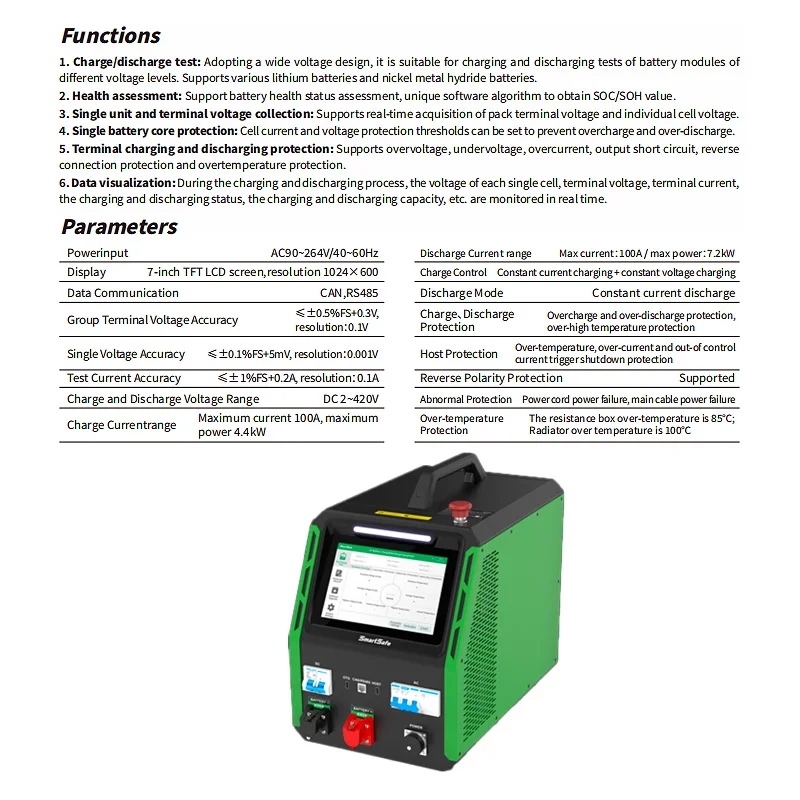

1. Charge discharge test: Adopting a wide voltage design, it is suitable for charging and discharging tests of battery modules odifferent voltage levels. Supports various lithium batteries and nickel metal hydride batteries.
2. Health assessment: Support battery health status assessment, unique software algorithm to obtain sOC/sOH value.

3. Single unit and terminal voltage collection: Supports realtime acquisition of packterminal voltage and individual cellvoltage;

4. Single batery core protection: Cell curent and voltage protection thresholds can be set to prevent overcharge and over-discharge.

5. Terminal charging and discharging protection: Supports overvoltage, undervoltage, overcurrent, output short circuit, reverseconnection protection and overtemperature protection.
6. Data visualization: During the charging and discharging process, the voltage of each single cel, terminalvoltage, terminal currentthe charging and discharging status, the charging and discharging capacity,etc, are monitored in real time

Power Input	AC90-264V/40-60Hz	Display	10inch LCD Screen,Resolution 1280x800
Terminal Voltage Accuracy	≤±0.1%FS+0.3V,resolution: 0.1V	Charging Control	constant current charging+constant voltage charging
Single Cell Voltage Accuracy	≤±0.1%FS+5mA,resolution: 0.001V	Discharging Control	Constant Current Discharge
Test Current Accuracy	≤±0.5%FS+0.2A,resolution: 0.1A	Battery Module Charge and Discharge Protection	Overchage, over-discharge, and over-temperature protection for battery module
Charging & Discharge voltage	DC2-400V	Host Protection	Over-temperature, over-current,and current out of control trigger shutdown protection
Charge Current	0-100A,maximum power 7.2KW	Reverse Polarity Protection	Supported
Interface	RJ45x1/USBx2	Abnormal Protection	Power line power failure, main cable power
		Over temperature protection	Resistor box overtemperature at 85°,radiator overtemperature at 100°
