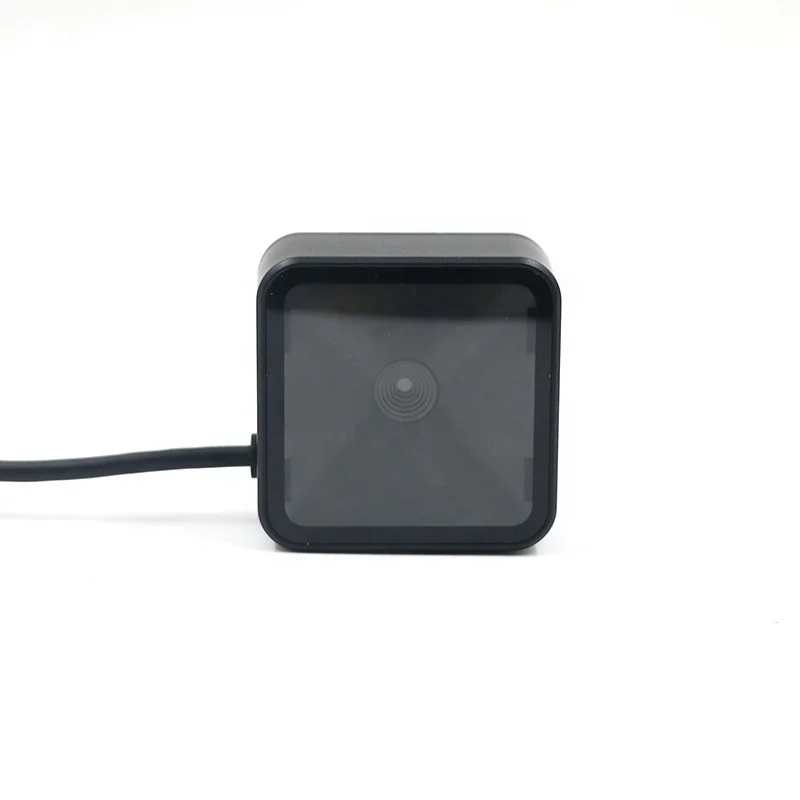

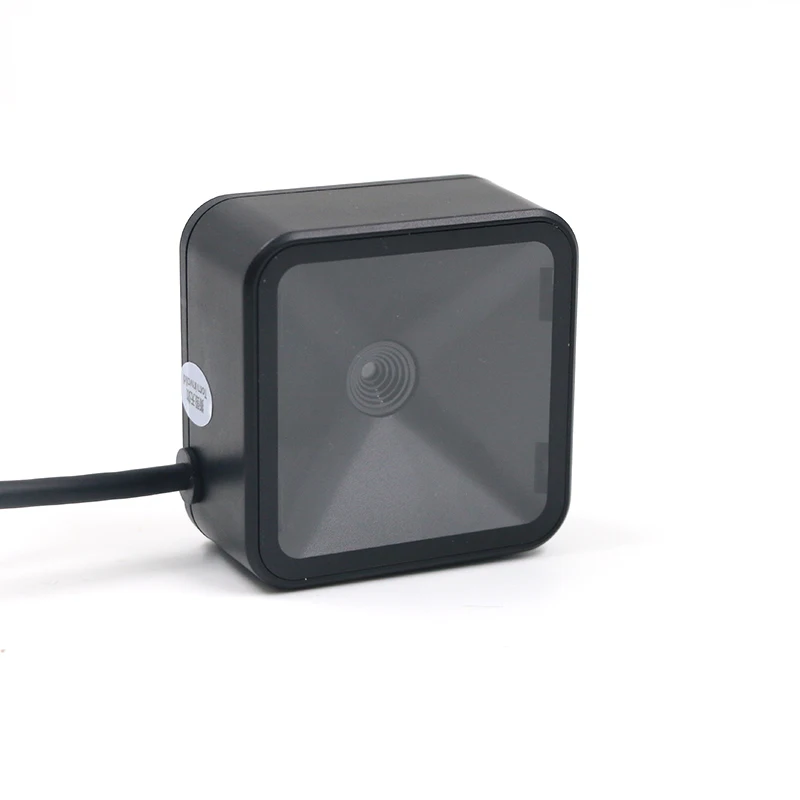

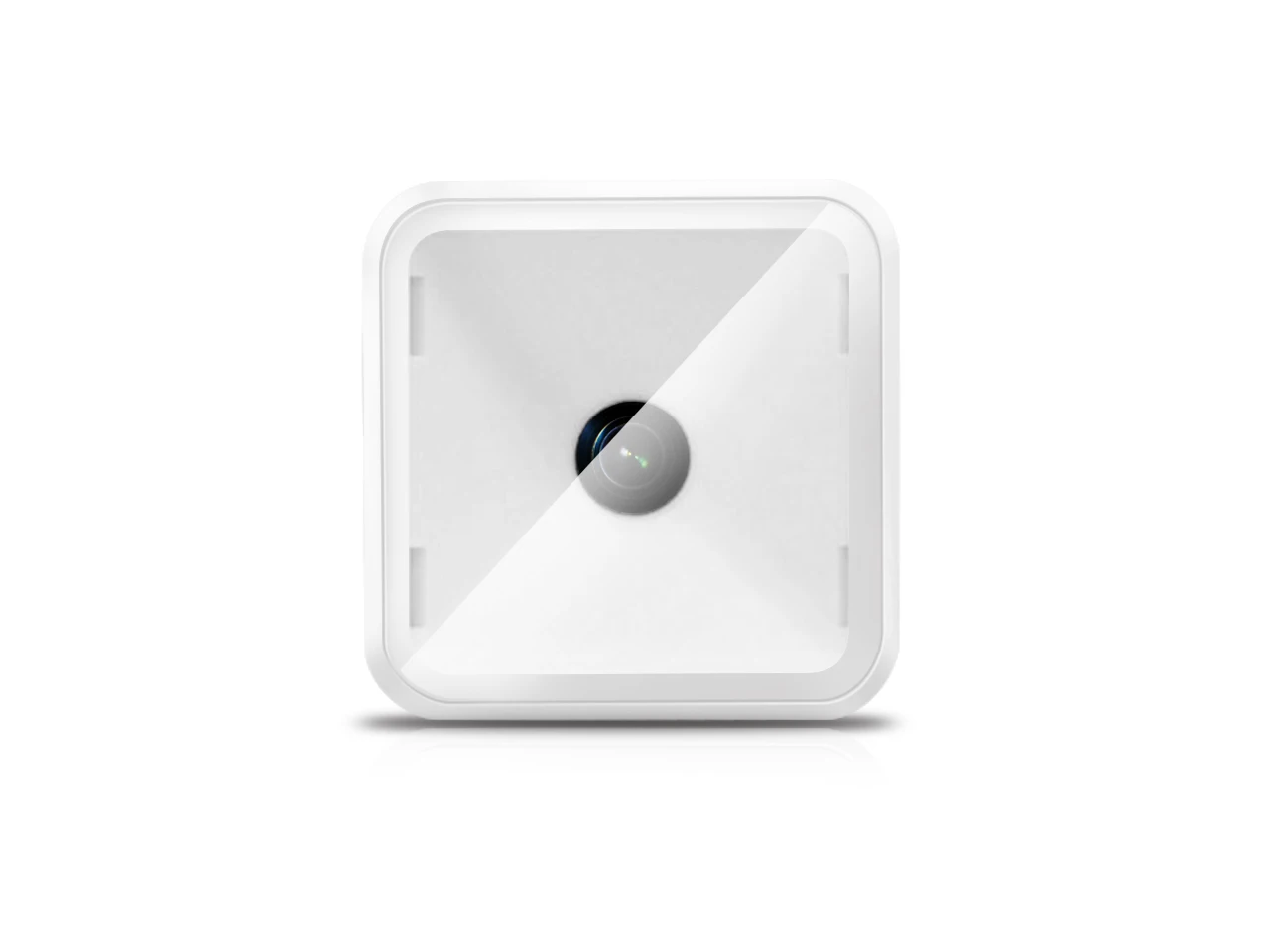

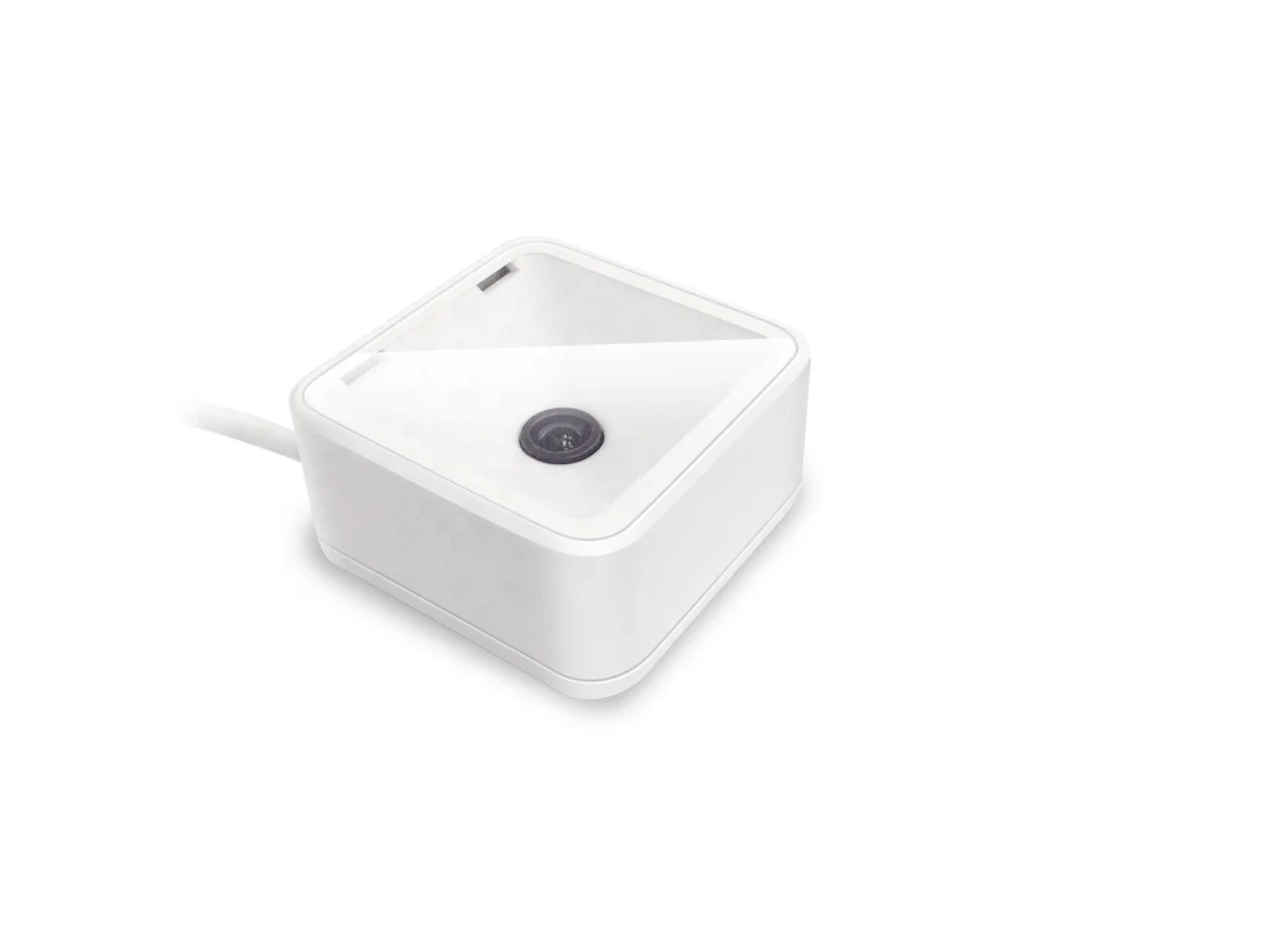

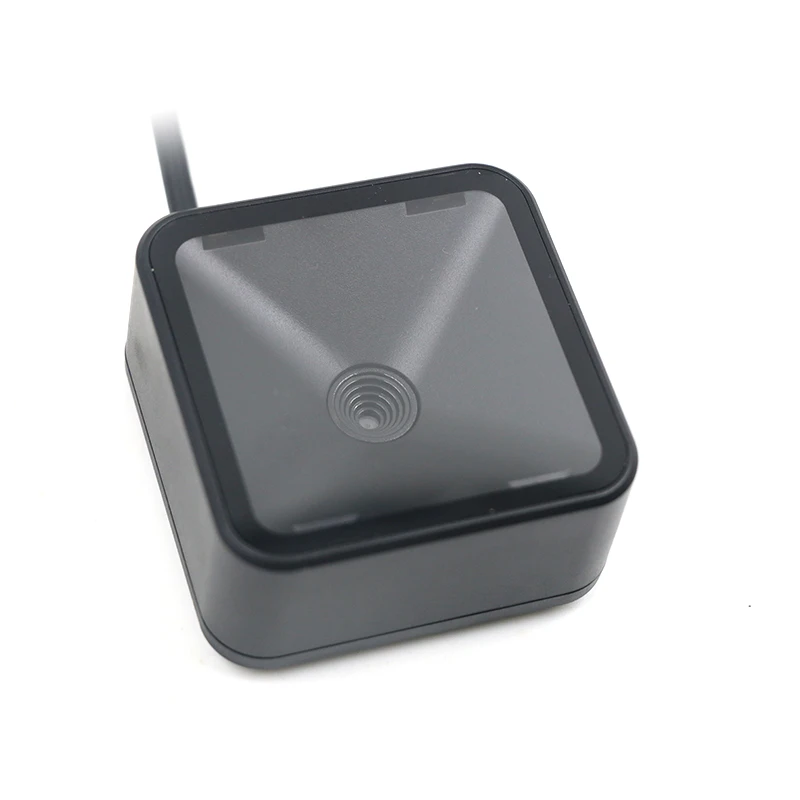

1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms 7120 for supermarket
1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms-7120 for supermarket
1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms-7120 for supermarket
1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms-7120 for supermarket
1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms-7120 for supermarket
1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms-7120 for supermarket
1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms-7120 for supermarket

1d 2D Desktop Mini Kiosk Barcode Scanner Module Auto Scanners Ms 7120 for supermarket

Share on (1601276594569):


Price:$55.00 - $65.00

Quantity:


Product Overview

Description



Product Description


Barcode Scanner MS-7120

Wide scan window embedded bar code scanner 2D payment scanning module for subway gate entry
Features:
* Large scan window, piano baking paint appearance.
* Perfect compatibility of paper electronic screen.
* Object self-sensing, large perspective image sensor.
* Support backless screen bar code readingimage sensor.
* Built-in RS232 and USB interface.
* Fast reading of paper and electronic screen codes, high motion tolerance.
* Support 1D & 2Dcode; Multi-language bar code information direct transmission.

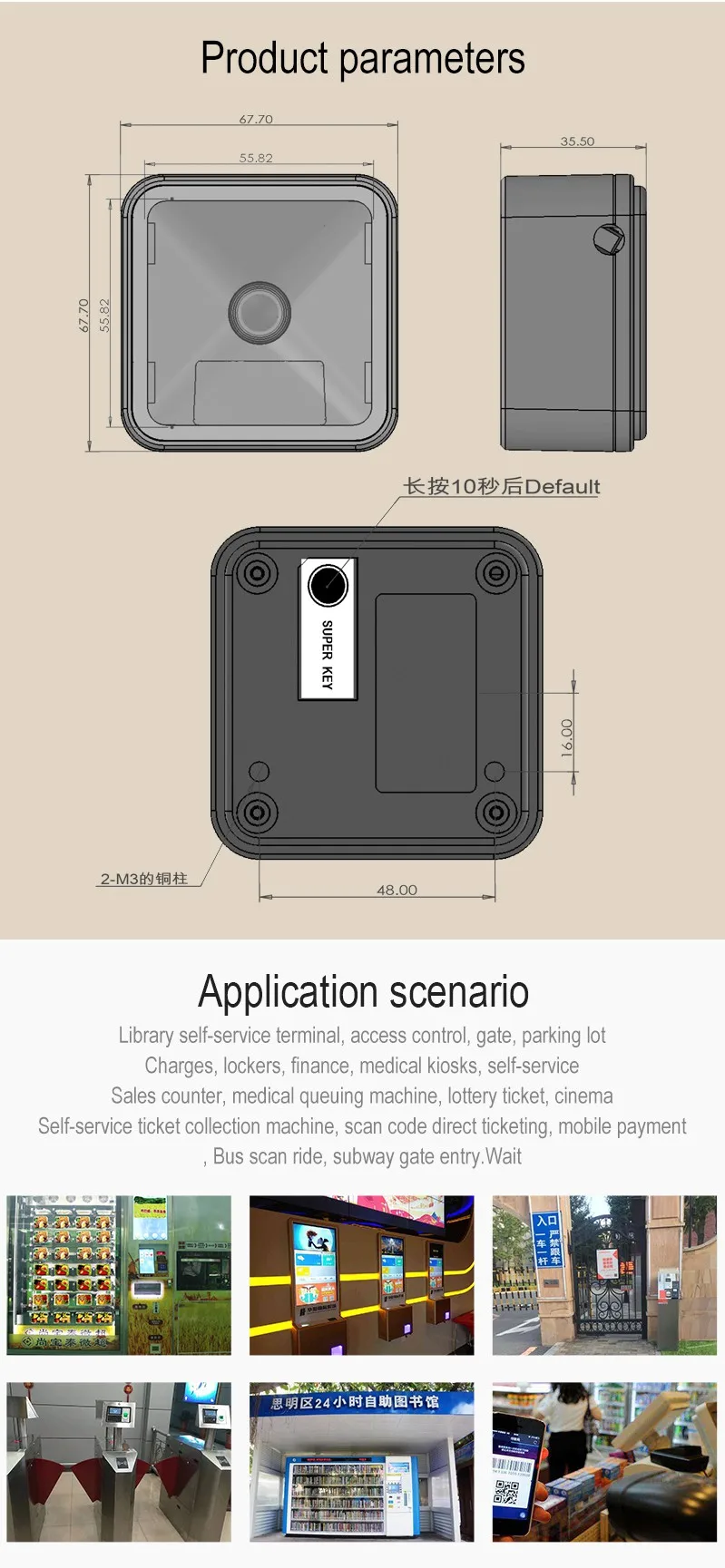

Specification


Physical Characteristics
Dimensions
67mm*67mm*35mm
Weight
145.5g
Voltage
3.3-5VDC
Working Current
200mA
Standby Current
90mA
Peak Current
300mA
Interfaces
USB, RS232
Performance
Image(Pixels)
640 pixels(H)*480 pixels(V)
Light Source
Illumination: 6500K LED
Minimum Resolution
≥3.9 mil
6.88 mil (PDF417)
0mm-50mm
10 mil (Data Matrix)
0mm-50mm
13 mil (UPCA)
5mm-110mm
20 mil (QR)
0mm-100mm
Scan Angle Roll/Pitch/Skew
360°, ±65°, ±60°
Field of View
72° (H) x 64° (V)
Motion Tolerances
＞2m/s
Decode Capability
1D
UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal,
Korean Postal , etc
2D
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc.
Environment
Operating Temperature
-30°C to 70°C
Storage Temperature
-40°C to 150°C
Humidity
0% to 95% relative humidity,non-condensing
Shock Specifications
Designed to withstand 1.5m(5’) drops
Ambient Light Immunity
0-100.000 Lux.


Production Details






Company Profile


Shenzhen Masung Intelligent Equipment Co., Ltd

MASUNG is one hi-tech innovative enterprise engaged in receipt printers of design, production, marketing and service, main products cover with kiosk printer, mobile printer, POS printer, panel printer and special type printer,which are widely used in the industries of commercial, finance, catering, postal, telecom, transportation, medical, vehicle and more.

MASUNG with its brand "MASUNG" originally founded in 2002 and registered in 2006.Headquartered in Shenzhen, MASUNG built design and production base, ran its own circuit board processing and machinery plants. And the first branch company had been set up in 2008 in Hong Kong. Over years of development, MASUNG ran up offices in domestic cities including Beijing, Shanghai, Guangzhou, Wuhan and so on. Meanwhile, MASUNG products also have been exported to international markets, mainly for Europe, Middle East and South America.

MASUNG has a deep insight into the printer needs of its customers and keeps on launching new products every month.






Certifications

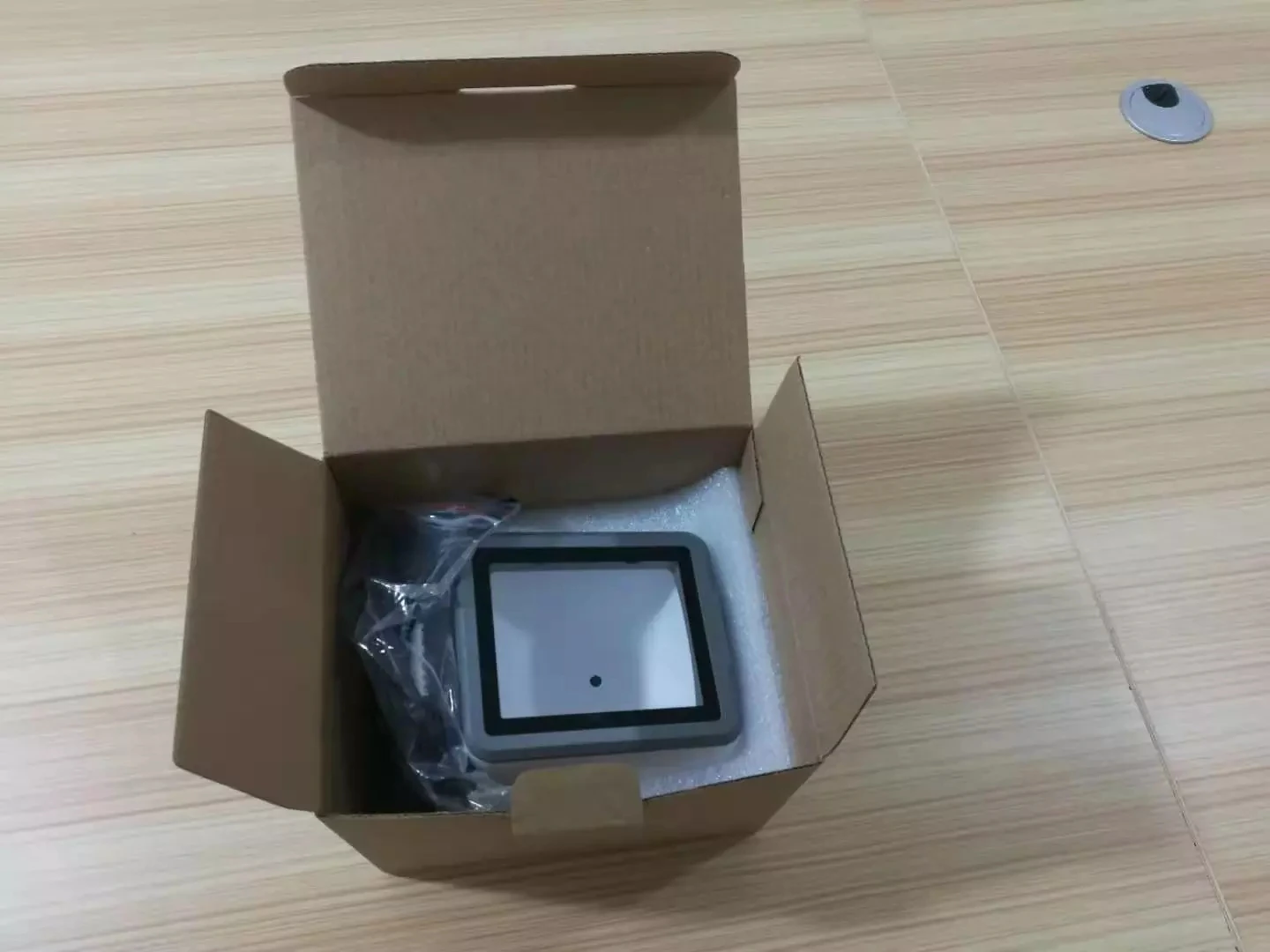

Packing & Delivery




Standard Packing,One pc/per carton,
Wide scan window embedded bar code scanner 2D payment scanning module for subway gate entry


FAQ


1.Q:Are you a manufacturer or trading reseller?
Masung: We are real manufacturer which factory locates in Li Jin Cheng industrial park,Shenzhen city, PR China. We own experienced engineers team, complete quality control system, efficient production equipments and highly skilled staffs.

2.Q:Can you offer OEM/ODM service for our order?
Masung: We can support different aspects customization service including hardware/mechanical design.
But there is a MOQ request.

3.Q:What is your MOQ?
Masung: There is no MOQ limit, Sample is availale.

4.Q:What is your payment way?
Masung: We accept T/T, Western Union and L/C.

5.Q:Can I pay on Alibaba?
Yes, it would increase our credit points if more customers pay through Alibaba platform.
To customer
100% Product quality protection
100% On-time shipment protection
100% Payment protection

6.Q:How long is your delivery time?
Masung: Generally it is 2-3 weeks, sample is 2-3 days. It depends on order quantity.

7.Q: Which way to deliver the goods?
DHL, Fedex, EMS, China Post, Express and so on. We also support the goods to ur ship agent. We take the most convenient one for u.

8.Q:What the after sale service?
Each products will be tested strictly before delivery and our failure rate be limited to the range of 0.01%.
Our all products will provide 24 months warranty.
Enough stock spare parts for guarantee.
Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field.
