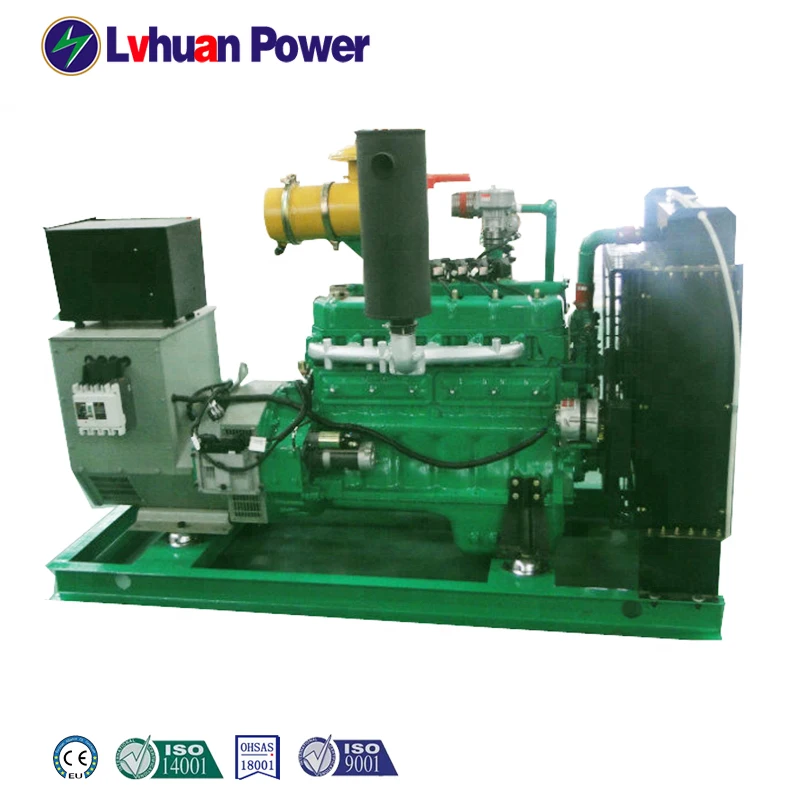

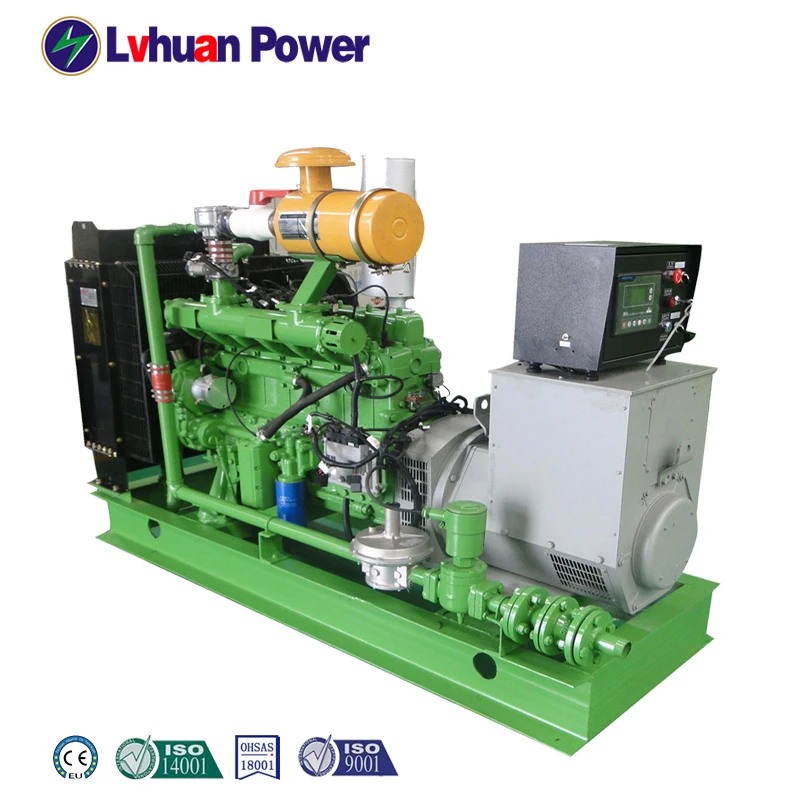

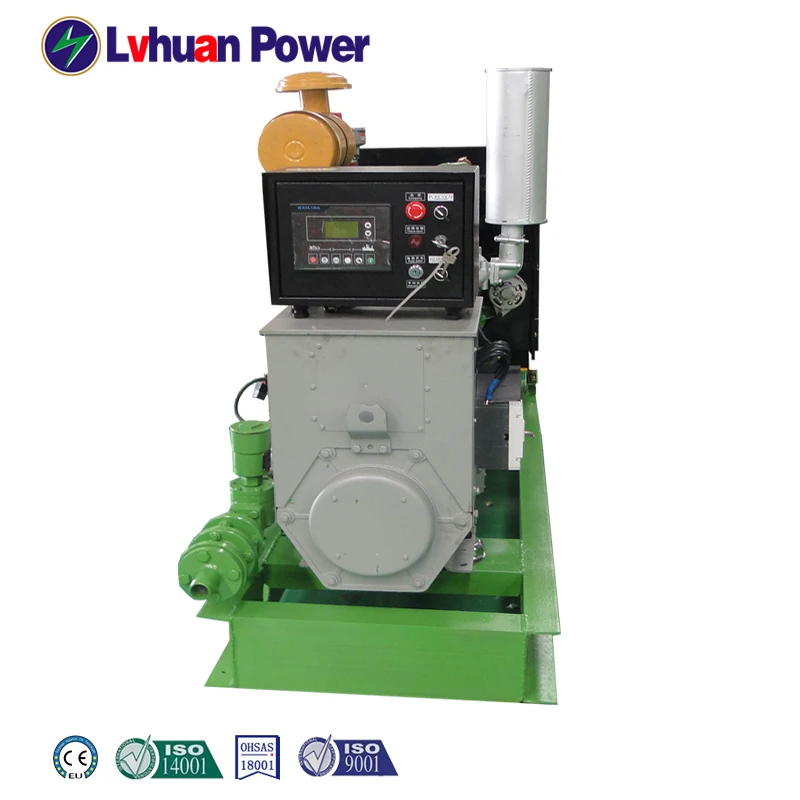

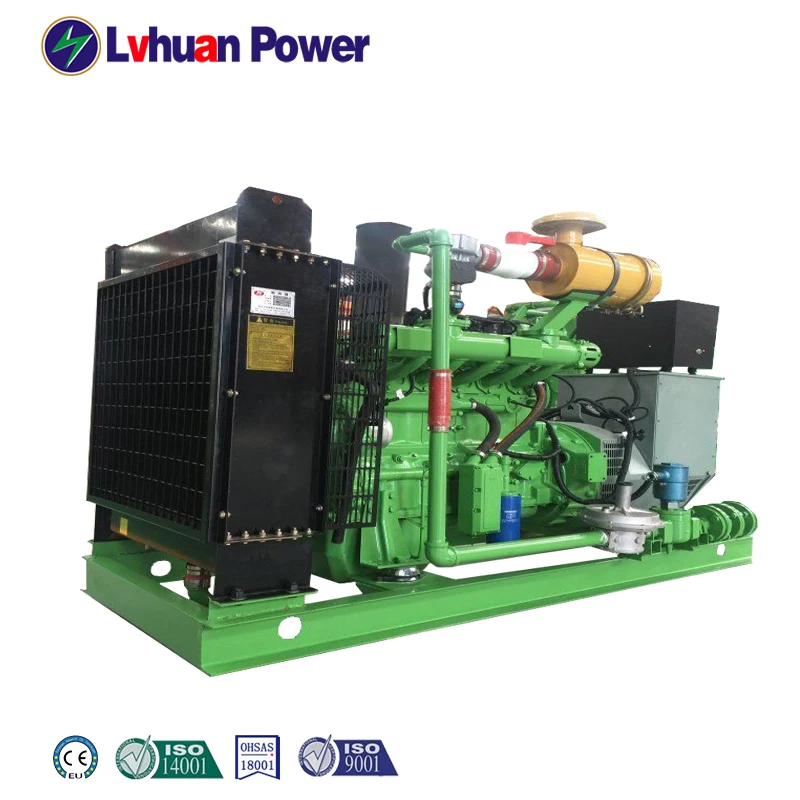

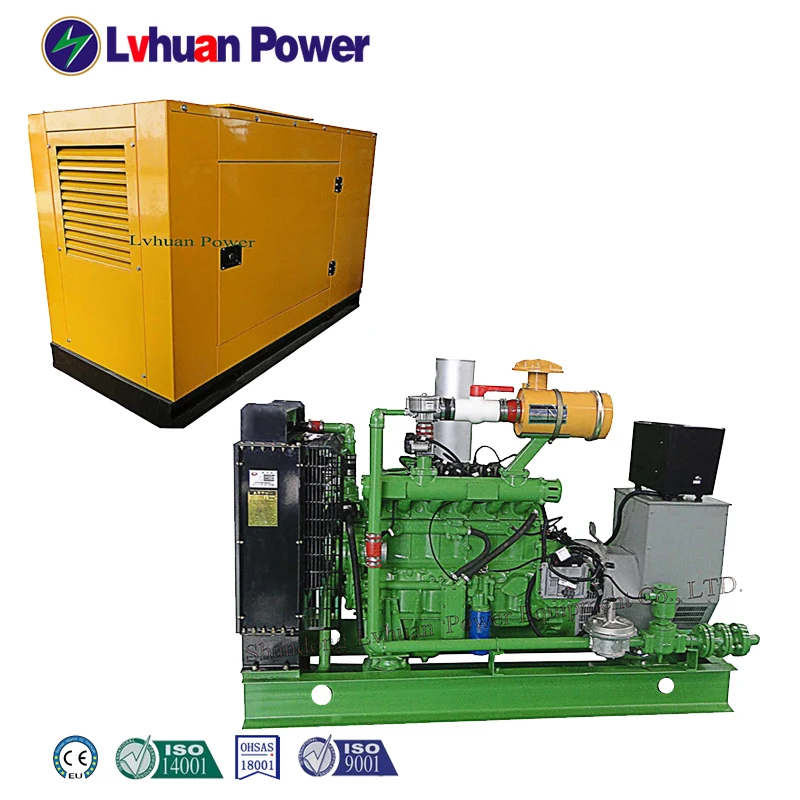

CE and ISO Approved Green Power 10 200kw Biomass Generator Set
CE and ISO Approved Green Power 10-200kw Biomass Generator Set
CE and ISO Approved Green Power 10-200kw Biomass Generator Set
CE and ISO Approved Green Power 10-200kw Biomass Generator Set
CE and ISO Approved Green Power 10-200kw Biomass Generator Set
CE and ISO Approved Green Power 10-200kw Biomass Generator Set
CE and ISO Approved Green Power 10-200kw Biomass Generator Set

CE and ISO Approved Green Power 10 200kw Biomass Generator Set

Share on (1601276928536):


Price:$115,000.00

Quantity:


Product Overview

Description


CE and ISO Approved Green Power 500kw Biomass Generator Set





Biomass gas (straw gas) is flammable gas, which produced by pyrolysis or gasification with biomass materials under high temperatures.
Main components: H2(5%~30%),CH4(4%~30%),CO(5%~40%)and a bit unsaturated hydrocarbon above C2,CO2,N2 etc. Generally, the gas heat value is not high, and the low calorific value of gas is 5-6 MJ/Nm3.


Biomass raw material / feed stock/ fuel:


Rice husk, woodchips, sawdust, bark, shavings, crop stalks, coconut husk, olive pomace, bagasse, plastic waste, palm tree, cotton straw, coal dust........





Product Description


Biomass gas generator, by using these biomass raw materials can not only save electricity expenses in the production cost for rice mills, timber processing mills, farm and plantations etc, but also get benefits from selling surplus electric power to the power grid.



ADVANTAGE


· CE and ISO approved.
· Strong structure & Strengthen accessories
· Super performance of electric speed governer & Gas pressure regulation system
· Auto voltage regulation & Stable working condition
· Long using life and low-operation cost
· High quality & imported & accurate gas control system
· Strong control system anti-interference ability


· Multi-option of engine, alternator ,control system and water cooling system


· Product range: biogas generator, natural gas generator, biomass generator, wood gas generator,coal gas generator, coal bed gas generator, syngas generator,diesel generator etc.





































































































































Technical Parameters



Model Number (Engine Type)



LHBMG10-200



Brand Name



LVHUAN



Prime power/Standby power



8-160KW/10-200KW



Rated Speed



1500/1800RPM



Rated Frequency



50/60Hz



Rated Voltage



400V/230V



Phase



AC 3-Phase, 4 wire



Voltage Stability



≤±2%



Voltage transient



≤±10%



Voltage Stable time



≤1 s



Heat consumption



≤11mj/kw.h



Lubricant consumption



≤1.0g/kw.h



Engine Capacity



2.24-26.9L



Cylinder Number


2-12V

Cylinder Bore



100-138mm



Stroke



115-150mm



Starting System



DC 24V electric motor



Cooling method



water cooler



Lubricant method



Passive and flying lubricant



Isolation class



H



Protection



IP23



Alternator


Chinese Stamford

Power Factor



0.8 lagging



Exciting method



brushless



Colour



your choice



Certificates



ISO 9001:2008, CE



Warranty



1 year or 1000 running hours which arrives first



Type



Open



Control system



Automatic alarm system



Weight



700-3200kg









WORKING CONDITION



Worksite Requirement


The worksite needs to meet following basic requirements:


a)  Ambient temperature between -30℃~40℃;


b)  Relative humidity less than 90%(35℃);


c)  Site elevation not higher than 2000m;


d)  For outdoor installation, simple rain shelter is required.








Gas Requirements


Within 1m to the intake valve of gas generator set


1) Gas temperature≤40℃;
2) Pressure: 3~10kPa, Pressure changing rate≤ 1kPa/min;


3) H2S≤200mg/Nm3;
4) NH3≤20mg/Nm3;


5) Tar Content≤20mg/Nm3;


6) Moisture Content ≤40g/Nm3;


7) Impurity particle size≤5μm; impurity content≤30mg/Nm3;


8) Heat value≥4.2MJ/Nm3;





CE and ISO Approved Green Power 500kw Biomass Generator Set
PRODUCT SHOW


200KW


2

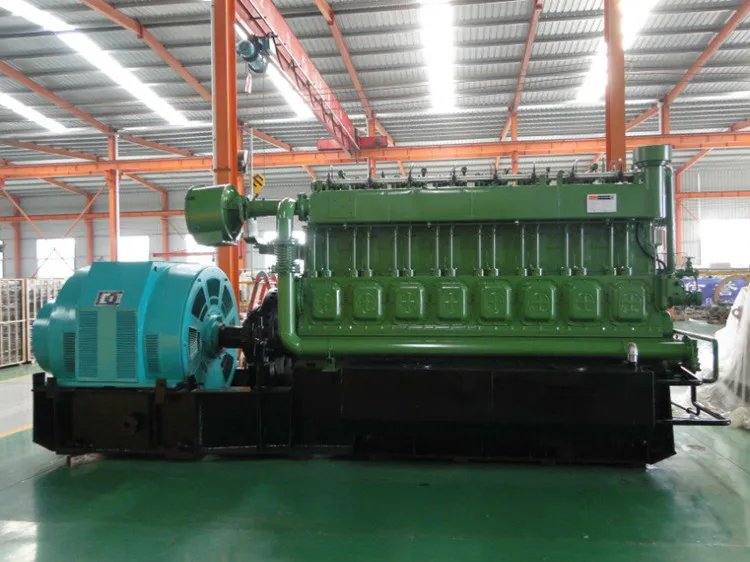

DSC09800







ACCESSORIES
1.Application scope of the accessories,such as 12v190,8v190,6190,6135 and other engine types.


2.All parts were from original factories or professional factories,complete in specification,keep good quality.



750





Success case


750


certificate






Company Information







images_10





Factory View





11-



Our Services


 images_09








Packaging & Shipping


9-














FAQ





1. How to choose the right model?


1)Please provide some these details: continuous output power? local voltage and frequency ?  fuel consumption such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.?
2)For biomass power plant and coal gas power plant, some clients may doesn’t have gasification system, then we need information about raw material.


2. What’s the warranty?


The warranty is one year. We will offer free service and spare parts during warranty period. Lifetime service will be provided by our trustworthy after-sale team.

3. How to do the maintenance?


Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.

4. What’s about the installation and commissioning?


Installation and commissioning of the genset would be instructed assisted by our technicians on site.








Please do not hesitate to contact us if you want to know more about our products.
