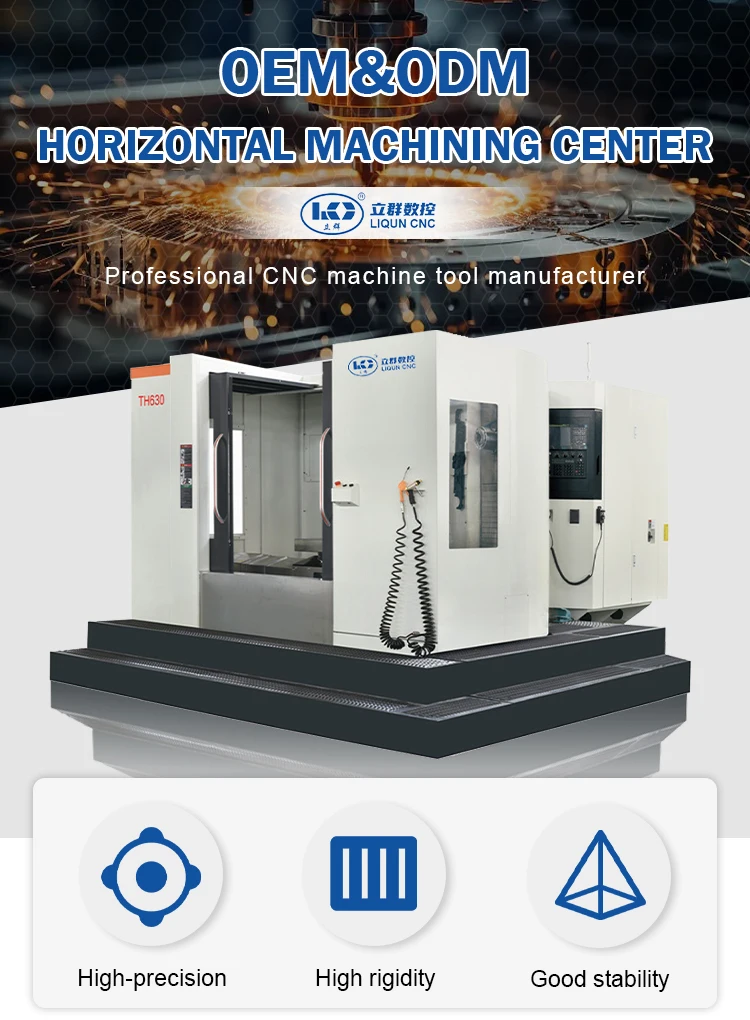

Factory High Precision Milling and Boring Machine CNC Horizontal Machine Center
Factory High Precision Milling and Boring Machine CNC Horizontal Machine Center

Factory High Precision Milling and Boring Machine CNC Horizontal Machine Center

Share on (1601277482181):


Price:$35,600.00 - $53,000.00

Quantity:


Product Overview

Description







ltem
Unit
TH500
TH630
TH800
TH1000
Table size
mm
500x500
630x630
800x800
1000x1000
Number of tables
Standard single workbench, optional exchange double workbench
Table rotation
°
1°x360
1°x360
1°x360
1°x360
Maximum load
kg
500
1200
2000
2500
X/Y/Z axis travel
mm
600/610/600
1050/750/900
1300/1000/1000
1600/1000/1000
Distance from spindle center to work surface
mm
40-650
120-870
120-1120
120-1120
Distance from spindle end face to center of table
mm
60-660
130-1030
200-1200
200-1200
Taper specification (Model/mounting size)
BT40/Ф150
BT50/Ф190
BT50/Ф190
BT50/Ф190
Table T-slot (Number size spacing)
mm
5-22/100
5-22/125
5-22/200
5-22/200
Maximum spindle speed
rpm
6000
6000
6000
6000
Three-axis cutting feed rate
mm/min
10-10000
10-10000
10-10000
10-10000
X/Y/Z Three axes fast moving X/Y/Z
m/min
30
24
20
20
Positioning accuracy
mm
±0.005/300
±0.005/300
±0.005/300
±0.005/300
Repeated positioning accuracy
mm
±0.003/300
±0.003/300
±0.003/300
±0.003/300
Spindle drive motor
kw
11
15
15
15
X,Y,Z drive the motor
kw
3/3/3
3/3/3
4/3/4
4/3/4
Tool storage capacity (optional)
把
24/30
30/40
30/40
30/40
Floor area (length x width x height)
mm
2500/3300/2600
3850/3500/3200
4850/4300/4100
4850/4300/4100
Machine weight (about)
T
7
10
12
16.5
Remark
Cross slide structure
Inverted "T" structure










Q1:What information do you need before making quotation?
A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q2:How to choose the machine I want?
A:Firstly,please correspond to the worktable travel and cutting thickness according to the size of the workpiece to find a suitable model;Secondly,please check if precision and roughness meet your requirements;(Our TRS series machines have much higher precision and better finish)

Q3:What should I do to start a new business in EDM wire cutting machine area?
A:Please contact us immediately,we provide free pre-sales consultant service of brass slow wire EDM cutting machine.

Q4:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our EDM wire cutting machines are exported to Russia, India, UAE,South Korea, Canada, Vietnam, Thailand, Mexico, Turkey and etc. You can get higher quality product & better professional service from Ruite with same price.

Q5:I`m worried about after-sales service!
A:Warranty is one year. Any parts damaged during warranty will be replaced for free! We provide spare parts for life time at cost price. Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price. Our engineers are available to service overseas!
