Flier Factory Multirotor Drone UAV Plane 380A brushless ESC paramotor
US $108.00-$168.00
9imod 55kg Waterproof Servo IP67 180/270 Magnetic Sensor High Torque High Voltage Cordless Digital Servo DSC55MG Servo
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (1601277563383):
Product Overview
Description
Products Description
Brand | 9imod |
Model | DDSC55MG 180 Degree and 270 Degree optional |
Operation Voltage Range | 6.0V -8.4V |
Servo Arm Horn | Plastic included, Metal Arm need to buy by separately |
Control System | PWM Control (1500usec in the central point) |
Standing Coupling | 0.13sec/60° 6V; 0.08sec/60° 8.4V |
No load current | 300mA@6.0V ; 350mA@8.4V |
Working frequency | Re-clock wire/Pulse Travel 500-2500pesc |
Motor type | Coreless Motor Mos Drive |
Case Material | Aluminium Case |
Operation Temperature range | -20C ° ~+60C ° |
Circle | >60 million times without tax |
Type of diver | MOS drive |
Limit angle | 180° ± 1,270° ± 1 optional |
Direction | Re-clock wise/ Pulse Travel 500 → 2500 μsec |
Gear type | Metal gear |
Boundary dimension | 40.0*20.0*40.5mm |
Product weight | 78g(without servo arm) |
Connector Wire Gauge | 22AWG |
Wire Length | 300mm JR Plug |
9imod 55kg Waterproof Servo IP67 180/270 Magnetic Sensor High Torque With High Voltage Cordless Digital Servo Mechanism Full Metal Gear For 1/8 1/10 Remote Controlled Models Of Car Boat Parts
Features:
1.High Torque Servo: DSC55MG 55KG 180/270 Degree HV Cordless Metal Gear Waterproof Digital Servo Mechanism.
2.High precision magnetic encoder sensor: precision metal gears with hard anode mute. 14-bit digital precision magnetic encoder angle sensor, extremely accurate and stable.
3.Angle range and waterproof: high rotation, 180/270 degree rotation, perfect for robots. High voltage support, stable and waterproof IP67.
4.High strength: CNC center aluminum shell, double ball bearings. To ensure a longer service life.

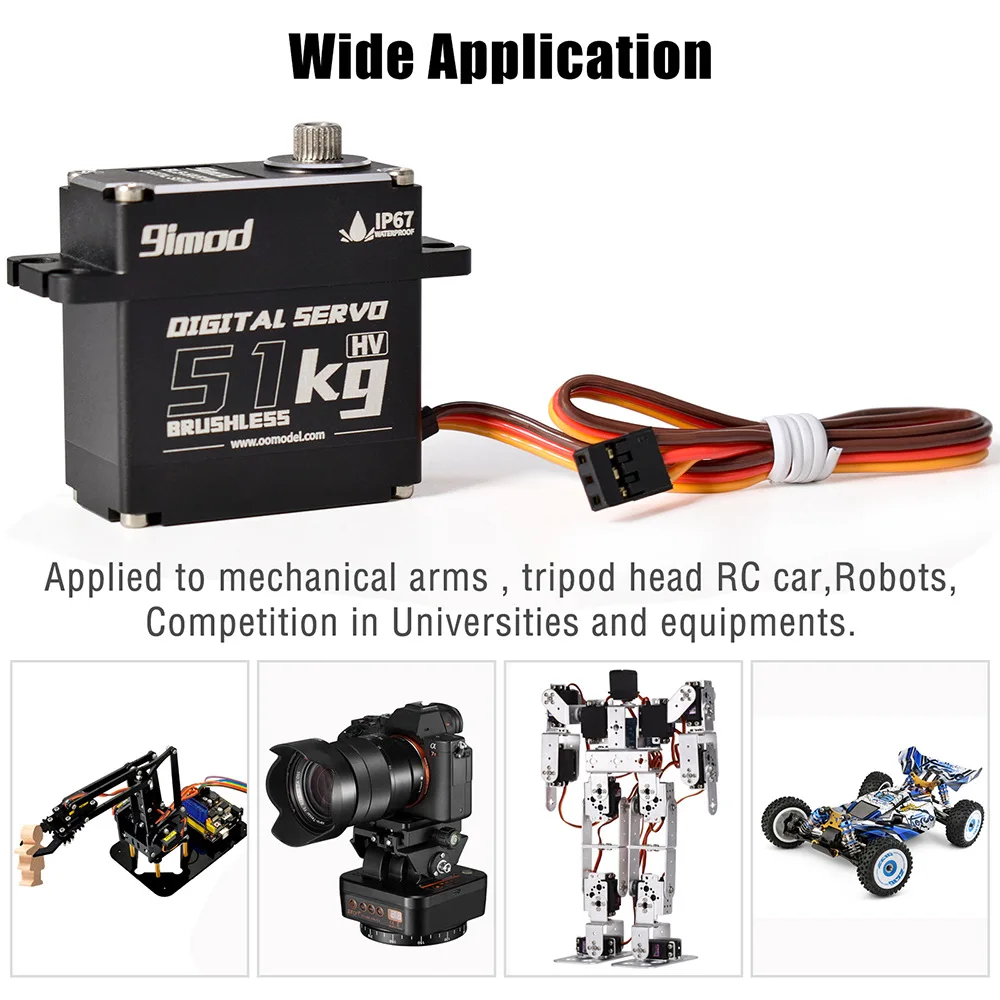

5.Best for DIY projects: widely used in remote controlled caterpillars, boats, aircraft, helicopters, robot arm, etc.
Descriptions:
9imod 55kg waterproof digital servo mechanism with better heat dissipation, more power and strong adaptability. Light weight, fast large torque, sensitive, responsive, low noise.
Specifications:
Brand: 9imod
Model: DSC55MG
Running degree: 180°/270° (optional)
Control system: PWM
Neutral position: 1500 μsec
Rotation direction: counterclockwise (500,2500μs)
Operating voltage range: 6.0V to 8.4V
Operating temperature range: -20C ° ~ +60C °
Circle: >600000 times without load
Type of diver: MOS drive
Engine type: Coreless motor
Potentiometer type: magnetic encoder
Amplifier type: digital control
Waterproof performance: IP67
Dimensions: 40x20x40.50mm/1.57x0.79x 1.59in
Weight: 78g (without servo horn)
Drag torque: 43kg-cm-6V; 58kg-cm-8.4V
Operating speed: 0.13sec/60°-6V; 0.08sec/60°-8.4V
Inertial current: 300mA-6V; 350ma-8.4v
Dead bandwidth: 1 μsec
Ball bearing: 2BB
Gear material: Metal Gear
Housing material: aluminum housing
Connection cable: 300mm JR plug
Indicator: 22AWG
Wire information (brown): negative
Wire information (red): positive
Cable information (yellow): S single
The package contains:
1 x servo
1 x servo accessories
Features:
1.High Torque Servo: DSC55MG 55KG 180/270 Degree HV Cordless Metal Gear Waterproof Digital Servo Mechanism.
2.High precision magnetic encoder sensor: precision metal gears with hard anode mute. 14-bit digital precision magnetic encoder angle sensor, extremely accurate and stable.
3.Angle range and waterproof: high rotation, 180/270 degree rotation, perfect for robots. High voltage support, stable and waterproof IP67.
4.High strength: CNC center aluminum shell, double ball bearings. To ensure a longer service life.
5.Best for DIY projects: widely used in remote controlled caterpillars, boats, aircraft, helicopters, robot arm, etc.
Descriptions:
9imod 55kg waterproof digital servo mechanism with better heat dissipation, more power and strong adaptability. Light weight, fast large torque, sensitive, responsive, low noise.
Specifications:
Brand: 9imod
Model: DSC55MG
Running degree: 180°/270° (optional)
Control system: PWM
Neutral position: 1500 μsec
Rotation direction: counterclockwise (500,2500μs)
Operating voltage range: 6.0V to 8.4V
Operating temperature range: -20C ° ~ +60C °
Circle: >600000 times without load
Type of diver: MOS drive
Engine type: Coreless motor
Potentiometer type: magnetic encoder
Amplifier type: digital control
Waterproof performance: IP67
Dimensions: 40x20x40.50mm/1.57x0.79x 1.59in
Weight: 78g (without servo horn)
Drag torque: 43kg-cm-6V; 58kg-cm-8.4V
Operating speed: 0.13sec/60°-6V; 0.08sec/60°-8.4V
Inertial current: 300mA-6V; 350ma-8.4v
Dead bandwidth: 1 μsec
Ball bearing: 2BB
Gear material: Metal Gear
Housing material: aluminum housing
Connection cable: 300mm JR plug
Indicator: 22AWG
Wire information (brown): negative
Wire information (red): positive
Cable information (yellow): S single
The package contains:
1 x servo
1 x servo accessories
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or video.
* For the SERVOS please let us know your requirements:
1. Which Area you used for? RC Servo or Industry Servo?
2. What's your expected torque?
3. What's your expected speed?
4. Do you have serice life requirement?
5. Your working voltage please.
6. Do you have location dimension limited? If so, please let us know the maximum size.
7. Do you need it waterproof?
8. How many qtys you need?
9. Other requirements if you need, for example, wire length, connector types and so on.
* For the MOTORS please let us know your requirements:
1. Please choose inrunner motor or outrunner motor you need.
2. Do you have motor diameter and length limited?
3. What working voltage you will use for this motor?
4. What's your expected rated power?
5. What's your expected RPM?
6. You battery pack can bear how high peak current?
7. You estimated yearly sales qty?
8. Do you need the speed controller as well or if you have yours,let us know the spec.
9. Other requirements if you need, for example, wire length, connector types etc.
2. What's your expected torque?
3. What's your expected speed?
4. Do you have serice life requirement?
5. Your working voltage please.
6. Do you have location dimension limited? If so, please let us know the maximum size.
7. Do you need it waterproof?
8. How many qtys you need?
9. Other requirements if you need, for example, wire length, connector types and so on.
* For the MOTORS please let us know your requirements:
1. Please choose inrunner motor or outrunner motor you need.
2. Do you have motor diameter and length limited?
3. What working voltage you will use for this motor?
4. What's your expected rated power?
5. What's your expected RPM?
6. You battery pack can bear how high peak current?
7. You estimated yearly sales qty?
8. Do you need the speed controller as well or if you have yours,let us know the spec.
9. Other requirements if you need, for example, wire length, connector types etc.
