ZTRFM Corner Guard Net Forming Machine New Steel Angle Net Making Machine
- Category: >>>
- Supplier: Cangzhou Zhongtuo Roll Forming Machinery Co. Ltd.
Share on (1601277569093):
Product Overview
Description
Company Profile
Cangzhou ZHONGTUO cold roll forming machinery Co.ltd
Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.
Product Description

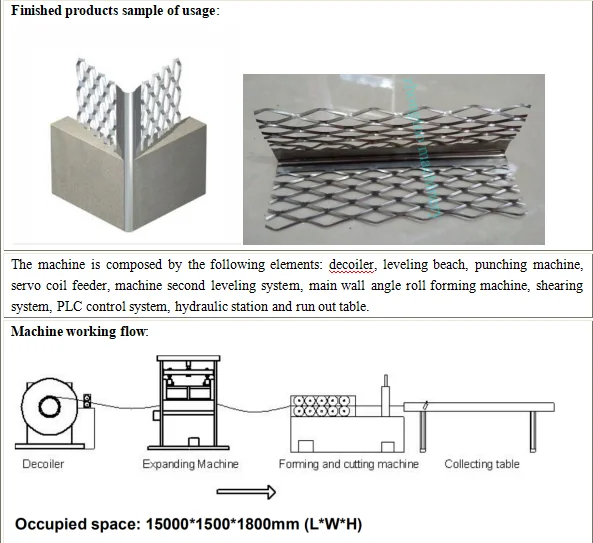

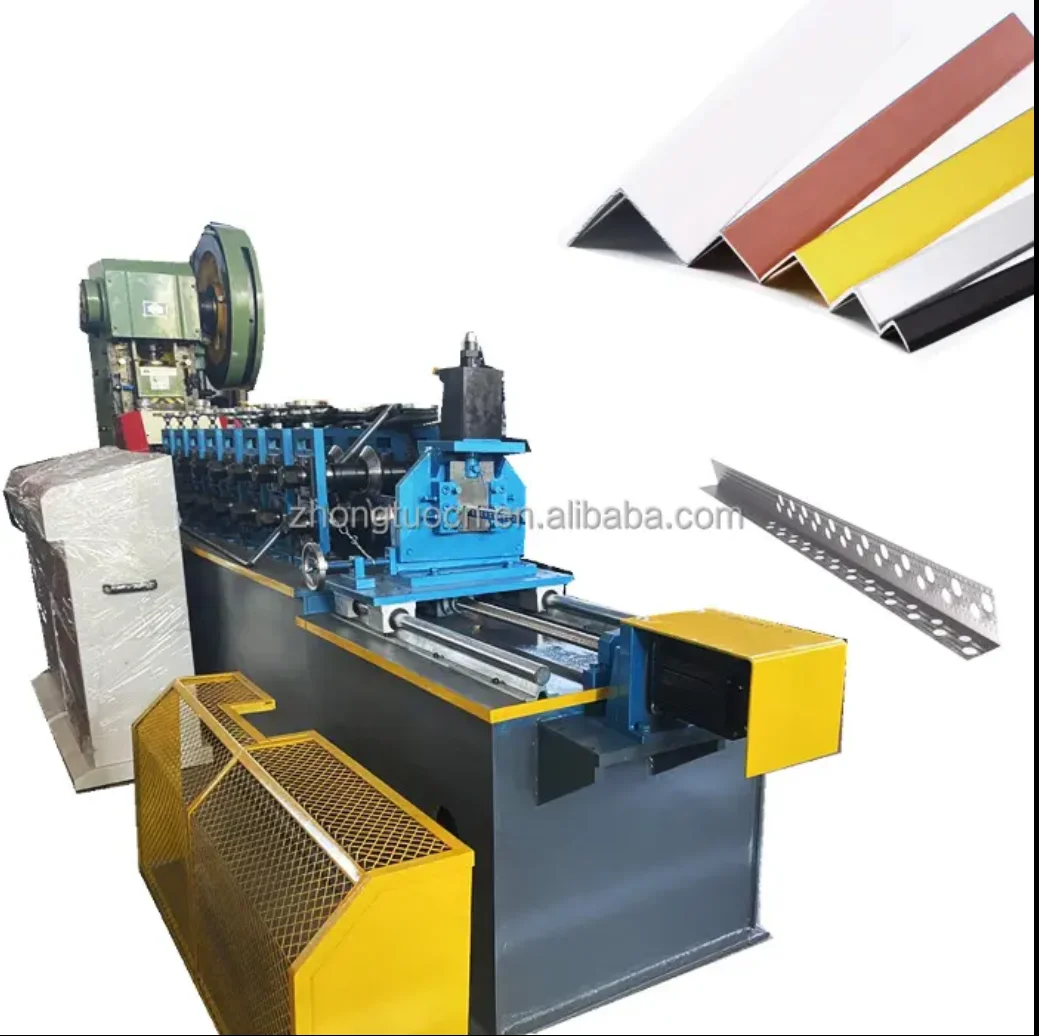

Description of Corner guard net forming machine
* The Zhongtuo Corner BeadMachine is constructed from high-quality, zinc-coated steel, providing strong protection for externalcorners.
* These trims are designed to improve compound adhesion and can be securely applied using nails or screws.
* Measuring 1-1/4″ x 1-1/4″, the ZTFRM metal corner bead machine is available in both 90-degree and 130-degree angles, making it ideal for “open” corners.
* This corner bead can be easily fastened with nails or screws, ensuring corners are well-protected and achieving a sharp, clean finish after compound application.
* Specifically engineered for 130º wide angle corners, this drywall corner bead is available with either 1 1/4″ or 1 1/8″ flanges to accommodate 135º corners.
* These trims are designed to improve compound adhesion and can be securely applied using nails or screws.
* Measuring 1-1/4″ x 1-1/4″, the ZTFRM metal corner bead machine is available in both 90-degree and 130-degree angles, making it ideal for “open” corners.
* This corner bead can be easily fastened with nails or screws, ensuring corners are well-protected and achieving a sharp, clean finish after compound application.
* Specifically engineered for 130º wide angle corners, this drywall corner bead is available with either 1 1/4″ or 1 1/8″ flanges to accommodate 135º corners.
Machines' advantages
1.Efficient cutting : The equipment usually has an efficient cutting function and can quickly complete the keel cutting, drilling and other processes.
2. Surface treatment: Some equipment can surface the keel during the production process, such as zinc plating, to improve its corrosion resistance and durability.
3.Quality Testing: The advanced light steel keel machine also has online quality testing function, which can detect problems in time and make adjustments to ensure product quality.
4.Energy saving and environmental protection: Light steel keel machine is designed to take into account energy saving and environmental protection, reducing energy consumption and waste generation.
5.Flexibility : light steel keel roll machine has high flexibility and can quickly adjust the production line configuration according to different production needs.
1.Efficient cutting : The equipment usually has an efficient cutting function and can quickly complete the keel cutting, drilling and other processes.
2. Surface treatment: Some equipment can surface the keel during the production process, such as zinc plating, to improve its corrosion resistance and durability.
3.Quality Testing: The advanced light steel keel machine also has online quality testing function, which can detect problems in time and make adjustments to ensure product quality.
4.Energy saving and environmental protection: Light steel keel machine is designed to take into account energy saving and environmental protection, reducing energy consumption and waste generation.
5.Flexibility : light steel keel roll machine has high flexibility and can quickly adjust the production line configuration according to different production needs.
Corner guard net forming machine | ||||||||
1.Formed Material | PPGI,GI,AI | Thickness:0.2-0.5mm as request | ||||||
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||||||
3.Main body | Roller station | 10 rows(As your requirement) | ||||||
Diameter of shaft | 50mm solid shaft | |||||||
Material of rollers | 45# steel, hard chrome plated on the surface | |||||||
Machine body frame | Metal steel welded | |||||||
Drive | Chain transmission | |||||||
Dimension(L*W*H) | 5500*800*1200(customize) | |||||||
Weight | About 2.5T | |||||||
4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||||||
5.Power | Motor Power | 5.5KW | ||||||
Hydraulic system power | 4KW+1.5KW | |||||||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||||||
7.Control system | Electric Box | Customized(famous brand) | ||||||
Language | English(Support multiple languages) | |||||||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||||
18.Forming Speed | 40-45m/min(customized) | The speed depends on the shape of the tile and the thickness of the material. | ||||||
Mannul decoiler
1.Usage: It is used to support the steel coil and uncoil it in a turntable way.
2.Passive uncoil pulled by roll forming system
3.Loading capacity: 3 T
4.Uncoiling width: 300mm
5.Inner diameter: 450-550mm
2.Passive uncoil pulled by roll forming system
3.Loading capacity: 3 T
4.Uncoiling width: 300mm
5.Inner diameter: 450-550mm

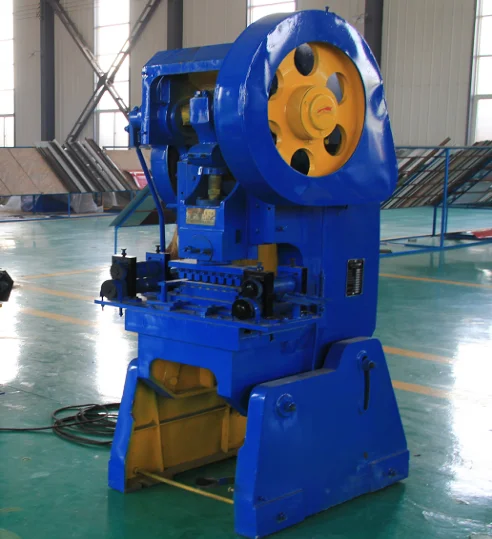

Punching device
1.Working speed：110-130 time/min
2.Main power：3kw
3.Servo coil feeder with PLC control system
4.Punching Pressure: 25 Ton
2.Main power：3kw
3.Servo coil feeder with PLC control system
4.Punching Pressure: 25 Ton
Feeding device
1.Protect coil material
2.With handwheels for easy adjustable.

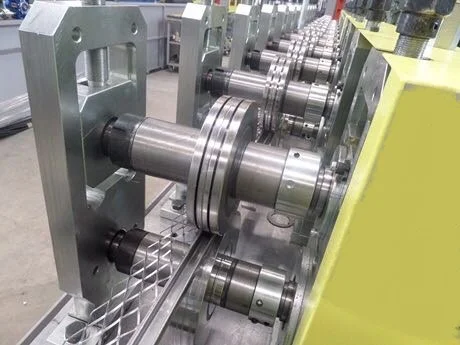

Rollers and shaft
1.Surface with chromed treatment
2.Material:45# steel
2.Material:45# steel

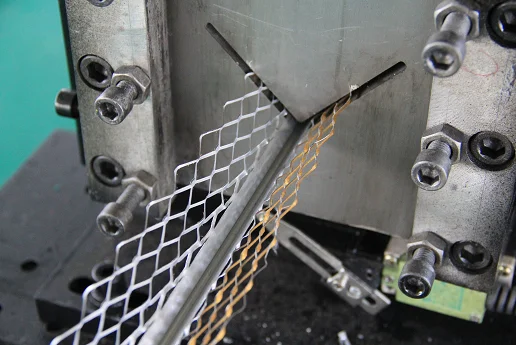

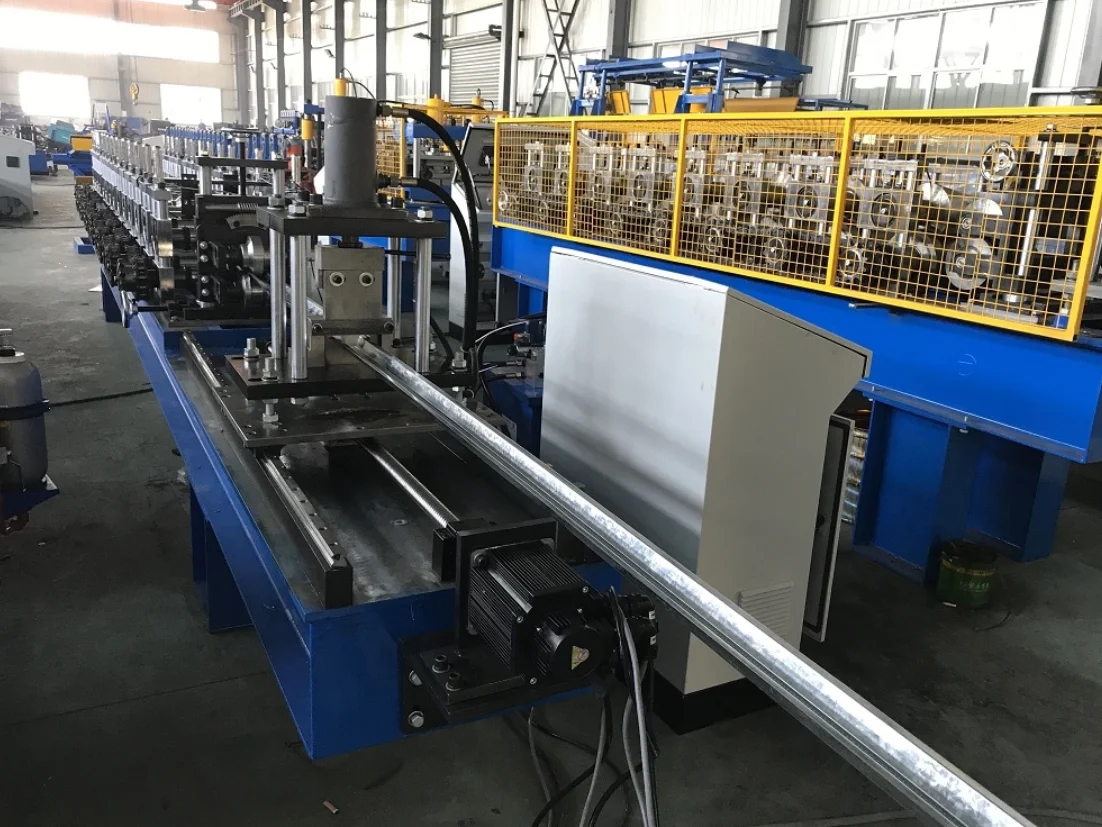

Cutting system
1.Fully automated knuckle pressing
2. Fully automated cut of products
Automatic oil filler
1.Automatic lubrication for the cutter
2.Reduce machine maintenance time and cost

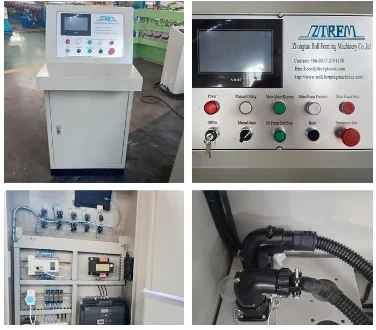

1.Adopt Siemens electronic control, can support remote control
2.Adopt touch screen for easy operation.
3.Adopt aviation plugs for easy installation
4.Languages can be customized

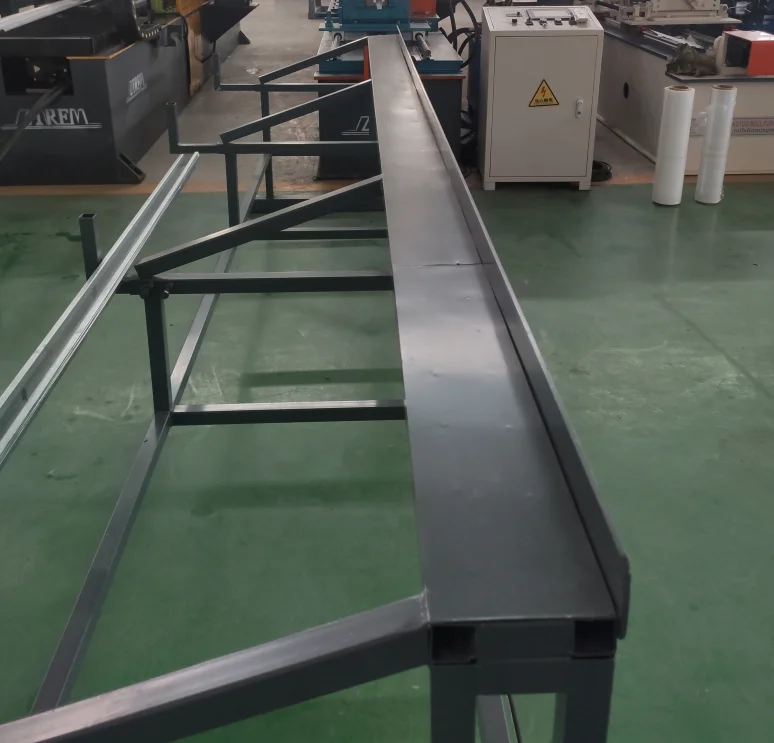

1. Saving manpower
2. Can improve productivity
3. Equipped with rubber wheels and nylon pads to better protect the finished product.
2. Can improve productivity
3. Equipped with rubber wheels and nylon pads to better protect the finished product.
Hydraulic station
1.Updated type
2.Low noise
3.Cooling fan for long service time.
Thermometer
The temperature of the hydraulic station can be measured in real time, more convenient and faster

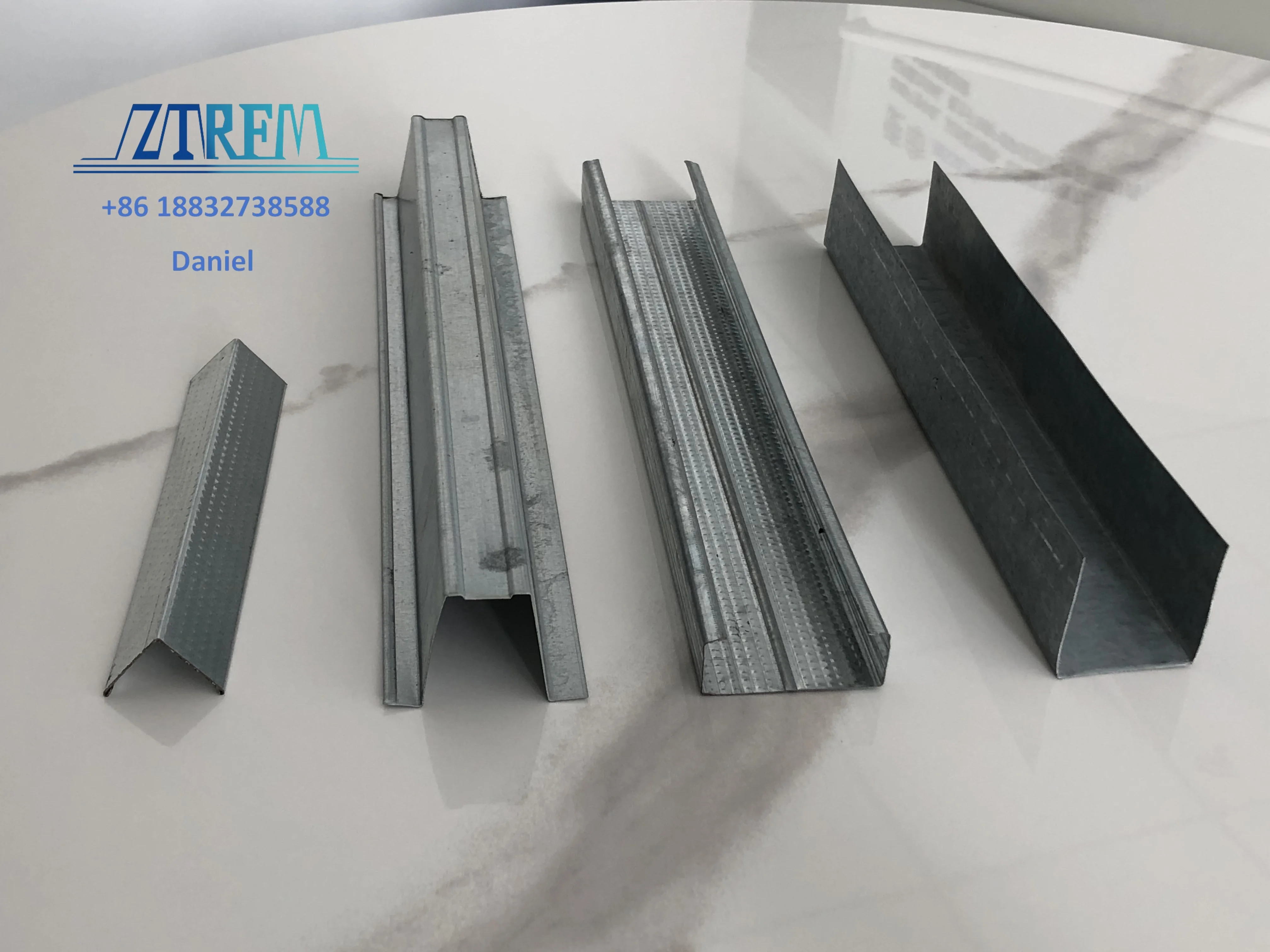

Product display

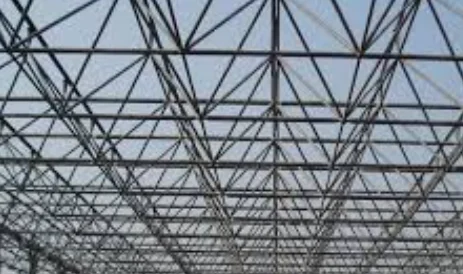

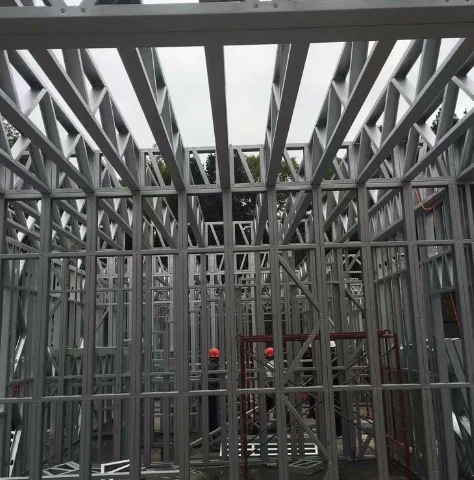

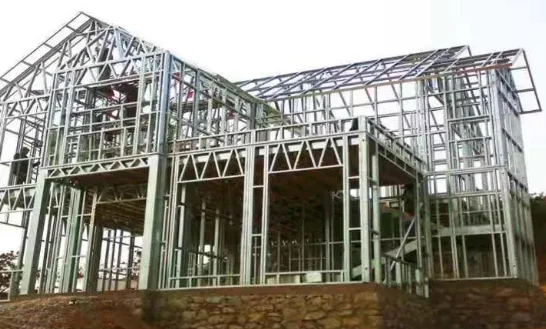

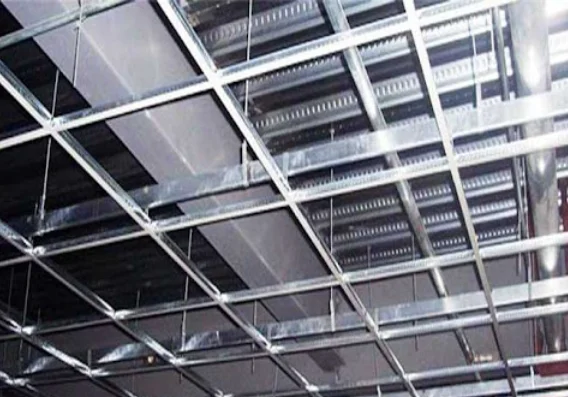

Application
