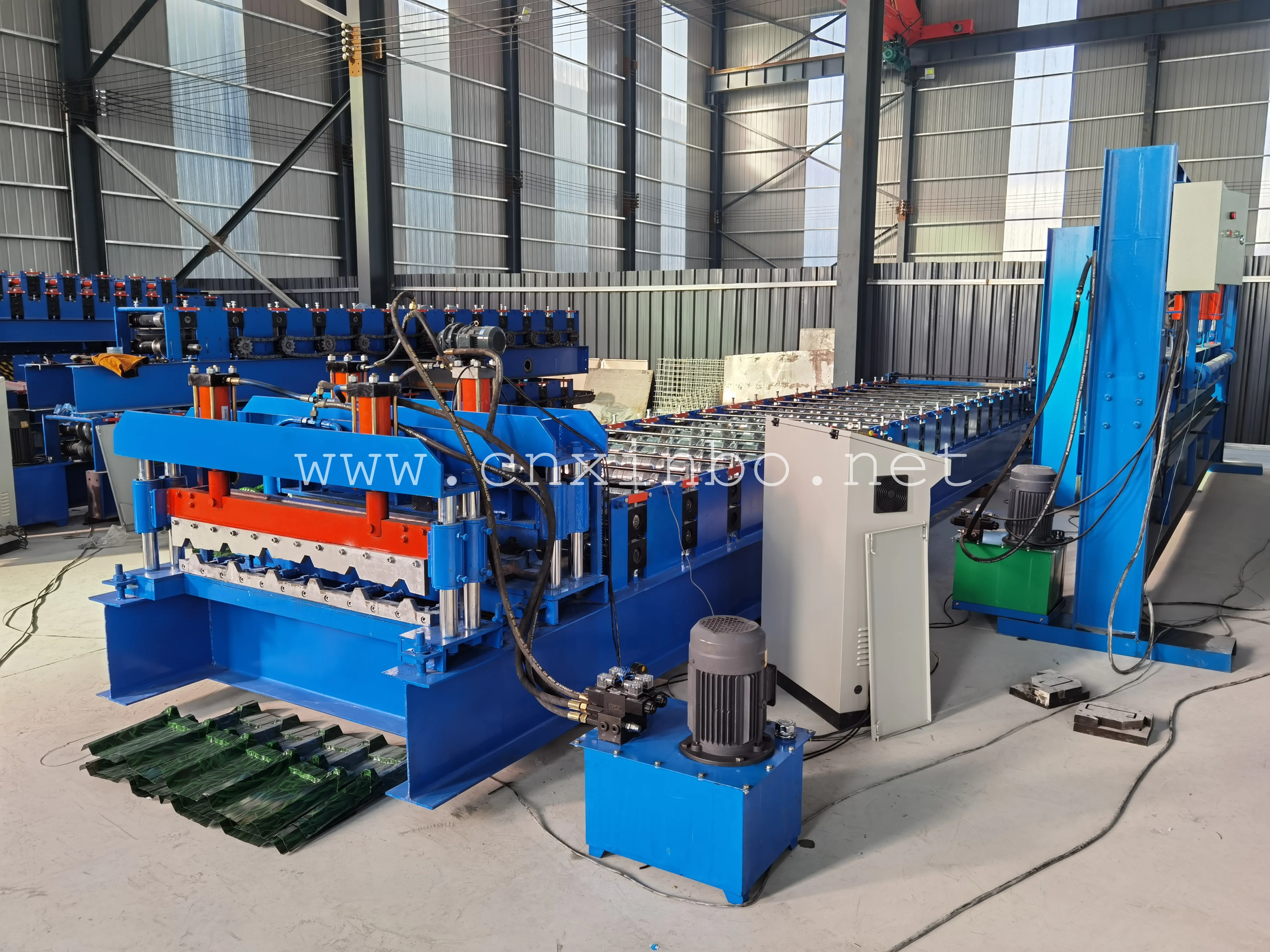

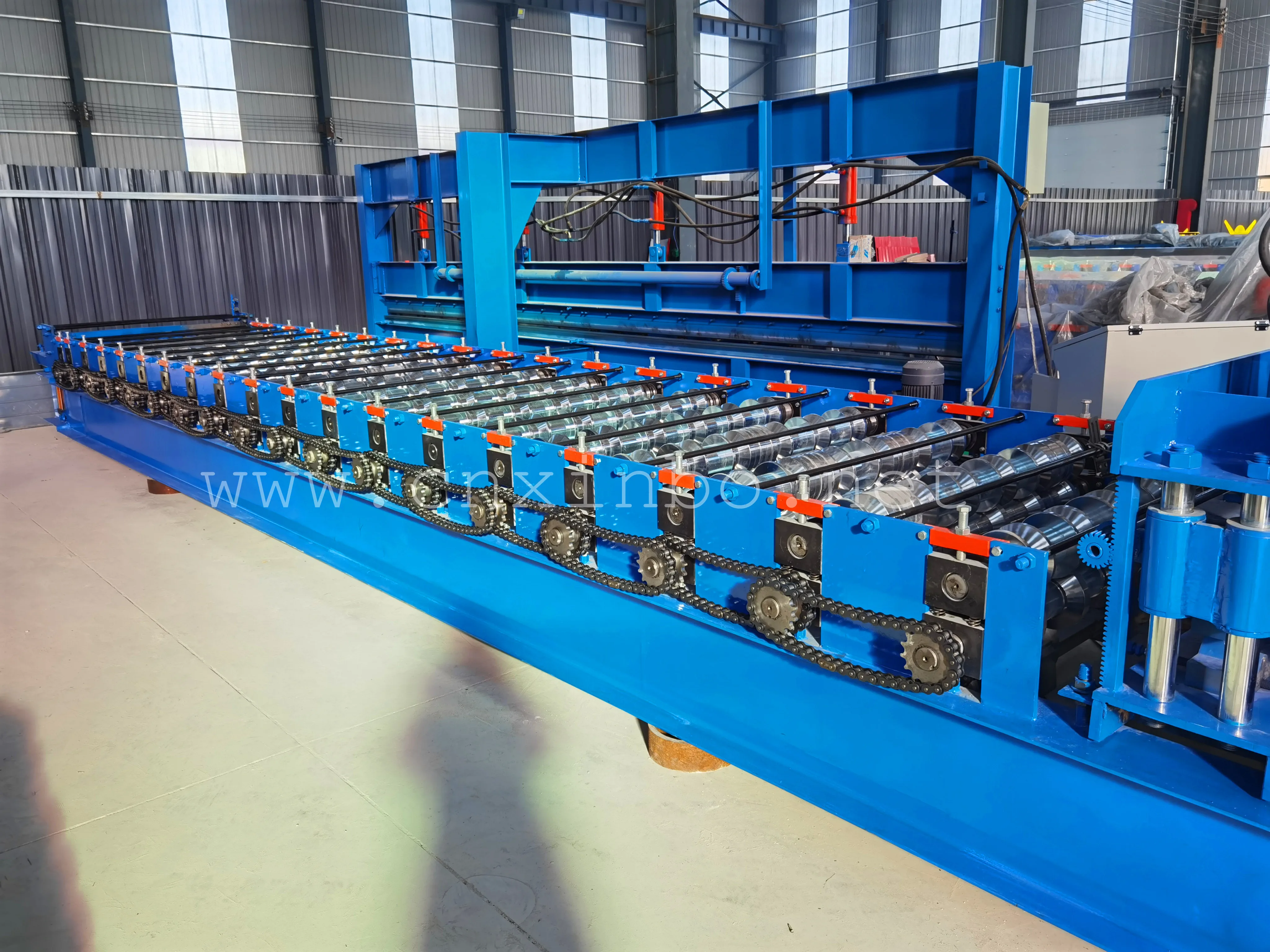

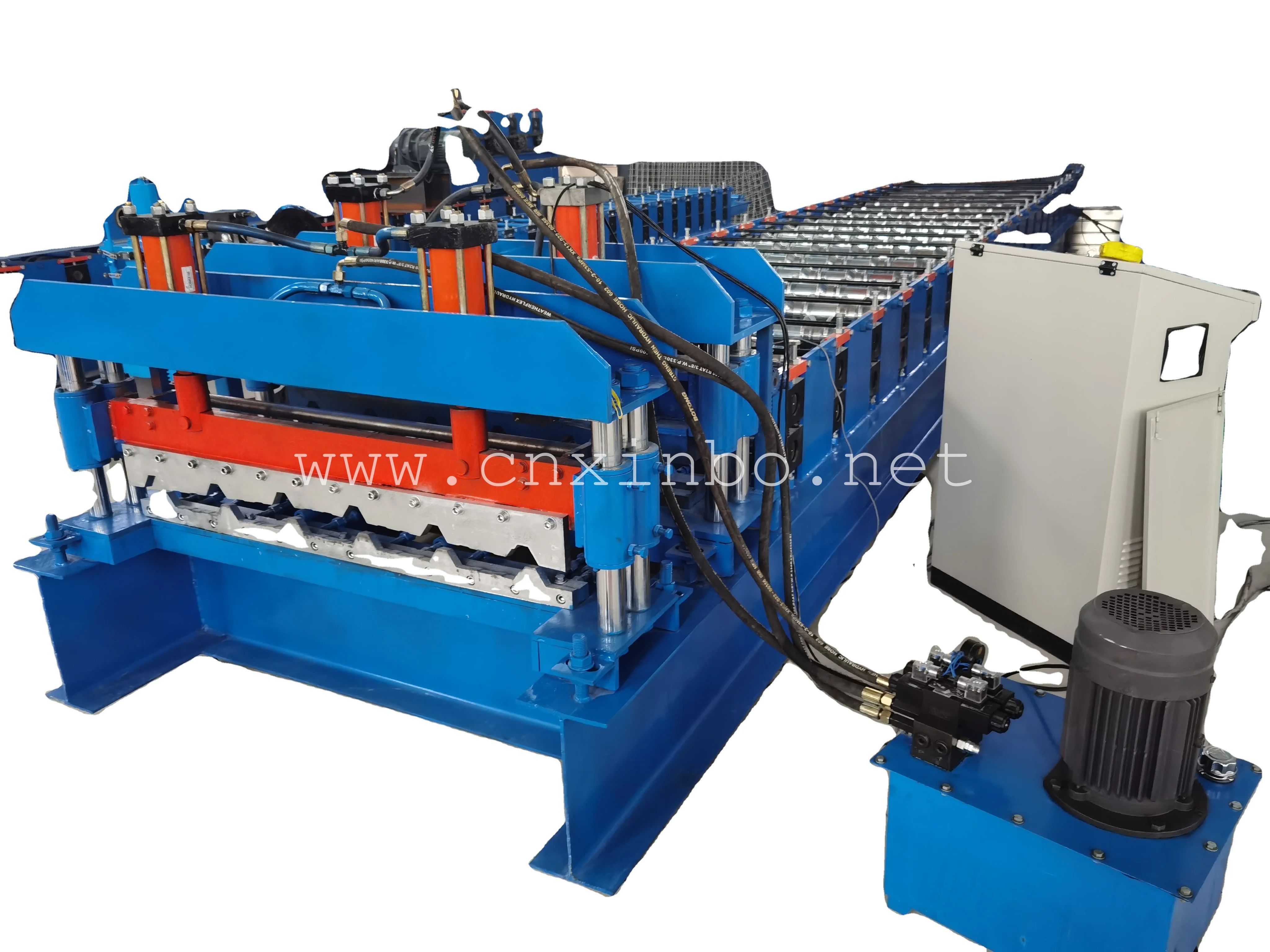

Professional industrial roof panel manufacturing machine glazed tile color roof panel cold roll forming machine price
- Category: >>>
- Supplier: Botou Xinbo Import And Export Trade Co. Ltd
Share on (1601277735430):
Product Overview
Description

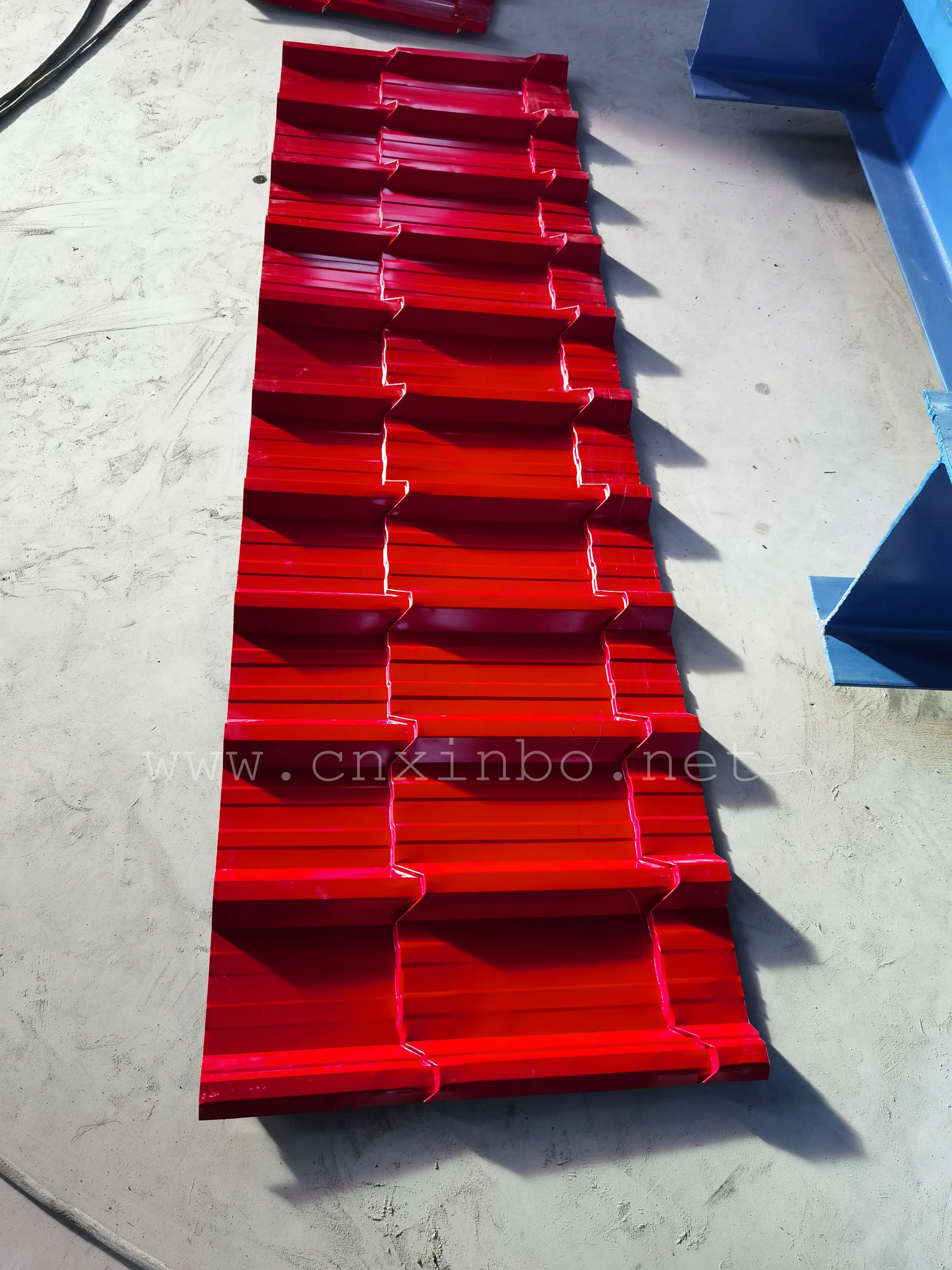

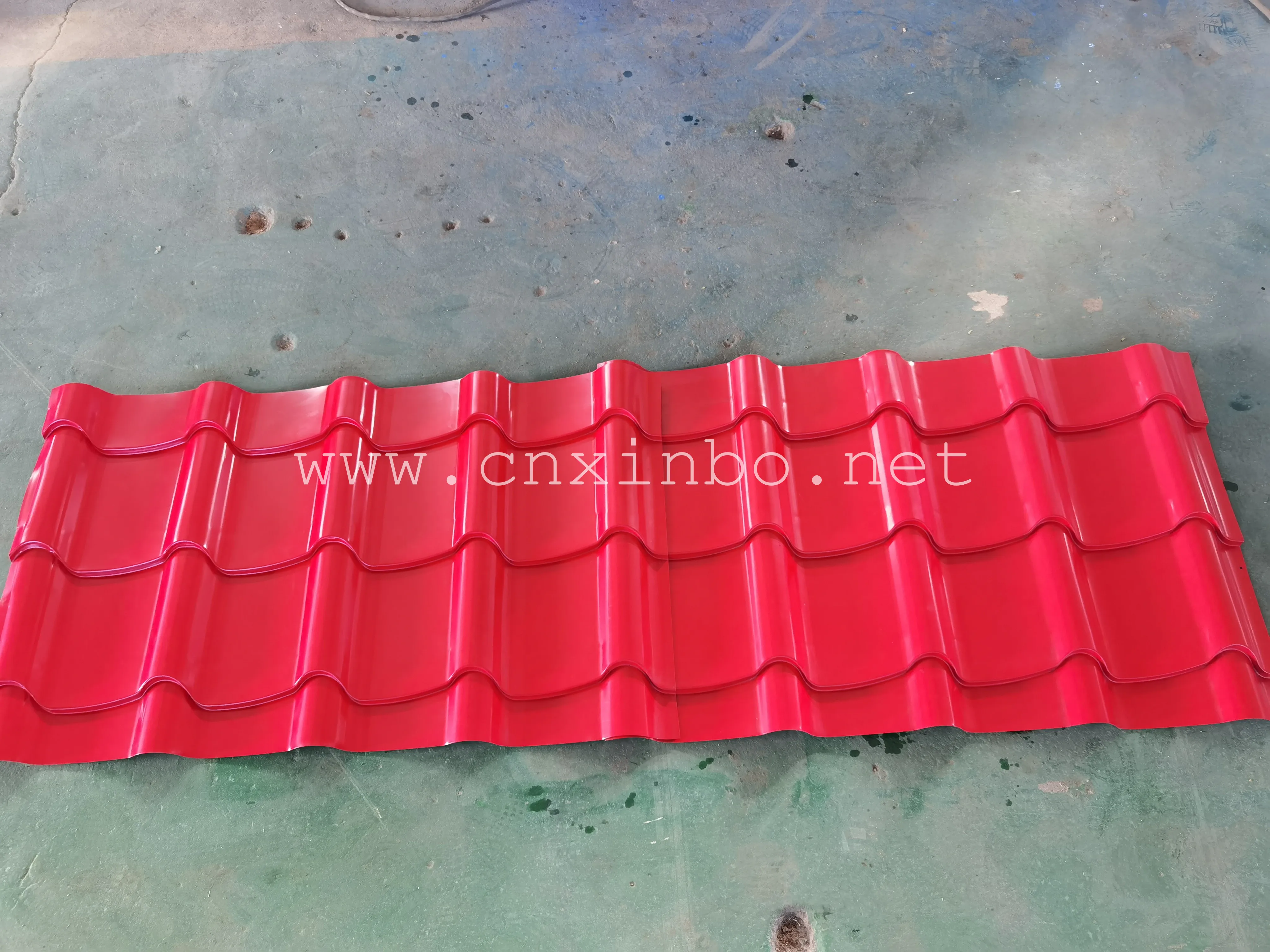

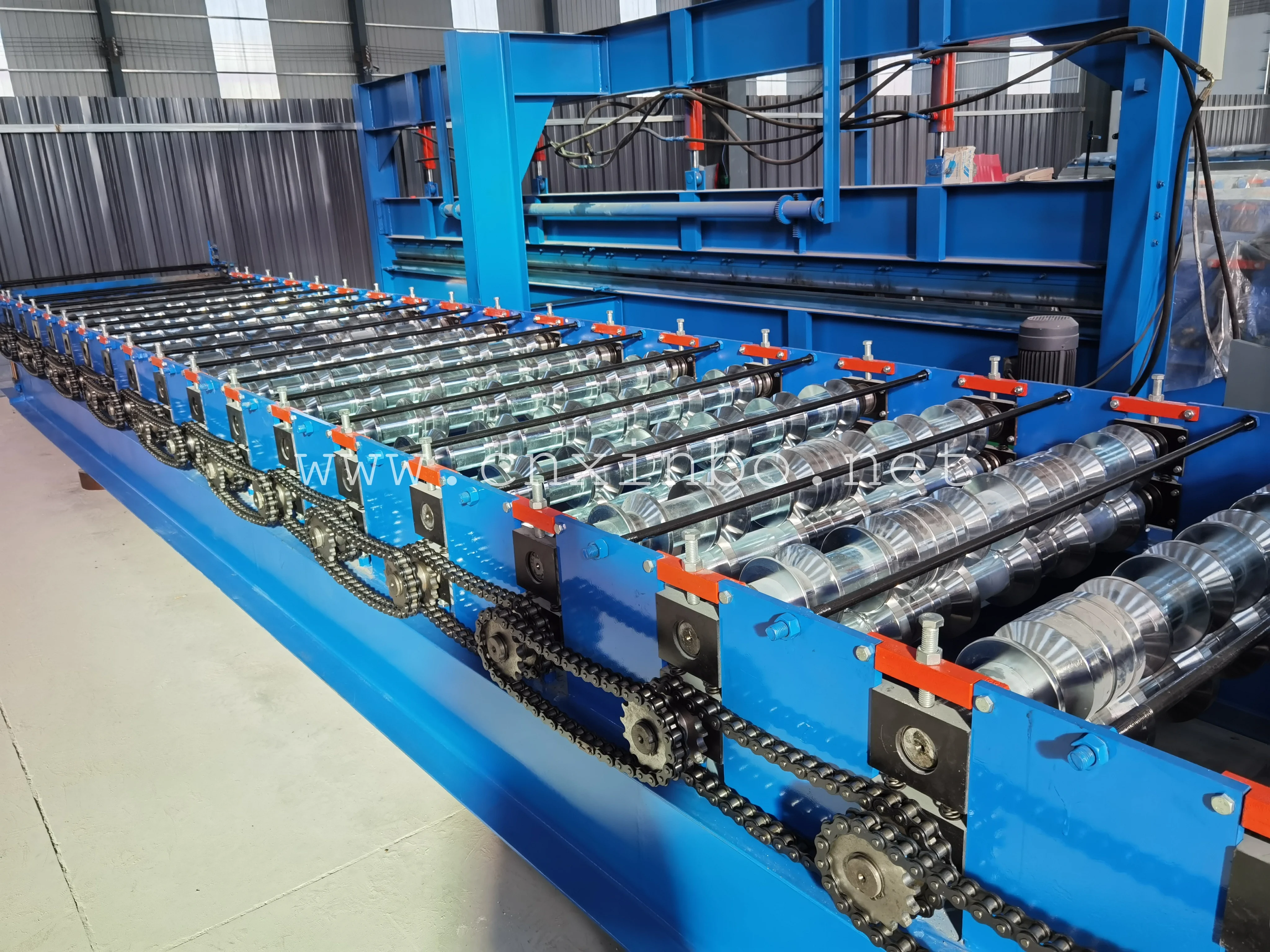

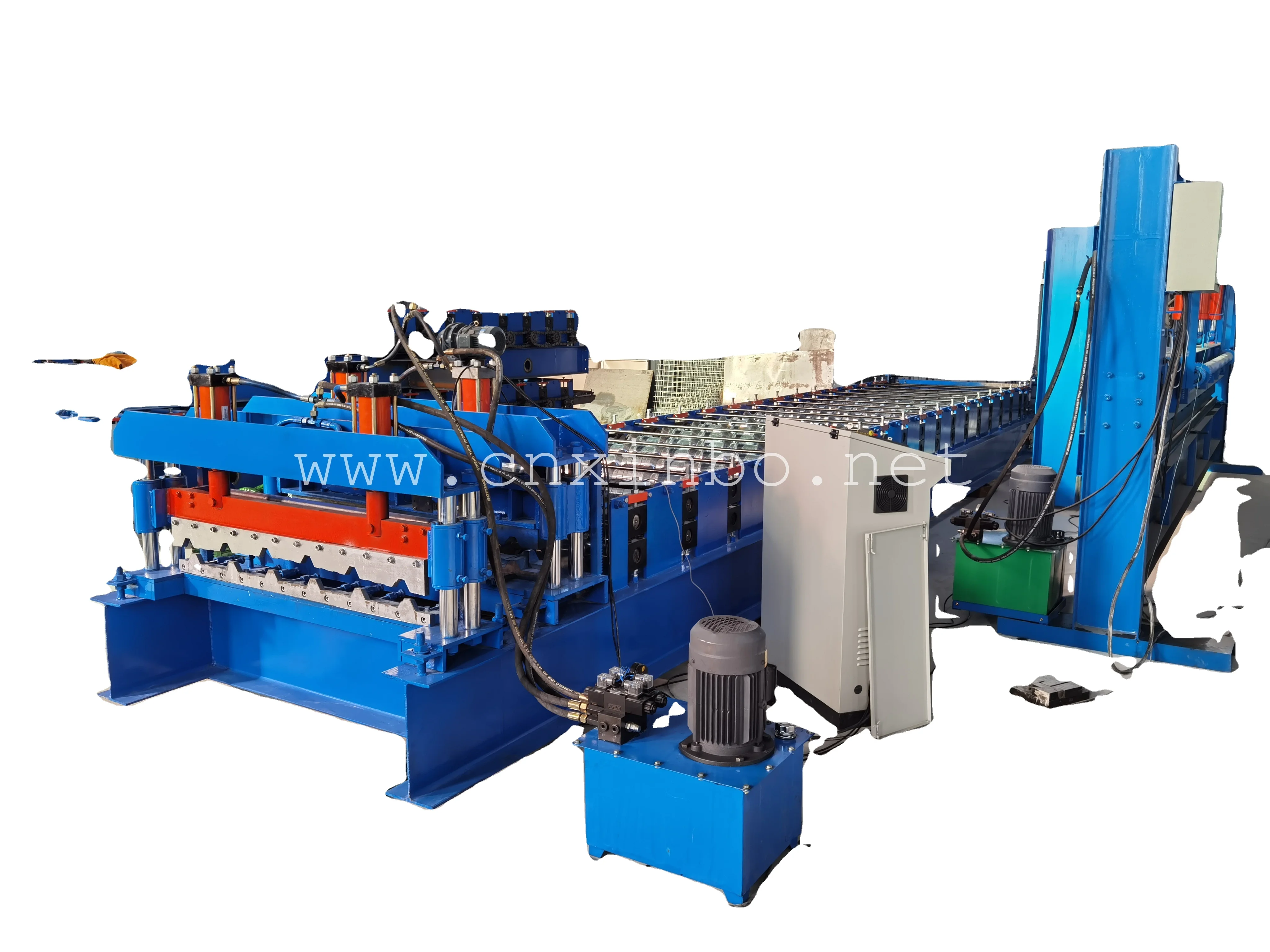

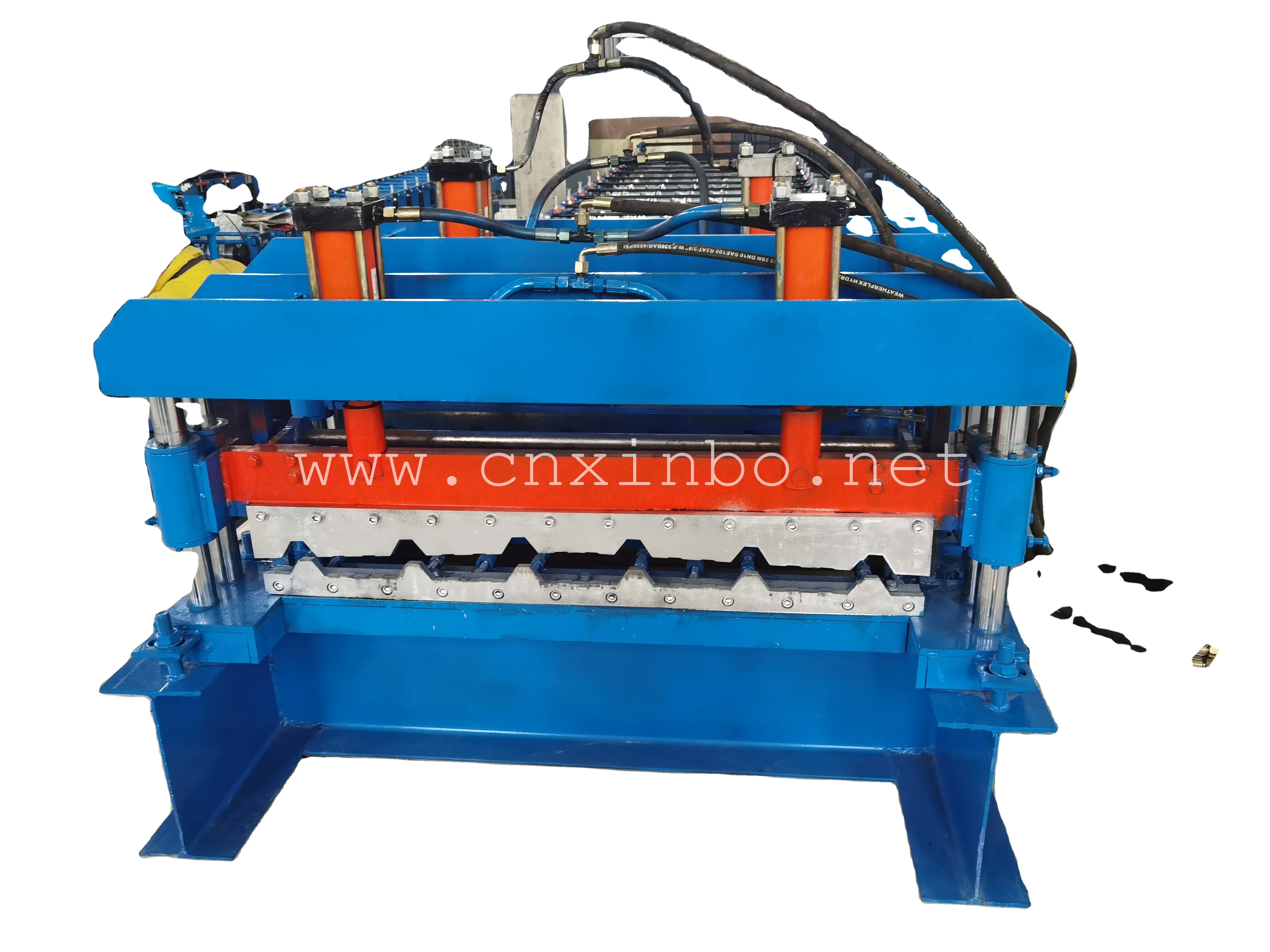

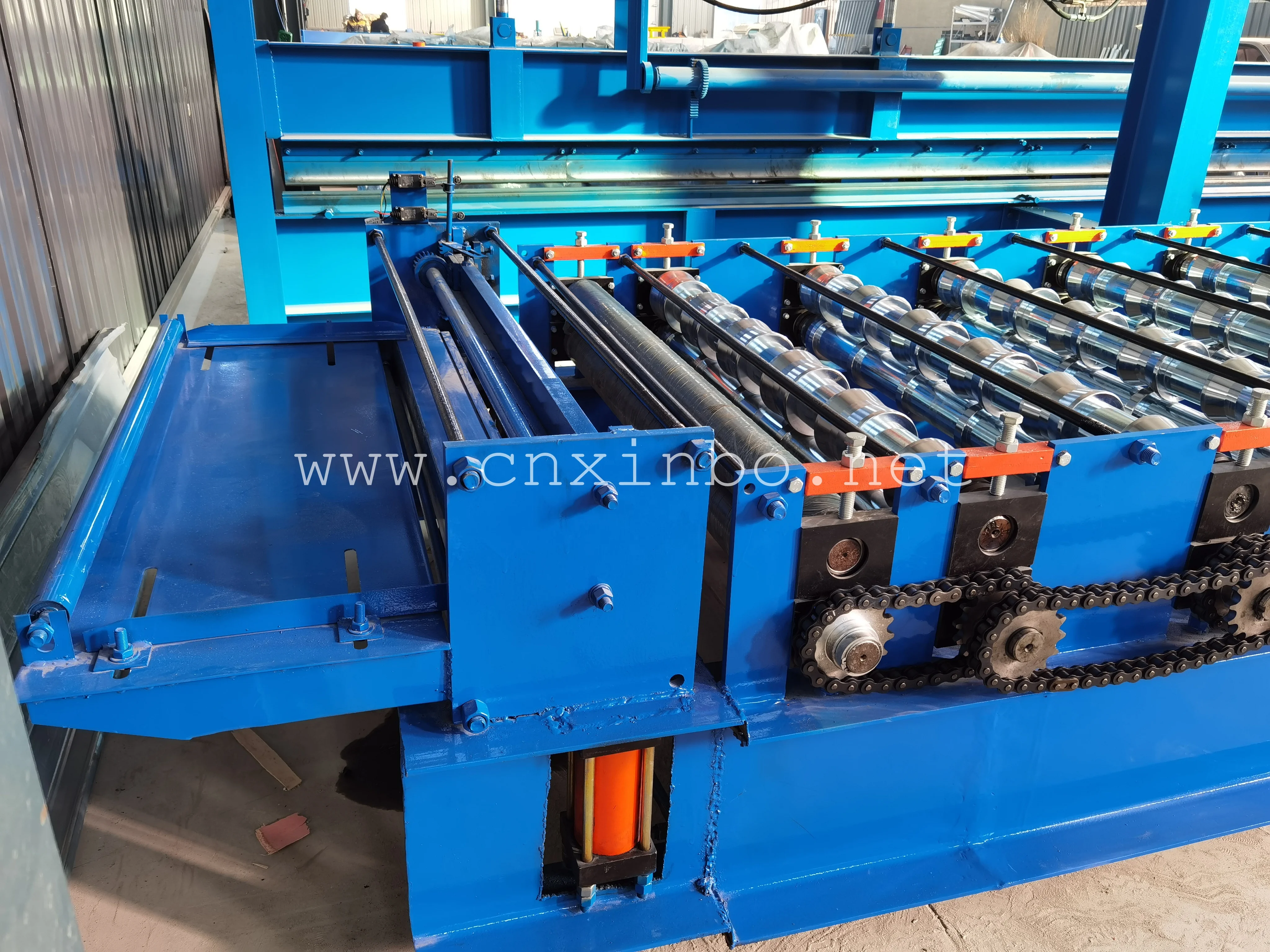

Glazed Tile roof panel roll forming machine
Glazed Tile are widely used in building: the steel-structured large scale warehouses,plants,supermarkets, shopping malls, trade markets, stadiums, holiday villages,sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What’s more,equipment can be designed and manufactured as customers’ requests.
Product Details
Product Description
Suitable material | Color steel sheet , galvanized steel sheet | ||||||
Main motor power | 4KW with Cycloidal reducer | ||||||
Hydraulic station power | 4kw | ||||||
Hydraulic oil | 40# | ||||||
Thickness | 0.3-0.8mm | ||||||
Diameter | Φ95mm | ||||||
Electric tension | 380V 3phase 50HZ | ||||||
Material of roller | High grade 45# forged steel | ||||||
Rolling galvanization thickness | 0.3-0.8mm | ||||||
Processing speed | 10-15m/min | ||||||
Processing precision within | 10m+/-1.00mm | ||||||

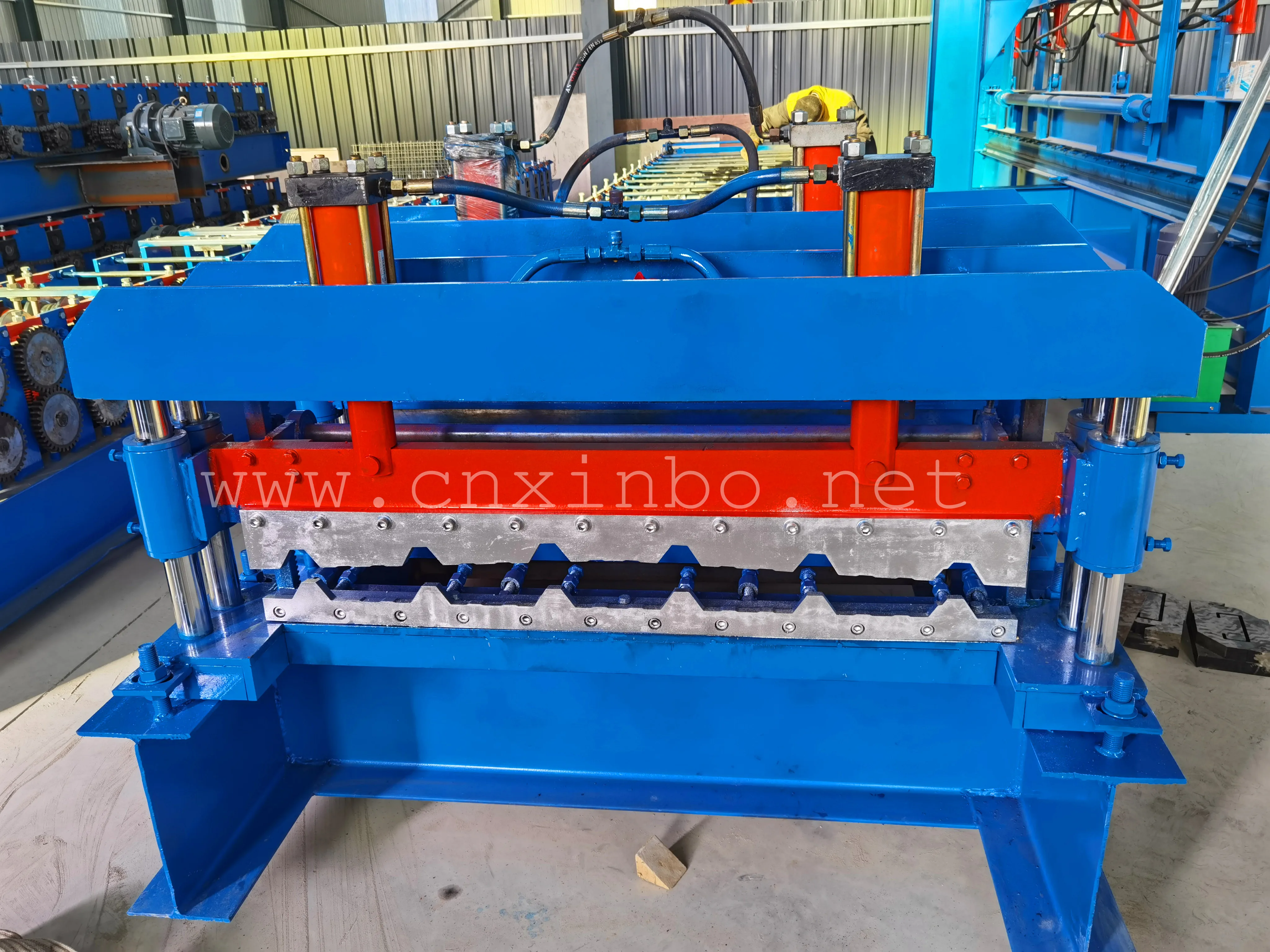

Material of cutting blade | Cr12 quenched | ||||||
