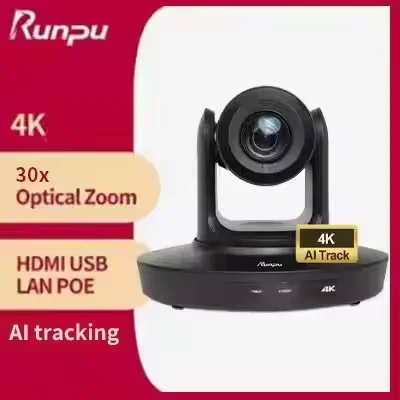

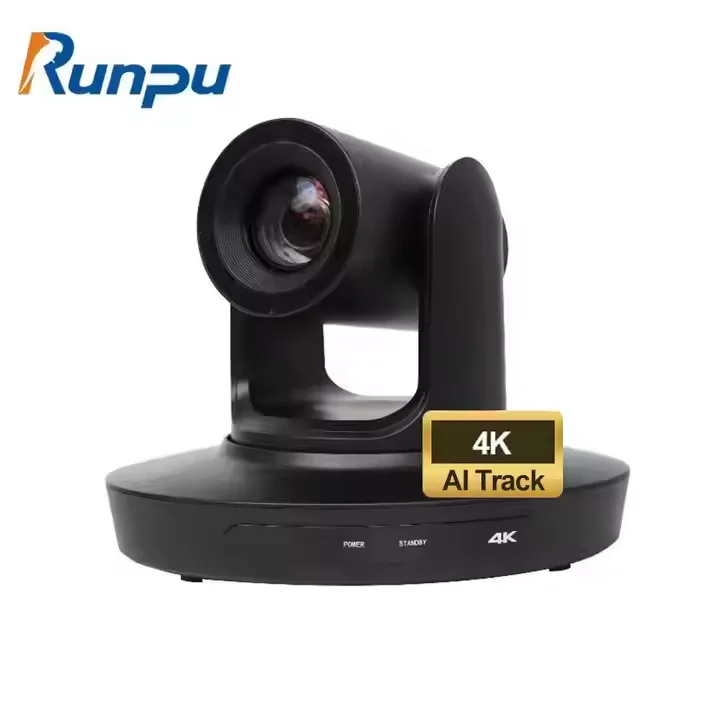

USD1198 Free ship Broadcast bundle G430= 3 pcs 4K 30X PTZ Conference Camera hd mi lan usb poe AI track a Controller poe switch

AI auto tracking 4K 20X HDMI LAN USB3.0 PTZ Camera Parameters

Video Format: 3840×2160P@30fps/25fps
Effective Pixels: 8.5 megapixel, 16：9
Sensor: 1/2.8 inch high quality CMOS sensor
Video Output HDMI LAN USB3.0

Optical Zoom: 30x Optical Zoom
View Angle: 8.8°～ 70°
Focus Length: f=4.34mm～41.66mm
AV: F1.85 – F2.43
Minimum Illumination: 0.5 lux （F1.8, AGC ON）
DNR: 2D & 3D
White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus: Auto / Manual/ One Push Focus
Exposure: Auto / Manual
BLC: On/Off
Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
SNR: >55dB

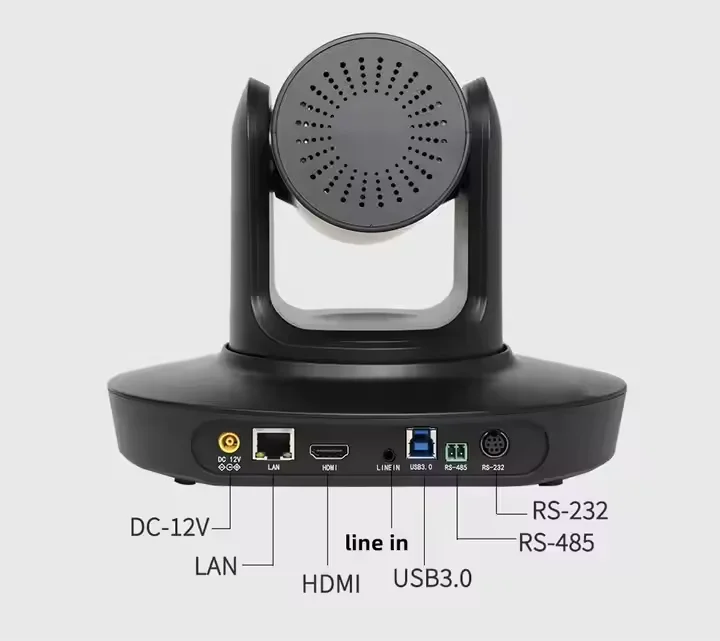

Input/output Interface
Video Output HDMI LAN USB3.0 POE
Video Compression Format MJPG, H.264, H.265
Control Interface RS232 (IN/OUT), RS485
Control Protocol VISCA/Pelco-D/Pelco-P
Power Interface HEC3800 outlet (DC12V)

USB Feature
Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc
Video Compression Format: MJPG, H.264, H.265
USB Communication Protocol: UVC

PTZ Parameters
Pan Rotation: -170°～+170°
Tilt Rotation: -30°～+90°
Pan Control Speed: 0.1 ～60°/sec
Tilt Control Speed: 0.1～30°/sec
Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
Preset Number: 255 presets (10 presets via remote control)

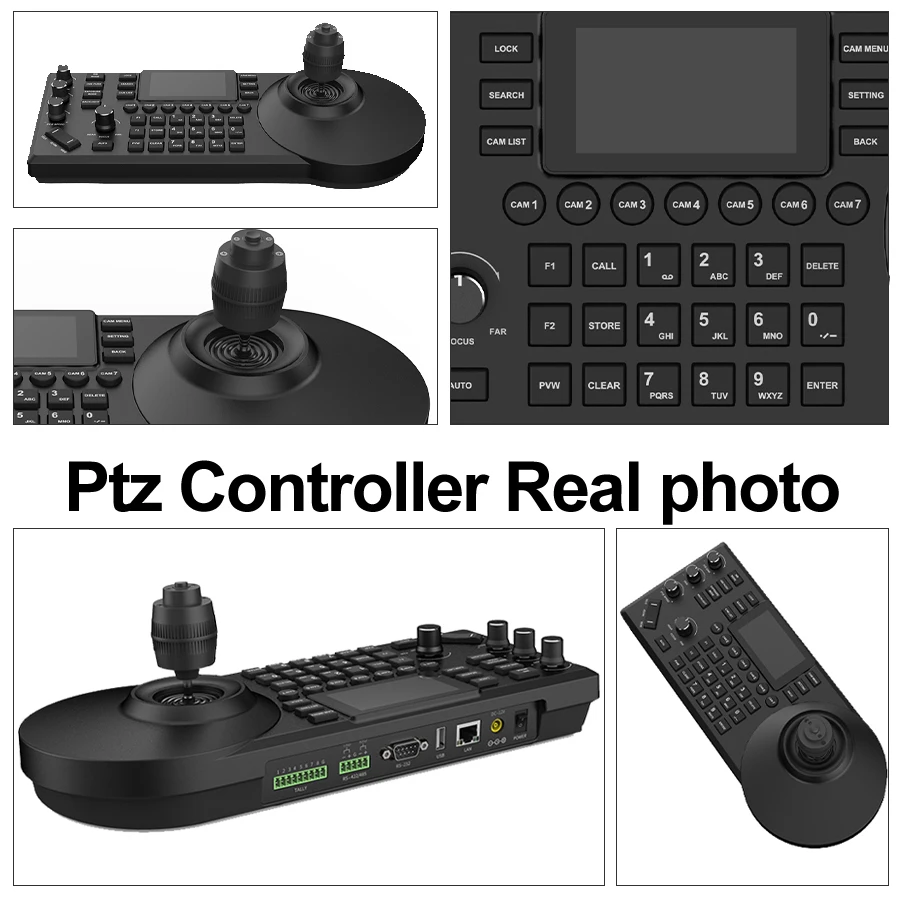

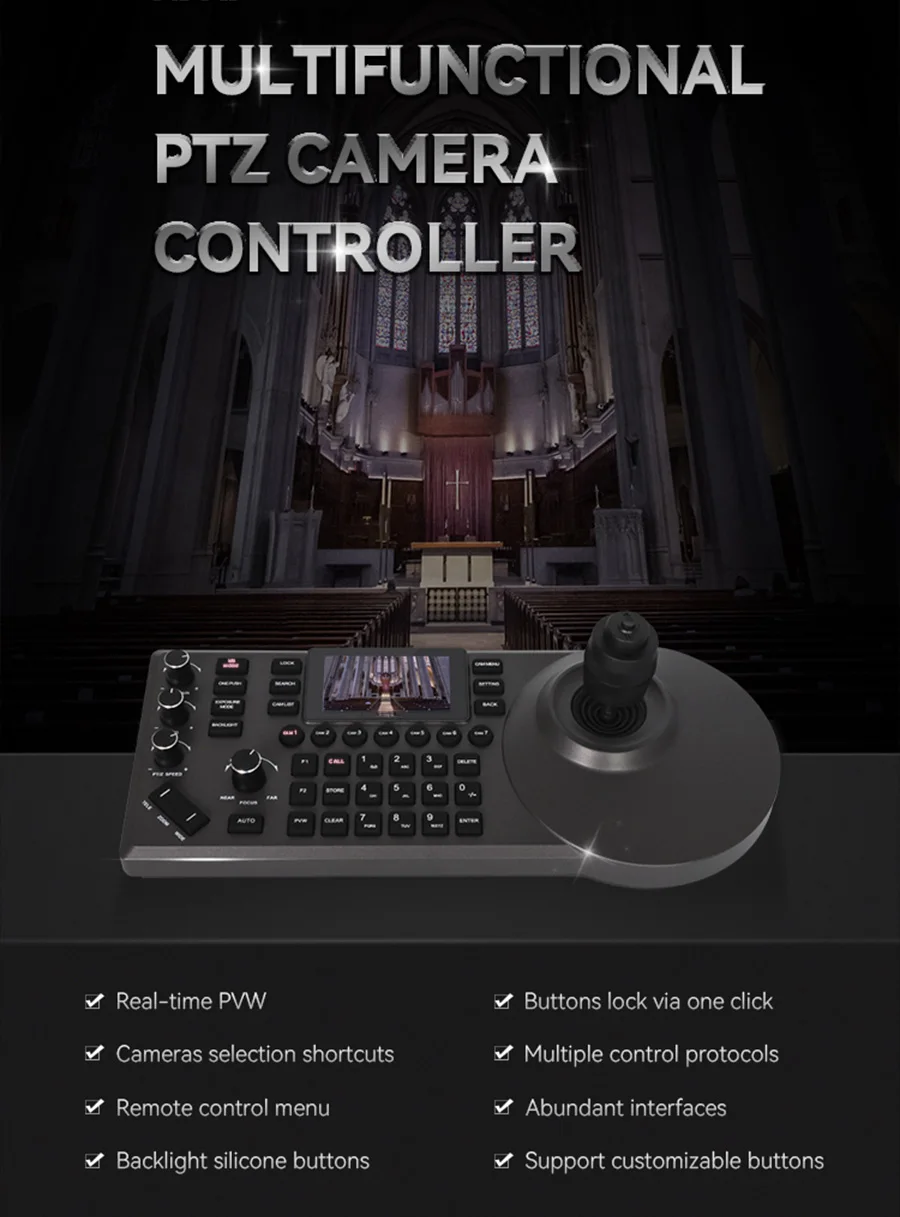

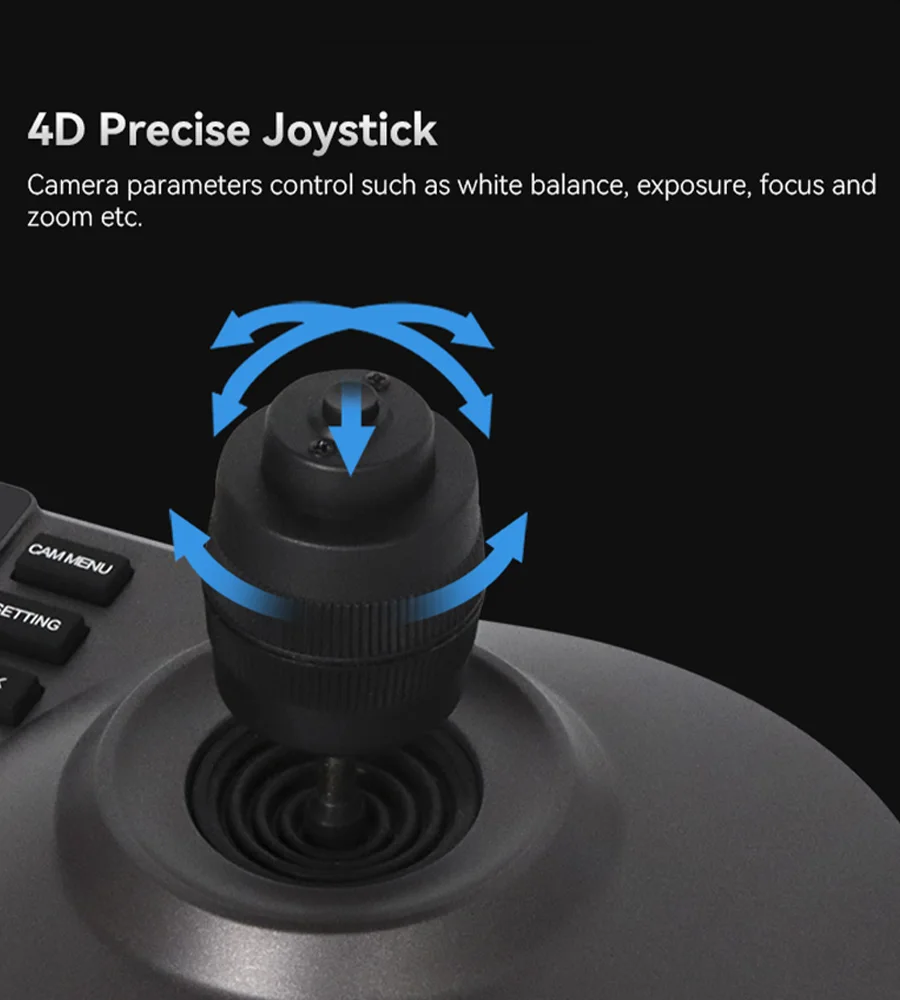

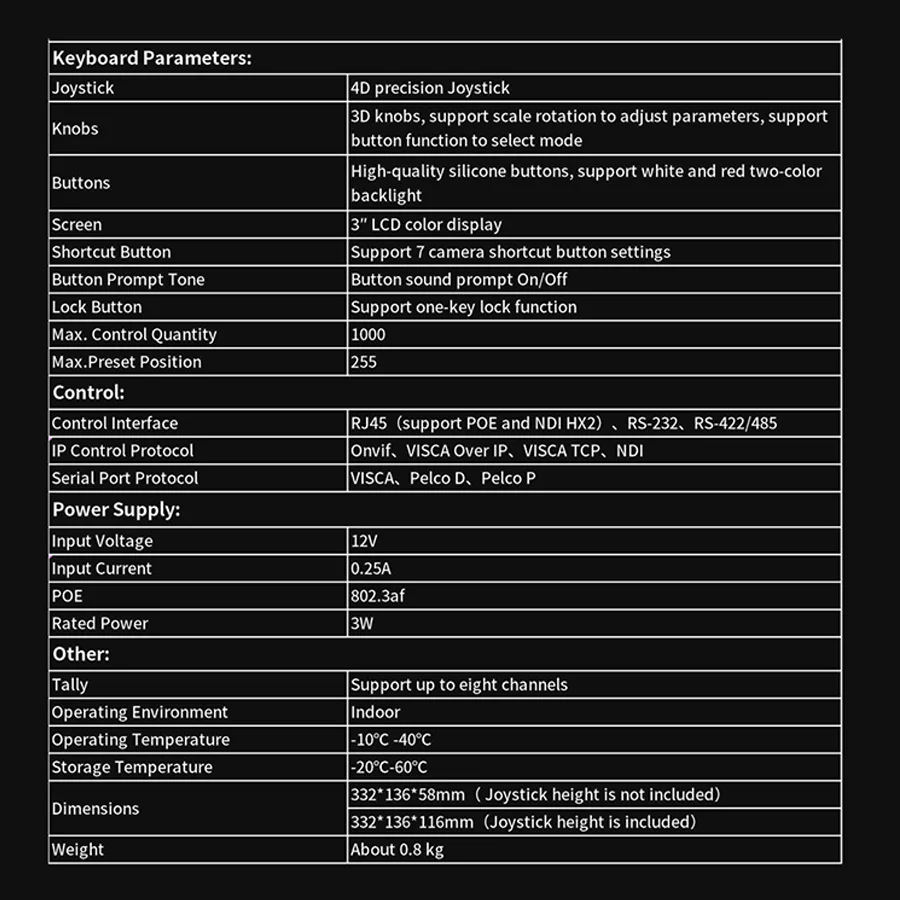

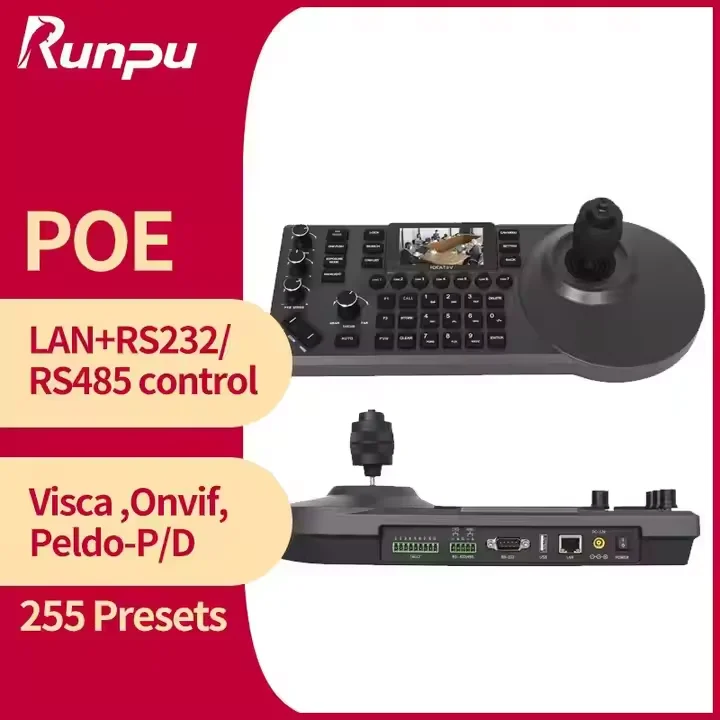

Key Features of IP 4D Joystick Controller

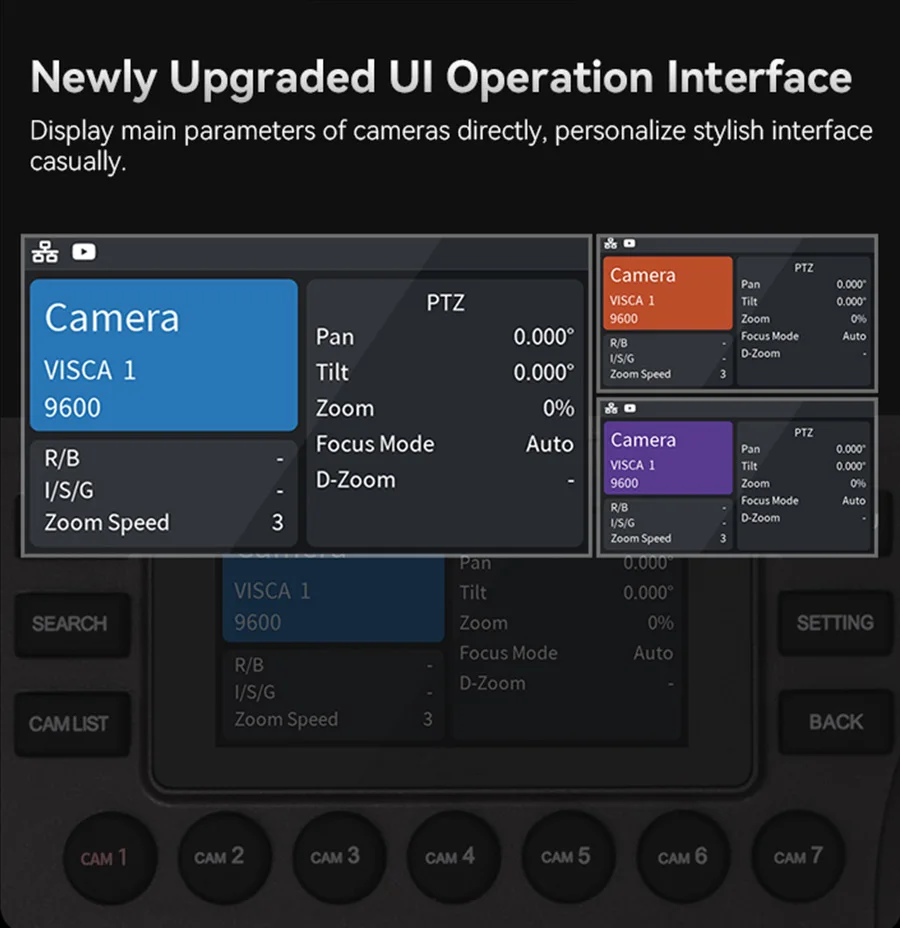

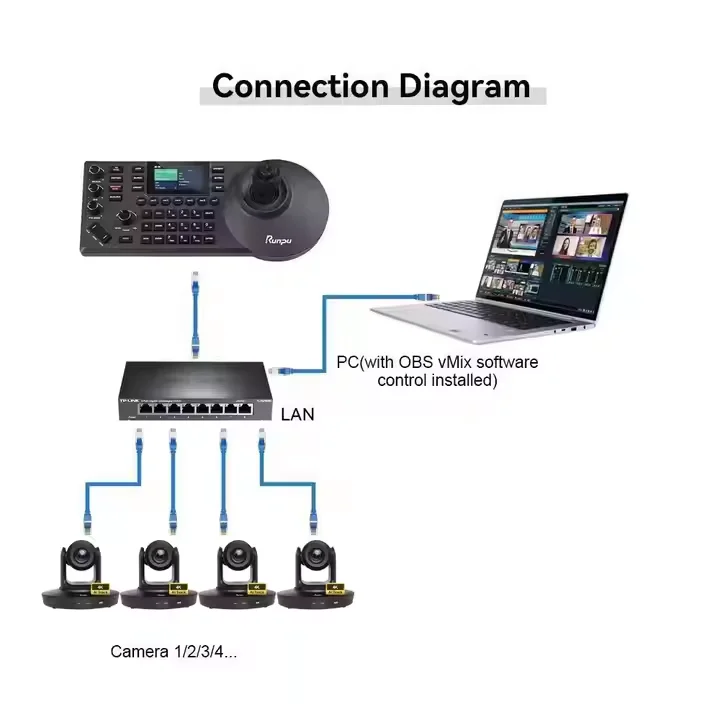

★ with RJ45 3-dimensional, 5-inch high-definition screen can display an image* Support Vmix ONVIF2.4,Support for H.265/ H.264 and
hikvision agreement. ,not the back-end PTZ manufacturers restrictions, easy to set
preset points, 2 points scanning, etc. functions;* Plug and play, without any set, the keyboard automatically add and assign
IPaddresses;
★ Supports USB, HDMI output, enabling the main screen console screen arbitrary switchingn
★RS485 control bus, can control up to 255 front-end addresses, and up to 128 devices in parallel at the same time;

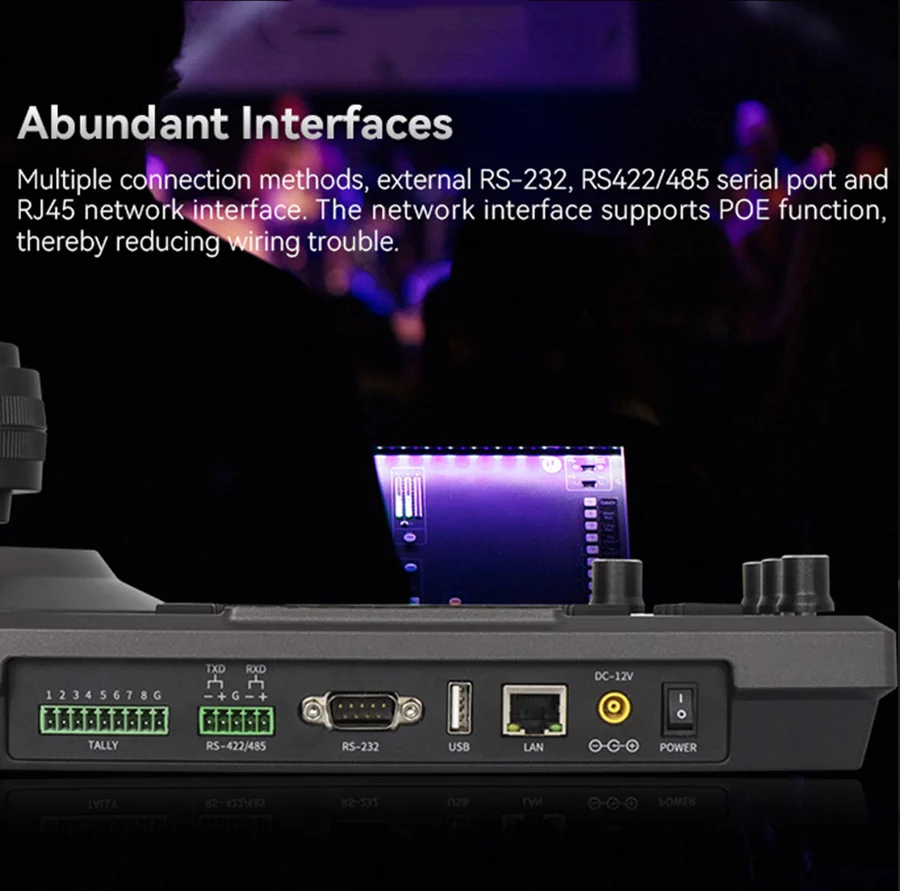

★All input and output interfaces adopt lightning protection design, with strong anti-interference ability, and the standard
transmission distance is 1200 meters;
★Up to 15 keyboards can be connected to the cascade port;

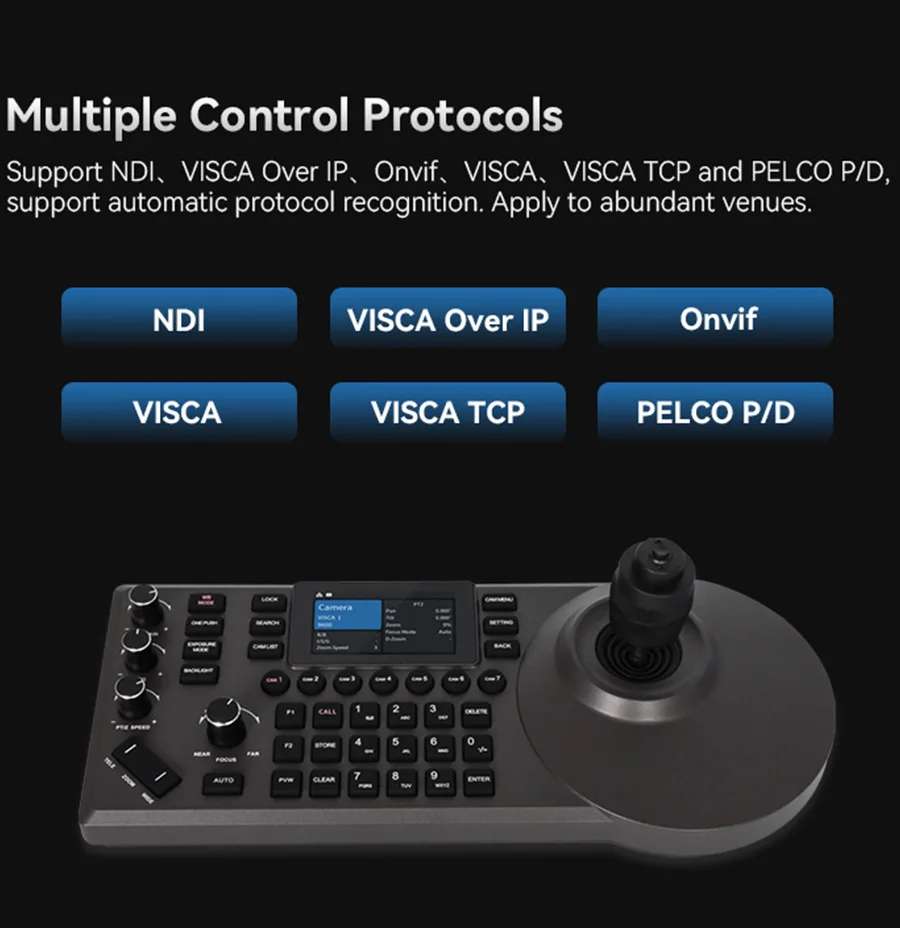

★Special standard SONY VISCA protocol 9600bps, 19200bps;
★Keyboard operation password lock function;
★Keyboard stepless speed change;
★7 conference machines with cascade control function.
