New Shacman F3000 8x4 dump truck engine 380hp/430hp diesel Cargo Trucks with factory price
- Category: >>>
- Supplier: Jinan Quanyu Import And Export Co. Ltd.
Share on (1601277850135):
Product Overview
Description

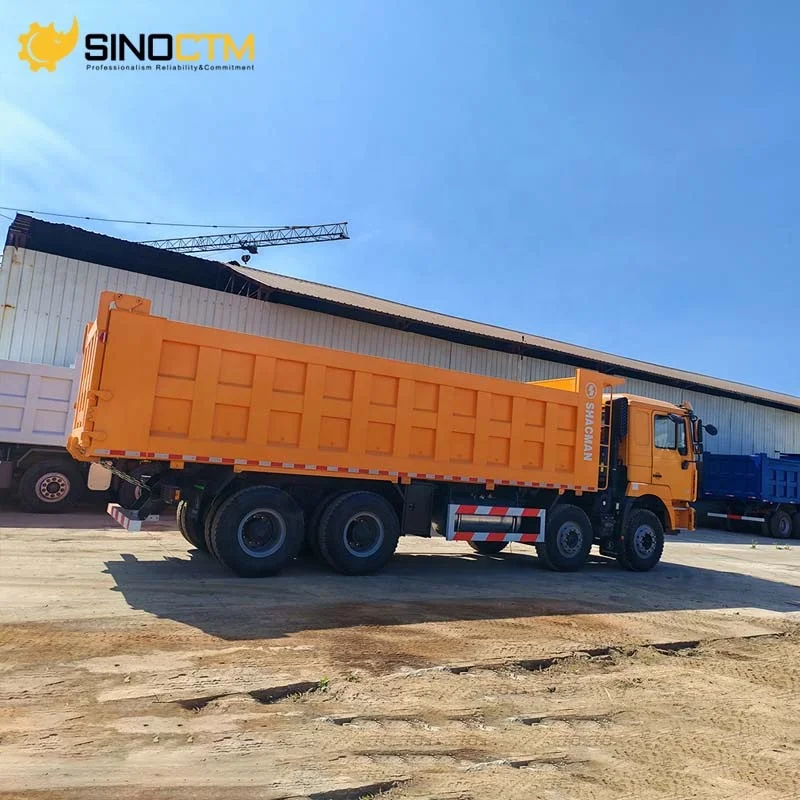

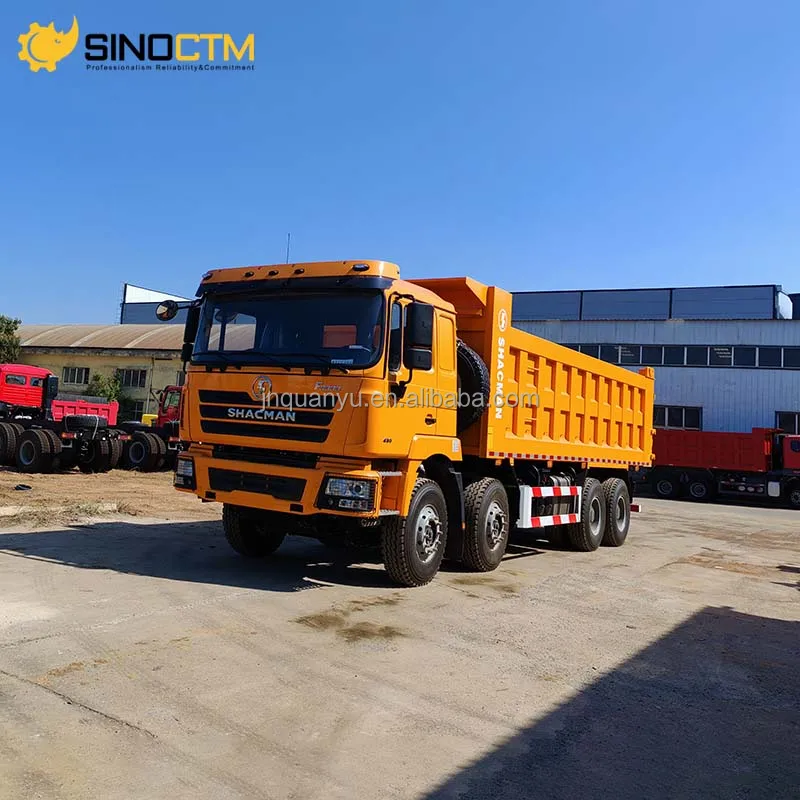

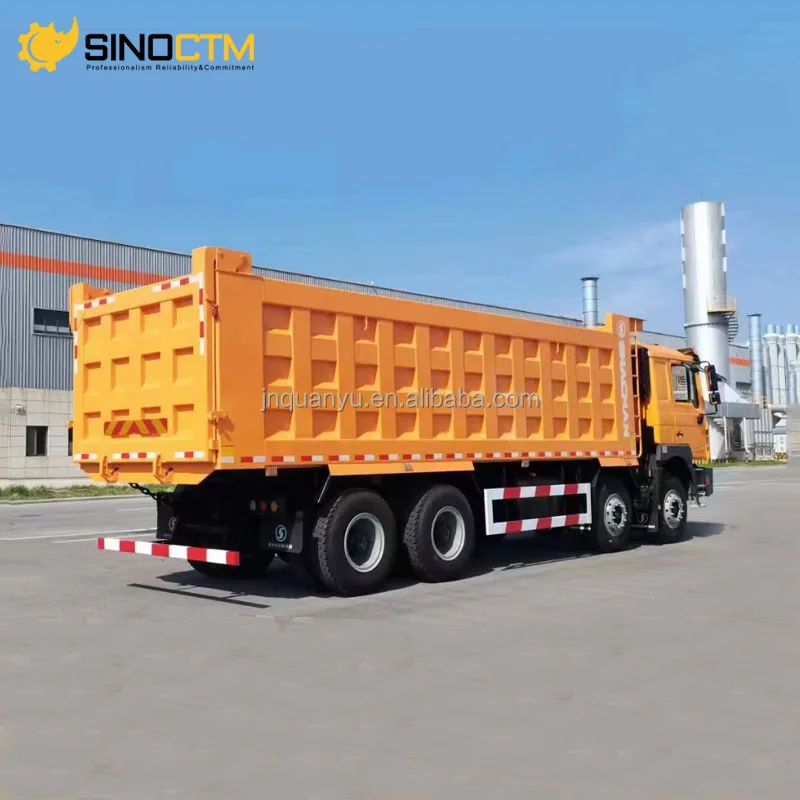

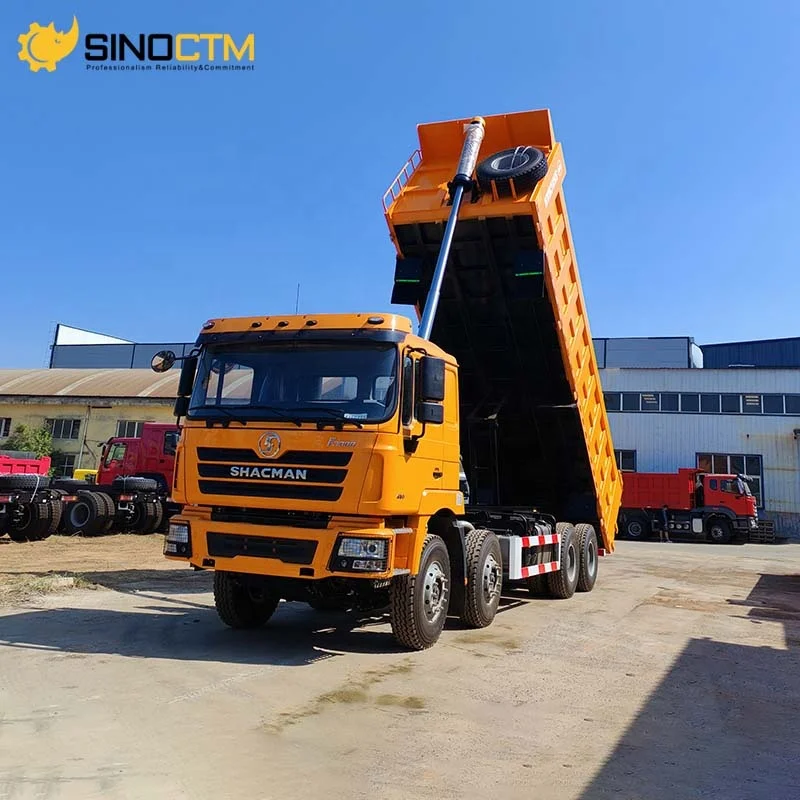

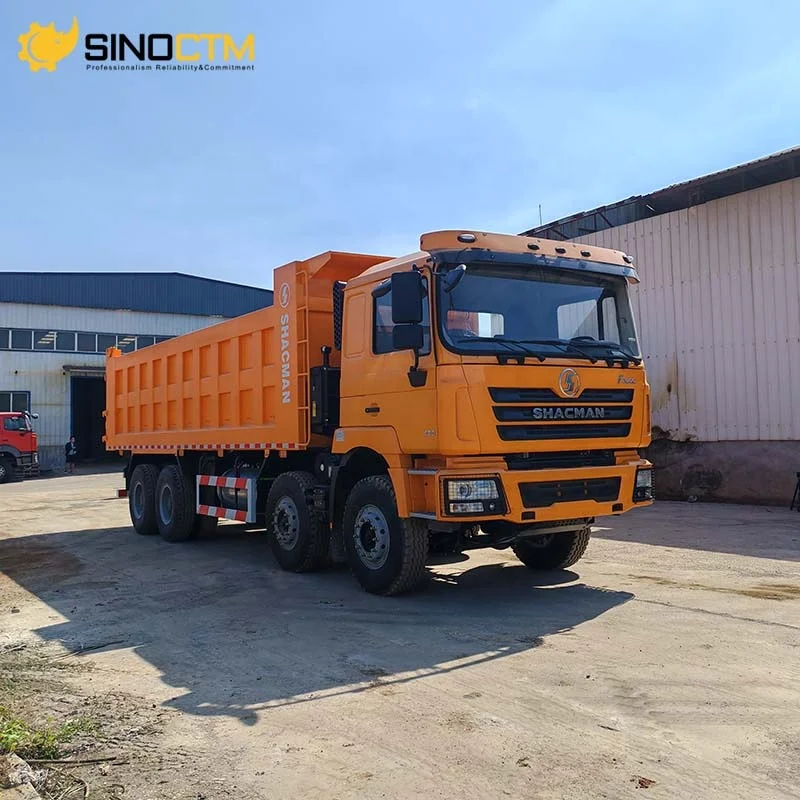

Shacman / Sinotruk New Design TIPPER DUMP Truck
Our Main Products Heavy Trucks Electric Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price..
Product Description
Specification
Modle | SX3215DV366C(LHD) |
Driving type | 8x4 |
Type | dump truck |
Weight(Kg) | |
Kerb mass (Kg) | 17500 |
GVW(Kg) | 70000 |
Dimensions | |
LxWxH (mm) | 10350x2550x3450 |
Wheel base (mm) | 1800+3575+1400 |
Performance | |
Max. speed ( km/h) | 80 |
Max. grade ability(%) | 30 |
Engine | |
Brand | SHACMAN |
Modle | ISME420 30 |
Rated Output (kw/HP) | 306/420 |
Torque(N.m/rpm) | 2010/1200 |
Rated speed(r/min) | 1900 |
Displacement (L) | 10.8 |
Emission standard | Euro III |
Transmission | |
Brand | FAST |
Model | 12JSD200T-B |
Control type | Manual |
Gear shift | 12-forward and 2-reverse speeds |
PTO | QH50 |
Clutch | |
Type | Diaphragm spring |
Diameter (mm) | Ф430 |
Axles | |
Brand | MAN |
Front axle | 9500Kg*2 |
Rear axle | 16000Kg*2 |
Gear ratio | 5.262 |
Brakes | |
Type | Drum |
Service brake | With dual-circuit compressed air brake |
Parking brake | Power spring brake acting on front & rear wheel |
Steering | |
Type | left hand drive |
Suspension | |
Type | Front& rear many-leaf spring，4-main leaves+4 U-bolts |
Frame | |
Type | 850x300(8+7）mm |
Tyre | |
Type | 12.00R20 |
Numbers | 12+1 pcs |
Fuel tank | |
Tank capacity (L) | 400L |
Material | aluminium alloy |
Electric system | |
Type | 24V |
Battery | 165Ah |
Cabin | |

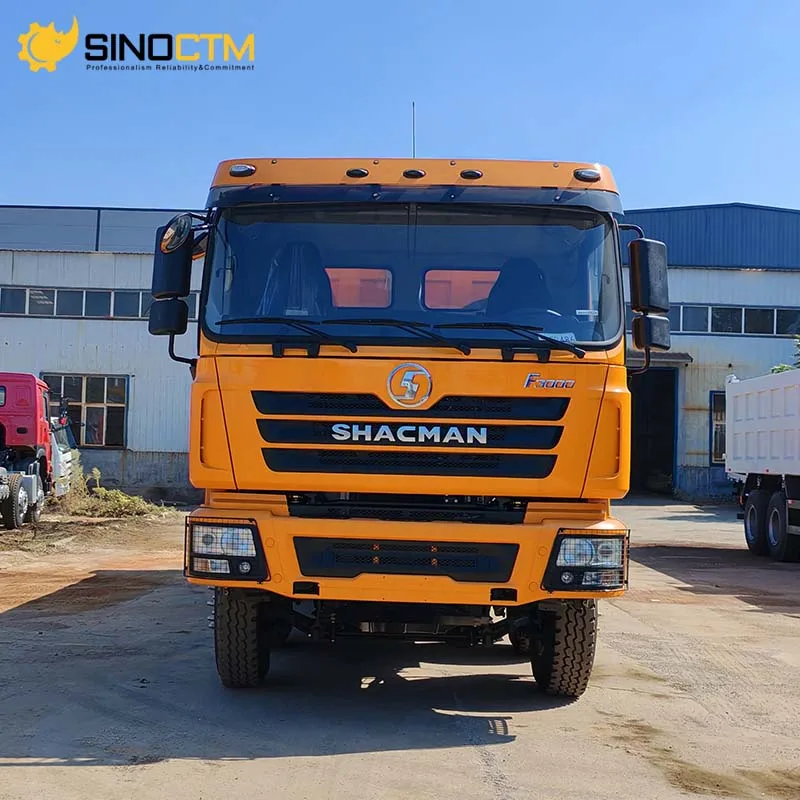

Type | F3000 flat roof (Single bed) |

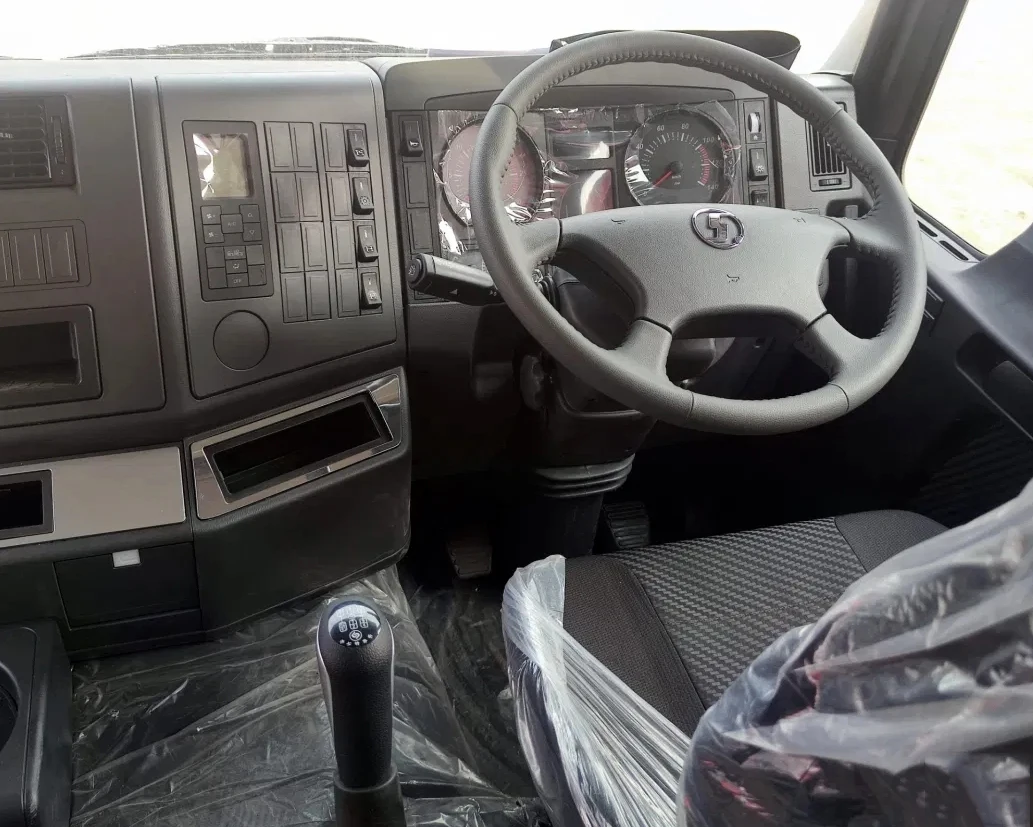

Cab/Other | Hydraulic main seat, four point hydraulic suspension, electrically controlled automatic constant temperature air conditioning, electric window rocking machine, electric flipping, metal bumper with light protection net, three-level boarding pedal, central locking (dual remote control+two mechanical keys), ordinary side air filter, water tank protection grille, imported clutch, front and rear stabilizer bars, tail light protection grille, reverse buzzer |
Dumper body | |
Body dimensions(mm) | 7400x2300x1550mm |
Body type | U-shaped,manganese plate, Bottom 10 mm side 8mm |

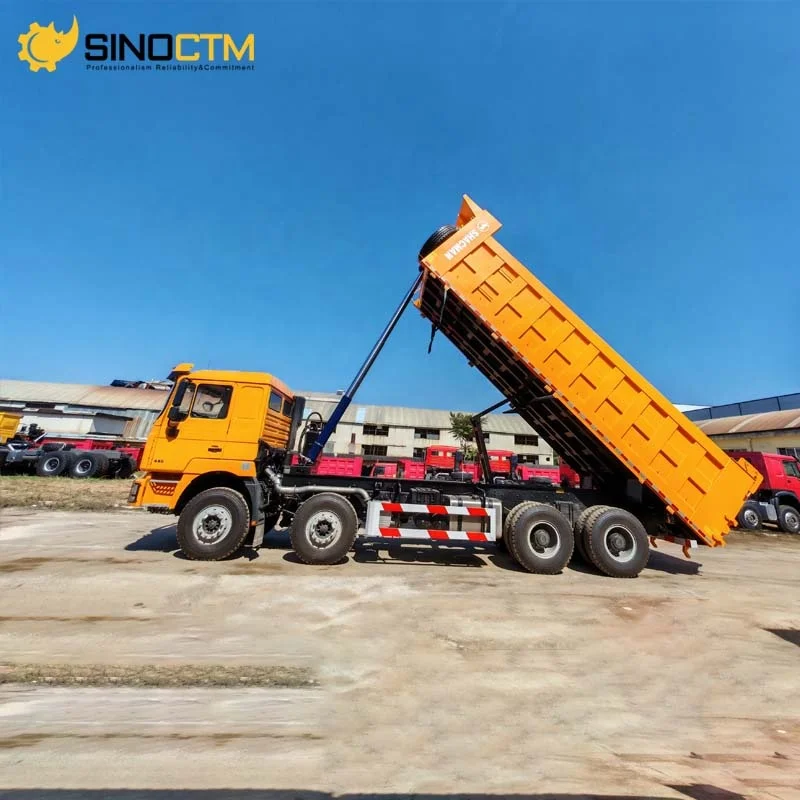

Lifting system | Front lifting system, China Brand 180 |
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Recommend Products
About Product Description
Euro 2 20-50 Ton Dump Tipper Trucks
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Excellent After-sale Service and Customization Service
Original Price: FOB, CIF
Promptly Delivery: 30-45 days
Excellent After-sale Service and Customization Service
Company Profile
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.

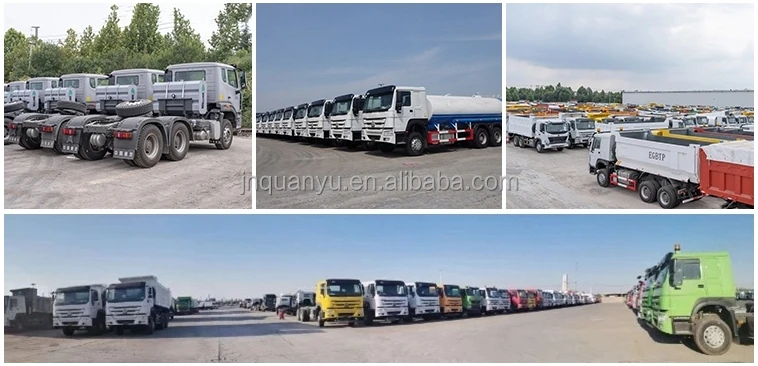

Packing & Delivery
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.
Main Products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer
FAQ
Q1. What's your MOQ?
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery
