SDCNC Mini metal shaper machine B635 Metal Shaping Machine Price
$4,250.00-4,500.00
Chinese horizontal profile machine BC6066 long life forming machine metal processing metal planer
- Category: >>>
- Supplier: Shandong Yijin Cnc Machine Tool Co. Ltd.
Share on (1601277951047):
Product Overview
Description

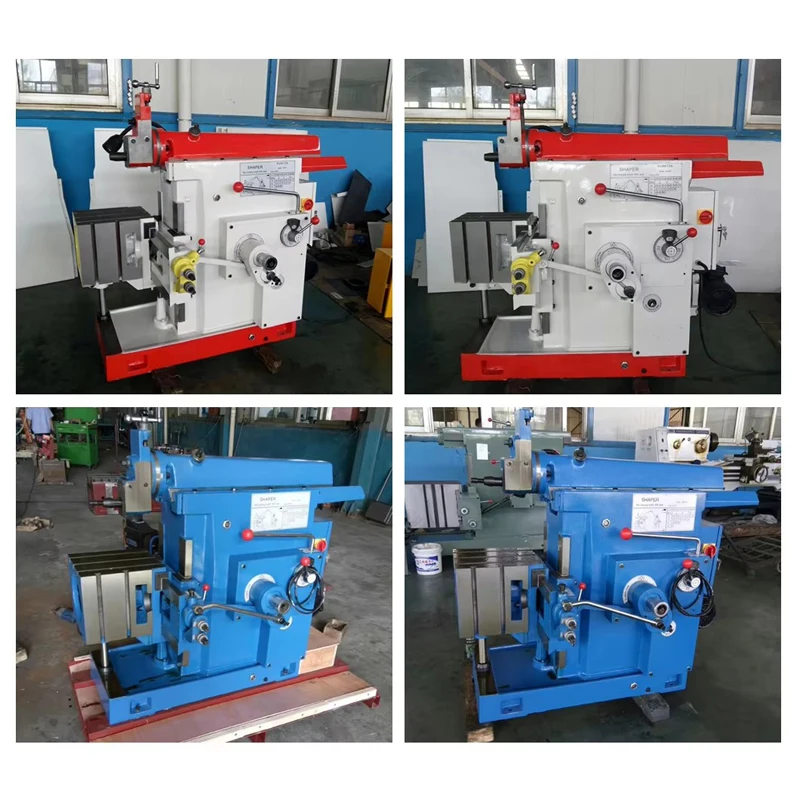

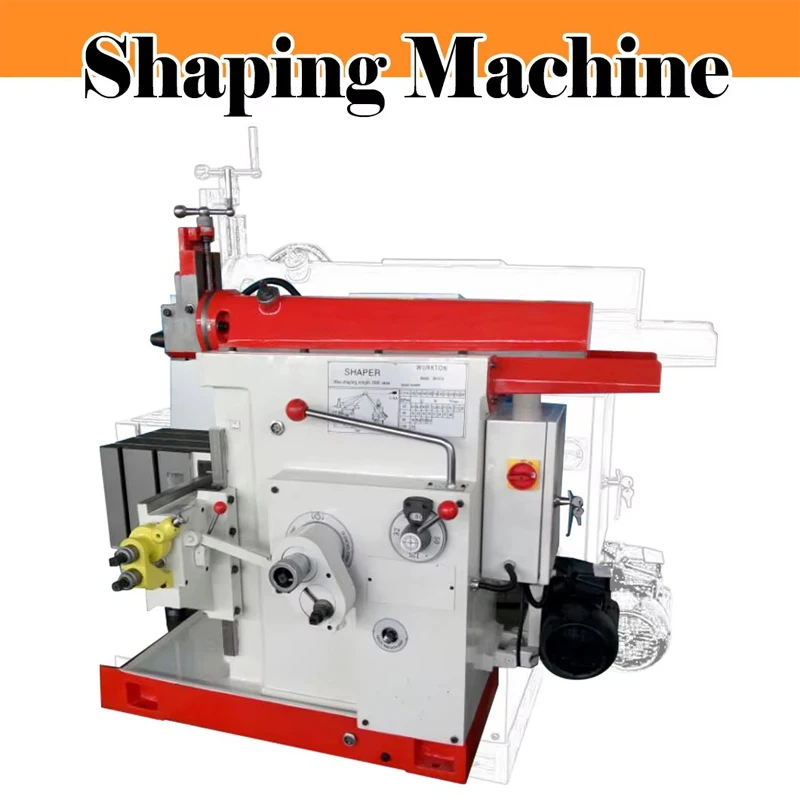

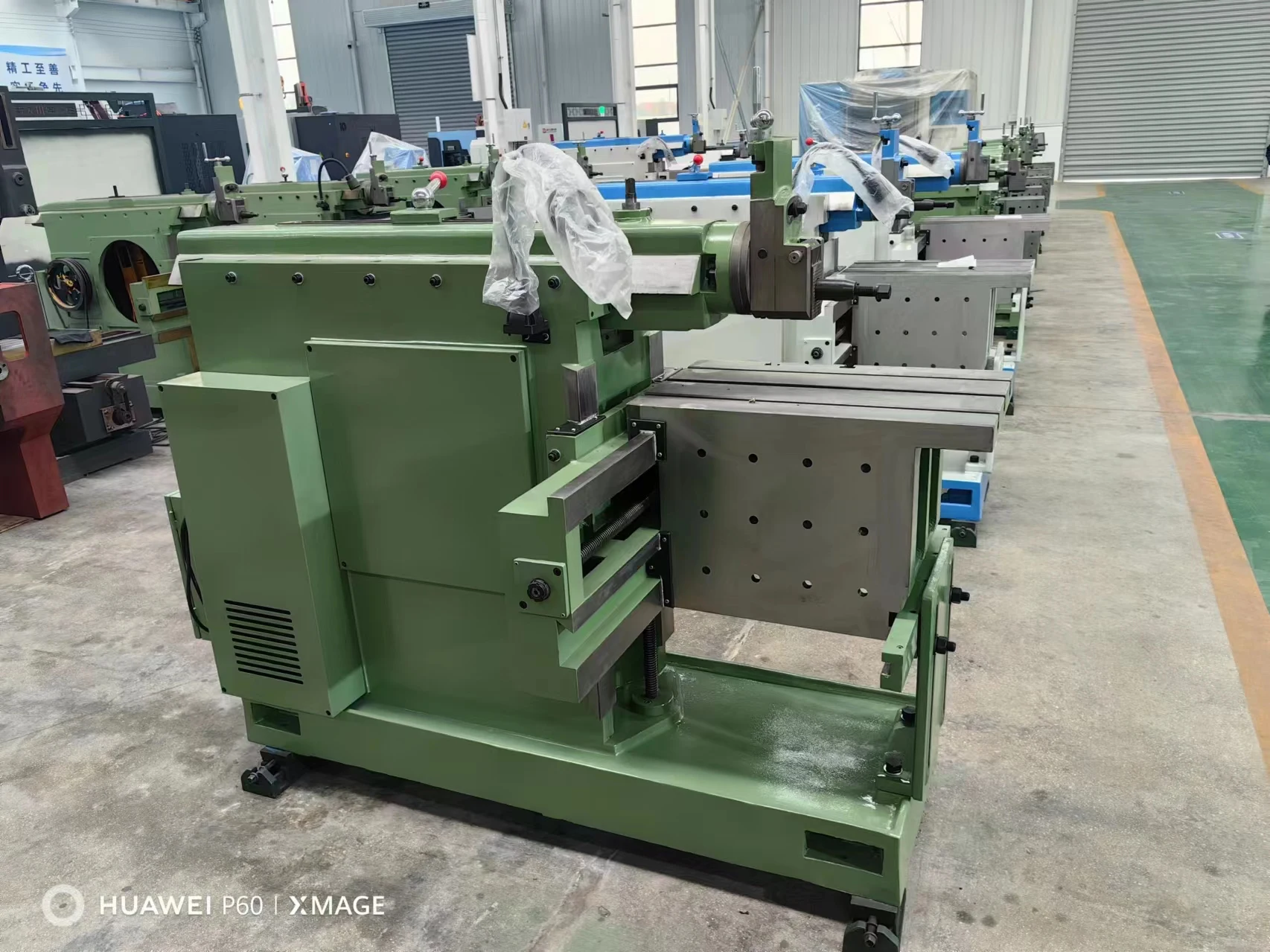

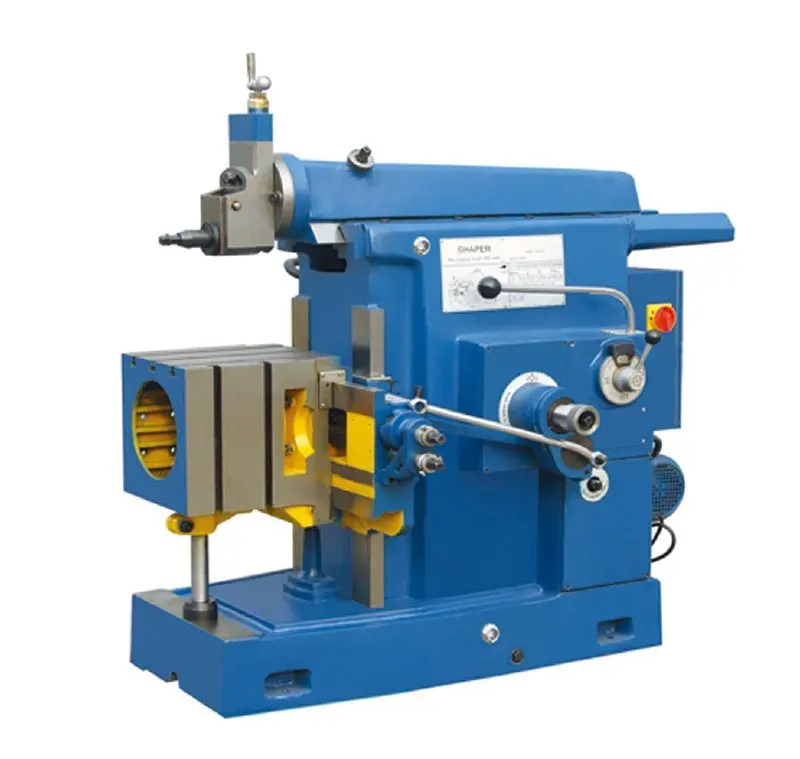

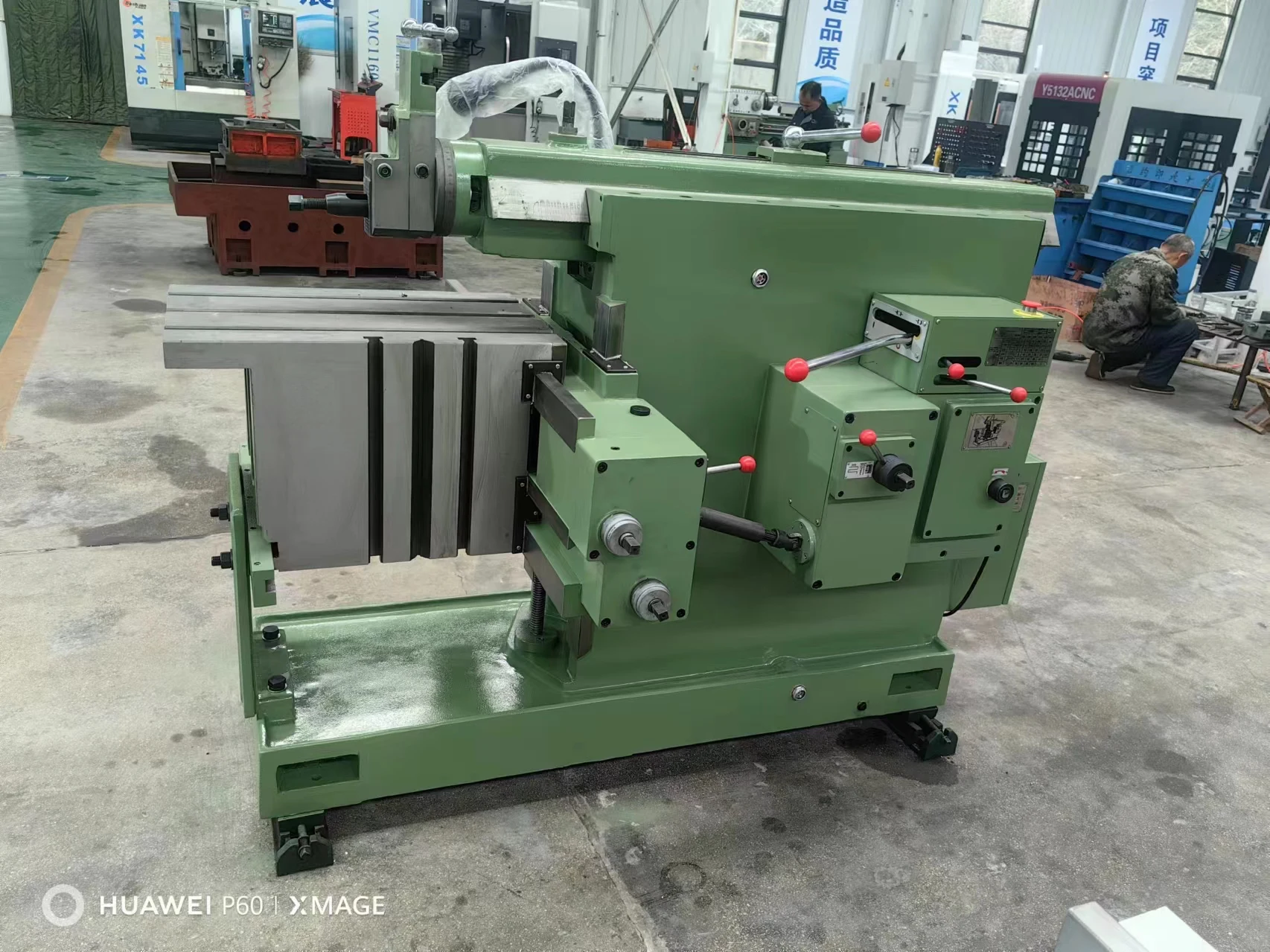

BC6066 shaper machine tools Planer shaping machine
Shaper Machine is a general purpose shaper machine, which is used for surface processing of various small and medium-sized parts.The machine tool is composed of bed, ram, rocker, gearbox, feed box, cross beam, workbench, lubrication system and electrical system. The motor drives the ram through the gearbox and rocker mechanism, and the ram reciprocates in the guide rail of the top surface of the bed, and there is a six-speed change. The rail clearance can be adjusted with inserts. The front end of the ram is a tool rest and a turntable, and the tool rest can be fed along the slide of the tool rest. When planing the bevel, the turntable turns at a certain Angle as needed.
item | value |
Place of Origin | China |
Shandong | |
Condition | New |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2024 |
Warranty of core components | 3 years |
Core Components | Gearbox |
Warranty | 3 years |
Key Selling Points | High-accuracy |
Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Showroom Location | None |
Weight (KG) | 1870KG |
Brand Name | yijincnc |
Dimension(L*W*H) | 2000*1300*1550 |
Power (kW) | 3 |
Product Name | planer |
Workbench area | 660*400mm |
Tool holder travel | 120 |
Ram movement times | 14,20,28,40,56,80 |
Tool holder rotation angle | ±60° |
Maximum planing length | 660mm |
Maximum planer handle size | 20*30 |
working desk size | 660 *400mm |
T-slot dimensions | 18 |
Knife holder rotation angle | ±60° |
Product main features
It is a general purpose shaping machine, suitable for plane, T groove, dovetail slot shaped surface planing. This machine has the advantages of good rigidity, high working efficiency, low cost and low cost. It is suitable for small and medium spare parts and batch processing. It is the first choice of machine tool.
The slider performs a horizontal straight line feed motion, the tool holder can rotate multiple angles in the vertical plane, and
can be manually fed. The workbench carries the work piece for intermittent horizontal or vertical feed motion, used for machining
flat surfaces, grooves, and dovetail surfaces, and can also be used for machining formed surfaces.
can be manually fed. The workbench carries the work piece for intermittent horizontal or vertical feed motion, used for machining
flat surfaces, grooves, and dovetail surfaces, and can also be used for machining formed surfaces.

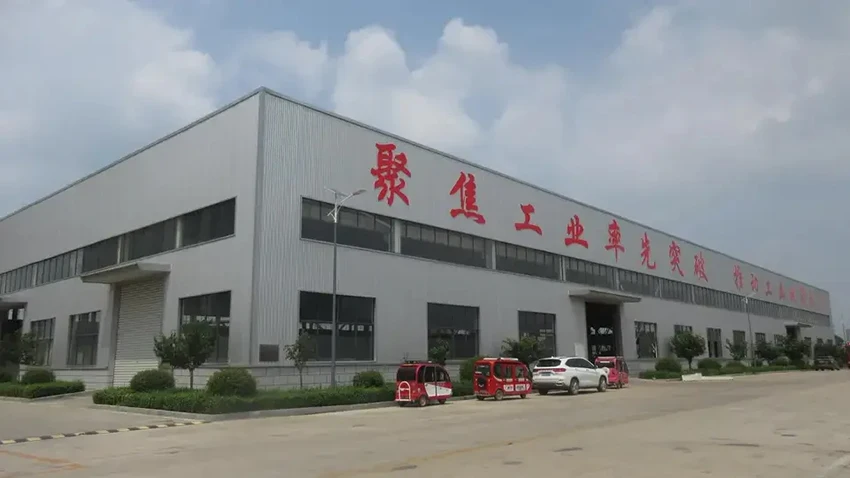

Shandong Yi Jin numerical control Co., LTD
Shandong Yijin CNC Machine Tool co., Ltd. is a supplier of comprehensive intelligent solutions for efficient,specialized, precision CNC machine tools, modular machine tools, and CNC flexible automatic machining lines. It is a high-tech enterprise in Shandong Province and a key software enterprise in Shandong Province's planned layout. The company has core technologies in the entire intelligent manufacturing industry chain, including processing technology, processing equipment, measurement and testing, and standard formulation. It has strong independent research and development capabilities for specialized machines, equipment remanufacturing, and a complete set of technical services.
Quality is the lifeblood of the enterprise, grasp the details, open innovation. The company invites to join and agent, willing to
work with our customers and strategic partners to create a better future together.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
FAQ

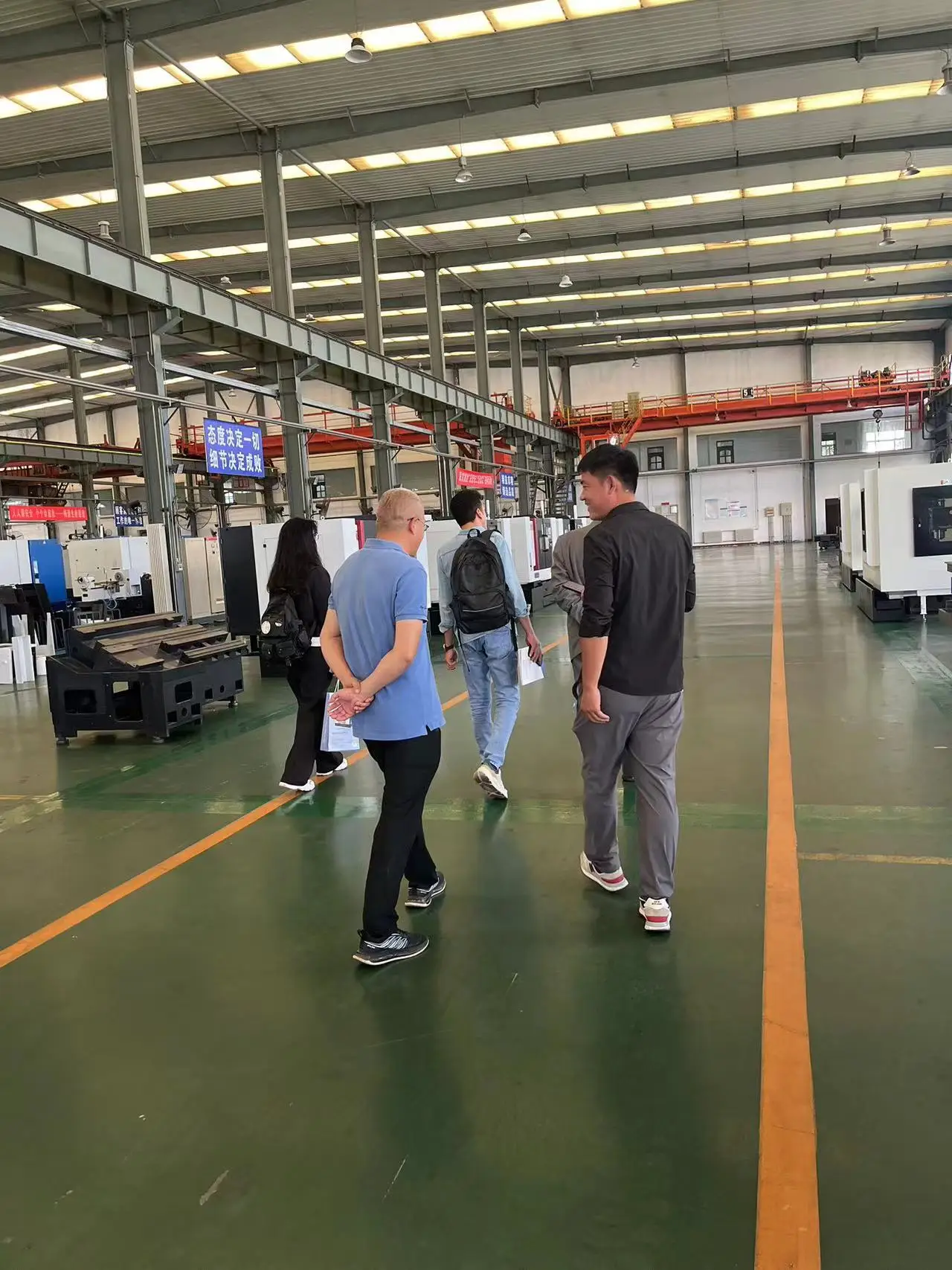

Q1：Are you the manufacture?Can we visit your factory?A1：We are manufacturer and we are located in Shandong,China.And we have our
own design team for products design.And welcome you visit our factory and check our machine qualtiy on spot,any question will be
solved on spot at first time.
Q2：How to control the quality of the products?
A2：We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is
"toprovide customers better quality, better price, and better service".
Q3：And are you able to update the production process Information in time after placing our order?
A3：After confirming your order ,we would keep you updated of production details of emails and photos.
Q4:How about the warranty?
A4:1year. More information about guarantee pls send enquire/feedback to us.
