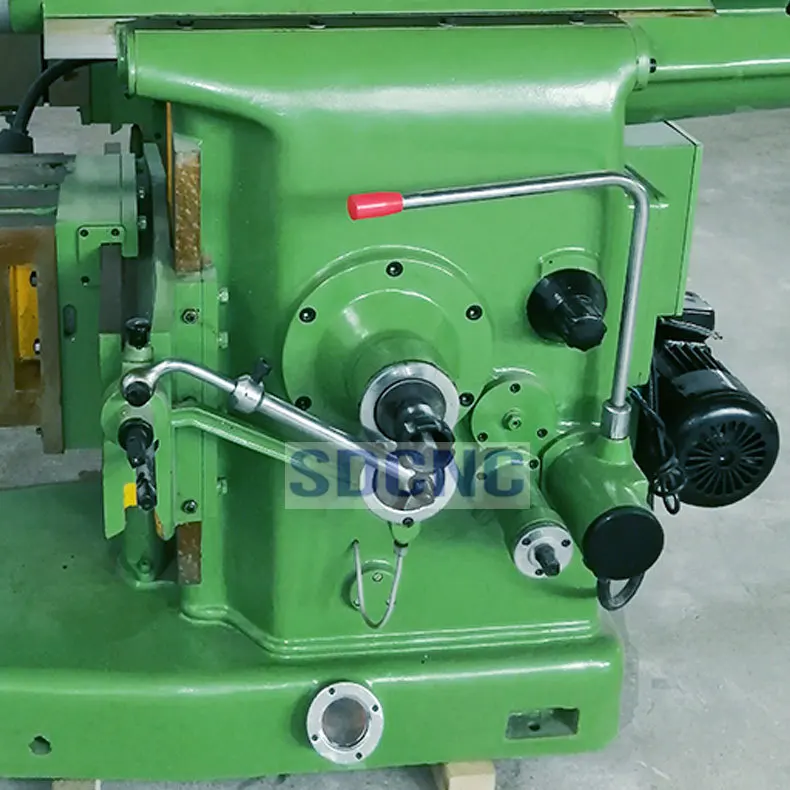

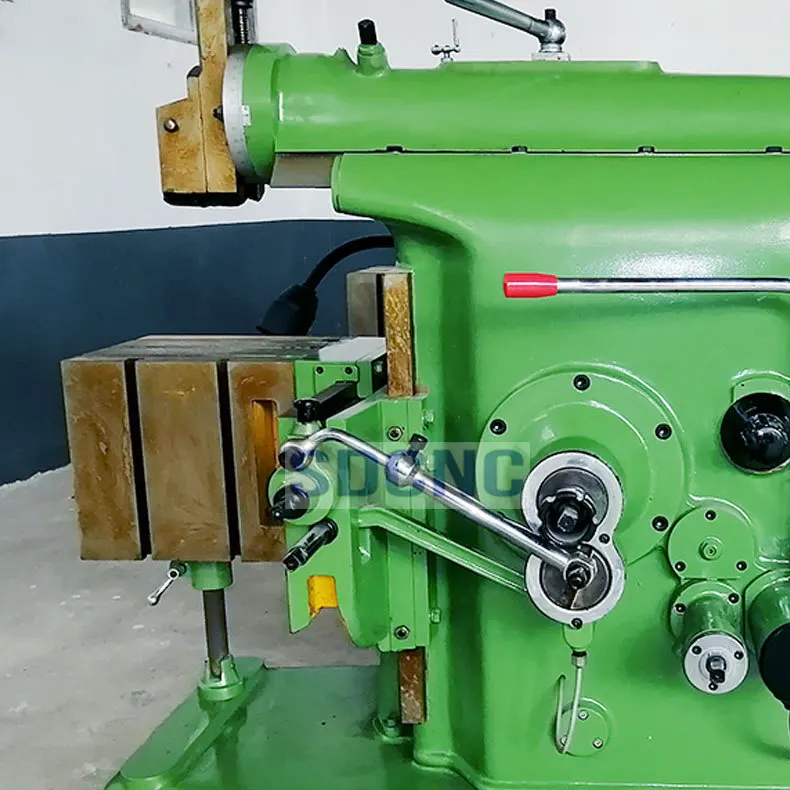

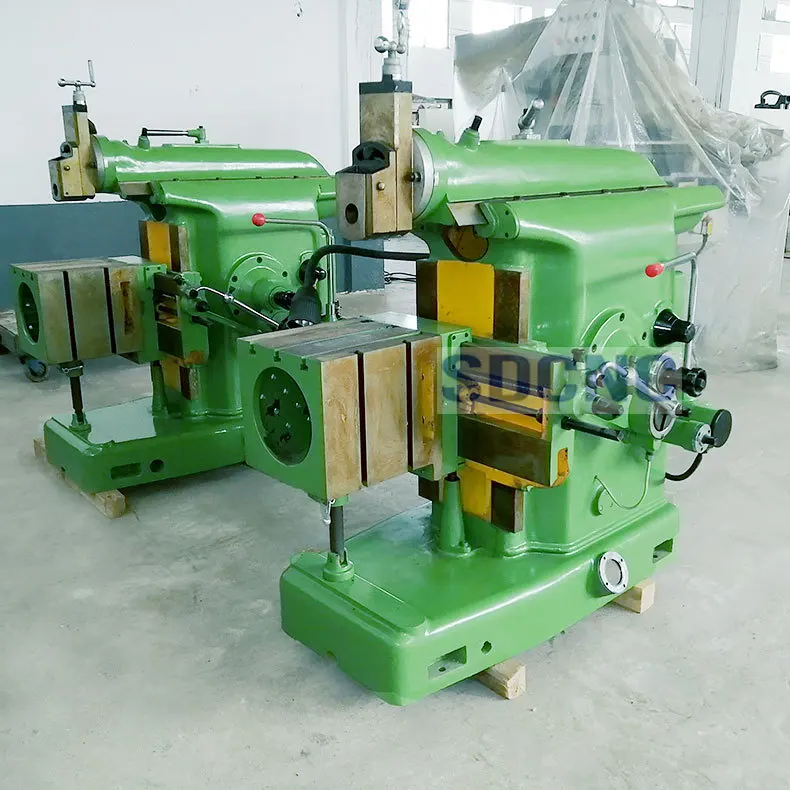

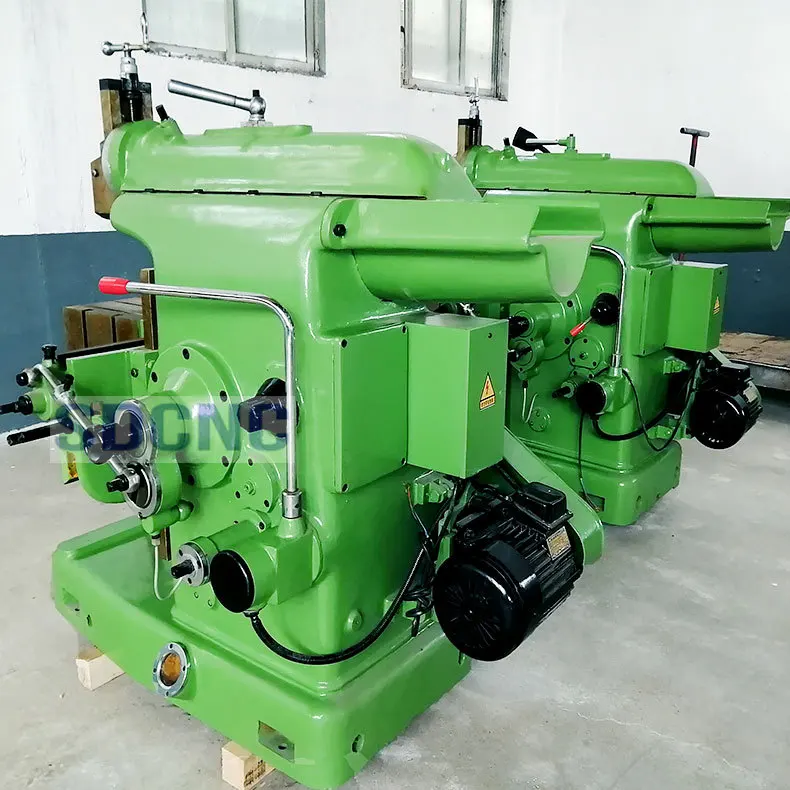

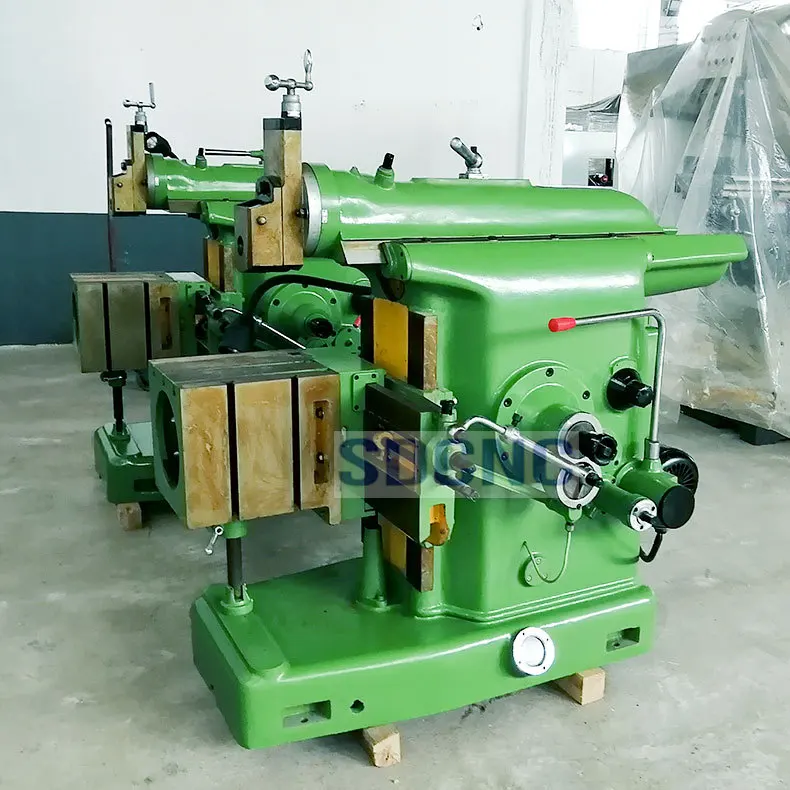

SDCNC Mini metal shaper machine B635 Metal Shaping Machine Price

Share on (1601332548975):


Price:$4,250.00-4,500.00

Quantity:


Product Overview

Description



Products Description




Product Paramenters




Specifications
Units
B635
Maximum shaping length
mm
350
Maximum distance from ram bottom to table surface
mm
330
Maximum moving distance of the working table(level)
mm
400
Maximum moving distance of the working table (vertical)
mm
270
Since the plane bed leading surface extending the maximum distance
mm
550
Maximum ram travel
mm
170
Table rotary angle (without vice)
±90°
Table rotary angle (with vice)
±55°
Maximum tool carrier travel
mm
110
Number of ram reciprocating per minute
NO/min
32, 50, 80, 125,
Gear move one tooth (vertical)
mm
0.18
Gear move one tooth (level)
mm
0.21
Gear move four tooth (vertical)
mm
0.73
Gear move four tooth (level)
mm
0.84
Main motor power
KW
r/min
1.5
1400
Overall dimensions (L*W*H)
mm
1530*930*1370
N/G.W
kg
1000/1200


Recommend Products




Company Profile




COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.




OUR CERTIFICATE




Deliver goods






FAQ




Q: WHO ARE WE?
A: WE ARE A PROFESSIONAL MACHINE TOOL MANUFACTURER.
WE NOT ONLY SELL OUR MACHINES, BUT ALSO PROVIDE TECHNICAL SUPPORT.
Q: HOW DO WE ENSURE QUALITY?
A: EVERY NEW MACHINE HAS T0 G0 THROUGH STRICT TESTING AND CONF IRMATION FIRST. INSPECTION OF EACH PART INSPECTION AND ADJUSTMENT 0F EMPTY LINE AFTER ASSEMBLY
Q: WHAT CAN YOU BUY FROM US?
A: LATHES, CNC LATHES, CNC PIPE THREAD LATHES, CNC VERTICAL LATHE,
CNC MACHINE T00LS, ORDINARY PIPE THREAD LATHES, MACHINING CENTERS,
H0BBING MACHINES, DRILL ING MACHINES, MILLING MACHINES,GRINDING MACHINES,SAWING MACHINE, ETC.. .
Q:WHY SHOULD YOU BUY FROM US INSTEAD 0F OTHER SUPPLIERS?
MANY YEARS 0F MACHINE T00L PRODUCTION IN RESEARCH AND DEVELOPMENT
EXPERIENCE,G00D EXPER IENCE,G00D PERFORMANCE, GOOD QUALITY,LET USERS BUY DON'T WORRY, USE IT AT EASE。
