SDX65 is a wireless gateway integrating NR/LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services. | ||

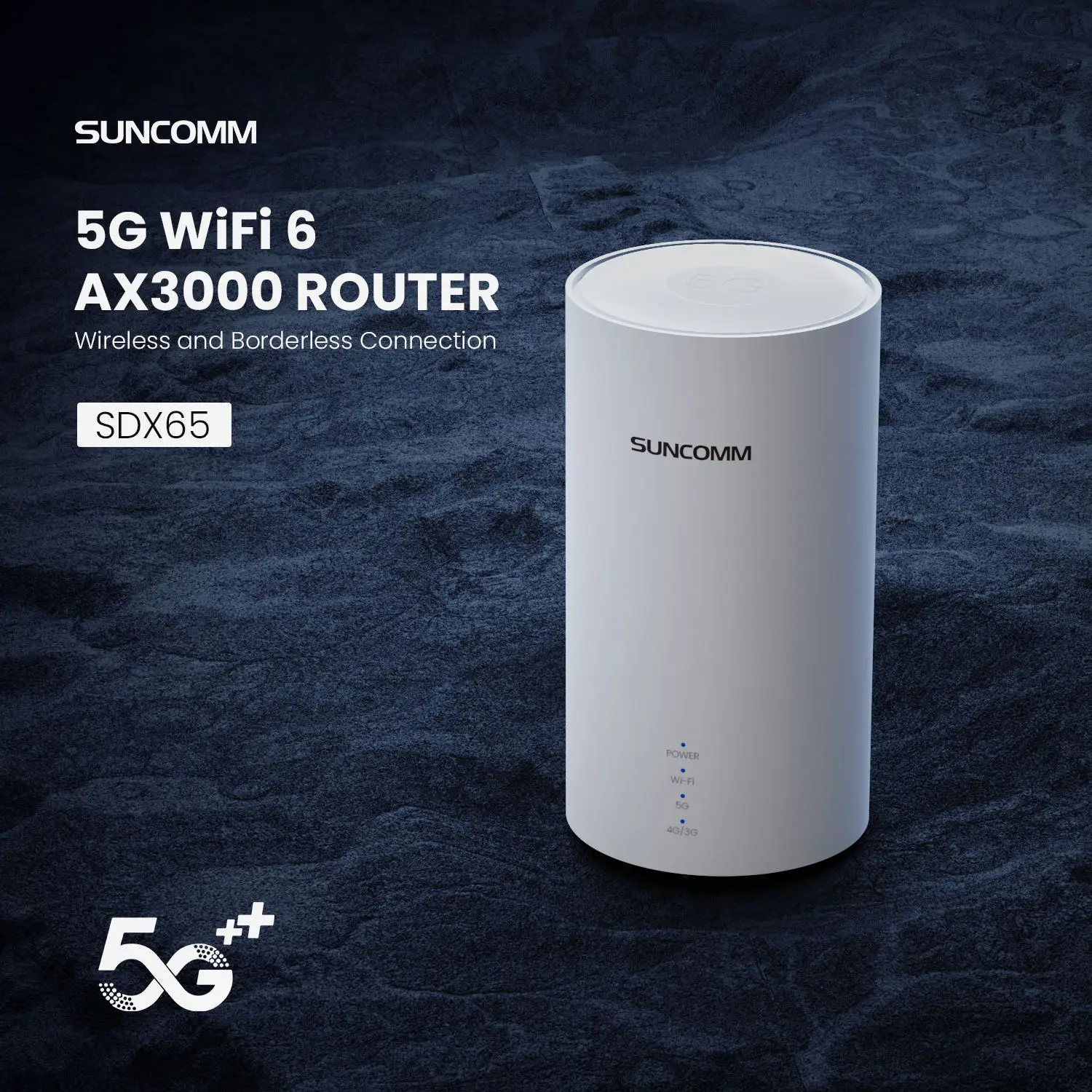

SDX65 is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi-enabled devices can access the Internet. 5G CPE can be used to set up specific networks and share network connections anywhere via cellular connections or Ethernet connection. | ||
SDX65 adopts Qualcomm SDX65 platform, supports 3GPP Release 16, terminal downlink up to 4.9Gbps, and uplink up to 0.9Gbps. Support Qualcomm WiFi6 2.4G and 5.8 DBDC up to 3Gbps | ||
Specification | ||
Technical Standard | Compatible with LTE, Sub6, 802.11 a/b/g/n/ac/ax | |
Frequency (EA) (Europe/Africa/Middle East) | EA version: 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n77/n78 LTE: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43 UMTS: B1/B5/B8 | |
Frequency (SA) (South/Central Americ) | SA version: 5G: n2/n5/n7/n8/n12/n13/n28/n66/n38/n40/n41/n77/n78 LTE: B2/B4/B5/B7/B8/B12/B13/B28/B66/B38/B40/B41/B42/B43 UMTS:B2/B4/B5/B8 | |
Frequency (NA) (NorthAmerica) | NA version: 5G: n2/n5/n12/n13/n14/n25/n26/n29/n30/n41/n48/n66/n71/n77/n78 LTE:B2/B4/B5/B12/B13/B14/B25/B26/B29/B30/B41/B42/B43/B48/B66/B71 UMTS:B1/B2/B4/B5/B8 | |

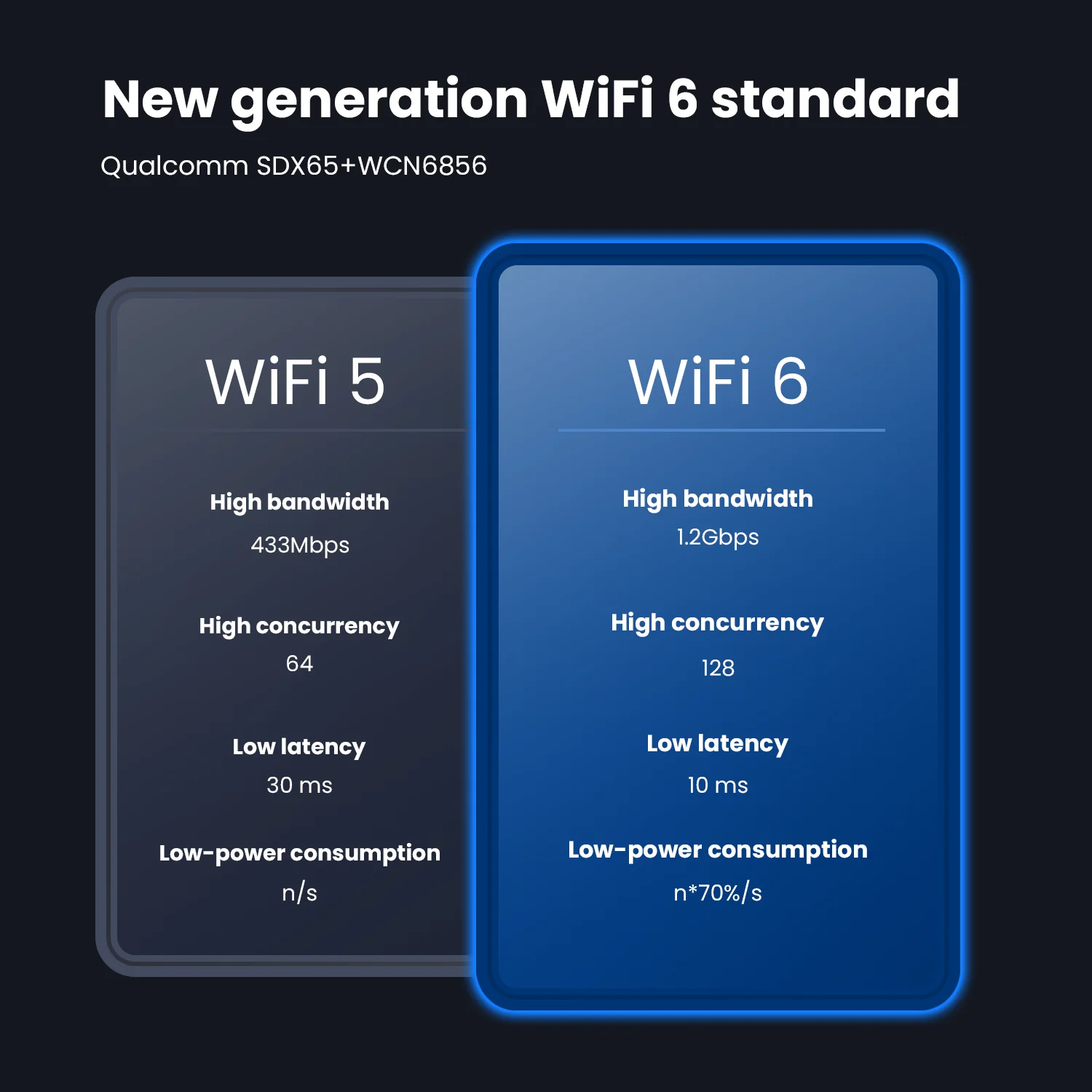

WIFI | 2.4GHz&5.8GHz, WIFI 2*2 MIMO, 802.11 a/b/g/n/ac/ax, DBDC AX3000 | |
5G SA NSA mode • 5G NR: (DL/UL) 4.9Gbps/900Mbps • LTE: (DL/UL) 1.6Gbps/200Mbps | ||
Receive Diversity | Support Receive Diversity | |
MIMO | DL 4x4 MIMO | |
Chipset | Qualcomm SDX65+WCN6856 | |
Memory | Modem: 8+8Gbit | |
Power Consumption | <18W | |
Power Voltage | DC12V / 1.5A | |
4FF SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot | ||
LED | Power Indication; Wi-Fi Indication; 5G Indication LED; 4G Indication LED | |
USB | USB 2.0 | |
LTE/NR Antenna*8, Wi-Fi*2，N41/77/78/79 11dBi High Gain, Smart antenna selection， 2*TS-9 external antenna is optional（support band n38/n40/n41/n77/n78） | ||
Buttons | POWER, Reset, WPS | |

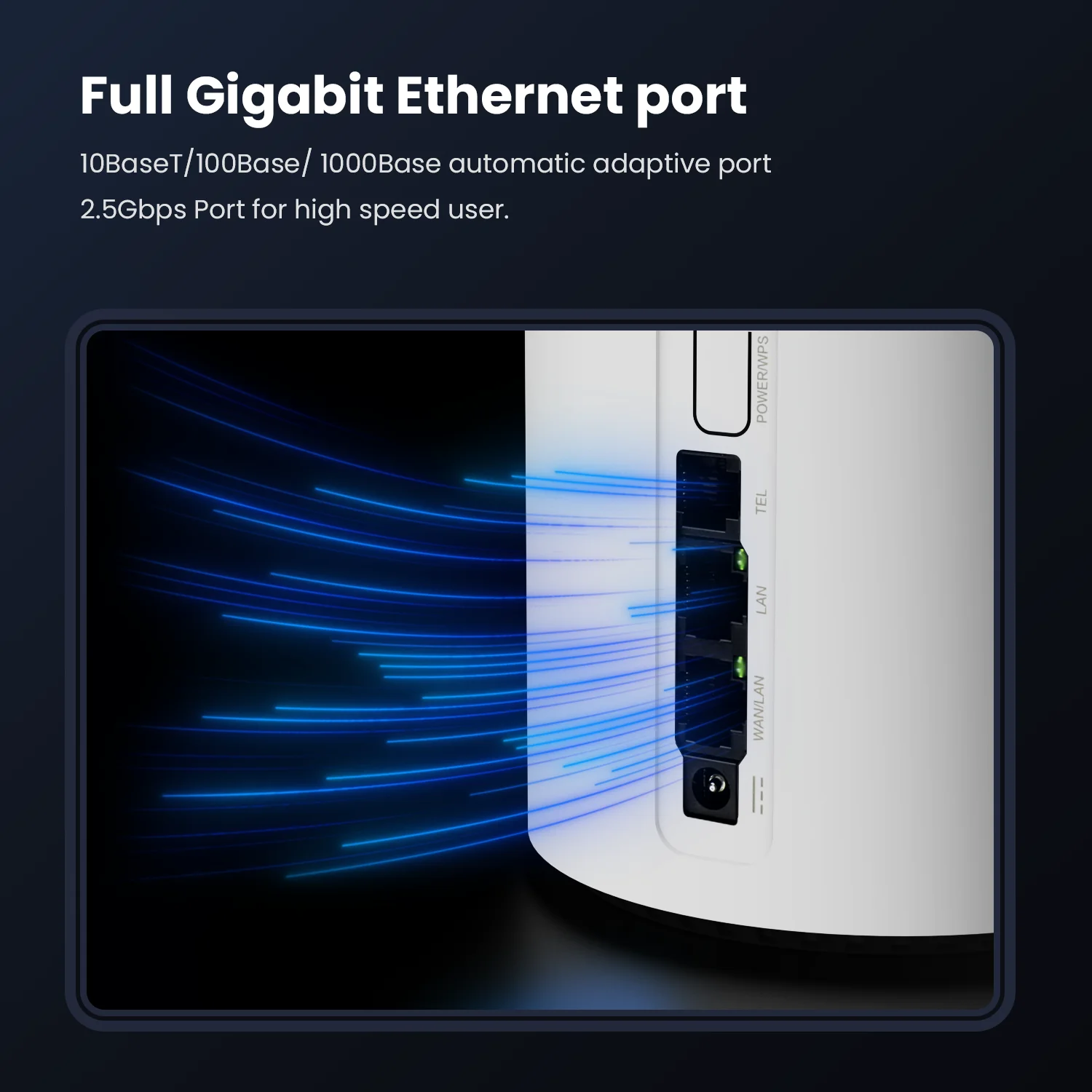

1*WAN+1*LAN • 2*1000Base automatic adaptive port （default） • 1*2.5Gbps + 1*1Gbps port （optional） | ||
VOICE | 1*RJ11，support VOIP/VOLTE/VONR(optional) | |
Reset | Pinhole | |
ESD | ESD Protection circuit; Contact±8KV, Air±10KV | |
HTTP | Support | |
Operating Temperature | Normal: 0°C ~ +45°C | |
Storage Temperature | -20°C ~ +70°C | |
Humidity | 5%~ 95% | |
