Low Profile Hot sale underground mining dumper truck dump trucks 4x4 8 ton UK8 articulated diesel dump hydraulic mining dumper mineral

Product Overview

Description

New design 8ton Underground Mining Dumper Truck for short transportation for sale



1.The key components of this machine adopt international famous brand product.

2.Adopts the purifier produced by War-industry enterprises, reducing the air pollution and improve the underground working environment effectively.

3.Torque converter and transmission to increase the reliability of the whole machine, the structure components are made of high-strength and low-alloy steel plate with high strength and small deformation. Most components of the torque converter, transmission, drive axle and hydraulic pressure system can realize the general use or exchange with the FCY series underground scooptram produced by our company.

8T FCY80 mining dump truck

1.	Payload		8000kg
2.	Operating weight		5900 kg
3.	Hopper capacity		3.5 m3
4.	Maximum speed		25-30 km/h
5.	Handbrake available on grade		25%
6.	Max grade ability		25%
7.	Distance of road after brake		≤2.5m with load and speed 10km/h
8.	Minimum turn radius		4.5 m
9.	Ground clearance		248 mm
10.	Noise level		≤106 db(A)
11.	Loading discharge angle		48.40
12.	Time of discharge		8 s
13.	Hydraulic pressure		16 Mpa
14.	Wheel base		2000 mm
15.	Wheel tread		1580 mm
16.	Engine power		YCD4J22 85KW
17.	Dimensions (LxWxH)		5400X2000X1900MM

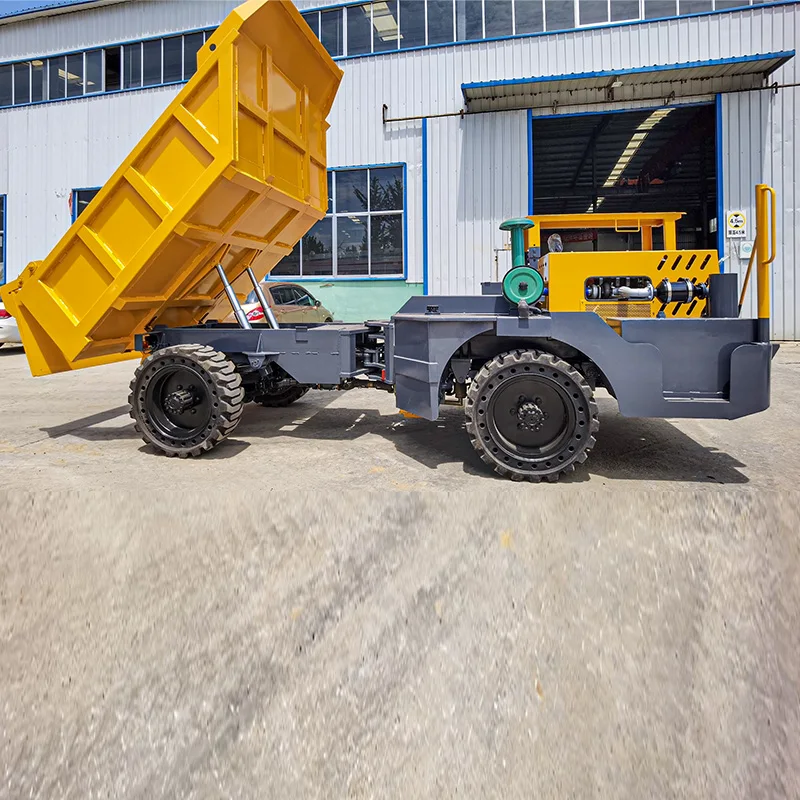

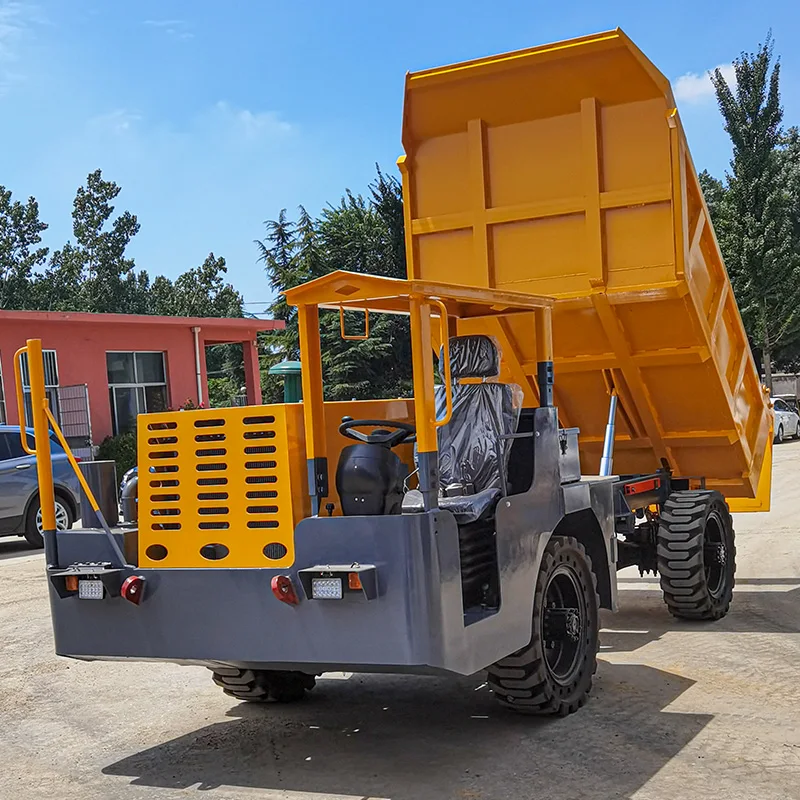

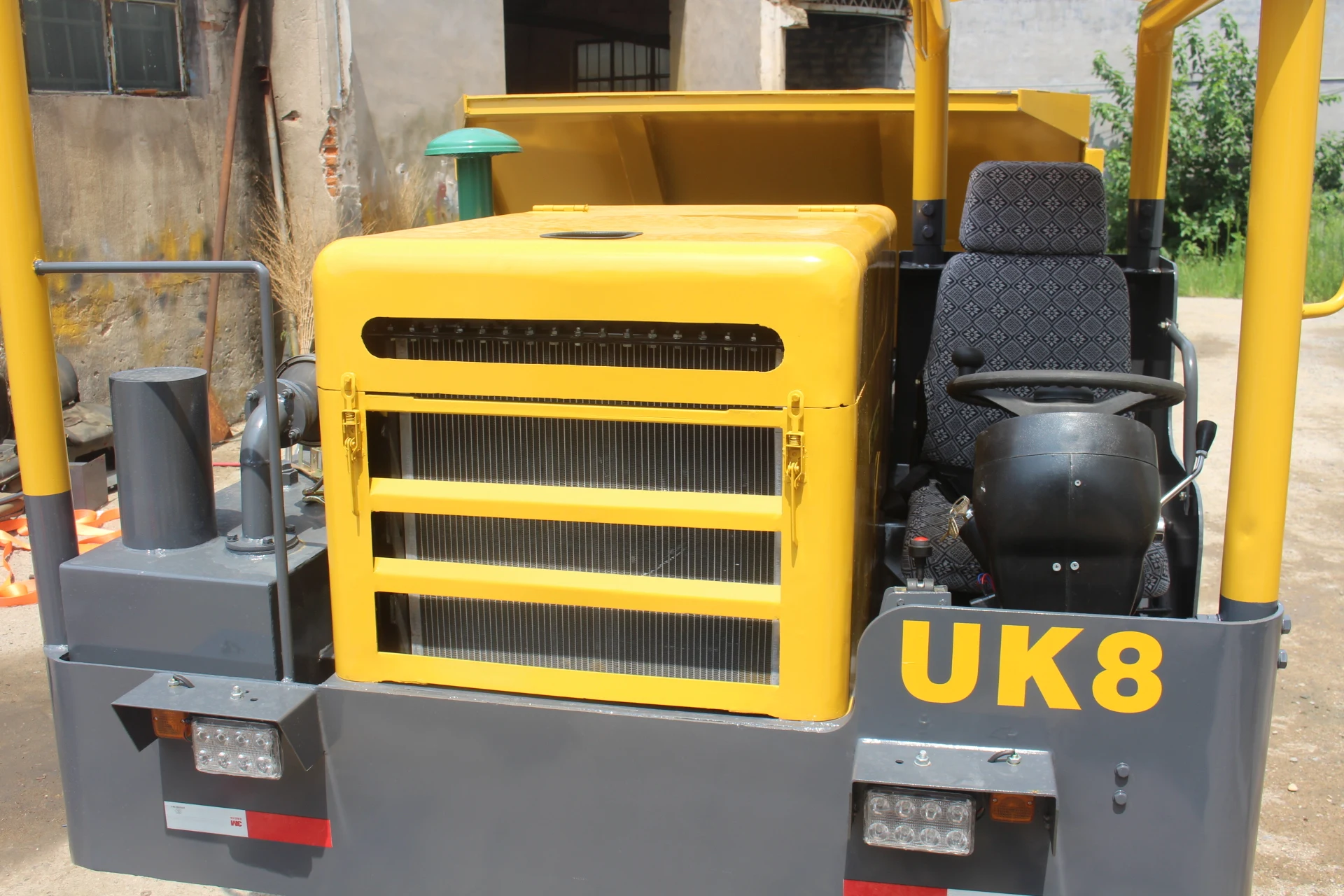

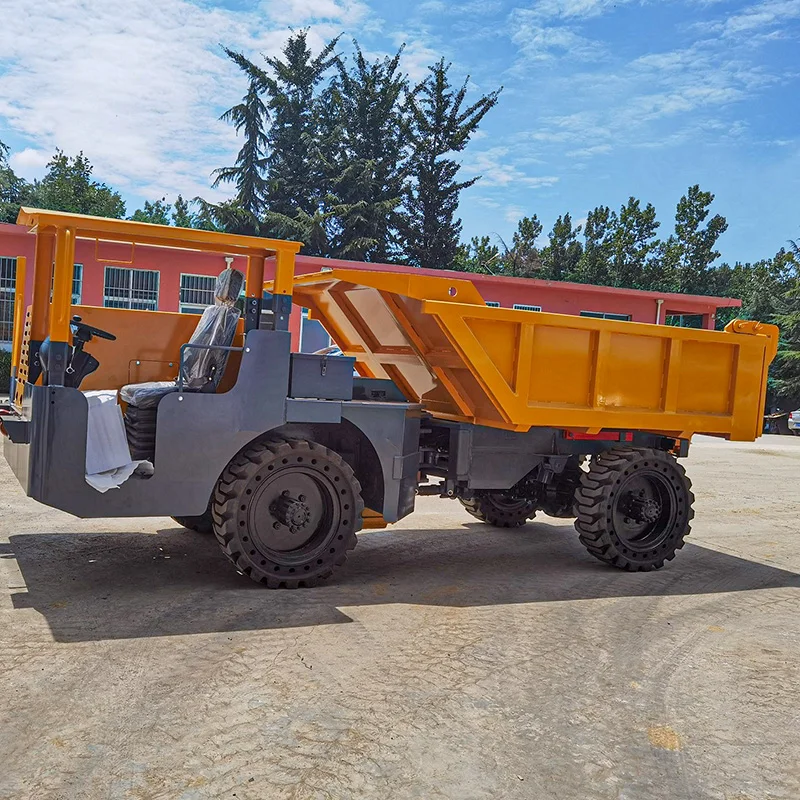

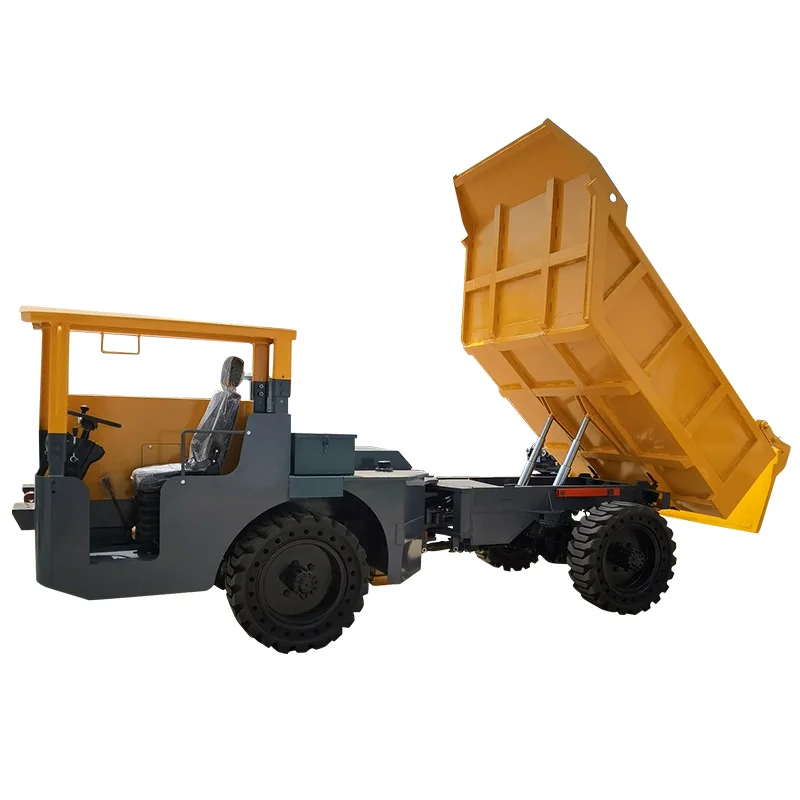

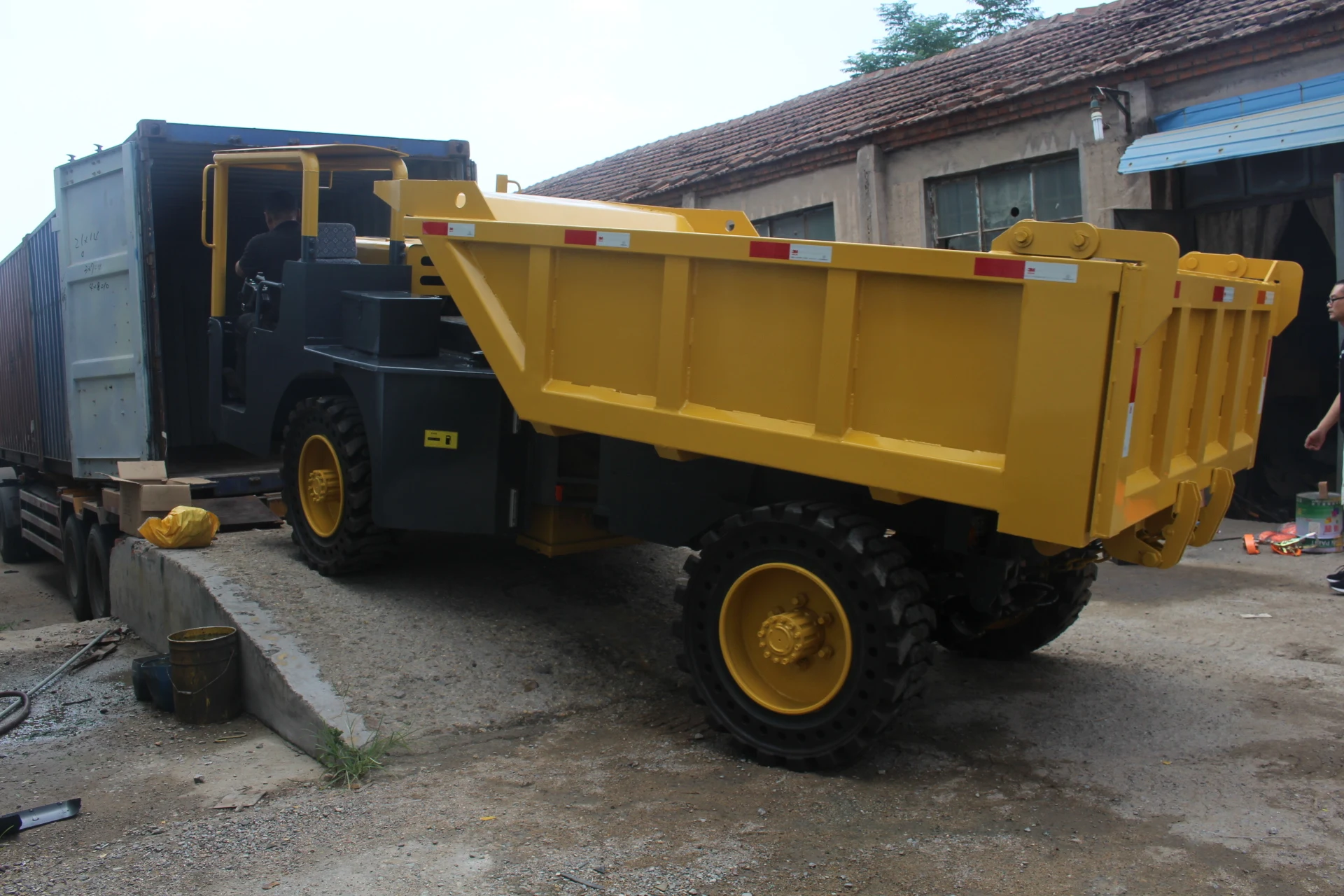

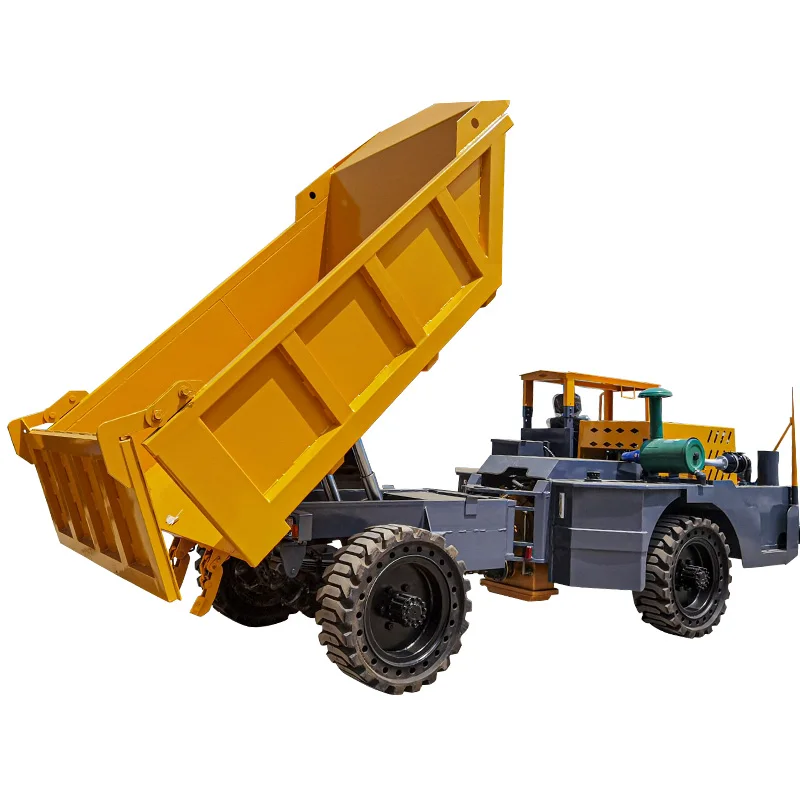

PROUDCT PICTURE
