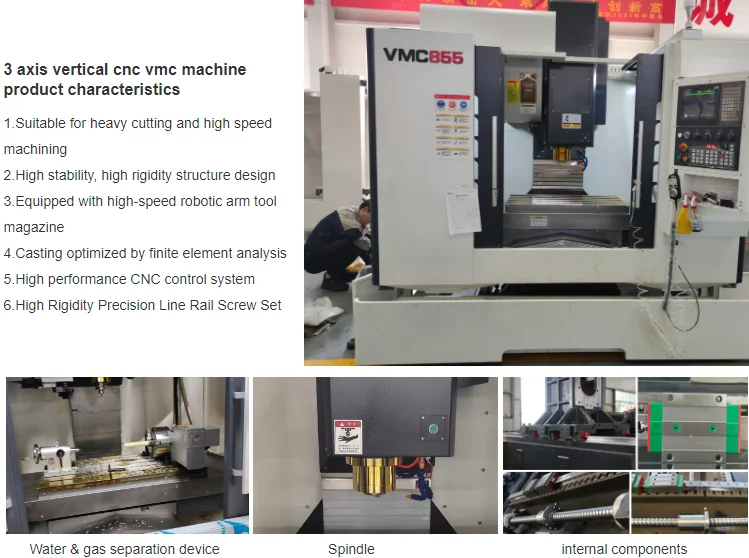

Product features

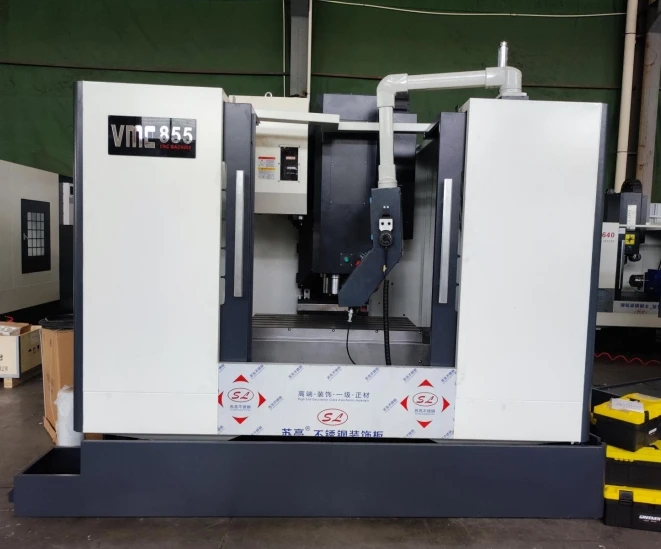

VMC855 vertical machining center is a high-quality product designed and produced in accordance with the market and development needs based on our factory's many years of experience in designing vertical machining center machine tools. The maximum stroke of the machine tool's X axis is 800mm, the maximum stroke of the Y axis is 600mm, and the maximum stroke of the Z axis is 600mm. The newly designed host structure and reliable assembly process have been fully upgraded. With stable and reliable product performance and innovative ergonomic design, VMC855 will undoubtedly become a leader in the industry.
The base, column, workbench, slide, etc. are all made of resin sand castings. There are many machining production lines, and the mother machine uses imported high-precision equipment. The quality of the product is strictly self-checked from the processing of the casting to ensure the quality of the product.
This machine tool can complete various processes such as drilling, milling, boring, expanding, reaming, tapping, etc. for various complex parts such as discs, plates, shells, cams, molds, etc. in one clamping, with high precision, good finish and fast speed. The rigidity of the spindle box, bed, and other components are reasonably matched in the design, which greatly improves the rigidity of the whole machine and ensures the stability during heavy cutting. It is suitable for single and batch production of complex parts in various industries.
The base, column, workbench, slide, etc. are all made of resin sand castings. There are many machining production lines, and the mother machine uses imported high-precision equipment. The quality of the product is strictly self-checked from the processing of the casting to ensure the quality of the product.
This machine tool can complete various processes such as drilling, milling, boring, expanding, reaming, tapping, etc. for various complex parts such as discs, plates, shells, cams, molds, etc. in one clamping, with high precision, good finish and fast speed. The rigidity of the spindle box, bed, and other components are reasonably matched in the design, which greatly improves the rigidity of the whole machine and ensures the stability during heavy cutting. It is suitable for single and batch production of complex parts in various industries.

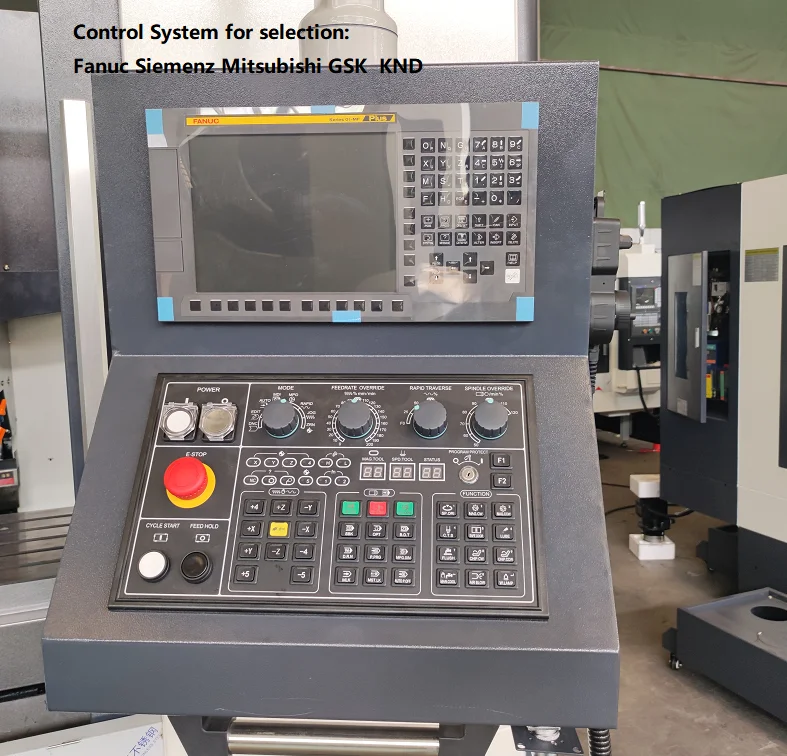

Main accessories
Producrs Description Video descrbtion
Products Specifications
Specification | 1000×600mm |

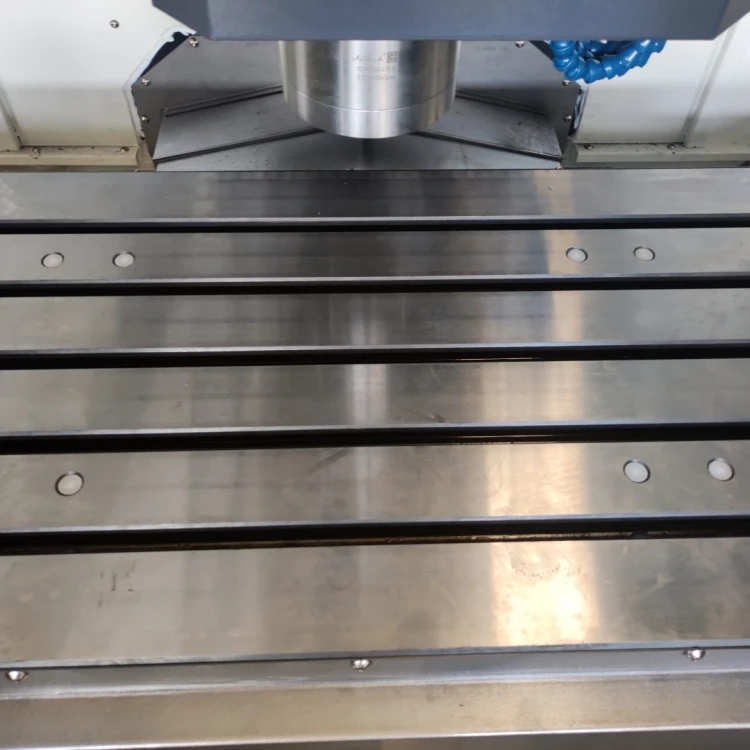

Workbench size | 500kg |
Maximum allowable load | 5-18-100 mm |
T-slot dimensions | 800mm |
Worktable travel - X axis | 600 mm |
Worktable travel - Y axis | 600 mm |
Spindle travel - Z axis | 740mm |
Maximum/minimum distance from spindle end to worktable | 140mm |
Distance from spindle center to Z-axis guide surface | 650mm |
Fast moving speed: X/Y/Z axis | 48/48/48 m/min |
Feed speed | 1-10000 mm/min |
Spindle motor | 11 kw |
Cone hole | BT40-150 |
Transmission mode | belt |

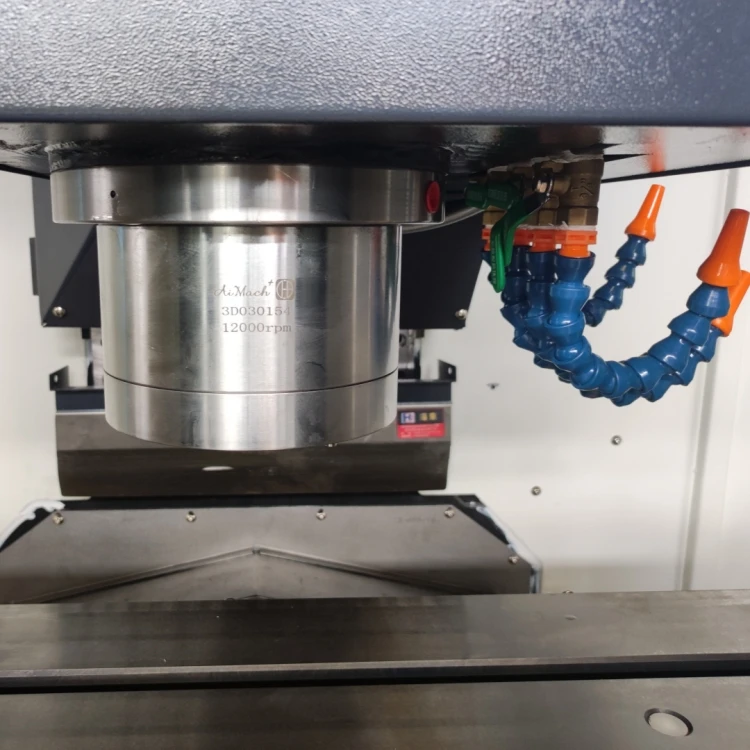

Speed range | 10000 r/min |

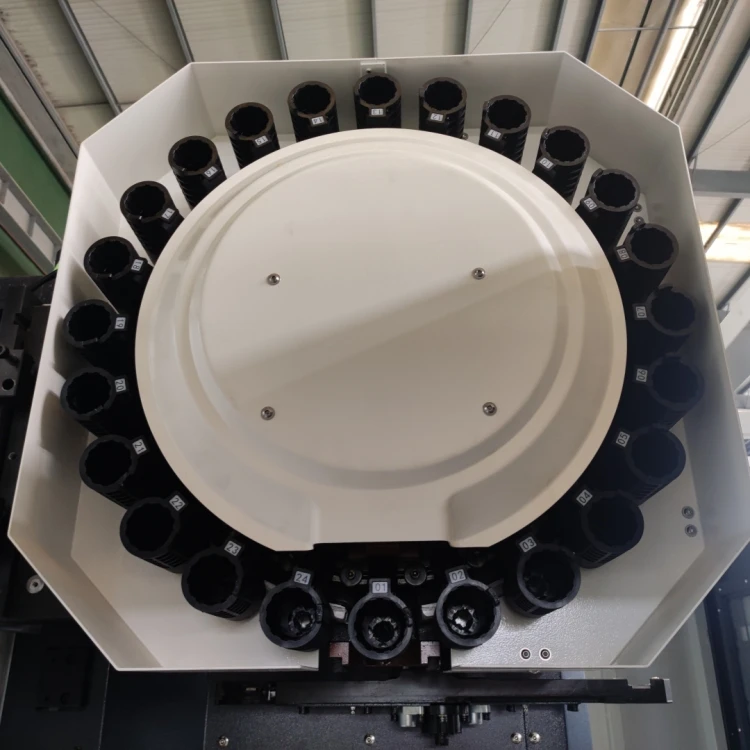

Tool magazine form | Disc |
Tool magazine capacity | 24 |
Accuracy testing standards | JISB6336-4：2000/ GB/T18400.4-2010 |
X/Y/Z axis positioning progress | ±0.008 mm |
X/Y/Z axis repeat positioning accuracy | ±0.005 mm |
Machine size (length x width x height) | 2680*2480*2680 mm |
Machine tool gross weight approx. | 5000 kg |

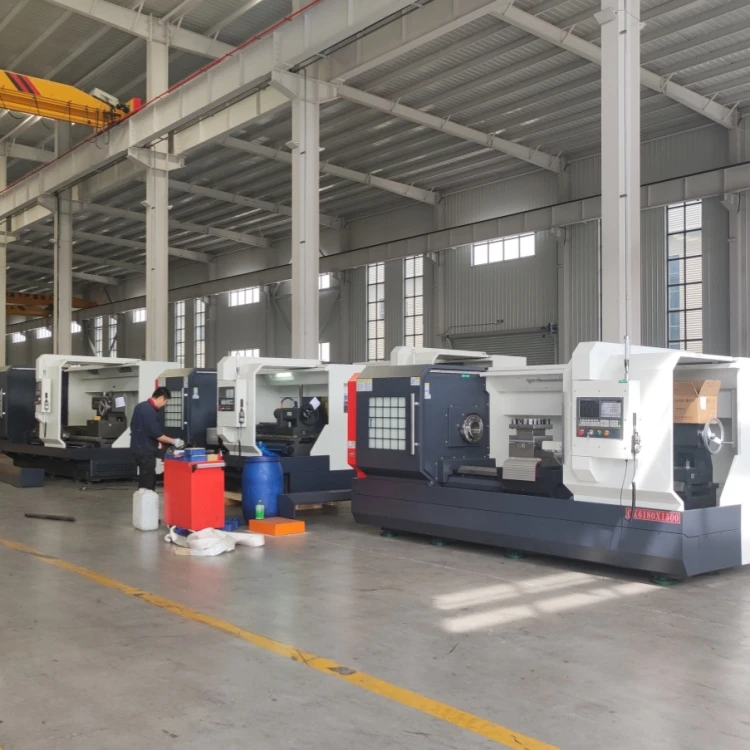

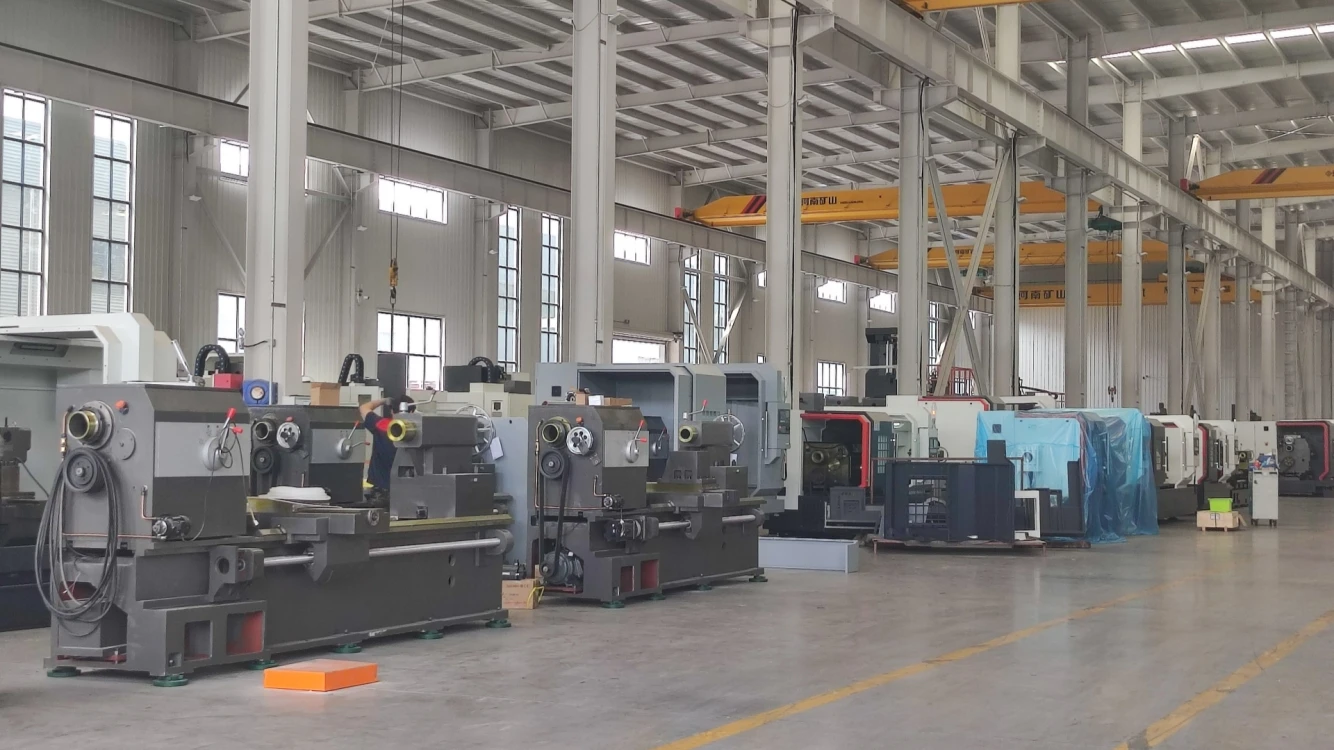

Factory show
