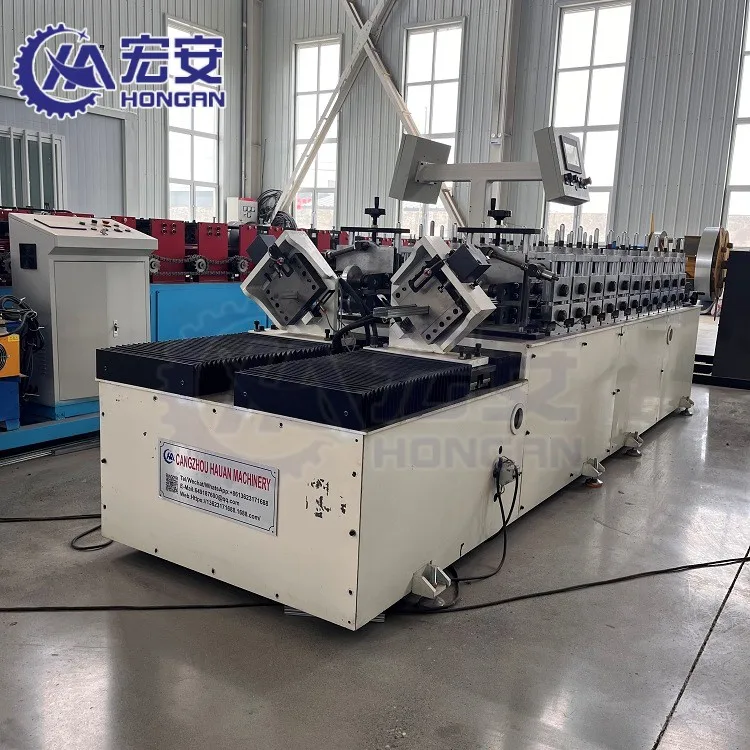

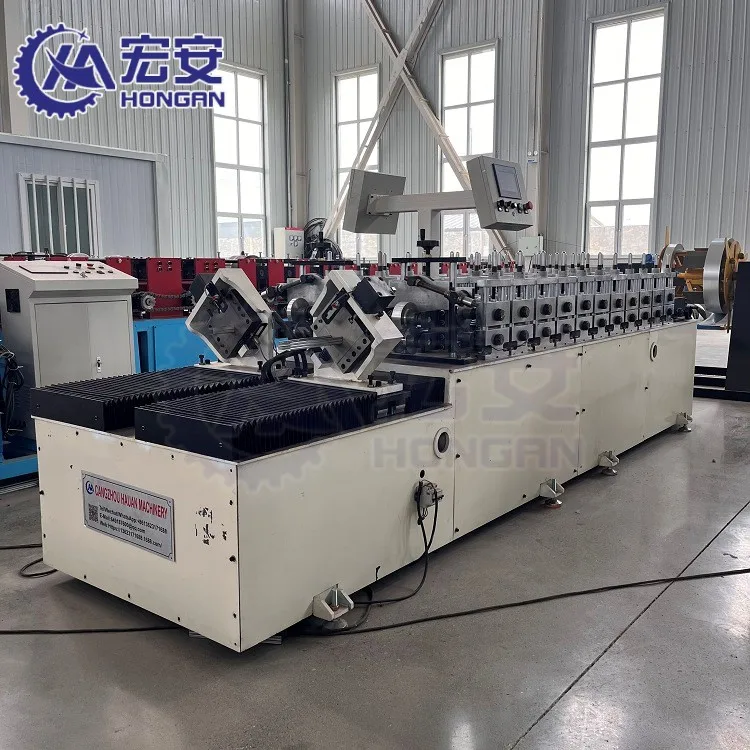

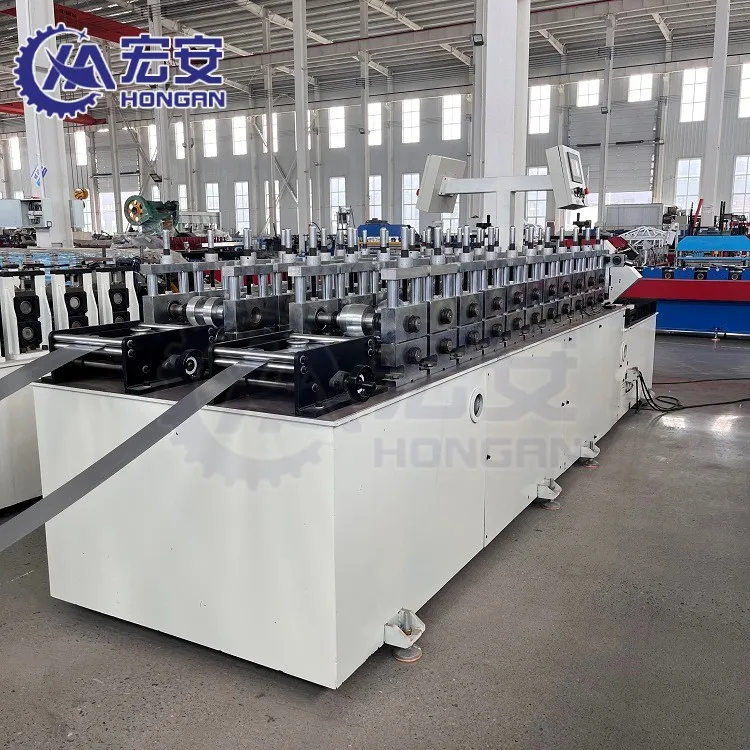

Double Dual Head Stud Machine Automatic Metal Drywall Stud And Track Roll Forming Machine Ceiling Keel Truss Machine For Sale
- Category: >>>
- Supplier: CANGZHOU HAUAN ROLL FORMING MACHINERY CO. LTD.
Share on (1601278232236):
Product Overview
Description
Product Information
1. Product Profile
Keel machine is based on strip steel as raw materials, through continuous cold rolling forming, the production of complex section profiles, and different specifications of cold bending, painting unit equipment, using PLC control.
Can be used in the construction industry, interior decoration, steel structure manufacturing, the scope of application of light steel keel machine mainly depends on its design and configuration.
Keel machine is based on strip steel as raw materials, through continuous cold rolling forming, the production of complex section profiles, and different specifications of cold bending, painting unit equipment, using PLC control.
Can be used in the construction industry, interior decoration, steel structure manufacturing, the scope of application of light steel keel machine mainly depends on its design and configuration.

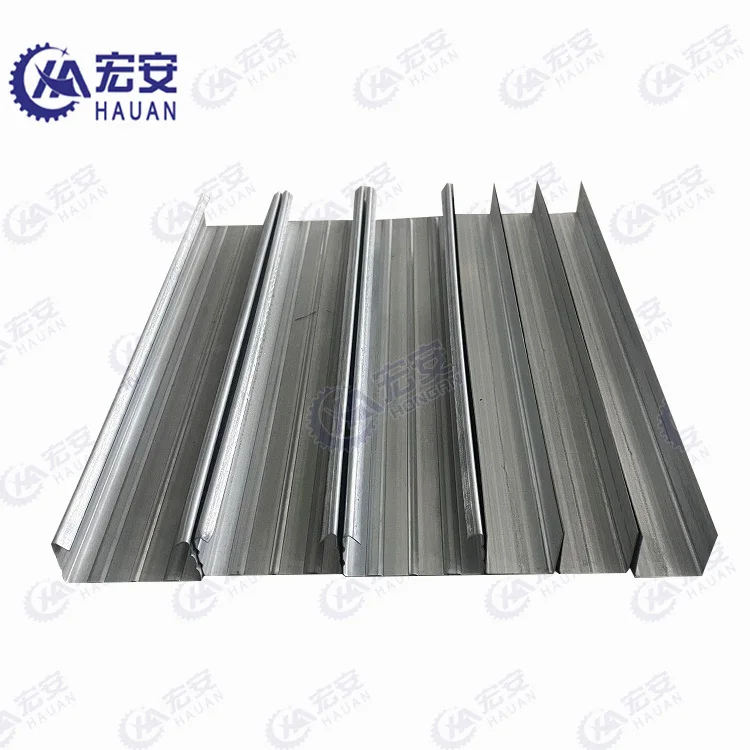

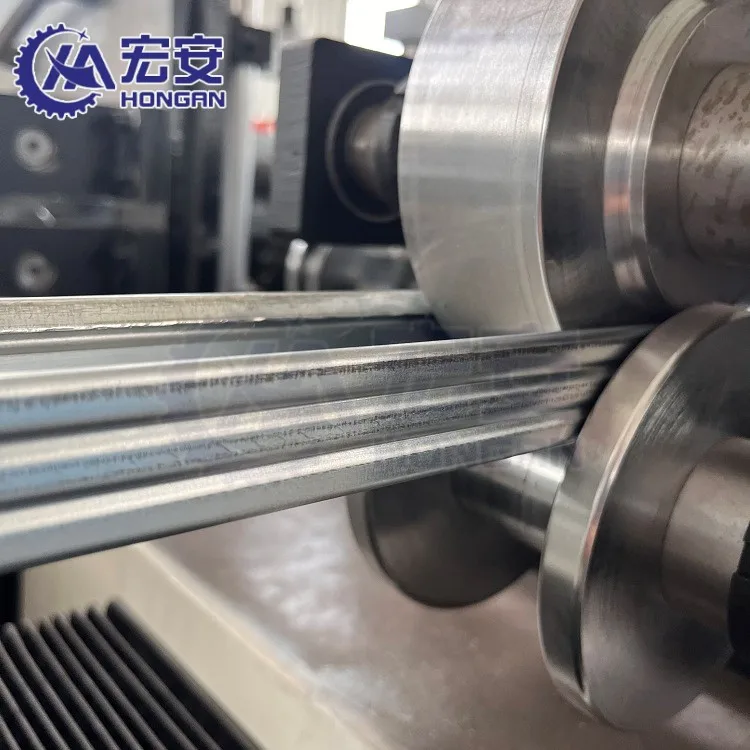

Finished Product

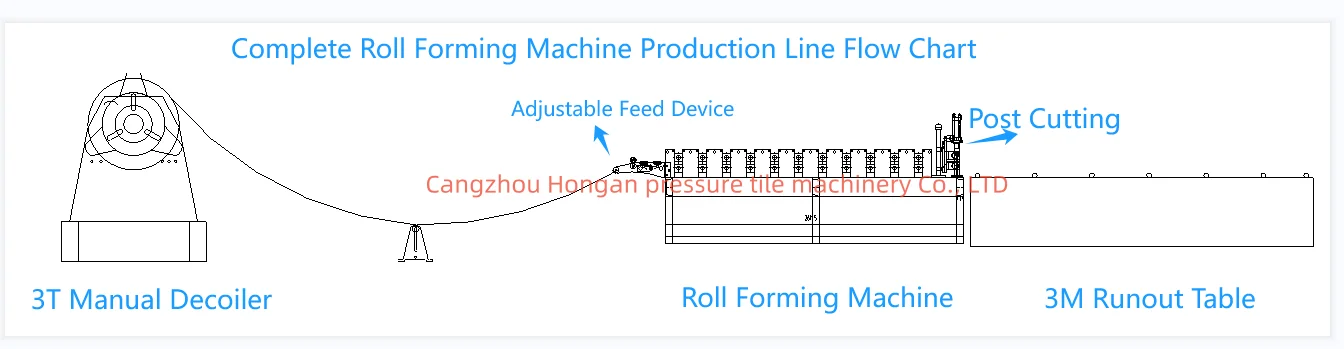

2. Work Flow
15-25m/min
15-25m/min

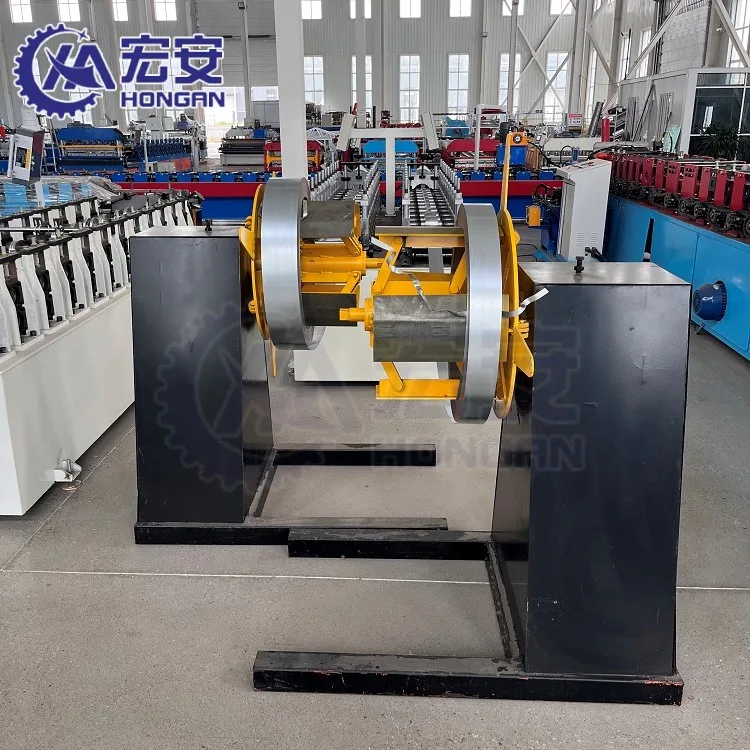

3 tons decoiling machine - automatic forming machine - hydraulic shear - receiving table
3. Product Specification
Item | Description & Parameter |
Forming raw material | Colored steel plate or galvanized steel |
Rolling thickness(mm) | 0.7-1.6 |
Formiing dimensions (mm) | According to the product drawing |
Feeding width(mm) | According to the product drawing |
Production capacity | 15-25m/min |
Control system | PLC |
Forming tolerance (mm) | ±0.1mm |
Operation mode | Combined operation method of LCD, PLC Program, driver and wireless control. |
Automation level | Fully automatic |
Fault diagnosis function | Control system diagnosis |
Working temperature | -30℃～50℃ |
Power | 29.6KW |
Input voltage | 380V/50HZ/3PH electricity or Customization |
Dimension(L*W*H)(mm) | 5800 * 1600 * 1600 |
Weight(Tons) | 4.8 tons |
Video outgoing-inspection | Provided |
Machinery test report | Provided |
4. Equipment List
NUM | Equipment Name | Quantity (set) |
1 | Decoiling machine | 1 |
2 | Feeding Device | 1 |
3 | slitting machine | 1 |
4 | Cutting System | 1 |
5 | Finished Product Receiving Rack | 1 |
6 | PLC Control System | 1 |
7 | Supporting Accessories | 1 |

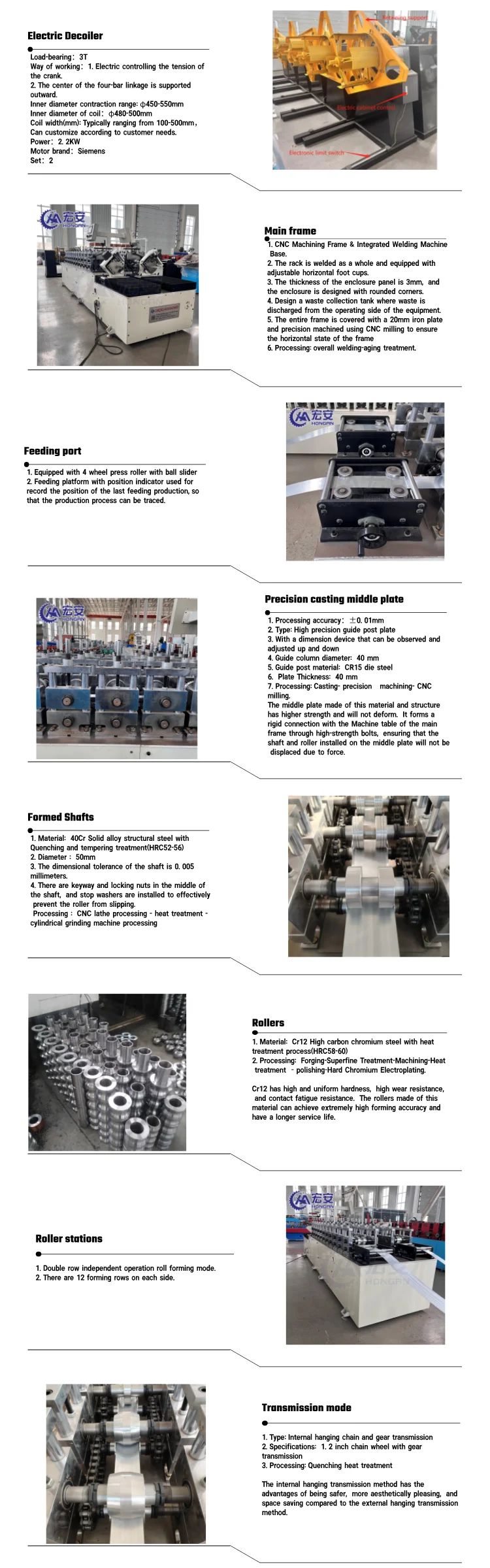

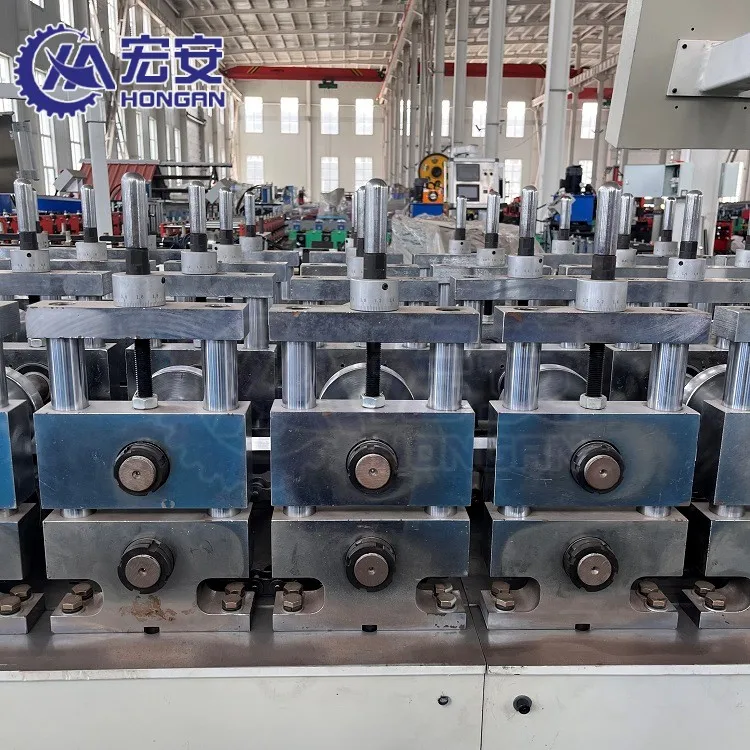

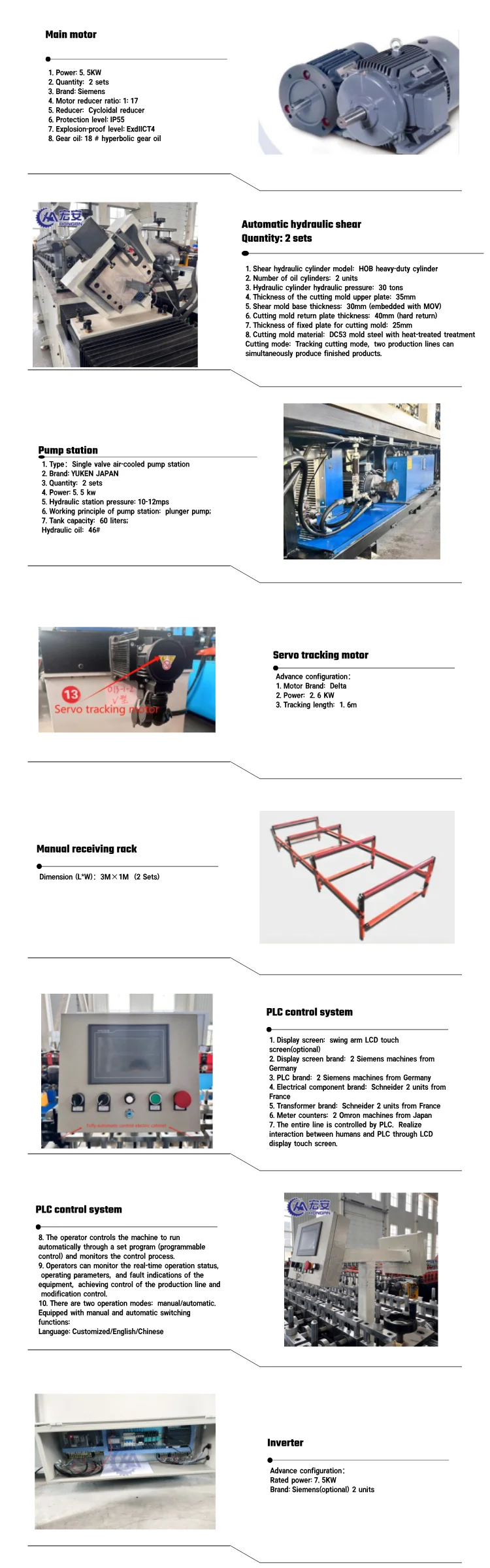

5. Components Details

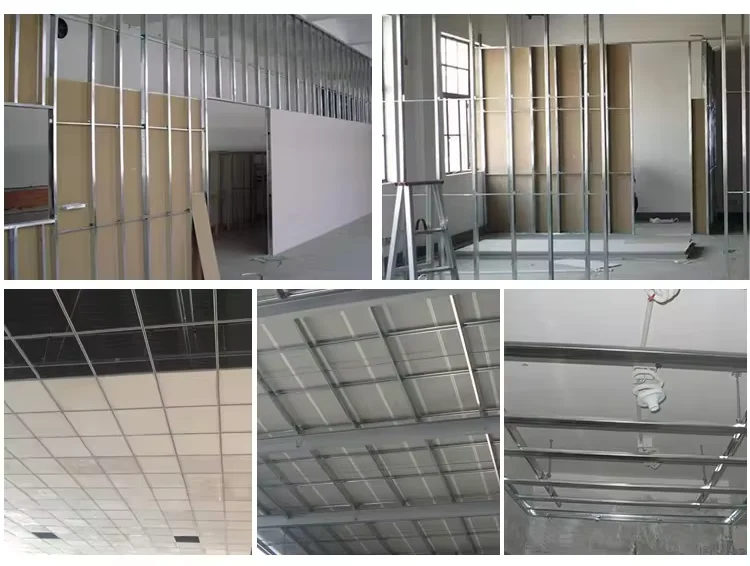

6. Usage scenario
Packing & Shipping
Packaging Details
1. Select containers of different specifications for transportation based on the actual volume and weight of the packaged goods.
2. Wipe the entire equipment with rust proof oil and use a thin film for dust protection. 3. PLC controller and electric cabinet
are covered with foam film, and vulnerable parts are protected by wooden cases. 4. Spare parts and some small parts are packed in
a plastic toolbox.
2. Wipe the entire equipment with rust proof oil and use a thin film for dust protection. 3. PLC controller and electric cabinet
are covered with foam film, and vulnerable parts are protected by wooden cases. 4. Spare parts and some small parts are packed in
a plastic toolbox.
Related Products
About Us
1.Company profile
Cangzhou Hauan Roll Forming Machinery Co., Ltd.
Cangzhou Hauan Roll Forming Machinery Co., Ltd. focuses on one-stop service solutions for metal processing machinery. The factory covers an area of 8,300 square meters and currently has 50 employees, including 9 senior engineers and 6 technicians. The company has two large-scale metal processing machinery workshops. The main products are: Roof Roll Forming Machine, Decoration Forming Machine, Light Gauge Villa Roll Forming Machine, Fully Auto changeable CZ Roll Forming Machine and other related various cold bending forming machines including shearing machines and bending machines, etc.
2.Our Clients
3.Our Certificates
Our machinery has the characteristics of fast processing efficiency and high precision.It has passed ISO9001 and international CE certification. We have exported our machines abroad. Our oversea market include the USA, UAE, the Southeast Asia, Middle East, South America, Africa, Russia and European countries.
4.Hauan Concept
Hauan company has its own professional R&D center and design team, which is responsible for equipment drawings and continuous innovation, breaking through technical difficulties, and developing new equipment; the independent finishing department and mechanical department are responsible for equipment aluminum steel structure hardware processing and ultrasonic electronic device development and power distribution; Assembly department assembly line assembly equipment. Hauan Machinery always adheres to technological innovation as its leading force, and the R&D team continues to break through technical bottlenecks. The technical content of some of its main equipment is far ahead in the industry.
5.We solemnly promise
All machines and equipment have a one-year warranty and lifetime maintenance. Provide free technical consultation and other related maintenance services. The company can arrange professional engineers and technicians to go to the user's site to guideinstallation and debugging.
FAQ
Q1.You are a trade company or factory?
Cangzhou Hauan Roll Forming Machinery Co., Ltd. is a Manufacturer.
Q2:Where is your factory located?
Our factory is located in Cangzhou City, Hebei Province, China. You are warmly welcome to visit us!
Q3.Do you provide customized?Can you make the machine according to my design or prototype?
Sure,We have an professional designer for working out the most suitable design and productionplan for the machine that you are going to book with us.We are a professional roll forming machine designer and manufacturer.
Q4.What can you do if the machine is broken?
All machines and equipment have a one-year warranty and lifetime maintenance. Provide free technical consultation and other related maintenance services.
Q5.Can you be responsible for transport?
Yes,please tell us the destination port or address.we have rich experience in transport.
Q6.what can you buy from us?
The main products are: Roof Roll Forming Machine, Decoration Forming Machine, Light Gauge Villa Roll Forming Machine, Fully Auto changeable CZ Roll Forming Machine and other related various cold bending forming machines including shearing machines and bending machines, etc.
Q7.How is your after-sales support?
The company can arrange professional engineers and technicians to go to the user's site to guide installation and debugging.We always provide customers with comprehensive production planning solutions, as well as comprehensive pre-sales technical guidance and after-sales free technical support services; providing customers with high-quality products, reasonable prices, fast delivery and enthusiastic services to win the market.
