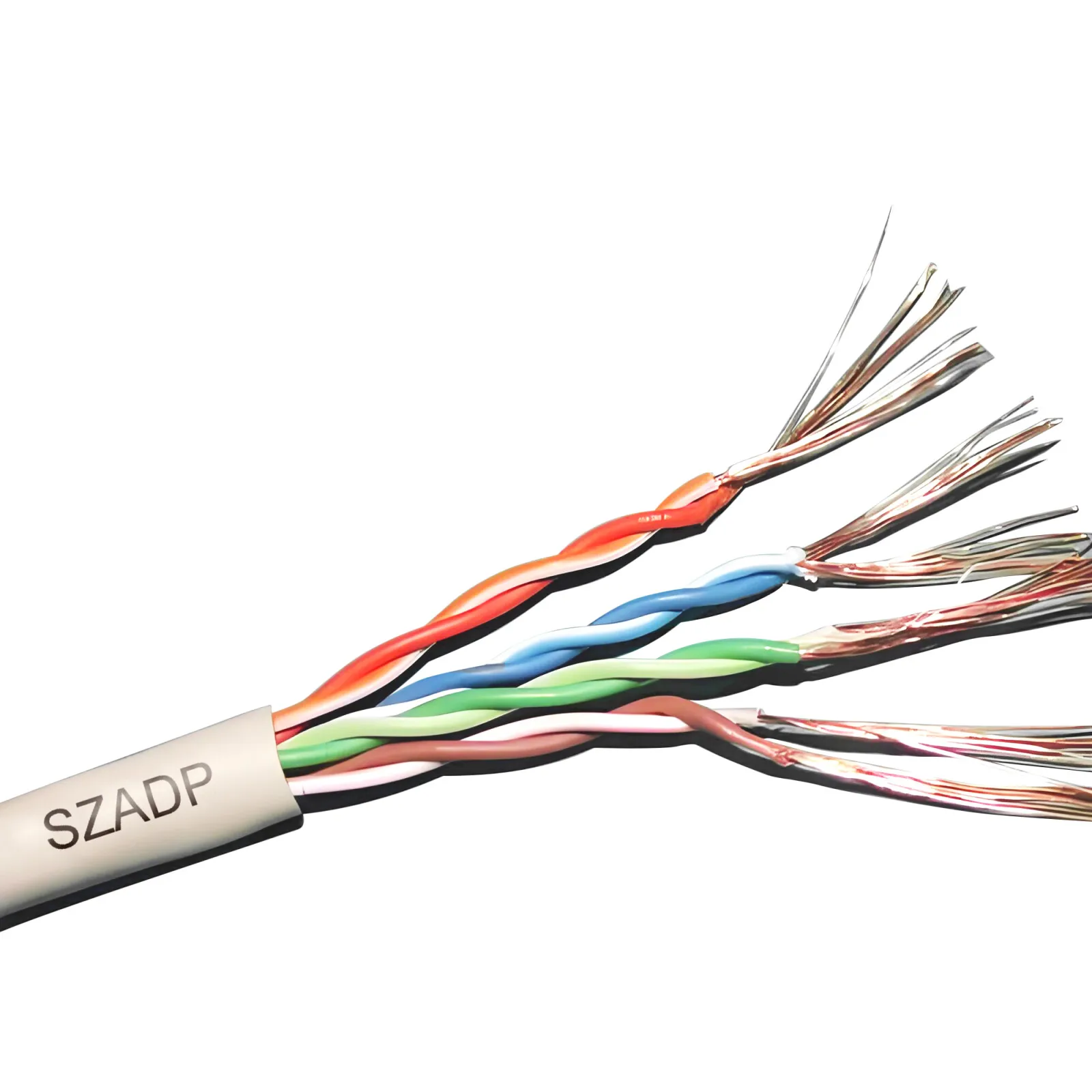

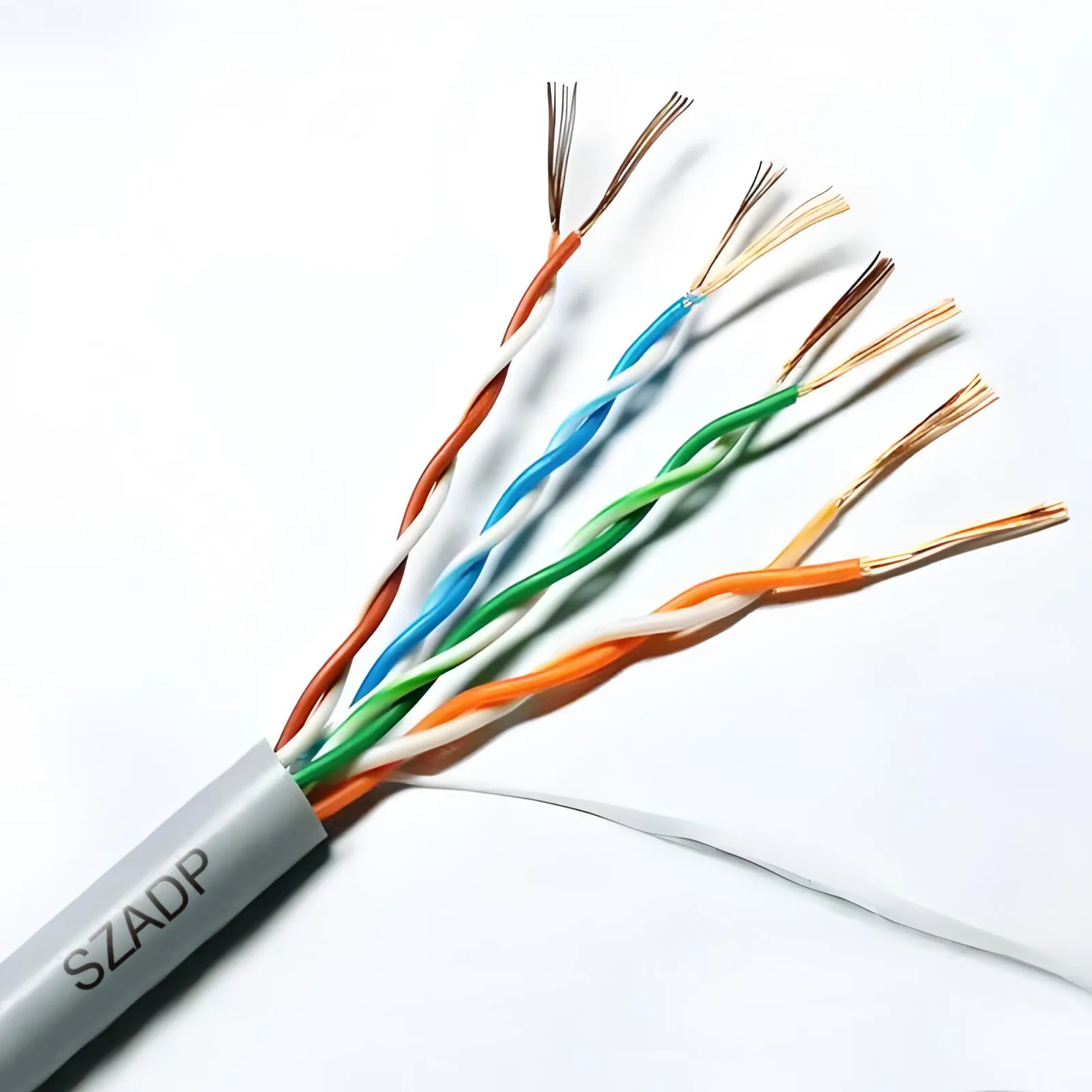

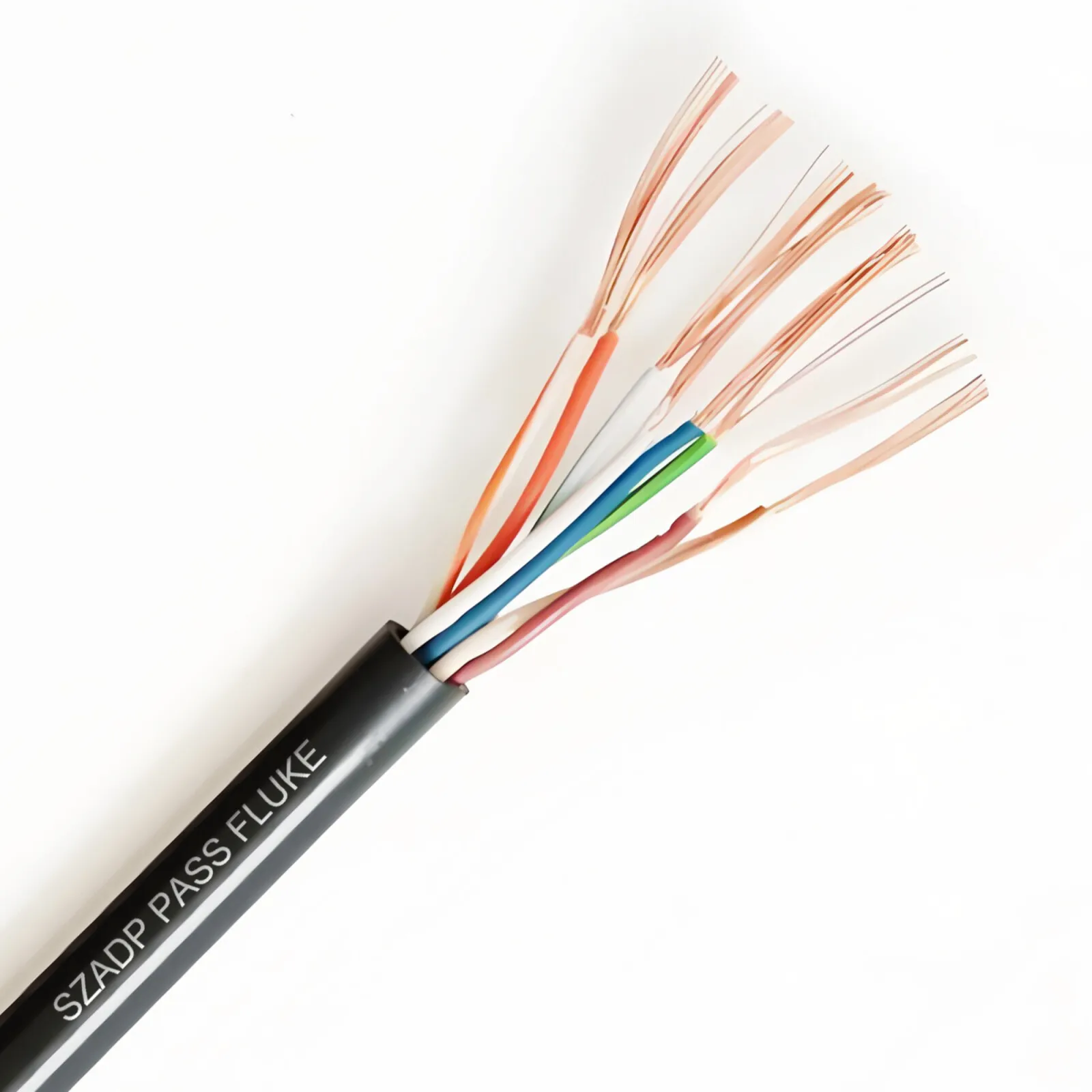

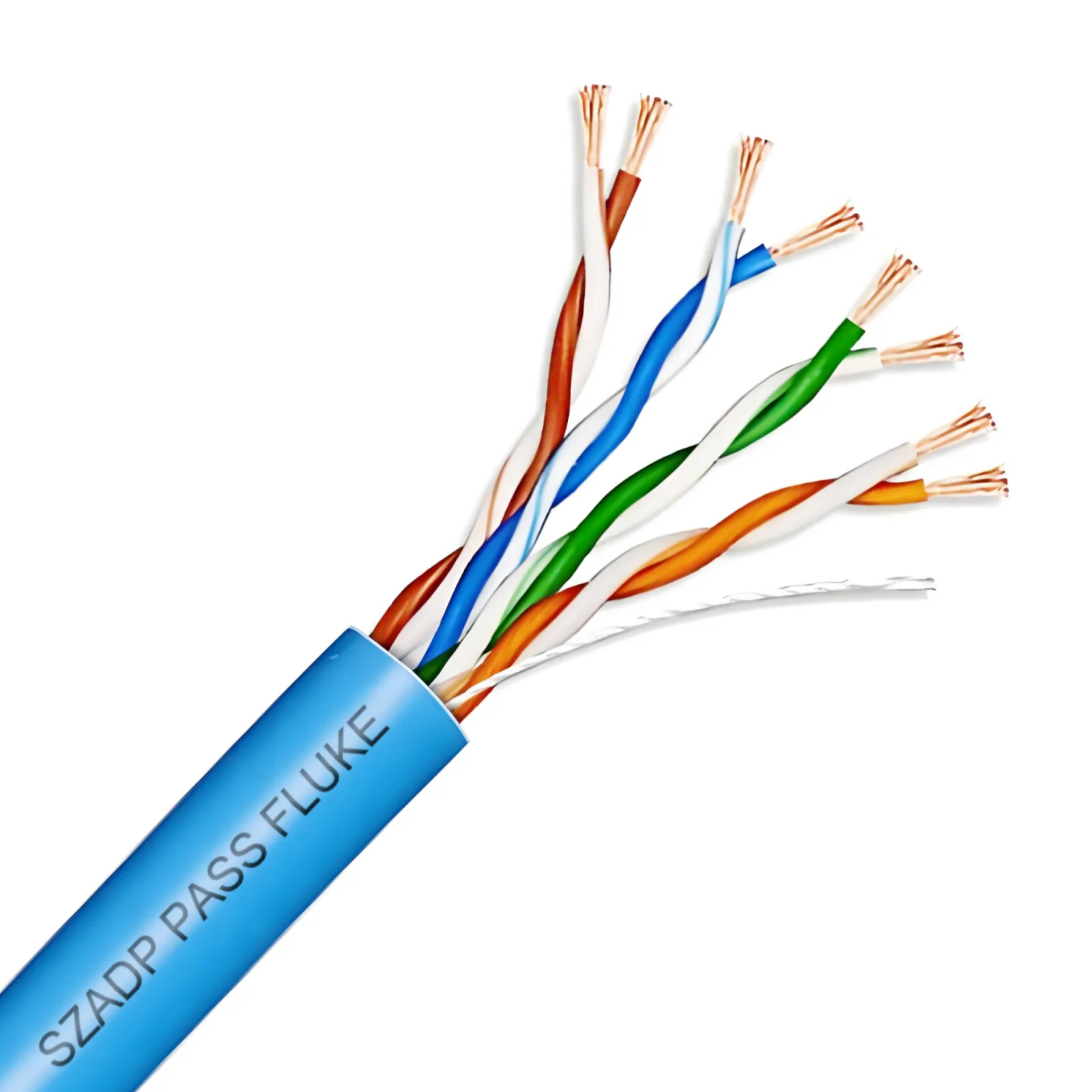

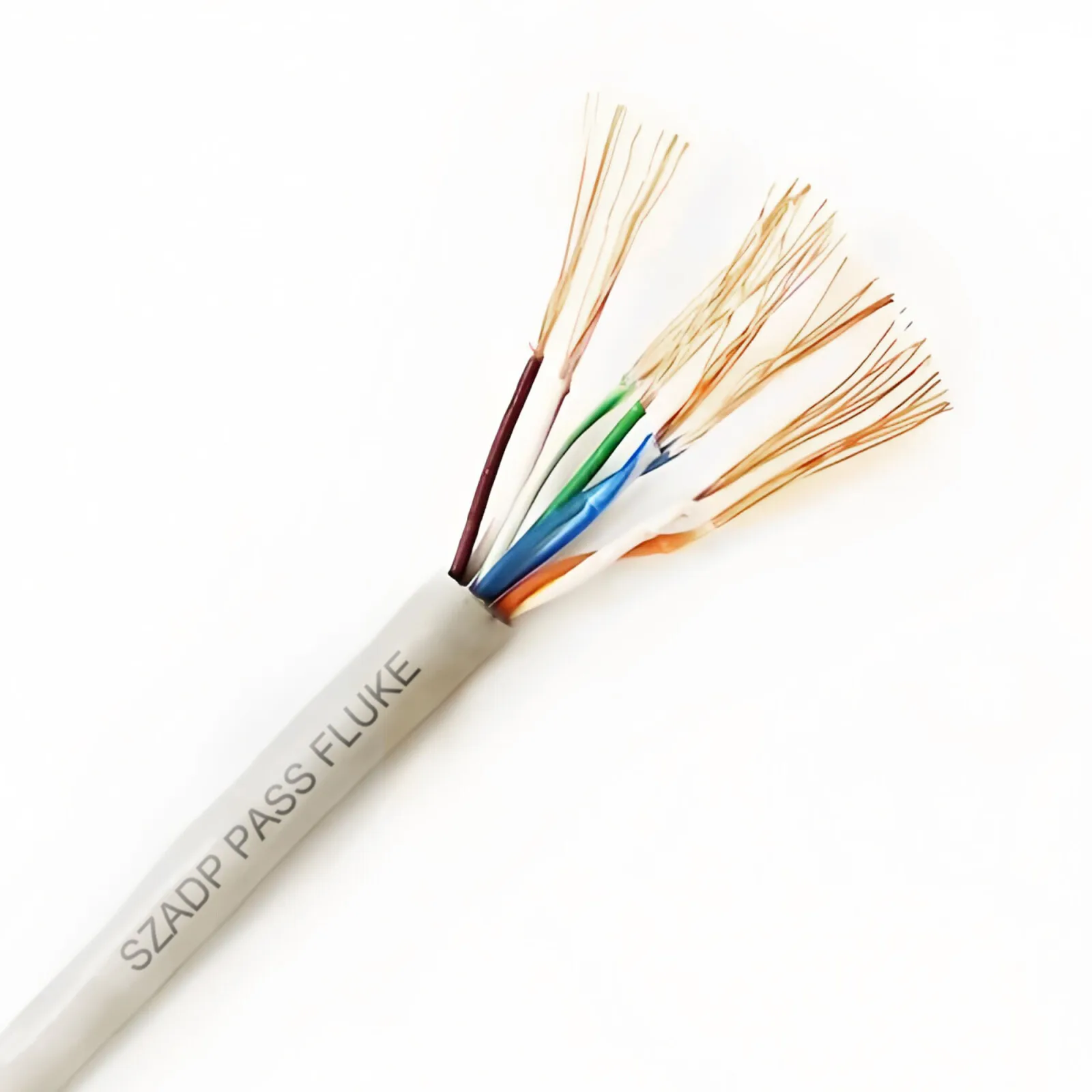

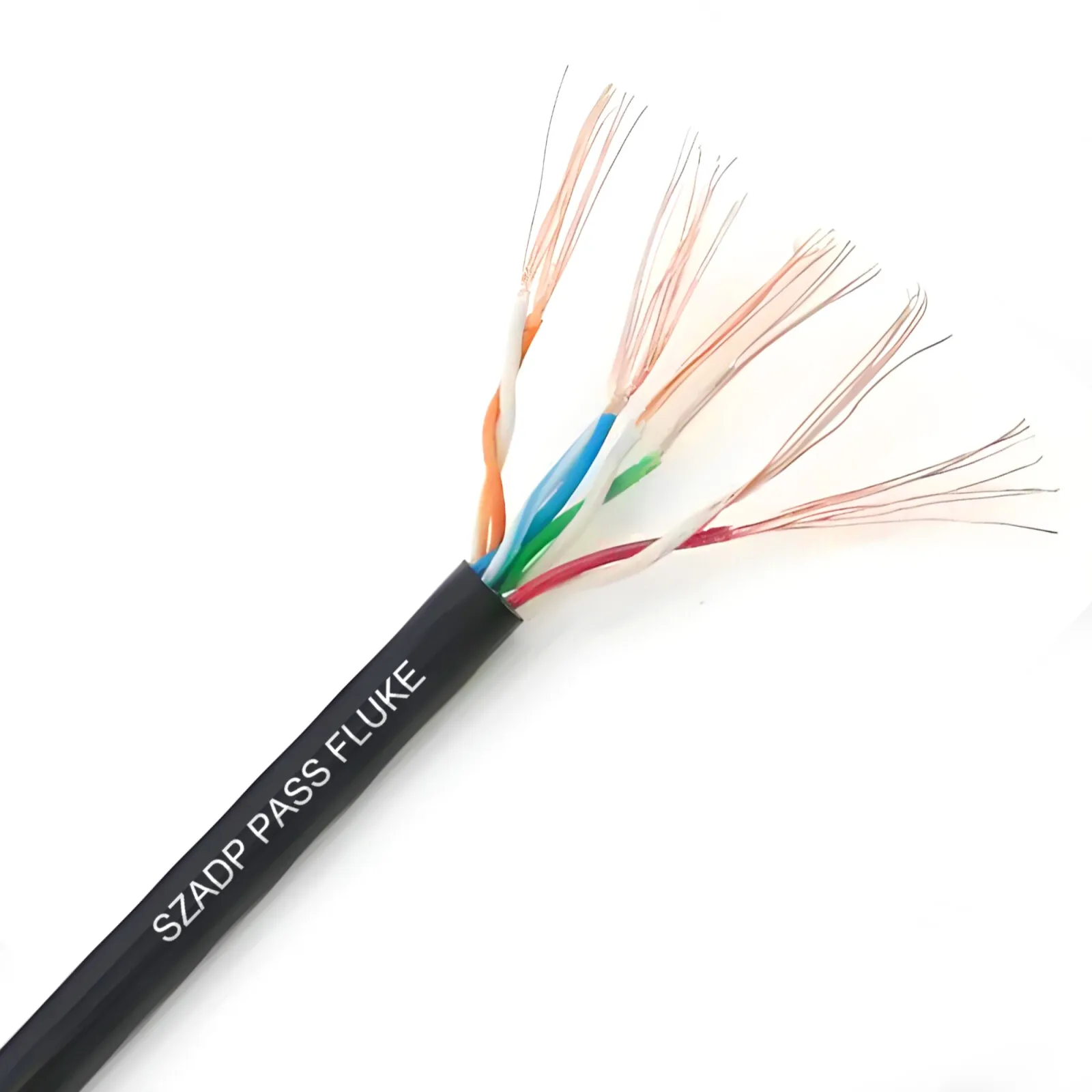

UTP Ftp 24awg 7*0.2mm Copper CCA HCCA Stranded Flexible Twisted Wire Cat5e Cat6 Passes the Patch Cord Lan Cable Test
- Category: >>>
- Supplier: Guangzhou Adp Communication Technology Co. Ltd.
Share on (1601278575413):
Product Overview
Description
Product description
UTP/FTP/SFTP/STP CAT5E/CAT6/CAT6A/CAT7 Stranded Cable Pass Test(High Performance)
1.Conductor:24/26AWG/32AWG copper,CCA,HCCA,8*7*0.12;8*7*0.18;8*7*0.08 etc
2.Insulation:0.92mm+/-0.06HDPE/PE
3.Pairs:4pairs
4.Shield:AL Foil，Braids.
5.Temperature Range:-20 up to +75°
6.Conductor Resistance:Max. 9.38 ohm/100m
7.Resistance Unbalance:Max.2%
8.Insulation Resistance:Max. 150 ohm/Km
9.Mutual Capacitance:Max,5600pF/100m
10.Capacitance Unbalance:Max. 330pF/100m
11.Impedance:100+/-15
12.Spark Test:2000V
13.Velocity of propagation:67%
2.Insulation:0.92mm+/-0.06HDPE/PE
3.Pairs:4pairs
4.Shield:AL Foil，Braids.
5.Temperature Range:-20 up to +75°
6.Conductor Resistance:Max. 9.38 ohm/100m
7.Resistance Unbalance:Max.2%
8.Insulation Resistance:Max. 150 ohm/Km
9.Mutual Capacitance:Max,5600pF/100m
10.Capacitance Unbalance:Max. 330pF/100m
11.Impedance:100+/-15
12.Spark Test:2000V
13.Velocity of propagation:67%
Applications
1.LAN Network System
2.Computer Network Distributing System
3.Telecommunication Network System
4.Testing Equipment System
5.CATV System
2.Computer Network Distributing System
3.Telecommunication Network System
4.Testing Equipment System
5.CATV System
Frequency (MHz) | Character impedance (ohm) | Echo Loss (Db) | Attenuation (dB/100) | Near-end crosstalk (dB/100m) | Equivalent far-end Crosstalk(dB/100m) |
0.772 | 100±15 | 19.4 | 1.6 | 76.0 | 70.2 |
1.0 | 20.0 | 1.8 | 74.3 | 68.0 | |
4.0 | 23.0 | 3.7 | 65.3 | 56.0 | |
8.0 | 24.5 | 5.3 | 60.8 | 49.9 | |
10.0 | 25.0 | 5.9 | 59.3 | 48.0 | |
16.0 | 25.0 | 7.5 | 56.2 | 43.9 | |
20.0 | 25.0 | 8.4 | 54.8 | 42.0 | |
25.0 | 24.3 | 9.5 | 53.3 | 40.0 | |
31.25 | 23.6 | 10.6 | 51.9 | 38.1 | |
62.5 | 21.5 | 15.4 | 47.4 | 32.1 | |
100.0 | 20.1 | 19.8 | 44.3 | 28.0 | |
200.0 | 18.0 | 29 | 39.8 | 22.0 | |
250.0 | 17.3 | 32.8 | 38.3 | 20.0 |
1.Free sample, short time delivery
2.Good quality, competitive price
3.CE ,ROHS,TLC,CCC, CTI,ISO9001 certificates are available.
2.Good quality, competitive price
3.CE ,ROHS,TLC,CCC, CTI,ISO9001 certificates are available.
