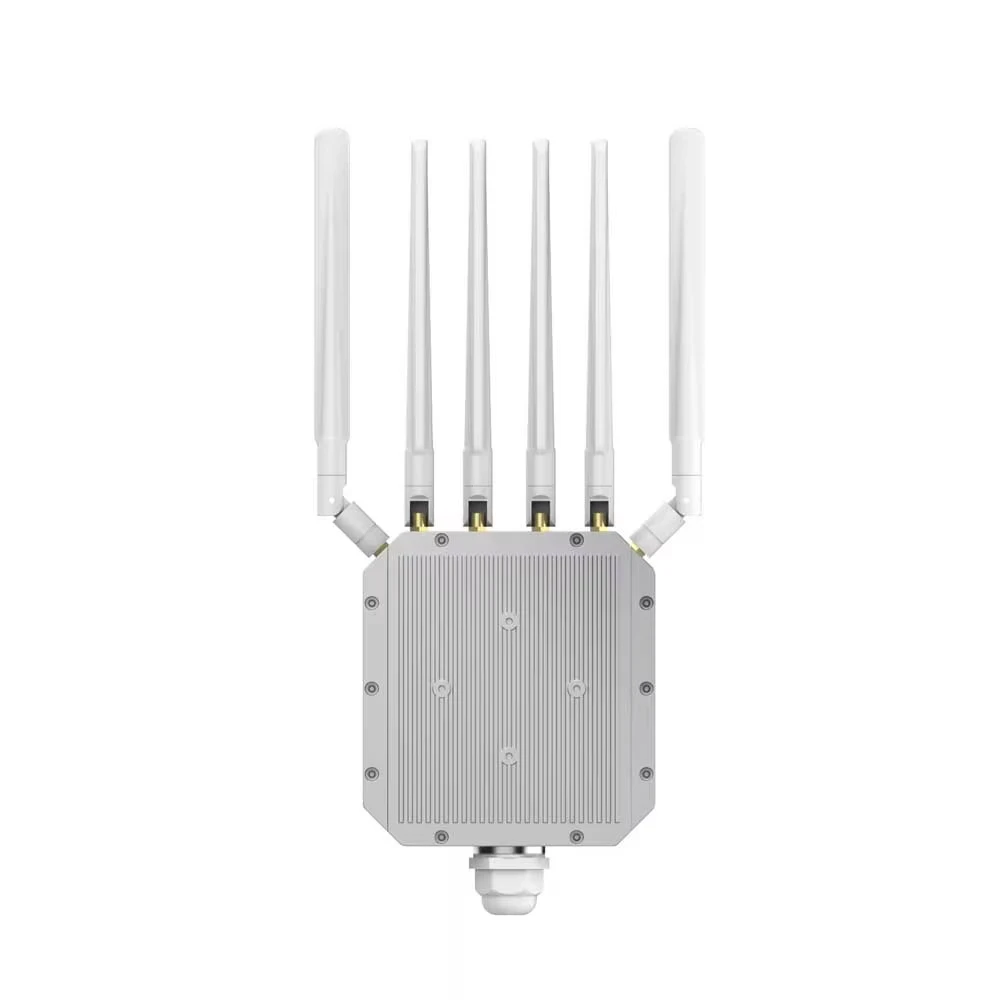

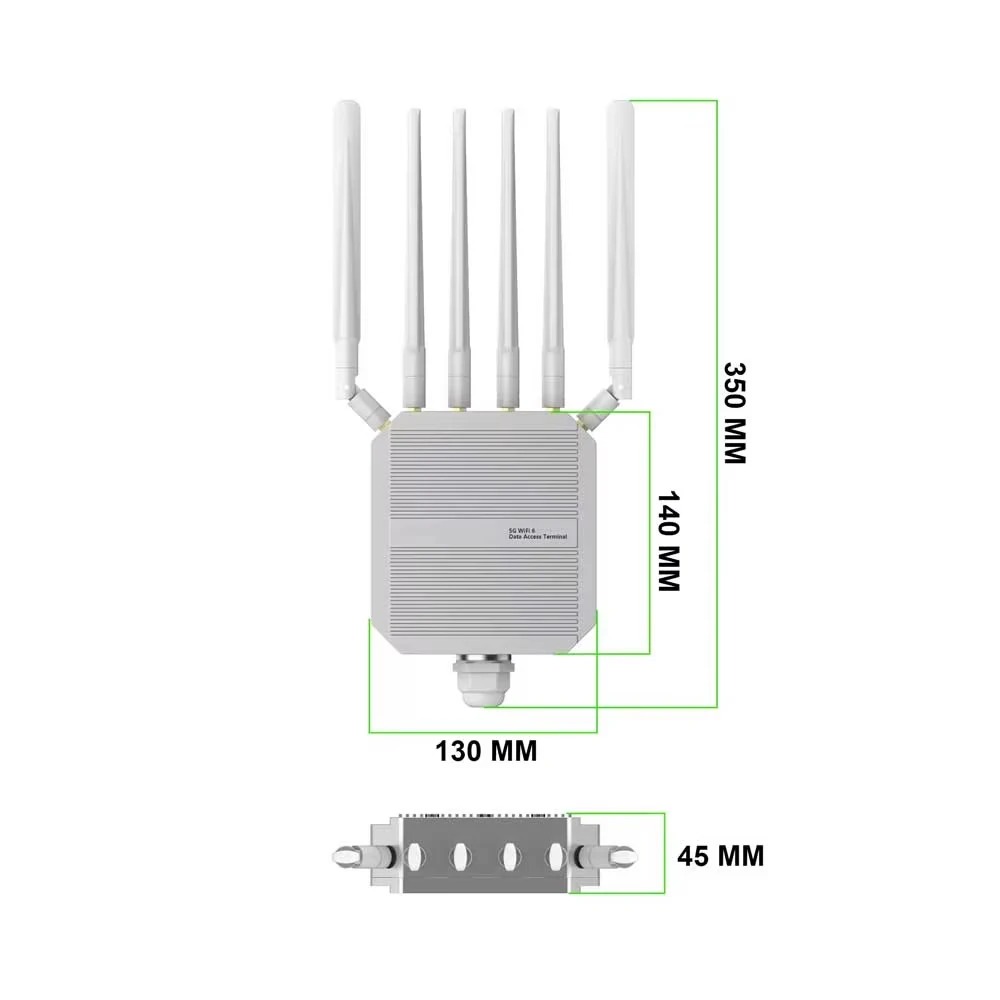

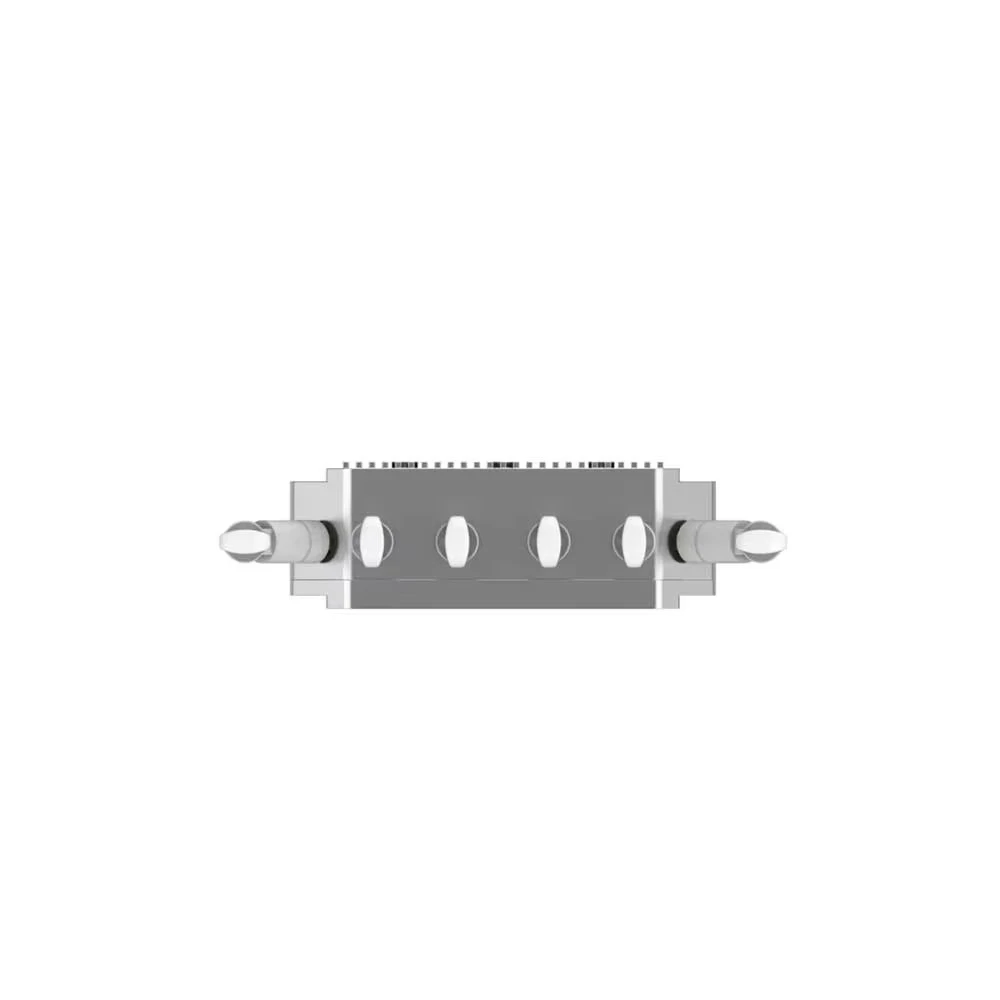

M16M43 IPQ5018 CP520 5g nr outdoor ax3000 wifi 6 SDX75 modem 4g 5g wifi router with sim with outdoor antenna
- Category: >>>
- Supplier: Shi Di Fen (Shenzhen) Technology Co. Ltd.
Share on (1601278739319):
Product Overview
Description
M16M43 IPQ5018 CP520 5g nr outdoor ax3000 wifi 6 SDX75 modem 4g 5g wifi router with sim with outdoor antenna
1). Main Chipset IPQ5018+ SDX75 5G modem support global band
2).Wifi6 stand,support 802.11AX,AC protocol.
3).2.5G gigabit ports.
4).High speed,wireless rate up to 3000Mpbs.
5).One mesh button to support MESH automatic networking.
7).4pcs High power independent wifi amplifier for 2.4G&5.8G wifi.
8).outdoor IP67
8).outdoor IP67
Summary
This outdoor high-performance 5G wifi router is mainly designed for outdoor short-distance wifi coverage in remote rural areas, and to obtain higher cellular 4G 5g signals. The network performance is stable, and it has the characteristics of lightning protection, waterproof, high temperature resistance, and low temperature resistance.
This outdoor high-performance 5G wifi router is mainly designed for outdoor short-distance wifi coverage in remote rural areas, and to obtain higher cellular 4G 5g signals. The network performance is stable, and it has the characteristics of lightning protection, waterproof, high temperature resistance, and low temperature resistance.
Model | M16M43 CP520 Wifi 6 Outdoor 4G 5G Router | ||||||
Wireless Rate | WIFI 6 AX3000 | ||||||
Standards And Protocols | 2.4G: 802.11b/g/n/ax, 5.8G: 802.11b/g/n//ac/ax | ||||||
Main chipset | Qualcomm IPQ5018+ SDX75 | ||||||
WiFi Rate | 2.4GHz: 600Mbps, 5.8G: 2400Mbps | ||||||
5G NR | 3GPP Release 16 NSA/SA operation,Sub-6 GHz | ||||||
5G Frequency | 5G NR NSA：n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/ 78/795G NR SA：n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/ 78/79 MIMO Downlink：4×4MMOon n1/n2/n3/n7/n25/n38/n40/n41/n4B/n66/n77/n78/n79 | ||||||
4G Frequency | Downlink Cat 19/ Uplink Cat 18LTE-FDD：B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/ 38/39/40/41/42/43/48 MIMO DL:4×4 MMO on B2/B4/B5/B12/B13/B14/B17/B25/B26/B29/B30/B66/B41/B42/B43/B48/B71 | ||||||
4G/5G Data Rate | 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs) LTE: Down 1.0 Gbps; UP 200 Mbps | ||||||
interface | 1×10/100M/1000/2500Mbps LAN 1 Reset Button 2 SIM card slot(4FF SIM card Support SIM/USIM/UIM, standard 6 PIN SIM card interface. support 3V SIM card and 1.8V SIM card: internal) | ||||||
LED Indicator | Power,RF Signal,SIM Signal.SYS Signal | ||||||
Power Consumption | <24W | ||||||
Power supply | POE 48V/1A | ||||||
Environment | Operating Temperature:-20℃～+50℃ Storage Temperature:-40℃～+70℃ Humidity: 5%～95%(Non condensation) | ||||||
