NDI Auto tracking 20x Zoom 1080P 60fps USB HDMI POE SDI live streaming PTZ Conference Camera
- Category: >>>
- Supplier: Shenzhen Tongveo Innovation Technology Co. Ltd.
Share on (1601278828092):
Product Overview
Description
Tongveo AI Auto Tracking 20X Optical Zoom+8X Digital Zoom PTZ Camera

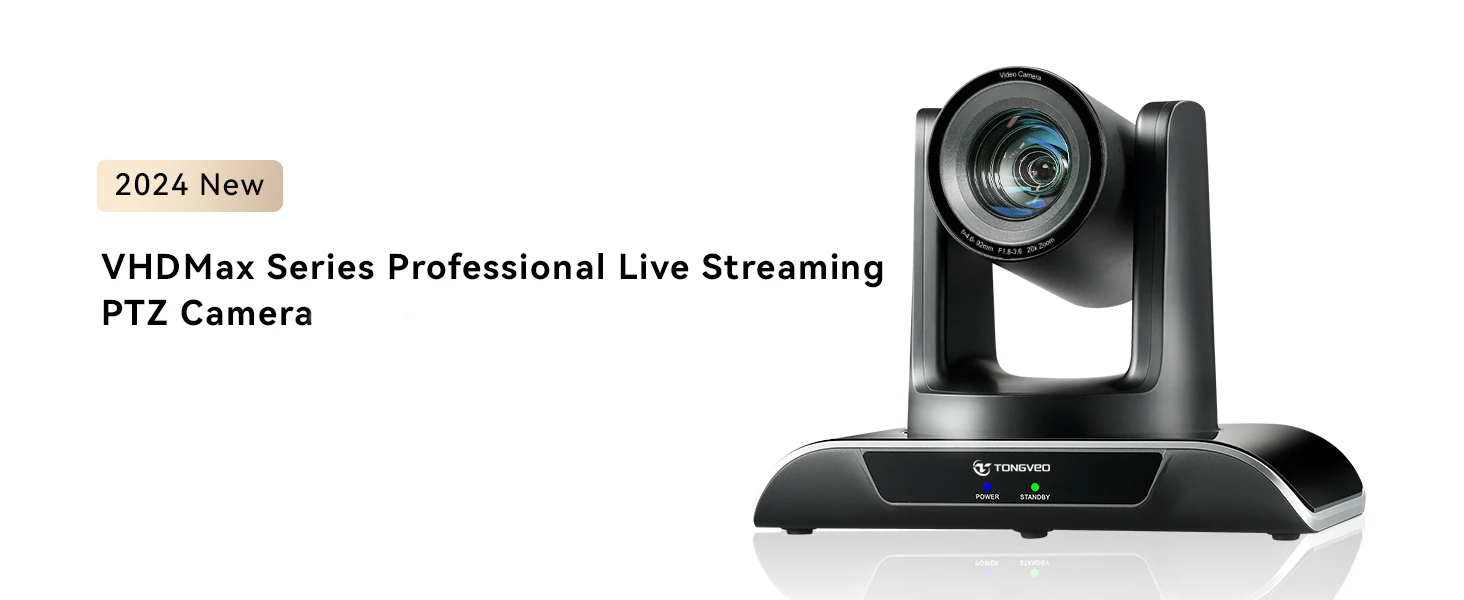

Tongveo Full Interface VHD Max Series - The PTZ Live Streaming Camera is equipped with a 20X Optical Zoom+8X Digital Zoom 69.5°wide angle lens which is reach up to 1080P 60FPS FHD video output. Equipped with a 1/2.8" CMOS Sensor, combined with 2D&3D Digital Noise Reduction technology and algorithm, so that it can easily cope with many scenes. Tongveo PTZ Camera surprices you with a real color, sharp and crystal video quality.
With NDI Version for Option
With the technology of NDI, almost zero latency and high-quality image could be delivered. Accurate frame of video can be transmitted, real-time and interactive control, flexible IP Live Streaming working mode, excellent response to network live video production needs.
Universal Compatibility
The IP Live Streaming Camera can be compatible with the current popular video/streaming software, including Zoom, Skype, YouTube, WebEx, BlueJeans, Facebook, Teams, Facetime, Google Hangout, OBS, Google Meet and so on. It supports Windows 7/8.1/10, Mac OS 10.10, Linux, Android or higher. The streaming camera is also widely used at online courses, church live broadcasts, Tele-Medicine, Studio streaming, High-Tech Conference, large events, etc.
Multiple Interfaces
Equipped with 3G-SDI, HDMI, USB3.0, and RJ45 interfaces, this live streaming camera provides flexibility and versatility when it comes to connecting to different devices and platforms. PoE(802.3af) supported. Meanwhile, LINE IN and LINE OUT interfaces can be connected to audio devices, supporting simultaneous audio and video streaming(audio device is not included). This makes it compatible with a wide range of devices and platforms, allowing you to meet all your live streaming needs.

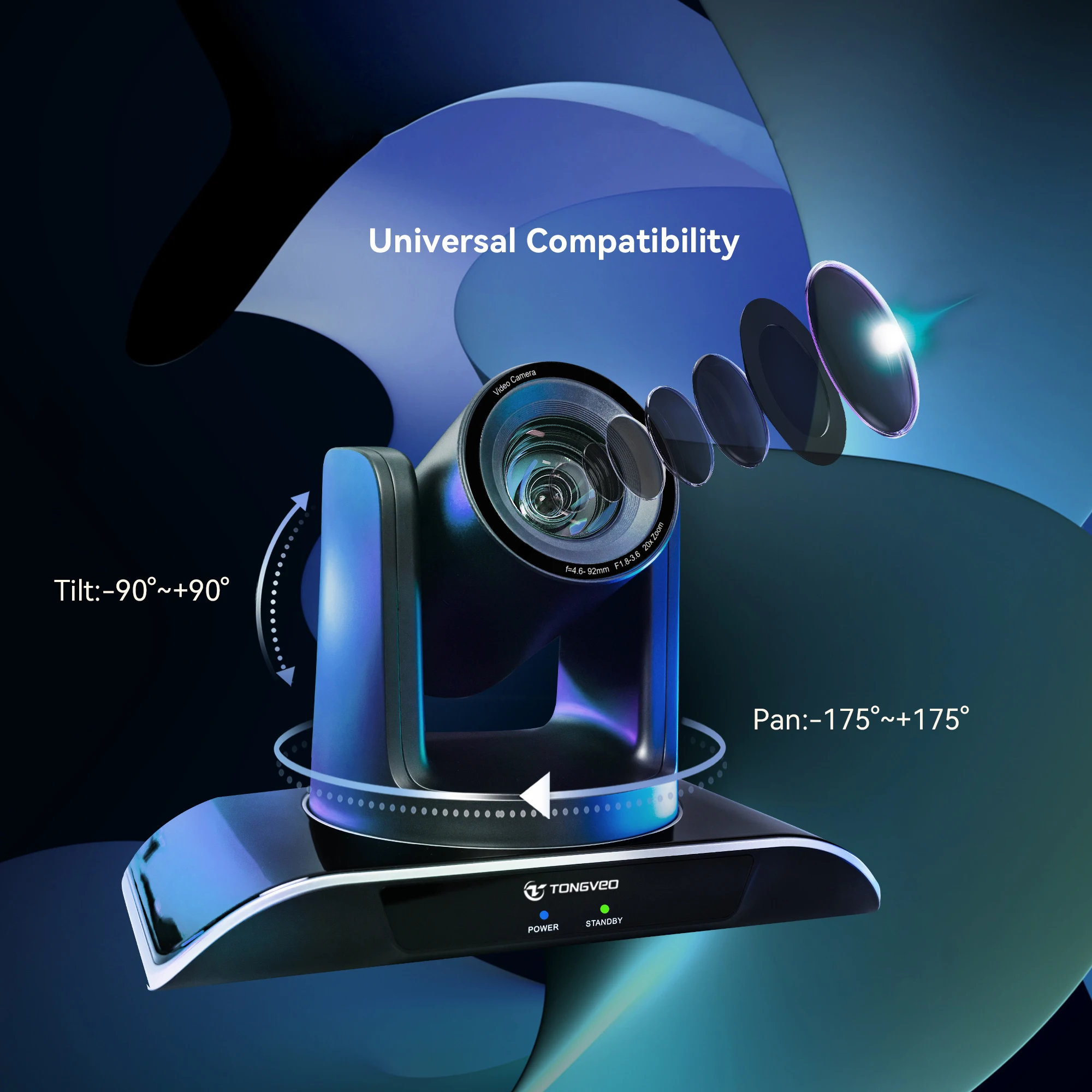

Smooth and Silent Pan/Tilt Movement

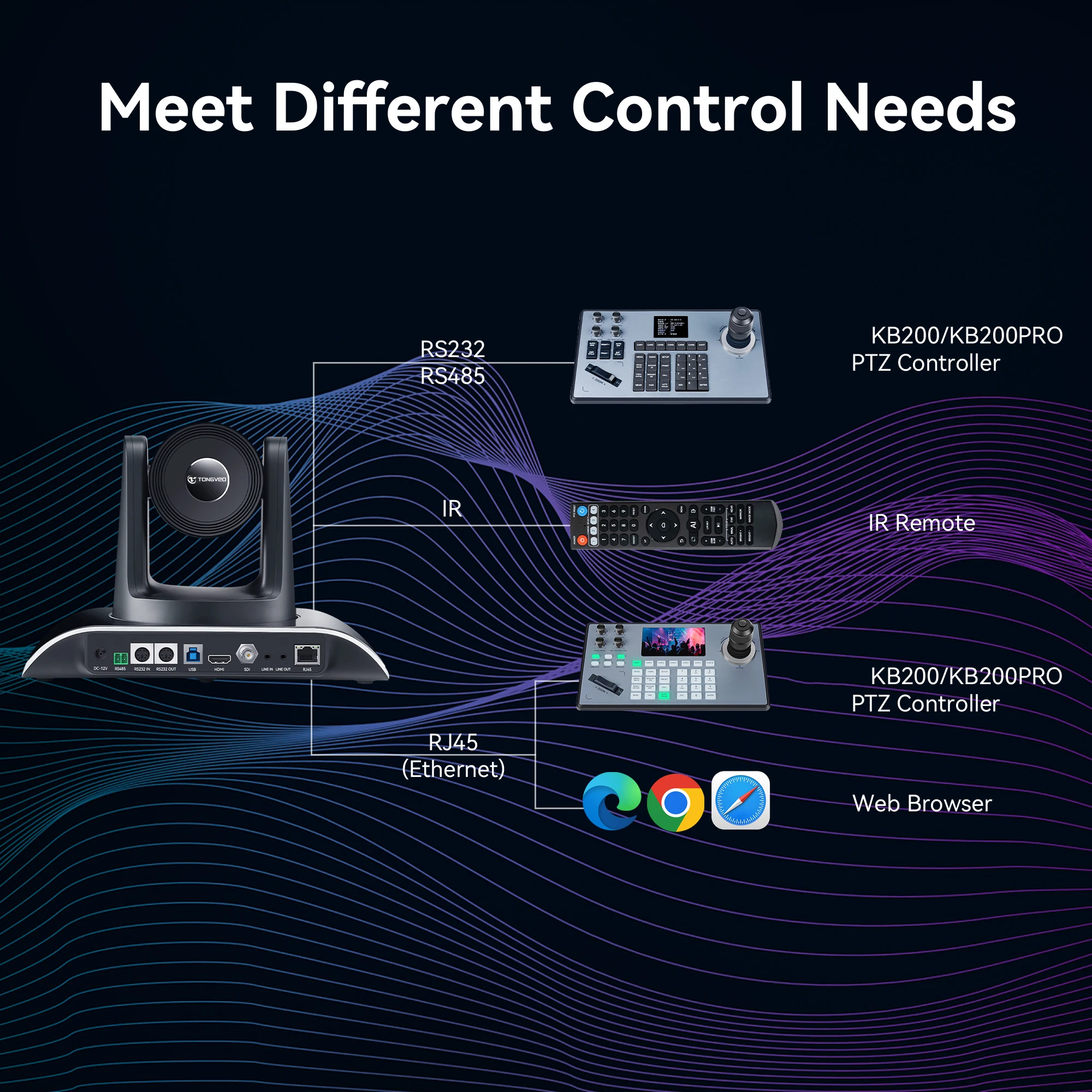

Tenveo PTZ Camera can be controlled remotely to rotate 350°(±175°) horizontally and 180°(±90°) vertically in an accurate, smooth and silent way. It also supports 10 presets setting through the IR Remote Control and is available to set up to 255 presets via RS232 and RS485 interfaces for professional control.
The convenient way could quickly control the PTZ camera pan, tilt, zoom, and move to the preset position for close-up sequence.
AI Auto Tracking PTZ Camera
The AI PTZ Camera with Auto-Tracking supports human shape tracking based on advanced AI algorithm. Through face recognition, it can accurately determine the location of people, realize automatic tracking and automatic frame selection. This makes it ideal for capturing live events, such as church services worship events, sporting events, live concerts, or large conferences.
Easy Preset Settings
This 20X multi-interface PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collaboration. The IR remote can adjust(0-9) preset positions and return to the set position with one button, make the meeting more convenient.
Product Details
Sensor | 1/2.8'' | ||||||||||||||||
Effective Pixels | 2.07MP | ||||||||||||||||
Video Output | USB 3.0, HDMI, RJ45, SDI | ||||||||||||||||
Zoom | 20x optical zoom, 8x digital zoom | ||||||||||||||||
Lens | f=4.6mm ~ 92mm | ||||||||||||||||
Aperture | F1.8 ~ F3.6 | ||||||||||||||||
Horizontal Angle | 62.3° ~ 3.46° | ||||||||||||||||
Vertical Angle | 36.1° ~ 1.92° | ||||||||||||||||
Diagonal Angle | 69.5° ~ 3.86° | ||||||||||||||||
SNR | ≥50dB | ||||||||||||||||
Control Protocol | VISCA, Pelco-D,Pelco-P | ||||||||||||||||
Dimension (W*H*D) | 247.1*152*169.6mm/285*217*197mm(before / after packing) | ||||||||||||||||
Company Profile
About US

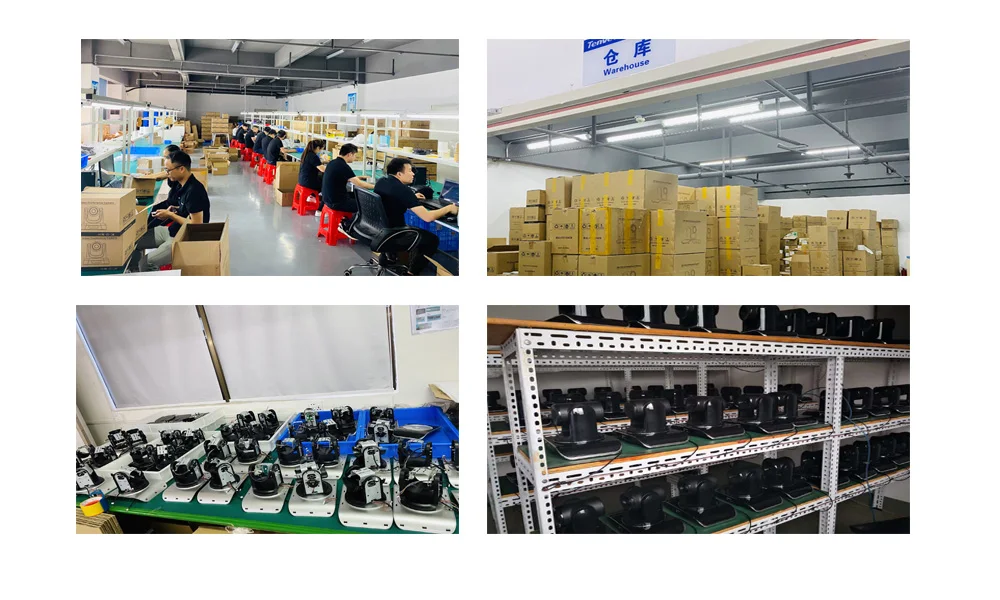

TONGVEO is a professional high-tech innovation brand that specializes in video and audio conference products. We are dedicated tointegrating product development, production, sales.
We focus on product quality and customer experience. TONGVEO products are sold to international consumers and have conducted in-depth cooperation to win an excellent reputation and praise.
TONGVEO, make any meeting better and easier!
We focus on product quality and customer experience. TONGVEO products are sold to international consumers and have conducted in-depth cooperation to win an excellent reputation and praise.
TONGVEO, make any meeting better and easier!
