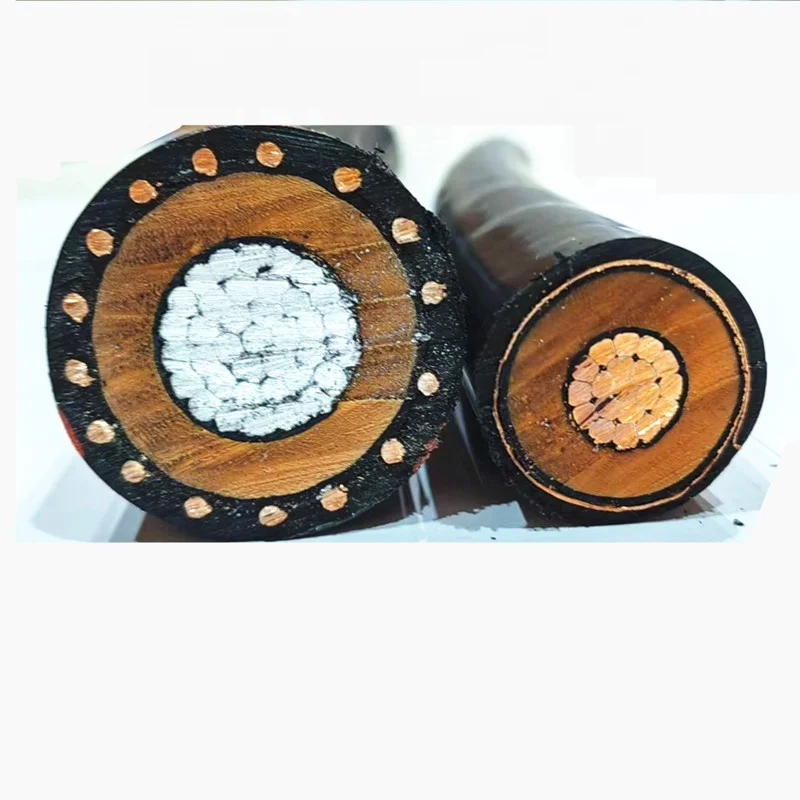

MV 90/MV 105 Cable 15KV UL 1072 listed mv cable manufacturer supplier Medium Voltage power CABLE
- Category: >>>
- Supplier: Hebei Huatong Wires And Cables Group Co. Ltd.
Share on (1601279596232):
Product Overview
Description
Product introduction
Application
Used for medium voltage installations or distribution networks both indoors and outdoors.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data
centers along with others.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data
centers along with others.

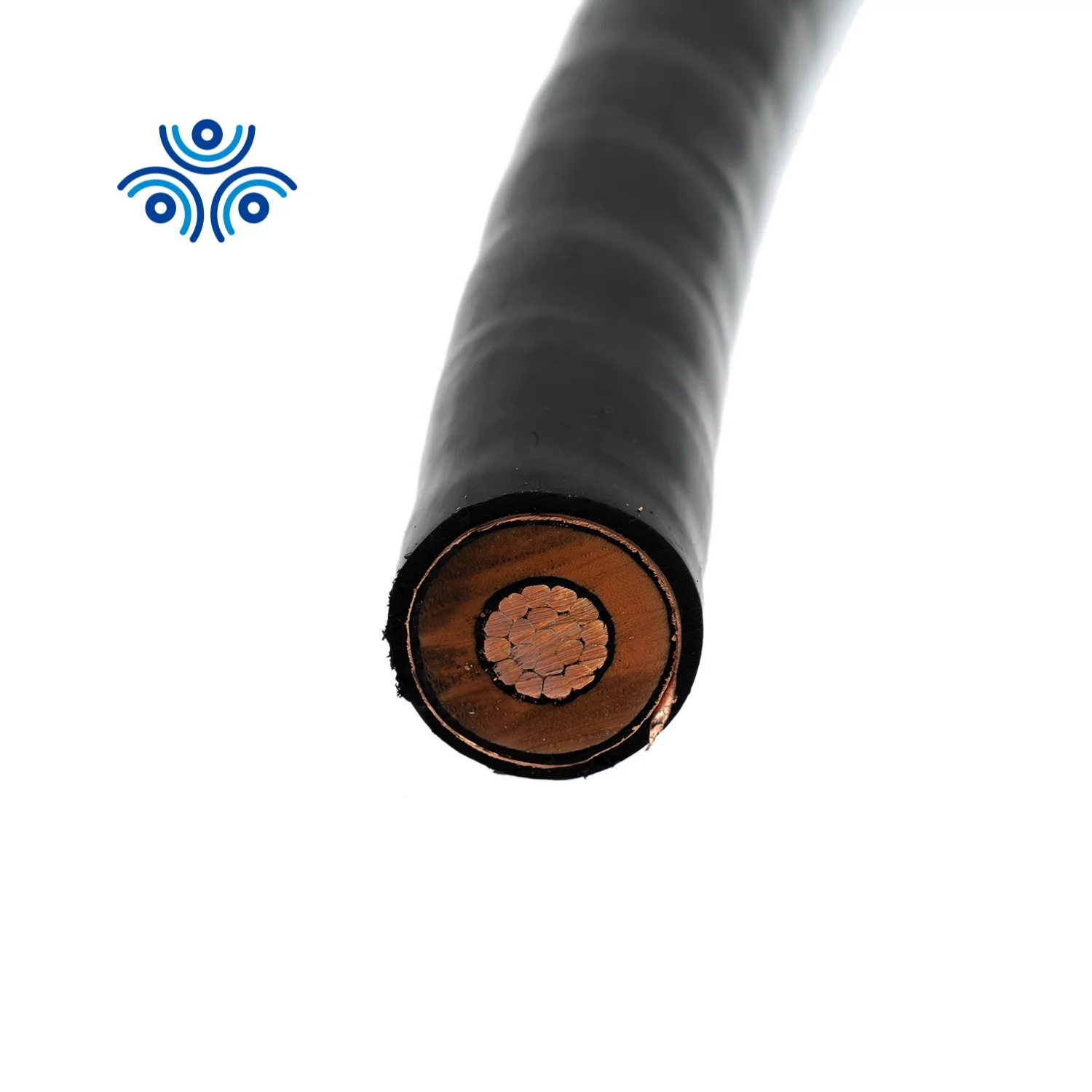

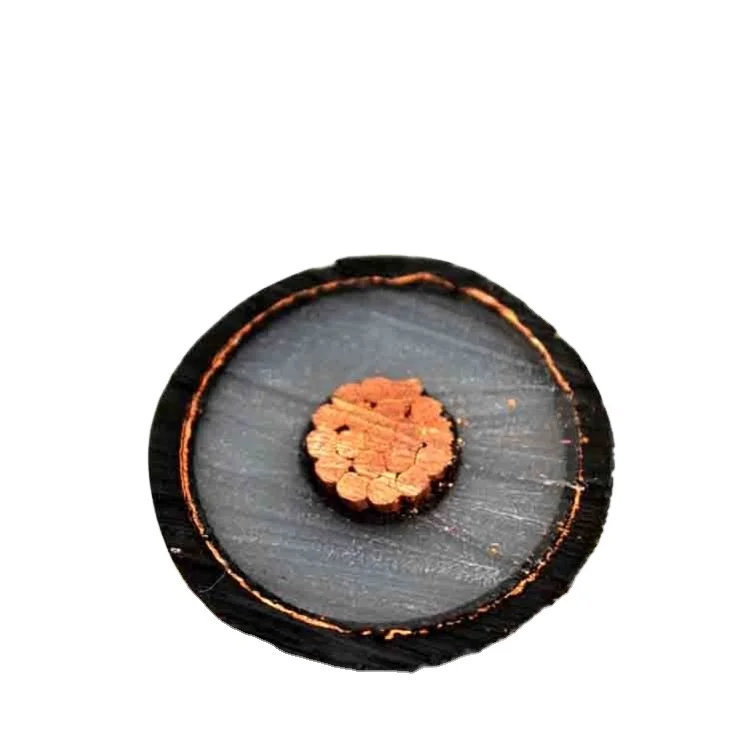

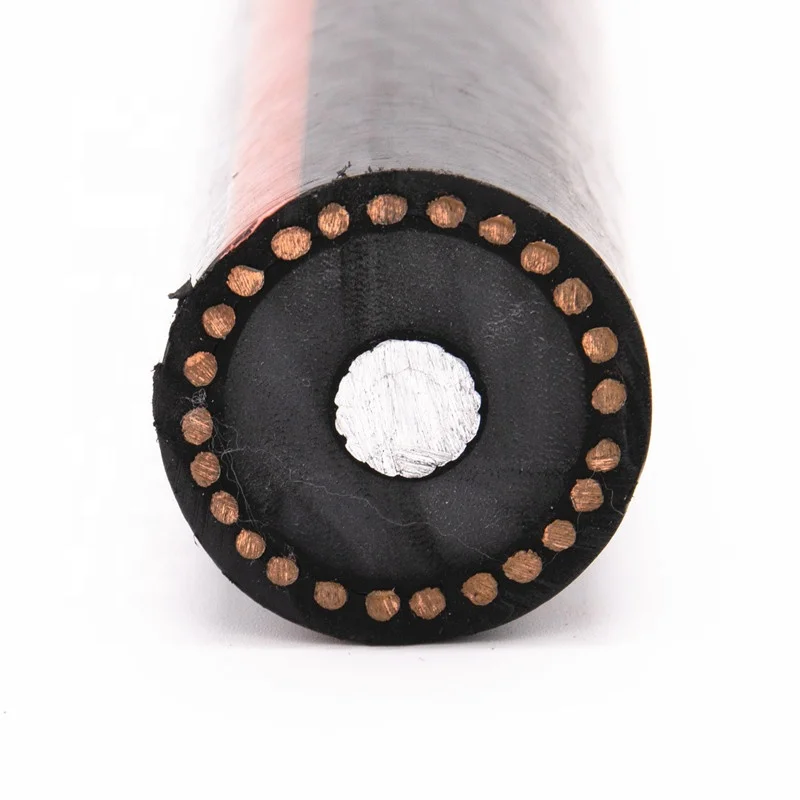

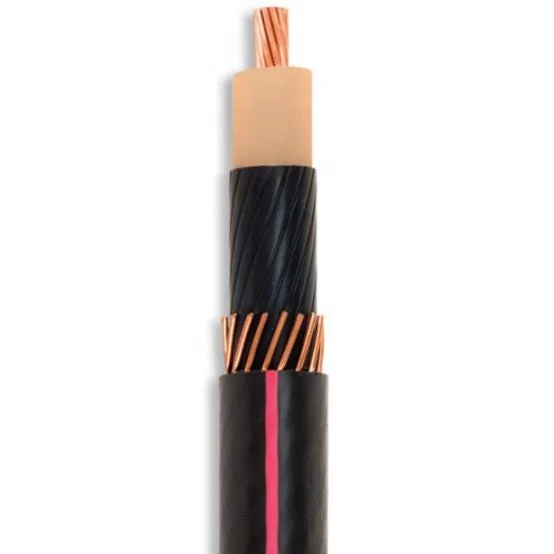

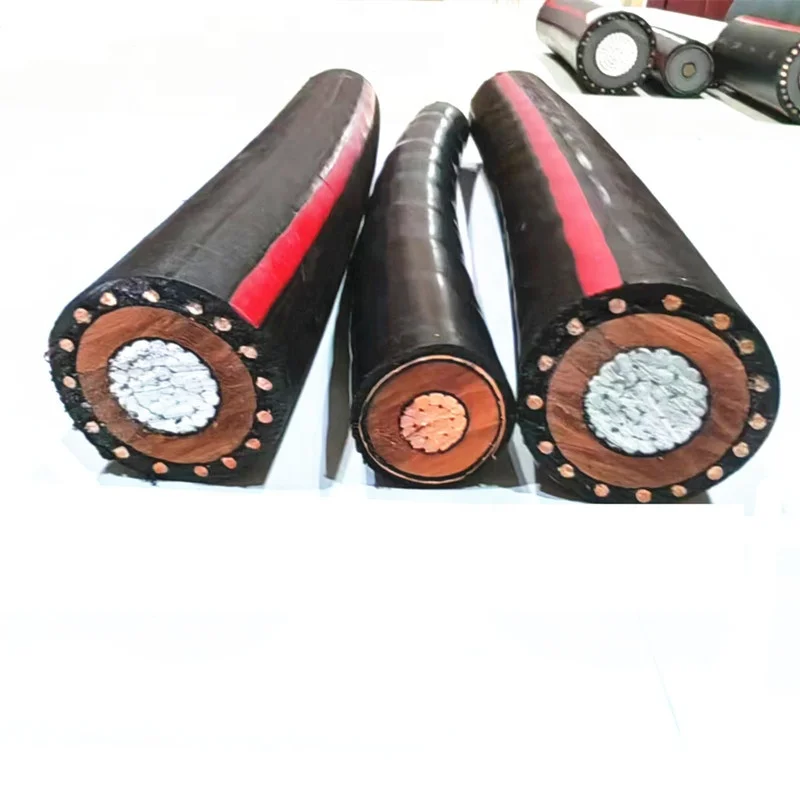

Construction
Conductor : Electrolytic Compressed aluminum class 2 or copper class 2 (Soft Copper or 1350-H19 aluminum)
Conductor screen : Semi conductive extruded layer
Insulation: TR-XLPE
Insulation screen : Semi conductive extruded layer, Easy strippable.
Copper screen : Copper wires
Outer sheath : Sun Resistant XLPE sheath
Marking text : E,g. " HT CABLES (UL) E466020 4/0AWG 35KV MV-105 AL TRXLPE 1/3 CN 11x
14 AWG 345 MILS 100% INS XLPE JACKET SUN RES **** FT "
Rated voltage (U) : 5~35 kV
Conductor screen : Semi conductive extruded layer
Insulation: TR-XLPE
Insulation screen : Semi conductive extruded layer, Easy strippable.
Copper screen : Copper wires
Outer sheath : Sun Resistant XLPE sheath
Marking text : E,g. " HT CABLES (UL) E466020 4/0AWG 35KV MV-105 AL TRXLPE 1/3 CN 11x
14 AWG 345 MILS 100% INS XLPE JACKET SUN RES **** FT "
Rated voltage (U) : 5~35 kV
Core Identification
Insulation : Natural
Outer Sheath Colours
Available colours : Black with 3 red stripes.
Installation recommendations
Min. Bending Radius during Installation : 20xD
Min. Bending Radius Fix Installed : 15xD
Max. Conductor Operating Temperature : 105°C
Min. Bending Radius Fix Installed : 15xD
Max. Conductor Operating Temperature : 105°C
Standards applied
UL1072
ICEA S-94-649
AEIC CS8
ICEA S-94-649
AEIC CS8
