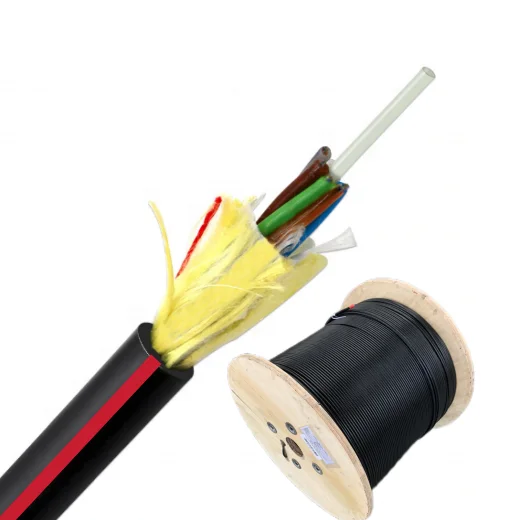

High Quality ASU ADSS Single Mode G652D Fiber Optic Cable 4 6 8 12 Core Outdoor Red Stripe 48 96 Core ADSS Optical Fiber Cable


Product Description

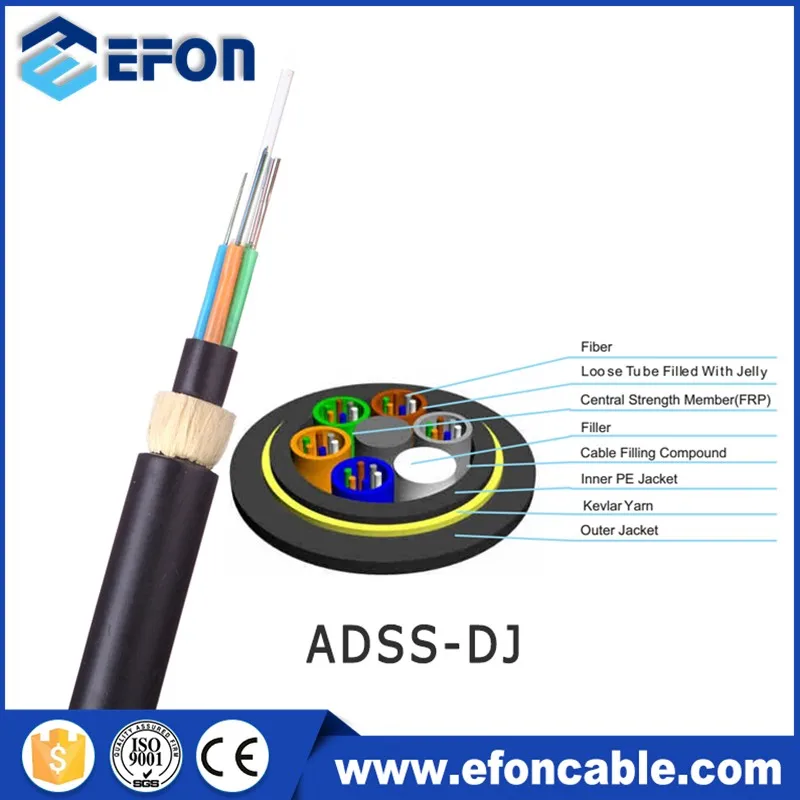

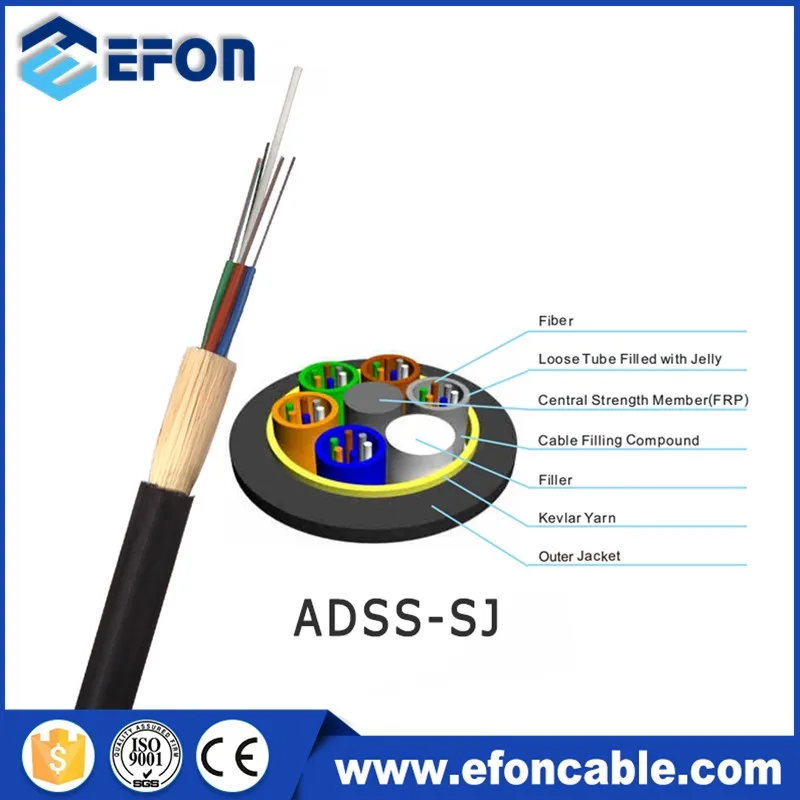

All-dielectric self-supporting
ADSS cable is loose tube stranded.
Fibers,250μm,are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.
The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a
non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling
compound,it is covered with thin PE(polyethylene)inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking)outer sheath.




Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provide high tensile strength.
UV and waterproof design.
Applications:
Inter building voice or data communication backbones.
Installed as aerial/lashed, ducts, underground conduits.
Suitable for network in high electromagnetic interfering places.
Long distance and local area network communication.



Specification


Model Number
ADSS-SJ
Type
Fiber Optic Cable
Place of Origin
China
Fiber Type
G652D/G657A1/G657A2
Cable Diameter
8.5-20mm
Product Name
Fiber Optic ADSS Single Jacket Cable
Sheath Material
PE//AT
Strength member
Aramid yarn
Cable Structure
Stranded Loose Tube

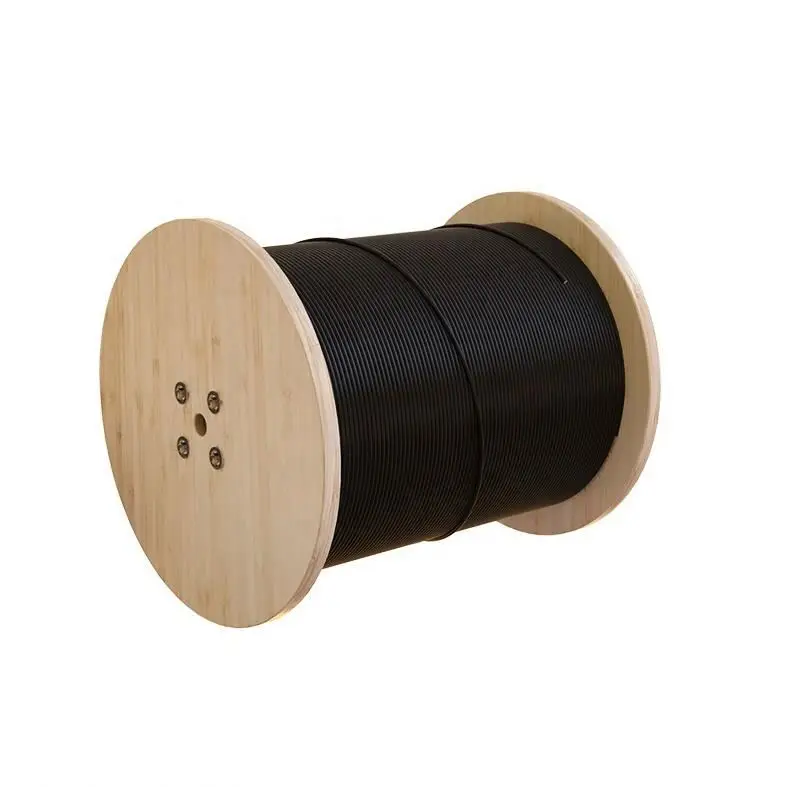

Packing

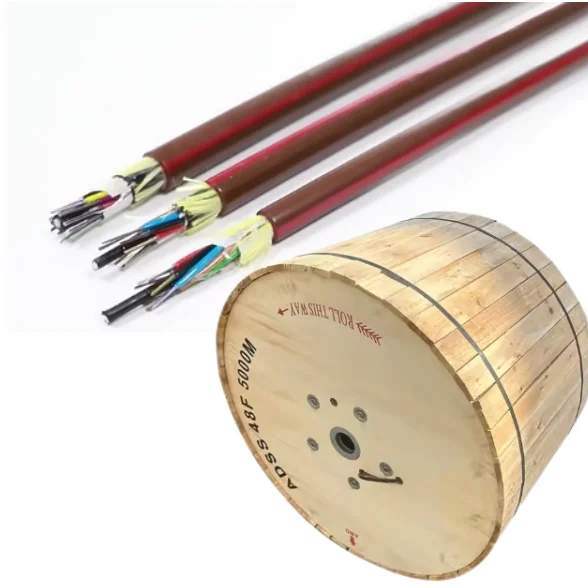

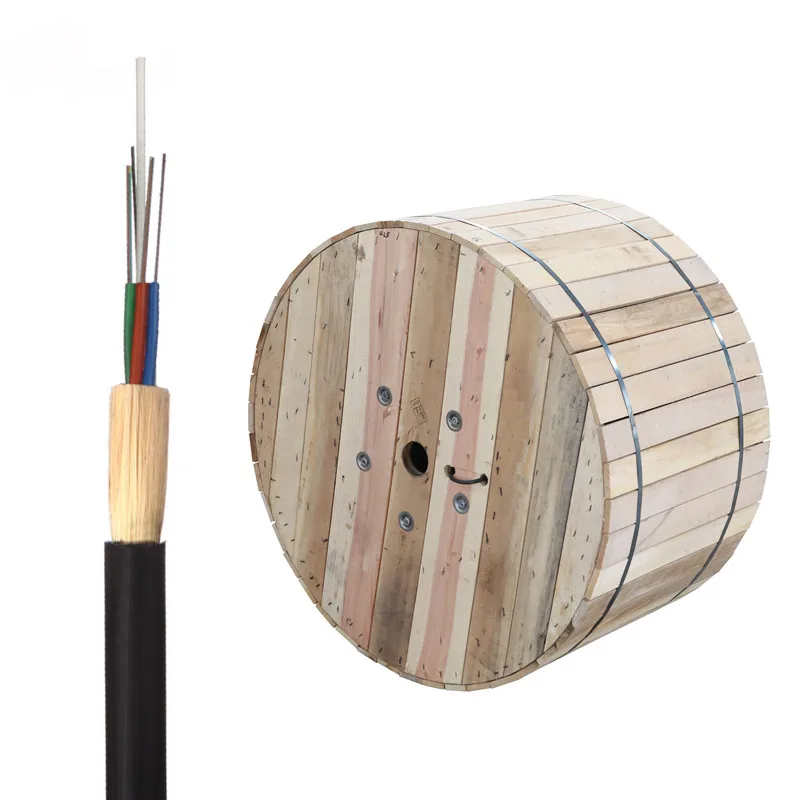

2KM 3KM 4KM 5KM Wooden Reel
Certification
CE/ROHS/ISO9001/ANATEL
Span
50m-1000m


Packing & Delivery




DURM PACKING
