Product Overview
Description
Product Description

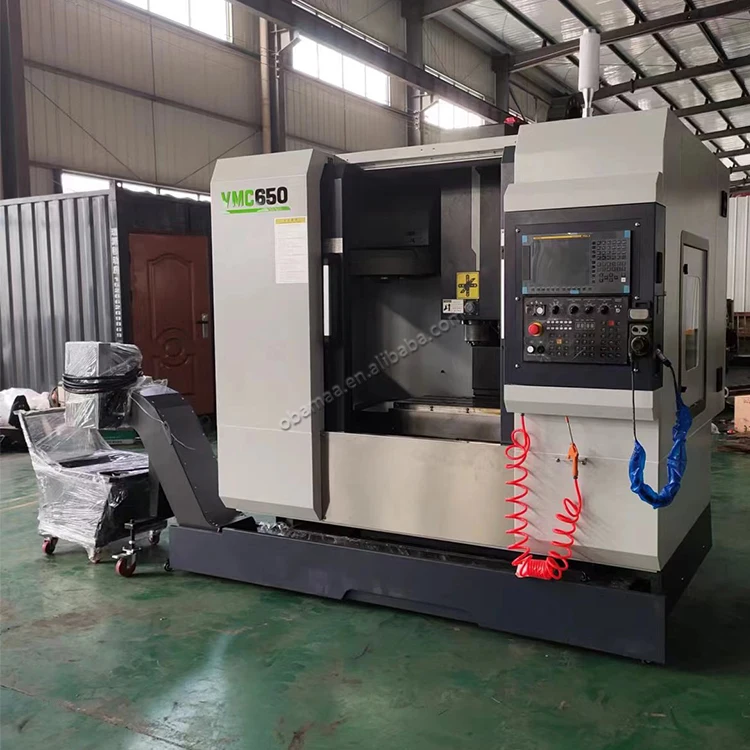

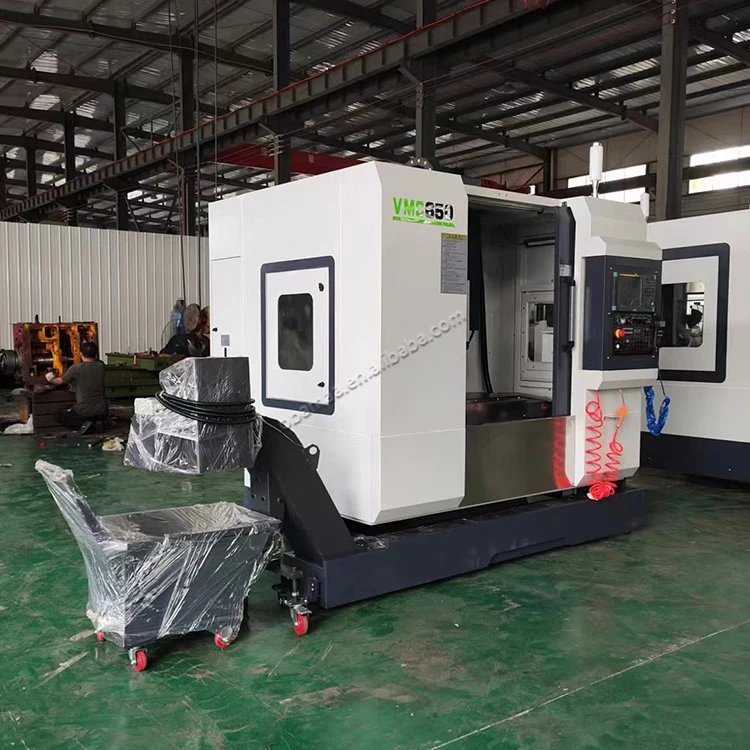

Vertical Machining Center VMC650
Main Features:
1. The structural parts are analyzed and designed by the advanced Finite Element Analysis.It provides
a detailed analysis for structural stress/strain conditions,and ensures excellent machine rigidity and
lifetime stability.
2. Pre-tensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.
3. The endface of spindle stock,screw support faces and block contact faces are fully Hand-scraped to
2. Pre-tensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.
3. The endface of spindle stock,screw support faces and block contact faces are fully Hand-scraped to
increase machining accuracy and feeding smoothness.
4. The machine structure is constructed from high quality Meehanite cast iron and stress released to
4. The machine structure is constructed from high quality Meehanite cast iron and stress released to
ensure great rigidity and precision.
5. Over sized column and bed ,assuring extra high rigidity of machine frame.
5. Over sized column and bed ,assuring extra high rigidity of machine frame.
Specification
No. | Specifications | Unit | Parameter |
1 | Table size | mm | 900*400 |
2 | Table Max load | kg | 400 |
3 | X/Y/Z axis travel | mm | 650/400/500 |
4 | Distance between spindle center and column guide surface | mm | 550 |
5 | Distance between spindle end face and worktable surface | mm | 105-655 |
6 | X/Y/Z Max.feed speed | mm/min | 8000 |
7 | X/Y/Z Max. Rapid traverse | m/min | 20/20/15 |
8 | The spindle Max. speed | r/min | 8000 |
9 | The spindle taper hole | Type | BT40 |
10 | Spindle motor | kW | 5.5/11 |
11 | Repeat positioning accuracy | mm | 0.004 |
12 | Machine size(L*W*H) | mm | 2200*2250*2350 |
13 | Weight | kg | 4000 |

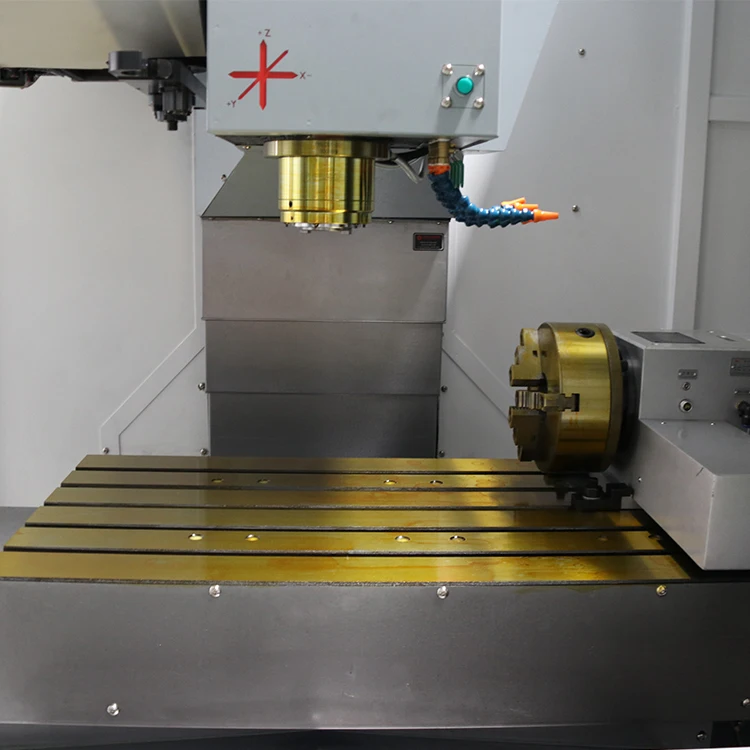

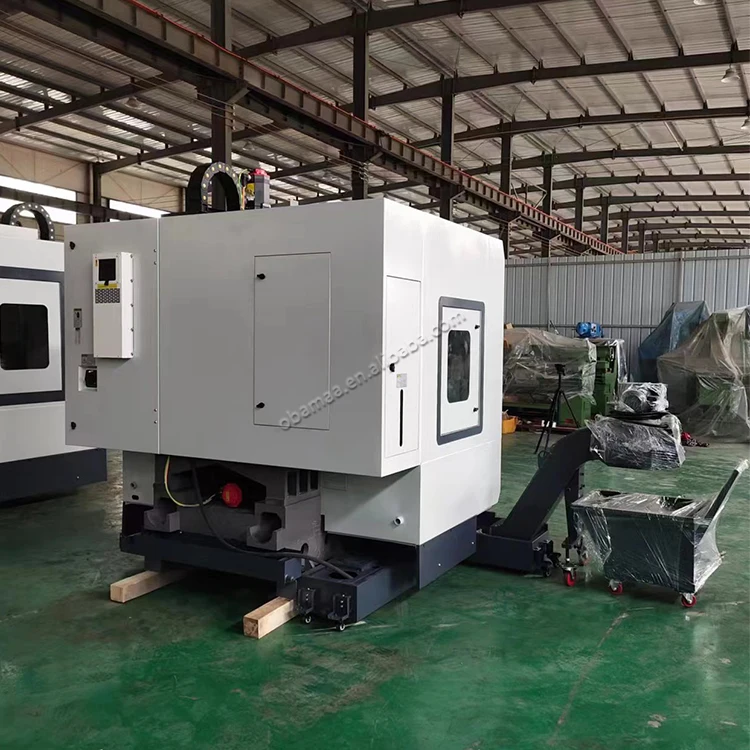

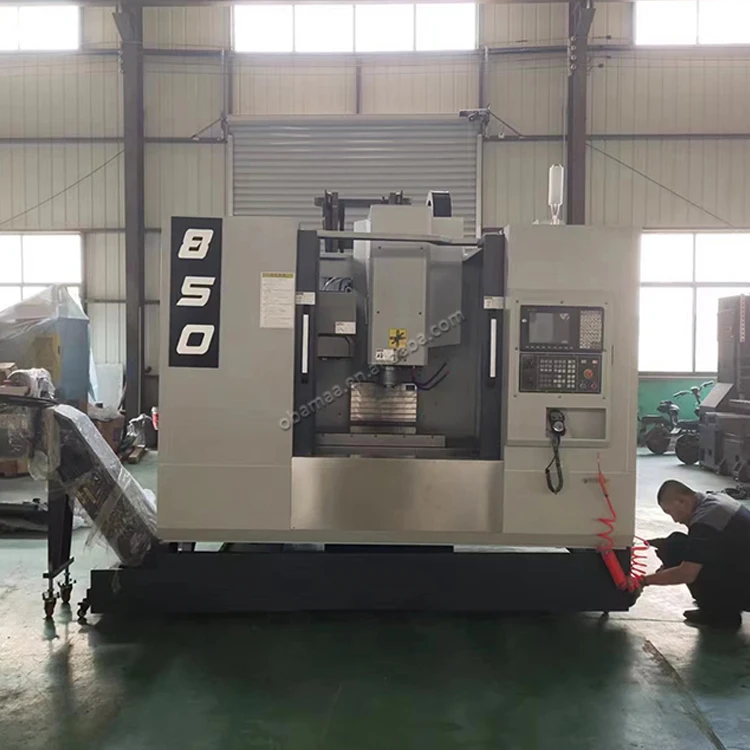

Details Images
Why choose us
Customer visits
Customer feedback
Packing & Delivery
Packing:
1. WE MUST ENSURE safe and efficient transport and relatedservice to meet customers' needs.2. Machine packaged with film to protect whole machine complete transportation to customer
destination.
3. The main components, controller, chip conveyor, and cold air cabinet are packed in wooden boxes
before shipment after film sealing.
