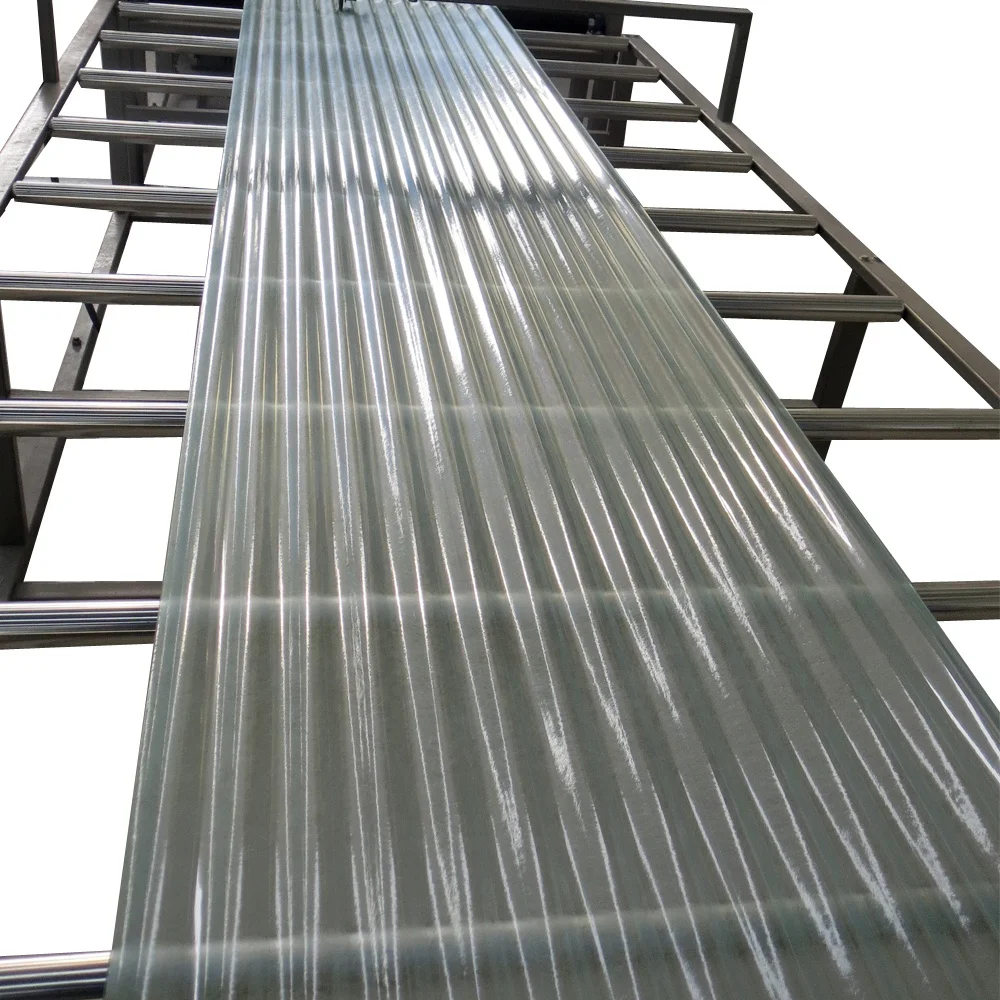

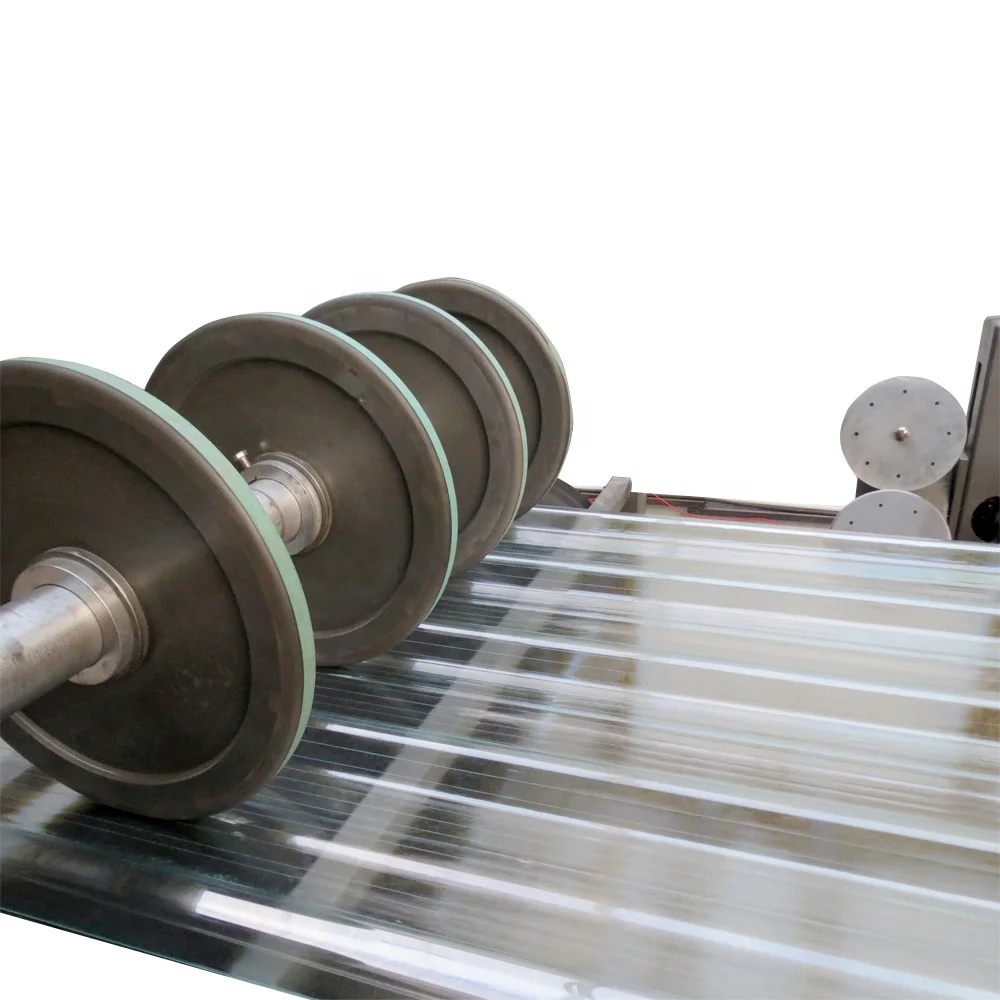

FRP fiber glass reinforced plastic skylight panel production line
- Category: >>>
- Supplier: Qinhuangdao Dinuo Technology Development Co. Ltd.
Share on (1601281480025):
Product Overview
Description
Product Overview
fiberglass FRP GRP corrugated panel making machine
Intelligent FRP lighting sheet machine have many advantage,include high automation, save material, efficient and so on .This production line can produce lighting sheet, colored sheet, common flat sheet .
Machine advantage
1.There are two resin storage tanks for larger storage capacity.
2.Stable performance, longer service life, lower maintenance cost.
3.Three independent measuring pumps, measuring is more accurate.
4.Impregnation Platform multi-channel temperature control,Temperature is more accurate.
5.There are three Heating Ovens to heating up quickly. 6.Flatten Roller ensure the film is flatter.

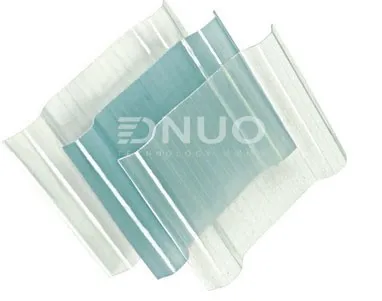

Advantages of FRP sheet：
1. FRP sheets have longer service life.
2. FRP sheets are harder .
3. FRP sheets is light-transmitting and not easily deformed when exposed to high temperatures.
4. FRP sheets are more resistant to acid, alkali and chemical corrosion.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power requirement | 100KW |
2 | Production speed | 2-12m/min |
3 | Wave height | maximum 130mm |
4 | Machine main dimension | 59m(L)*1.85(W)*3.5m(H) |
5 | Sheet thickness | 0.4mm-4mm |
6 | Operation staff | 3-6 people |
7 | Sheet width | maximum effective width of flat sheet is 1500mm |
8 | Power consumption | actual power consumption is about 40kw/h |
PRODUCT CONFIGURATION
Dusty-free edge cutting equipment
Function:Ensure no dust is generated when cutting
Fiber press roller(only sofft)
Heating Ovens
Function:Tower ovens, the board is heated evenly through circulating air
Resin stirring tank
Function:stir and mix , power mix on high-speed impeller type, can be mixed with high proportion powder filler

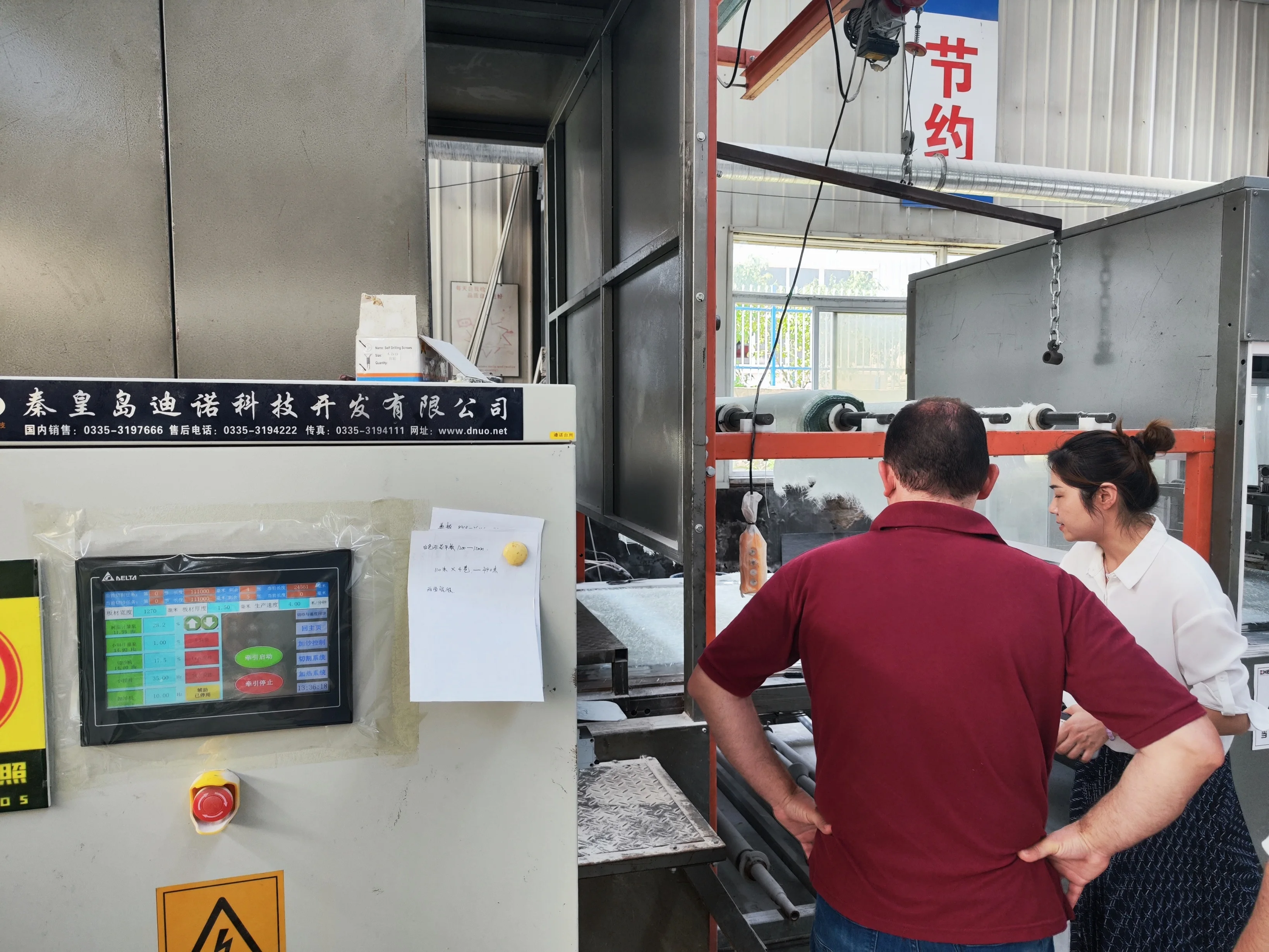

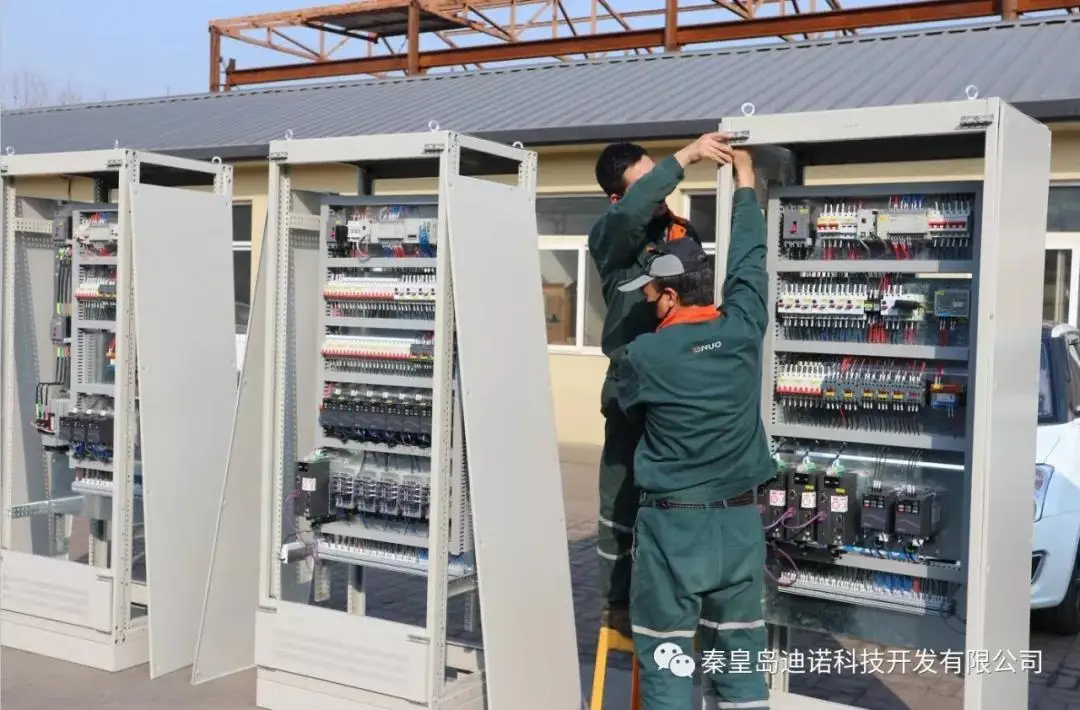

Control cabinet
Function: All the tasks can be set on the electric control cabinets.Between two electric control cabinets can realize dual-screen communication operation production

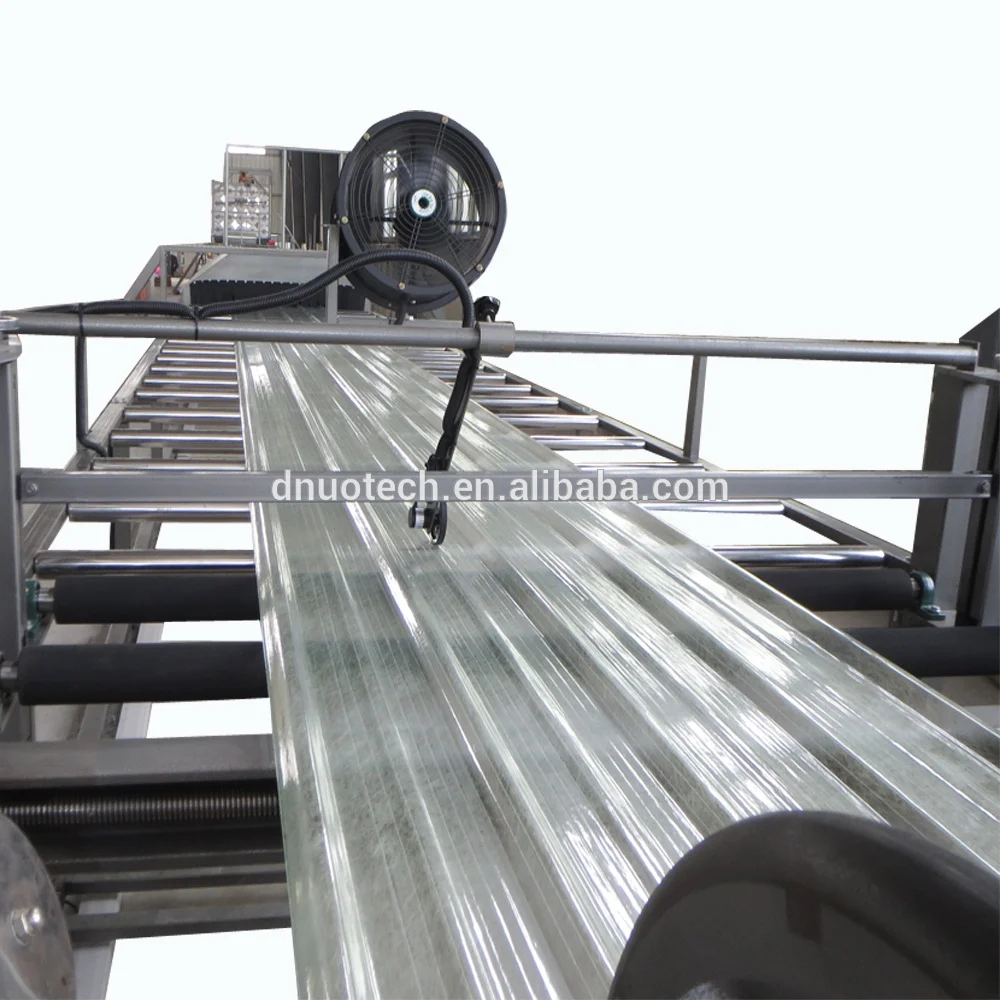

Air cooling
Function:cooling sheet, improve degree of curing and avoid yellowing and aging of FRP sheet.
Successful Project
Used on swimming pool roofs
Used in vegetable greenhouses
Used in factories
SIMILAR PRODUCTS

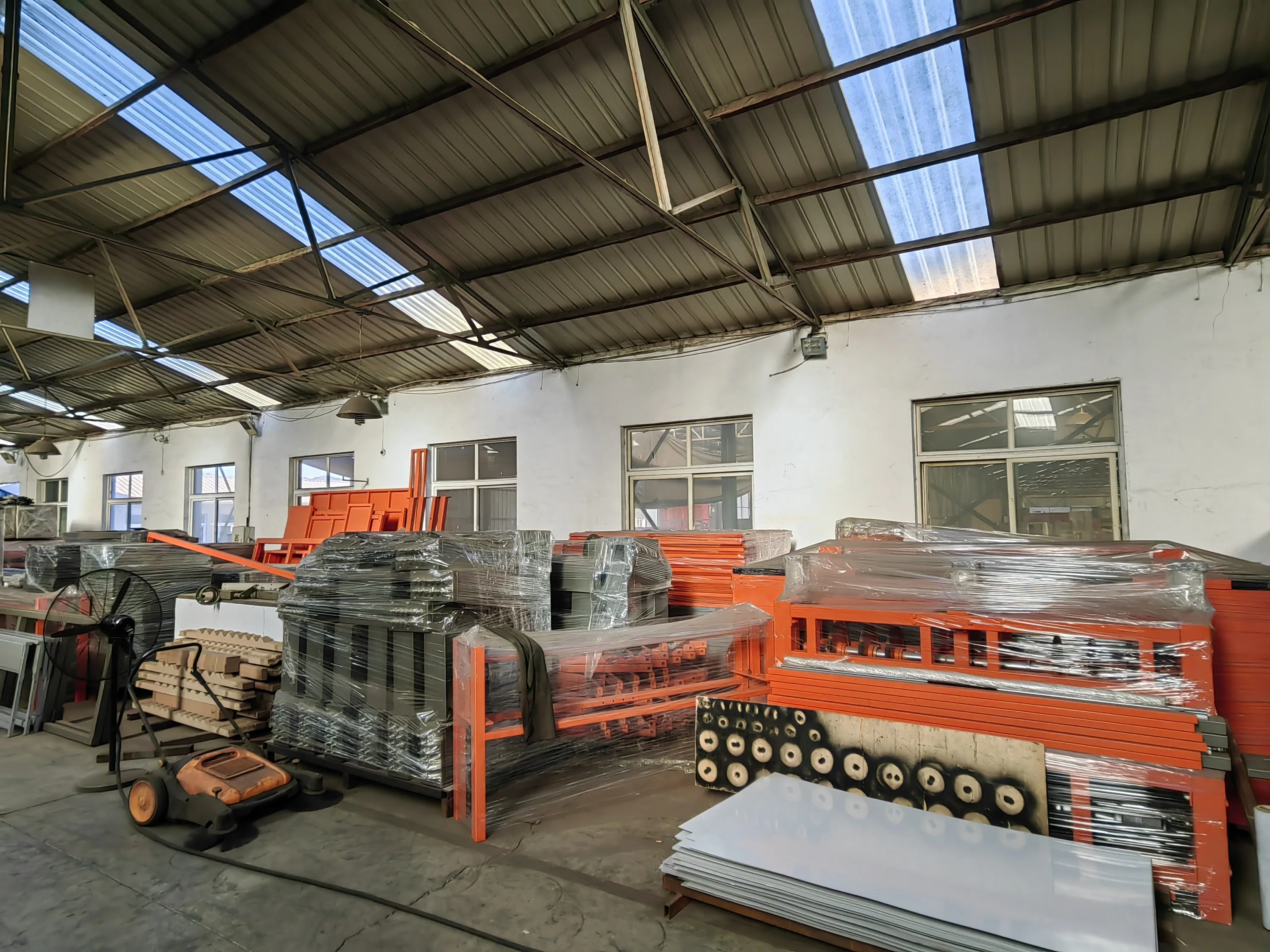

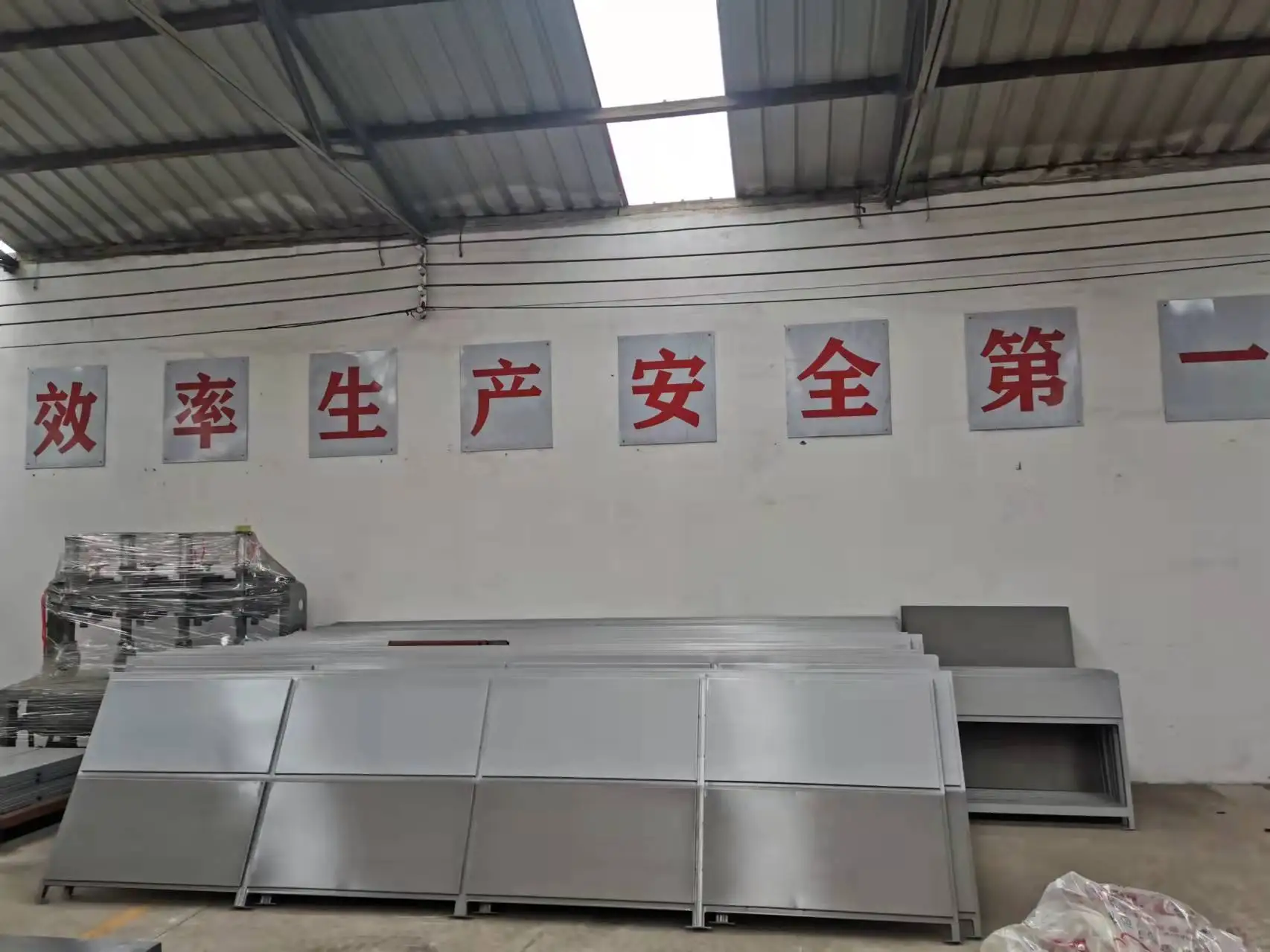

Our factory
DNUO is a family owned and operated business with more than 20 years of experience in all facets of FRP sheet making machine business.
DNUO have worked in frp sheet machine industries over the years and our success is founded on the fact that we go the extra mile to understand your values and your needs. Our vision is to be the preferred supplier of choice by offering the highest levels of satisfaction to all industries, but don't just take our word for it - check out data below.
DNUO machines are exported to:Indonesia, Malaysia, Thailand, India, Bangladesh, Vietnam, Philippines, Myanmar, Azerbaijan, Saudi Arabia, UAE, Turkey, Russia, Uzbekistan, Kyrgyzstan, Argentina, Chile, Colombia, Mexico, the United States, South Africa, Kenya , Morocco and so on.
FAQ
Q1: What is the approximate production cost?
A1: The cost of a 1mm thick lighting panel is approximately 10.782 yuan/square meter
tile making machinery
tiles making machine
roof tile making machine
tiles machines
roof making machine
machine roofing
tile making machinery for ceramic floor
tiles making machine
FRP roof sheet production line
tiles making machine
plate making machine
roof tile making machine
frp sheet making machine
frp roofing sheet machine
Machine Made Frp Sheet
Fiberglass roofing sheet making machine
Fiber tile making machinery
FRP tiles making machine
fiber roof tile making machine
fiberglass tiles machines
grp roof making machine
frp plate making machine
fiberglass roof tile making machine
FRP roof sheet production line
glass fiber plates machine
frp sheet making machine
frp roof sheet production line
frp roofing sheet machine
glass fiber plates machine
glass fibre reinforced plastics panel machine
frp flat board making machinery
plastic fiber sheet making machine
machine-made fiberglass sheet
fiberglass flat sheets
corrugated/roof/tile/plate
glass fiber plates machine
frp sheet making machine
A1: The cost of a 1mm thick lighting panel is approximately 10.782 yuan/square meter
Q2: Where are the molds placed? How to place it?
A2: The mold is placed in the heating box, and a mold is placed every half meter in the first half of the box.Q3: Does the equipment provide installation? Is there any charge?
A3: Installation fee: There is no installation fee, but you need to pay for the engineer's food, accommodation and round-trip air tickets Number of workers required by the customer: at least 8 people. If you are not very proficient in operating the machine at the beginning, you will need at least 8 people. In the future, if you are proficient in operating the machine, you will need 4-7 people.
