New WiFi Router 4G LTE With sim card slot SUNCOMM SC818 Cat6 WiFi 2.4G 5G 300Mbps L2TP PPTP 4G Routers
- Category: >>>
- Supplier: SHENZHEN SUNCOMM INDUSTRIAL CO. LTD.
Share on (1601281556935):
Product Overview
Description
Why Choose Us
Product Details
SC718 is a wireless routing device that supports 4G LTE CAT4.
Up to 150Mbps downlink and 50Mbps uplink are supported. Multiple users can be accessed simultaneously, support WiFi AP mode，which is suitable for home users. The external LTE antenna is suitable for various network environments; Provide users with high-speed Internet experience at a price close to consumers.
Professional testing standards guarantee the quality experience of customers.
Up to 150Mbps downlink and 50Mbps uplink are supported. Multiple users can be accessed simultaneously, support WiFi AP mode，which is suitable for home users. The external LTE antenna is suitable for various network environments; Provide users with high-speed Internet experience at a price close to consumers.
Professional testing standards guarantee the quality experience of customers.
Technical Standard | Compatible with FDD-LTE, TDD-LTE, WCDMA Default IEEE802.11 a/b/g/n/ac |

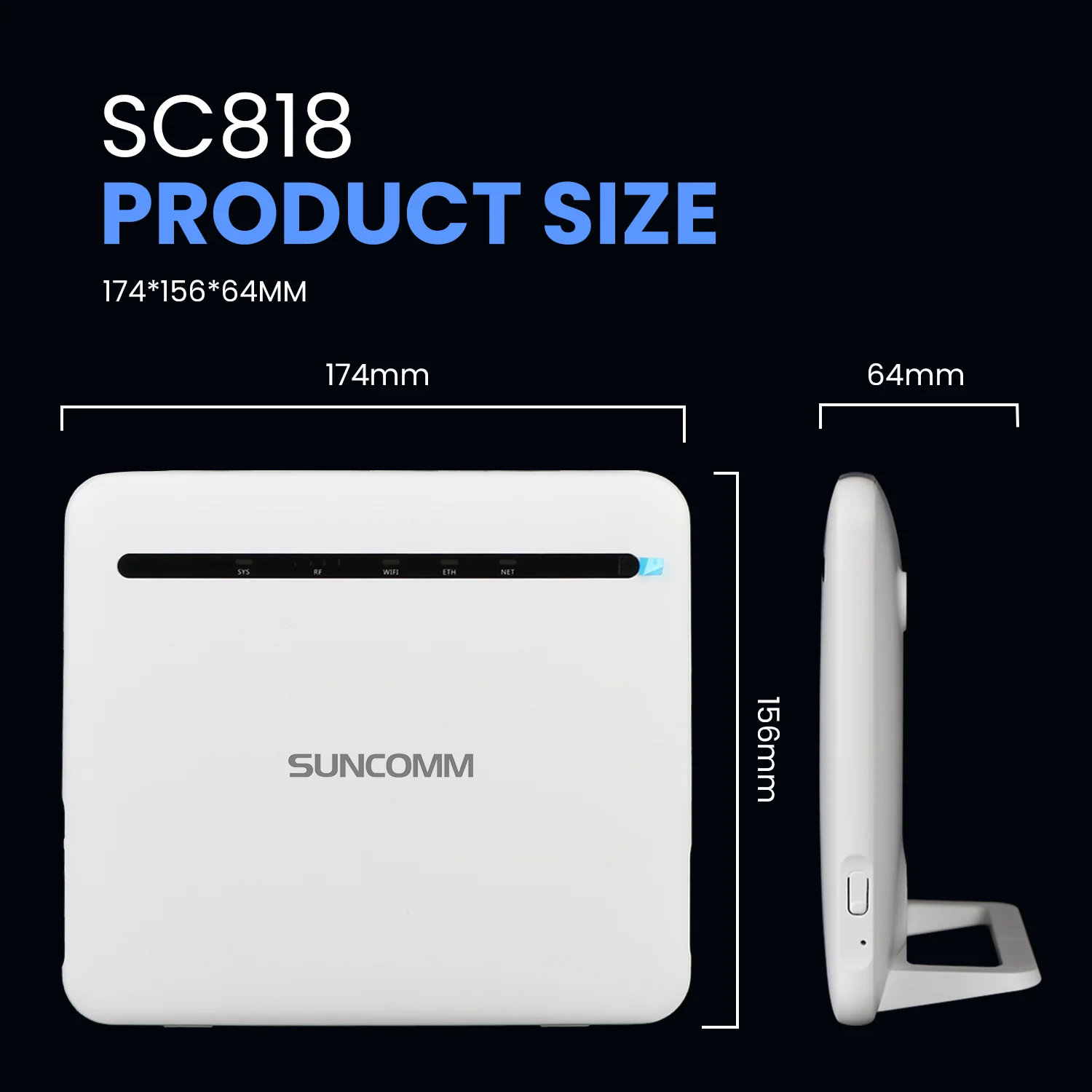

Dimension | 174mm*156.8mm*66.5mm |
Weight | 281.7g without battery 338g with battery |
Operating Frequency | EA version: FDD:B1/B3/B5/B7/B8/B20/28/B32 TDD:B38/40/41/42/43 WCDMA:B1/B5/B8 SA version: FDD:B2/B4/B5/B7/B8/B20/B28/B32/B66 TDD:B38/B40/B41/B42/B43 WCDMA:B2/B4/B5 |
CA | Support DL 2CA |
Wi-Fi | 2.4G&5GHz, Wi-Fi 2*2 MIMO, DBDC IEEE802.11 a/b/g/n/ac |
Maximum Data Throughput | LTE CAT6 FDD-LTE(DL/UL) 300Mbps/50Mbps TDD-LTE(DL/UL) 223Mbps/20.4Mbps DC-HSPA+ (DL/UL) 42/5.76Mbps |
Receive Diversity | Support Receive Diversity |
BB Chipset | ASR1828 |
Wi-Fi Chipset | RTL8192FR+QCA6174A-1 |
Memory | Modem: 1Gb+1Gb |
Power Consumption | Maximum Power Consumption: < 12W Typical Power Consumption: < 8W |
Power Voltage | DC12V/1A |
1*USIM Card Slot (2FF, SIM card) 3V SIM card and 1.8V SIM card. support SIM/USIM/UIM, standard 6 PIN SIM card interface eSIM is optional | |
Power Indication LED RF Signal Strength LEDs Wi-Fi/WPS Indication LED WAN/LAN Status LED Internet Status LED | |

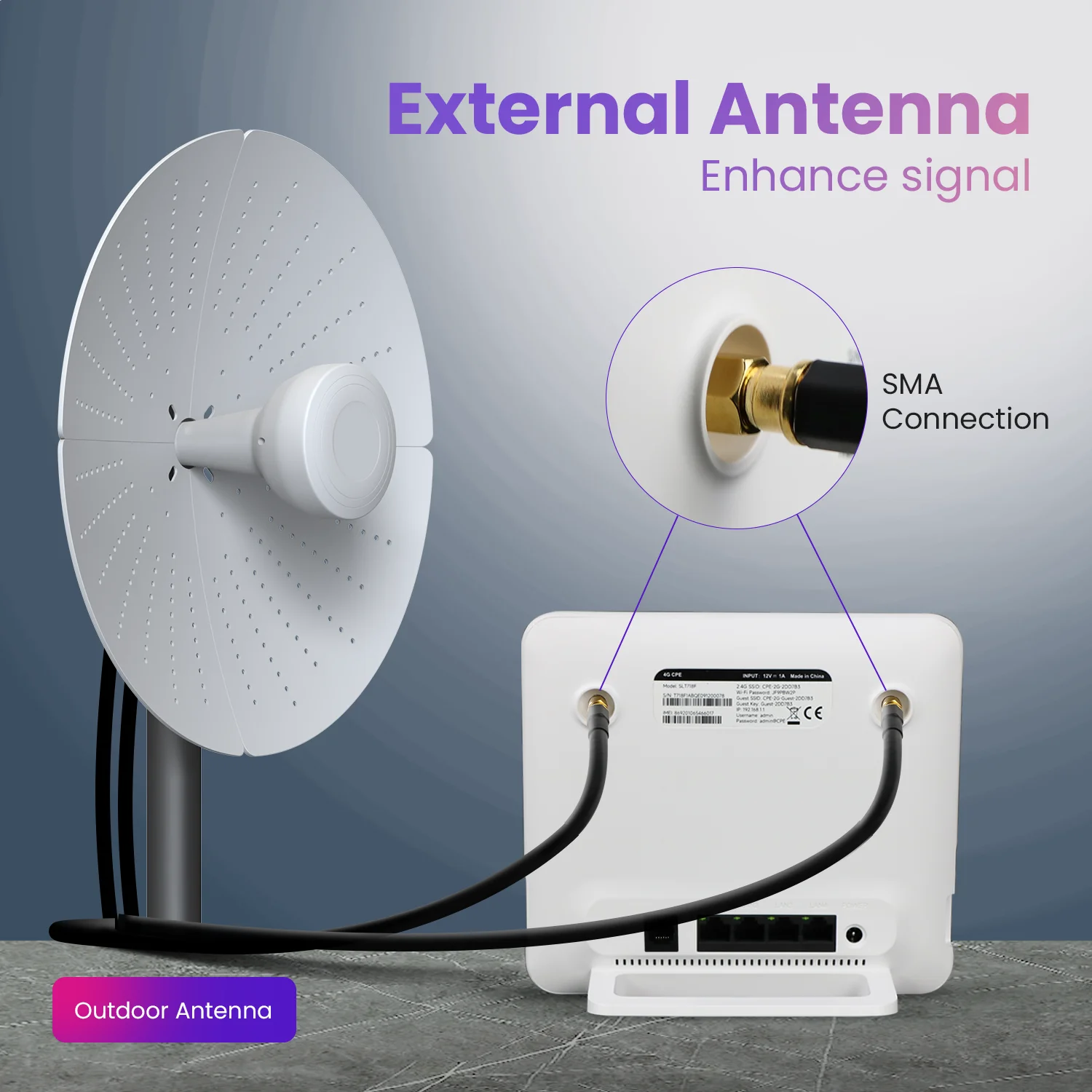

Antenna | 2*internal Wi-Fi antenna 2*internal LTE antenna 2*external LTE antenna (Optional) |
Buttons | Power, WPS, Reset |
Battery | 2920mAh (Optional) |

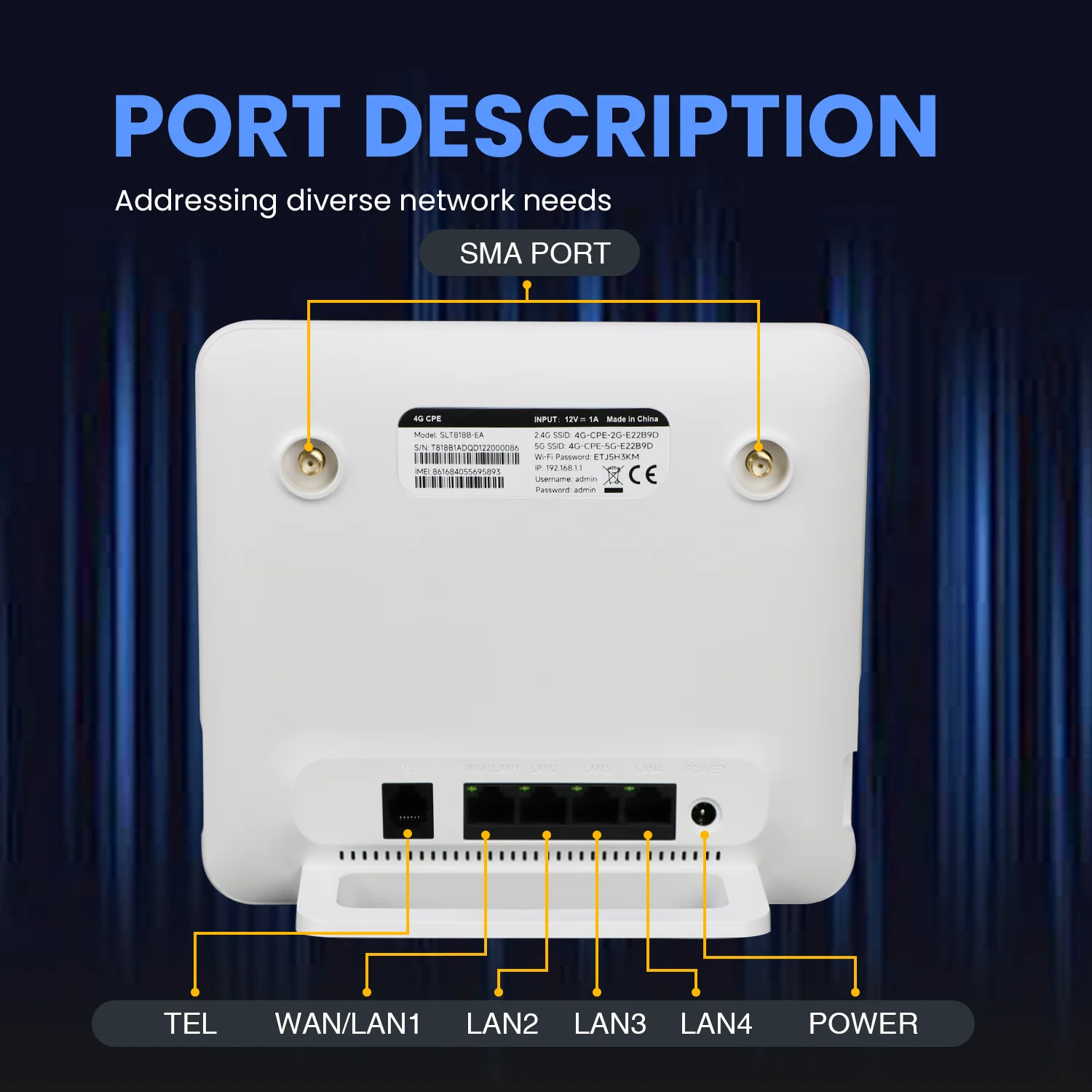

Ethernet | 1*WAN+3*LAN, 10BaseT/100Base/1000Base automatic adaptive port |
SW Update | TR069 & FOTA & Local |
Voice | VoLTE & VOIP & CS |
IPv4/IPv6 | Support |
Reset | Pinhole |
ESD | ESD Protection circuit; Contact±6KV, Air±8KV |
VPN Pass Through | PP2P/L2TP/IPSec |
Operating Temperature | Normal: 0℃ to +45℃ |
Storage Temperature | -20℃ to +70℃ |
Humidity | 5% ~ 95% |
