China Top Brand New Cold Milling Machine 13m XM1305K Road Construction Machinery with attachment Factory Price for sale

Share on (1601281573443):


Price:$76,000.00-90,000.00

Quantity:


Product Overview

Description





China Brand New Welt Milling Machine XM1305K 1.3m Road Cold Planer Asphalt Machine With 177kw Rated Power


Contact Way




Product Overview


XM1305K milling machine is a kind of medium-sized milling machine with high performance, which is mainly used for repair and renovation of asphalt concrete pavements of highways,National and provincial highways, freight yards, parking lots, communities, etc. It can efficiently remove road congestion, waves, mesh patterns, ruts, etc.:excavate the pavement pits and trenches; roughen the cement pavement and mill the surface faulting.This machine has high work efficiency, high level of intelligence, long working cycle, and good maneuverability, reliability and maintenance, and the overall technical performance has reached the international advanced level.

*Intelligent depth control technology is adopted and the high-precision displacement sensors are integrated in the rear outrigger cylinders to reach the designated milling depth quickly and accurately in the automatic state;

*The mechanical belt drive system with high drive efficiency ensures strong driving force under heavy load,and the perfect power matching ensures low fuel consumption;

*The front wheel designed with big steering angle enables the machine to have very small milling radius;

*The four-wheel full hydraulic traveling driving and high-precision hydraulic differential anti-skid systems provide strong
driving force;

*The patented quick-change tool apron system has small cutting resistance, high wear resistance and more convenient replacement;

*Large-capacity water tank and fuel tank are equipped to extend the working cycle, reduce the water and fuel filling frequency, and shorten the pause time, the water tank is manufactured with rotational molding process, which is durable and rust-resistant;

*With the big swinging angle of conveying belt and the maximum conveying height of 4,900 mm, the materials can be loaded properly under various working conditions.

Contact me
Candice Li
Mobile/WhatsApp/Wechat: +86-13599640301
Email:candice@cruking.com



Product Paramenters


Item
Unit
XM1305K
Milling width
mm
1300
Maximum milling depth
mm
300
Cutter tip pitch
mm
18
Amount of tools
piece
97
Diameter of rotor (including cutter)
mm
930
Engine model

SC7H
Engine manufaturer

SDEC
Rated speed
rpm
2200
Rated power
kW
177
Emission standard

EU Stage 3a
Fuel tank
L
500
Water tank
L
850
Working speed
m/min
0-36
Traveling speed
km/h
0-8
Theoretical gradeability
%
75
Maximum ground clearance of milling drum
mm
20
Minimum milling radius
mm
350
Ground clearance
mm
180

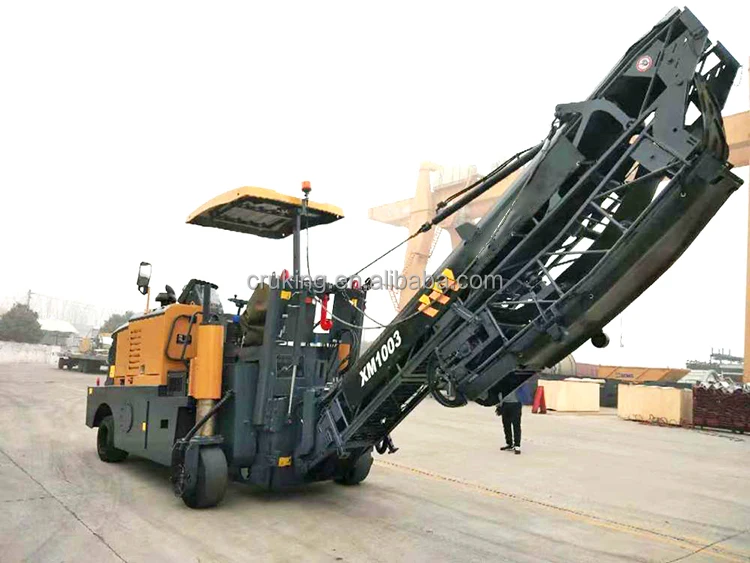

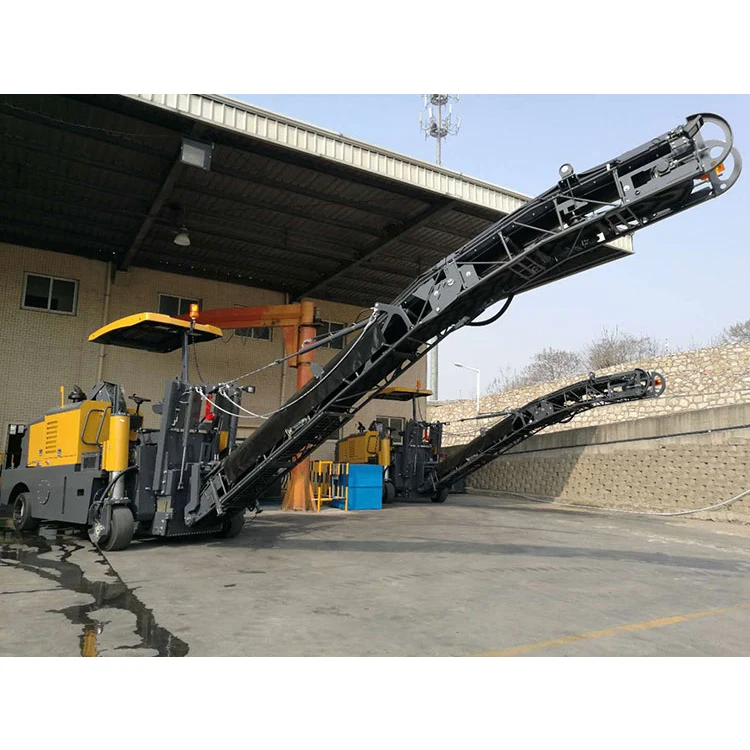

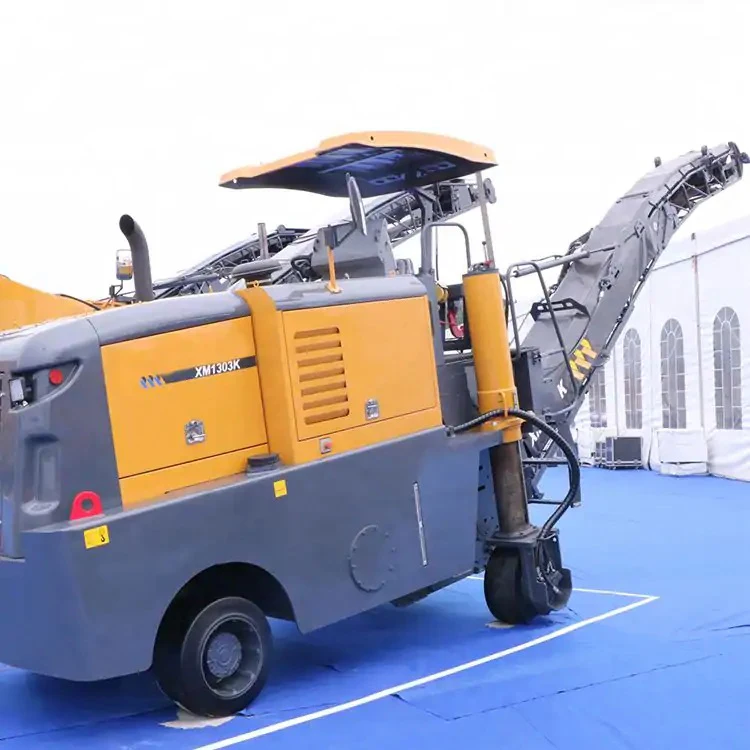

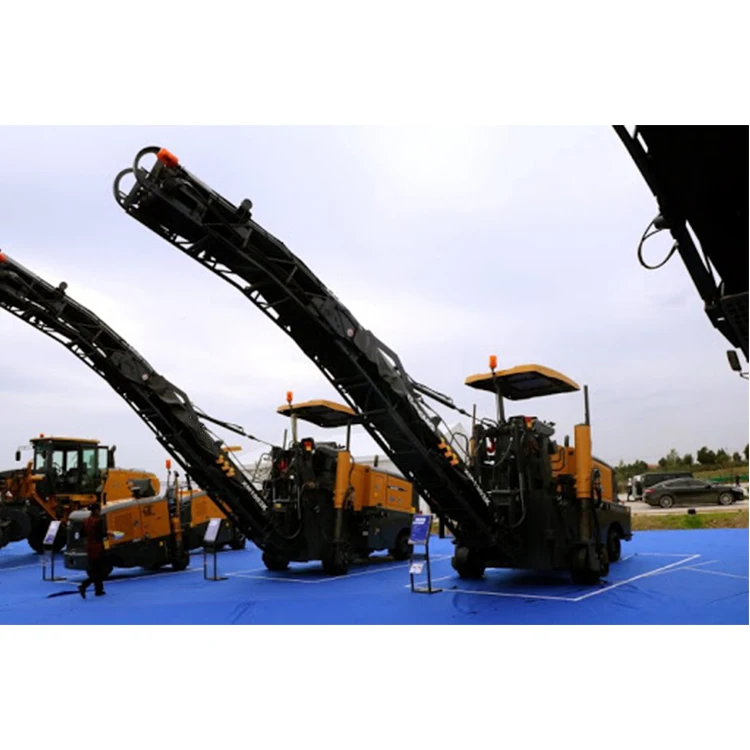

Details Images
